2004 is the first year for the RZT. There are two mod-

els RZT17 and RZT22. Now for the ‘05 model year is

Kohler Command 19 HP model witha 50” deck.

This series of riders has the unique feature of not hav-

ing to reset the PTO switch if the end users tries to

mow in reverse. Once one lapbar is moved in to neutral

or forward the PTO will turn back on.

The “RZT 17” has a 17 HP Briggs & Stratton Intek

which is a single cylinder engine with full pressure lubri-

cation. The engine drives the dual hydrogear EZT

Hydrostatic transmissions and the electric PTO. The

PTO runs the 3-in-1blades on the 42” twin blade

stamped deck. On the front of the stamped frame is a

large pivoting front axle. All this with the 3 gallon fuel

tank will provide many hours of fun and relaxing mow-

ing.

The “RZT 22” is very similar to the RZT 17 except for

the twin cylinder, 22 HP Briggs & Stratton Intek. There

are also 4 wheels, instead of 2, on the 50” triple blade

stamped deck.

All versions of the Cub Cadet RZT (and White ZT) are

bagger capable.

1. DECK LEVELING

1.1. To adjust the deck pitch, front to back, loosen or

tighten the jam nuts located on the front stabi-

lizer bracket using a 15/16” socket and a 15/16”

wrench. The correct deck pitch should be 1/8” to

1/4” lower in the front than in the back, as mea-

sured from the blade tips. See Figure 1.1.

1.2. To level the deck, side to side, loosen the screw

on the left side adjustment gear using a 1/2”

socket. Using a 3/4” wrench, run the gear up or

down as necessary until each outside blade tip

is the same distance from the ground.

See Figure 1.2.

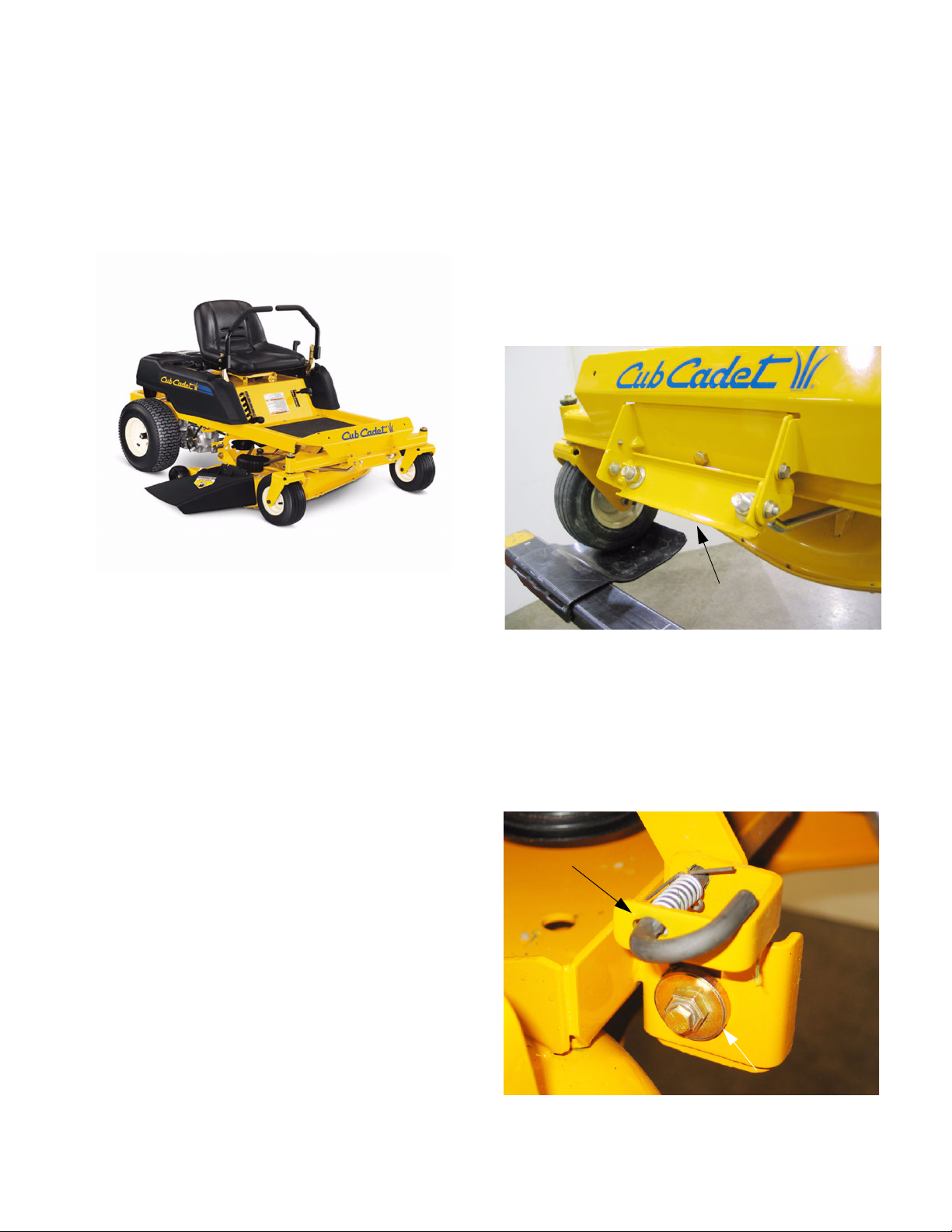

Figure 1.1

Front deck hanger bracket

Figure 1.2

Deck adjustment gear

Deck hanger rod

Cub Cadet RZT 22

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

2. PTO / DECK BELT REPLACEMENT

2.1. Insert a 1/2” breaker bar into the square hole in

the tensioner arm located on top of the deck.

See Figure 2.1.

2.2. Pivot the tensioner arm and pulley to slacken the

belt.

2.3. Remove the belt from the two stationary idler

pulleys and spindle pulleys.

NOTE: The spindle covers do not need to be

removed.

2.4. Remove the belt from the clutch.

3. DECK REMOVAL

3.1. Release the deck J pins from the rear hanger

arms. See Figure 3.1.

3.2. Slide the deck forward until the front stabilizer

bar can be lifted away from the front mounting

bracket.

3.3. Slide the deck out from underneath the unit.

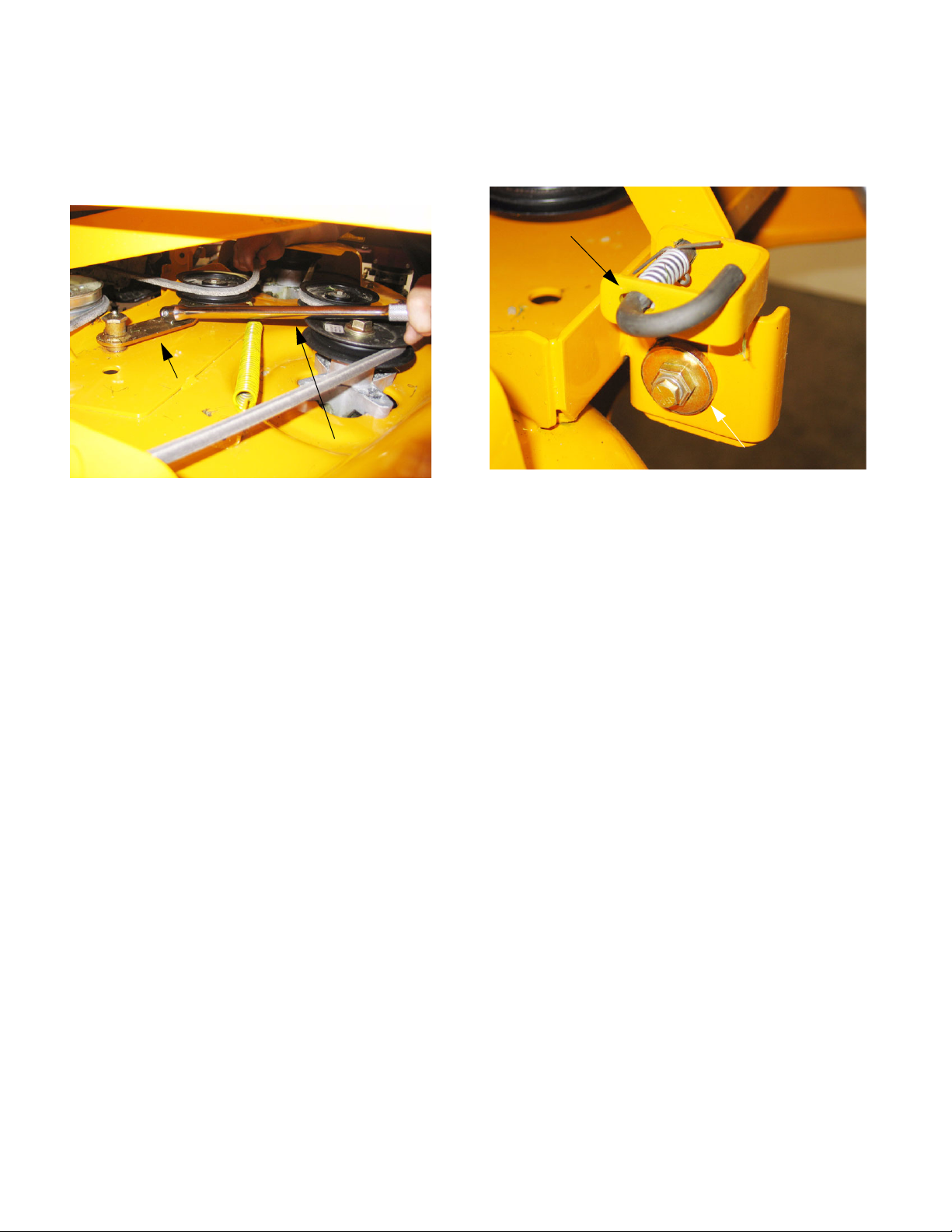

Figure 2.1

1/2” Breaker bar

Idler arm

Figure 3.1

Deck adjustment gear

Deck hanger rod

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

4. DRIVE BELT REPLACEMENT

4.1. Insert a 1/2” breaker bar into the square hole on

the tensioner arm.

4.2. Pull the breaker bar to the right until it can be

braced in position at the pivot point of the ten-

sioner arm. See Figure 4.2.

4.3. Remove the belt from the transmission pulleys,

tensioner pulley and the crankshaft pulley.

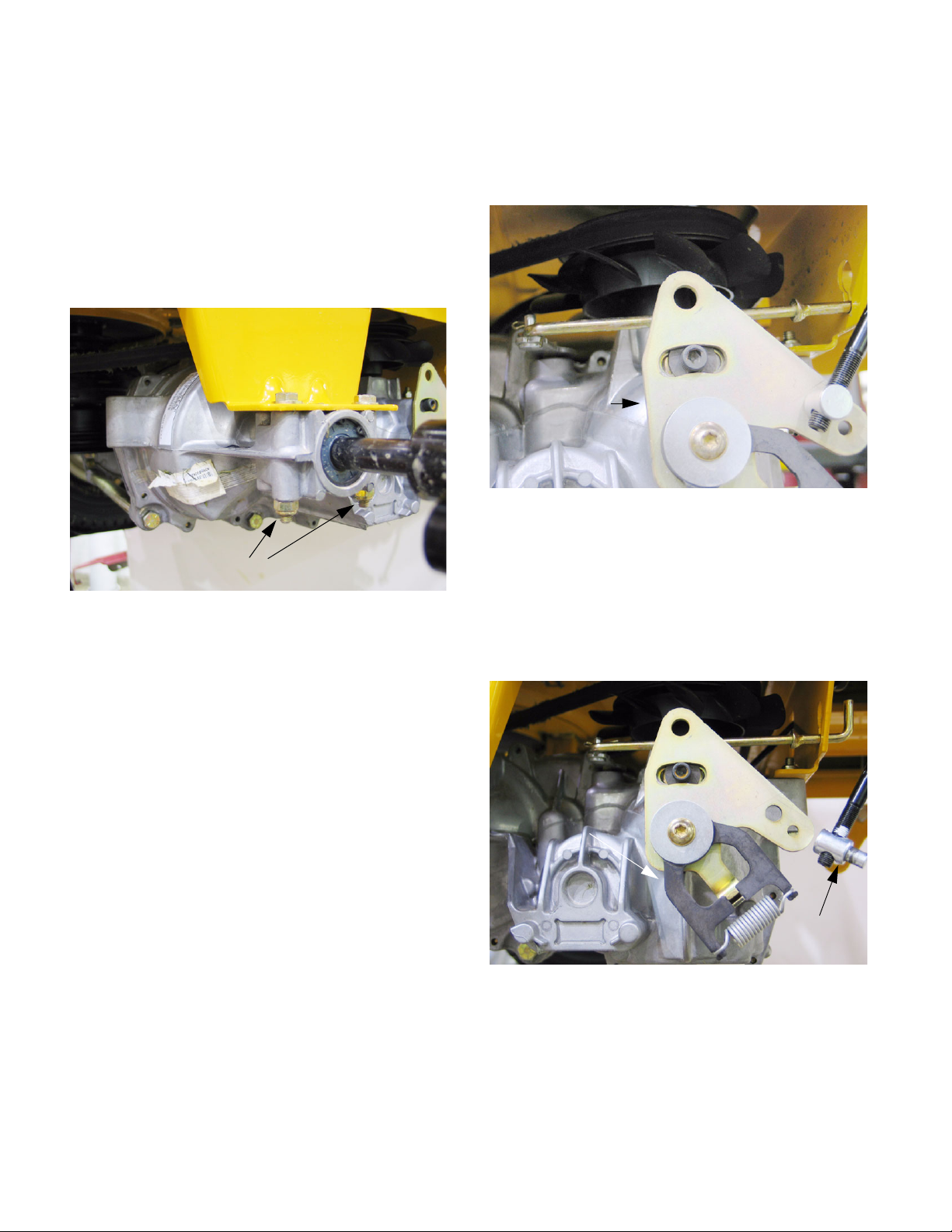

Figure 4.2

Idler arm

5. SERVICING ELECTRIC PTO CLUTCH

5.1. Unplug the clutch.

5.2. Using a 9/16” socket and an impact wrench,

remove the clutch bolt. See Figure 5.2.

5.3. Lower the clutch off of the crankshaft.

5.4. Remove the crankshaft key.

5.5. Remove the crankshaft pulley. See Figure 5.5.

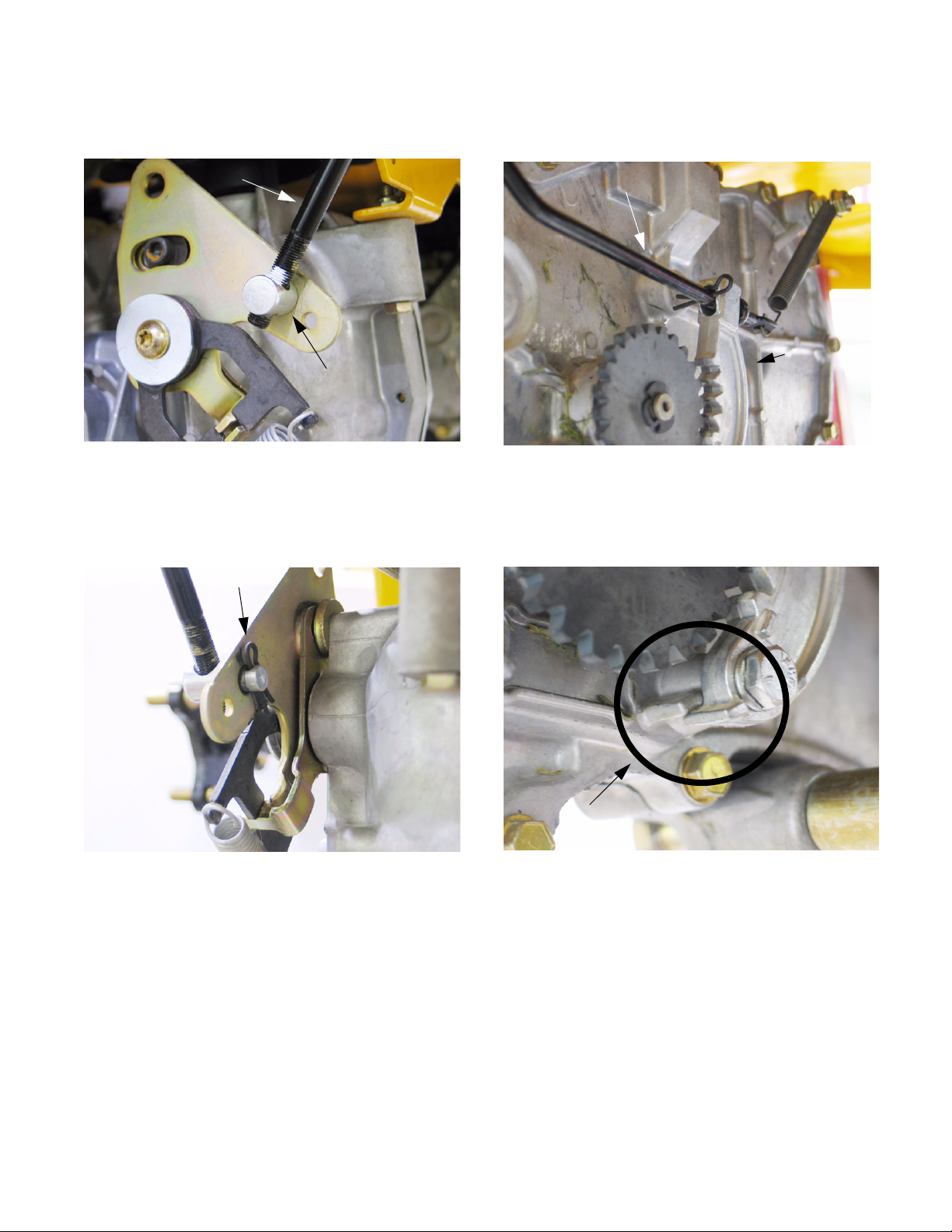

Figure 5.2

7/16-20 x 4.0 Hex cap screw

Figure 5.5

Key

Crankshaft pulley

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

5.6. Use a 9/16” socket to adjust the air gap on the

clutch to between.010” and.015”.

See Figure 5.6.

NOTE: Clutch adjustment can be done with the

clutch in the unit. If a new clutch is being put in

the adjustment can be done on the bench.

6. TRANSMISSION REPLACEMENT

6.1. Insert a 1/2” breaker bar into the square hole on

the tensioner arm.

6.2. Pull the breaker bar to the right until it can be

braced in position at the pivot point of the ten-

sioner arm.

6.3. Remove the belt from the transmission pulleys,

tensioner pulley and the crankshaft pulley.

6.4. Remove the four lug nuts securing the rear

wheel to the axle hub.

NOTE: Insure the lap bar control rods and brake

rods are not rubbing against the frame.

6.5. Remove the cotter pin securing the bypass rod

to the transmission bypass arm. Remove the

bypass rod. See Figure 6.5.

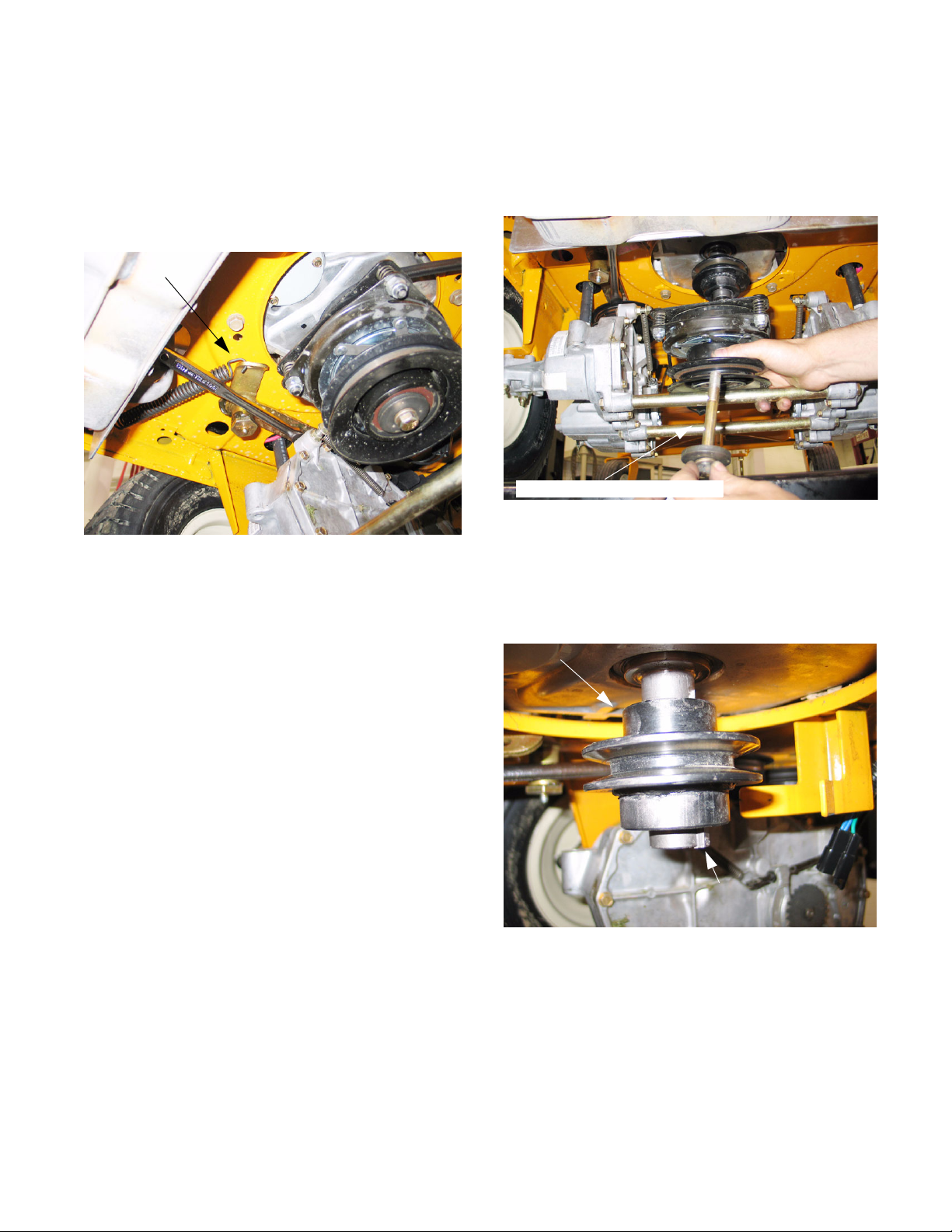

Figure 5.6

.012 Feeler gage

Figure 6.5

Bypass rod

Neutral

adjustment

plate

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

6.6. Mark the lap bar control rod threads near the cle-

vis pin. See Figure 6.6.

6.7. Remove the hairpin securing the lap bar control

rod to the transmission return assembly.

See Figure 6.7.

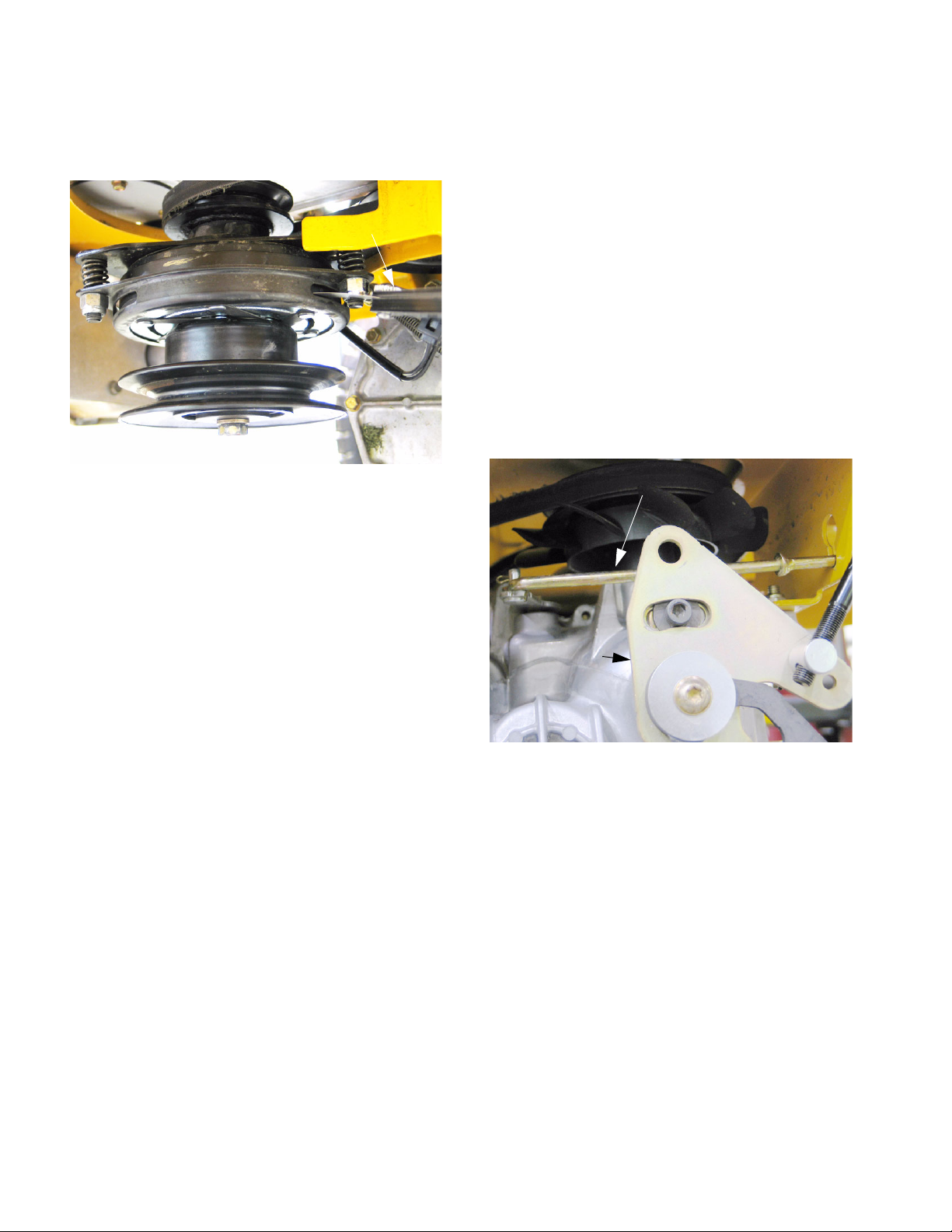

Figure 6.6

Lap bar control rod

Ferrule

Figure 6.7

Hair pin

6.8. Disconnect the brake return spring from the

brake arm. See Figure 6.8.

6.9. Remove the bolt securing the brake arm to the

transmission using a 7/16” socket.

See Figure 6.9.

NOTE: A spacer is located between the brake

arm and transmission housing.

NOTE: During installation, the bottom ridge of

the brake arm needs to be below the emboss-

ment on the transmission housing. Improper

installation will prevent the brake from engaging.

6.10. Remove both bolts securing the tubular trans-

mission brace using a 5/8” socket.

NOTE: When installing the brace bolts use loc-

tite 242.

Figure 6.8

Brake arm

Brake rod

Figure 6.9

Note proper installation

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

6.11. Remove the front transmission mounting bolt

using a 1/2” wrench and a 1/2” socket.

NOTE: Secure the transmission or use another

technician to support the transmission while per-

forming the next step.

6.12. Remove both transmission mounting bolts

securing the transmission to the mounting

bracket using two 1/2” wrenches.

See Figure 6.12.

6.13. Rotate the transmission out and down until the

fan is clear of the front transmission mounting

bracket, and remove it from the frame.

6.14. Installation notes:

• Lift transmission into place and start all threaded

fasteners before tightening any individual fasten-

ers.

• The remainder of the installation process con-

sists of reversing the removal process.

• Tighten the lug nuts to a torque of 350-500 in-

lbs.

• Tighten the center wheel hub nut to a torque of

100-160 ftlb.

7. STEERING LINKAGE: ADJUSTMENT

7.1. Begin to adjust the steering by confirming that

both EZTs are correctly adjusted for neutral con-

trol. See Figure 7.1.

7.2. Lift and safely support the rear of the mower.

7.3. Disconnect the ferrule at the EZT end of each

lap bar control rod from the neutral return

assembly on each of the EZTs. The ferrules are

secured to the neutral return assemblies with

hairpin clips. See Figure 7.3.

NOTE: In the course of normal service, it is very

unusual for the neutral return assemblies to

require adjustment unless someone has previ-

ously tampered with it. It is necessary to check

the adjustment because the rest of the proce-

Figure 6.12

Transmission Mounting Bolts

Figure 7.1

Neutral

adjustment

plate

Figure 7.3

Ferrule

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983
