Parts Manual

CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]

PRINTED IN U.S.A. FORM NO. 770-10220C

(11/03)

SERIES 2000

TRACTOR

Model Number

LT 2180

-2-

DESCRIPTION PAGE

Axle, Front ....................................................... 29

Battery ............................................................. 16

Brakes .............................................................. 4

Bulkhead .......................................................... 15

Controls

Engine ..........................................................

Pedal ............................................................

Transmission ................................................

Dash Panel ...................................................... 15

Drawbar ........................................................... 18

Drive Line ......................................................... 9

Electrical

Switches .......................................................

Wiring ...........................................................

Engine

Air Filter ........................................................

Blower Housing ............................................

Breather ........................................................

Carburetor ....................................................

Controls ........................................................

Crankcase ....................................................

Crankshaft ....................................................

Cylinder Head ...............................................

Electrical .......................................................

Fuel System ..................................................

Gasket Set ....................................................

Intake Manifold .............................................

Oil Pump .......................................................

Starter ...........................................................

Valves ...........................................................

Engine Mounting .............................................. 20

Fender ............................................................. 32

Frame .............................................................. 18

Fuel Tank ......................................................... 19

Grille ................................................................ 30

Hood ................................................................ 30

Hydraulic Filter ................................................. 14

Hydraulic Linkage ............................................ 14

Hydrostatic Pump, Model BDU-10L-225 .......... 12

Implement Lift Handle ...................................... 34

Implement Lift Hanger ..................................... 35

Mower Deck...................................................... 36

Muffler .............................................................. 20

PTO Clutch ...................................................... 19

Running Board ................................................. 32

Seat ................................................................. 3

Side Panels ..................................................... 30

Steering ........................................................... 6

Transmission, Hydro ........................................ 10

Wheels, Front & Rear ...................................... 29

DESCRIPTION PAGE

MODEL LT2180

TABLE OF CONTENTS

NOTE: For painted parts, please refer to the

list of color codes below. Please add the appli-

cable color code, wherever needed, to the

part number to order a replacement part.

For instance, if a part, numbered 700-xxxx, is

painted Cub Yellow, the part number to order

would be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

-3-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 703-2394 Bracket, RH Seat Pivot 1

2 703-2395A

777I20310 Seat, Base

Graphic, Seat Adjuster 1

3 703-2477 Bracket, LH Seat Pivot 1

4 703-2628 Bracket, Fender Reinforcement 2

5 710-0451 Bolt, Carriage, 5/16-18 x .75 6

6 710-3123 Screw, Hx Cap Lock,

3/8-16 x 1.25 GR5 4

7 712-04054 Nut, Hex Flange Lock, 5/16-18 8

8 720-0190 Knob, Seat Adjuster 1

9 731-3154 Slide, Seat 4

10 731-3162 Tray, Tool 1

11 732-3080A Spring, Comp, 1.9 OD x 2.4 2

12 732-04100 Index Spring, Seat Adjuster 1

13 736-3052 Washer, Flat, .406 x 1.0 x .105 4

14 738-0140 Bolt, Shoulder 2

15 738-04013A Spacer, Seat Slide Shoulder 4

16 757-04005

777D06883

777D01782

Seat, High Back

Graphic, Seat Back

Graphic, Made in USA

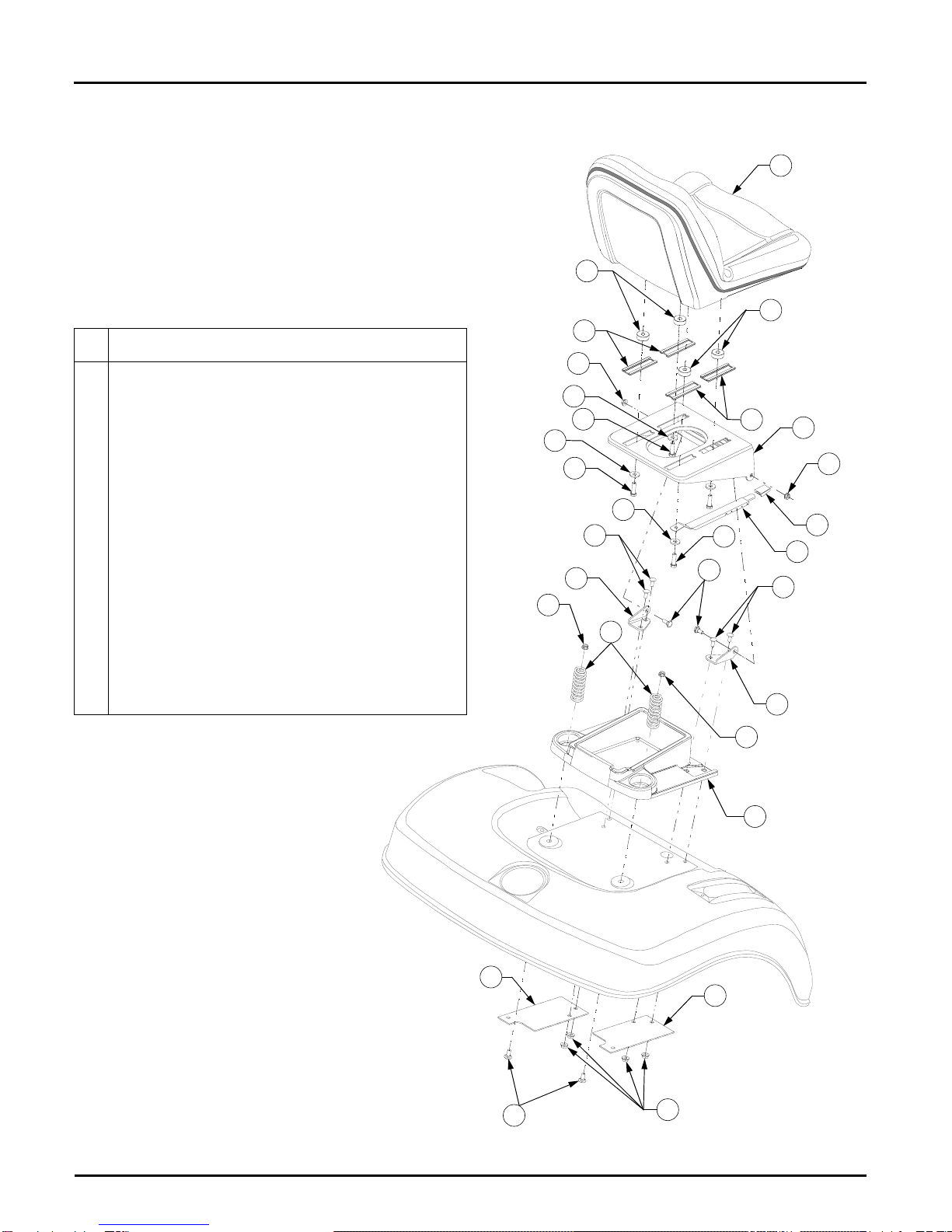

SEAT AND SUPPORT

-4-

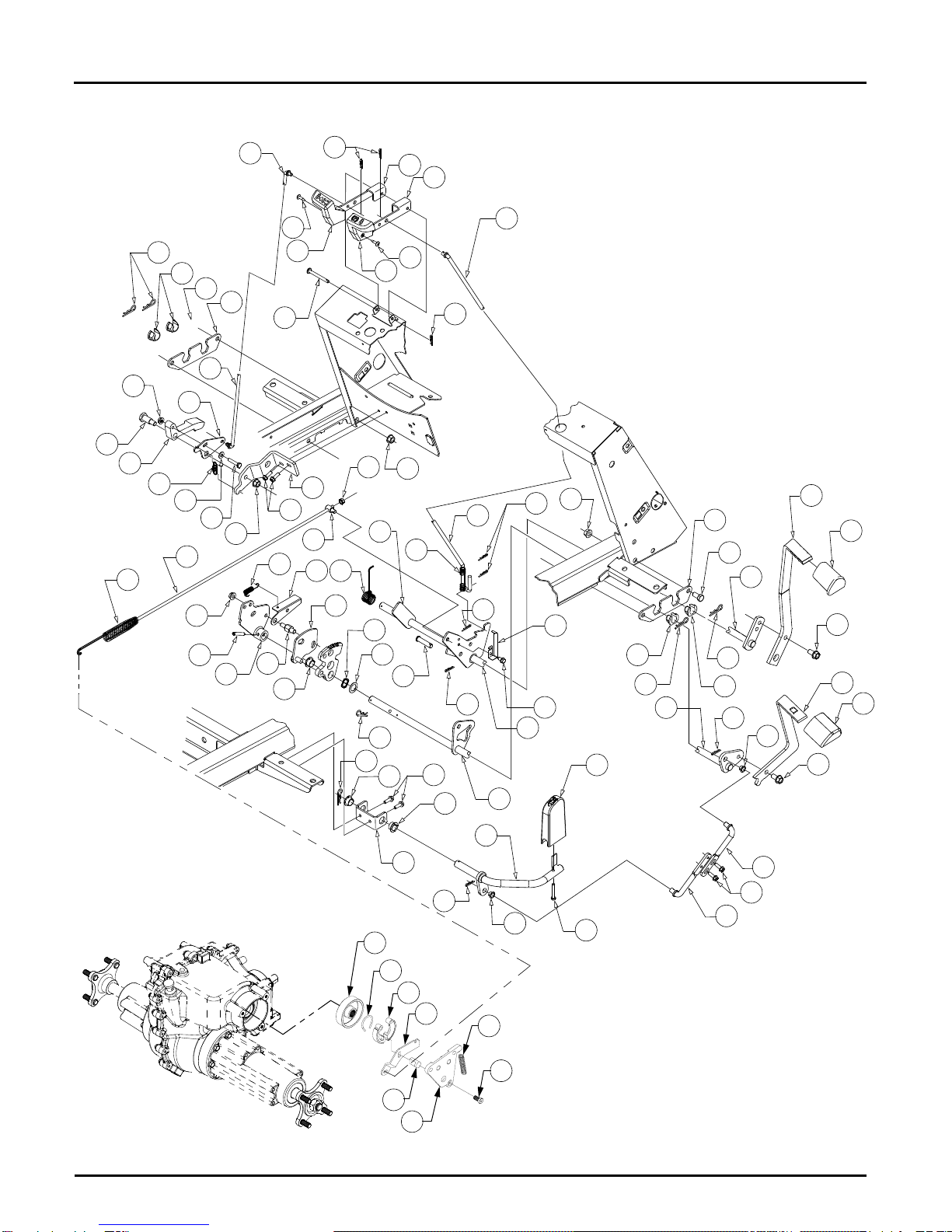

BRAKE AND CONTROL PEDALS

12 13

26 27

34 35

37 38

-5-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 603-0321A Shaft Assy, Brake 1

2 603-0412 Pedal Assy, Reverse 1

3 603-0697 Shaft Assy, Forward/Reverse 1

4 603-0419 Cam Assy, Control 1

5 603-0421A Plate Assy, Disengagement 1

6 703-2570A Pedal, Forward 1

7 703-2573A Pedal, Brake 1

8 703-2804 Plate, Bearing Mounting 2

9 703-2938 Bracket, Reverse Pivot 1

10 703-2941 Bracket, Cruise 1

11 703-2942 Plate, Rod Adjustment 1

12 703-2962 Lever, Cruise 1

13 703-2963 Lever, Brake Lock 1

14 703-2965 Actuator, Reverse Switch 1

15 710-0106 Screw, Hex Cap, 1/4-20 x 1.25 1

16 710-0599 Screw, Hex Wash Hd Tapp 1/4-20 x .5 1

17 710-0623 Screw, Hex Wash Hd Tapp 3/8-16x .75 2

18 710-0642 Screw,HexWashHdTapp1/4-20x.75 6

19 710-0796 Screw, Truss Mach, #12 x 1.5 1

20 710-0216 Screw, Hex Cap, 3/8-16 x .75 GR5 2

21 710-3009 Screw, Phil Hd Pan, #10-24 x .75 2

22 711-0415 Pin, Clevis, 3/8 x 1.62 1

23 711-0736 Ferrule, Adjustment, 1/4-20 Thrd 1

24 711-1138 Stud, Actuator 1

25 711-3295 Pin, Clevis, .25 x 2.38 1

26 712-0271 Nut, Hex Sems, 1/4-20 1

27 712-0431 Nut, Hex Flange Lock, 3/8-16 3

28 712-3004A Nut, Hex Flange Lock, 5/16-18 1

29 712-3027 Nut, Hex Flange Lock, 1/4-20 1

30 714-0104 Pin, Internal Cotter, 5/16 Dia x 1.12 9

31 714-0145 Pin, Internal Cotter, 3/8 Dia x 1.62 6

32 715-0114 Pin, Spiral Spring, 1/4 x 1.5 1

33 731-3205 Pedal, Reverse 1

34 731-3206 Knob, Cruise 1

35 731-3207 Knob, Brake Lock 1

36 732-0418 Spring, Extension, .38 OD x 2.1 1

37 732-0463A Spring, Extension 1

38 732-0756A Spring, Torsion 1

39 732-04006 Spring, Extension, .6 OD x 1.34 1

40 732-3099 Spring, Compression, .50 x 2.23 1

41 732-3117 Spring, Switch Actuator 1

42 735-3048 Pad, Forward Foot Control 1

43 735-3049 Pad, Brake Foot 1

44 736-0174 Washer, Wave, .625 x .885 x .015 1

45 736-0349 Washer, Flat, .635 x 1.0 x .020 1

46 736-0463 Washer, Flat, 1/4 x .63 x .051 1

47 738-0145 Shoulder Bolt, .50 OD x .840 1

48 741-3065B Bearing, Hex Flange Split 4

49 741-3073 Bearing, Flange, .375 x .58 x .25 2

50 741-3074 Bearing, Flange, .626 x .93 x .344 3

51 747-3216 Rod, Brake 1

52 747-3219 Rod, Parking Brake 1

54 747-3307 Rod, Cruise 1

55 748-3060 Latch, Cruise 1

56 618-3060 Plate, Brake 1

57 703-2191 Arm, Brake 1

58 710-3262 Screw, Low Hd Cap, 3/8-16 x .75 1

59 732-0152 Spring, Compression 1

60 732-3077 Spring, Brake 1

61 761-3019 Drum, Brake 1

62 761-3020 Shoe, Brake 1

63 761-3028 Actuator, Brake Shoe 1

64 747-3341A Rod, Rear Connecting 1

65 747-3383 Rod, Front Connecting 1

REF.

NO. PART

NUMBER DESCRIPTION QTY.

BRAKE AND CONTROL PEDALS

-6-

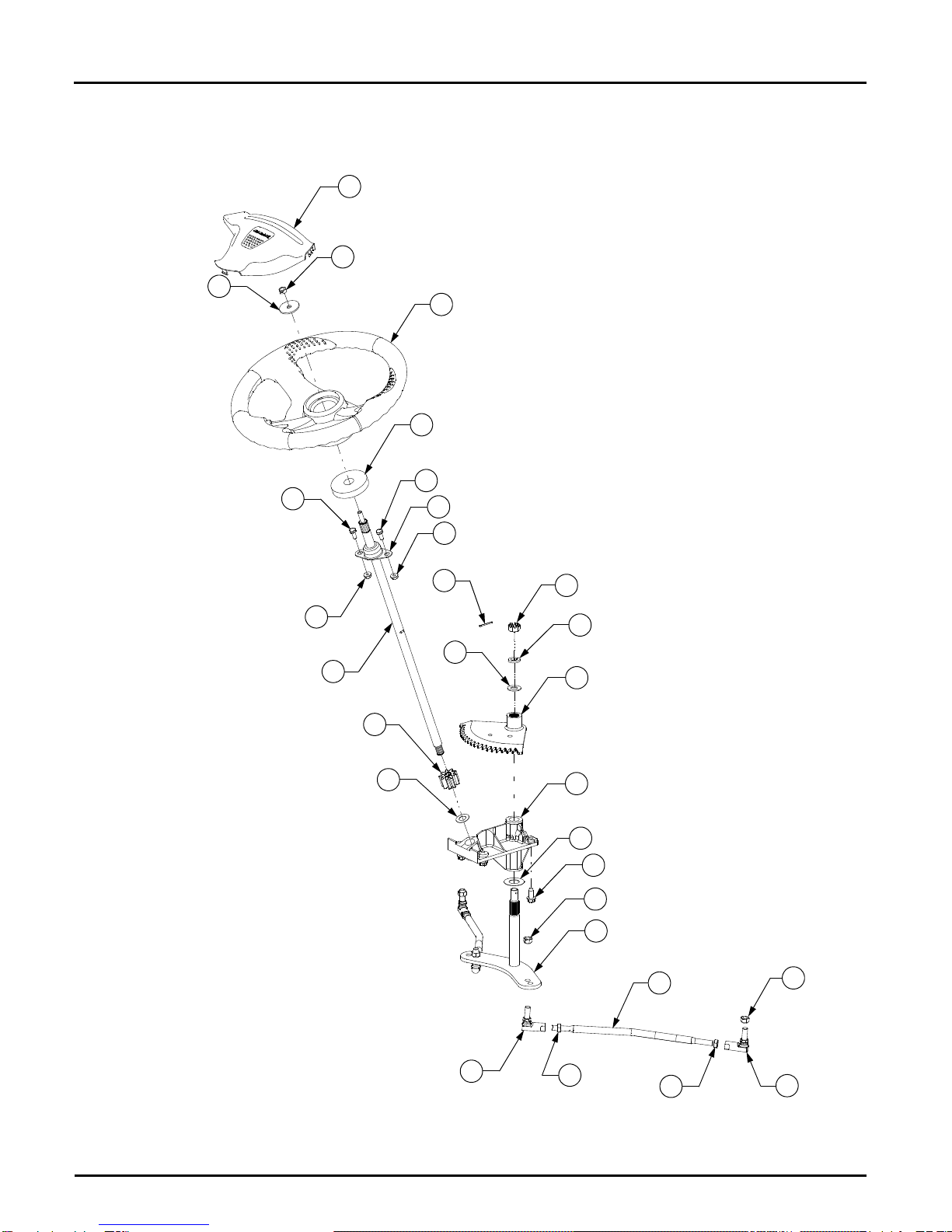

STEERING

-7-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 603-0064 Arm Assy, Lower Steering 1

2 603-0250 Segment Assy, 18T Steering 1

3 619-04079

737-3000

748-0108

748-3007A

Housing Assy,

Fitting, Grease, 3/16 Drive Type

Bearing, Flange, .503 ID

Bearing, Bronze Flange, .75 ID

4 631-04008 Wheel, Steering, Soft Grip 1

5 710-0751 Screw, Hex Cap, 1/4 - 20 x .62, GR5 2

6 710-1260A Screw, Hex Wash. Hd. Tapp

5/16 - 18 x .75 4

7 712-0237 Nut, Hex Center Lock, 5/16-18 1

8 712-0711 Nut, Hex Jam, 3/8-24 GR2 4

9 712-3012 Nut, Hex Slotted, 1/2-20 GR5 1

10 712-3027 Nut, Hex Flange Lock, 1/4-20 2

11 712-3054 Nut, Hex Lock, 3/8-24 GR5 4

12 714-3004 Pin, Cotter, 3/32 Dia x 1.25 1

13 717-04086 Pinion, Steering 1

14 722-3019 Gasket, Steering 1

15 723-0156 Joint, Ball, 3/8-24 4

16 731-04532 Cover, Steering Wheel 1

17 736-0272 Washer, Flat, .510 x 1 x .06 Thk 1

18 736-0351 Washer, Flat, .760 x 1.5 x .03 Thk 1

19 736-04062 Washer, Flat, .344 x 1.5 x .1 Thk 1

20 736-0921 Washer, Lock, 1/2 1

21 736-3013 Washer, Flat, .531 x 1 x .027 Thk 1

22 738-04064 Shaft, Steering 1

23 741-3025 Bearing, Flange 1

25 747-3171 Rod, Tie 2

STEERING

-8-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 603-0272 Pivot Assembly 1

2 710-0599 Screw, Hex Wsh Hd Tapp, 1/4-20 x .5 2

3 710-3170 Screw, Ball, 5/16-18 x.56 1

4 712-0271 Nut, Hex Sems, 1/4-20 1

5 712-3004A Nut, Hex Flange Lock, 5/16-18 GR5 1

6 712-3027 Nut, Hex Flange Lock, 1/4-20 1

7 714-0104 Pin, Internal Cotter 2

8 727-3090 Cylinder, Damper 1

9 732-3094 Spring, Compression, .63 ID x 2 1

10 732-3118 Spring, Extension, 3/8 OD x 1.44 1

11 736-3092 Washer, Flat, .265 x 1 x .030 1

12 738-0560 Bolt, Shoulder, .374 Dia x 1.375 1

13 747-3304 Rod, Front Control 1

14 747-3309 Rod, Rear Hydro Control 1

15 748-3070 Plate, Cruise 1

16 750-0434 Spacer, Split Tubing, .375 ID x 1.04 1

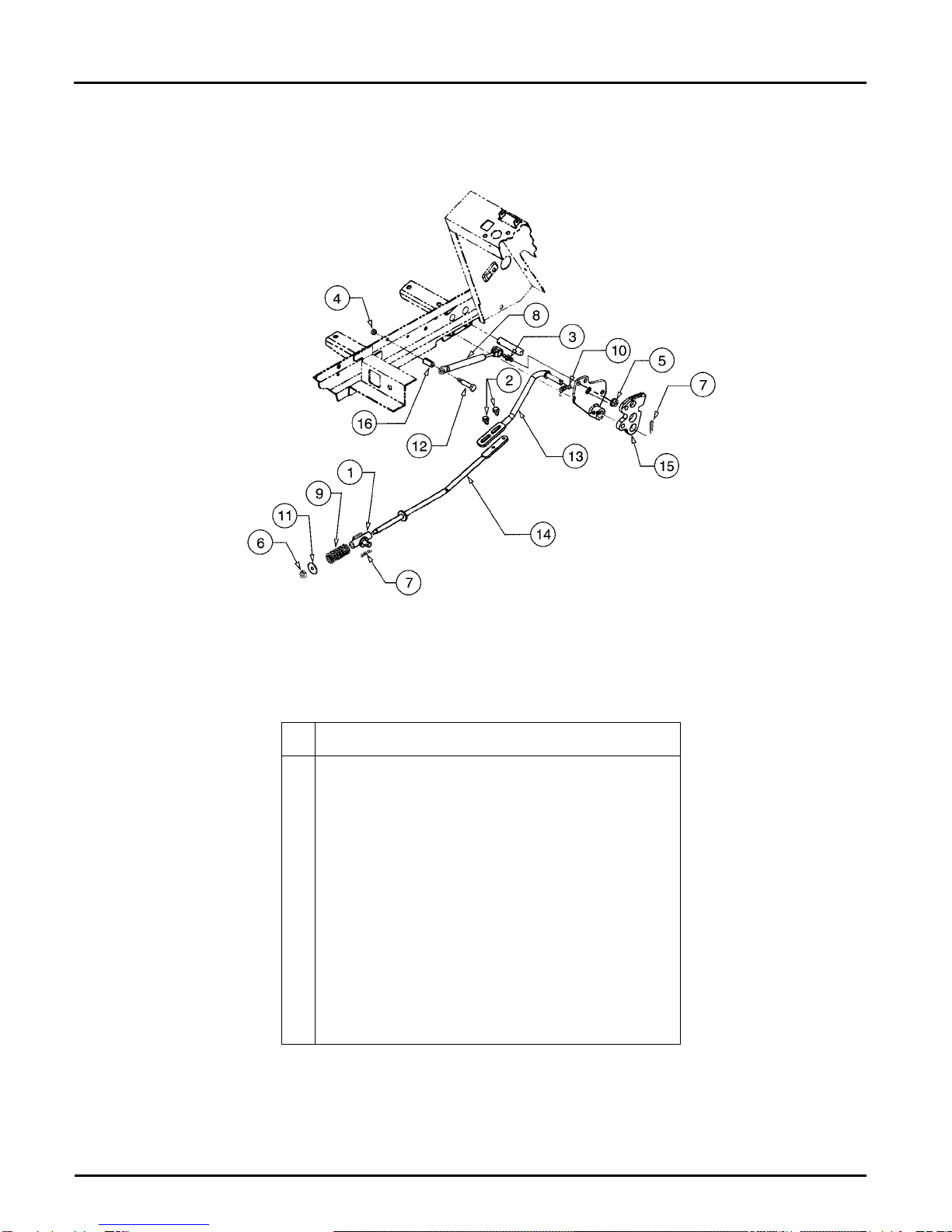

TRANSMISSION CONTROLS

-9-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 603-0179

759-3764 Shaft Assembly, Drive, 29.06 Lg

Kit, Drive Barrel 1

2 618-04110 Transmission Assembly,

Does NOT include wheel hub as-

semblies and brake spring

3 618-3088 Pinion Assembly, Input 1

4 618-3243 Pump, Hydrostatic 1

5 710-1260A Screw, Hex Wsh Tap, 5/16-18 x .75 2

6 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 4

7 710-3195 Screw, Hex Cap, 5/16-18 x 4.5 GR5 2

8 710-1062 Screw, Hex Patch, 1/4-20 x 1.25 GR5 4

9 710-3288 Screw, Hex Patch, 1/4-20 x 1.62 GR5 4

10 710-3290 Screw, Hex Wsh Tap, 3/8-16 x 1.25 5

11 712-3059 Nut, Hex Top Lock Jam GR5, 1/2-20 1

12 748-3093 Adapter, Pump 1

13 725-0157 Tie, Self-Clinch Cable 1

14 726-0205 Clamp, Hose 1

15 731-3297 Fan, 10 Blade Cooling 1

16 736-0253 Washer, Bell, 1/2 ID 1

17 759-3330 Line, Fuel, 7in (10ft Bulk) 1

18 736-3099 Washer, Wave, 1.96 x 2.44 x .06 1

19 737-0296 Vent 1

20 719-3096 Adapter, Drive Shaft 1

21 711-3330 Pin, Locating, .352 Dia x 1.156 1

22 736-3008 Washer, Flat, .344 x .75 x .12 2

23 750-0507 Spacer, .38 x .625 x .275 2

REF.

NO. PART

NUMBER DESCRIPTION QTY.

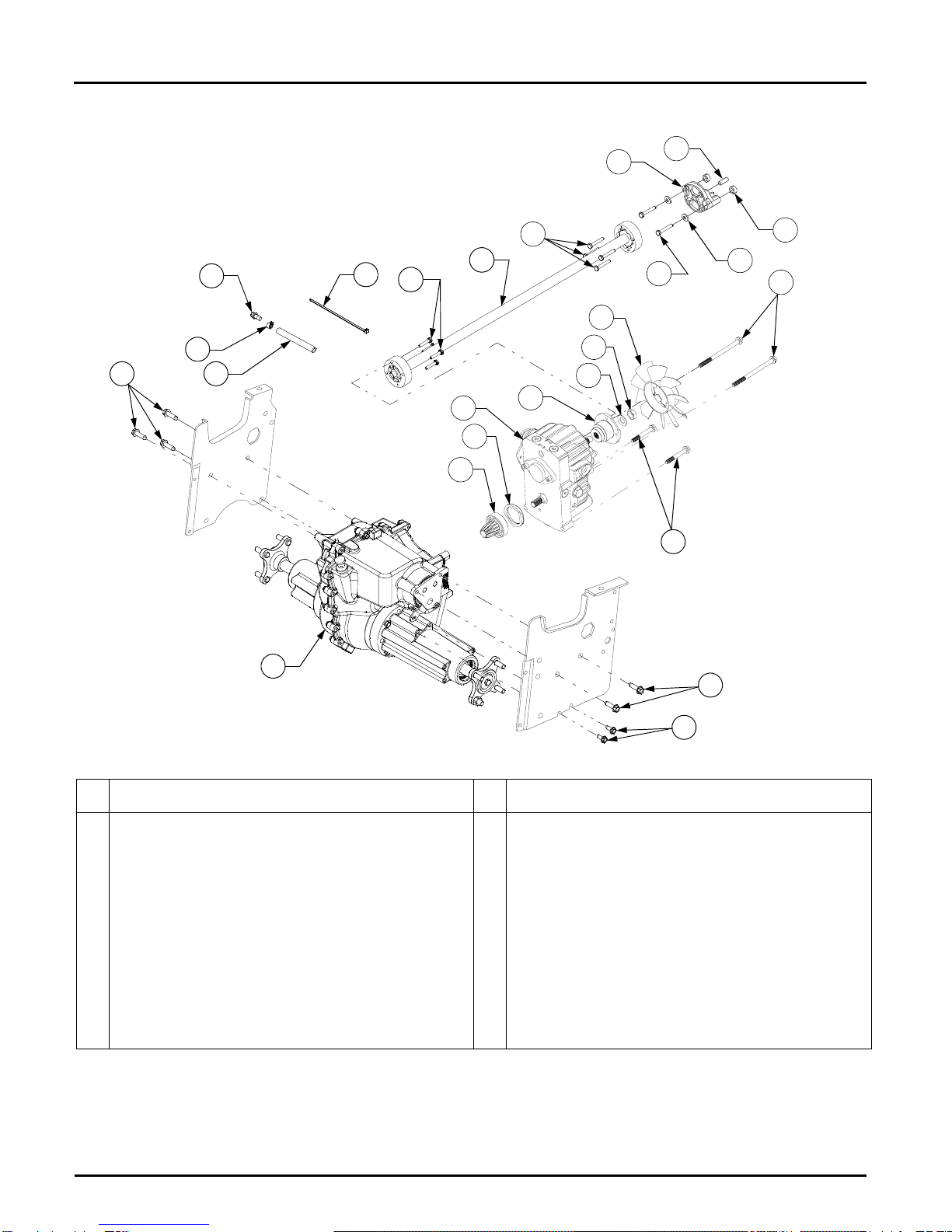

DRIVE LINE

-10-

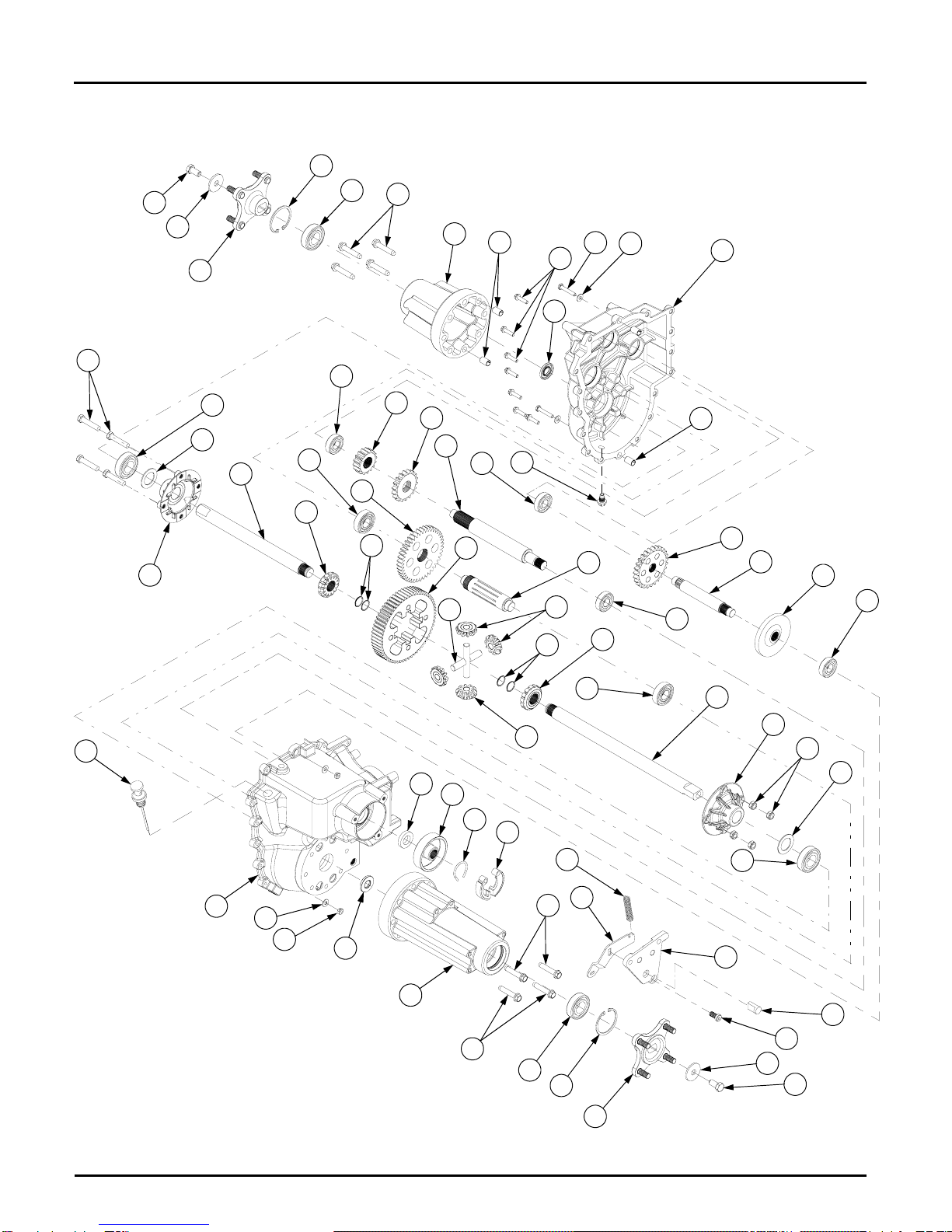

HYDRO TRANSMISSION

10 43

38 44

16 41

32 30

19 40 12

18 29

9839

48 22

Autres manuels pour LT 2180

Table des matières

Autres manuels Cub Cadet Tondeuse à gazon

Cub Cadet

Cub Cadet 1415 Manuel utilisateur

Cub Cadet

Cub Cadet Z-Force LZ Manuel utilisateur

Cub Cadet

Cub Cadet 1015 Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1042 Manuel utilisateur

Cub Cadet

Cub Cadet PR-521 Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 48 w/ Fabricated Deck Manuel d'utilisation

Cub Cadet

Cub Cadet 48-inch/54-inch/60-inch/72-inch Manuel d'utilisation

Cub Cadet

Cub Cadet RZT L 42 Manuel utilisateur

Cub Cadet

Cub Cadet 833E Series Manuel utilisateur

Cub Cadet

Cub Cadet 1030 Manuel utilisateur

Cub Cadet

Cub Cadet Z-Force 48 Manuel utilisateur

Cub Cadet

Cub Cadet 18M Manuel utilisateur

Cub Cadet

Cub Cadet CLT-538 Manuel utilisateur

Cub Cadet

Cub Cadet Fabricated Deck InDirect Injection Diesel Manuel d'utilisation

Cub Cadet

Cub Cadet LT1046 Manuel utilisateur

Cub Cadet

Cub Cadet CC 46 ES Manuel utilisateur

Cub Cadet

Cub Cadet TANK LZ 60 KW Manuel utilisateur

Cub Cadet

Cub Cadet 2165 Manuel utilisateur

Cub Cadet

Cub Cadet 48-inch Fabricated Deck Manuel d'utilisation

Cub Cadet

Cub Cadet i1050 Manuel utilisateur

Cub Cadet

Cub Cadet 60-inch & 72-inch Fabricated Deck Manuel d'utilisation

Cub Cadet

Cub Cadet 979 Manuel utilisateur

Cub Cadet

Cub Cadet CLT 160 Manuel utilisateur

Cub Cadet

Cub Cadet GTX 1054 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur

Yard-Man

Yard-Man 3700-0 Manuel utilisateur
