Cub Cadet 108 Manuel utilisateur

have difficulties with the unit consult your

International Harvester dealer. UNDER NO CIR-

CUMSTANCESSHOULDYOU ATTEMPTTO

SERVICE THESE UNITS YOURSELF. Only your

dealer is authorized to repair or replace units on

this drive under the terms of the warranty. Should

you desire additional information not found in this

manual, contact your International Harvester

dealer.

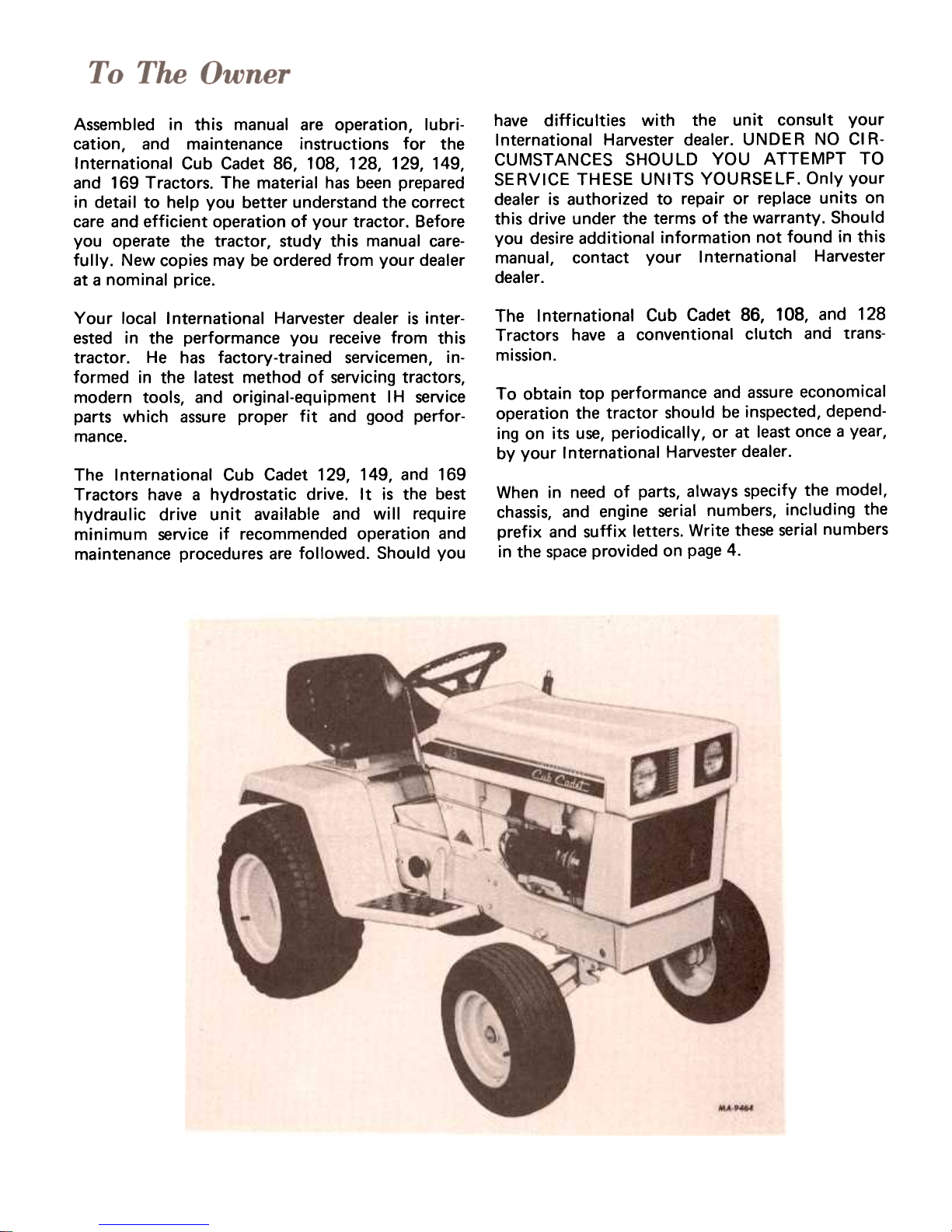

Assembled in this manual are operation, lubri-

cation, and maintenance instructions for the

International Cub Cadet 86, 108, 128, 129, 149,

and 169 Tractors. The material has been prepared

in detail to help you better understand the correct

care and efficient operation of your tractor. Before

you operate the tractor, study this manual care-fully.

New copies may be ordered from your dealer

at a nominal price.

The I nternational Cub Cadet 86, 108, and 128

...

Your local International Harvester dealer is inter-

ested in the performance you receive from this

tractor. He has factory-trained servicemen, in-

formed in the latest method of servicing tractors,

modern tools, and original-equ ipment IH service

parts which assure proper fit and good perfor-

mance.

To obtain top performance and assure economical

operation the tractor should be inspected, depend-

ing on its use, periodically, or at leastonce a year,

by your International Harvester dealer.

The International Cub Cadet 129, 149, and 169

Tractors have a hydrostatic drive. It is the best

hydraulic drive unit available and will require

minimum service if recommended operation and

maintenance procedures are followed. Should you

When in need of parts, always specify the model,

chassis, and engine serial numbers, including the

prefix and suffix letters. Write these serial numbers

in the spaceprovided on page4.

Tractors have a conventional clutch ana trans-

mission.

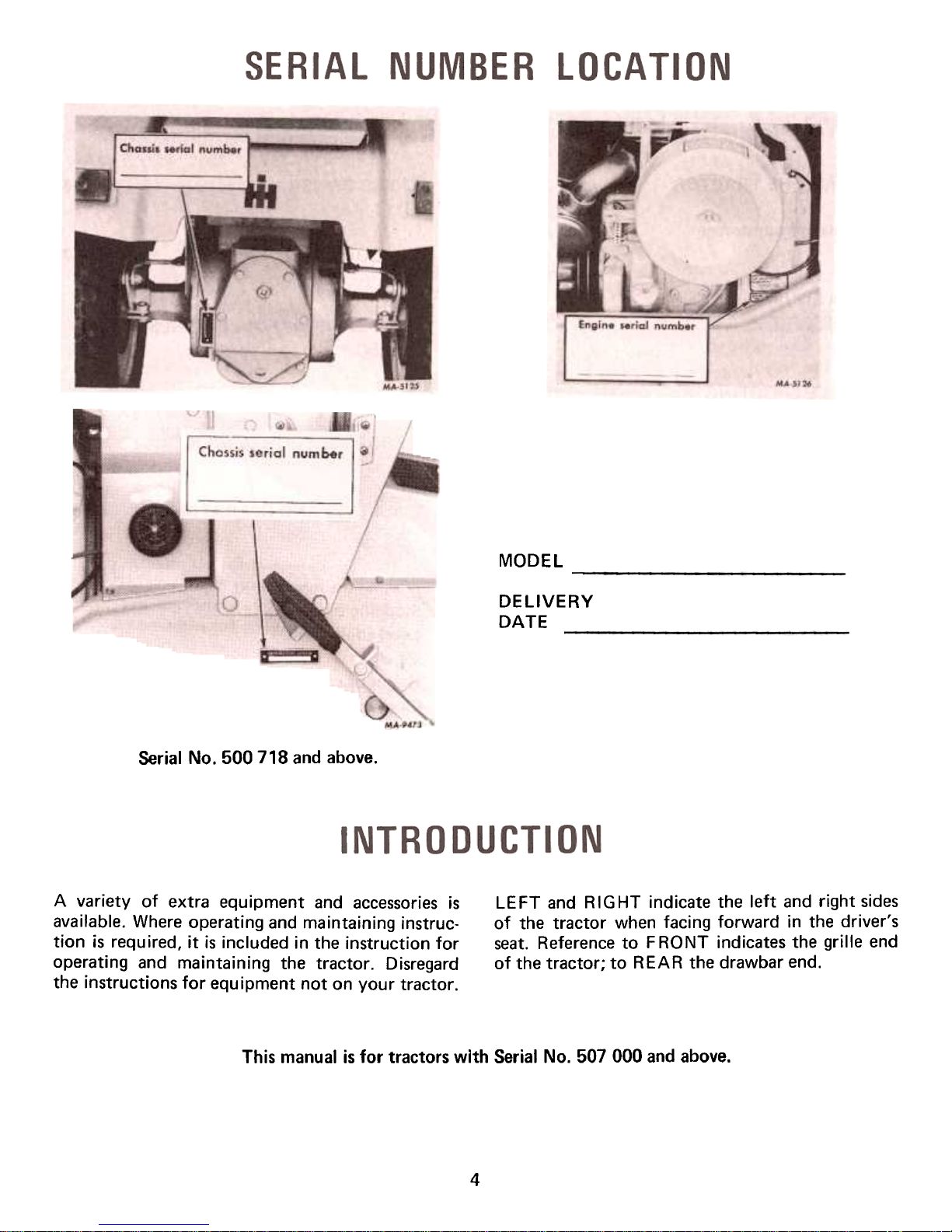

MODEL

DELIVERY

DATE

SerialNo. 500718 andabove.

LEFT and RIGHT indicate the left and right sides

of the tractor when facing forward in the driver's

seat. Reference to F RaNT indicates the grille end

of the tractor; to REAR the drawbar end.

A variety of extra equipment and accessories isavailable.

Where operating and maintaining instruc-

tion is required, it is included in the instruction for

operating and maintaining the tractor. Disregard

the instructions for equipment not on your tractor.

This manual is for tractors with Serial No. 507 000 and above.

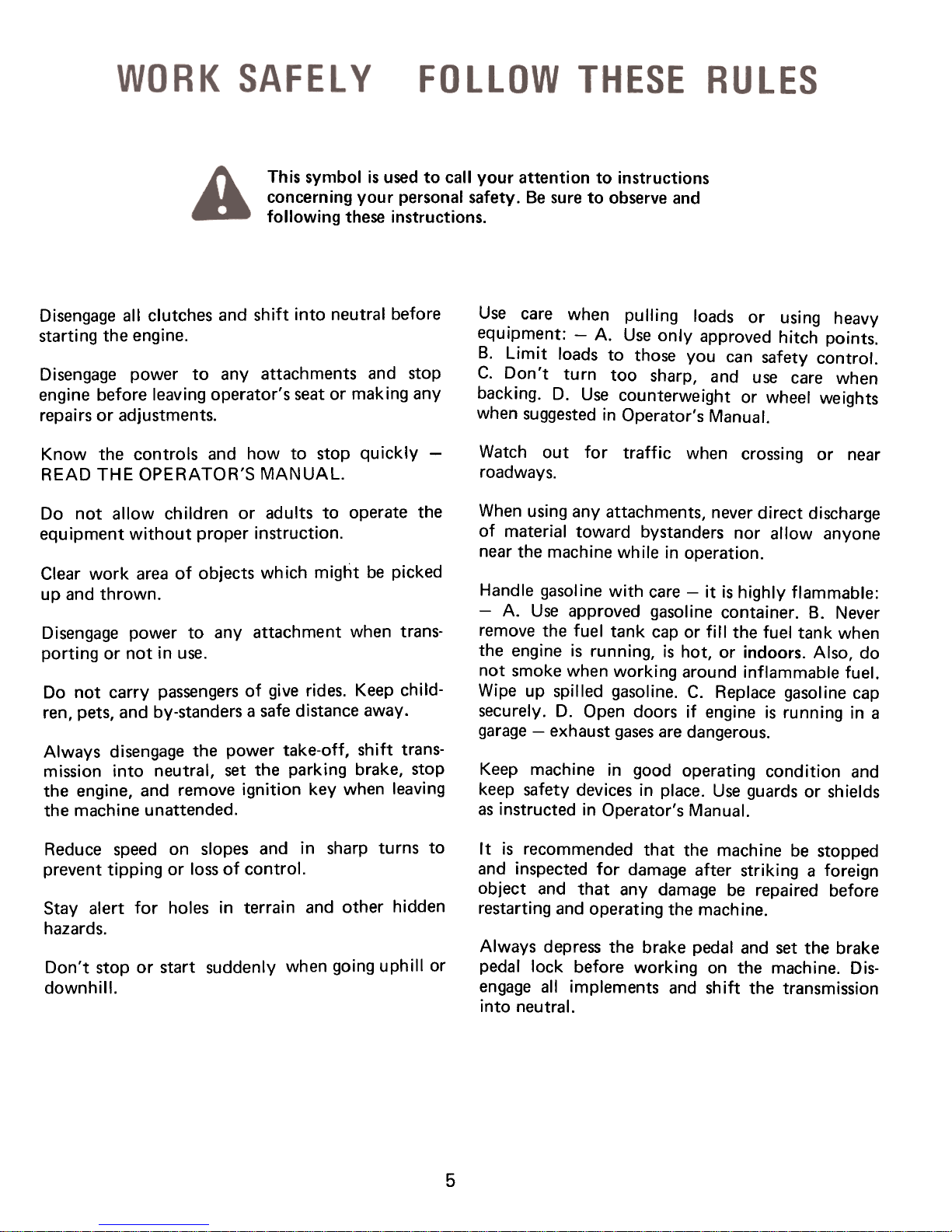

This symbol isused to call your attention to instructions

concerning your personal safety. Be sure to observe and

following these instructions.

Disengage all clutches and shift into neutral before

starting the engine. Use care when pulling loads or using heavy

equipment: -A. Use only approved hitch points.

B. limit loads to those you can safety control.

C. Don't turn too sharp, and use care when

backing. D. Use counterweight or wheel weights

when suggested in Operator's Manual.

Disengage power to any attachments and stop

engine before leaving operator's seator making any

repairs or adjustments.

Know the controls and how to stop quickly -

READ THE OPERATOR'S MANUAL. Watch out for traffic when crossing or near

roadways.

Do not allow children or adults to operate the

equipment without proper instruction. When using any attachments, never direct discharge

of material toward bystanders nor allow anyone

near the machine while in operation.

Clear work area of objects which might be picked

up and thrown. Handle gasoline with care -it is highly flammable:

-A. Use approved gasoline container. B. Never

remove the fuel tank cap or fill the fuel tank when

the engine is running, is hot, or indoors. Also, do

not smoke when working around inflammable fuel.

Wipe up spilled gasoline. C. Replace gasoline cap

securely. D. Open doors if engine is running in a

garage -exhaust gasesare dangerous.

Disengage power to any attachment when trans-

porting or not in use.

Do not carry passengersof give rides. Keep child-

ren, pets, and by-standers a safe distance away.

Always disengage the power take-off, shift trans-

mission into neutral, set the parking brake, stop

the engine, and remove ignition key when leaving

the machine unattended.

Keep machine in good operating condition and

keep safety devices in place. Use guards or shields

as instructed in Operator's Manual.

Reduce speed on slopes and in sharp turns to

prevent tipping or loss of control. It is recommended that the machine be stopped

and inspected for damage after striking a foreign

object and that any damage be repaired before

restarting and operating the machine.

Stay alert for holes in terrain and other hidden

hazards. Always depress the brake pedal and set the brake

pedal lock before working on the machine. Dis-

engage all implements and shift the transmission

into neutral.

Don't stop or start suddenly when going uphill ordownhill.

Your Cub Cadet Tractor has been safety engineered. Thoroughly

acquaint yourself with all the instruments and controls before

attempting to start or operate the tractor.

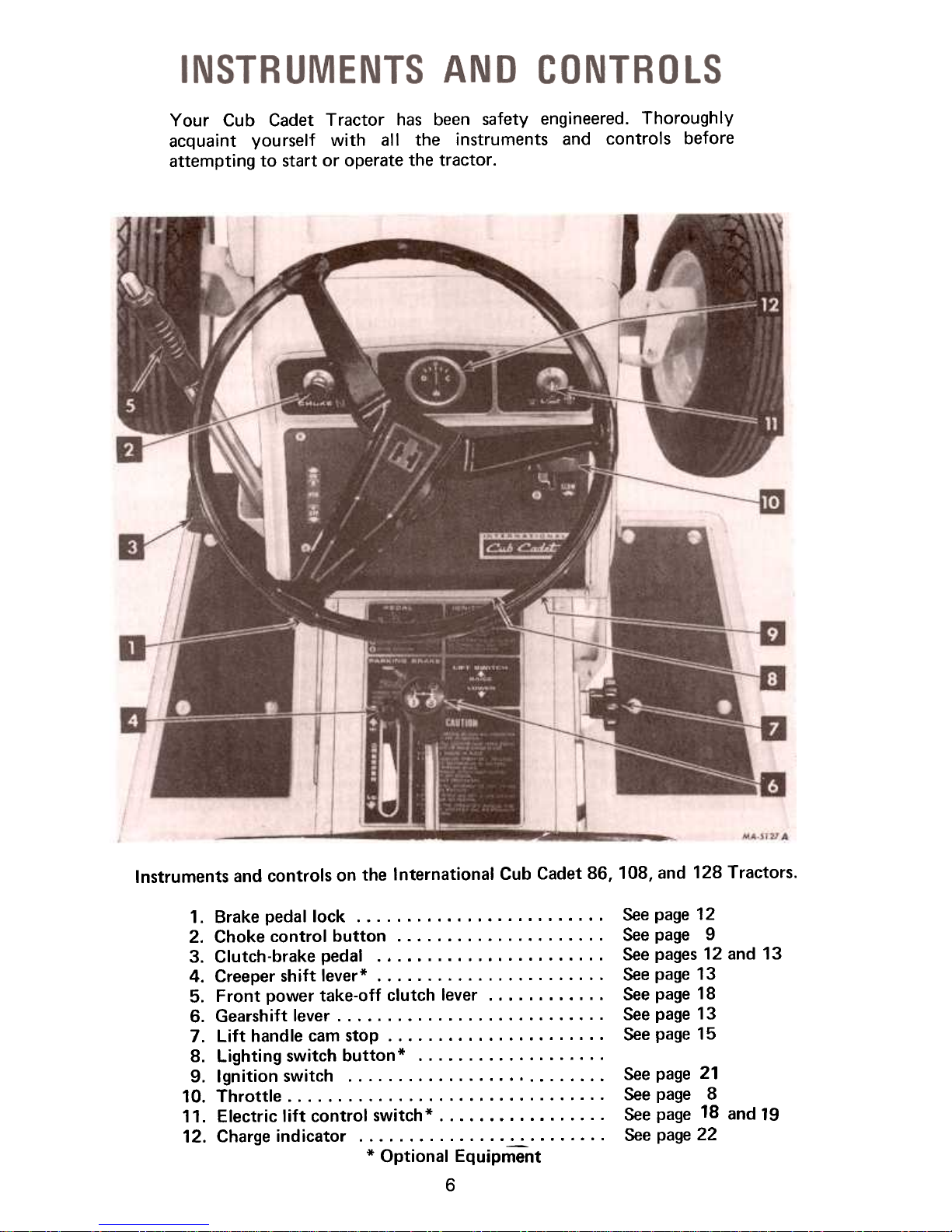

Instruments and controls on the International Cub Cadet 86, 108, and 128 Tractors.

1. Brake pedal lock2. Choke control button.3. Clutch-brake pedal4. Creeper shift lever*5. Front power take-off clutch lever.6. Gearshiftlever7. Lift handle cam stop8. Lighting switch button*9. Ignition switch """""""""10. Throttle11. Electricliftcontrolswitch*12. Charge indicator """""""'-:":'--""""

* Optional Equipment

Seepage 12

Seepage 9

Seepages 12 and 13

Seepage 13

Seepage 18

Seepage 13

Seepage 15

Seepage21

Seepage 8

Seepage 18 and 19

Seepage22

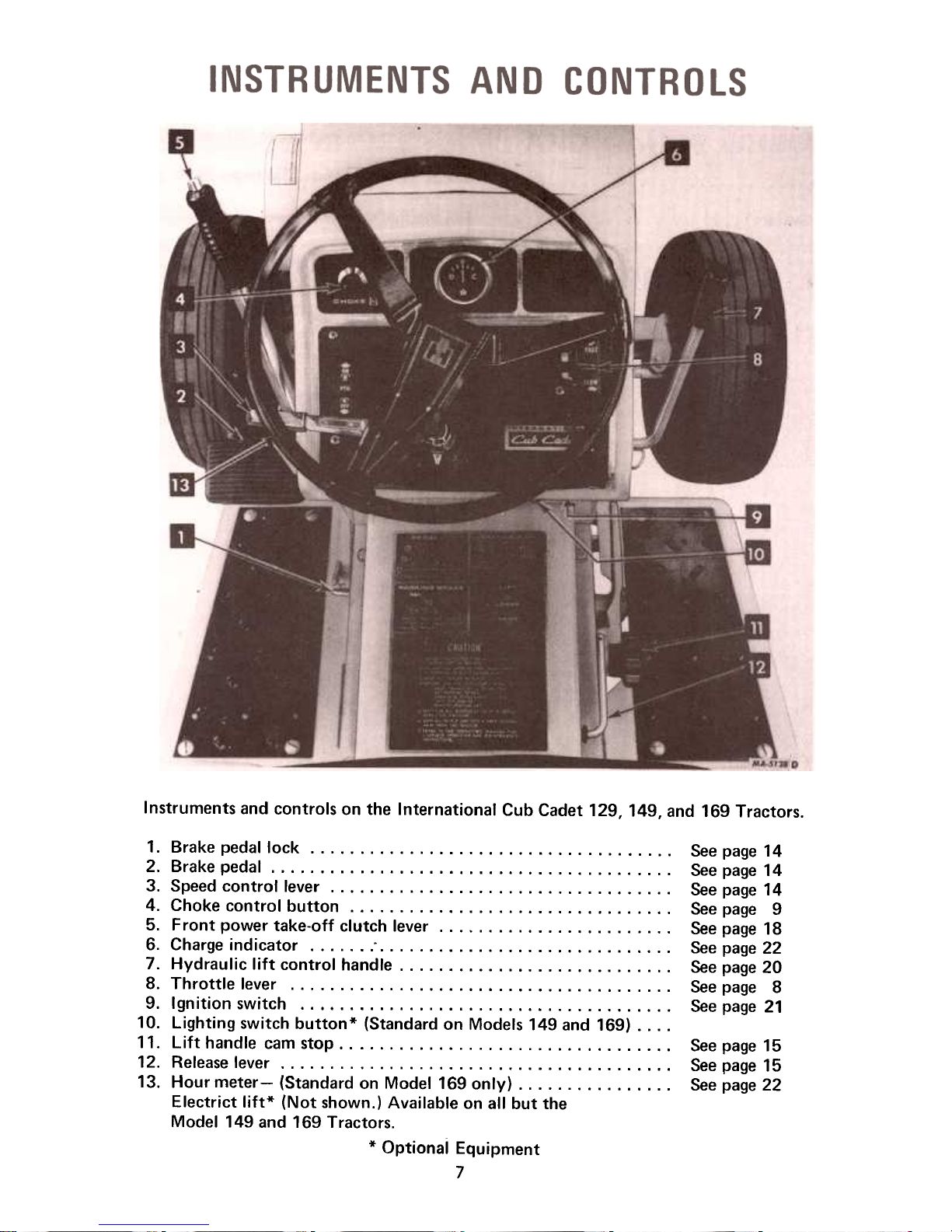

Instruments and controls on the International Cub Cadet 129, 149, and 169 Tractors.

Seepage14

Seepage 9

Seepage18

Seepage22

Seepage20

Seepage 8

Seepage21

See page 15

See page 22

1. Brake pedal lock2. Brake pedal.3. Speed control lever4. Choke control button5. Front power take-off clutch lever6. Charge indicator :7. Hydraulic lift control handle8. Throttle lever9. Ignition switch.10. Lighting switch button* (Standard on Models 149 and 169)11. Lifthandlecamstop12. Release lever. 13.Hour meter- (Standard on Model 169 only)Electrict lift* (Not shown.) Available on all but the

Model 149 and 169 Tractors.

* Optional Equipment

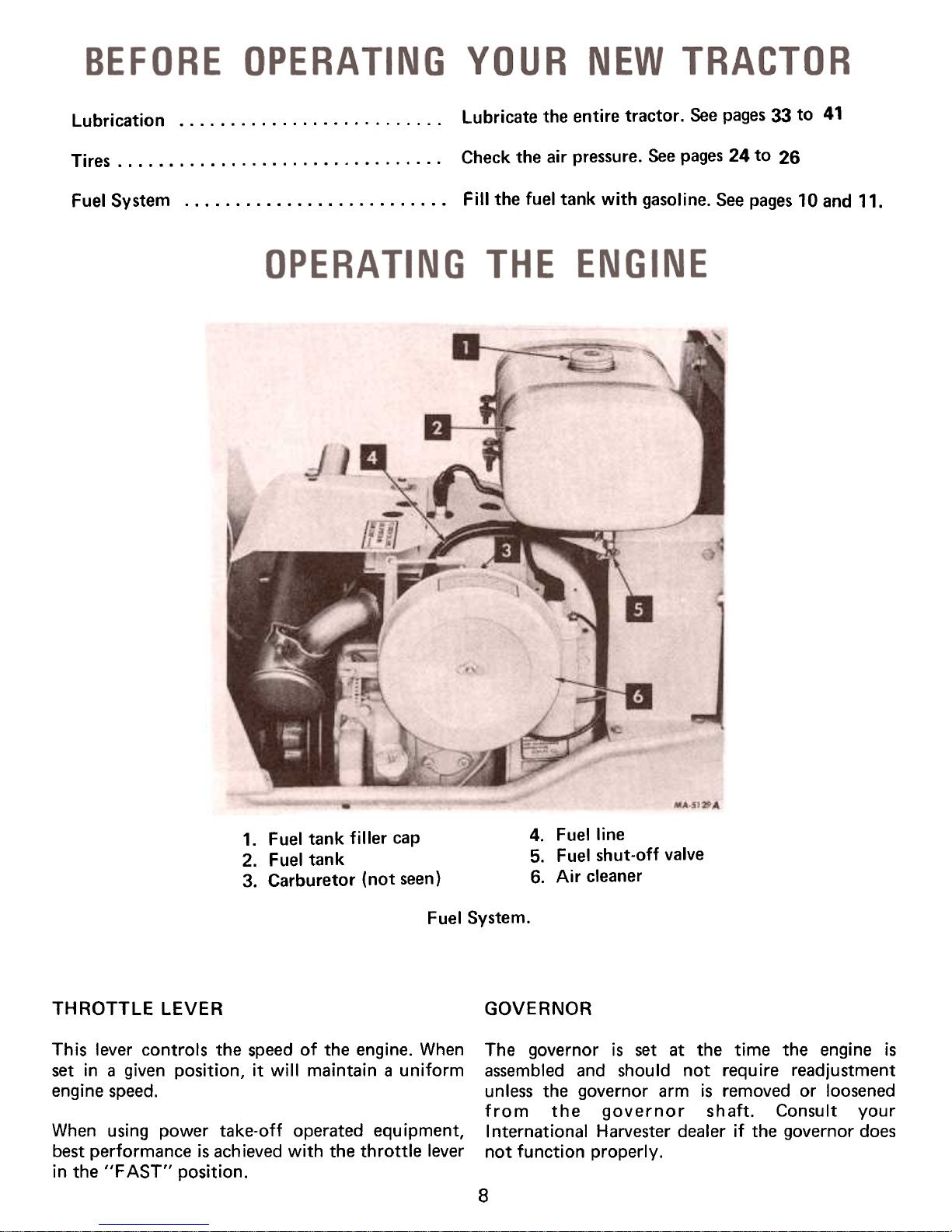

Lubricate the entire tractor. Seepages33 to 41

Lubrication

Check the air pressure. Seepages24 to 26

Tires.

Fuel System. Fill the fuel tank with gasoline. Seepages10 and 11.

Fuel line

5. Fuel shut-off valve

6. Air cleaner

1. Fuel tank filler cap

2. Fuel tank

3. Carburetor (not seen)

Fuel System.

THROTTLE LEVER GOVERNOR

This lever controls the speed of the engine. When

set in a given position, it will maintain a uniform

engine speed.

The governor is set at the time the engine is

assembled and should not require readjustment

unless the governor arm is removed or loosened

from the governor shaft. Consult your

International Harvester dealer if the governor does

not function properly.

When using power take-off operated equipment,

best performance isachieved with the throttle lever

in the "FAST" position. 8
