Usage Notice

Precautions ................................................................................. 2

Introduction

About the Product ....................................................................... 3

Package Overview...................................................................... 4

Installation

Product Overview........................................................................ 5

Start Your Installation .................................................................. 7

User Controls

Front Bezel Controls ................................................................... 11

How to Use the OSD Menus....................................................... 13

On-Screen Display Menus ......................................................... 14

Appendices

Troubleshooting........................................................................... 16

Product Dimensions ................................................................... 17

Compatibility Modes ................................................................... 18

Table of Contents

English

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recom-

mended in this user’s manual to maximize product usage life.

Do:

!Turnofftheproductbeforecleaning.

!Use only a dry soft cloth or clean room wiper when cleaning the

LCDpanelsurface.

!Use a soft cloth moistened with mild detergent to clean the

displayhousing.

!UseonlytheAC/DCpoweradapterprovidedbymanufacturer.

!Disconnect the power plug from AC outlet if the product will not

be used for a long period of time.

Don’t:

!Do not touch the LCD panel surface with sharp or hard objects.

!Donot use abrasivecleaners,waxesor solvents foryour

cleaning.

!Donotoperate the productunderthefollowing conditions:

- Extremelyhot, cold orhumidenvironment.

- Areas susceptible to excessive dust and dirt.

- Nearanyappliance generating astrongelectronicmagnetic,

emission/radiationfield.

- Direct sunlight place.

English

Introduction

AbouttheProduct

Having a 14.1” inch flat panel screen with an active, thin-film

transistor (TFT) liquid crystal display (LCD) , this product also demon-

strates following outstanding features.

!DirectanalogRGB input

!14.1”diagonal screen size

!16.7million displayable colors

!1024x 768 resolution

!XGA/SVGA/VGA/VESAcompatible

!31~50kHzhorizontalscan

!60~70Hzrefreshrate

!Auto adjustment capability

!Fullscreenre-scaling

!MultilingualOSDmenus infivelanguages:English,French,

German,Spanish,andItalian

!USB hub with 1 upstream and 4 downstream ports on the

standbase

!VESA DDC 1/2B data communication

!VESADPMSpower saving

!Standwith tiltand cable managementfunctions

!VESAstandard 75mmx75mm mountinginterface

English

Package Overview

LCDDisplay

VGA Signal Cable USBUpstreamCable

InstallationDiskette

(forDDC1/2B)

PowerAdapter

PowerCord

User’sManual WarrantyCard

English

Power

Installation

Product Overview

"MainUnit

"Rear View

LCD Display

Stand

CableManagement

Device

User Controls

English

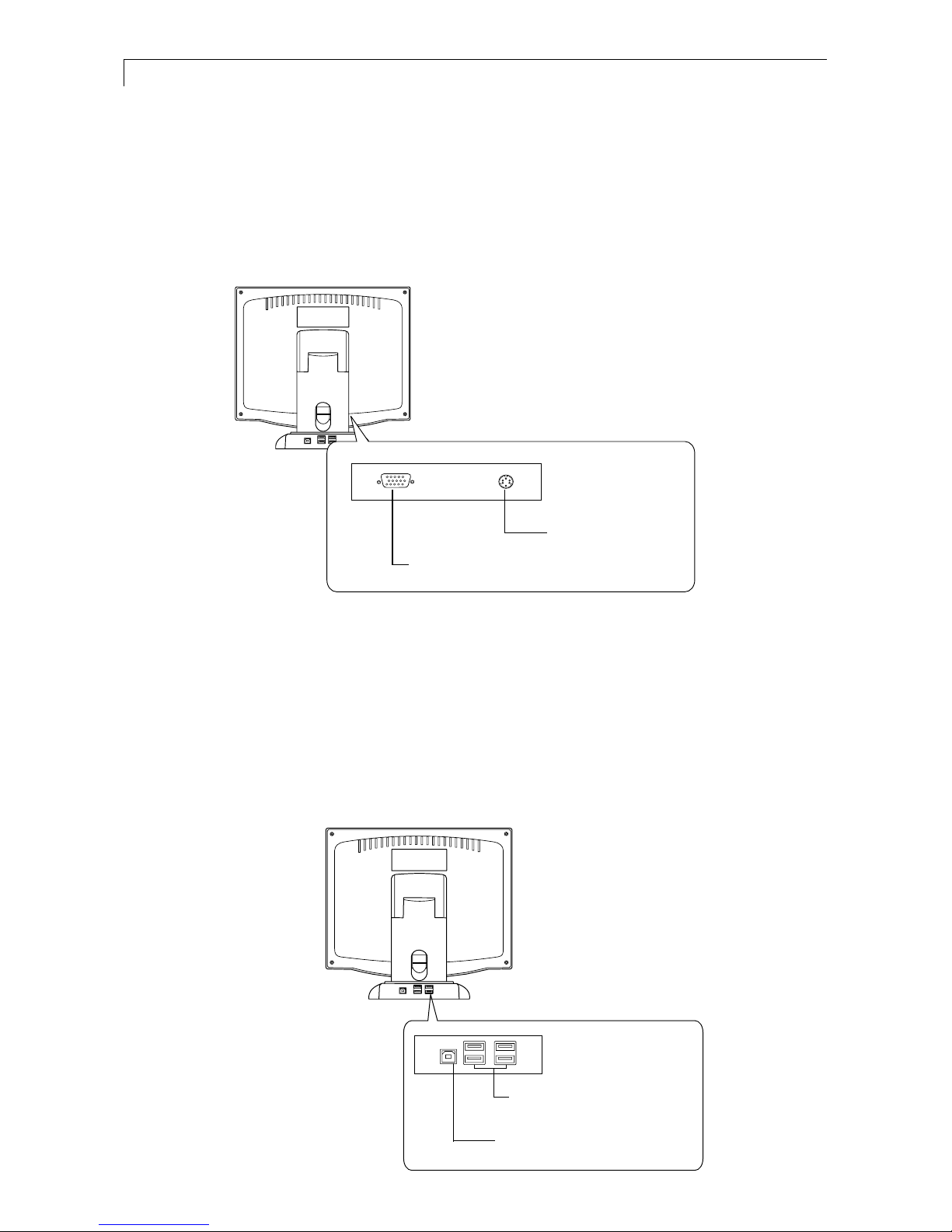

"Connectors

Display Rear Connectors

Display Stand Back USB Hub Ports

USBUpstream Port

4 USB Downstream

Ports

DC Power-In

Display Input

English

StartYourInstallation

VGA Cable

AC Power Cord

AC/DC Power

Adapter

"Connecting the Display

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment is off.

2. Connect the VGA signal cable from display input connector to the 15-pin

connector of your host computer and tighten the screws.

3. Connect the DC power cord to the power connector; plug one end of the

AC power cord into the power adapter, and then the other end into an

electrical outlet.

Notice: To ensure the LCD display can work well with your computer,

please configure the display mode of your graphic card to make it

less than or equal to 1024 x 768 resolution and make sure timing

of the display mode is compatible with the LCD display. We have

listed the “Compatibility Modes” of this LCD display in appendices

for your reference.

English

"Display and system setting

For the optimum display of your monitor, please follow the procedures

as below.

1. Adjust the vertical refresh of your graphic card to 60Hz:

a. If the monitor setting of your computer provides vertical

refresh selection, set the vertical refresh to 60Hz.

b. If the monitor setting of your computer does not provide the

vertical refresh selection:

b-1. Check your graphic card driver, if the driver supports vertical

refresh selection, install the driver and set to 60Hz.

b-2. If the driver does not provide the vertical refresh selection,

please contact your graphic card’s dealer for a vertical refresh

selection supported driver.

2. Activate the Auto-Adjustment function to obtain optimum image

by pressing “S/A” button.

3. If necessary, pop up the OSD menu and use the “Horizontal

Position”, “Vertical Position”, “Frequency”, “Tracking” adjustments

to fine-tune the display image.

English

"USBHub

$USB Downstream Ports

These four USB ports are available for connecting USB type peripheral

devices such as keyboard, mouse, printer and so on.

#USB Upstream Port

This port is for connecting the USB Upstream cable to computer’s or

other hub’s USB port.

English

"CableManagement

1. Route the cables through the cable management device.

2. Connect the cables to their respective connectors on the back panel of

the display.

CableManagement

Device
