CTC Union FMUX03/V35 Manuel utilisateur
FMUX03/V35
2
Table of Content
Chapter 1 Introduction………………………………….…………………… 3
1-1 Functional Description………………..……………………… 3
1-2 Application of FMUX03/V35………………………………… 4
1-3 Technical Specification …………………..….……………… 4
1-4 FMUX03/V35 Ordering information ..……………………….. 7
Chapter 2 Installation ………………………………………………………… 8
2-1 Description…………………………………………….……… 8
2-2 Unpacking………………………………………….………… 8
2-3 Site Requirements………………………..…………………… 8
2-4 Site Selection……………….…………………………………. 9
2-5 AAC or DC Electrical Outlet Connection…………………….. 9
Chapter 3 Operating Instructions.……………………………………………. 10
3-1 Front Panel……………….……………………………………. 10
3-2 Rear Panel Control and LED Indicator Function..……….….. 11
3-3 Menu Tree…………………………………………………….. 13
Chapter 4 Operating and Setup Instructions…………………………………. 14
4-1 Profile…………………………………………………………. 14
4-2 System Configuration…………….…………………………… 15
4-3 Alarm Status Report………………..…………………………. 15
4-4 Craft Port Operation…………………………………………... 15
4-5 How to Connect and setup the craft port …………………….. 15
4-6 Operating From The Craft Port ………………………………. 16
Chapter 5 Loopback Test…………………………………………………….. 24
5-1 General Information………………………………………..… 24
5-2 Loopback Test (For V.35 Tributary)………………………….. 25
Appendix-A DB25 male connector To M34 female connector 26
FMUX03/V35
3
Chapter 1 Introduction
1-1 Functional Description
The CTC Union FMUX03/V35 utilizes V.35 interface to convert electric signal
into optical signal and extends its transmission distance up to 80 kilometers.
FMUX03/V35 provides user-friendly functions for monitoring, maintaining, and
configuring the unit using LCD panel and VT-100 remote terminal access. Its DC /
AC selectable power source insures a quality and reliable power supply. CTC Union
FMUX03/V35 provides the telecommunication industry a multipurpose and easy to
use high quality fiber optics modem.
Operating from either AC or DC power module , backup power supply is
available.
Mountable on either 19-inch or 23-inch rack.
FMUX03/V35
4
1-2 Application of FMUX03/V35
FMUX03/V35 is mainly used to extend the transmission distance of optical signal by
multiplexing individual channels into a single optical stream using V.35 interface. In
addition, FMUX03/V35 can connect a client equipment to a Central Office using V.35
interface.
Application of FMUX03/V35
FMUX03/V35
5
1-3 Technical Specification
V.35/V.36/EIA530A/RS232(V.28)/V.10/V.11/X.21/RS449 Interface
Bit Rate: N*64K (N=1 to 32) up to 2M
Number of Input Ports: V.35 ports
Clock Source: Internal, DTE (selectable), Line
Optical Interface
Optical Source: 1310/1550 nm MLM Laser
Number of Optical Links: 2 (1+1 auto protection switch)
Output Power: > -12dBm at 9/125 (Laser 1310 nm)
> -12dBm at 9/125(Laser 1550 nm)
Receiver Sensitivity: -34dBM (1310nm/1550 Laser)
System Gain: 20-30dB
Fiber Type: Single Mode (9/125um)
Optical Connector: FC/PC；ST
Alarm Detection and Indication
Data port Interface
TxD (Transmit data):DTE transmit data to DCE
RxD(Receive data):DCE transmit data to DTE
CTS(Clear to send):DCE to DTE
RTS(Request to send):DTE to DCE
Optical Interface
LOS (Loss of Signal)：The loss of optics signal
Laser On: Laser On indicator
Alarm Indication
Major alarm: loss of frame,loss of clock,loss of signal
Minor alarm: one of power modules fail or receive RDI signal from
Opticallink
Alarm Connector
DB-9 female connector
Connect to an external BUZZER to receive visible and audible alarm.
FMUX03/V35
6
Diagnostic Capabilities and Loopback Function
Optical Interface: Local Loopback and Remote Loopback
Data port Interface: Local Loopback and Remote Loopback
ACO: Alarm cut off
RST: Rest button
Configuration
Use the 3 control buttons and the LCD front panel to configure and
monitor the system
Craft port with DCE appearance
Bits per second (baud): 9600bps
Parity: None
Data Bits: 8 bits
Stop Bit: 1
Power
DC: -36V ~ -72VAC: 90V ~ 288V(57Hz ~ 63Hz)
Physical Specifications
FMUX03/V35 Dimensions:
Depth: 220 mm
Width: 285 mm
Height: 44.5 mm
Optical Link: FC/PC or ST, Electrical Link: DB-25 female connector
Alarm Connector: DB-9 connector
Environment
Operating Temperature: 0 ~ 40℃Indoor Version
-25 ~ 70℃Storage
Humidity: 5 ~ 95%
FMUX03/V35
7
1-4 FMUX03/V35 Ordering Information
Options for Ordering information
Optical Module
1310S 1310 nm single-mode, loop reach up to 45km (Single OE Module) > -12dBm
1550S 1550 nm single-mode, loop reach up to 75km (Single OE Module) > -12dBm
1310D 1310 nm single-mode, loop reach up to 45km (Dual OE Module) > -12dBm
1550D 1550 nm single-mode, loop reach up to 75km (Dual OE Module) > -12dBm
System Gain
L(Low power) System Gain ＞16dB
M(Low power) System Gain ＞20dB
H(Low power) System Gain ＞25dB
Power Module
AC-1 Single 90 ~ 288 VAC power supply
DC-1 Single –34 ~ -72 VDC power supply
AC-2 Dual 90 ~ 264 VAC power supply
DC-2 Dual –34 ~ -72 VDC power supply
AC-1, DC-1 AC / DC dual power supply
Optical Connector
F FC type fiber connector
T ST type fiber connector
V.35 Connector
1 Ch 1 set of V.35 connector
FMUX03/V35
8
Chapter 2 - Installation
2-1 Description
This chapter provides the information needed to install FMUX03/V35. It is
important to follow the installation instruction to insure normal operation of the
system and to prevent damage due to human error.
2-2 Unpacking
If there is a possibility for future relocation of the FMUX03/V35 unit, please save the
cartons and protection packaging material. The following items are shipped with
your FMUX03/V35:
One FMUX03/V35 User’s Manual
One FMUX03/V35 Unit
V.35 Cable (DB25 to M34)
Please carefully unpack and inspect the unit and accessories for damaged and missing
parts. Contact our nearest sales representative or our company directly if you suspect
any damaged or missing parts. Improper handling during shipment may cause early
failure.
2-3 Site Requirements
The FCC requires telecommunication equipment to withstand electrical surge that
may result from lighting strikes. This equipment has been tested and found to
comply with the FCC requirement. Users should follow the precaution below to
insure the safety and minimize the risk of damage to the equipment:
Make sure that the power outlet is properly grounded. Please refer to article 250
of the National Electrical Code (NEC) Handbook.
Proper grounding should include a minimum of:
1) A grounded rod buried outside the building at least 8 feet (2.44 meters) deep.
2) It is preferred that the building uses metal water pipe and cooper connector at
the joint.
FMUX03/V35
9
3) Any device either connected to FMUX03/V35 directly or indirectly should use
the same set of power outlet.
2-4 Site Selection
For best performance, install the FMUX03/V35 within 50 feet (15.24 meters) from
the data terminal equipment and 6 feet (1.83 meters) from the AC power outlet. To
allow easy access to the equipment, leave at least 36 inches (90 cm) clearance in front
and at least 4 inches (10.2 cm) at the rear.
To avoid overheating, leave at least 1 inch (2.5 cm) on either side of FMUX03/V35.
Also, do not stack another equipment on top of FMUX03/V35.
2-5 AC or DC Electrical Outlet Connection
For safety and to prevent damage to FMUX03/V35, make sure that the power
requirement matches those of your electric outlet. Connect power to FMUX03/V35
and power on the equipment.
FMUX03/V35
10
Chapter 3 – Operating Instructions

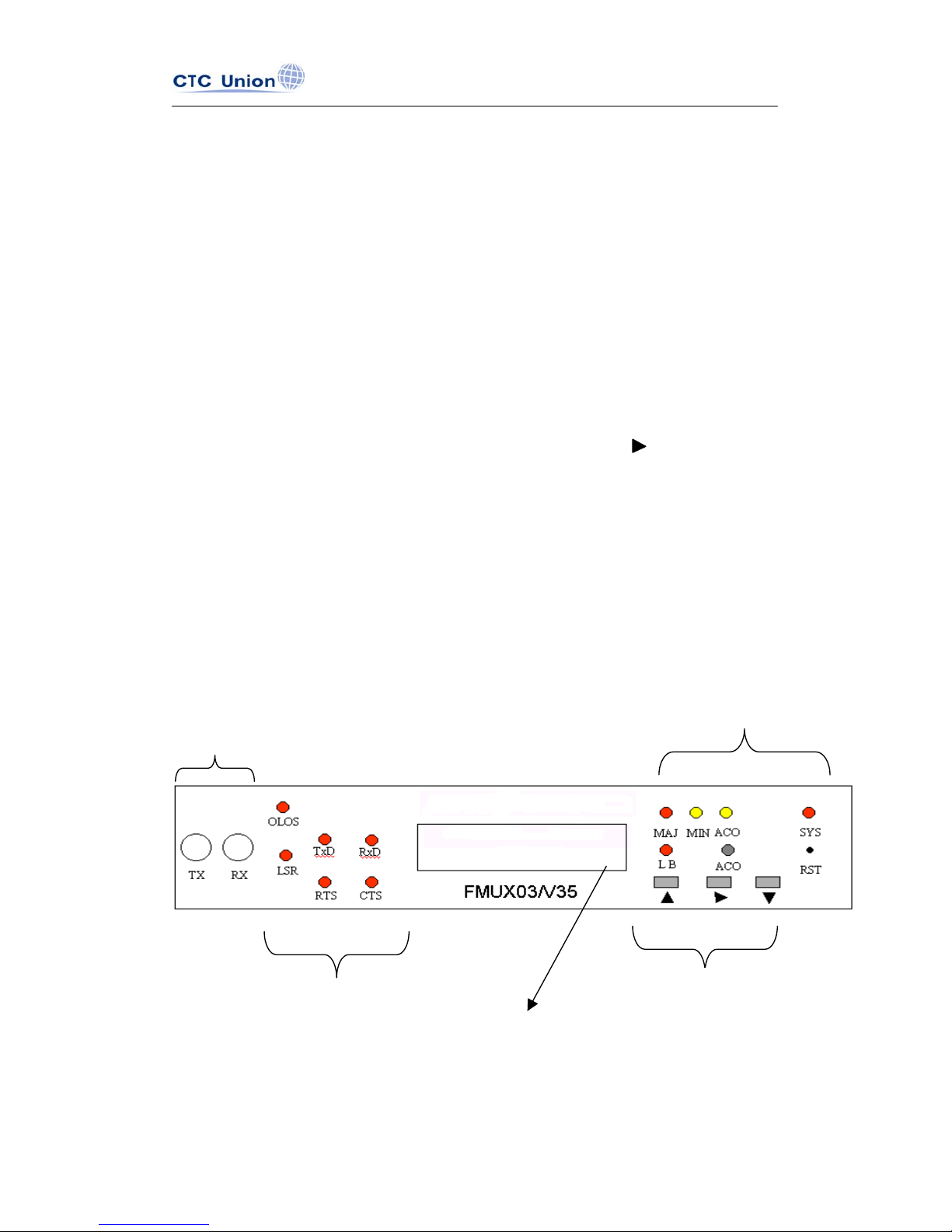

3-1 Front Panel
There are four parts to the front panel of FMUX03/V35:
(1) Fiber Optics Connectors and Indicators: Notifies user of a problem such as
LOS (Loss of Signal) and Laser LED (LSR). Includes a pair of
input/output connector
(2) Alarm LED Display: Notifies users of a problem such as a Major Alarm
(MAJ), Minor Alarm (MIN), and System Alarm (SYS).
(3) LCD Control Buttons: The three buttons, ▲, ▼, and are used for
system configuration and for the loopback test.
(4) V.35 Port Status LED: Four LEDs, representing TXD, RXD, CTS, and
RTS.
Each of the LED indicators is described below in detail:
Front panel
Fiber Optics
Connector
LED Display
LED Display
LCD Control
Button
LCD Panel
