User Guide

FRM220-CCF40

4-Channel Contact Closure Media Converters

Table of Contents

Version 1.0 August, 2017

Introduction

------- 1

Features/Specifications

------- 2

Panel

------- 3

Installation/SFP

------- 4

LED Indicators

------- 5

Console Management

------- 6

Main Menu Operation

------- 7

Channel Information and Configuration

------- 8

Fiber Information and Configuration

------- 9

Device Information and Configuration

------- 10

Upgrading

------- 11

Application

------- 14

- 1-

w w w . C T C U . c o m

Introduction

FRM220-CCF40 models are 4-channel contact closure fiber converters

that can provide transmission of contact closure via fiber optic link. With

SFP socket, FRM220-CCF40 provides SFP-LC connector that enables

multi-mode, single-mode or bi-directional transmission using only a single

fiber cable.

The contact closure module has four relay inputs and outputs. Outputs

are normally open relays. The relay output follows the relay inputs at the

remote end. When the remote relay input is shorted, the local relay output is

closed. The front panel provides LED indicators that offer real-time

information of input and output status. Applications include alarm event

triggering, building automation, environmental control systems, fire & alarm

systems, gate control, traffic signal control equipment, and more.

WARNING: Fiber optic equipment may emit laser or infrared light that

can injure your eyes. Never look into an optical fiber or connector port.

Always assume that fiber optic cables are connected to a laser light source.

Management Features

FRM220-CCF40 has an embedded processor which can be used to

configure the device for stand-alone operation. When placed in a stand-

alone chassis with DB9 console port, these devices support a text based

serial terminal with an easy to use menu system for configuration. When

placed in a managed chassis, the card is configured and monitored through

the chassis NMC (network management controller) via local console or

remote Telnet, Web HTTP or SNMP.

1. Stand-alone - with serial console, menu driven

2. Rack management - When placed in NMC managed rack, all other

settings are overridden by the NMC management.

- 2-

w w w . C T C U . c o m

Features

Transmit a single contact closure in one or two directions

Transmission distance up to 120KM

125VAC 0.5A or 30VDC 1A relay output

Point-to-point transmission architecture

Plug-and-play design to ensure ease of installation

Hot-swappable rack module

Specifications

Optical Interface

Connector 1 x SFP+ LC cage

Data rate 155Mbps

Duplex mode Full duplex

Distance 2KM (Multimode), 30KM (Single-mode), 50KM (Single-

mode)

Wavelength 850nm/1310nm/1550nm

Relay Contact

Input Contact (I1, I2, I3, I4)

Input Dry Contact Closure

4 inputs (I1, I2, I3, I4)

Removable terminal block connector

Output Contact (K1, K2, K3, K4)

Output SPST relay

4 outputs (K1, K2, K3, K4)

Normally open

Removable terminal block connector

Relay Contact Power Output

Rating (Resistive): 0.5A @125VAC or 1A @ 30VDC

Carrying Current (Max.): 2A

Switching Power (Max.): 62.5AV, 30W

Switching Voltage (Max.): 250VAC, 220VDC

Switching Current (Max.): 2A

- 3-

w w w . C T C U . c o m

Power

Operating Voltage: 8~15VDC

Support power input reverse polarity protection

Consumption: 4W (Max.)

Mechanical

Dimensions: 155mm (D) x 208mm (W) x 88mm (H)

Weight: 200 g

Environment

Operating Temperature: 0°C~50°C

Storage Temperature: -10°C~85°C

Humidity: 5%~95% (non-condensing)

MTBF: >100,000 Hours

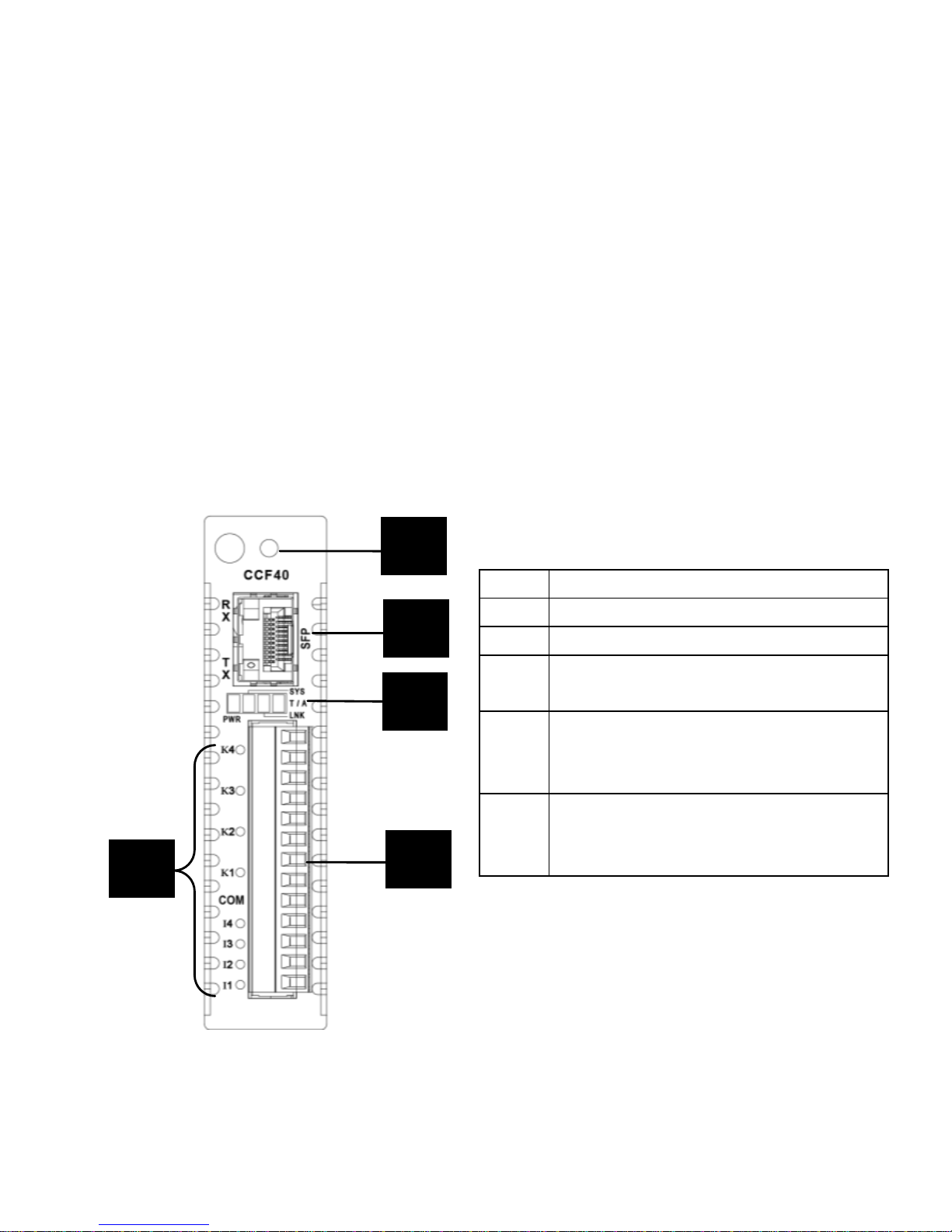

Panel

No.

Description

Thumb screw

SFP slot

Power, System, Link,

Test/Alarm LED indicators

Removable terminal block for

input contacts, COM and

output contacts

Input contacts (I1, I2, I3, I4),

COM, output contacts (K1,

K2, K3, K4) LED indicators

Panel Index Reference

- 4-

w w w . C T C U . c o m

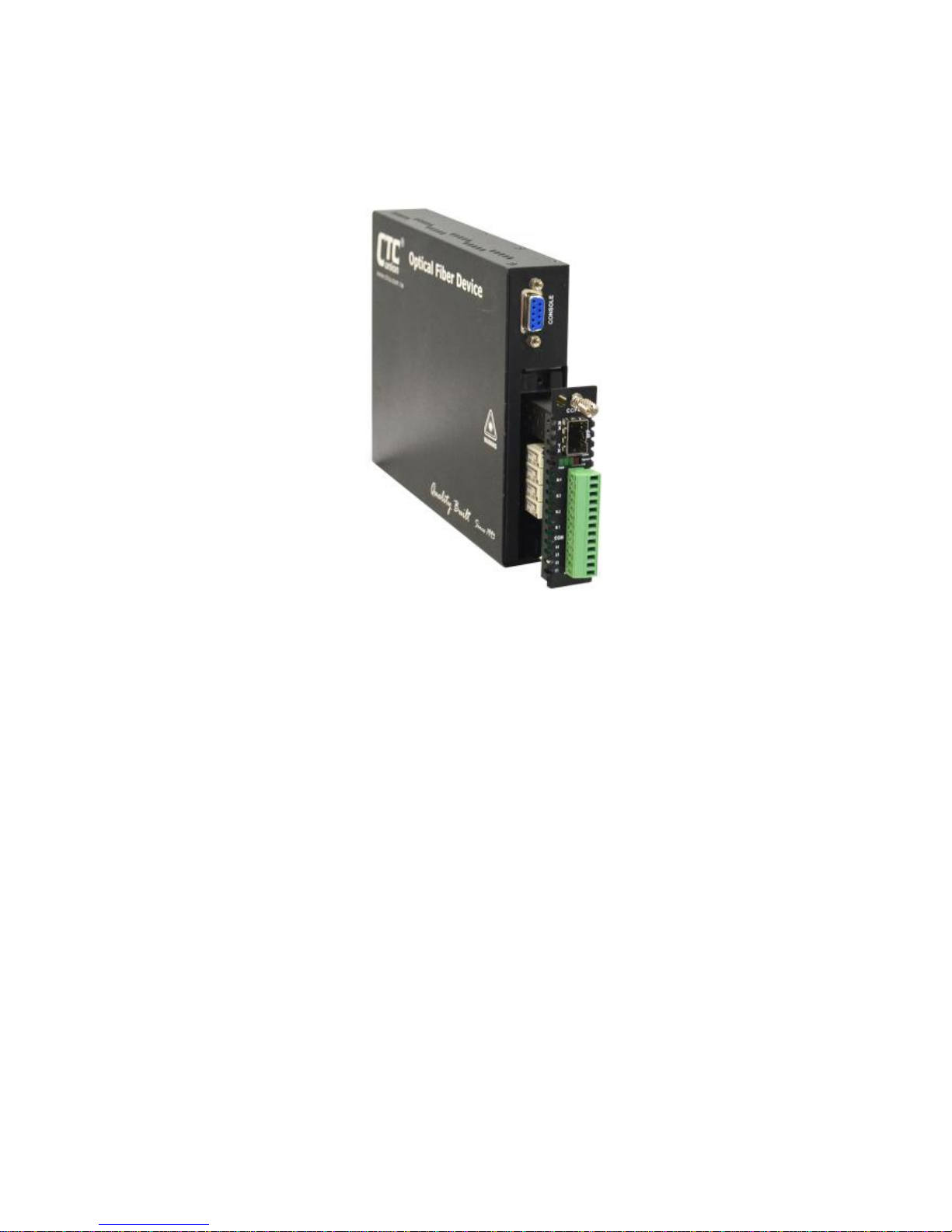

Chassis Installation

The contact closure media converter units can be placed in CH01M 1-slot

with console, CH02M 2-slot with console, CH02-NMC 2-slot with NMC or

the full CH08 or CH20 chassis.

Follow all ESD precautions when handling the card and SFP modules.

About SFP & SFP Installation

FRM220-CCF40 accepts any SFP units that comply with the MSA

standard. Follow all ESD precautions when handling the card and pluggable

modules. Fiber optic components and cables are very sensitive to dirt, dust

and mishandling, especially in high-speed networks. Dirty or mistreated

fiber may cause errors and an unwanted degradation of signal quality.

Remove the dust caps on SFP and patch cables only when ready to plug in

optical cables.

Installation

CTC Union supplied SFP modules are of the Bale Clasp type. The bale

clasp pluggable module has a bale clasp that secures the module into the

SFP cage.

Inserting a Bale Clasp SFP Module into the cage

Step 1. Close the bale clasp upward before inserting the pluggable

module.

Step 2. Line up the SFP module with the port, and slide it into the

cage.

Removing a Bale Clasp SFP Module

CH02-NMC Chassis

AC, DC, 2AC, 2DC,

or AD

FRM220-CH20

CH02M Chassis

AC, DC, 2AC,

2DC, or AD

- 5-

w w w . C T C U . c o m

Step 1. Open the bale clasp on the SFP module. Press the clasp

downward with your index finger.

Step 2. Grasp the SFP module between your thumb and index finger

and carefully remove it from the SFP cage.

Bale Clasp type SFP with bale open

LED Indicators

LED

Color

State

Descriptions

PWR

Green

Power on

Off

No power

Flash

1. Upgrade firmware

(On/Off 100ms)

2. Device is in disable

mode (On: 1 second,

Off: 4 seconds)

System

Green

Normal

Off

System errors

Link

Green

Link up and sync

Flash

Link up but sync loss

(On/Off 100ms)

Off

Loss of signal

Alarm/

Test

Red

Link down, sync loss or

power error

Off

Normal

Flash

Local loopback test or

loopback detected (On/Off

100ms)

CH1~4 Input

(I1, I2, I3, I4)

Green

Active

Off

Not active

CH1~4 Output

(K1, K2, K3, K4)

Green

Active

Off

Not active

- 6-

w w w . C T C U . c o m

Console Management

When placed in the chassis, this card can be locally managed by

connecting a simple serial terminal such as a notebook computer that has

an RS232 port or via a commonly available USB to RS232 adapter. In

Windows® XP, HyperTerminal™ is an application available for emulating a

serial terminal. You can also search for TeraTerm or PuTTY which are free

alternatives, especially if your operating system is Vista or Win7.

Settings:

Baud Rate: 38,400

Data bits: 8

Parity bits: none

Stop bits: 1

Handshaking: none

Emulation: VT-100

Default username/password: admin/admin

Connect the serial cable to the chassis' DB9. Run the terminal emulation

program. About 3 seconds after being powered on, the FRM220-CCF40 will

display the login menu as shown in the following example.

Example of Login Menu Console Screen

NOTE: All settings done by console menu are ignored if the card is

placed in the chassis (such as FRM220-CH20) with NMC/SNMP

management. The card will follow the settings done via the chassis

management. (Refer to NMC Operation Manual for details on managing

all cards.)

*****************************************

*** CTC UNION TECHNOLOGIES CO.,LTD. ***

*** FRM220-CCF40 Manager ***

*****************************************

Ver:[1.000-1.000-0.010-0.000] [CH-01M ]

Username : admin

Password :

- 7-

w w w . C T C U . c o m

Main Menu Operation

Select any of the menu items by keying in the menu item number or letter.

Use the [ESC] key to Logout. Any setting is immediately applied to the

converter's circuitry. After all of the parameter settings have been selected,

go to the Main menu page and press "S" to store the settings in non-volatile

RAM (NVR).

<1> Channel Information And Configuration: Enter this menu to view the

Input and Output status for Channel 1~4. Users can also set up how relay is

controlled in this configuration page.

<2> Fiber Port Information And Configuration: Enter this menu to view

status of SFP slot and view DD information of the inserted SFP. Users can

also set up "Port Active", enable or disable "Loopback" and "ALS" function

in this menu.

<3> Device Information And Configuration: Enter this menu to

enable/disable the device, reset the device, set the device to factory default

settings and enable/disable "Input Debounce" function.

<U> Update with X-Modem: Update firmware via X-Modem.

<S> Store Parameters: Saves the setting parameters into non-volatile

RAM (NVR).

<P> Password Setup: Enter this menu to change the login password. The

old password must be keyed in followed by the new password twice. If the

password is ever forgotten, please contact customer support for details on

resetting the password.

*****************************************

*** CTC UNION TECHNOLOGIES CO.,LTD. ***

*** FRM220-CCF40 Manager ***

*****************************************

Ver:[1.000-1.000-0.010-0.000] [CH-01M ]

< 1 > Channel Information And Configuration

< 2 > Fiber Port Information And Configuration

< 3 > Device Information And Configuration

< U > Update With X-Modem

< S > Store Parameters

< P > Password Setup

[ ESC ] Logout

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CTC Union Convertisseur de média

CTC Union

CTC Union FRM220-100M Manuel utilisateur

CTC Union

CTC Union FRM220-10/100 Manuel utilisateur

CTC Union

CTC Union FRM220-10/100iS-2 Manuel utilisateur

CTC Union

CTC Union FMC-2000MS Manuel utilisateur

CTC Union

CTC Union IMC-100-PH12 Manuel utilisateur

CTC Union

CTC Union FIB-232A-ST Manuel utilisateur

CTC Union

CTC Union IMC-1000MS-PH12 Manuel utilisateur

CTC Union

CTC Union FMC-1000M Manuel utilisateur

CTC Union

CTC Union IMC-1000M Manuel utilisateur

CTC Union

CTC Union FRM220-10 Manuel utilisateur

CTC Union

CTC Union FMC-1000S Manuel utilisateur

CTC Union

CTC Union IMC-1001C-E Manuel utilisateur

CTC Union

CTC Union FIB1-10/100 series Manuel utilisateur

CTC Union

CTC Union FMC-1000-PH Manuel utilisateur

CTC Union

CTC Union IMC-1000M Manuel utilisateur

CTC Union

CTC Union IMC-1000M-PH12 Manuel utilisateur

CTC Union

CTC Union FRM220-100AS-1 Manuel utilisateur

CTC Union

CTC Union FMC-10/100I series Manuel utilisateur

CTC Union

CTC Union FRM220-100M Manuel utilisateur

CTC Union

CTC Union FRM220-1000E-1 Manuel utilisateur

CTC Union

CTC Union IMC-1000C Manuel utilisateur

CTC Union

CTC Union FRM220-NMC Manuel utilisateur

CTC Union

CTC Union FRM220 Manuel utilisateur

CTC Union

CTC Union IMC-100C Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
