CSL DualCom Pro Manuel utilisateur
Step 1 - Put the DualCom Pro on test with the ARC
Step 2 - Mount the DualCom Pro in the panel and connect the aerial provided
Step 3 - Wire panel digi outputs to the DualCom Pro’s inputs and connect the FLT relay to
the panel (see figure 1). There are 2 options, wire to a zone or utilise panel’s FLT
input (panel dependant)
Step 4 - Apply 12-24v power
Step 5 - Wait 5 minutes whilst your DualCom Pro downloads its configuration
Step 6 - Check LED status. LEDs 1 & 2 should have solid green or flashing lights, whilst
LED 3 should have a solid green light. If showing otherwise please contact
CSL Technical Support on +44 (0) 1895 474 444
Step 7 - Self learn
• Ensure all required pins are in a normal/quiescent state and the panel is in its day
state
• Press and hold the C button until L appears on the display, then release the C
button
• The display will confirm successful operation by displaying ‘LEARN OK’
Step 8 - Test available paths to the ARC
• Tap button A until S is shown
• Tap button C to indicate Path Test
• The display will read out PATH TEST
Step 9 - Test all channels to the ARC, confirm test calls and inputs have all been received
correctly
DualCom Pro Pin Triggering
Quick Guide
SUPPORT
For more information on DualCom Pro and other CSL products please contact CSL Technical Support:
UK Tel: +44 (0)1895 474 444
Ireland Tel: 1800 855 695
Hours: 08.30 to 18.00 weekdays, 10.00 to 16.00 Saturday
Visit www.csl-group.com for the latest copies of all manuals.
www.csl-group.com @CSLGroupLtd Copyright CSL Group
PD001831-001

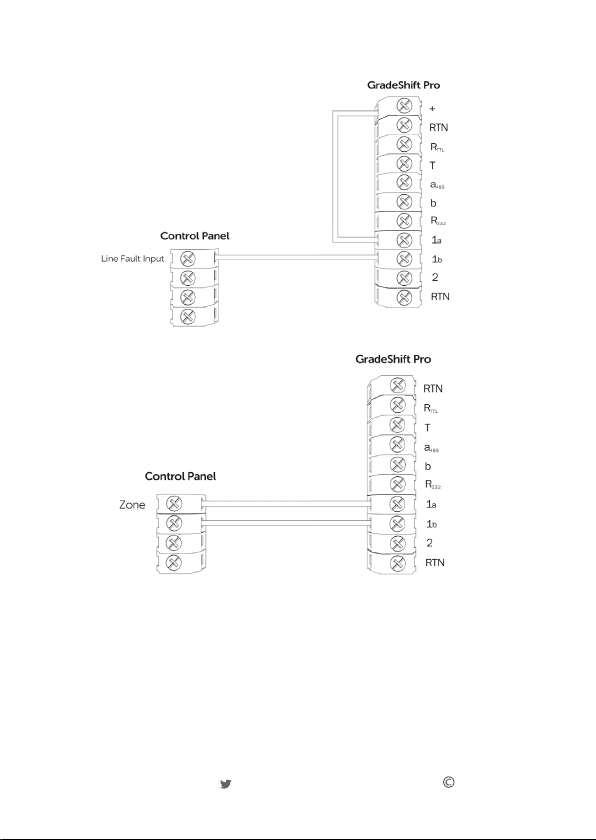

Figure 1 - Fault output 1a & 1b
