Crystal Mountain Storm Manuel utilisateur

Table of Contents

SECTION1:Product Specification ................................................................................................................. 1-1

SECTION2:Parts Listing and Exploded Views......................................................................... ....................... 2-1

Storm Parts Listing ................................................................................................................................. 2-1

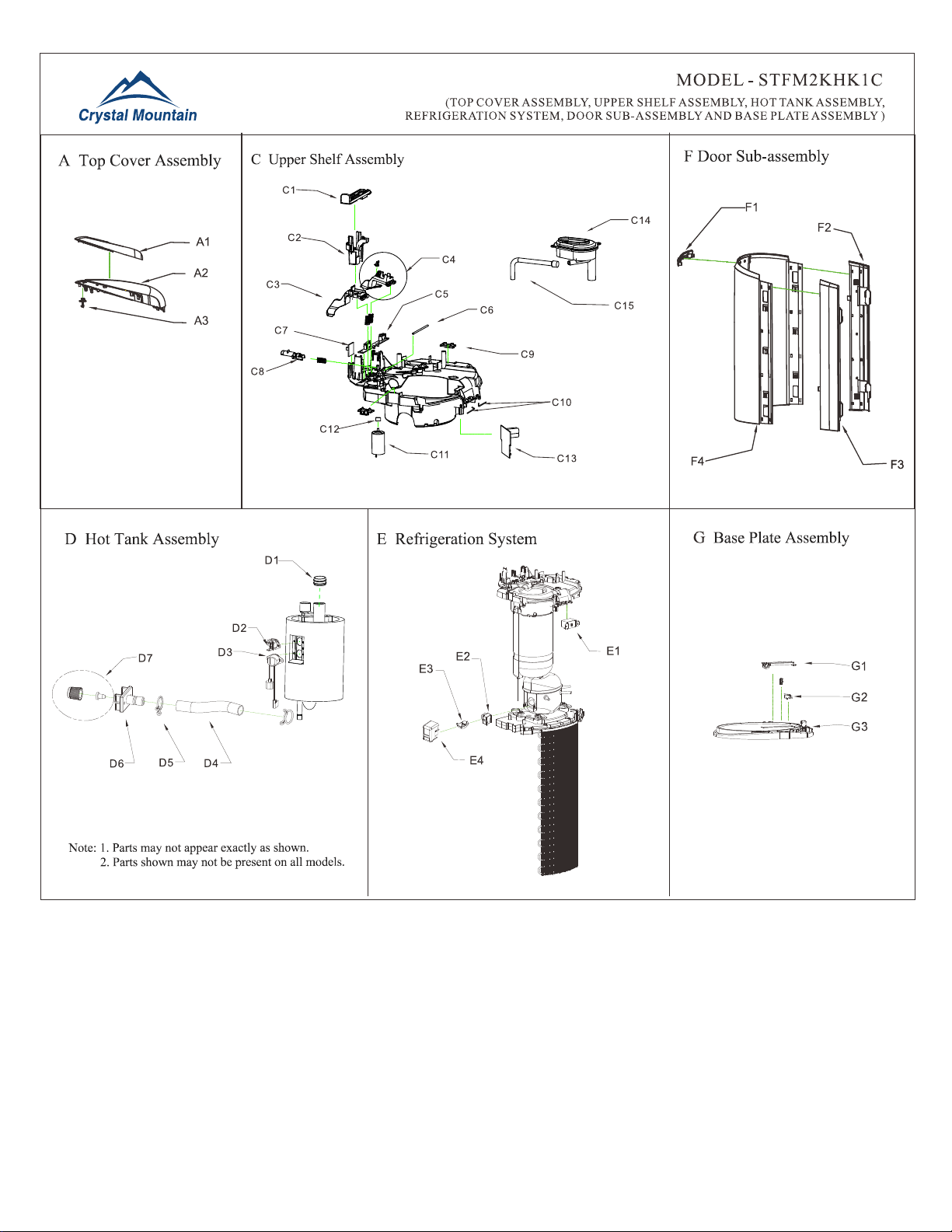

Exploded Views ..................................................................................................................................... 2-2

Product Dimensions ............................................................................................................................... 2-5

Description of Product Model Number ...................................................................................................... 2-6

SECTION3: Replacement of SmartFlo Water Cartridge ...........................................................................................................3-1

SECTION4: Water Bottle Install & Replacement ............................................................................................. 4-1

SECTION5: Electrical Component Diagnosis and Replacement....................................................................... 5-1

Wiring and Schematics ........................................................................................................................... 5-1

Cold Thermostat Remove and Installation ................................................................................................ 5-2

Cold Thermostat Adjustment ................................................................................................................... 5-4

Hot Tank Auto Cutout / Manual Reset Replacement .................................................................................. 5-5

Hot Tank Removal and Replacement ....................................................................................................... 5-6

Compressor Relay / Overload Protector Replacement ............................................................................. 5-9

SECTION6:Trouble Shooting ....................................................................................................................... 6-1

SECTION7:Cleaning & Sanitization ............................................................................................................. 7-1

ITEM

POWER RATING

STANDARD CURRENT

POWER

CONSUMPTION

COLD

HOT

NOISE(SOUND POWER LEVEL)

NET WEIGHT

LOADING QUANTITY

COLD

HOT

COMPRESSOR

REFRIGERANT

TEMP RANGE

HEATER

TEMP RANGE

SAFETY DEVICE

TEMP CONTROL

SPECIFICATIONS

SINGLE PHASE

100-115VAC 60Hz

Hot & Cold: 4.8~5.3A

70W

500W

SINGLE PHASE MOTOR

R134a

4-10°C (39.2-50°F)

INTERNAL HEATER

76°C -92°C (168.8°F -197.6°F)

BIMETAL (AUTO RESET 93°C (199.4°F) OFF)

BIMETAL 85°C (185°F)

Pump: 55dB(A); Compressor: 43dB(A)

Hot & Cold: 14.5kg (32.0 Ib)

20FT: 204UNITS

40FT: 420UNITS

Cooler Specifications

Our new Bottom-Load water dispenser is the latest model in

Crystal Mountain’s line of coolers. The Bottom-Load means

no more lifting heavy bottles, just open the front door and

the bottle slides into the base of the cooler with little effort.

The Storm features an easy to remove reservoir system, that

takes less than a minute to change. The LED indicator tells

you when it needs to be replaced. Servicing has never been

easier. With its contemporary design, attractive finish, con-

cealed faucets and easy maintenance, the Storm is sure to

dazzle in any environment.

Product Specification

STORM (Bottom-Load)

Crystal Mountain Products Limited

North American Ofce (Sales & Service)

11925 -145th Street Edmonton, Alberta Canada T5L 2H4

Crystal Mountain Products Inc.

US Ofce / Warehouse

915 Taylor Rd, Unit 3 Gahanna OH 43230

115V Storm Bottled Water Cooler Parts Listing MODEL--STFM2KHK1C

NO. PART CODE NO. PART CODE

1 PLC-C150002 C9

DOOR RAIL CAP PLC-C150033

2 ELE-C100197 C10

L SHAPE HINGE PIN, 3MM X 34MM FAS-C100113

3 ELE-C100208 C11

12VDC MOTOR, 1600 RPM ELE-C100204

4 PLC-C150028 C12

MOTOR BUSHING PLC-C150052

5 FAS-C100109 C13

PCB, CONTROL BOARD ELE-C100205

6 PLC-C150027 C14

NEW STEAM VALVE ASSEMBLY-ST SUB-C200414

7 PLC-C150038 C15

PINCH TUBE, HOT - 7MM X 172MM SIL-C150004

8 PLC-C150055

9 SUB-C200277

10 PLC-C150012 115V HOT TANK + ELECTRICAL ASSEMBLY(INTERNAL 500W)

SUB-C200230

11 PLC-C150111 D1

SEAL, MANIFOLD INLET/OUTLET - OD18 X 11MM SIL-C120006

12 PLC-C150054 D2

98C CERAMIC MANUAL RESET ELE-C100170

13 ELE-C000010 D3

85C AUTO RESET, SEALED - TB ELE-C100275

14 PLC-C150004 D4

HOT DRAIN TUBE - 8MM X 280MM SIL-C150002

SPRING CLIP - 12MM FAS-C000029

TOP COVER ASSM, BLACK/CHROME - BLC SUB-C200232 D6

HOT TANK DRAIN - SUBLIM'O PLC-C120021

A1 TOP COVER TRIM, CHROME PLC-C150014 D7

HT DRAIN CAP + SEAL SUB-C000182

A2 TOP COVER, BLACK PLC-C150005

A3 TOP COVER CATCH PLC-C150025 115V REFRIGERATION SYSTEM REPLACEMENT PARTS N/A

WP4V COLD THERMOSTAT REF-C100035

B2 BOTTLE ADAPTOR ASSEMBLY SUB-C200235 E2

115V COMPRESSOR RELAY - B25H5 REF-C100168

115V HUAYI COMP PROTECTOR - B25H5 REF-C100167

UPPER SHELF ASSEMBLY

SUB-C200228 E4 COVER, HUAYI B25H5 REF-C100164

LATCH, WATER OUTLET PLC-C150031

NEW COLD FAUCET LEVER ASSY.(BLUE) SUB-C200447 DOOR ASSEMBLY SUB-C200233

NEW HOT FAUCET LEVER ASSY.(RED) SUB-C200445 F1 DOOR HANDLE, CHROME PLC-C150015

HOT FAUCET LEVER(RED) SUB-C200275 F2 DOOR SLIDER-LH, BLACK PLC-C150010

PCB, SWITCH BOARD ELE-C100207 F3 DOOR SLIDER-RH, BLACK PLC-C150009

HINGE PIN, TOP COVER - EV FAS-C100091 F4 DOOR WINDOW, BLACK PLC-C150016

PCB, LED INDICATOR ELE-C100206

SAFETY BUTTON, RED PLC-C150056 BASE PLATE ASSEMBLY SUB-C200225

G1 BOTTLE LOW INDICATOR, BLACK PLC-C150041

20PCS SmartFlo™ IN ONE BULK BOX SUB-C200343 G2 PCB, BOTTLE LOW INDICATOR ELE-C100209

9PCS SmartFlo™ IN ONE BULK BOX SUB-C200344 G3 BASE PLATE, BLACK PLC-C150001

06-03-2018

DESCRIPTION

BACK PANEL, BLACK

115V POWER CORD, BLACK 45

TRANSFORMER, 115VAC TO 15VDC

DOOR SPRING HOLDER

SPRING BLOCK

SS SPRING, DOOR

HOT TANK POWER SWITCH

DOOR RAIL, 1015MM

LED LIGHT TUBE - ST

H&C FACE PLATE, BLACK+ PRINTING (WHITE)

CLIP, BOTTLE ADAPTOR

DRIP TRAY COVER, BLACK

DRIP TRAY BASE, DEEP VERSION, BLACK

FRONT PANEL, BLACK - ST

Product Dimensions

Storm (Bottom-Load)

2 - 5

2 - 6

You can find your serial and model number at the back of your cooler.

ST F M 2 K H K 1 C

Cooler Shape Reservoir Type Type of Lid No. of Faucets Body Color Temp. Option Insert Color Voltage Option

Description of Product Model Number

ST – Storm

F– SmartFlo SF-1 Water Cartridge

M –Manifold K – Black H – Hot & Cold K – Black 1 – 110~115V C – Made in China

3 - 1

Replacement of SmartFlo™ Water Cartridge

For the best tasting and highest quality water, it is recommended to change the SmartFlo™ Water Car-

tridge every 12 months. Follow the steps below to replace the SmartFlo™ Water Cartridge. It is recom-

mended to empty the bottle prior to replacement of the SmartFlo™ Water Cartridge and bottle adaptor.

Note: A flashing blue light above the cold water lever will alert you to when the SmartFlo™ Water Car-

tridge should be replaced. The system has been pre-set to provide indication after a period of 12 months

of use. User may operate the cooler as normal until the bottle has been emptied.

Note: To reset the life timer system, the SmartFlo™ is required to be removed from the dispenser for a

minimum of 15 seconds while the unit is connected to the mains power supply.

1. Open Dispenser door (Figure 3-1). (Slide door upwards to allow access to bottle area)

2. Slide empty bottle out of cabinet (Figure 3-2 and Figure 3-3).

3. Disconnect the water line from the bottle adaptor (Figure 3-4).

4. Open the replacement SmartFlo™ Water Cartridge kit, and remove the access key provided.

Notice:

The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water

Cooler Service Technician only.

Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.

Figure 3-1

Figure 3-4

Figure 3-2 Figure 3-3

3 - 2

5. Insert the access key into the 2 holes located at the underside of the top edge of the cooler (above

water levers) and push inwards (Figure 3-5 and Figure 3-6)(once unlocked, the front of the top cov-

er opens upwards).

6. Place a glass or other container below the water outlets (to catch drips), and unlatch the locking

clip located near the front of the cooler to release the water tubing (Figure 3-7).

7. Unlock the turn knobs which hold down the SmartFlo™ Water Cartridge (Figure 3-8).

8. Pull SmartFlo™ Water Cartridge upwards to remove (Figure 3-9).

9. Discard used SmartFlo™ Water Cartridge according to local regulations. (Whenever possible,

please recycle).

Figure 3-5 Figure 3-6

Figure 3-7

Figure 3-8

Figure 3-9
