Crux RVCCH-75B Manuel utilisateur

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

DODGE

2014 - 2015 Durango

2014 - 2015 Ram*

JEEP

2014 - 2015 Grand Cherokee

APPLICATION NOTES:

FOR UCONNECT 5” AND 8.4”

DISPLAYS

This interface does not oer the

Force RVC feature.

PARTS INCLUDED

(1) CH-75B RVC Interface Module

(1) CH-75B FVC Interface Module

(1) CH-75B 52-Pin T-Harness (2663)

(1) Instruction Sheet

SAFETY PRECAUTIONS

1. Please read through the entire instruction manual before starting any of the installation procedures.

2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.

3. Do not install any of the main modulesnear any major components or near the HVAC system,

as placing items near the HVAC maycause damage oroverheating to the interface.

4. We recommend not disconnecting any of the air bag connections behind the dash panels.

5. Thisproduct is under Crux’s 1 year manufacturer’s warranty. Warranty may be voided in the case where

the device shows proof of being opened or improper extreme force.

TECH SERVICES

All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems or if

you have technical questions, contact us directly:

Crux Interfacing Solutions TechSupport

1(855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Pacic Time

www.cruxinterfacing.comRev. 051016 1

*NOTE: Not compatible with diesel powered RAM trucks

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

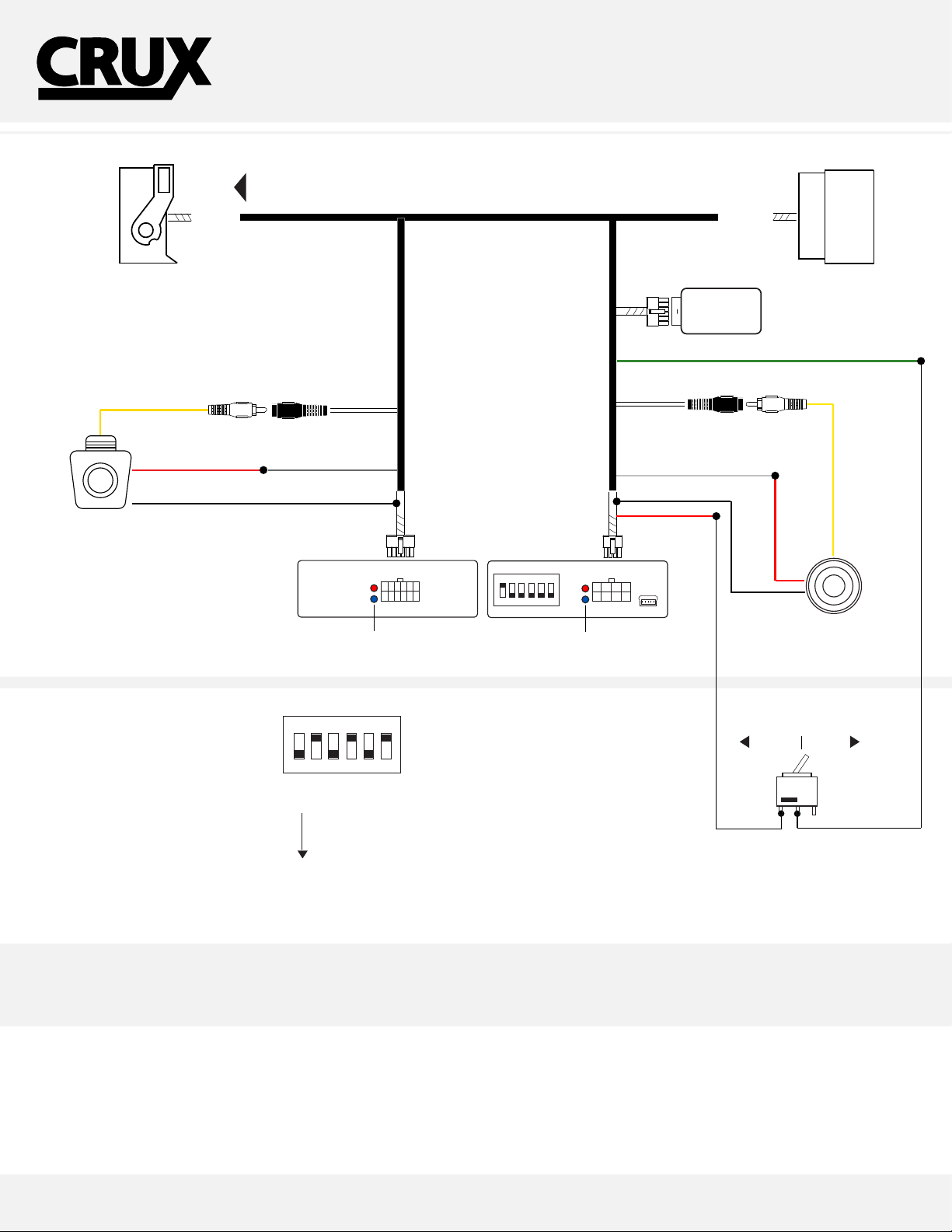

INSTALLATION OVERVIEW

www.cruxinterfacing.comRev. 051016 2

8-PIN

(male plug)

FRONT CAM INPUT

(female plug)

WHITE / 12 OUTPUT (FRONT)

VIDEO

(male plug)

FRONT CAMERA

(not included)

BLACK/

GROUND

RED/

POWER

12V

GRAY/ REVERSE 12V

52-PIN

(female plug)

TO FACTORY

RADIO

52-PIN

(male plug)

REAR CAMERA

(NOT INCLUDED)

RED/ POWER 12

BLACK/ GROUND - TAP BLACK WIRE ON 8-PIN

VIDEO

(male plug)

4 5 6

1 2 3

STATUS LED’S

4 5 6

1 2 3

ACTIVATE

REAR-VIEW

& FRONT VIEW

8-PIN

MODULE

12-PIN

(male plug)

STATUS LED’S

DIP 1 = OFF

2 = ON

3 = OFF

4 = ON

5 = OFF

DIP 6 = ON

12-PIN

(male plug)

SWITCHER

GREEN/ VIDEO IN-MOTION ACTIVATE

REAR CAMERA

INPUT

(female plug)

OPTIONAL /

TOGGLE SWITCH

ENABLEDISABLE

Make sure to set dip switch number 2

is turned to ON.

Dip 2 = RVC Enable

DIP SWITCHES OVERVIEW

NOTE: GREEN WIRE AND DIP 1 HAVE

THE SAME FUNCTIONALITY. IF ONE IS

BEING USED THERES NO USE FOR THE

OTHER

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

www.cruxinterfacing.comRev. 051016 3

CONNECTING THE INTERFACE

Follow these steps to properly install the CAN module

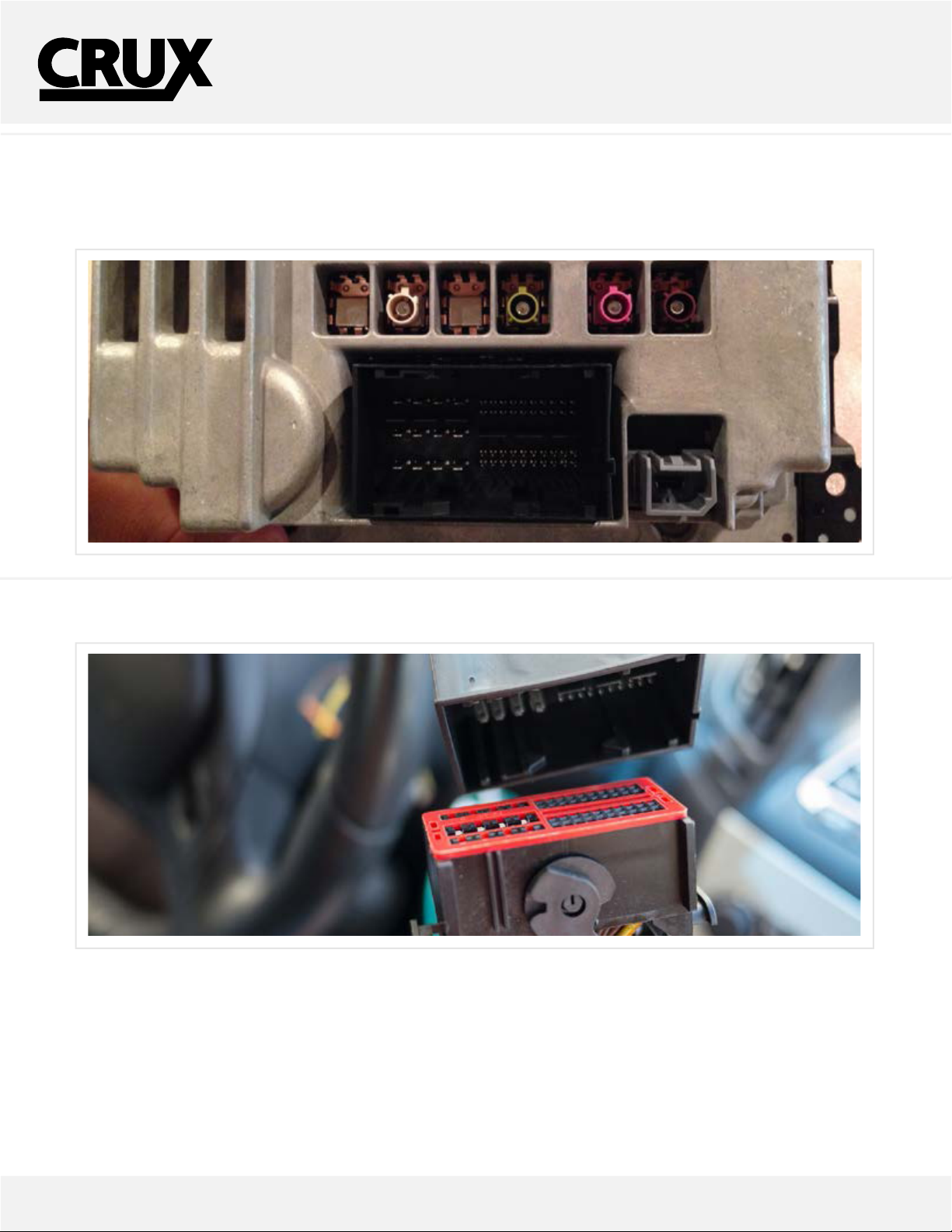

Step 1 - Remove the factory display to gain accessto the factory 52-Pin (RED) connector.

Located behind the display, not the radio. Remove the factory 52-Pin connector.

Step 2 - Using the provided 52-Pin T-Harness, mate both sidesof the harness, to the factory harness and the factory display.

UP=ON DOWN=OFF

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

www.cruxinterfacing.comRev. 051016 4

CONNECTING THE INTERFACE

Follow these steps to properly install the CAN module

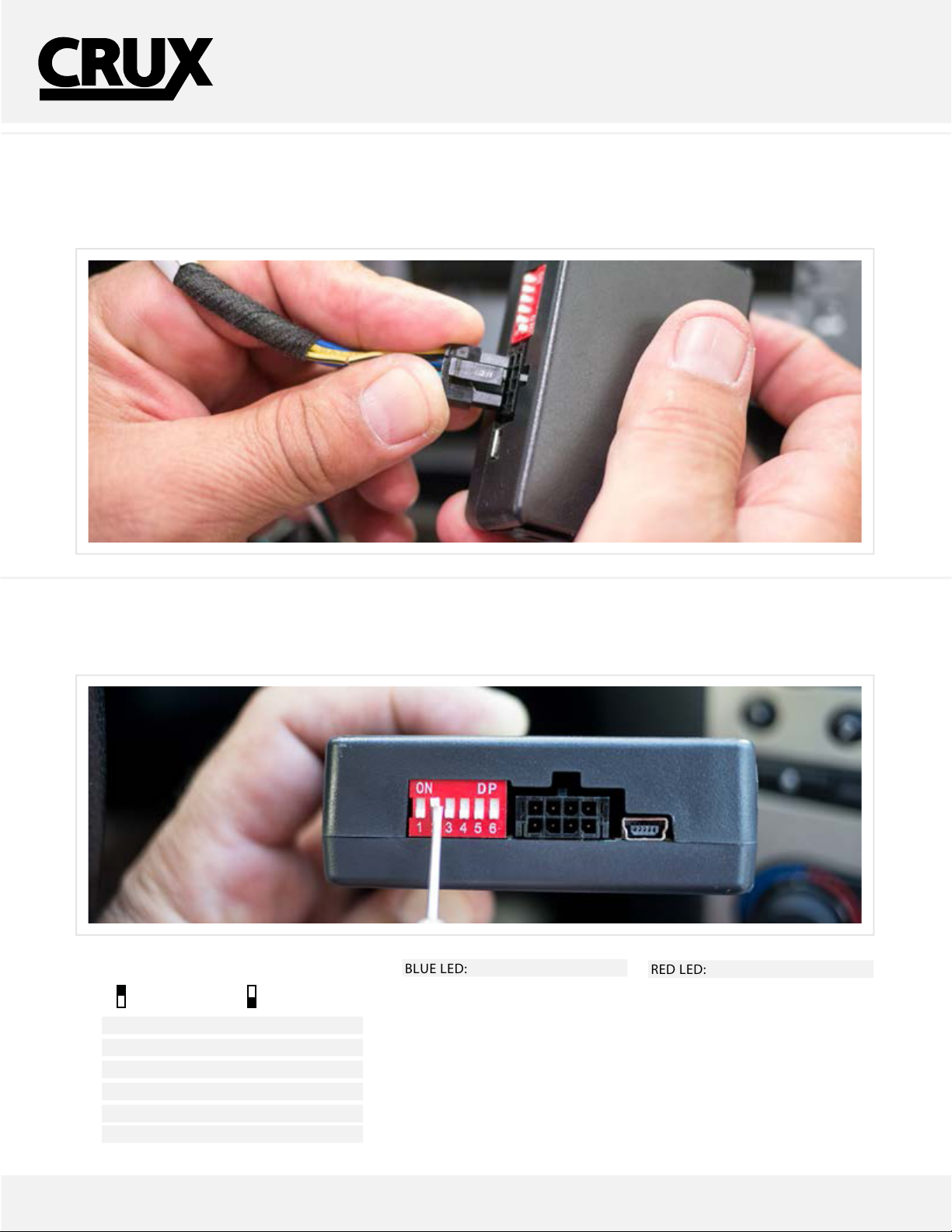

Step 3 - Connect both the 8-Pin and 12-Pin connectors to theircorresponding interface.

The 8-PIn is the only one withdip switches.Make sure all your connections are rmly inserted.

Step 4 - After connecting the module, set dip switches number “2”, “4”, and “6” to the “ON” position.

Make sure to test Front and Rear inputs.

All other dip switches are not to be used.

DIP SWITCH DESCRIPTION

IF NOT USING THE INPUT, PLACE TO OFF

DIP1 = ON = Video In-Motion Enable

DIP2 = ON = Rear-View Camera Enable

DIP3 = Not Used

DIP4 = ON = Front-View Button Activation

DIP5 = Not Used

DIP6 = CAN Termination

After each change of the DIP switch settings,

we recommend powering down the module,

then restarting thevehicle.

LED INDICATORS

BLUE LED:

SOLID = BUS RECOGNIZED

BLINKING = NO BUS DETECT

The Blue LED will shut o when

car enters sleep mode.

LED INDICATORS

RED LED:

ON = Power On

OFF = Power OFF

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

www.cruxinterfacing.comRev. 051016 5

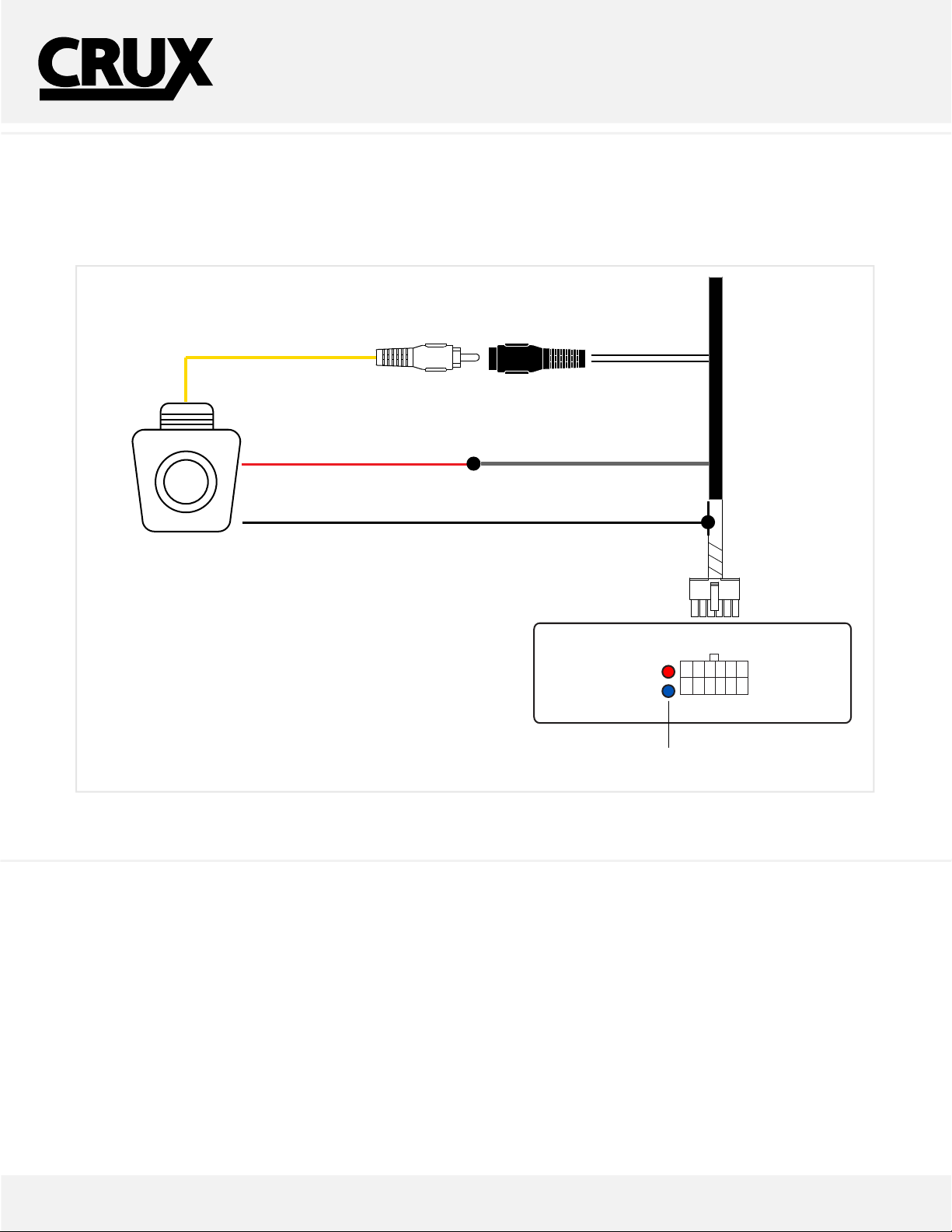

CONNECTING THE REAR-VIEW CAMERA

In order to activate the Rear-View Camera feature, make sure Dip switch number 2 is set to “ON”.

Step 5 - Make note that the Rear-View Camera is not included and canbe purchased separately.

Connect the RED power 12V cable from the camera to the GRAY Reverse (12V) trigger on the T-Harness.

Tap the BLACK wire onthe T-Harness 8-Pin connector for the GROUND to the camera.

Be sure to test the camera by placing the vehicle in REVERSE and conrming the camera display.

GRAY/ REVERSE 12V

52-PIN

(male plug)

REAR CAMERA

(NOT INCLUDED)

RED/ POWER 12

BLACK/ GROUND - TAP BLACK WIRE ON 8-PIN

VIDEO

(male plug)

4 5 6

1 2 3

4 5 6

1 2 3

ACTIVATE

REAR-VIEW

& FRONT VIEW

8-PIN

MODULE

12-PIN

(male plug)

STATUS LED’S

DIP 1 = OFF

2 = ON

3 = OFF

4 = ON

5 = OFF

DIP 6 = ON

REAR CAMERA

INPUT

(female plug)

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

www.cruxinterfacing.comRev. 051016 6

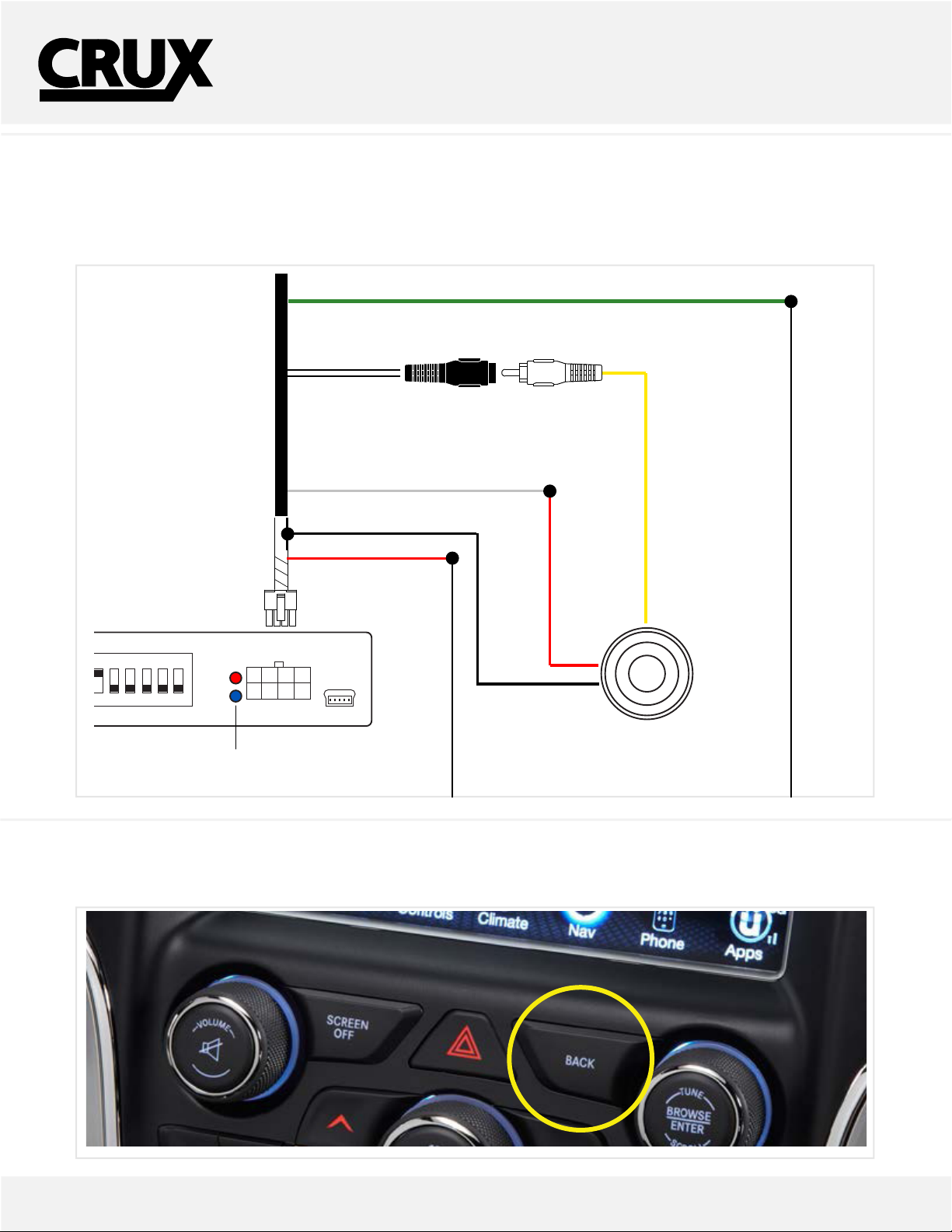

CONNECTING FRONT-VIEW CAMERA

In order to activate the FVC INPUT feature, make sure Dip switch number 4 is set to “ON” on the 8-Pin Module.

Step 6 - Using the provided RCA input, connect your FRONT camera to the input.

Use the WHITE wire to POWER the FVC. (See below)

SWITCHING TO THE FRONT-VIEW CAMERA

To switchto the new Front-View camera, simply press the “BACK ”once. Make sure Dip Switch number “4” is set to ON forthis to work.

To Exit the FVC press BACK once again.

8-PIN

(male plug)

FRONT CAM INPUT

(female plug)

WHITE / 12 OUTPUT (FRONT)

VIDEO

(male plug)

FRONT CAMERA

(not included)

BLACK/

GROUND

RED/

POWER

12V

52-PIN

(female plug)

4 5 6

1 2 3

STATUS LED’S

12-PIN

(male plug)

SWITCHER

GREEN/ VIDEO IN-MOTION ACTIVATE

OPTIONAL /

TOGGLE SWITCH

ENABLE

DISABLE

INTERFACING SOLUTIONS

RVCCH-75B

REAR-VIEW & FRONT-VIEW CAMERA

INTEGRATION INTERFACE FOR

DODGE & JEEP VEHICLES 2014-UP

www.cruxinterfacing.comRev. 051016 7

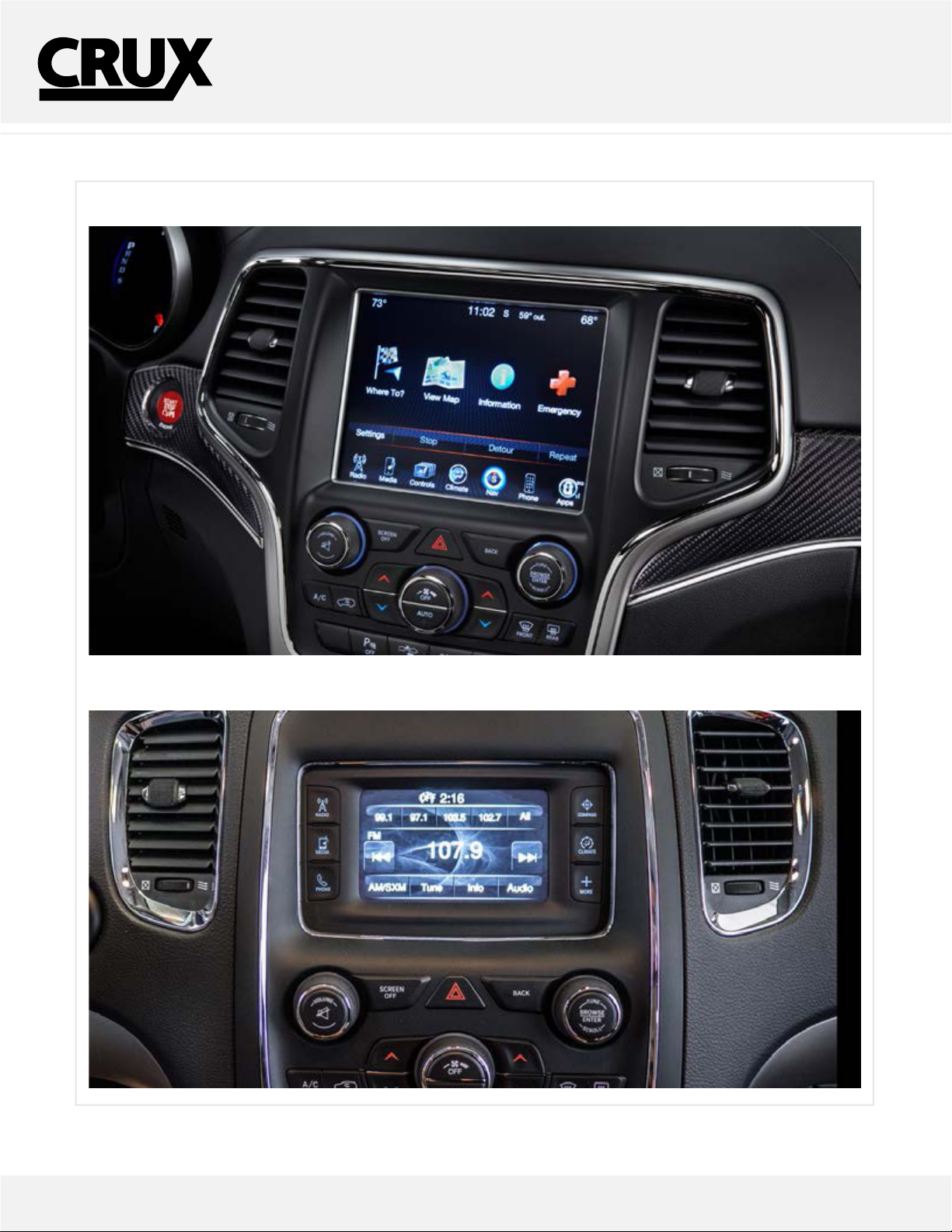

COMPATIBLE RADIOS- ALL RADIO MUST BE 1-PIECE RADIOS (NO SEPARATE CD SLOT)

8.4” UConnect

5” UConnect (1-Piece)
