Crosley CR3039A Manuel utilisateur
RONDO STYLE BLUETOOTH SPEAKER
USER MANUAL
CR3039A
BUYER RECOMMENDATIONS
⚫Unpack the device carefully. Make sure there are no
accessories left in the box. Check up the device for damage; if
the products was damaged during transportation, address the
firm which carried out the delivery; if the product functions
incorrectly, address the dealer at once.
⚫Shipping and transportation equipment is permitted only in
the original container.
⚫Does not require special condition for realization.
⚫Dispose of in accordance with regulations for the disposal of
household and computer equipment.
PACKING CONENTS
⚫50cm USB power cable-1pc
⚫User’s Manual-1pc
SPECIAL FEATURES
⚫Bluetooth wireless signal transmission
⚫Built-in player with USB flash and with micro SD memory card
⚫Battery operation time up to 3.5hours
⚫Radius of operation up to 10m

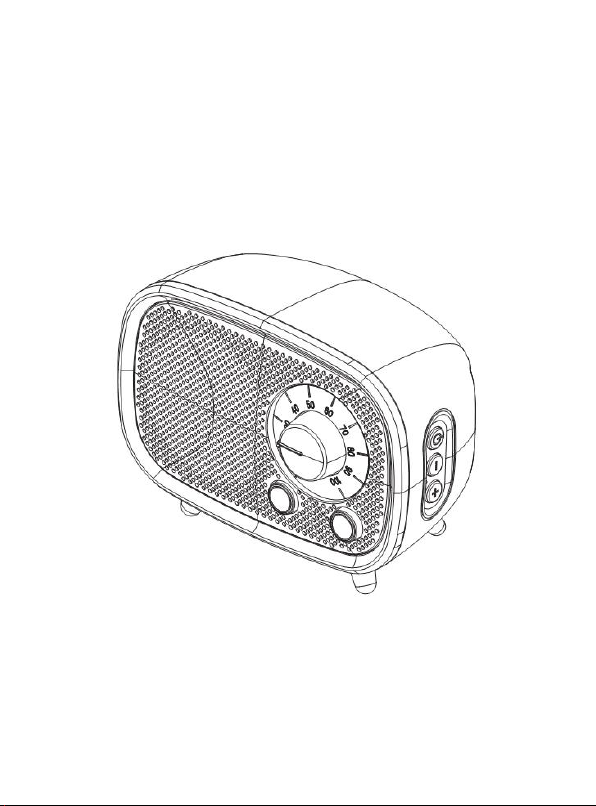

SPEAKER SYETEM DESCRIPTION
1: Power button (long press), Play/Pause (short press), Switch
mode-Bluetooth, USB, SD (short two press)
2: Volume decrease (long press), last song (short press)
3: Volume increase (long press), next song (short press)
4: Microphone
5: Micro SD card slot
6: LED indicator: Bluetooth/ Micro SD card /USB
7: USB driver socket
8: Battery charge indicator
9: USB charging socket
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to
the application.
Speaker system battery charging
⚫Connect speaker system to a USB port of PC or USB charger
using micro USB to USB cable(included). During battery
charging the indicator is red.
⚫The battery is used in the speaker systems as an integral part
of the device, therefore do not try extract or replace it,
because this can result in the warranty cancellation or the
device damage.
OPERATION MODES
Bluetooth mode
Wireless data transfer via the Bluetooth protocol enables to connect
speaker system to compatible devises. Maximum radius of action of
data transfer is 10 m. Such obstacles as well as or other electronic
devices can interfere with the signal transfer.
⚫Long press the Power/Play/Pause button to turn it ON, and the
indicator LED will flash blue.
⚫Turn on the Bluetooth feature of your audio device, search for
“CROSLEY CR3039A”and pair.
⚫Once your device is successfully paired with the unit, you will
hear a short confirmation sound from the unit.
⚫Play and stream music from your device to the unit.
MP3 player mode
Attention! The file system of a micro SD or USB flash carrier is FAT32.
Maximum volume3 is 64 GB.
Insert the USB flash or SD carrier int appropriate slot. If the speaker
system is in turned on position, the playback will start automatically.
Playback /Pause modes are switched over with the help of the button.
Tracks can be controlled by buttons (previous track②) and (next
track③).
*You might have to enter “0000” code to connect some modes of
devices via Bluetooth.
**If the item has been already registered in the device list of a source,
then the search mode activation or not obligatory. Choose the item
name “CROSLEY CR3039A”and “connect”commend the source
Bluetooth Calling
When your smartphone is paired with speaker, the speaker will ring
when an incoming call is received. Press Power/Play/Pause button to
answer the call, and speak through the microphone on the unit. Then
press and hold the Power/Play/Pause button to hang up the call.
Standby function
If not connected to Bluetooth, the unit will automatically shut down
after five minutes.
TECHNICAL SPECIFICATIONS:
Out power
3W
Battery capacity, mA/h
1200
Power supply
USB/DC 5V
Cable length, m
0.5
Weight, g
223
Dimensions, mm
120x62x87
Radius of operation, m
Up to 10
FCC statements
Note:
changes or modifications not expressly approved by the party respon
sible for compliance could void the user's authority to operate the eq
uipment.
This equipment has been tested and found to comply with the limits f
or a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, u
ses and can radiate radio frequency energy and, if not installed and u
sed in accordance with the instructions, may cause harmful interfere
nce to radio communications. However, there is no guarantee that int
erference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, whic
h can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the f
ollowing measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
