Crosley CFDMHE8105AW Manuel

Dryer

version A

USER MANUAL &

INSTALLATION

INSTRUCTIONS

Warning:

Before using this product,

please read this manual carefully

and keep it for future reference.

The design and specifications

are subject to change without

prior notice for product

improvement. Consult with your

dealer or manufacturer for

details.

Power supply: 120/240V~

Frequency: 60Hz

Capacity: 8.0 cu.ft.

MODEL NUMBERS

CFDMHE8105AW

CFDMHE8105AX

DRYER SAFETY .................................................................................4

OPERATION REQUIREMENTS .........................................................8

Important to Installer ..............................................................................8

Basic Requirements .................................................................................9

Location Requirements ..........................................................................9

Ducting Requirements .......................................................................... 13

Exhausting Requirements ................................................................... 15

Gas Requirements .................................................................................. 15

Electric Requirements .......................................................................... 17

PARTS AND FEATURES ................................................................. 20

Replacement Parts and Accessories ..............................................20

INSTALLATION INSTRUCTIONS .................................................... 21

Removing From the Package ............................................................ 21

Tools Required ......................................................................................... 21

Parts Supplied.......................................................................................... 21

Choose the Proper Location ............................................................. 22

Install the Exhaust System ................................................................. 22

Connect the Gas Line (For Gas Models) ...................................... 24

Connect the Electrical Wiring .......................................................... 25

Connect Inlet Hoses ............................................................................. 28

Level the Dryer ....................................................................................... 29

Power On .................................................................................................. 29

Grounding ................................................................................................. 19

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

Final Check .............................................................................................. 29

Door Reversal Procedure....................................................................30

DRYER USE ...................................................................................... 34

Control Panel ........................................................................................... 34

Drying a Load of Laundry ..................................................................37

Using the Drying Rack .........................................................................40

Special Laundry Tips ............................................................................ 41

DRYER CARE ...................................................................................43

Cleaning and Maintenance .................................................................43

TROUBLESHOOTING .....................................................................44

Check These Solutions if Your Dryer... ...........................................44

Error Codes .............................................................................................. 46

APPENDIX ....................................................................................... 47

Fabric Care Chart ..................................................................................47

WARRANTY ..................................................................................... 48

PRODUCT REGISTRATION ............................................................ 50

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE

This manual contains important information on the installation, use,

and care of your appliance. Please read this manual carefully before

installation and operation of this machine to prevent injury and property

damage.

Warnings and Important Safety Instructions in this manual DO NOT

cover all possible conditions and situations that may occur. It is your

responsibility to use common sense, caution and care when installing,

maintaining and operating your dryer.

Change the dryer vent location........................................................31

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

DRYER SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY

IMPORTANT

To prevent injury to the user or other people and property damage, the

instructions shown here must be followed. Incorrect operation due to

ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

CAUTION

WARNINGWARNING

WARNING

This symbol indicates the possibility of dangerous voltage

constituting a risk of electrical shock is present that could

result in death or serious injury.

This symbol indicates the possibility of injury or damage to

property.

This symbol indicates the possibility of death or serious

injury.

WARNING

For your safety the information in this manual must be followed to

minimize the risk of ﬁre or explosion, or to prevent property damage,

personal injury or death.

WARNING

Fire Hazard

Failure to follow safety warnings exactly could result

●

in serious injury, death or property damage.

Do not install a booster fan in the exhaust duct.

●

Install all clothes dryers in accordance with the

●

installation instructions of the manufacturer of the

dryer.

● Do not store or use gasoline or other ﬂammable vapors and liquids in

the vicinity of this or any other appliance.

● Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

WARNING

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using

your appliance, follow basic precautions ,including the following:

• Read all instructions before using the appliance.

• Use this appliance only for its intended purpose as described in this

Owner’s Manual.

• Before use, the dryer must be properly installed as described in this

manual.

• ALWAYS follow the fabric care instructions supplied by the garment

manufacturer.

• Do not dry articles that have been previously cleaned in, washed

in, soaked in, or spotted with gasoline, dry-cleaning solvents, other

flammable or explosive substances as they give off vapors that could

ignite or explode.

• Do not use the dryer to dry clothes which have traces of any

flammable substance, such as vegetable oil, cooking oil, machine

oil, flammable chemicals, thinner, etc., or anything containing

wax or chemicals, such as mops and cleaning clothes. Flammable

substances may cause the fabric to catch fire by itself.

• Do not store or use gasoline or other flammable vapors and liquids

near this or any other appliance.

• Do not allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is used near

children.

• Before the appliance is removed from service or discarded, remove

the lid of the washing or door of the drying compartment.

• Do not reach into the appliance if the drum is moving.

• Do not install or store this appliance where it will be exposed to the

weather or freezing temperatures below 33°F.

• Do not tamper with the controls and latch.

• Do not install a booster fan in the exhaust duct.

What to do if you smell gas:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Clear the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow

the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

• Do not repair or replace any part of the appliance or attempt

any servicing unless it is specifically recommended in the user-

maintenance instructions or in published user-repair instructions that

you understand and have the skills to carry out.

• Keep the area underneath and around your appliances free of

combustible materials (lint, paper, rags, etc.), gasoline, chemicals and

other flammable vapors and liquids.

• Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire. To reduce the risk of

fire due to contaminated loads, the final part of a tumble dryer cycle

occurs without heat (cool down period). Avoid stopping a tumble

dryer before the end of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

• Turn off the water faucets and unplug the washer if the machine is to

be left for an extended period of time, such as during vacations.

• Packaging material can be dangerous for children. There is a risk of

suffocation! Keep all packaging from children.

• Always check the inside of the dryer for foreign objects before

loading laundry. Keep the door closed when not in use.

• Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product

manufacture.

• Clean the lint screen before or after each load.

• Keep the area around the exhaust opening and surrounding areas

free from lint, dust, and dirt.

• The interior of the dryer and exhaust duct should be cleaned

periodically by qualified service personnel.

• Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire.

• This appliance must be grounded. See “Electric Requirements” and

“Grounding” in the “Operation Requirements” section.

• This appliance must be properly grounded. Never plug the power

cord into a receptacle that is not grounded adequately and in

accordance with local and national codes. Refer to installation

instructions for grounding this appliance.

• Ensure pockets are free from small irregularly shaped hard objects

and foreign material, i.e. coins, knives, pins, etc. These objects could

damage your dryer.

• Do not use heat to dry articles containing foam rubber or similarly

textured rubber like - materials.

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

WARNING

CAUTION

To reduce the risk of fire or explosion

• Do not dry items that have been previously cleaned, washed, soaked,

or spotted with gasoline, dry cleaning solvents, or other flammable or

explosive substances. They emit vapors that could ignite or explode.

Any material that has been in contact with a cleaning solvent or

flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been

removed.

• There are many highly flammable items used in homes, such

as acetone, denatured alcohol, gasoline, kerosene, some liquid

household cleaners, some spot removers, turpentine, waxes, and wax

removers.

• Do not dry items containing foam rubber (may be labeled latex

foam) or similarly textured rubber-like materials on a heat setting.

Heated foam rubber materials can, under certain circumstances,

produce fire by spontaneous combustion.

• Do not sit on top of the dryer.

• Because of continuing product improvements, Crosley

reserves the right of change specifications without notice. For

complete details, see the Installation Instructions packed with your

product before selecting cabinetry, making cutouts, or beginning

installation.

• Do not dry clothing with large buckles, buttons, or other heavy metal

or solid things.

• Install and use in accordance with the manufacturer’s instructions.

• Do not place items in your dryer that have been spotted or soaked

with vegetable oil or cooking oil. Even after being washed, these

items may contain significant amounts of these oils.

• Residual oil on clothing can ignite spontaneously. The potential for

spontaneous combustion increases when items containing vegetable

oil or cooking oil are exposed to heat. Heat source such as your dryer

can warm these items, allowing an oxidation reaction in the oil to

occur.

• Oxidation creates heat. If this heat cannot escape, the items can

become hot enough to catch fire. Piling, stacking, or storing these

kinds of items may prevent heat from escaping and can create a fire

hazard.

• Take care that children’s fingers are not caught in door when closing

it. This may result in injury.

• Gas leaks may occur in your system, resulting in a dangerous

situation.

• Gas leaks may not be detected by smell alone.

• Gas suppliers recommend you purchase and install a UL approved

gas detector.

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

-www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

OPERATION REQUIREMENTS

WARNING

CAUTION

Fire Hazard

• Clothes dryer installation must be performed by a

qualified installer.

• Install the clothes dryer according to the

manufacturer’s instructions and local codes.

• Do not install a clothes dryer with flexible plastic

venting materials. If flexible metal (foil type) duct is

installed, it must be of a specific type identified by

the appliance manufacturer as suitable for use with

clothes dryer. Flexible venting materials are known

to collapse, be easily crushed, and trap lint. These

conditions will obstruct with the clothes dryer’s

airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all

installation instructions

• Save these instructions.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer.

These instructions should be kept for future reference.

• The dryer is not suitable for installation in a mobile home.

• Remove the door from all discarded appliances to avoid the danger

of a child being trapped and suffocating, after unplugging cut off

Power Cord.

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

1. The dryer should be located where there is enough space at the front

for loading the dryer, and enough space behind for the exhaust system.

2. This dryer is factory-ready for the rear exhaust option. To exhaust

out the bottom or left, use the accessory exhaust kit. Instructions are

included with the kit.

3. Make sure the room in which the dryer is located has enough fresh air.

The dryer must be located where there are no air-ﬂow obstructions.

Ambient temperature shall not be lower than 33°F.

4. For gas dryers, adequate clearance must be maintained as noted on

the data plate to ensure adequate air for combustion and the proper

dryer operation.

5. The dryer must not be installed or stored in an area where it will be

exposed to water and/or weather. The dryer area must be kept clear

of combustible materials, gasoline, and other ﬂammable vapors and

liquids. A dryer produces combustible lint. The area around the dryer

should be kept lint-free.

BASIC REQUIREMENTS

Make sure you have everything necessary for the proper installation.

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the

“Electrical requirements” section.

• A POWER CORD electric dryer (except for Canada).

• GAS LINES (if a gas dryer) must meet national and local codes.

• The EXHAUST SYSTEM must be made of rigid metal or flexible stiff-

walled metal exhaust ducting.

LOCATION REQUIREMENTS

Dryer

Safety

Operation

Requirements

Parts and

Features

Installation

Instructions Dryer Use

Appendix

Dryer Care

Troubleshooting

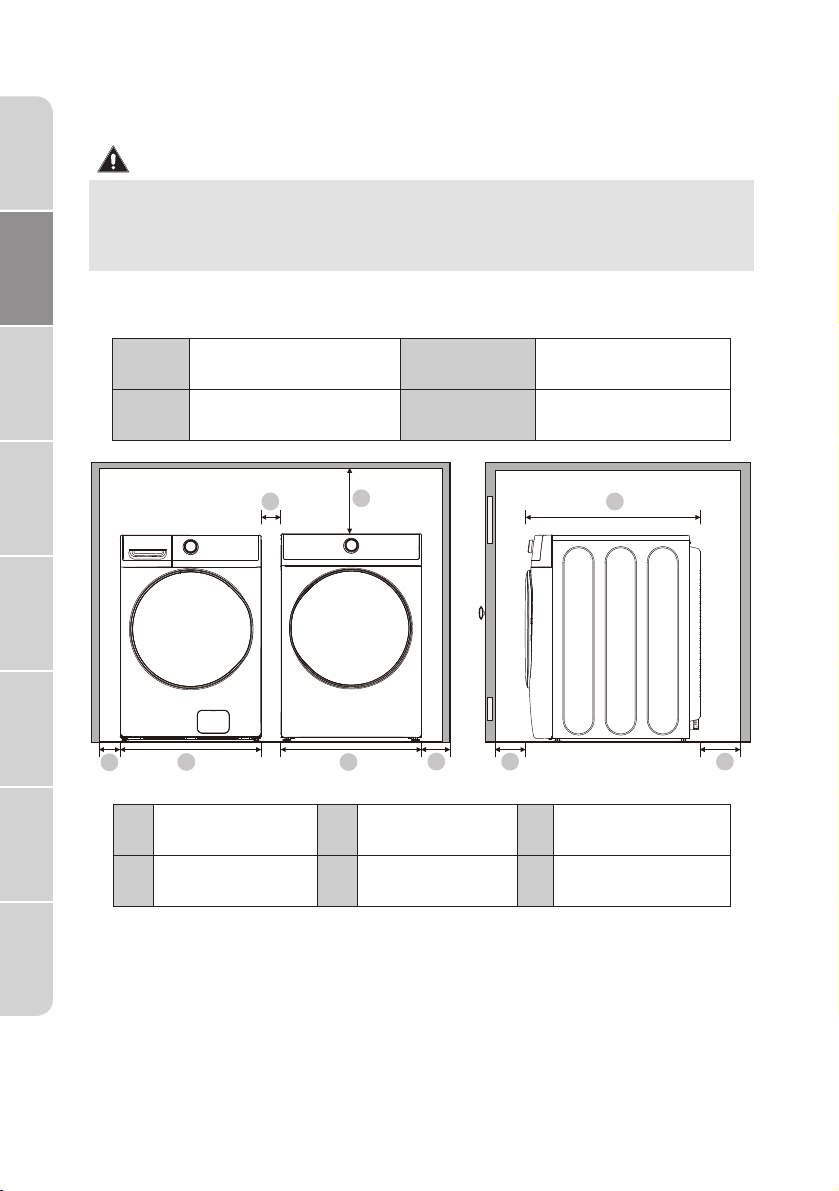

ALCOVE OR CLOSET OR WALL INSERT/RECESSED

INSTALLATIONS

WARNING

Minimum clearances between the dryer and adjacent walls or other

surfaces:

Sides 1 in. (25 mm) Rear 5 in. (127 mm)

Top 24 in. (610 mm) Closet front 2 in. (51 mm)

B B

D F

A 1 in. (25 mm) C 24 in. (610 mm) E 33.7 in. (855 mm)

B 27 in. (686 mm) D 2 in. (51 mm) F 5 in. (127 mm)

• The dryer must be exhausted to the outside to reduce the risk of fire

when installed any place inside the house.

• No other fuel-burning appliance should be installed in the same

closet as the dryer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crosley Séchoir

Crosley

Crosley CDE7400QW0 Manuel utilisateur

Crosley

Crosley CDEC400FW1 Manuel utilisateur

Crosley

Crosley DRYER Manuel utilisateur

Crosley

Crosley CDG5000FW1 Manuel utilisateur

Crosley

Crosley CD-1 Manuel utilisateur

Crosley

Crosley ZE7009GW Manuel utilisateur

Crosley

Crosley YCEDS563SQ0 Manuel utilisateur

Crosley

Crosley Conservator CEDC392JQ Manuel utilisateur

Crosley

Crosley CDG4000HW1 Manuel utilisateur

Crosley

Crosley 8578544 Manuel utilisateur

Crosley

Crosley 134856200 Manuel utilisateur

Crosley

Crosley CDE4700LB0 Manuel utilisateur

Crosley

Crosley CDE4500KW0 Manuel utilisateur

Crosley

Crosley CDEC500FW0 Manuel utilisateur

Crosley

Crosley CGDS832VQ1 Manuel utilisateur

Crosley

Crosley CGDS1043VQ Manuel utilisateur

Crosley

Crosley CDEC400FW1 Manuel utilisateur

Crosley

Crosley Conservator CEDC392JQ0 Manuel utilisateur

Crosley

Crosley CLCE500FW2 Manuel utilisateur

Crosley

Crosley YCEDS563SQ0 Manuel utilisateur

Crosley

Crosley CONSERVATOR W10151585B Manuel utilisateur

Crosley

Crosley 137218900A Manuel utilisateur

Crosley

Crosley BEQ1442CES1 Manuel utilisateur

Crosley

Crosley 134539400 (0503 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
