CRL JACKSON 2085 Manuel utilisateur

INSTALLATION INSTRUCTIONS

CRL JACKSON 2085

CONCEALED VERTICAL ROD

PANIC EXIT DEVICE

Phone: (800) 421-6144 • Fax: (866) 921-0531

crlaurence.com • usalum.com • crl-arch.com

crlaurence.com

11M0250

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

ORDER OF ASSEMBLY AND INSTALLATION

TOOLS REQUIRED

Drill Bits: 1/8", 9/32", 5/16", 7/32",

5/8", 11/16", 1-3/8"

Taps: 1/4-20, 10-32, 8-32

Tape Measure

Saw Horses

Cordless Drill

Phillips Head Screw Driver

Framing Square

Masking Tape

Center Punch

Round Metal File

Flat Metal File

Jigsaw with Metal Cutting Blade

Straight Edge

PARTS IDENTIFICATION �� 03 - 04

DOOR PREPARATION�� 05

LAYOUT SELECTION �� 06 - 09

DOOR HARDWARE INSTALLATION �� 10 - 14

INSERT ROD AND CASE ��10

INSTALL OPTIONAL MORTISE CYLINDER LOCK AND MOUNTING PAD �� 11

INSTALL OPTIONAL EXTERIOR LOCKING LEVER TRIM ��12

INSTALL 2085 EXIT DEVICE ��13

OPERATIONS CHECK AND DOGGING INSTRUCTIONS��14

FRAME PREPARATION AND STRIKE INSTALLATION �� 15 - 16

DOOR HARDWARE ADJUSTMENTS - UPPER BOLT AND BOTTOM BOLT ��17

MANUAL CHECK AND OPERATIONS CHECK ��18

PACKAGE PARTS AVAILABLE �� 19

NOTE: Any modications, other than those specied in this document, could result in this product's failure to meet UL safety

ratings and void the manufacturer’s warranties.

The rapidly changing technology within the architectural aluminum products industry demands that C�R� Laurence/U�S� Aluminum

reserve the right to revise, discontinue, or change any product line, specication, or electronic media without prior written notice.

NOTE: Dimensions in parentheses ( ) are millimeters unless otherwise noted�

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

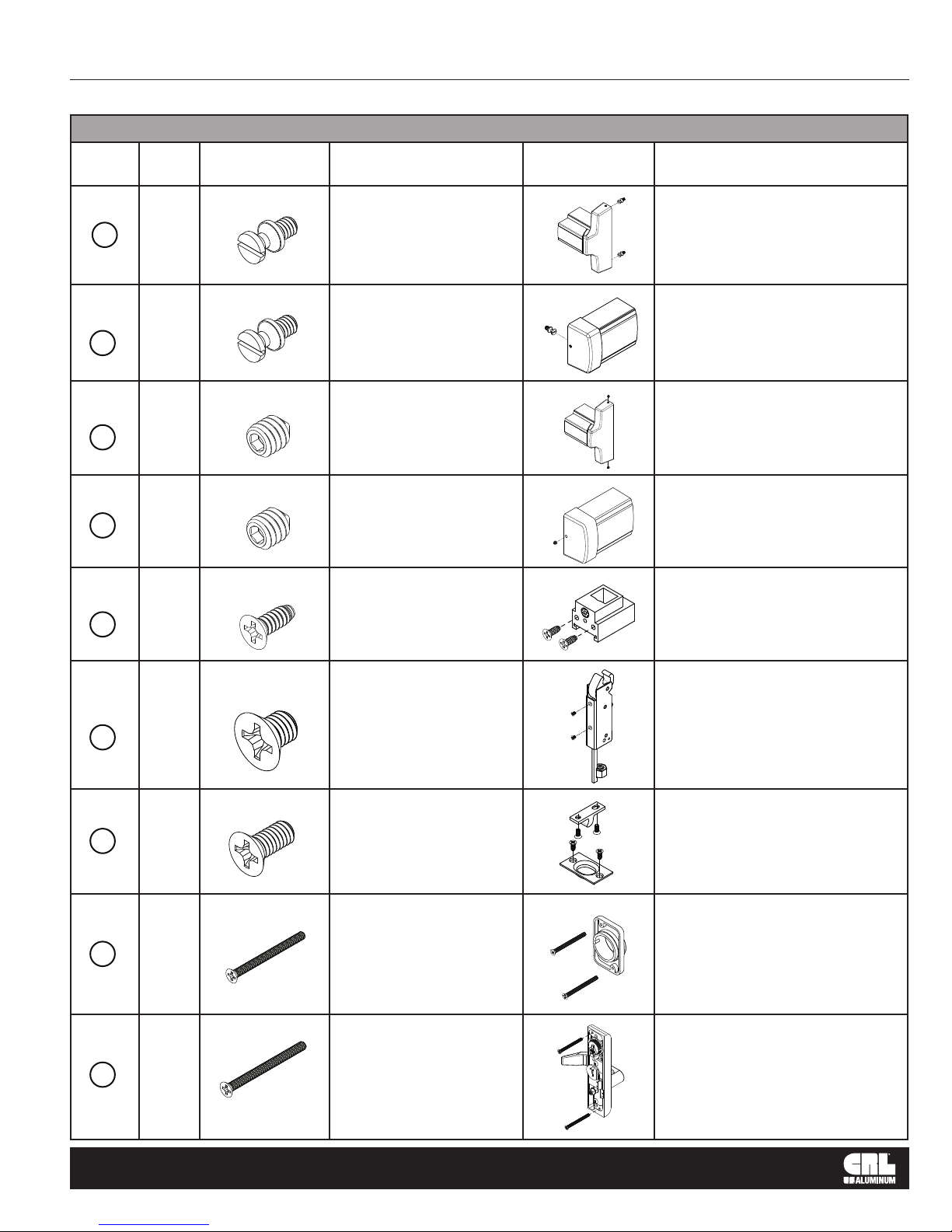

PARTS IDENTIFICATION

FASTENERS PROVIDED USED WITH

CALL

OUT QTY. FASTENER FASTENER

DESCRIPTION PART PART NUMBER

AND DESCRIPTION

1/4"-20 x 1/4"

Shoulder Stud

Screws

302617 and 302619

Active Head Assembly

11/4"-20 x 1/4"

Shoulder Stud Screw

301266 Base End

Cap Package

21/4"-20 x 5/16"

Set Screw

302617 and 302619

Active Head Assembly

11/4"-20 x 5/16"

Set Screw

301266

Base End

Cap Package

4#10 x 1/2" FH

Self Tapping Screw

30320

Bottom Bolt Guide

Assembly

2#10-32 x 1/4" FH

Machine Screw

301311

Top Latch Assembly

4#10-32 x 3/8"

Machine Screw

301345

Top and Bottom

Strike Package

2 #8-32 x 2" FH

Machine Screw

30821J

Optional Mortise Cylinder

Mounting Pad

2#10-32 x 2-1/8"

FHMS

8500LV01 and 8500LV02

Optional Exterior Trim

with Lever Assembly

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

PARTS IDENTIFICATION

PARTS LIST

CALL

OUT PART PART NO. DESCRIPTION

DL2170 Optional 1" Single

Mortise Cylinder

30799

Actuator Link included in 2085

Head Assembly

Hardware Package 302607

301287J Rod and Case Assembly - 7/0

30PBAW Bolt Guide

Adjustment Wrench

301347

301348

Optional 12" and 24"

Top Rod Extender

301552PKG Rod Silencers (12 Pkg�)

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

DOOR PREPARATION

1� Place the door horizontally on the stands interior side up�

2. Mark the stile centerlines 1-1/8" (28.6) from the inside edge. (Fig. 1)

3. Mark the corresponding layouts on to the stile using the vertical centerlines at the specied height. (Fig. 2)

REMOVE DOOR AND PREPARE PER TEMPLATE

1-1/8"

(28�6)

FIG. 1

TEMPLATES

FIG. 2

BOTTOM RAIL

TOP RAIL

ACTIVE STILE

INTERIOR VIEW

SEE TEMPLATE FOR

HEIGHT DIMENSIONS

HINGE STILE

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

DOOR PREPARATION – LAYOUT SELECTION

2085 EXIT DEVICE INSTALLATION - ACTIVE STILE

Edge of Door

Use Template from Box

35" (889) to Bottom

of Door From This Line

FIG. 3

Drill and Tap

for a 1/4"-20

Machine Screw

(2) Places

Glass Stop

INTERIOR VIEW

ACTIVE STILE

2085 Active Side

Mounting Inside Face

10-1028-2 Rev� A (View #1)

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

FIG. 4

DOOR PREPARATION – LAYOUT SELECTION

2085 EXIT DEVICE INSTALLATION - INACTIVE STILE

Edge of Door

Drill and Tap

for a 1/4"-20

Machine Screw

38-5/32" (969) to Bottom

of Door From This Line

Glass Stop

Use Template from Box

INTERIOR VIEW

INACTIVE STILE

2085 Inactive Side

Mounting Inside Face

10-1028-2 Rev� A (View #2)

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

FIG. 6

DOOR PREPARATION – LAYOUT SELECTION

Edge of Door

Drill and Counter

Sink for a 8-32 FHMS

(2) Places

Edge of Door

FIG. 5

2085 EXIT DEVICE INSTALLATION WITH LOCK CYLINDER AND MOUNTING PAD

35" (889) to Bottom

of Door From This Line

Drill and Tap for

a 8-32 FHMS

(2) Places

Edge of Door

37-7/8" (962) to Bottom

of Door From This Line

Drill and Tap

for a 1/4"-20

Machine Screw

(2) Places

Glass Stop

EXTERIOR VIEW

ACTIVE STILE

Use Template from Box

INTERIOR VIEW

ACTIVE STILE

CUT

OUT

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

FIG. 8

DOOR PREPARATION – LAYOUT SELECTION

Edge of Door

Drill and Counter

Sink for a 10-24

FHMS (2) Places

Edge of Door

FIG. 7

2085 EXIT DEVICE INSTALLATION WITH EXTERIOR LOCKING LEVER TRIM

35" (889) to Bottom

of Door From This Line

Drill and Tap for

a 10-24 FHMS

(2) Places

Edge of Door

35" (889) to Bottom

of Door From This Line

Drill and Tap

for a 1/4"-20

Machine Screw

(2) Places

Glass Stop

INTERIOR VIEW

INACTIVE STILE

Use Template from Box

EXTERIOR VIEW

ACTIVE STILE

CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD

crlaurence.com | usalum.com

NOT TO SCALE

DOOR HARDWARE INSTALLATION (CONTINUED)

INSERT ROD AND CASE

1� Insert the panic device rod and case assembly into

active stile (Fig. 9)�

2� Align actuator pin through the slotted cut-out on interior

face of stile, fastening with (2) 1/4"-20 x 1/4" shoulder

stud screws� (Fig. 10)

3� Adjust the bottom and top bolts, to extend 1/2" past the

bottom stile�

4� Install the top latch case assembly using (2) #10 x 1/4" FH

self threading screws at the top of the active door stile.

The (2) holes face the interior side.

5� Install the bottom bolt guide assembly using (2) #10 x 1/2" FH

self threading screws at the bottom of the active

door stile. The (2) holes face the interior side of stile.

6� Attach (1) A1/4"-20 x 1/4" shoulder stud screw on the Inactive

Stile� (Fig. 10)

FIG. 9

ACTIVE STILE

Bottom

Bolt Guide

(2) #10 x 1/2" FH

Self Tapping Screws

(2) 1/4"-20 x 1/4"

Shoulder Stud Screws

FIG. 10

ACTIVE STILE

INACTIVE STILE

(1) 1/4"-20 x 1/4"

Shoulder Stud Screw

A(2) #10 x 1/4" FH

Self Tapping Screws

Top Lap

Case
