CrimeStopper Infinity CS-2900DP-FM Manuel utilisateur

CS-2900DP-FM

2-Way Infinity™

REMOTEOPERATIONINSTRUCTIONS

INTRODUCTION

CONGRATULATIONSon yourchoiceofthe Infinity™with2-WayDataPort

(DP)technologybyCrimestopperSecurityProductsInc.

CONTACTINFORMATION:

TECHNICALSUPPORT(800)-998-6880

Monday -Friday 8:00am-4:30pmPacific

Website:www.crimestopper.com

E-mail:techsupport07@crimestopper.com

CRIMESTOPPERSECURITYPRODUCTSINC.

1770 S.TAPOSTREET

SIMIVALLEY,CA.93063 REV.A1.2007

ThisdevicecomplieswithFCC Rulespart15.Operation issubjecttothe

following twoconditions:1)Thisdevicemaynotcauseinterference,and (2)this

devicemustacceptanyinterferencethatmaybe received,including interference

thatmaycauseundesired operation.The manufacturerisnotresponsiblefor

anyradioorTVinterferencecaused byunauthorized modification tothis

equipment. Suchmodification couldvoidthe user'sauthoritytooperatethe

equipment.

BASICTRANSMITTEROPERATIONS:

Button 1ARM/PANIC:(press and holdfor3sec.forPanic)

Button 2DISARM:(Unlock driverdoor) /Press againwithin4to15 sec.tounlock passengerdoors

Button 31stAUX.OUTPUT:Press 1sec.(Trunk-Pop)

Button 4REMOTESTART:Press 2sec.(press againtoturnoff the engine)

Button 1+2A)WHENARMED:Press 3sec.toBy-Pass All Sensors(Shock &Warn-A-Way)

Button 1+2B)WHENDISARMED:ValetMode,Press 3sec./ValetParkMode,Press againfor3sec.

Button 1+3REMOTECAR-JACK MODE:Press 3sec.

Button 2+4SILENTARM/DISARM

Button 2+32nd AUX.OUTPUT:Press 3sec

Button 1+43rdAUX.OUTPUT:ProgrammableforMomentary,Timed orLatched.(see option table)

Button 3+44thAUX.OUTPUT:ProgrammableforMomentary,Timed orLatched.(see option table)

Button 5A)1stCAR /2nd CAR (FLIPFLOP)

Button 5B)MAINMENU

Button 1

Lock

Button 3

1stAux.Output

Button 2

Unlock

Button 4

RemoteStart

Button 5

1stCar/2nd Car

MainManu

INFINITY

1)Press anybutton toturnon LCD backlightand display

Desktop.

2)Press Button ONCEtoactivate1stCarFunction.

1stCarfunction activated,wallpaperfor1stCarwill bedisplayed

Thereare8background colorsavailablefor1stCar.

3)Press Button AGAINtoactivate2nd CarFunction:

OR-Press and holduntil 2beeps.

2nd Carfunction activated,The2nd CarLightBluebackground will be

displayed.

4)Press Button the3rdtimetoenterMAINMENU:

OR-Press and holduntil 3beeps.

MainMenu isshowing.

BasicButton Operation inMainMenu

1.MAINMENU

2.BACK (CANCEL)/ENTER(OK)

3.SCROLL UP/SCROLL DOWN

2-Way Infinity™

DETAILED

BUTTON

OPERATION

CLOCK SET

TEMPSET/

PERIODSET

DAILYSTART

BACKLIGHTCOLOR

BUZZERON/OFF

TRIGRECORD

5)To ExitMAINMENU

Press toexit,Desktop will bedisplayed.

6)CLOCK ADJUSTMENT

Press toenterCLOCK ADJUST.

Press toadjustHOUR up ordown.

Press toSETtheHOUR.

Press toadjustMINUTE.

Press toSETand exittoMAINMENU.

7a)TEMPERATURE&TIMEADJUSTMENT–TEMPERATURE

Press toenterTEMP&TIMEADJUSTMENT.

Press toSELECTdesiredTemperaturesetting.

TemperatureRange:-10 C/14F-20C/-4F-25C/-13F-30C/-22F-35C/-31F

Press toCONFIRMTemperaturesetting and go toTimeIntervalsetting.

7b)TEMPERATURE&TIMEADJUSTMENT–TIME

Press toSELECTdesiredTimeIntervalsetting.

*TimeIntervalSelection Range:1hr2hr4hr6hr8hr12 hr

Press toCONFIRMTimeIntervalsetting.

Upon completion,Buzzerwill Beep3times and transmitterdisplay shows

“ICON”indicating setting status.

CLOCK ADJUST

00 :14

TEMPSET

-10 C/14 F

INTERVAL

01 Hour

CLOCK ADJUST

08 :00

8)DAILY-STARTADJUSTMENT

Press toenterDAILY-STARTADJUSTMENT.

Thissetting will allowyou toselectaspecifictimeintheday foryourvehicle

toautomaticallystart.

Press toadjustHOUR.

Press toSETtheHOUR.

Press toadjustMINUTE.

Press toSETand exittoMAINMENU.

DailyStartwill onlystartthevehicleONCEaday atyourdesiredtime.

Thetransmitterwill display a“CLOCK ICON”indicating setting status.

9)BACKLIGHTCOLORADJUSTMENT

Thereare8background colorsavailablefor1stCar.

Press toenterBACKLIGHTCOLORSET.

Press toadjusttoyourdesiredLCD BacklightColor.

Press toCONFIRMLCD BacklightColorand exittoMAINMENU

10)BUZZERON/OFF ADJUSTMENT

Press toenterBUZZERON/OFF ADJUSTMENT.

Press toturnON/OFF theTransmitterChirping..

Press toCONFIRMTransmitterChirping and exittoMAINMENU

Thetransmitterwill display a“SILENCEICON”indicating setting status.

11)LAST3ALARMTRIGGERSDISPLAY

Press toenterLAST3ALARMTRIGGERSDISPLAY.

Press tobrowse theLast3AlarmTriggerrecords..

Press anyotherbuttonsexceptButton 3&4toexittoMAINMENU.

Thisrecordcannotbedeleted.Itwill beover-writtenwhennewtriggersare

received.

10/15/06 10:50PM

11/06/06 05:17PM

11/25/06 07:49AM

DAILYSTART

06 :00

BACKLIGHT

COLOR

BUZZER

DAILYSTART

00 :30

CHANGINGTHEBATTERY

The Infinityremoteusesastandard1.5voltAAA battery.The

batterypowerisdisplayed by4barson the lowerleft cornerof

LCD display.See nextpage.You will see only1or2barson the

LCD screen when itistimetoreplacethe AAA battery.You may

havereduced range withalowbatterywhen arming and disarming

yoursystem.Toreplacethe battery,simpleunlatchand slide open

the batterydooron the back ofthe 2-WayLCD remote.Carefully

insertanewbattery,using the outline on the bottomofthe battery

compartmentasaguide.Yourremotewill playamusicaltone if

the batterywasinserted correctly.

11:20

ARM

REMOTEAUXOUTPUT2,3and 4

(Optional, requires specialprogramming)

Thissystemcontainsthree extraauxiliaryoutputstoactivateotheraccessoriesordevices.

Theseoutputsareprogrammablefor:momentary½second,momentarypushand hold,timed

(1to255 seconds)oralatched ON/OFF function.See button chartforoperation.Thereisno

LCD/pagerconfirmation forAux.2/3/4output.

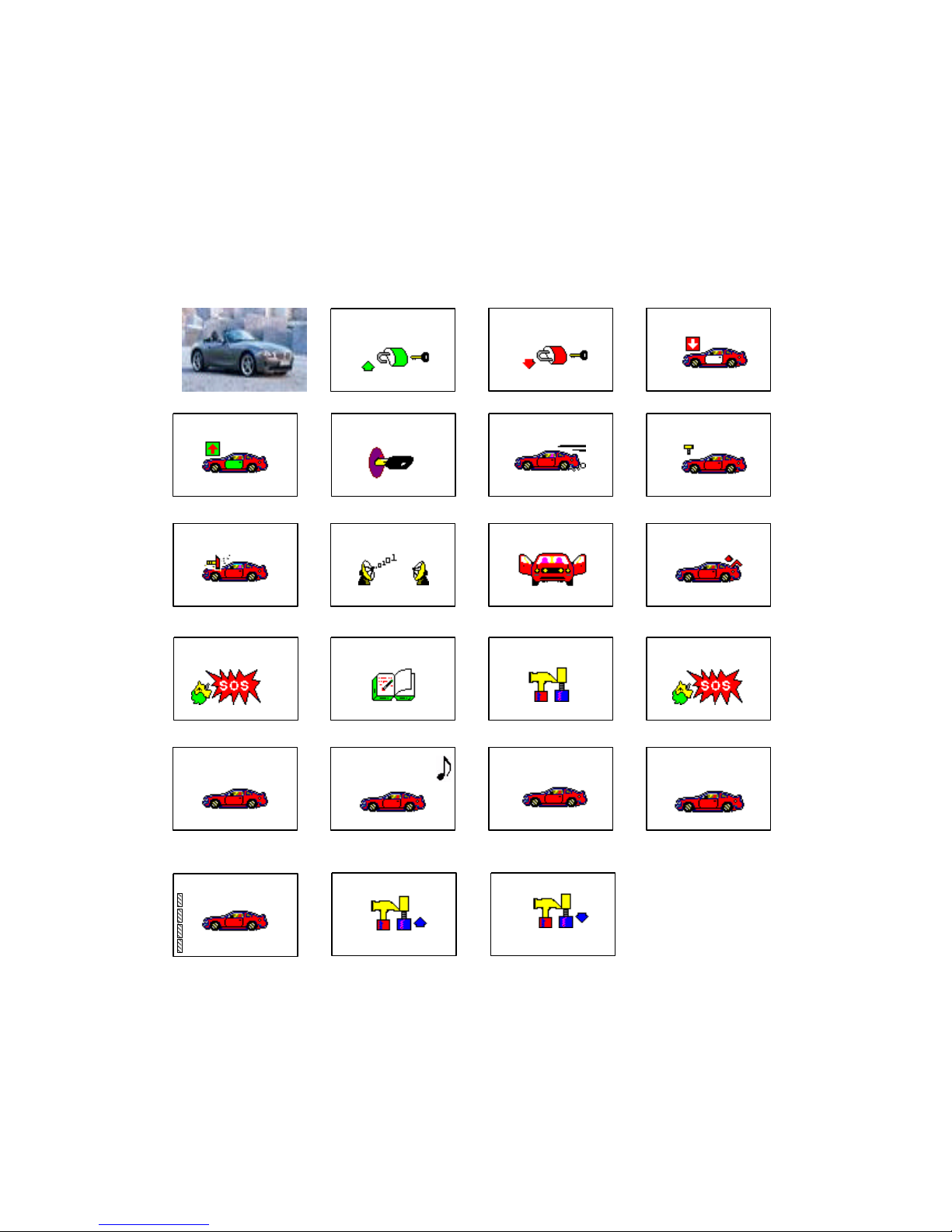

COLORMONITORPANELFUNCTIONCHART

11:20

HIJACK

11:20

VALET

11:20

LEARNING

11:20

PANIC

11:20

TRUNK OPEN

11:20

DOOROPEN

11:20

TRANSMIT

11:20

SHOCK

11:20

WARNING

11:20

UNLOCK

11:20

LOCK

11:20

DISARM

11:20

×W

CarChirpOFF

BatteryIndicator

RemoteChirpDefeat

TemperatureON

DailyStartON

11:20

Valetunlock

11:20

Valetlock

CrimestopperSecurityProductsInc.

1770 So.Tapo Street

SimiValley,CA93063

(800)998-6880

www.crimestopper.com

email@crimestopper.com

ONLINETECHNICALSUPPORT

www.crimestopper.com
