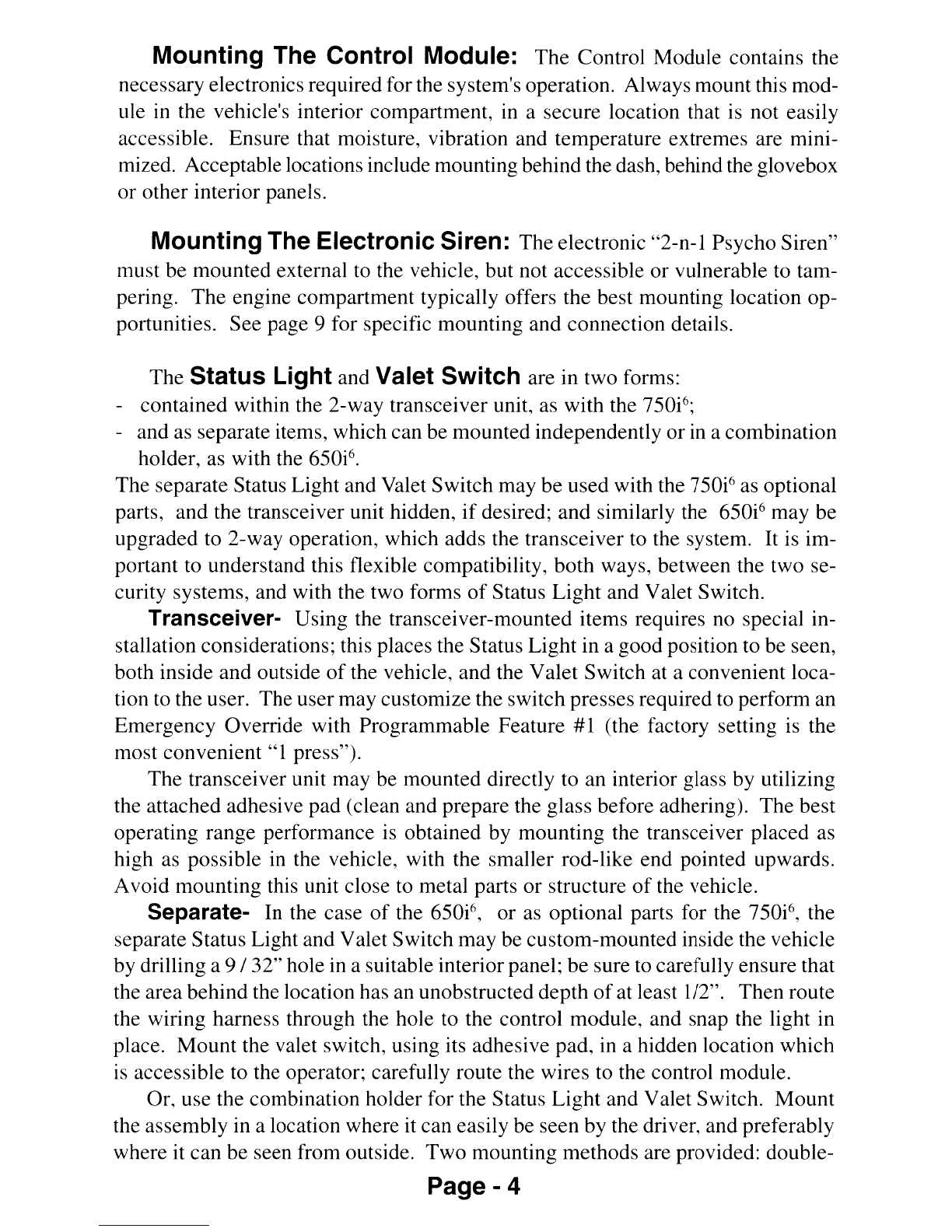

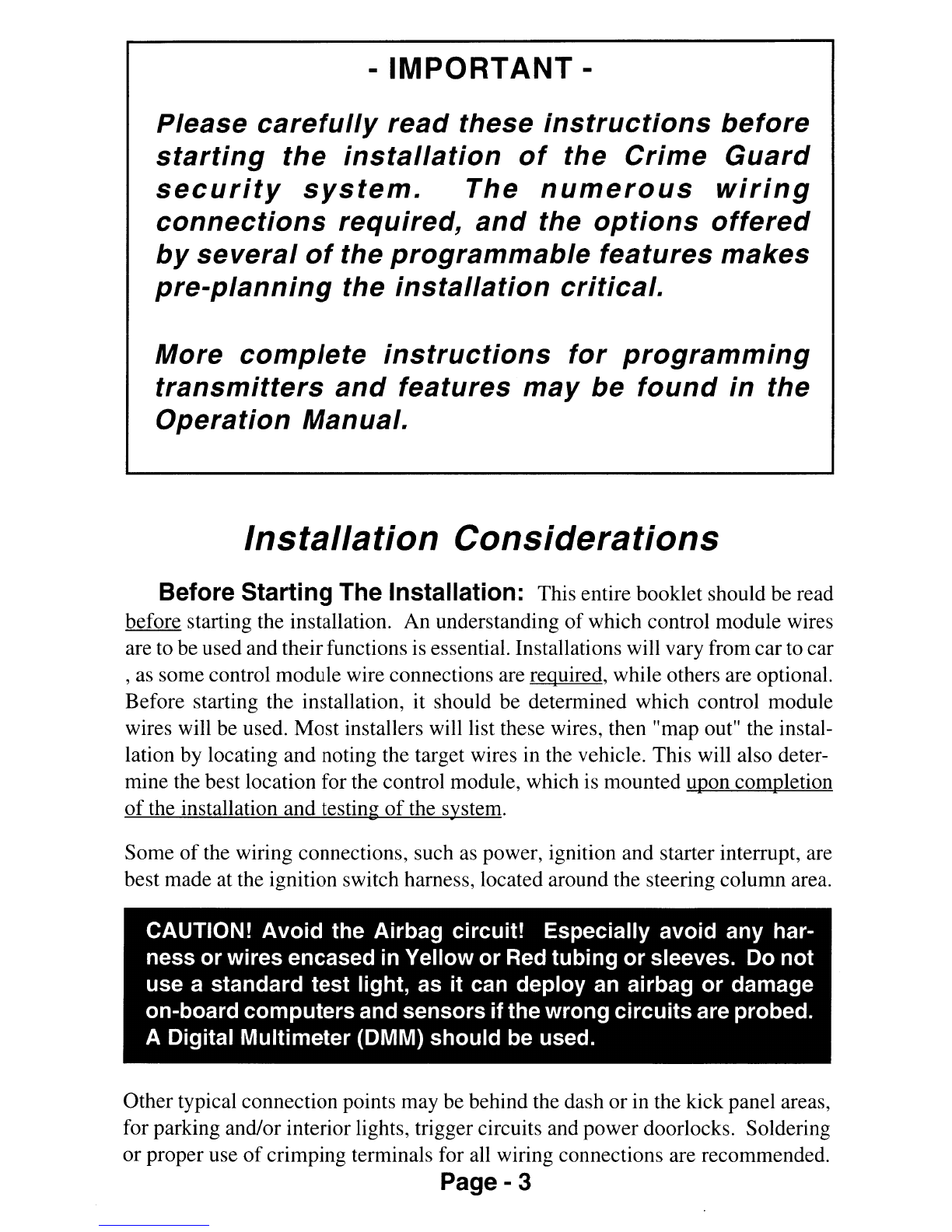

Mounting The Control Module: The Control Module contains the
necessary electronics required for the system's operation. Always mount this mod-
ule
in
the vehicle's interior compartment,
in
asecure location that is not easily
accessible. Ensure that moisture, vibration and temperature extremes are mini-
mized. Acceptable locations include mounting behind the dash, behind the glovebox
or other interior panels.
Mounting The Electronic Siren: The electronic "2-n-1 Psycho Siren"
must be mounted external
to
the vehicle, but not accessible or vulnerable to tam-
pering. The engine compartment typically offers the best mounting location op-

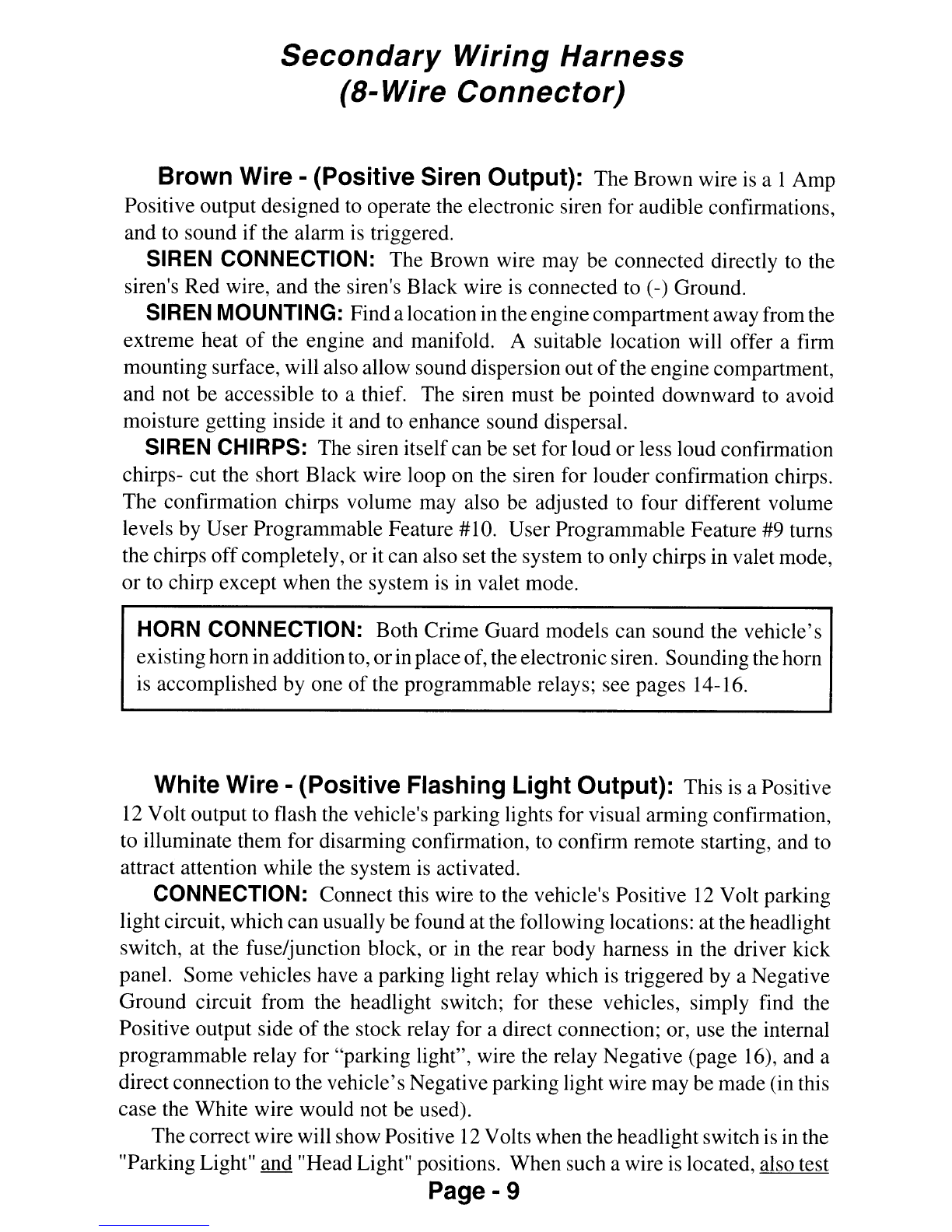

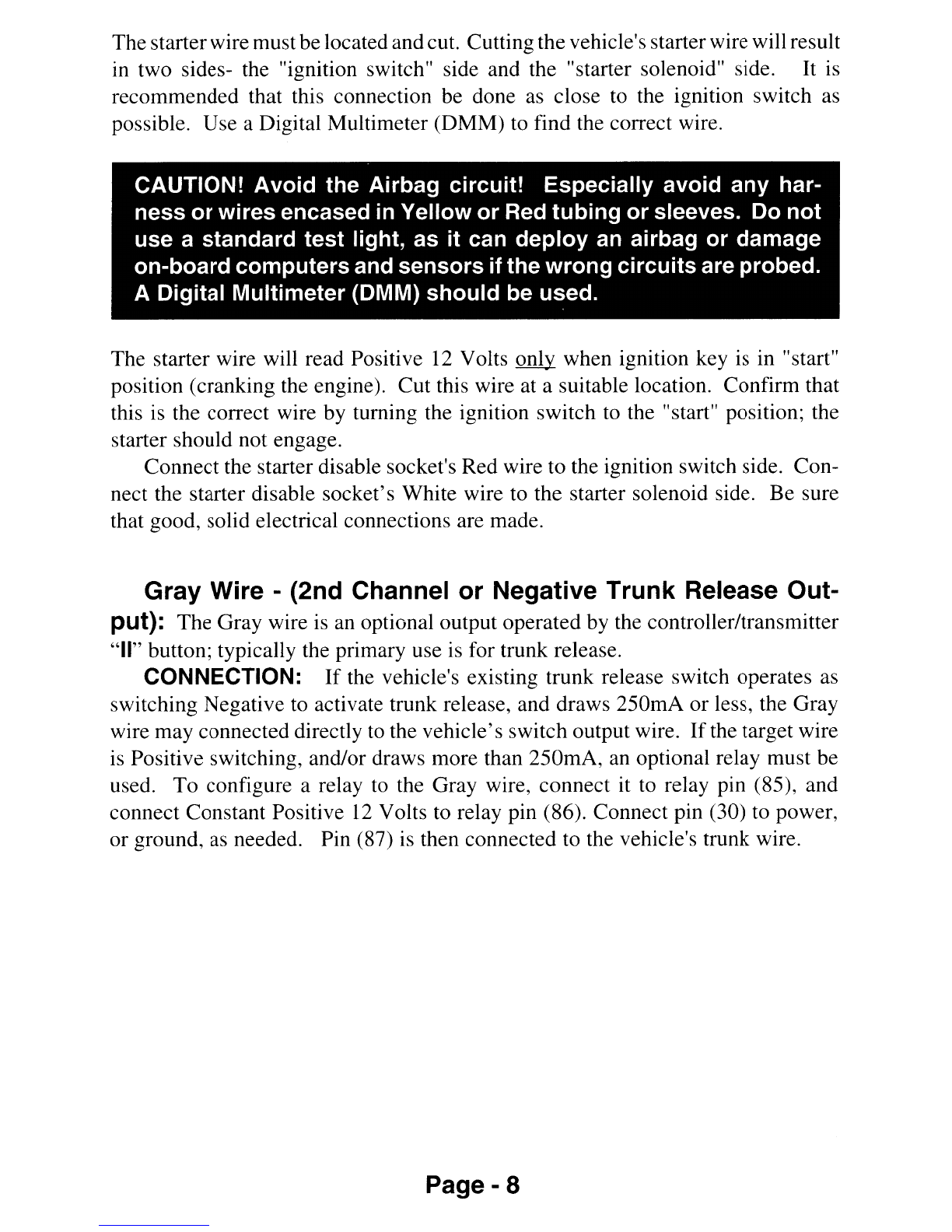

portunities. See page 9for specific mounting and connection details.

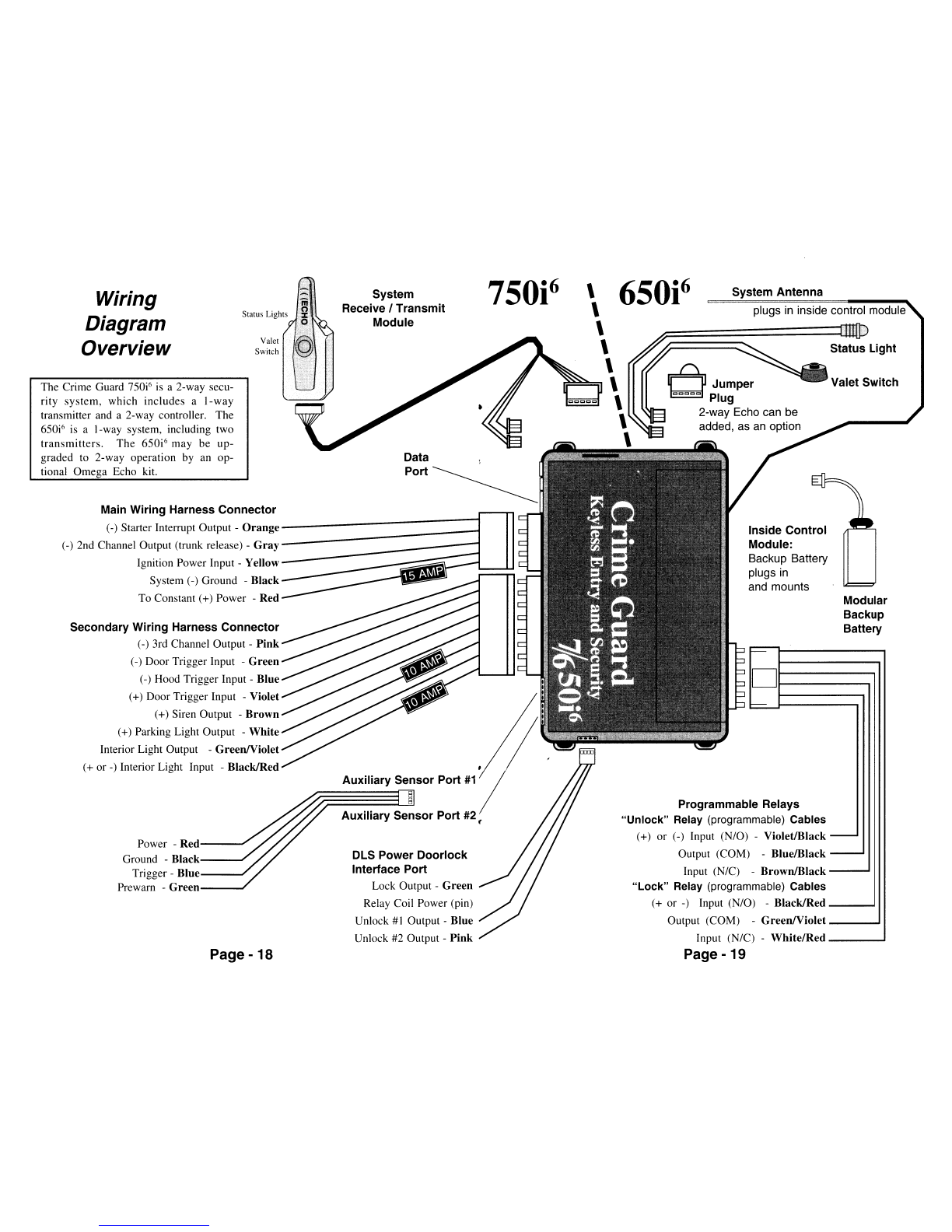

The Status Light and Valet Switch are in two forms:
-contained within the 2-way transceiver unit, as with the 7S0i6;
-and as separate items, which can be mounted independently or in acombination
holder, as with the 6S0i6•
The separate Status Light and Valet Switch may be used with the 7S0i6as optional
parts, and the transceiver unit hidden,
if
desired; and similarly the
6S0i
6may
be
upgraded to 2-way operation, which adds the transceiver to the system. It
is
im-
portant to understand this flexible compatibility, both ways, between the two se-
curity systems, and with the two forms
of
Status Light and Valet Switch.
Transceiver- Using the transceiver-mounted items requires no special in-
stallation considerations; this places the Status Light in agood position to be seen,
both inside and outside
of
the vehicle, and the Valet Switch at aconvenient loca-
tion
to
the user. The user may customize the switch presses required to perform an
Emergency Override with Programmable Feature
#1
(the factory setting is the
most
convenient"
1press").
The transceiver unit may be mounted directly to an interior glass by utilizing
the attached adhesive pad (clean and prepare the glass before adhering). The best
operating range performance is obtained by mounting the transceiver placed as
high as possible in the vehicle, with the smaller rod-like end pointed upwards.
Avoid mounting this unit close to metal parts or structure
of
the vehicle.
Separate- In the case
of
the 6S0i6,or as optional parts for the 7S0i6,the
separate Status Light and Valet Switch may be custom-mounted inside the vehicle
by drilling a 9 I32" hole in asuitable interior panel;
be
sure to carefully ensure that
the area behind the location has an unobstructed depth
of
at least 1/2". Then route
the wiring harness through the hole to the control module, and snap the light in
place. Mount the valet switch, using its adhesive pad, in ahidden location which
is
accessible to the operator; carefully route the wires to the control module.
Or, use the combination holder for the Status Light and Valet Switch. Mount
the assembly in alocation where it can easily be seen by the driver, and preferably
where it can be seen from outside. Two mounting methods are provided: double-

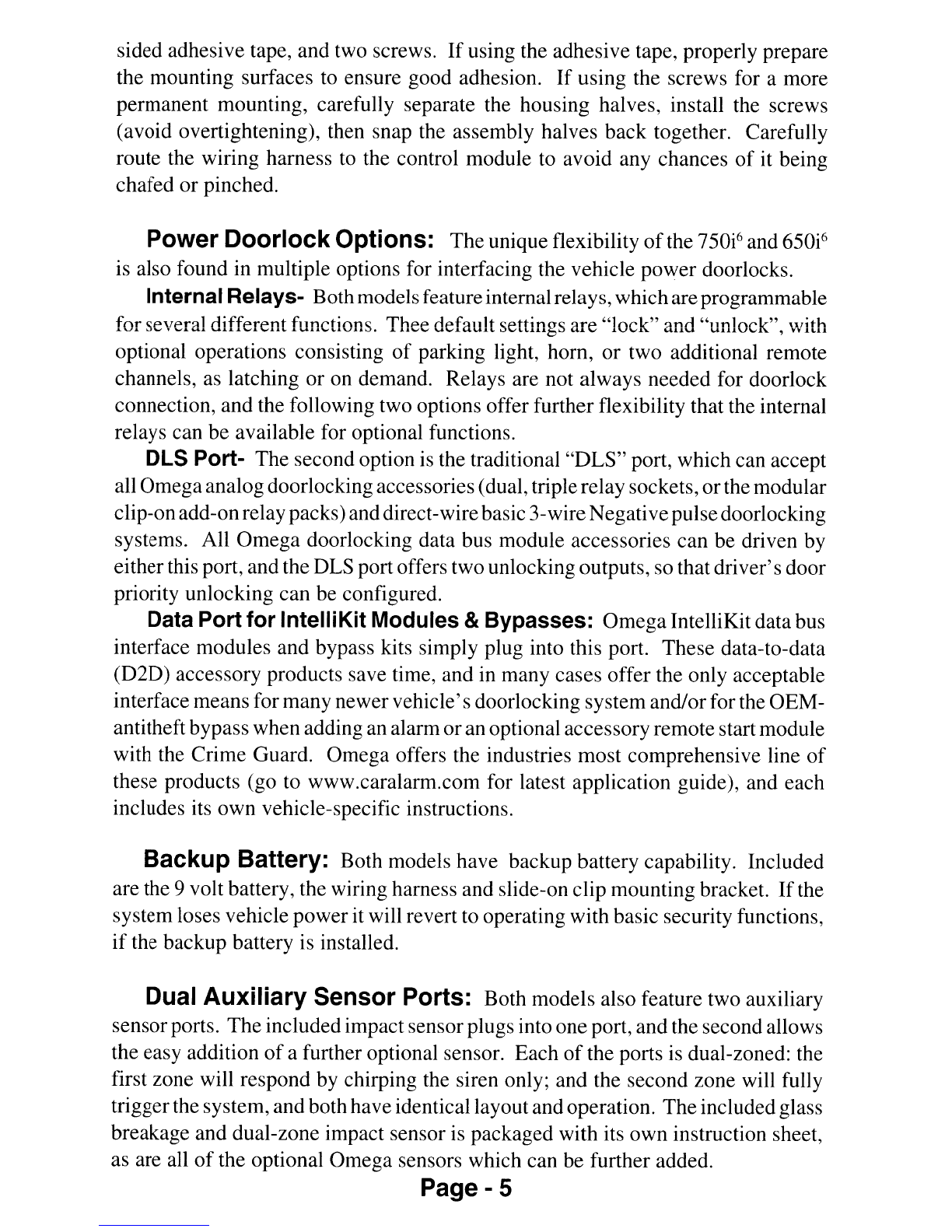

Page - 4
