Crestron REFERENCE OD4.1-4-S10-BRZ-T KIT Manuel utilisateur

The Crestron® REFERENCE OD4.1-4-S10-BRZ-T KIT landscape solution

made by Origin Acoustics provides the full impact of your music

outdoors with tremendous coverage, excellent stereo imaging, and rich,

deep bass.

The 4.1 kit includes four weatherproof 2-way outdoor satellite speakers

and an in-ground subwoofer. The satellite outdoor speakers are

designed to be staked directly into the ground with the supplied ground

stakes.

NOTE: For individual speaker documentation, refer to REFERENCE

OD4-BRZ-T-EACH Quick Start (Doc. 9033).

In the Box

1 REFERENCE OD4.1-4-S10-BRZ-T KIT

 

Additional Items

4 Satellite speakers

4 Ground stakes

1 In ground subwoofer

8 Wire nuts

Installation

Speaker Layout Planning

The Landscape satellite speakers and subwoofer should be placed evenly

to distribute sound throughout the outdoor area. Fully plan out the

locations of all satellite speakers and the subwoofer before beginning

the installation process.

Speaker Location

The satellite speakers REFERENCE OD4-BRZ-T-EACH should be placed

from 8 to 10 feet (2.4 to 3 meters) apart for best coverage (see figure

A). One satellite speaker will provide sound to about 200 to 500 sq ft,

depending on your loudness requirements. The speakers can be installed

at ground level using stakes (included).

NOTE: The included stakes measure about 12.43 in. (316 mm) in length.

For longer stakes use the SPKA-STAKE-OD-18 optional accessory.

Subwoofer Location

Select a location for the subwoofer near the middle of the satellite

speaker arrangement (see figure A). The subwoofer will provide bass to

approximately a 1500 sq ft area.

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

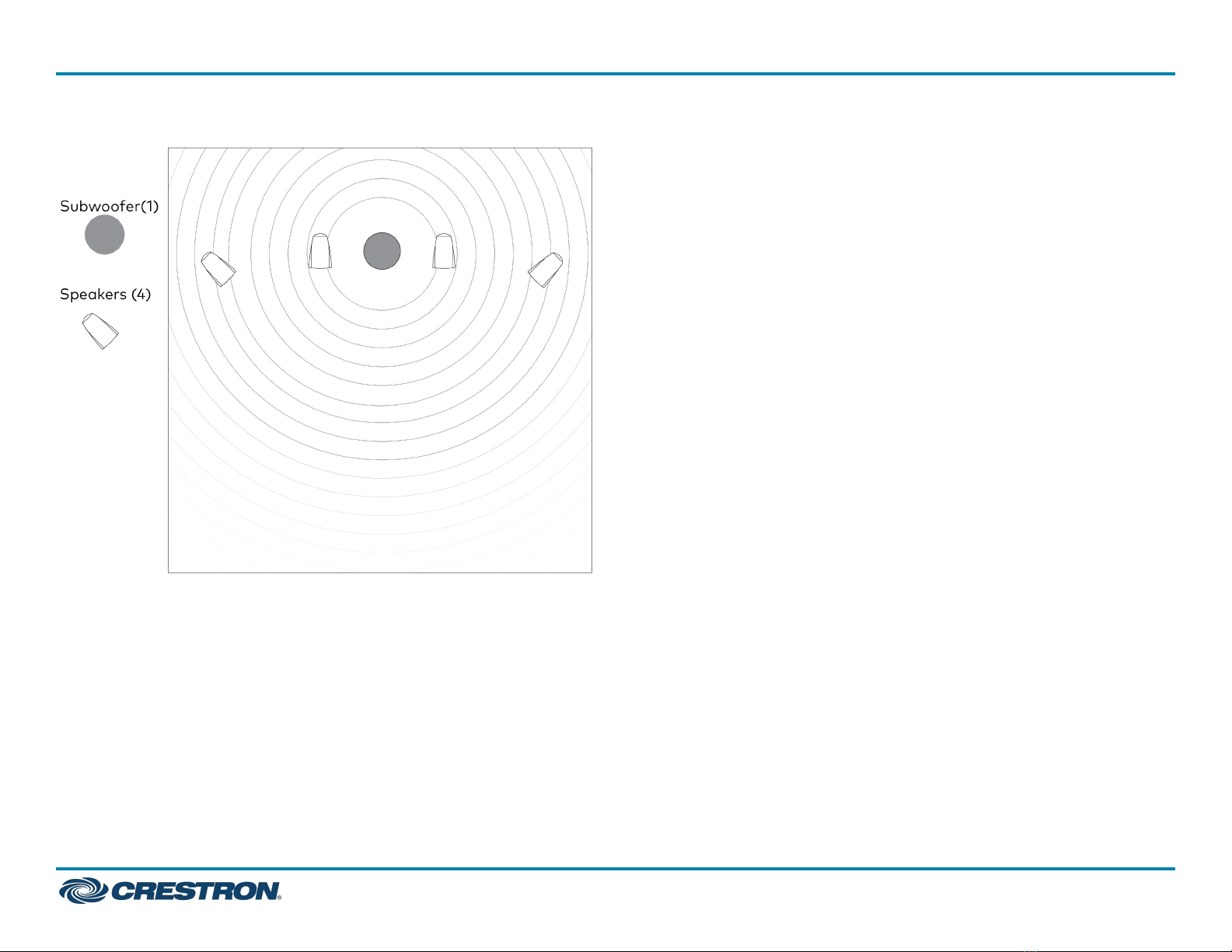

Figure A Install the Speaker and Subwoofer

Speaker Installation

1. Place the four satellite speakers in their approximate final locations.

2. Dig a 4 to 5 in. (102-127 mm) deep trench to run the speaker cables

(not included) that will run from the amplifier to each speaker's

hardwired direct-burial cable (included). Make sure trenching is done

as per local codes.

3. Run the speaker cable through the trench from the amplifier to the

first speaker location.

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

4. Once the speakers are laid out in their final locations and the wiring is

completed per this installation guide, install the speakers as follows:

a. Pull the speaker cable through the top of the stake and out either

side on the bottom opening (see figure B).

b. Drive the ground stake (included) into the ground.

lFor installation in soft soil: The stake can be installed without

excavating the soil. Push the stake down into the soil.

lFor installation in hard soil: Dig a hole for the stake. Place the

stake in the hole with the top cylinder of the stake above

ground level. Hold the stake straight while backfilling and

compacting the soil.

c. Attach the speaker to the stake by turning the speaker clockwise

until it is mounted properly (see figure B).

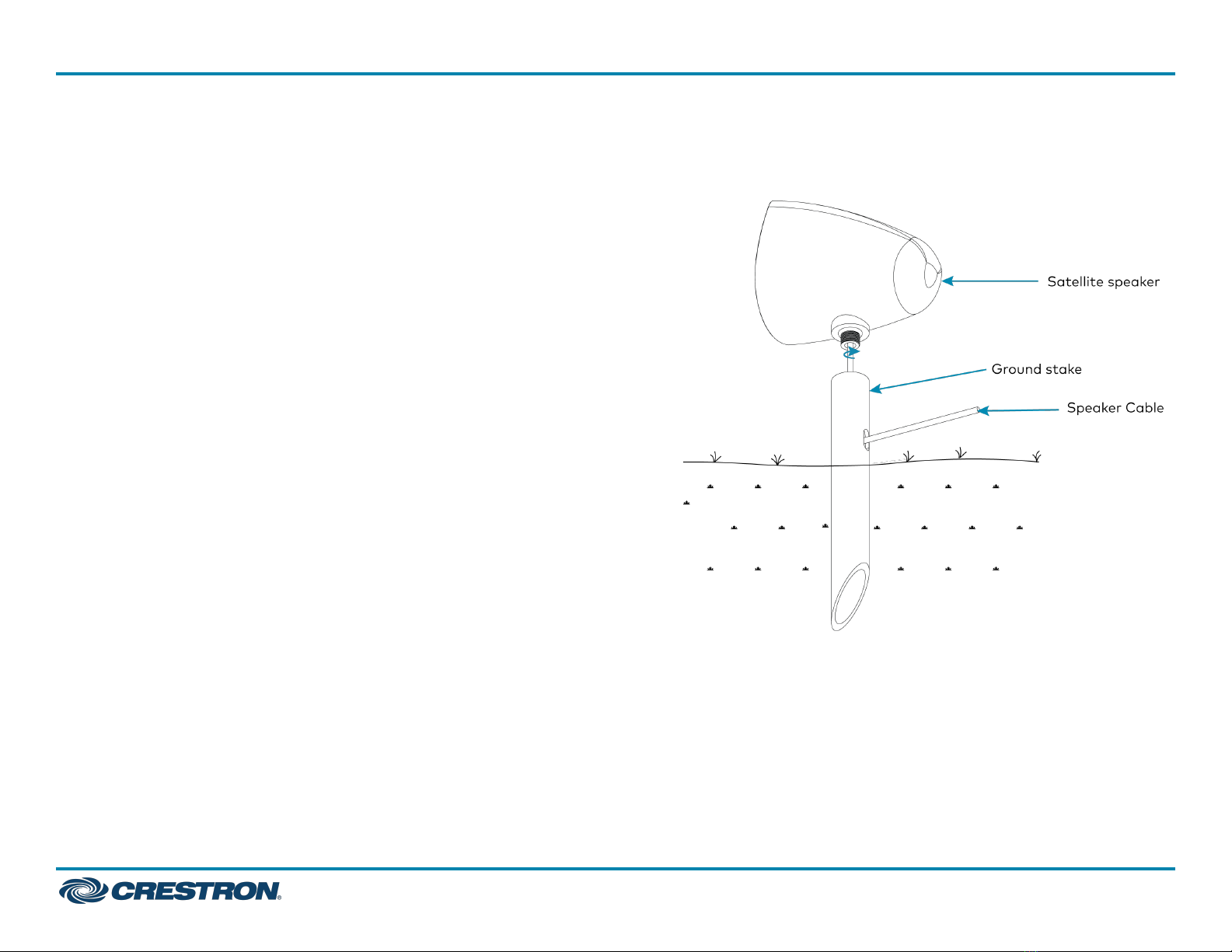

Figure B

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

Subwoofer Installation

1. Place the subwoofer in its approximate final location.

2. Dig a hole with the following minimum dimensions to bury the

subwoofer:

lDepth: 7.87-12.40 in. (200-315 mm)

lDiameter: 18 in. (457 mm)

3. Prepare a flat bed for the subwoofer that is free of voids and large

rocks (see figure C).

NOTE: The hole must be deep enough to allow a 2 to 4 in. (51 to 102

mm) layer of material (sand and gravel mix or other material

approved by local codes) and position the base of the speaker 6 to

8.5 in. (152 to 216 mm) below ground level.

Figure C

4. Place the subwoofer into the ground.

NOTE: Ensure that the vents are exposed and the top of the

subwoofer is about 4 in. (102 mm) above the ground level – it should

not be buried or set at ground level.

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

Connect the Speaker Cable

1. Pull the 2-conductor speaker cable (not included) to the furthest

speaker location, leaving it connected to the spool near the amplifier.

2. Starting at the first speaker and every speaker that follows, create a

loop of cable approximately 6 in. (152 mm) in length and secure the

loop with the wire tie (not included) as shown in figure D.

Figure D

3. Cut the cable at the last speaker location in the daisy chain closest to

the amplifier.

4. Take the spool back to the starting point and pull a second 2-

conductor wire to the furthest speaker location and repeat steps 1

and 2.

5. Use a round cable stripper (not included) to strip the insulation

approximately 0.75 in. (19 mm) of copper as shown in figure E.

Figure E

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

6. Starting with the first speaker, cut the cable loop as shown in figure

Figure F

7. Combine and twist all left channel positive (+) cables together in a

clockwise motion. Next, repeat this step for all the negative (-)

cables.

8. Secure the three positive (+) cables together (cable from the

amplifier, hardwired speaker cable from the first speaker, and cable

to the rest of the speakers) using the wire nuts, ensuring that no

copper is exposed (see figure G). Repeat this step for all the negative

(-) cables.

Figure G

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

NOTES:

lThe speaker includes a hardwired direct-burial speaker cable.

lMake sure that the positive cable is attached to the red

connection, and the negative cable is attached to the black

connection.

lBe sure not to let any stray ’+’ and ’-’ strands touch each other.

Touching strands will cause a short-circuit which could damage

the amplifier.

lEach REFERENCE OD4-BRZ-T-EACH speaker presents a 16 ohm

load to the amplifier, and is designed to be wired in parallel

either with additional REFERENCE OD4-BRZ-T-EACH speakers

and/or with the subwoofer included in the REFERENCE OD4.1-4-

S10-BRZ-T KIT. These speakers are also suitable replacements

for the speakers in the REFERENCE OD4.1-4-S10-BRZ-T KIT.

9. Repeat steps 5 to 8 for the left channel for each successive speaker.

10. Follow the same procedure to connect the right channel positive and

negative speaker cables.

11. Connect the remainder of the speakers.

12. The subwoofer needs to be connected in the same manner as the

satellite speaker (see figure H).

NOTES:

lThe subwoofer has dual voice coils, one for the left channel and

one for the right channel, it is critical that the positive and

negative cables be connected correctly for both channels. If

either channel is connected incorrectly, no low-frequency sound

will be produced.

Figure H

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

13. After all speakers and subwoofer connections are completed (see

figure J), connect the speaker cables to the amplifier.

Figure J

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

Visit the Product Page

Scan the QR code to visit the product page.

REFERENCE OD4.1-4-S10-BRZ-T KIT

http://www.crestron.com/model/6512253



Additional Information



Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron and the Crestron logo are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. Origin Acoustics is

either a trademark or registered trademark of Origin Acoustics, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may

be used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.



Doc. 9034A

09/16/21

REFERENCE OD4.1-4-S10-BRZ-T KIT QuickStart

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer
