Crestron MLX-3N Manuel utilisateur

Crestron MLX-3N

Color LCD Handheld Wireless Remote

with infiNET EX®

Configuration Guide

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, Crestron Toolbox and infiNET EX are either trademarks or registered trademarks of Crestron Electronics, Inc. in the

United States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not

responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX®

Configuration Guide – DOC. xxxxA Contents •i

Contents

Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N 1

Navigate the MLX-3N ...............................................................................................................1

Access the Setup Screens........................................................................................................... 2

Configure the MLX-3N .............................................................................................................4

Radio ........................................................................................................................... 4

Backlights.................................................................................................................... 9

About......................................................................................................................... 11

Battery ....................................................................................................................... 13

Exit Setup .................................................................................................................. 14

Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX®

Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N •1

Color LCD Handheld Wireless

Remote with infiNET EX®: MLX-3N

Navigate the MLX-3N

The MLX-3N uses a scroll wheel and a “MenuBack” button to navigate through the

LCD display.

“MenuBack” Button

Scroll Wheel

Highlighted Item

•To highlight an item, turn the scroll wheel until the desired item is shown in

bold text

•To select a highlighted item, press the scroll wheel

•To return to the previous screen, press the “MenuBack” button

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3N

2•Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N Configuration Guide – DOC. xxxxA

Access the Setup Screens

The MLX-3N is configured from the setup screen.

NOTE: If no project has been loaded or if an invalid project has been loaded, the

MLX-3N defaults to the setup menu screen.

The setup screens allow basic configuration procedures prior to regular operation of

the MLX-3N.

When power is applied for the first time, the screen shown in the following

illustration appears.

Initial Screen

Press SELECT (or the scroll wheel) to display the “Setup Options” screen, as shown

in the following illustration.

“Setup Options” Screen

The “Setup Options” screen is divided into Radio, Backlights, About, Battery and

Exit Setup sections. The functions of each are detailed in the next section of this

guide.

Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX®

Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N •3

NOTE: To activate the setup functions during regular operation of the MLX-3N,

press MEDIA, LIGHTS, and GUIDE in sequence twice within a five second

period.

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3N

4•Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N Configuration Guide – DOC. xxxxA

Configure the MLX-3N

Radio

From the “Setup Options” screen, turn the scroll wheel to highlight Radio and press

the scroll wheel to go to the “Radio Options” screen, shown in the following

illustration.

“Radio Options” Screen

The “Radio Options” screen provides access to screens for Info, Status, RF ID and

Acquire.

Radio Options - Info Turn the scroll wheel to highlight Info and press the scroll wheel to go to the “Radio

Information” screen, shown in the following illustration.

“Radio Information” Screen

The “Radio Information” screen can be used to access information about the

MLX-3N remote and about the gateway with which it is communicating.

Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX®

Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N •5

Turn the scroll wheel to highlight Remote and press the scroll wheel to go to the

“Remote RF Info” screen, shown in the following illustration.

“Remote RF Info” Screen

The “Remote RF Info” screen shows whether the MLX-3N has been acquired by a

gateway as well as the MLX-3N’s current RF ID, channel setting and EUID

(Effective User ID). Press the “MenuBack” button to return to the “Radio

Information” screen.

From the “Radio Information” screen, turn the scroll wheel to highlight Gateway and

press the scroll wheel to go to the “Gateway RF Info” screen, shown in the following

illustration.

“Gateway RF Info” Screen

The “Gateway RF Info” screen shows the gateway’s channel and EUID. Press the

“MenuBack” button to return to the “Radio Information” screen.

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3N

6•Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3N Configuration Guide – DOC. xxxxA

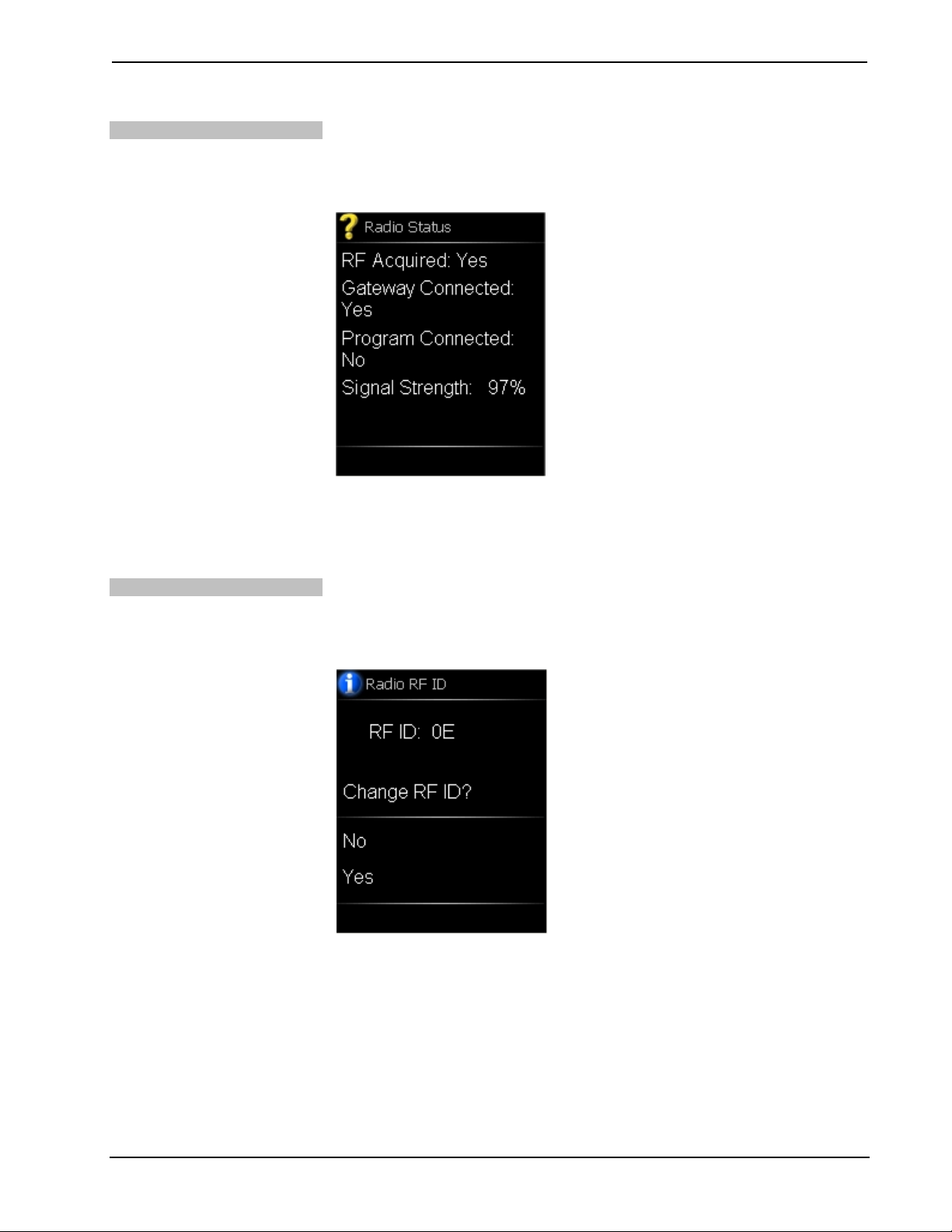

Radio Options - Status From the “Radio Options” screen, turn the scroll wheel to highlight Status and press

the scroll wheel to go to the “Radio Status” screen, shown in the following

illustration.

“Radio Status” Screen

The “Radio Status” screen shows whether the MLX-3N has been acquired by a

gateway as well as the gateway’s connection status, whether a program is running

and the signal strength of the RF signal. Press the “MenuBack” button to return to

the “Radio Options” screen.

Radio Options – RF ID From the “Radio Options” screen, turn the scroll wheel to highlight RF ID and press

the scroll wheel to go to the “Radio RF ID” screen, shown in the following

illustration.

“Radio RF ID” Screen

The “Radio RF ID” screen shows the MLX-3N’s current RF ID and allows the

option to change the RF ID.

To exit the “Radio RF ID” screen without changing the setting, either turn the scroll

wheel to highlight No and press the scroll wheel or simply press the “MenuBack”

button.
