Crestron UC-BX31-T-WM Manuel utilisateur

The UC-BX31-T-WM Crestron Flex advanced conferencing system

provides a small room video conference solution for use with Microsoft

Teams® Rooms software. It supports single or dual video displays and

features a wall mount touch screen, UC presentation transmitter, UC

bracket assembly, and smart soundbar and camera.

The firmware update for all connected peripherals is managed by the

UC Engine and Windows Update.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

display is optional.

lA Microsoft Teams Rooms provisioned or Skype® for Business

account (not included)

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365® software

for Cloud) for scheduling and/or Skype for Business 2015 (on-

premises installation or Microsoft 365 software for Cloud) (not

included)

In the Box

Wall Mount Touch Screen

1 10.1 in. Wall Mount Touch Screen (6511975)

Mounting hardware

Smart Soundbar with Camera

1 Jabra® PanaCast 50 Video Bar (6512600)

UC Presentation Transmitter

1 Presentation transmitter (6510936)

1 Power pack (2056363) with cord (2001134)

1 Bracket, power supply (2056257)

1 Cable, USB to USB, 6.56 ft (2 m) (2056116)

1 Cable, HDMI®, 6.56 ft (2 m) (2056117)

1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)

8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black

(2054365)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® or AV

over CAT5 content ingest (UC-BRKT-260-P-T-ASSY,

6512691)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

1 Power pack (2045870)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the UC Presentation Transmitter

Mount the UC Presentation Transmitter to the underside of a table

using the supplied screws. The supplied screws support installation on

tables with a thickness of 1 in. (25.4mm) minimum.

Mount the Soundbar with Camera

Mount the included Jabra PanaCast 50 soundbar with camera

according to its included documentation.

Mount the Touch Screen

Mount the included touch screen according to the TSW-1070 Quick

Start (Doc. 8552).

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

Connect

System Overview

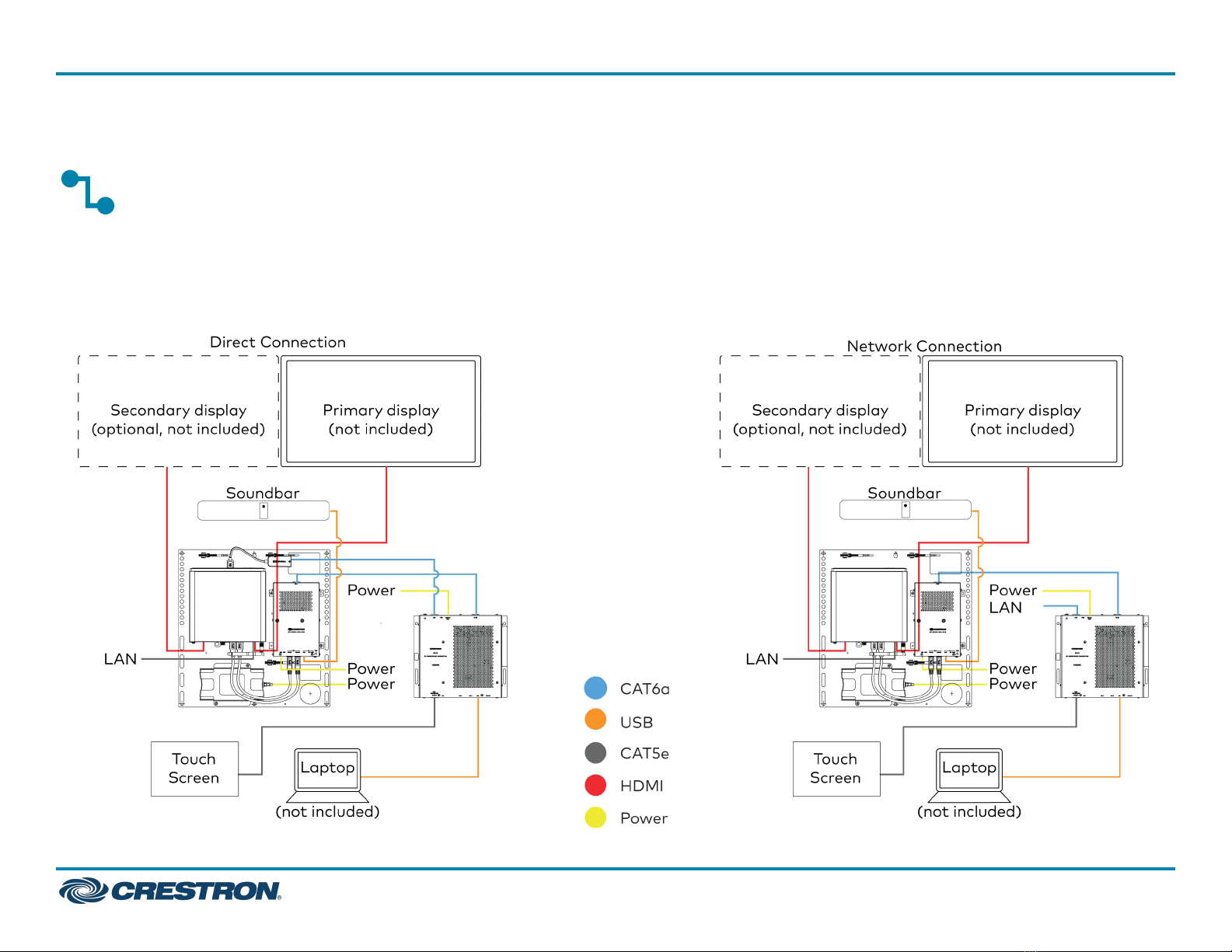

When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected

connection method. Refer to Make Connections for detailed connection instructions.

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

Make Connections

1. Make UC Engine connections as shown in the following illustrations. The UC Presentation Transmitter can communicate with the UC Engine over

a direct connection or a network connection. Select one of the connection types as described below.

lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the UC Presentation Transmitter to

the UC Engine. Do not use the direct connect adapter to connect the UC Engine to the network.

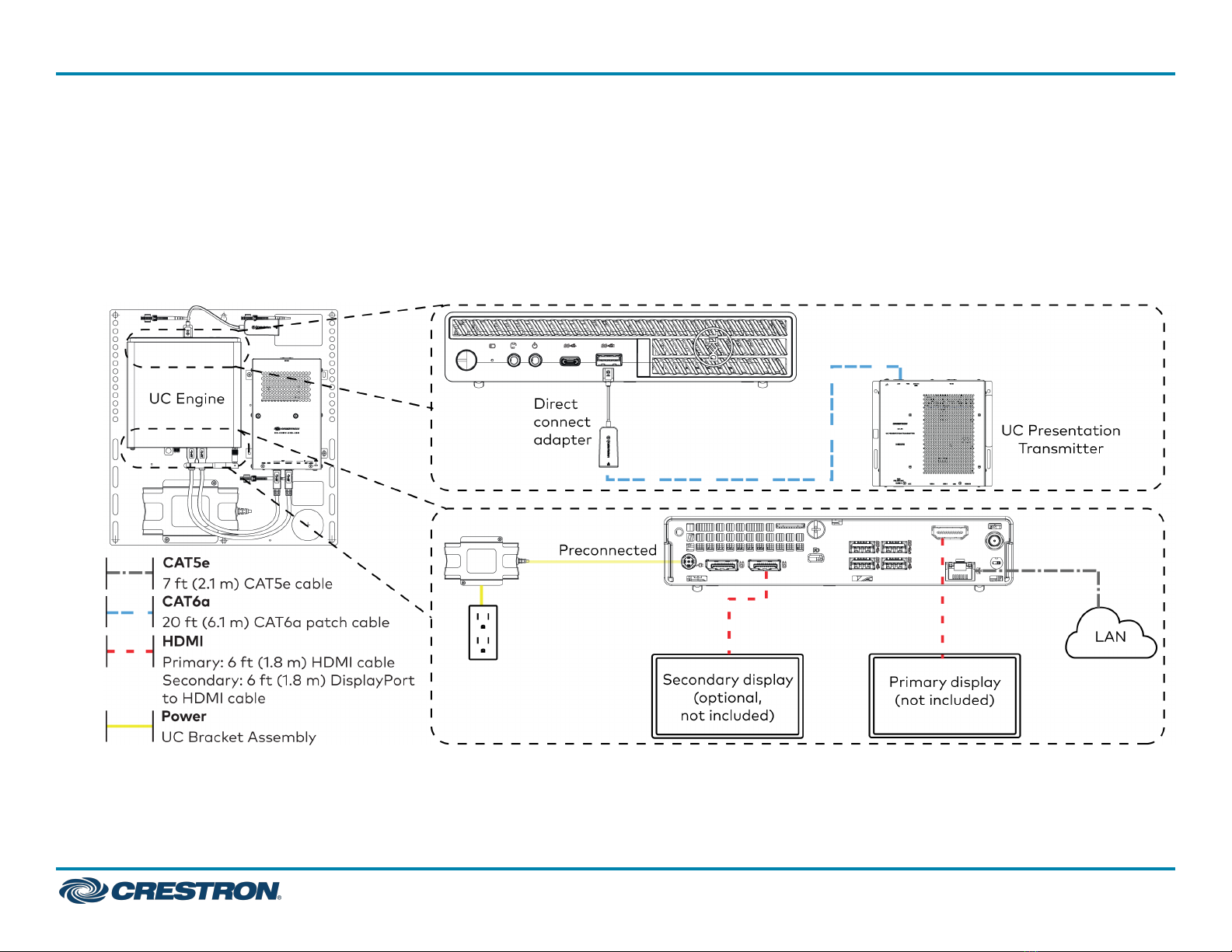

Direct Connection

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

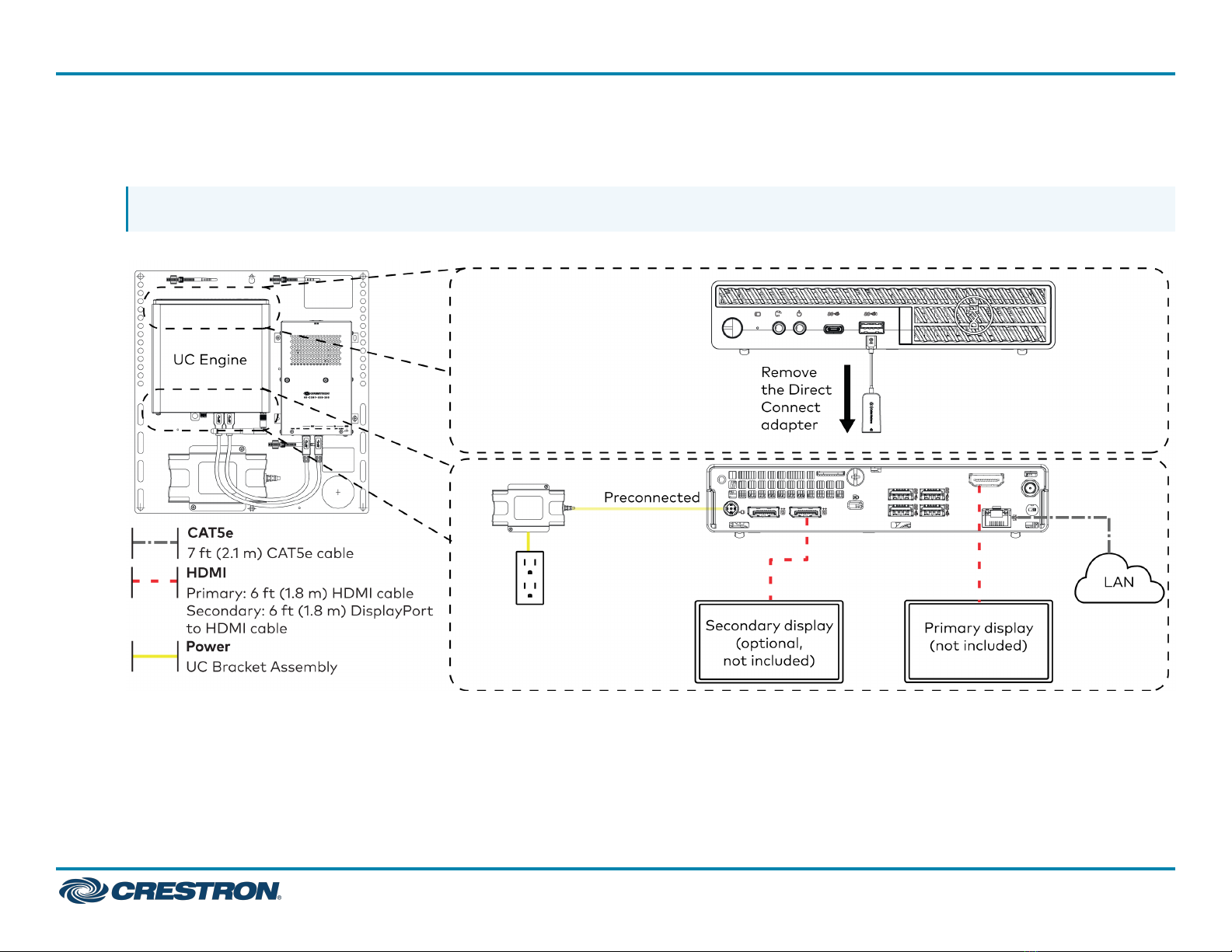

lMake a network connection if the system is to be managed by the XiO Cloud® service.

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.

Network Connection

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

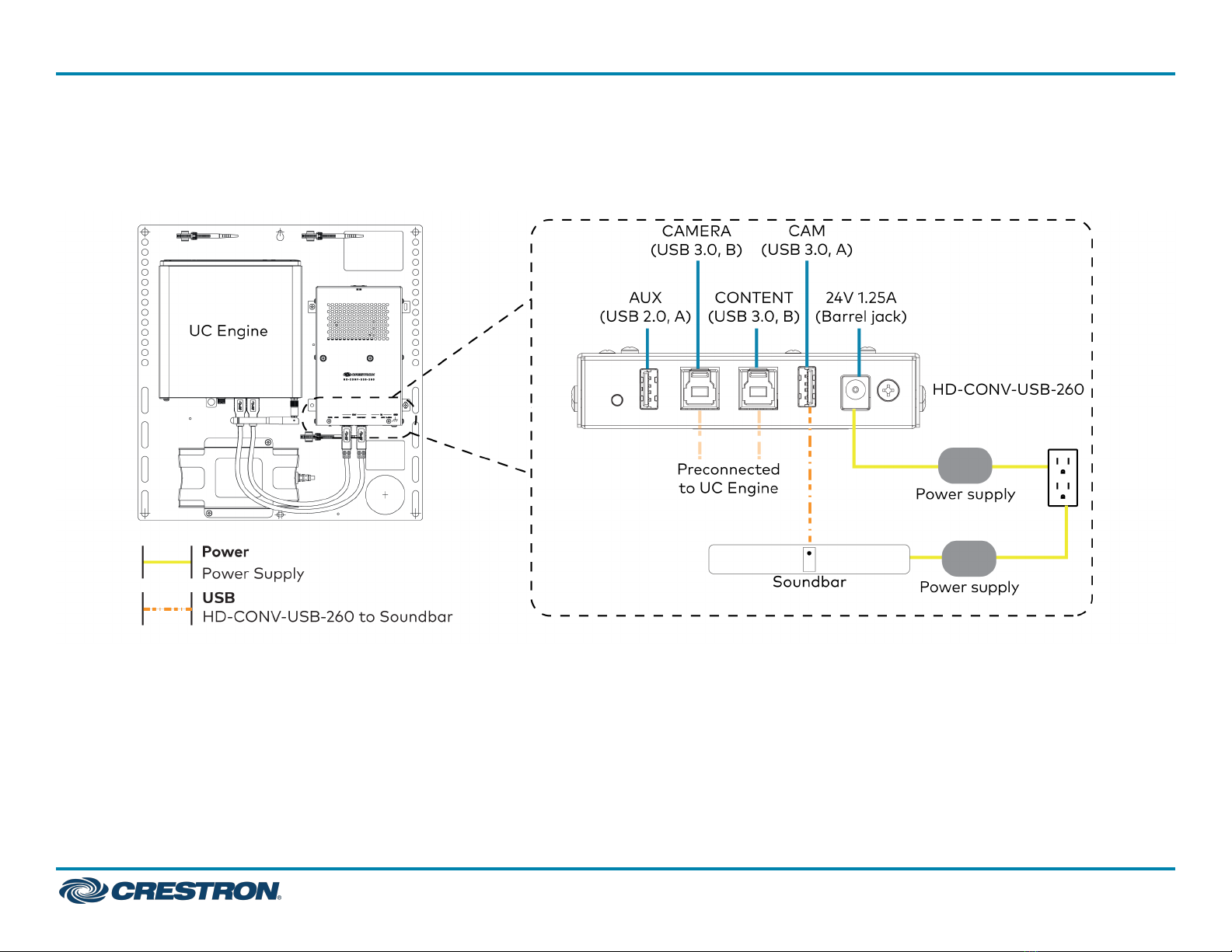

2. Connect the power supply and the soundbar to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supplies to an

AC power outlet.

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

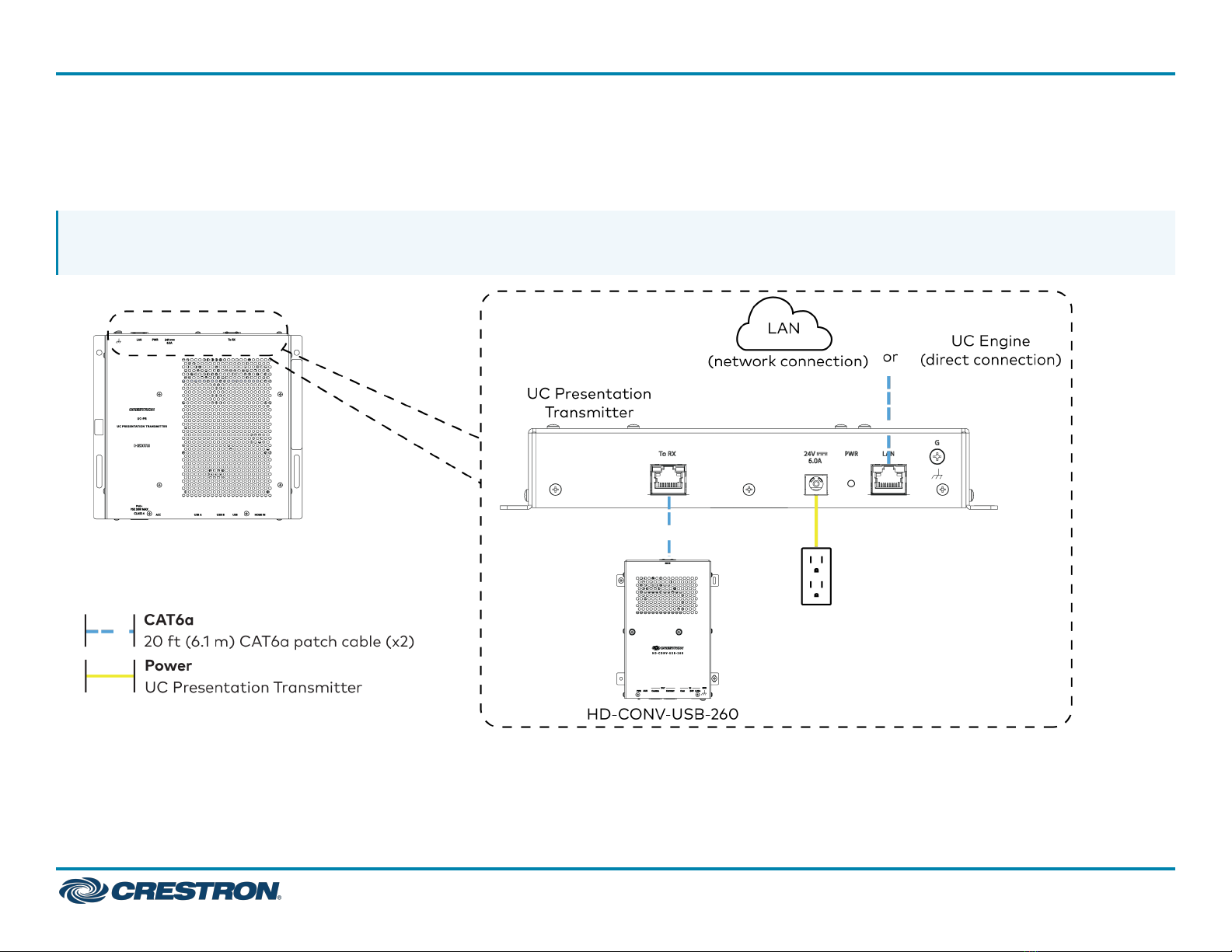

3. Connect power and the content ingest device (HD-CONV-USB-260) to the top of the UC Presentation Transmitter. Connect the UC Engine or

LAN to make a direct or network connection as described in step 1.

NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-260 is needed, use a DigitalMedia™ Ultra cable only.

The maximum supported cable length is 300ft (91.4 m).

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

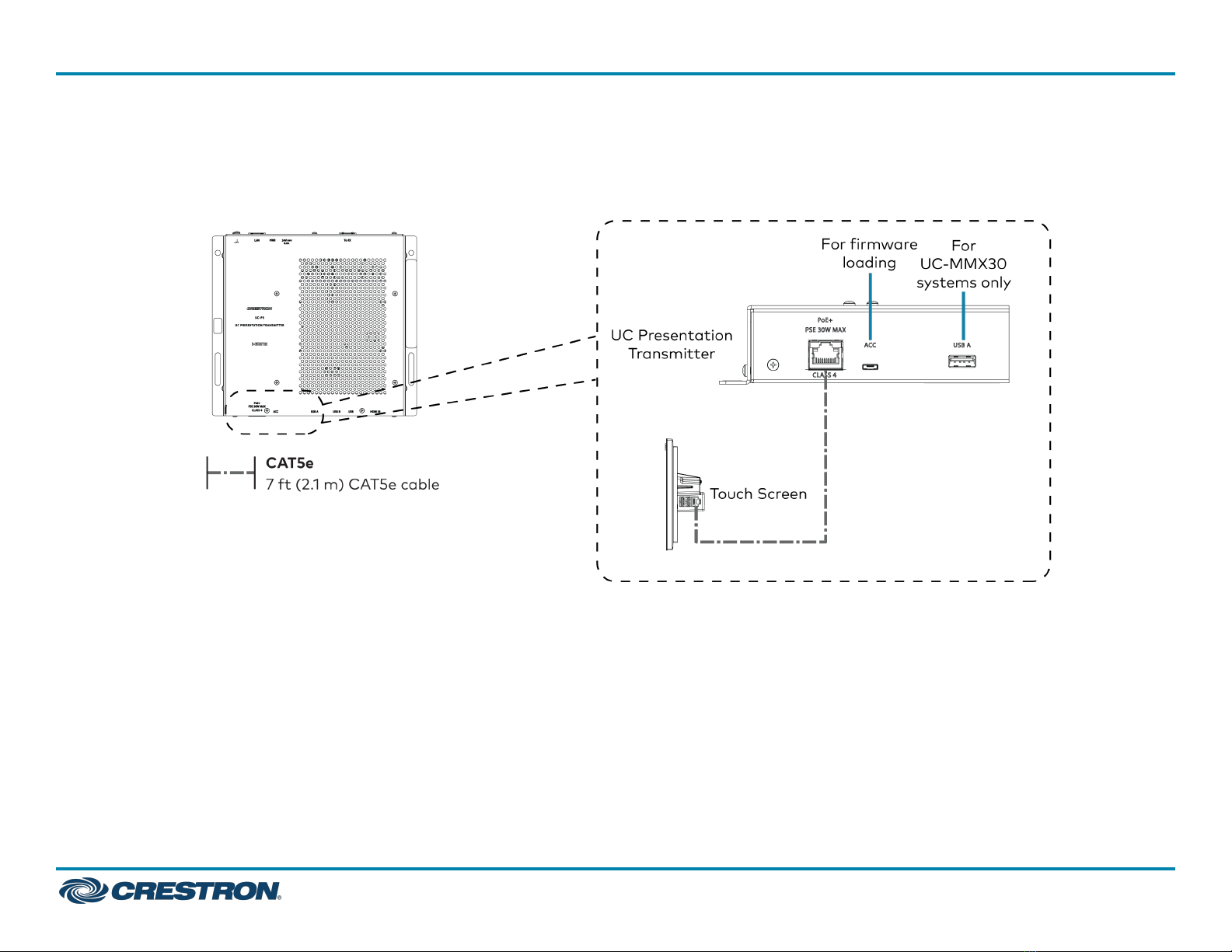

4. Connect the touch screen to the bottom of the UC Presentation Transmitter.

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms

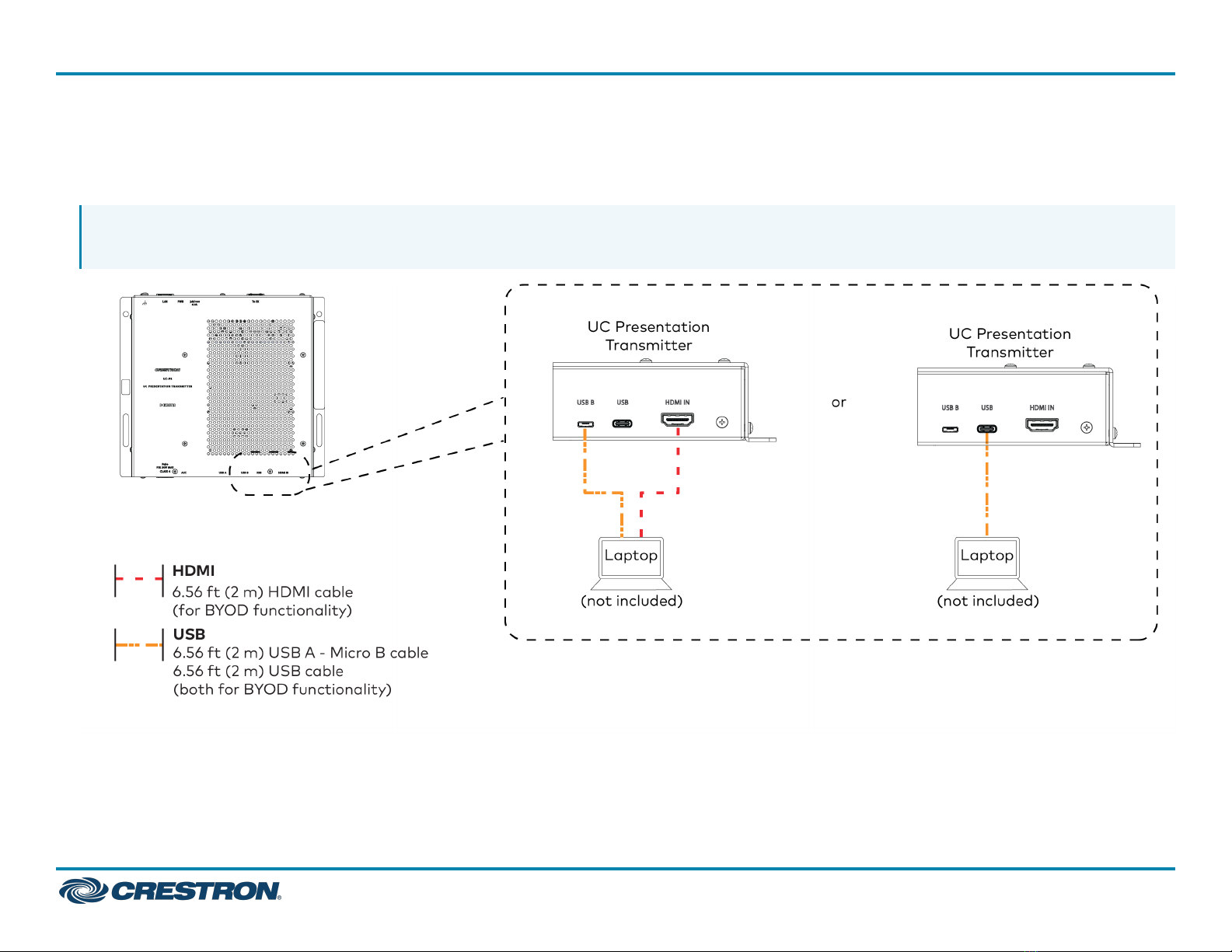

5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a

connection type based on the available ports on the user's laptop.

NOTE: If the USB port is used along with either the HDMI or USB B port, the UC Presentation Transmitter will communicate via the USB port

by default.

6. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system.

Configure the Touch Screen

NOTE:If a direct connection was made during installation, skip to

Configure the System.

1. On a computer, open a web browser to the IP address of the touch

screen. Log in and navigate to Settings >Applications.

NOTES:

lThe touch screen (via the PoE injector) and computer must be

on the same network switch and VLAN.

lA login with administrative rights for the touch screen is

required.

2. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of the

UC Engine.

NOTE: The hostname is printed on a label affixed to the UC

Engine (mounted on the UC bracket assembly).

lTeams Video PC Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine,

enter that port number instead.

lTeams Video Username: Enter the login username for the UC

Engine. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the UC

Engine. (The default password is “sfb”.)

3. Click Save Changes.

Configure the System

Use the touch screen and your Microsoft Teams or Skype account

credentials to configure the UC Engine. For detailed information on

deploying Microsoft Teams Rooms, refer to the Microsoft Teams Rooms

documentation.

UC-BX31-T-WM QuickStart

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall

Mounted Control Interface for Microsoft Teams® Rooms
