The Crestron® AMP-X50MP is a compact, efficient stereo

amplifier for media presentation systems.

In the Box

1 AMP-X50MP, Media Presentation Audio Amplifier

Additional Items

1 Connector, Speaker, 6-position

1 Connector, Input, 5-position

1 Connector, Remote, 2-position

4 Anchors

4 Screws, Mounting

4 Foot, Adhesive, Black

1 Power Supply

Install

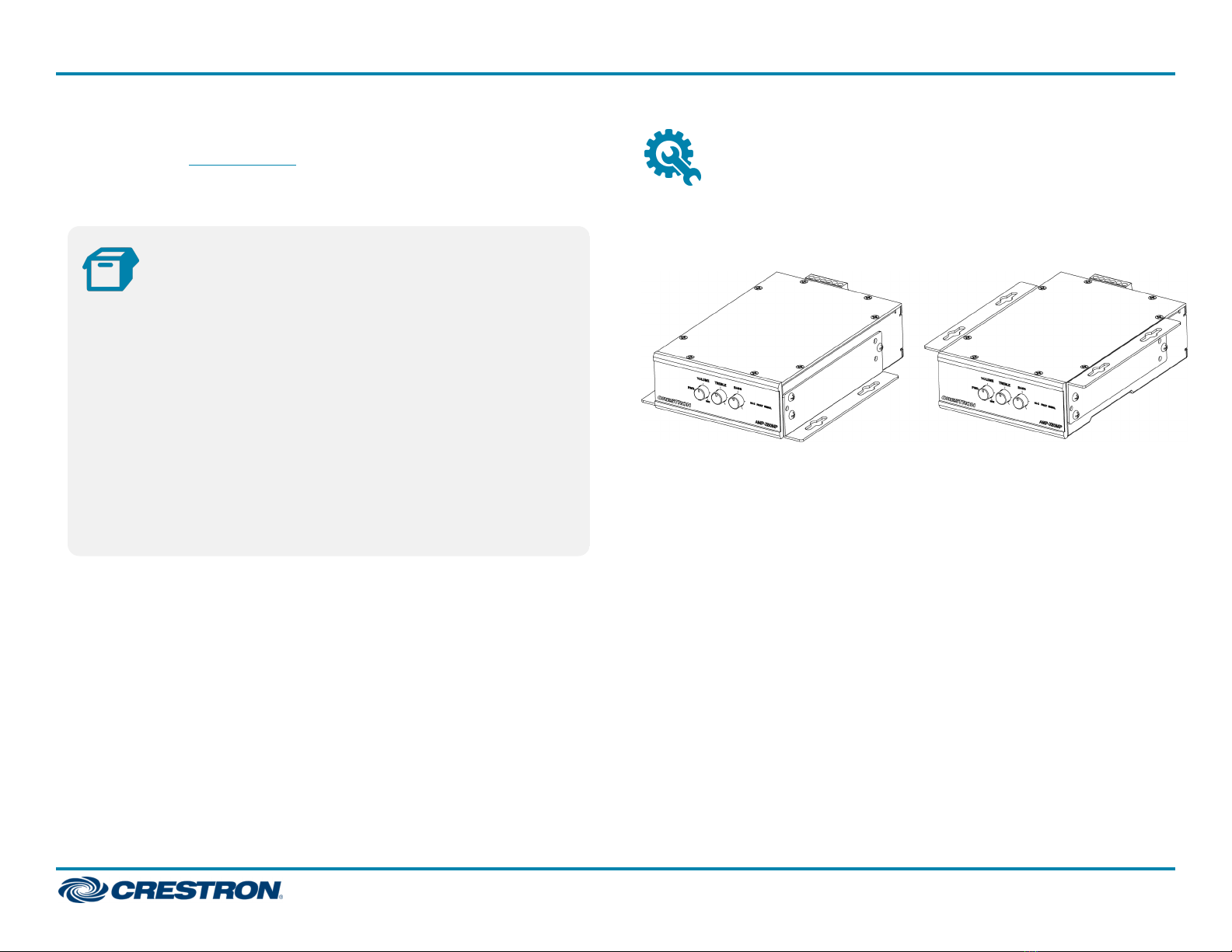

The amplifier can be mounted or placed on a surface. The

attached brackets can be removed or reversed for use in any

installation.

Surface Mount

Use the included mounting screws and anchors to mount the

amplifier on a surface.

Surface Placement

Attach the included feet to the amplifier if it is to be placed

on a flat surface.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

Connect

Make the necessary connections as called out in the following

diagrams. Connect power last.

CAUTIONS:

lKeep the device unplugged until all of the input and

speaker wiring is complete.

lCheck the speaker wires for shorts and frayed wiring

around the speaker output connector.

NOTES:

lEnsure that the unit is properly grounded by

connecting the chassis ground lug to an earth ground

(building steel).

lTo prevent overheating, do not operate this product

in an area that exceeds the environmental

temperature range listed in the table of specifications

on the product web page.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

Input Wiring

The amplifier inputs can be wired for stereo or mono audio

using balanced and unbalanced connections.

The audio inputs are summed as follows in Hi-Z (70 V or

100 V) and LoZ (4 ohm or 8 ohm) operation:

lLeft channel summing

oLeft input channel of terminal block (AUDIO IN +L-)

oLeft RCA input channel (AUDIO IN L)

oLeft channel of 3.5 mm audio input (AUDIO IN)

lRight channel summing

oRight input channel of terminal block (AUDIO IN +R-)

oRight RCA input channel (AUDIO IN R)

oRight channel of 3.5 mm audio input (AUDIO IN)

Balanced and Unbalanced Audio

The amplifier can receive balanced audio through the terminal

block connector and unbalanced audio through the terminal

block connector, RCA connectors, or the 3.5 mm connector.

Refer to the following diagrams when wiring the terminal

block connectors.

LoZ Operation

When the amplifier is set to LoZ operation (4 ohm or 8 ohm),

the MONO/STEREOswitch affects the input signals as fol-

lows:

lWhen set to STEREO, the amplifier will maintain separation

of the left and right audio input channels for stereo output.

lWhen set to MONO, the amplifier will sum the left and right

audio input channels for mono output.

Hi-ZOperation

When the amplifier is set to Hi-Z operation (70 V or 100 V),

the MONO/STEREOswitch affects the input

signals as follows:

lWhen set to STEREO, the amplifier will only use the left

audio input for mono output.

lWhen set to MONO, the amplifier will sum the left and right

audio input channels for mono output.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

Speaker Connection

The amplifier can be configured for low impedance (4/8 Ω) or

high impedance (70 V or 100 V) operation. Refer to the

following diagrams:

Low Impedance (4/8 Ω, Mono or Stereo)

High Impedance (100 V, Mono Only)

High Impedance (70 V, Mono Only)

ALSOUT

The ALS OUT port provides a fixed audio output that pre-

serves left and right channel separation for use with assisted

listening devices. It is not affected by adjustments to volume,

bass, or treble.

Remote Control

The amplifier can be remotely placed in standby mode by a dry

contact closure connected to the REMOTE port.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

BlockDiagram

Refer to the following diagram for details on stereo, summed,

LoZ, and Hi-Z signal flows.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

Configure

Hi-Z/LoZ Switch

The amplifier can be configured to work with 4/8 Ω low

impedance (LoZ) loads or a distributed audio high impedance

(Hi-Z) 70/100 V system.

lLoZ: Set the switch to LoZ to use the amplifier with

4/8 Ω low impedance loudspeakers.

lHi-Z: Set the switch to Hi-Z to use the amplifier in a

70 V / 100 V distributed audio system. The Hi-Z LEDon the

front panel will illuminate.

MONO/STEREO Switch

The MONO/STEREOswitch operates as described below for

LoZand Hi-Z operation:

lLoZ Operation

oSTEREO: Set the switch to STEREO to maintain

separation of the left and right audio input channels for

stereo output.

oMONO: Set the switch to MONO to sum the left and

right channels for mono output.

lHi-Z Operation

oSTEREO: Set the switch to STEREO to only use the left

input channel for mono output.

oMONO: Set the switch to MONO to sum the left and

right channels for mono output.

Operate

Once the amplifier has been wired and configured, it is ready

for operation.

Apply Power

Apply power to complete the installation.

LEDBehavior

The LEDs on the front panel provide the following

information:

lPWR: When white, the amplifier is operating normally.

When red, the amplifier is in standby mode.

lHi-Z: When white, the Hi-Z mode is enabled (70 V or

100 V).When off, the LoZ mode is enabled.

lFAULT: When red, a fault is present or output protection is

enabled.

lSIGNAL:When white, indicates the presence of an audio

signal. When red, the input signal is too high and should be

lowered.

Adjust the Output

Adjust the VOLUME,BASS, and TREBLE controls to the

desired levels.

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier

Visit the Product Page

Scan the QR code to visit the product page.

AMP-X50MP

www.crestron.com/model/6511106

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers

and Crestron Service Providers (CSPs) under a limited nonexclusive, non-

transferable Software Development Tools License Agreement. Crestron

product operating system software is licensed to Crestron dealers, CSPs,

and end-users under a separate End-User License Agreement. Both of

these Agreements can be found on the Crestron website at www.crestron.-

com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific

information, visit www.crestron.com/opensource.

Crestron and the Crestron logo are either trademarks or registered trade-

marks of Crestron Electronics, Inc. in the United States and/or other

countries. Other trademarks, registered trademarks, and trade names may

be used in this document to refer to either the entities claiming the marks

and names or their products. Crestron disclaims any proprietary interest in

the marks and names of others. Crestron is not responsible for errors in

typography or photography.

Doc ID 8571A

(2054895)

03/31/20

AMP-X50MP QuickStart

X-Series Media Presentation Amplifier
