Crestron GLS-ODT-C-CN Manuel utilisateur

GLS-ODT-C-CN and GLS-ODT-C-NS

Occupancy Sensor, Dual Technology, Ceiling

Mount

Product Manual

Crestron Electronics, Inc.

The original language version of this document is U.S. English.

All other languages are a translation of the original document.

Regulatory Model: GLS-ODT-C-CN and GLS-ODT-C-NS

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a

limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating

system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.

Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_

agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed online at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. UL and the UL logo are trademarks or registered

trademarks of Underwriters Laboratories, Inc. in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names

or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not

responsible for errors in typography or photography.

Contents

Overview 1

Specifications 2

GLS-ODT-C-CN Specifications 3

Product Specifications 3

Dimension Drawings 5

GLS-ODT-C-NS Specifications 6

Product Specifications 6

Dimension Drawings 8

Installation 9

Determine the Mounting Location 10

PIR Masking 10

Motion Detection Range 12

Mounting 21

In the Box 21

Drop Ceiling or Drywall Installation 21

Electrical Box Installation 22

Wiring 24

Wiring the GLS-ODT-C-CN 24

Wiring the GLS-ODT-C-NS 25

Testing 26

Configuration 27

Timeout Duration 27

Short Timeout 27

Grace Occupancy Mode 27

LEDs 28

Sensitivity 28

PIR and US Sensors 28

Internal Photocell (GLS-ODT-C-CN Only) 28

Net ID 28

Factory Reset 29

Troubleshooting 30

Resources 31

Crestron Support and Training 31

Programmer and Developer Resources 31

Product Certificates 31

Related Documentation 31

Product Manual — Doc. 9341A Contents • iii

iv • Contents Product Manual — Doc. 9341A

Product Manual — Doc. 9341A GLS-ODT-C-CN and GLS-ODT-C-NS • 1

Overview

The GLS-ODT-C-CN and GLS-ODT-C-NS sensors feature accurate, dual-technology occupancy

detection in a large room or space and deliver a powerful and cost-effective solution for reducing

energy consumption and enhancing the functionality of lighting and environmental systems. The

low-profile, ceiling-mounted occupancy sensors are designed for areas up to 2,000 square feet,

making them great for use in large spaces such as auditoriums, warehouses, and building lobbies.

The GLS-ODT-C-CN occupancy sensor uses Cresnet® wired communications for Crestron control

system integration of lighting, climate, and other devices in the room.

The GLS-ODT-C-NS sensor connects directly to a contact closure in a standalone lighting system

to provide occupancy and vacancy status. For integration with a Crestron control system using

the Cresnet® network, add a sensor integration module (GLS-SIM, sold separately).

NOTE: The GLS-ODT-C-CN and GLS-ODT-C-NS are functionally similar. For simplicity

within this documentation, the term "occupancy sensor" is used except where otherwise

noted.

2 • GLS-ODT-C-CN and GLS-ODT-C-NS Product Manual — Doc. 9341A

Specifications

This section provides the following information:

•GLS-ODT-C-CN Specifications

•GLS-ODT-C-NS Specifications

Product Manual — Doc. 9341A GLS-ODT-C-CN and GLS-ODT-C-NS • 3

GLS-ODT-C-CN Specifications

Product specifications for the GLS-ODT-C-CN.

Product Specifications

Sensing

Motion Detection

Technology

Passive infrared (PIR) motion detection;

Ultrasonic (US) (40kHz)

Ambient Light

Recognition

Built-in photosensor (0-1000lux)

Coverage Area 2,000 sq ft

Coverage Pattern 360°

LED Indicators

PIR (1) Red LED;

Lights to indicate PIR detection

Ultrasonic (1) Green LED;

Lights to indicate ultrasonic detection

Controls

(1) Pushbutton located behind the front cover for testing the unit

IR Remote (Sold Separately)

Parameters and Settings Available Via IR Remote:

Separate occupancy and vacancy sensitivity settings

(1) Pushbutton located behind the front cover for testing the unit

Timeout (30s, 2m, 5m, 10m, 15m, 30m)

Walk-Through mode “Short Timeout” (Enable/Disable)

LEDs (Enable/Disable)

PIR sensitivity (High, Med, Low, OFF), with the option to set separate occupancy and vacancy settings

US sensitivity (High, Med, Low, OFF), with the option to set separate occupancy and vacancy settings

US detection (Side A only, Side B only, Both)

ID of sensor

Factory Reset

Force Vacancy

(4) Custom buttons for future additional features

4 • GLS-ODT-C-CN and GLS-ODT-C-NS Product Manual — Doc. 9341A

Connections

(1) 5-pin 3.5mm detachable terminal block;

Cresnet® network secondary port (24V Y Z G) and external photosensor (EXT) input

Power Requirements

Current Consumption 60mA @ 24VDC

Cresnet Power Usage 1.5 W

Environmental

Temperature 32° to 104°F (0° to 40°C)

Humidity 10% to 90% RH (noncondensing)

Construction

Housing Plastic, white

Mounting Mounts to a 4in. (102mm) octagon box or 3-1/2in. (88mm) diameter hole

created by provided cutout template;

Includes mounting screws and integral toggle clamps;

A 1-1/2in. (38mm) minimum mounting depth is recommended

Dimensions

Diameter 4.80in. (122mm)

Depth 2.29in. (58mm) overall;

Projects 0.97in. (25mm) from the surface when installed

Weight

0.4lb (200g)

Compliance

UL® Listed in the US and Canada, CE, FCC Class B, CAN ICES-3(B)/NMB-3(B)

To search for product certificates, refer to support.crestron.com/app/certificates.

Product Manual — Doc. 9341A GLS-ODT-C-CN and GLS-ODT-C-NS • 5

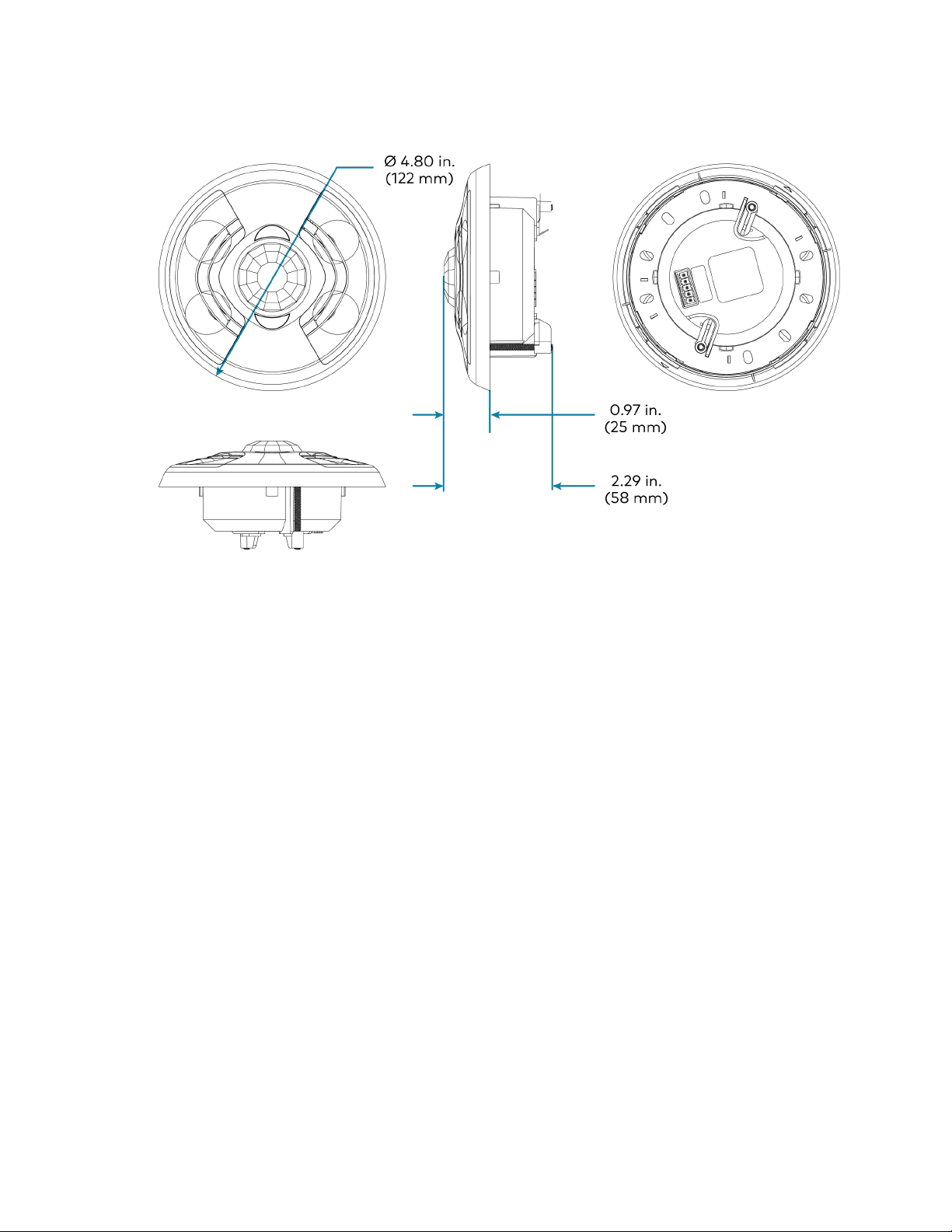

Dimension Drawings

6 • GLS-ODT-C-CN and GLS-ODT-C-NS Product Manual — Doc. 9341A

GLS-ODT-C-NS Specifications

Product specifications for the GLS-ODT-C-NS.

Product Specifications

Sensing

Motion Detection

Technology

Passive infrared (PIR) motion detection;

Ultrasonic (US) (40kHz)

Coverage Area 2,000 sq ft

Coverage Pattern 360°

LED Indicators

PIR (1) Red LED;

Lights to indicate PIR detection

Ultrasonic (1) Green LED;

Lights to indicate ultrasonic detection

IR Remote (Sold Separately)

Parameters and Settings Available Via IR Remote:

Separate occupancy and vacancy sensitivity settings

(1) Pushbutton located behind the front cover for testing the unit

Timeout (30s, 2m, 5m, 10m, 15m, 30m)

Walk-Through mode “Short Timeout” (Enable/Disable)

LEDs (Enable/Disable)

PIR sensitivity (High, Med, Low, OFF), with the option to set separate occupancy and vacancy settings

US sensitivity (High, Med, Low, OFF), with the option to set separate occupancy and vacancy settings

US detection (Side A only, Side B only, Both)

ID of sensor

Factory Reset

Force Vacancy

(4) Custom buttons for future additional features
