Crescent C2000E Manuel utilisateur
4975 West Main Street
Tupelo, MS 38801
662-844-8779
1-888-856-4516
Fax 1-888-299-8986
www.crescentsales.com
email:
5ATTACH JACK BASE TO SUPPORT(A)
1. Slip JACK BASE into SUPPORT
2. Use BOLT C,12mm NUT,
WASHER F and WASHERS E
to secure JACK BASE with
allen wrench.
ATTACH JACK TOP TO ARM(B)
1. Slip JACK TOP into ARM.
2. Use BOLT D,12mm NUT,
WASHER F and WASHERS E
to secure JACK TOP to
SUPPORT with allen wrench.
6
7
(A)
(B)
Cradle
ATTACH CRADLE TO ARM
1. Lay CRADLE onto table.
2. Slip ARM into CRADLE
3. Use BALL and PIN to secure CRADLE
to ARM
ATTACH BATTERY TO SUPPORT
1. Using 3 PHILLIPS HEAD SCREWS K,
attach battery to back of SUPPORT.
C12mm
Support
12mm
ARM
Assembly Instructions
C2000E BODY LIFT
D
07/10
Arm
Cradle
Support
Leg
3” Caster
READ THESE INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN ASSEMBLY.
If there are any instructions that are not understood, please call our customer
service department at 1-888-856-4516.

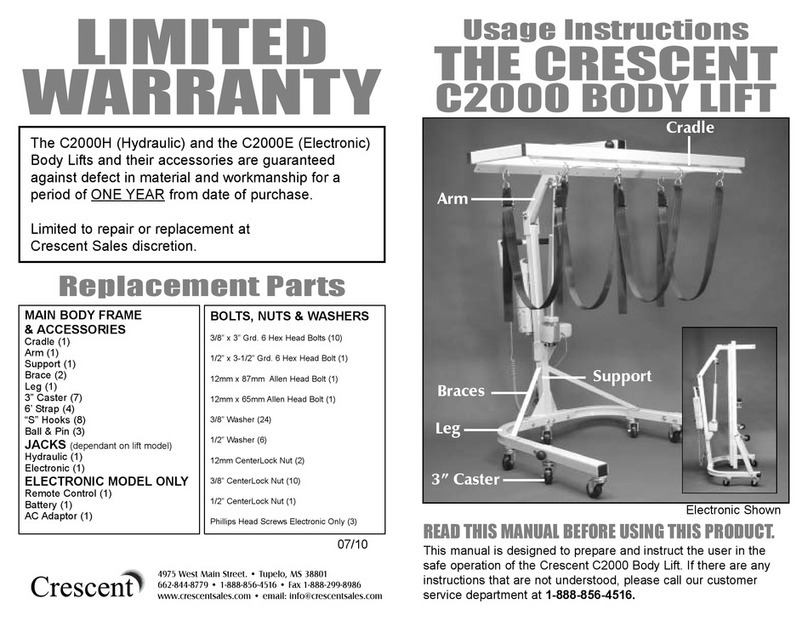

LIMITED WARRANTY
The C2000H (Hydraulic) and the C2000E (Electronic) Body Lifts and their
accessories are guaranteed against defect in material and workmanship for a
period of ONE YEAR from date of
purchase. Limited to repair or replacement at
Crescent Sales discretion.
Jack Base
Jack Top
Arm
EE
F
EE
F
CONNECT 3” CASTERS TO BOTTOM OF LEG
1. Turn LEG over so that the 7
holes face upward.
2. Screw each CASTER into
LEG clockwise.
IMPORTANT: CASTER must be completely
screwed into leg before any object can be
lifted. Otherwise, damage will occur.
1
Braces
BOLTS, NUTS & WASHERS INCLUDED
2ATTACH SUPPORT TO LEG
1. Turn LEG onto CASTERS.
2. Place SUPPORT onto LEG.
3. Use BOLTS A, 3/8” NUT,
and WASHER E to
secure SUPPORT to LEG.
4. Repeat step 3 three times.
4ATTACH ARM TO SUPPORT
1. Slip ARM between top of
SUPPORT.
2. Use BOLT B, 1/2” NUT, and
WASHER F to secure ARM to
SUPPORT.
(1)1/2” CenterLock Nut
(10)3/8” CenterLock Nut (24) 3/8” Washer
(4) 1/2” Washer
E
F
AE E
Support
BF F
Support
K
(3)Phillips Head
Screws
TOOLS NEEDED:
Phillips Head Screwdriver
Wrench
Adjustable Wrench
Allen Wrench
(3) Ball & Pin
IMPORTANT: Make sure arm
support is in the correct
position. See image below.
Support
Leg
Arm
Support
Leg
Arm
(10) 3/8” x 3” Grd. 6 Hex Head Bolts
A
B
(1) 1/2” x 3-1/2” Grd. 6 Hex Head Bolt
(1) 12mm x 87mm Allen Head Bolt
(1) 12mm x 65mm Allen Head Bolt
C
D
(2)12mm CenterLock Nut
3/8”
1/2”
ATTACH BRACES TO
SUPPORT AND LEGS
1. Attach BRACE to SUPPORT
using BOLTS A, 3/8” NUT,
and WASHER E. (fig. A)
2. Repeat using using BOLTS A,
3/8” NUT, and WASHER E to
attach BRACE to LEGS. (fig. B)
AE E
Support
3/8”
AE E 3/8”
Support
Leg
Brace
3
Brace Brace
fig. A fig. B AA
3/8”
E
3/8”
E
EE
Brace
Leg
