Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Installation

Version 3.1

3 | 322 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

CS-0551

Sub frame

center

CS-0560

Foot connector

Left

18x

12x

3x36x 40x 140x 190x

12x

CS-0539

Sub frame beam

ø90 mm - 149 cm

CS-0561

Foot connector

Right

CS-0540

Upper main

prole ø125 mm - 157 cm

CS-0593

Anchor slide

CS-0541

Upper

X-connector

CS-0562

Anchor support

CS-0543

T- Connector Upper Left

Marked with “UL”

CS-0549

Tension cable

CS-0537

Upper (long)

sub prole ø90 mm - 233 cm

CS-0235

Positioning

cable

CS-9041

Rope 33 m.

CS-0536

Lower Main

prole ø125 mm - 277 cm

CS-0093

Locking pin (medium)

ø90 mm prole

CS-9039

Locking pin (large)

ø125 mm prole

CS-0542

Lower

X-connector

CS-0590

Ratchet plate

CS-9058

Turn buckle

CS-0544

T- Connector Lower Left

Marked with “LL”

CS-0547

Upper cable

CS-0546

T- Connector Lower Right

Marked with “LR”

CS-0548

Center cable

Hexadome Large

BOX CONTENTS

CS-0248

Securing ring

CS-0538

Lower (short)

sub prole ø90 mm - 130 cm

CS-0545

T- Connector Upper Right

Marked with “UR”

6x CS-0558

Sub frame

connector

6x CS-0559

Locking strip

6x CS-0594

Pull bar large

1x CS-0614

Transport

rack & 2x box

❏

❏ ❏ ❏ ❏ ❏

❏

24x

❏CS-9059

Carabiner

5 | 324 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

Pre-assemble the lower sub proles (6x) Pre-assemble the upper sub proles (6x)

STEP 1 STEP 2

! Curvature has to point backwards

Lower (short) sub prole

CS-0538

T-Connector Lower Right

Marked with “LR”

CS-0546

T-Connector Lower Left

Marked with “LL”

CS-0544

Locking pin

Short version

CS-0093

Securing ring

CS-0248

Upper (long) sub prole

CS-0537

T-Connector Upper Right

Marked with “UR”

CS-0545

T-Connector Upper Left

Marked with “UL”

CS-0543

Locking pin

Short version

CS-0093

Securing ring

CS-0248

! Curvature has to point backwards

7 | 326 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

Pre-assemble the sub frame Assemble the frame body

STEP 3 STEP 4

! Secure all parts with locking pins

(short version) and securing rings

Sub frame center

CS-0551

Sub frame beam

CS-0539

Sub frame connector

CS-0558

Upper main prole

CS-0540

Upper X-connector

CS-0541

Upper X-connector

CS-0541

Upper main prole

CS-0540

! Curvature has to point upwards ! Secure all parts with locking pins

(long version) and securing rings

! Hooks have to point inwards

9 | 328 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

! Secure all parts with locking pins

(long version) and securing rings Mount the sub frame at the frame body

STEP 5

Locking strip

CS-0559

Securing ring

CS-0248

11 | 3210 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

! Note: this lifting methode

requires more height for building

LIFTING

While building, the structure has to be lifted multiple times so that the assembly can easily be done on oor level.

The structure is designed for two lifting methods:

1. Lifting from below (for example with a traverse lift) by using the subframe. Requirements lifting device:

• minimum lifting height: 7,5 meter

• minimum save working load: 1200kg (without suspended loads)

2. Lifted from the top (for example with a crane ) by using lifting slings (2 meter, 1000 KG) and the hook

of the X-connectors

Assemble the remaining upper main proles and Lower X-connectors

STEP 6

Upper main prole

CS-0540

Lower X-connector

CS-0542

Upper main prole

CS-0540

Rotate prole clockwise to

create space for assembly

Do not secure yet

13 | 3212 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

! Secure all parts with locking pins

(long version) and securing rings

Repeat this step for the other ve sides

! Rotate prole counter clockwise

and push the X-connector slowly

in the proles

Upper cable

CS-0547

12x

Mount the rst end of the upper cables

STEP 7

! Use the two inner eyes of the X-connector

15 | 3214 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

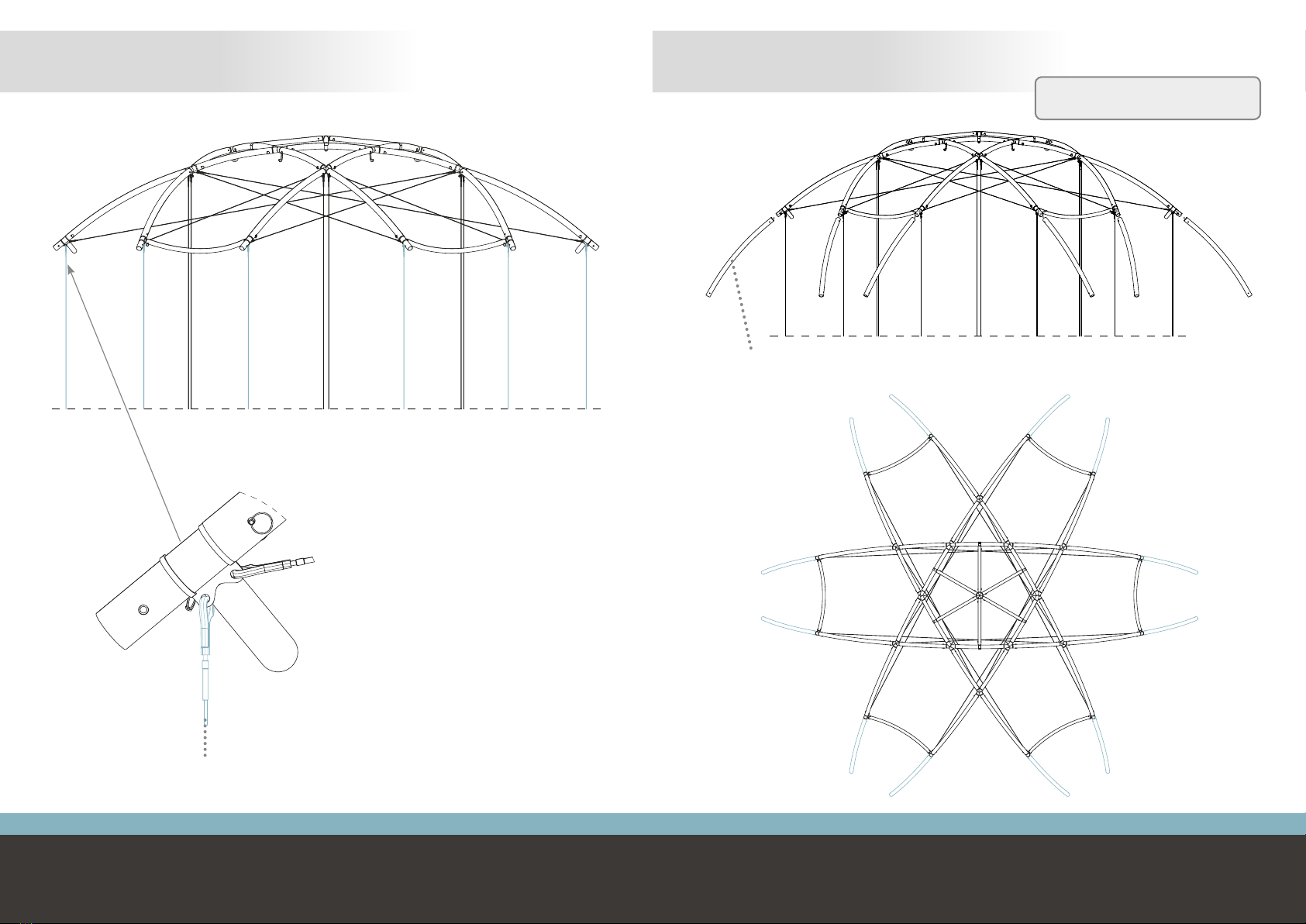

Mount the rst end of the 12 center cables Mount the rst end of the center cables

STEP 8 STEP 9

Center cable

CS-0548

12x

Lower main prole

CS-0536

12x

! Secure all parts with locking pins

(long version) and securing rings

17 | 3216 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

Mount the upper sub proles (6x) Mount the second end of the 12 upper cables

STEP 10 STEP 11

Curvature sub proles

has to point inwards

Secure all parts with locking pins

(long version) and securing rings

When crossing other cables, place the cable

above the rst crossing cable and below

the next crossing cable(s)

19 | 3218 | 32

Hexadome L

Building instructions

www.creative-products.nl

Hexadome L

Building instructions

www.creative-products.nl

Mount the rst end of the 12 tensioning cables Mount the second level of main proles

STEP 12 STEP 13

Tensioning cable

CS-0549

12x

Lower main prole

CS-0536

12x

! Secure all parts with locking pins

(long version) and securing rings
