OS124 (4M) - WHITEBOARD
Installation Instructions
INSIDE SHELTER VIEW OUTSIDE SHELTER VIEW
REF: OS124 (4M) - WHITEBOARD
pg 2 of 3

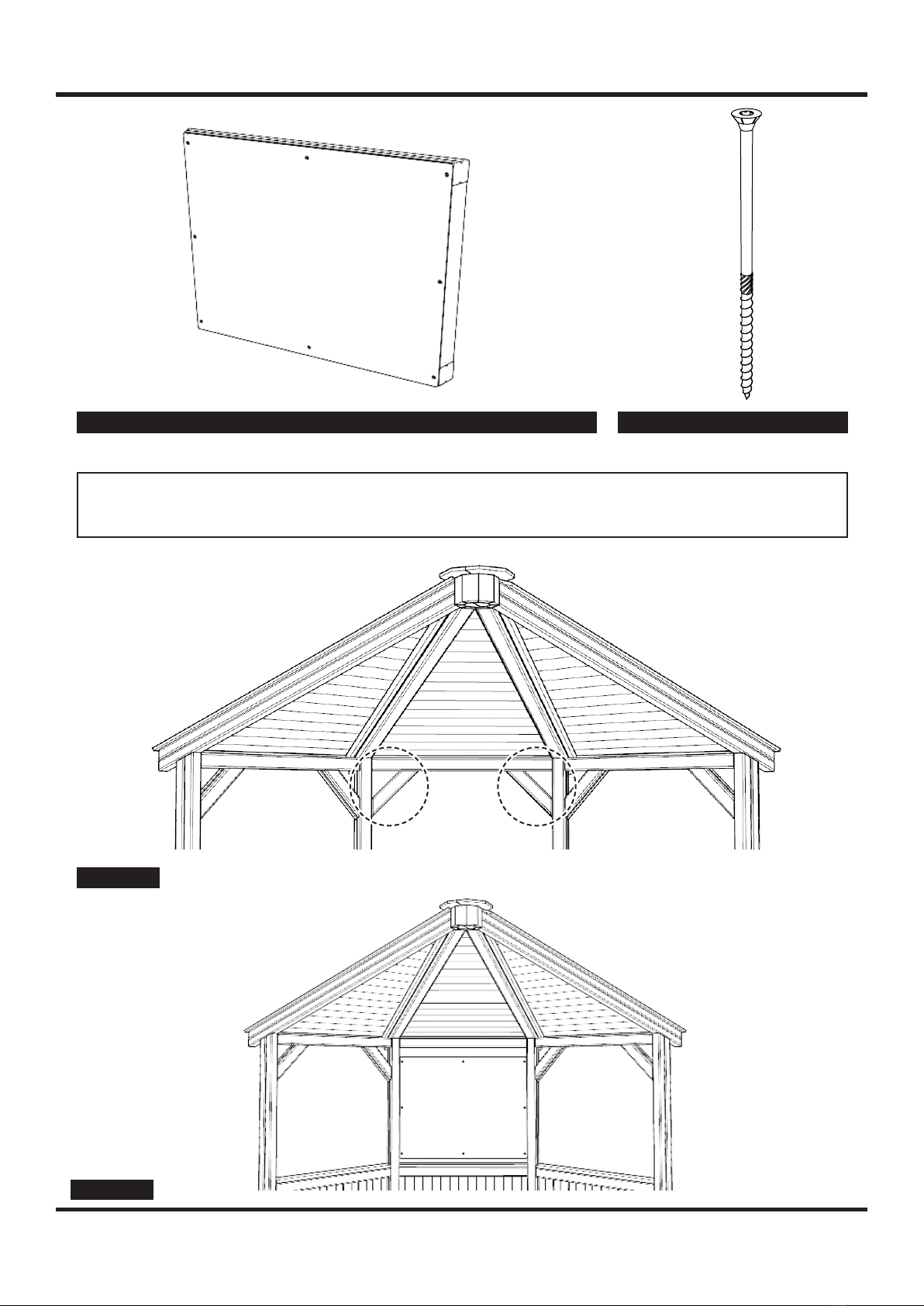

PRE-ASSEMBLED WHITEBOARD PANEL
x1 x8
97.M8X120CSK
PARTS REQUIRED
ENSURE ROOF BRACE TIMBERS (RB) ARE OMITTED DURING SHELTER INSTALL OR REMOVED PRIOR
WHITEBOARD INSTALLATION - SEE BELOW
BEFORE
AFTER
REF: OS124 (4M) - WHITEBOARD
pg 3 of 3

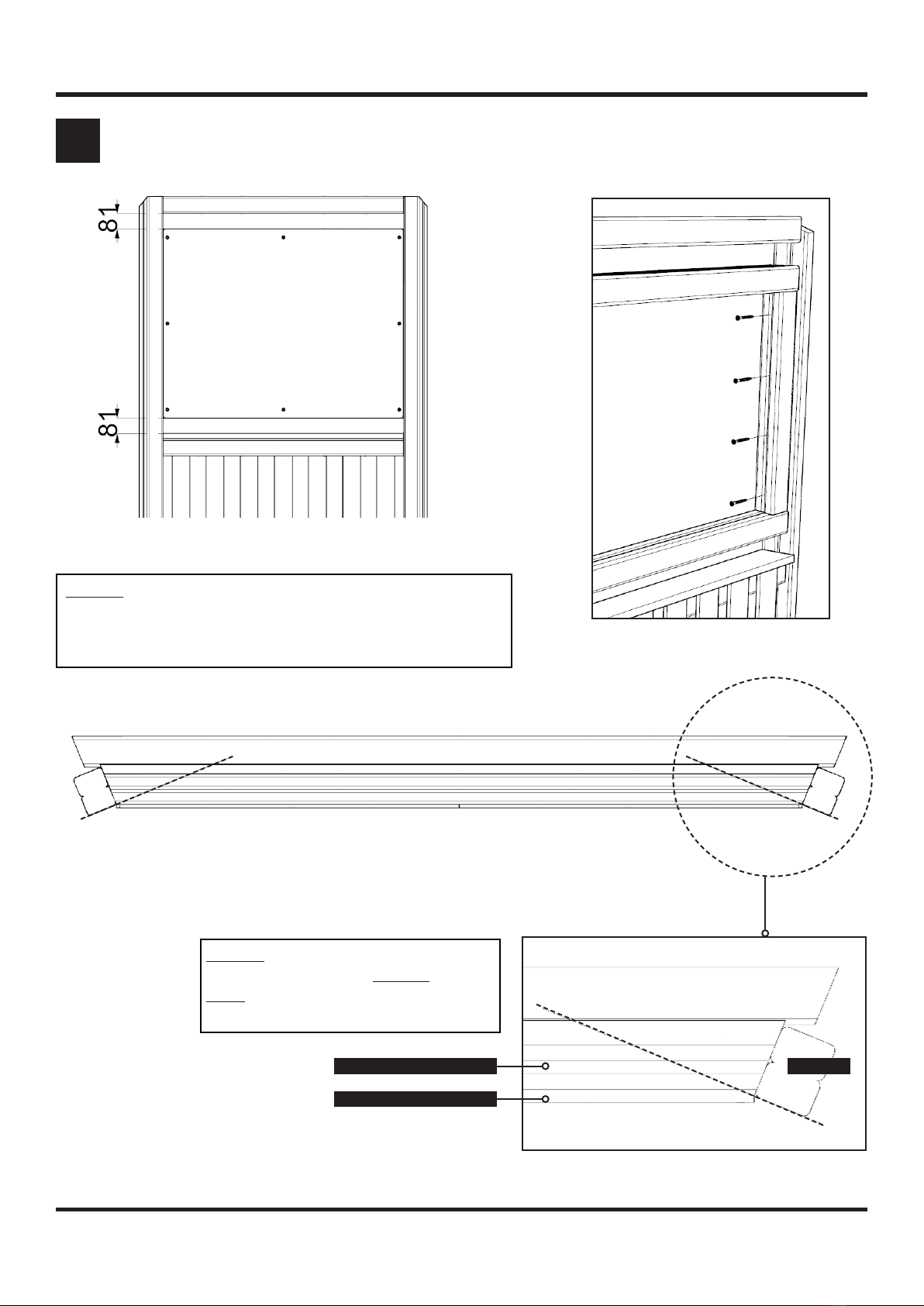

1SCREW WHITEBOARD PANEL TO SHELTER USING DIMENSIONS BELOW
INSTALLATION INSTRUCTIONS
USING M8X120MM WOOD SCREWS, ENSURE IT IS POSITIONED ACCORDING TO DIAGRAMS SHOWN
NOTES:
ENSURE WHITEBOARD TIMBER
EDGE ON INSIDE OF SHELTER IS
FLUSH WITH UPRIGHTS AS SHOWN
UPRIGHT
WHITEBOARD ACRYLIC
WHITEBOARD TIMBER
NOTES:
ENSURE THERE IS AN 81MM GAP LEFT ABOVE AND BELOW
WHITEBOARD
4 SCREWS SHOULD BE INSTERTED EVENLY BOTH SIDES
