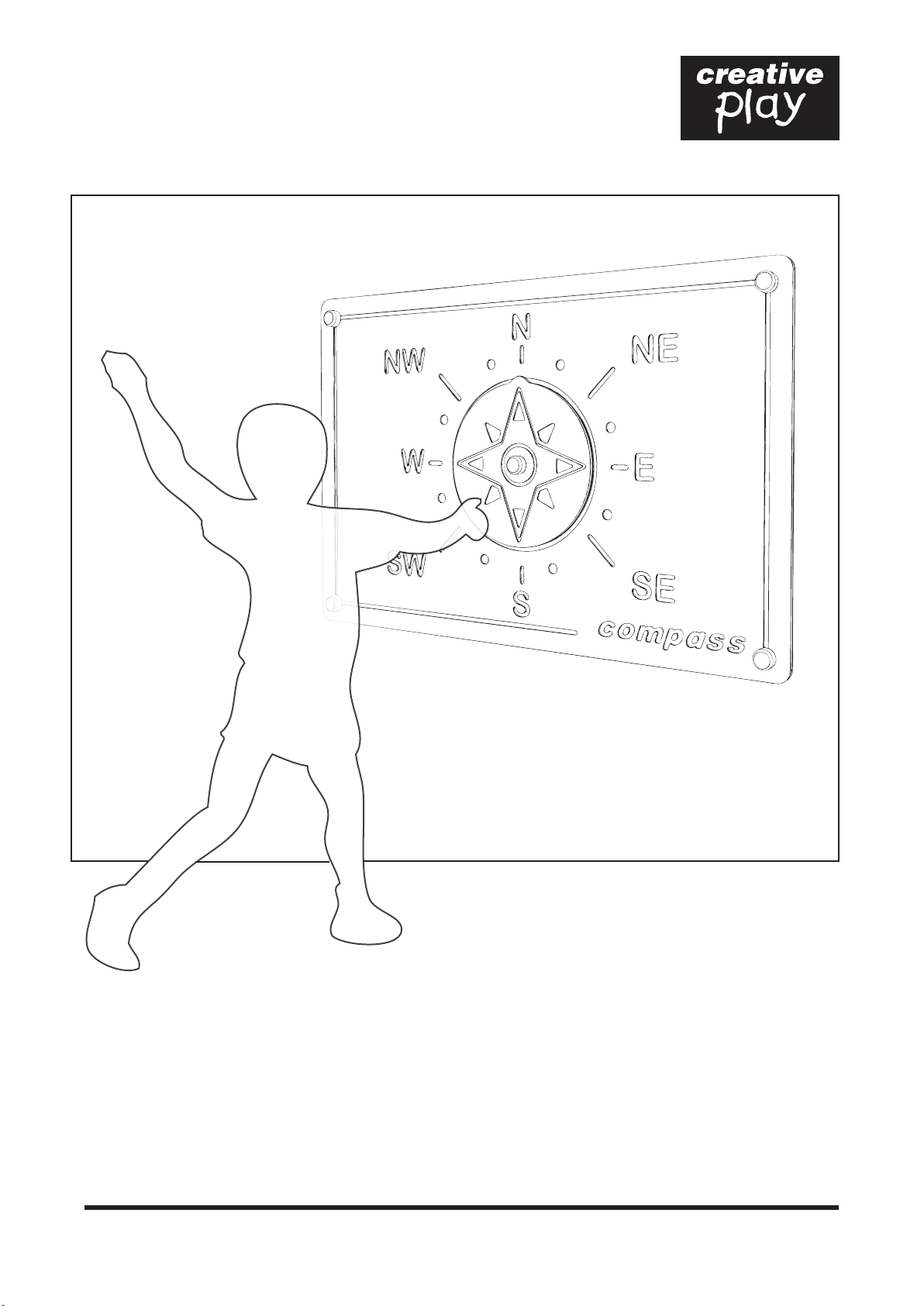

pg 5 of 7 REF: WP102 - COMPASS WALL PANEL
OPTION for POSTS
PARTS required
QTY x 2
(90mm x 90mm)
PB1
x4 (M12 120 cup square hex)
x4 (End Caps)
x4 (M12 Nylocs)
Installation Instructions
Attach the COMPASS BOARD to the PB1 timbers
Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS
1
NOTES:
RED END CAP MUST BE POSITIONED AT
THE FRONT of the panel
