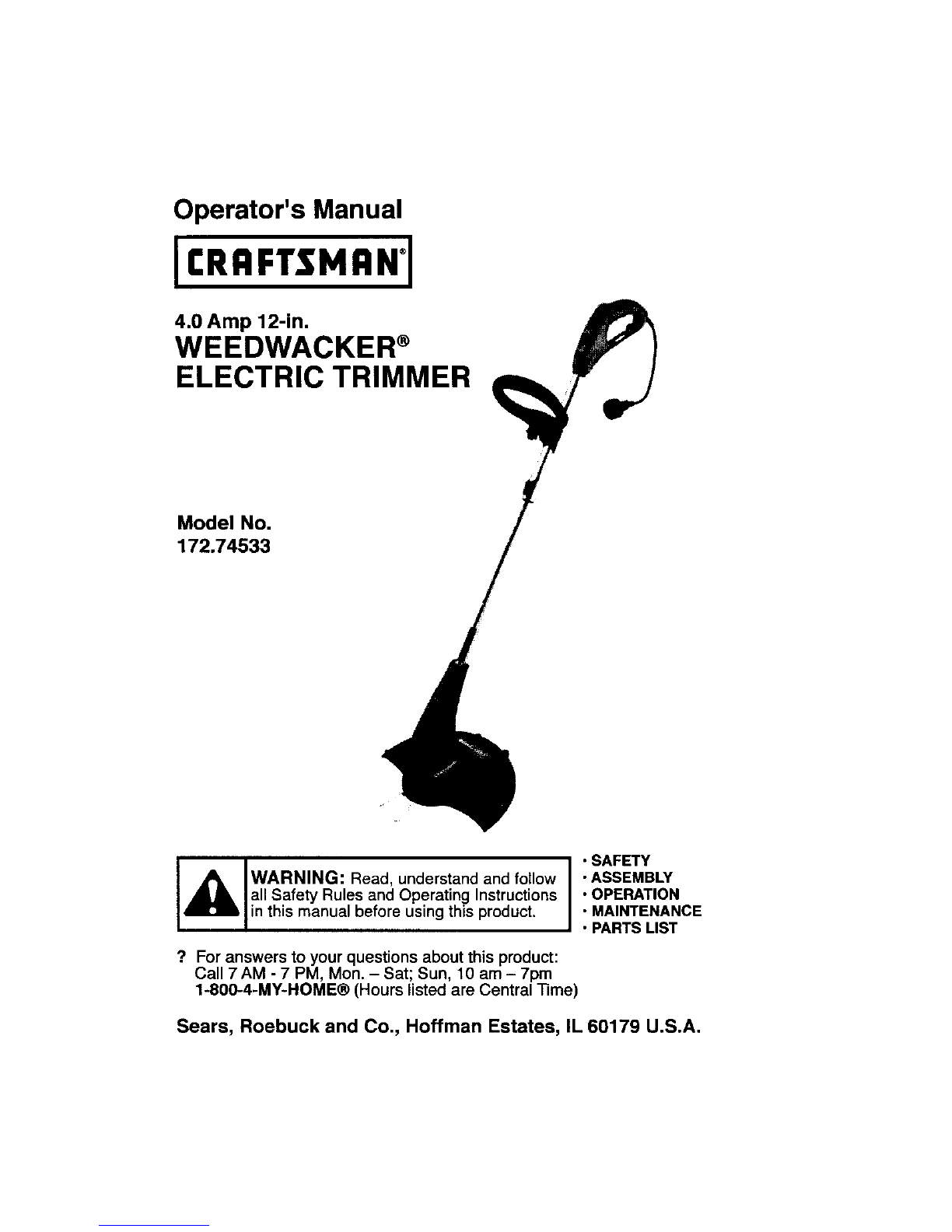

Operator's Manual

4.0 Amp 12-in.

WEEDWACKER ®

ELECTRIC TRIMMER

Model No.

172.74533

I _1_ IWARNING: Read, understand and follow

_lall Safety Rules and Operating Instructions

_lin this manual before using this product. i • SAFETY

• ASSEMBLY

•OPERATION

• MAINTENANCE

•PARTS LIST

? For answers to your questions about this product:

Call 7AM - 7 PM, Mon. - Sat; Sun, 10 am - 7pm

1-800-4-MY-HOME® (Hours listed are Central 13me)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

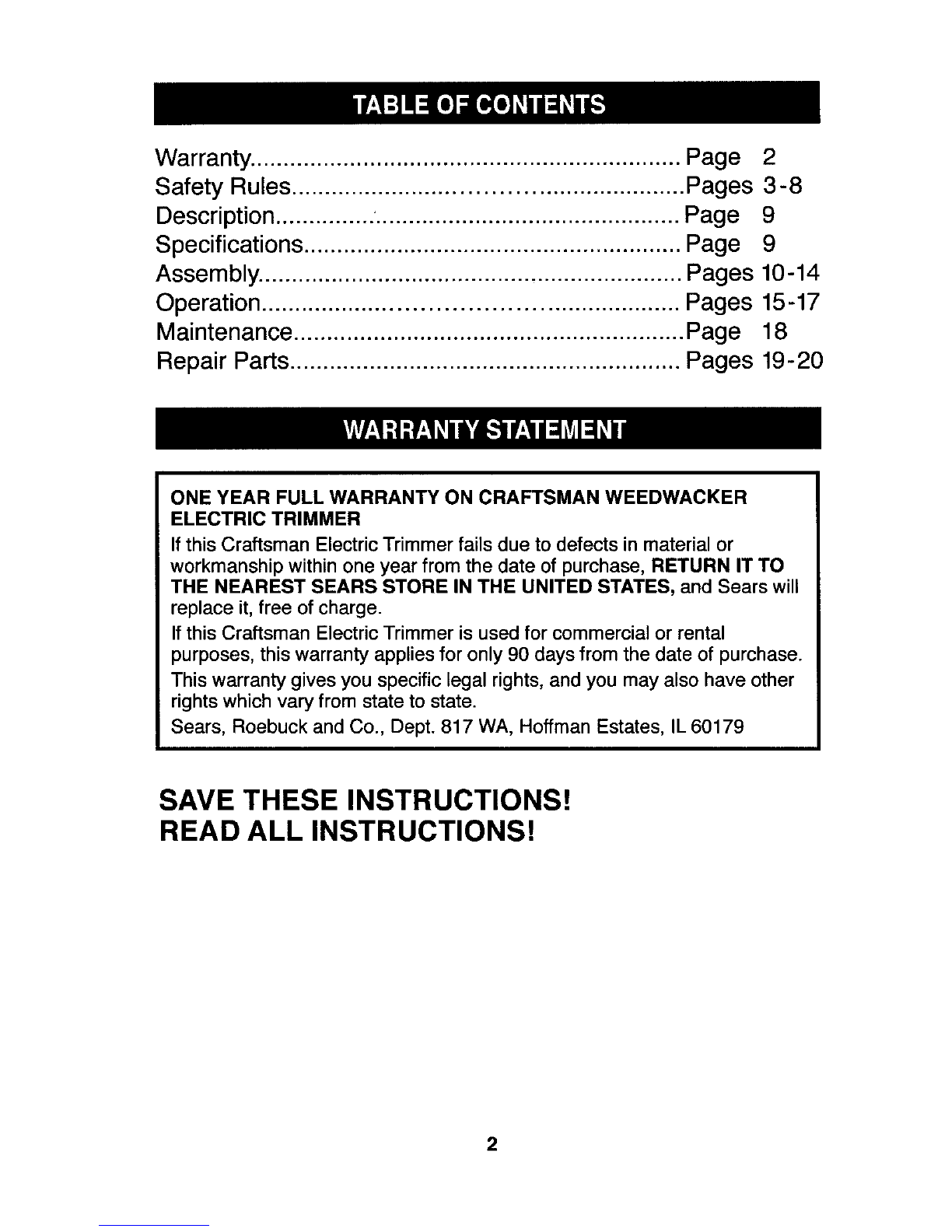

Warranty ................................................................. Page 2

Safety Rules ......................................................... Pages 3-8

Description ............... '.............................................. Page 9

Specifications ......................................................... Page 9

Assembly. ............................................................... Pages 10-14

Operation ........................................................... Pages 15-17

Maintenance ........................................................... Page 18

Repair Parts ........................................................... Pages 19-20

ONE YEAR FULL WARRANTY ON CRAFTSMAN WEEDWACKER

ELECTRIC TRIMMER

If this Craftsman Electric Trimmer fails due to defects in material or

workmanship within one year from the date of purchase, RETURN IT TO

THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will

replace it, free of charge.

If this Craftsman Electric Trimmer is used for commercial or rental

purposes, this warranty applies for only 90 days from the date of purchase.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

SAVE THESE INSTRUCTIONS!

READ ALL INSTRUCTIONS!

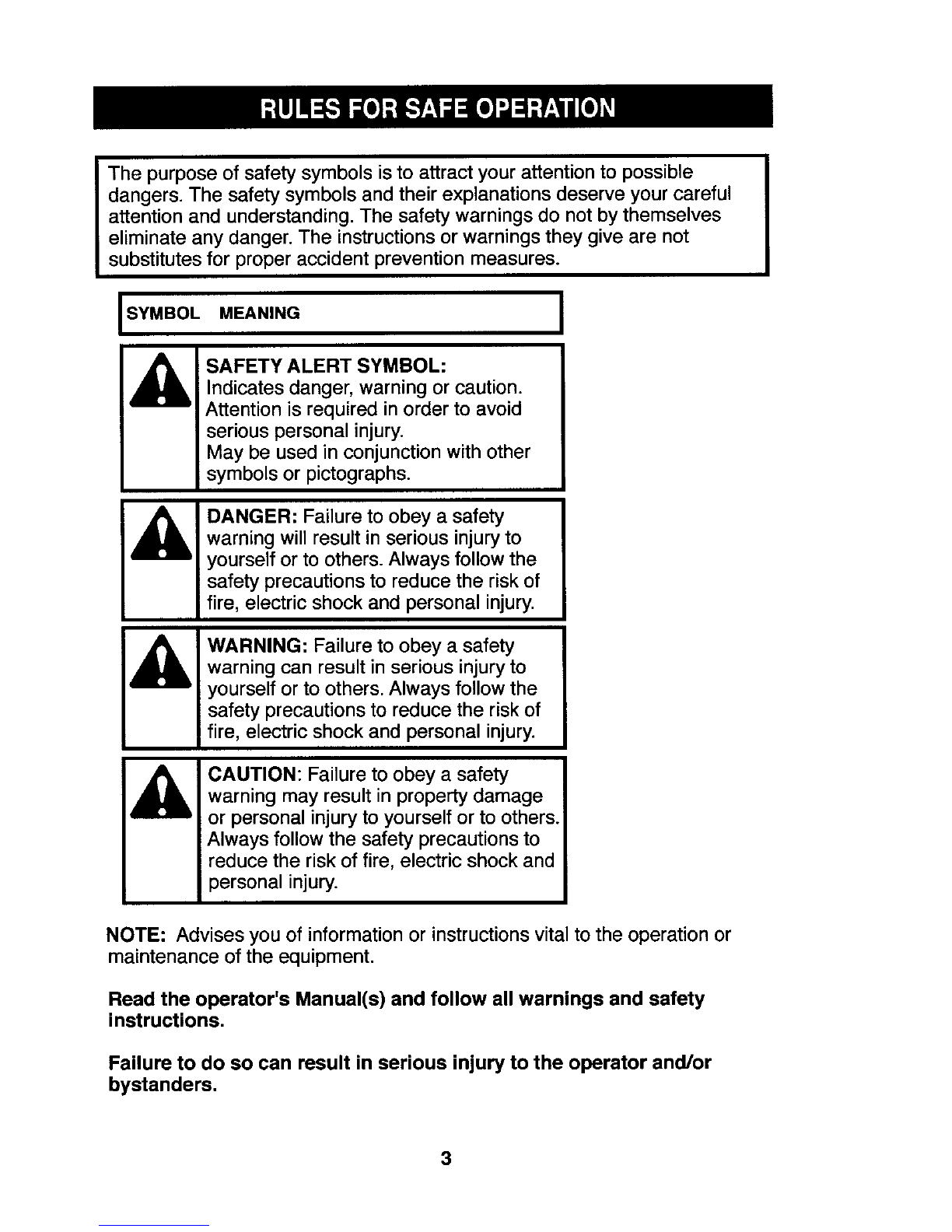

The purpose of safety symbols is to attract your attention to possible

dangers. The safety symbols and their explanations deserve your careful

attention and understanding. The safety warnings do not by themselves

eliminate any danger. The instructions or warnings they give are not

substitutes for proper accident prevention measures.

JSYMBOL MEANING I

_i_i DANGER: Failure to obey a safety

warning will result in serious injury to

yourself or to others. Always follow the

safety precautions to reduce the risk of

fire, electric shock and personal injury.

_1 , WARNING: Failure to obey a safety

!I_ warning can result in serious injury to

yourself or to others. Always follow the

safety precautions to reduce the risk of

fire, electric shock and personal injury.

NOTE: Advises you of information or instructions vital to the operation or

maintenance of the equipment.

Read the operator's Manual(s) and follow all warnings and safety

instructions,

Failure to do so can result in serious injury to the operator and/or

bystanders,

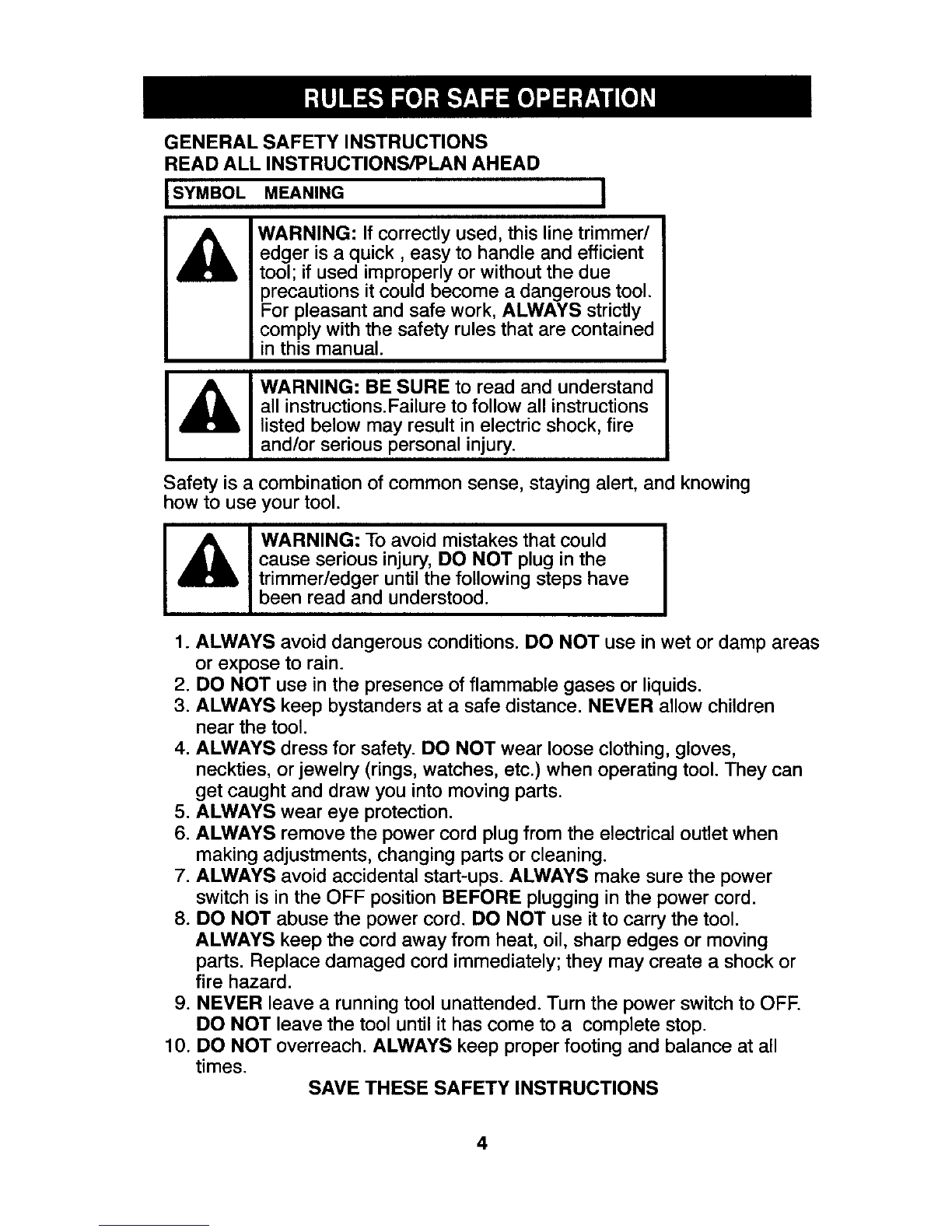

GENERAL SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS/PLAN AHEAD

SYMBOL MEANING

WARNING: If correctly used, this line trimmer/

edger is a quick, easy to handle and efficient

tool; if used improperly or without the due

precautions it could become a dangerous tool.

For pleasant and safe work, ALWAYS strictly

comply with the safety rules that are contained

i in this manual.

WARNING: BE SURE to read and understand

all instructions.Failure to follow all instructions

listed below may result in electric shock, fire

and/or serious personal injury.

Safety is a combination of common sense, staying alert, and knowing

how to use your tool.

WARNING: To avoid mistakes that could I

cause serious injury, DO NOT plug in the I

trimmer/edger untilthe following steps have

been read and understood.

1. ALWAYS avoid dangerous conditions. DO NOT use in wet or damp areas

or expose to rain.

2. DO NOT use in the presence of flammable gases or liquids.

3. ALWAYS keep bystanders at asafe distance. NEVER allow children

near the tool.

4. ALWAYS dress for safety. DO NOT wear loose clothing, gloves,

neckties, or jewelry (rings, watches, etc.) when operating tool. They can

get caught and draw you into moving parts.

5. ALWAYS wear eye protection.

6. ALWAYS remove the power cord plug from the electrical outlet when

making adjustments, changing parts or cleaning.

7. ALWAYS avoid accidental start-ups. ALWAYS make sure the power

switch is in the OFF position BEFORE plugging in the power cord.

8. DO NOT abuse the power cord. DO NOT use it to carry the tool.

ALWAYS keep the cord away from heat, oil, sharp edges or moving

parts. Replace damaged cord immediately; they may create a shock or

fire hazard.

9. NEVER leave a running tool unattended. Turn the power switch to OFE

DO NOT leave the tool until it has come to a complete stop.

10. DO NOT overreach. ALWAYS keep proper footing and balance at all

times. SAVE THESE SAFETY INSTRUCTIONS

GENERAL SAFETY INSTRUCTIONS cont.

11. DO NOT operate this unit while tired, ill or under the

influence of alcohol, drugs, or medication.

12. Children MUST NOT operate the unit.

13. Secure hair above shoulder length. DO NOT wear loose

clothing or jewelry; they can get caught in moving parts.

14. ALWAYS inspect the unit before use. Replace all damaged

parts prior to starting. MAKE SURE the unit is in original

operating condition before operating.

15. Know the controls and know how to stop the blade quickly.

16. Wear protective gear. ALWAYS use proper work shoes with non-slip

soles; snug-fitting clothing; heavy- duty non-slip gloves; eye protection

such as non-fogging, vented goggles or face screen; an approved

safety hard hat.

17. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean

and in good working order.

18. CHECK FOR DAMAGED PARTS. Check for alignment of

moving parts, binding, breakage, or any other conditions

that may affect the tool's operation. Any part that is

damaged should be properly repaired or replaced before

use.

19. KEEP THE HANDLE DRY, CLEAN AND FREE OF OIL AND

GREASE. ALWAYS use aclean cloth when cleaning.

DO NOT use solvents, brake fluids, gasoline, or other

petroleum products to clean the tool, they may damage

plastic parts.

WARNING! The operation of any trimmer can

result in foreign objects being thrown into your

eyes, which can result in severe eye damage.

Before beginning power tool operation,

ALWAYS wear safety goggles or safety glasses

with side shield and a full face shield when

needed. We recommend a Wide Vision Safety

Mask for use over eyeglasses or standard

safety glasses with side shield, available at

Sears Retail Stores.

SAVE THESE SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug

(one blade is wider than the other). This plug will fit in a

polarized outlet only one way. If the plug does not fit fully

into the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician to install a polarized outlet.

DO NOT change or alter the plug in any way.

2, Double insulation SYMBOL eliminates the need for the three

wire grounded power cord and grounded power supply

system. Applicable only to Class II (double insulated) tools.

3. Before plugging in the tool, BE SURE that the outlet voltage

supplied is within the voltage marked on the tool's data plate.

DO NOT use "AC only" rated tools with a DC power supply.

4. If operating the power tool in damp locations is

unavoidable, ALWAYS use a Ground Fault Circuit

Interrupter to supply power to your tool. ALWAYS wear

electrician's rubber gloves and footwear in damp

conditions.

5. DO NOT expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

shock.

6. DO NOT abuse the cord. NEVER use the cord to carry the

tools or pull the plug from the outlet. Keep cord away

from heat, oil, sharp edges or moving parts. Replace

damaged cords immediately. Damaged cords increase the

risk of electric shock.

8. When operating a power tool outside, ALWAYS use an

outdoor extension cord marked "W-A" or "W". These cords

are rated for outdoor use and reduce the risk of electric

shock.

NOTE: The extension cord must have adequate wire size AWG

(American Wire Gauge) for safe, efficient use. Smaller gauge wires,

have greater capacity (16 gauge wire has more capacity than 18 gauge wire).

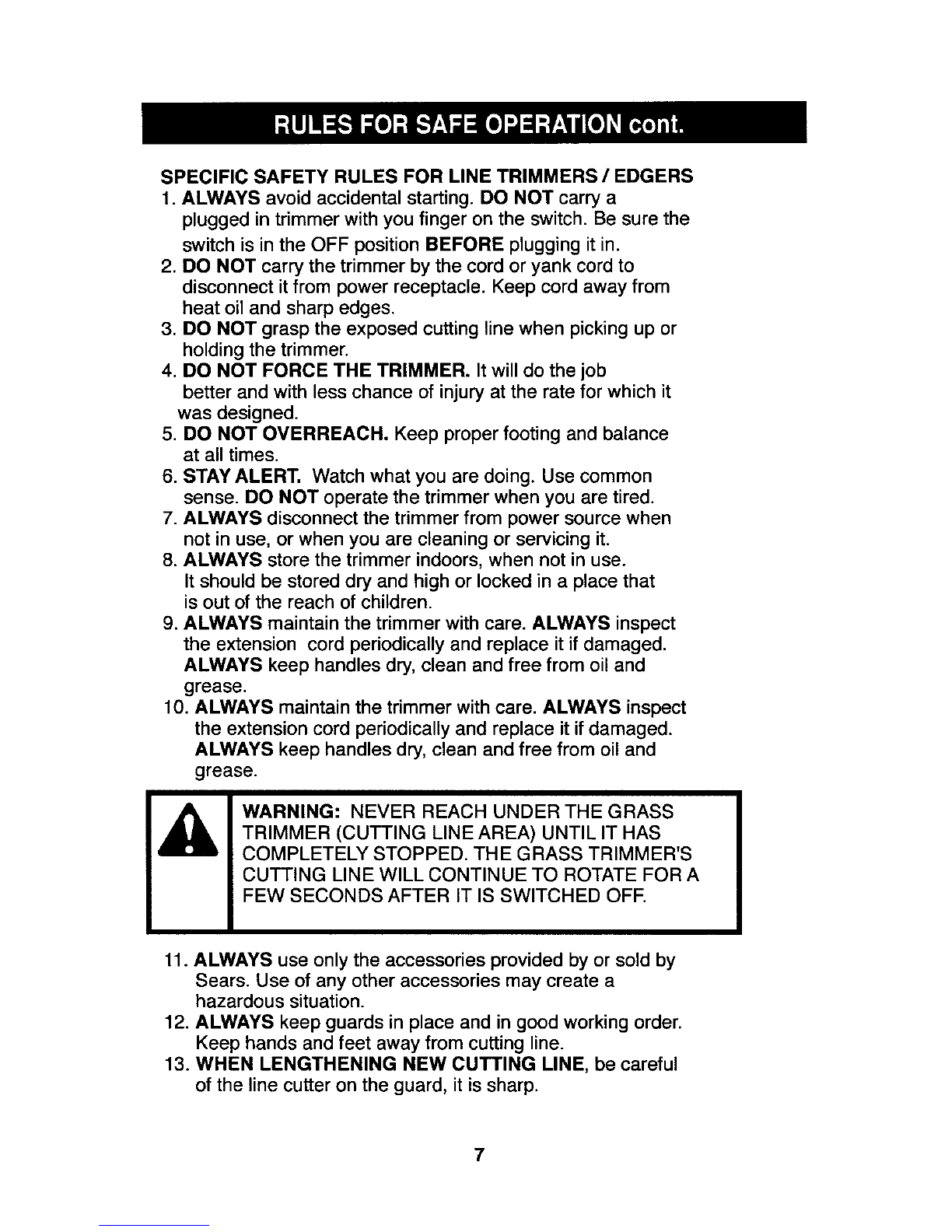

SPECIFIC SAFETY RULES FOR LINE TRIMMERS /EDGERS

1. ALWAYS avoid accidental starting. DO NOT carry a

plugged in trimmer with you finger on the switch. Be sure the

switch is in the OFF position BEFORE plugging it in.

2. DO NOT carry the trimmer by the cord or yank cord to

disconnect it from power receptacle. Keep cord away from

heat oil and sharp edges.

3. DO NOT grasp the exposed cutting line when picking up or

holding the trimmer.

4. DO NOT FORCE THE TRIMMER. It will do the job

better and with less chance of injury at the rate for which it

was designed.

5. DO NOT OVERREACH. Keep proper footing and balance

at all times.

6. STAY ALERT. Watch what you are doing. Use common

sense. DO NOT operate the trimmer when you are tired.

7. ALWAYS disconnect the trimmer from power source when

not in use, or when you are cleaning or servicing it.

8. ALWAYS store the trimmer indoors, when not in use.

It should be stored dry and high or locked in a place that

is out of the reach of children.

9. ALWAYS maintain the trimmer with care. ALWAYS inspect

the extension cord periodically and replace it if damaged.

ALWAYS keep handles dry, clean and free from oil and

grease.

10. ALWAYS maintain the trimmer with care. ALWAYS inspect

the extension cord periodically and replace it if damaged.

ALWAYS keep handles dry, clean and free from oil and

grease.

WARNING: NEVER REACH UNDER THE GRASS

TRIMMER (CUTTING LINE AREA) UNTIL IT HAS

COMPLETELY STOPPED. THE GRASS TRIMMER'S

CUTTING LINE WILL CONTINUE TO ROTATE FOR A

FEW SECONDS AFTER IT IS SWITCHED OFF.

11. ALWAYS use only the accessories provided by or sold by

Sears. Use of any other accessories may create a

hazardous situation.

12. ALWAYS keep guards in place and in good working order.

Keep hands and feet away from cutting line.

13. WHEN LENGTHENING NEW CUTTING LINE, be careful

of the line cutter on the guard, it is sharp.

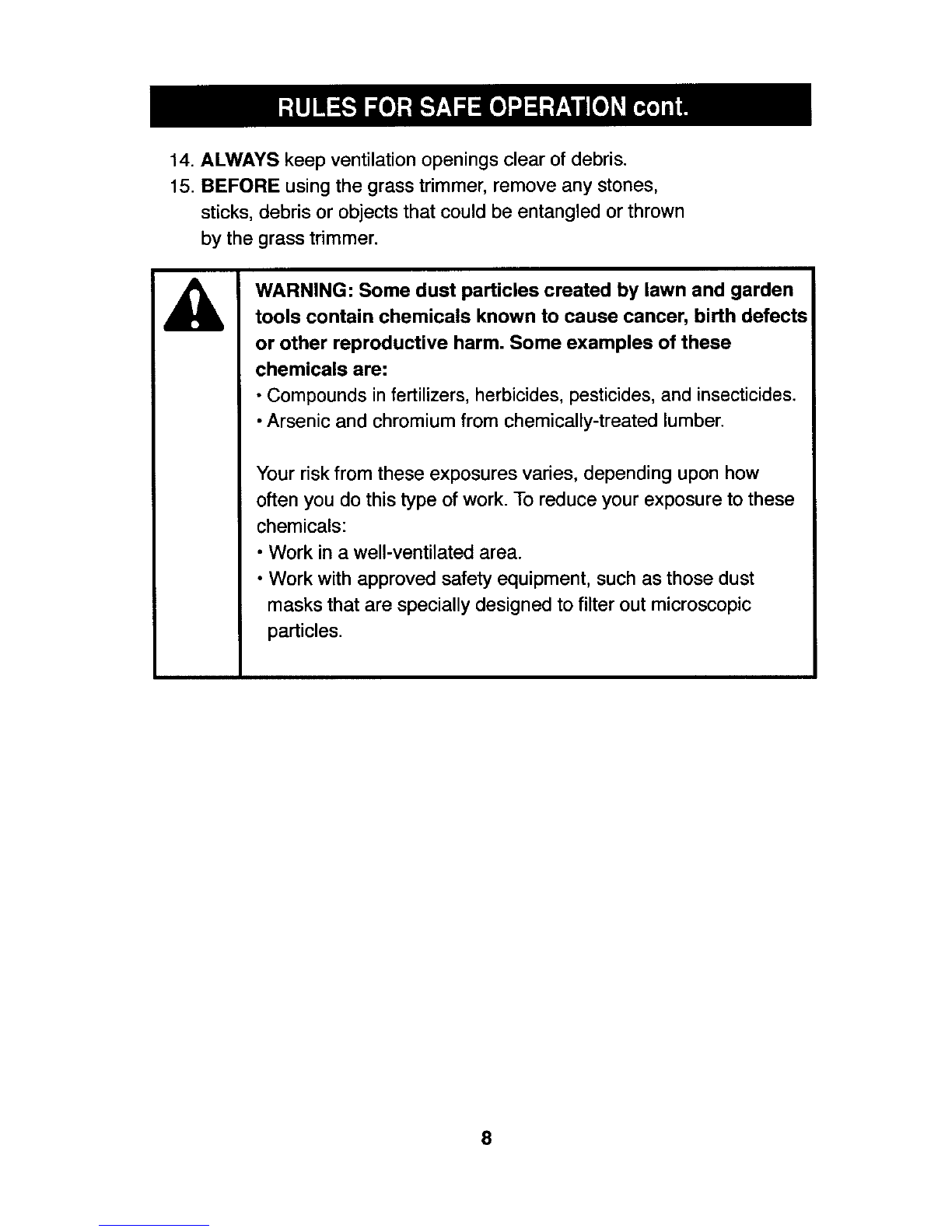

14. ALWAYS keep ventilation openings clear of debris.

15. BEFORE using the grass trimmer, remove any stones,

sticks, debris or objects that could be entangled or thrown

by the grass trimmer.

WARNING: Some dust particles created by lawn and garden

tools contain chemicals known to cause cancer, birth defects

or other reproductive harm. Some examples of these

chemicals are:

• Compounds in fertilizers, herbicides, pesticides, and insecticides.

•Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending upon how

often you do this type of work. To reduce your exposure to these

chemicals:

• Work in a well-ventilated area.

• Work with approved safety equipment, such as those dust

masks that are specially designed to filter out microscopic

particles.

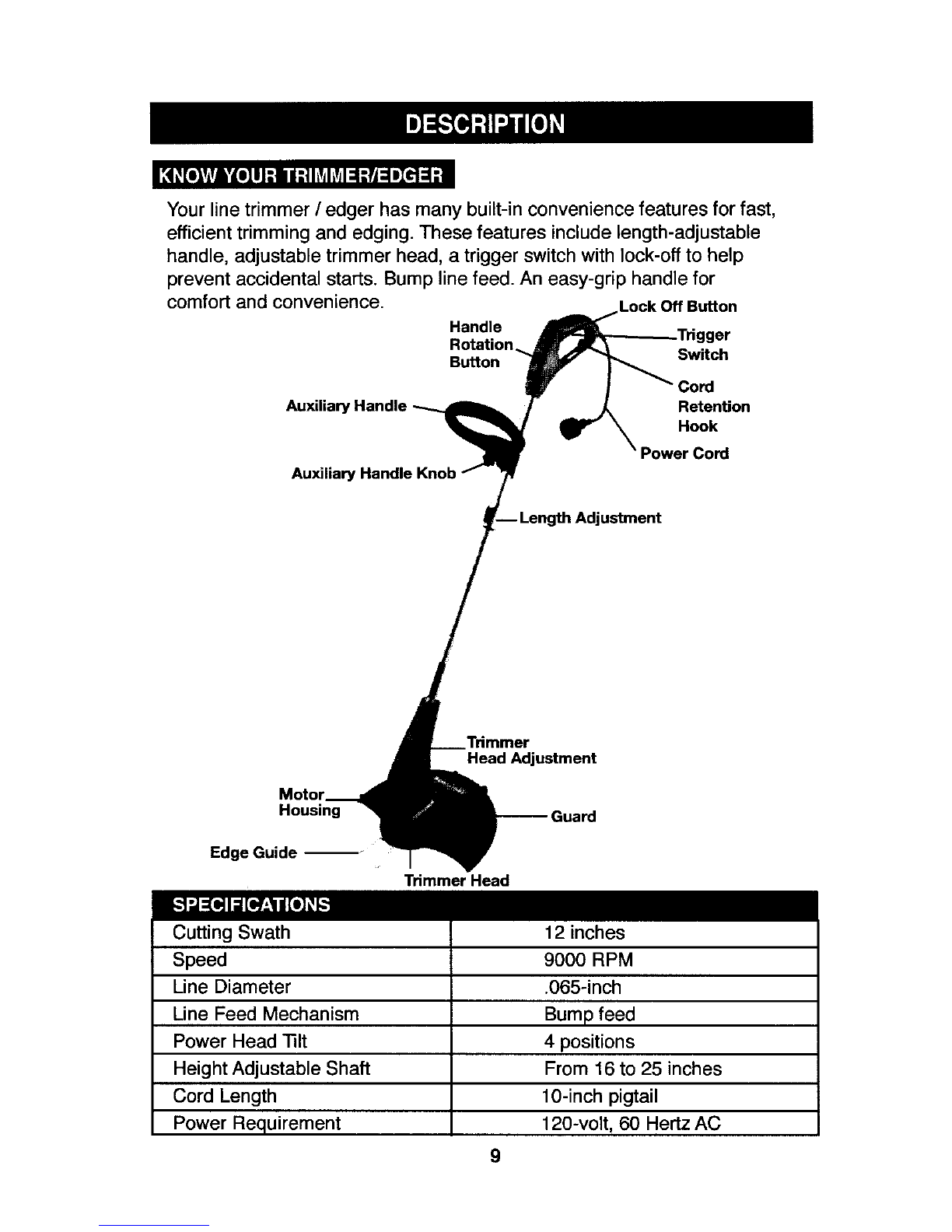

Your line trimmer /edger has many built-in convenience features for fast,

efficient trimming and edging. These features include length-adjustable

handle, adjustable trimmer head, a trigger switch with lock-off to help

prevent accidental starts. Bump line feed. An easy-grip handle for

comfort and convenience. Lock Off Button

Handle gger

Switch

Button

Auxiliar_ Cord

Retention

Hook

Power Cord

Auxiliary

Adjustment

Motor

Housing

Edge Guide --,

Tnmmer

Head Adjustment

Trimmer Head

Cutting Swath

Speed

Line Diameter

Line Feed Mechanism

Power Head ]]It

Height Adjustable Shaft

Cord Length

Power Requirement

12 inches

9O0O RPM

.065-inch

Bump feed

4 positions

From 16 to 25 inches

10-inch pigtail

120-volt, 60 Hertz AC

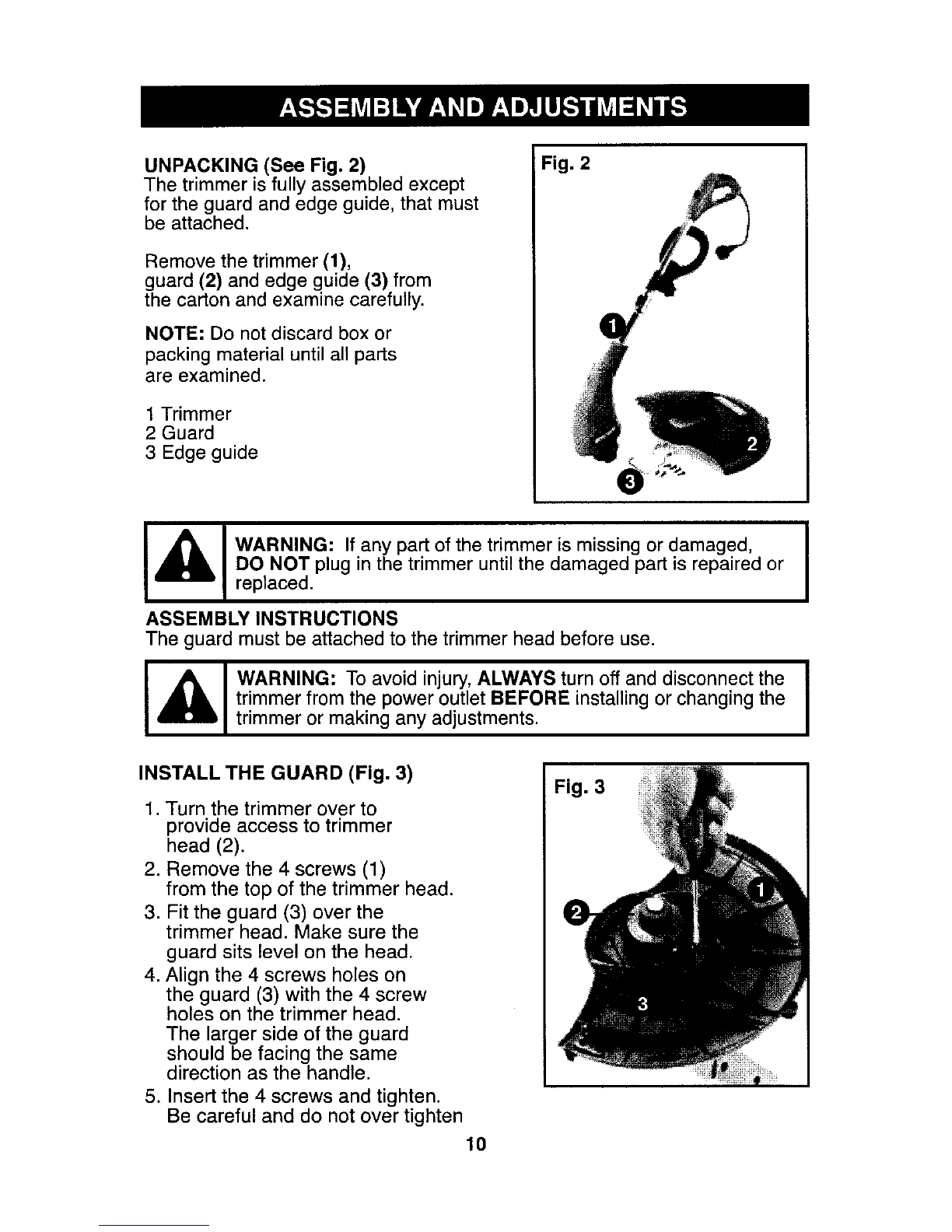

UNPACKING (See Fig. 2)

The trimmer is fully assembled except

for the guard and edge guide, that must

be attached.

Remove the trimmer (1),

guard (2) and edge guide (3) from

the carton and examine carefully.

NOTE: Do not discard box or

packing material until all parts

are examined.

1 Trimmer

2 Guard

3 Edge guide

Fig. 2

*any0a o*thetrmmersmissn0or0amage0I

DO NOT plug in the trimmer until the damaged part is repaired or

replaced.

ASSEMBLY INSTRUCTIONS

The guard must be attached to the trimmer head before use.

iAIw,°..oToavodin'u ''W'* t rno'anddi'connecttheI

trimmer from the power outlet BEFORE installing or changing the

trimmer or making any adjustments.

INSTALL THE GUARD (Fig. 3)

1. Turn the trimmer over to

provide access to trimmer

head (2).

2. Remove the 4 screws (1)

from the top of the trimmer head.

3. Fit the guard (3) over the

trimmer head. Make sure the

guard sits level on the head.

4. Align the 4 screws holes on

the guard (3) with the 4 screw

holes on the trimmer head.

The larger side of the guard

should be facing the same

direction as the handle.

5. Insert the 4 screws and tighten.

Be careful and do not over tighten 10

Fig. 3

Table des matières

Autres manuels Craftsman Tondeuse

Craftsman

Craftsman 316.79617 Manuel utilisateur

Craftsman

Craftsman INCREDI.PULL 316.791210 Manuel utilisateur

Craftsman

Craftsman Quickwind CMCST920 Manuel utilisateur

Craftsman

Craftsman 172.797760 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 316.731972 Manuel utilisateur

Craftsman

Craftsman 917.773760 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.798540 Manuel utilisateur

Craftsman

Craftsman 79441 - 20 in. Hedge Trimmer Manuel utilisateur

Craftsman

Craftsman CMXGCAQ108493 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.745300 Manuel utilisateur

Craftsman

Craftsman Weedwacker 358.798550 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.795300 Manuel utilisateur

Craftsman

Craftsman GASOLINE WEEDWACKER 358.795100 Manuel utilisateur

Craftsman

Craftsman 917.773705 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.745530 Manuel utilisateur

Craftsman

Craftsman 536.773500 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 316.745400 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.796200 Manuel utilisateur

Craftsman

Craftsman Incredi-Pull 316.791810 Manuel utilisateur

Craftsman

Craftsman Incredi-Pull 316.791190 Manuel utilisateur

Craftsman

Craftsman 536.773400 Manuel utilisateur

Craftsman

Craftsman Incredi-Pull 316.795860 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER INCREDI.PULL 316.711970 Manuel utilisateur

Craftsman

Craftsman WEEDWACKER 358.795540 Manuel utilisateur

Manuels Tondeuse populaires d'autres marques

MTD

MTD HT 51 E Manuel utilisateur

McCulloch

McCulloch T22 LS Manuel utilisateur

COCKRAFT

COCKRAFT PRO HL36-S Manuel utilisateur

Grizzly

Grizzly CT 1800 Li Manuel utilisateur

Peco

Peco Z Trimmer ZT-3000 Manuel utilisateur

Solo

Solo 116 Manuel utilisateur

Stiga

Stiga ST 1200 Manuel utilisateur

Echo

Echo GT-225 - 10-09 Manuel utilisateur

RedMax

RedMax BT17 Manuel utilisateur

GreenWorks

GreenWorks STA806 Manuel utilisateur

Parkside

Parkside PHSL 900 A3 Manuel utilisateur

Gardeo

Gardeo PRO GPTHT2560 Manuel utilisateur

Park

Park DT-810870 Manuel utilisateur

Worx

Worx WG209 Manuel utilisateur

Gardenline

Gardenline 43671/HTKS26 Manuel utilisateur

Makita

Makita 3710 Manuel utilisateur

Champion

Champion 100683 Manuel utilisateur

Stihl

Stihl FS 311 Manuel utilisateur
