Instruction Manual

I CRRFI"SMRN°I

SNOW THROWER KIT

Model No. 71-24831

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

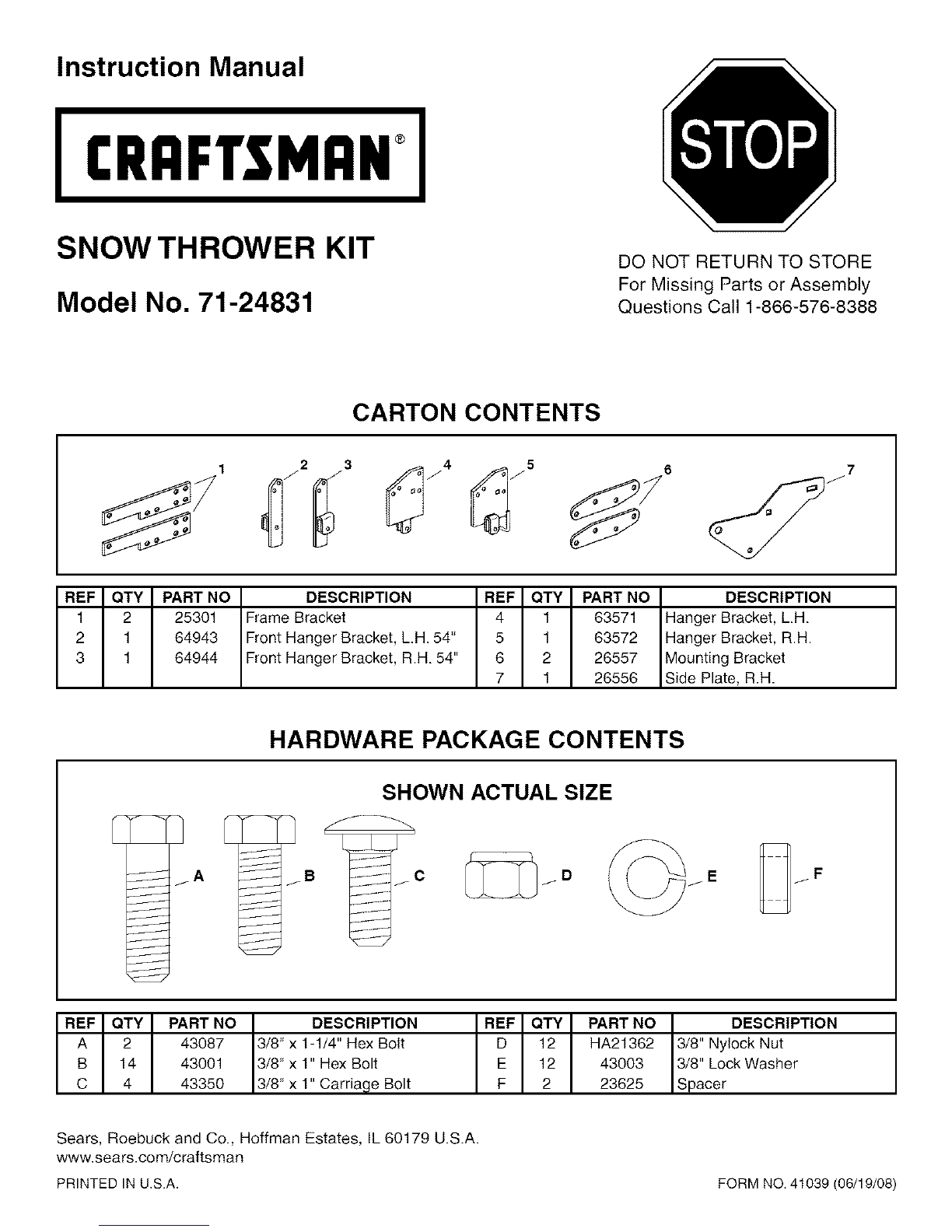

CARTON CONTENTS

1 2 3

d j4 _ 5_/6

REF QTY PART NO

1 2 25301

2 1 64943

3 1 64944

DESCRIPTION REF QTY PART NO

Frame Bracket 4 1 63571

Front Hanger Bracket, L.H. 54" 5 1 63572

Front Hanger Bracket, R.H. 54" 6 2 26557

7 1 26556

DESCRIPTION

Hanger Bracket, L.H.

Hanger Bracket, R.H.

Mounting Bracket

Side Plate, R.H.

HARDWARE PACKAGE CONTENTS

SHOWN ACTUAL SIZE

REF QTY PART NO DESCRIPTION REF QTY PART NO

A 2 43087 3/8" x 1-1/4" Hex Bolt D 12 HA21362

B 14 43001 3/8" x 1" Hex Bolt E 12 43003

C 4 43350 3/8" x 1" Carriage Bolt F 2 23625

DESCRIPTION

3/8" Nylock Nut

3/8" Lock Washer

Spacer

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

PRINTED IN U.S.A. FORM NO. 41039 (06/19/08)

USE THE FOLLOWING INSTRUCTIONS

IN PLACE OF STEPS #1 THRU #46 INTHE

SNOW THROWER MANUAL.

PARTS SHOWN IN GRAY ARE SUPPLIED WITH THE KIT.

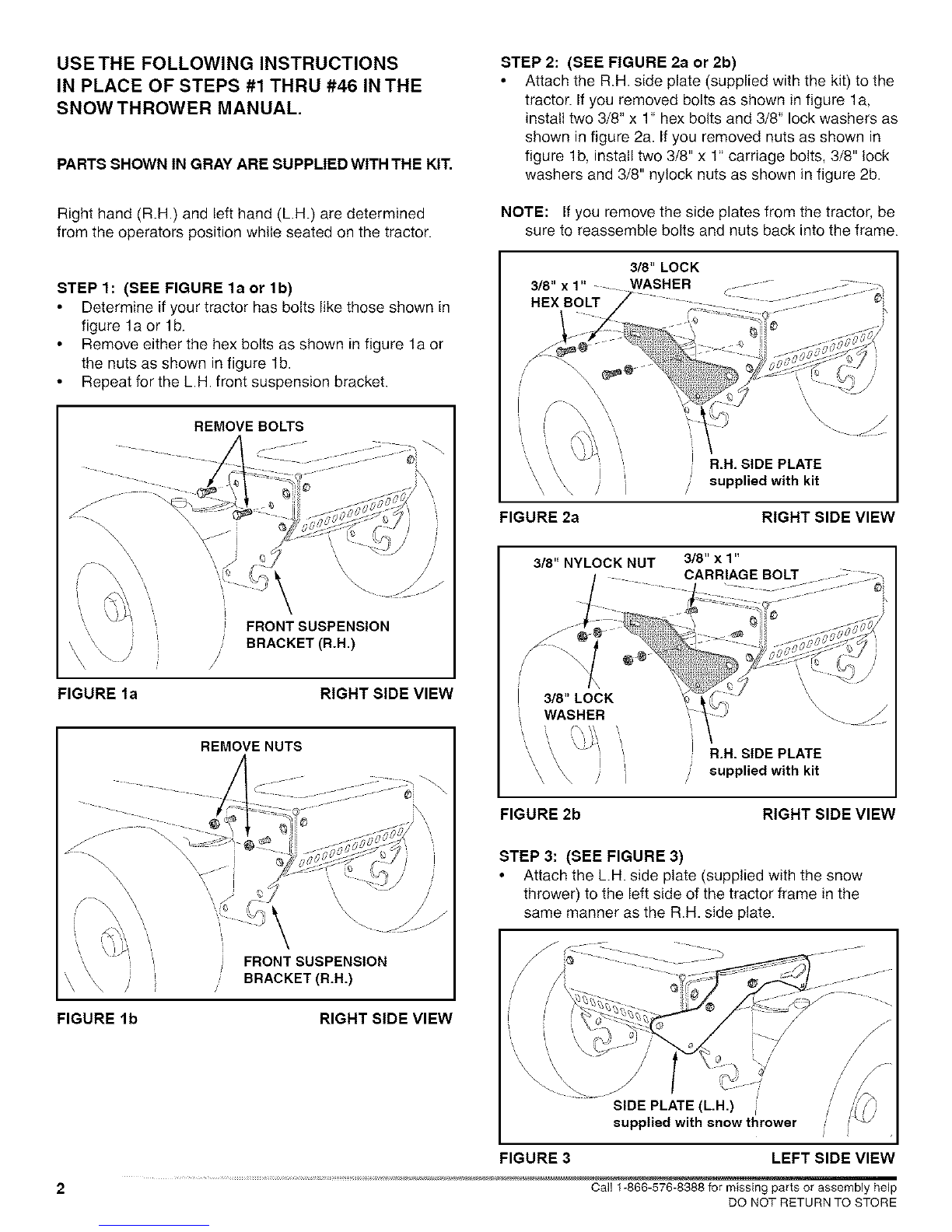

STEP 2: (SEE FIGURE 2a or 2b)

Attach the RH. side plate (supplied with the kit) to the

tractor. If you removed bolts as shown in figure la,

install two 3/8" x 1" hex bolts and 3/8" lock washers as

shown in figure 2a. If you removed nuts as shown in

figure lb, install two 3/8" x 1" carriage bolts, 3/8" lock

washers and 3/8" nylock nuts as shown in figure 2b.

Right hand (R.H.) and left hand (LH.) are determined

from the operators position while seated on the tractor• NOTE: If you remove the side plates from the tractor, be

sure to reassemble bolts and nuts back into the frame.

STEP 1: (SEE FIGURE la or lb)

Determine if your tractor has bolts like those shown in

figure la or lb.

Remove either the hex bolts as shown in figure la or

the nuts as shown in figure lb.

Repeat for the L.H. front suspension bracket.

REMOVE BOLTS

FRONT SUSPENSION

BRACKET (R.H.)

FIGURE la RIGHT SIDE VIEW

REMOVE NUTS

FRONT SUSPENSION

BRACKET (R.H.)

:\\

FIGURE lb RIGHT SIDE VIEW

3/8" X1"

HEX BOLT

318" LOCK

WASHER

R.H. SIDE PLATE

supplied with kit

FIGURE 2a RIGHT SIDE VIEW

318"NYLOCK NUT 3/8" x1"

CARRIAGE BOLT

3/8" LOCK

WASHER

R.H. SIDE PLATE

isupplied with kit

FIGURE 2b RIGHT SIDE VIEW

STEP 3: (SEE FIGURE 3)

Attach the L.H. side plate (supplied with the snow

thrower) to the left side of the tractor frame in the

same manner as the R.H. side plate.

-, ...... 7 /

SIDE PLATE (LH.) /

supplied with snow thrower i

FIGURE 3 LEFT SIDE VIEW

Ca]] 1-866-576-8388for missing parts or assembly help

DO NOT RETURNTO STORE

If you have a 54" mower deck skip to step #9.

For smaller decks use the following instructions,

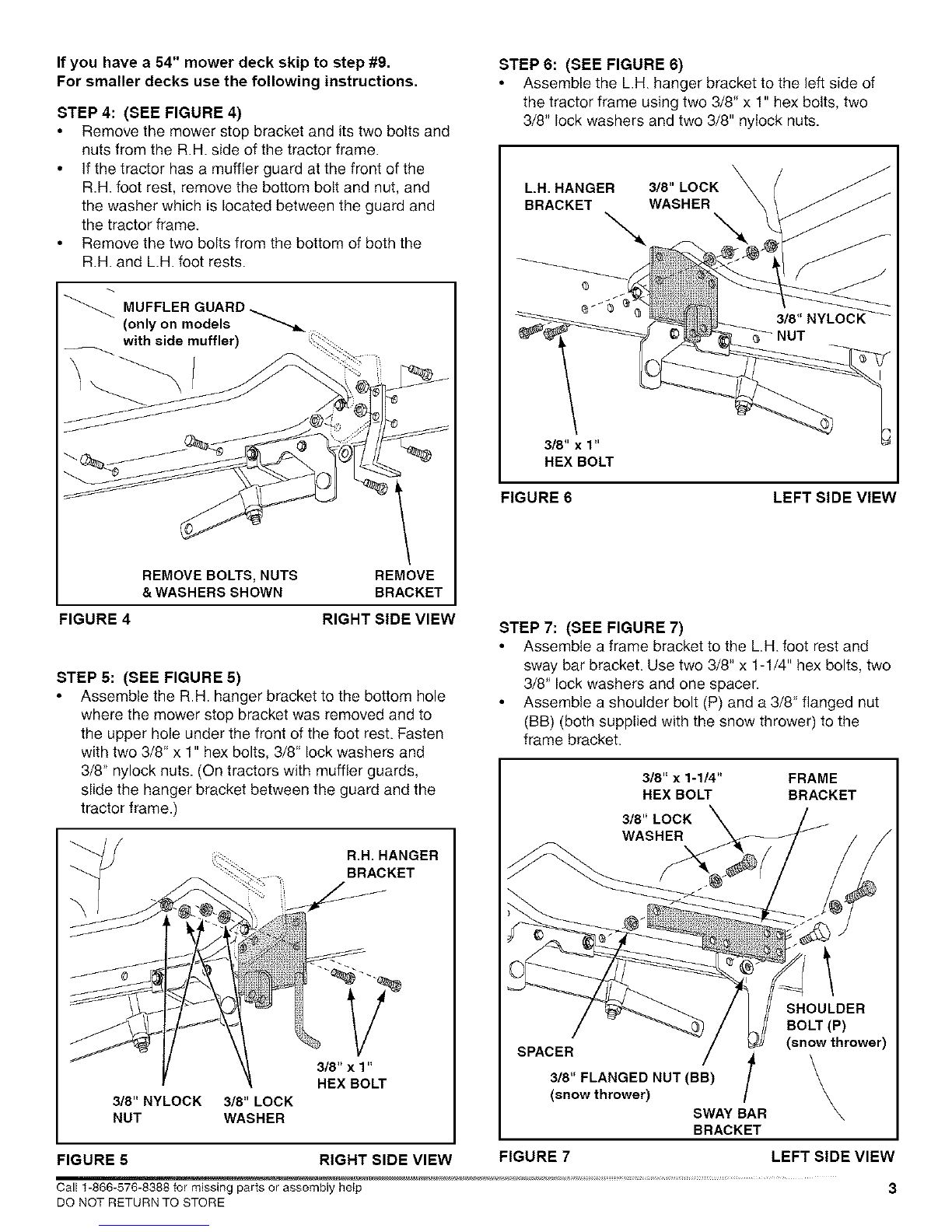

STEP 4: (SEE FIGURE 4)

Remove the mower stop bracket and its two bolts and

nuts from the R.H. side of the tractor frame.

If the tractor has a muffler guard at the front of the

R.H. foot rest, remove the bottom bolt and nut, and

the washer which is located between the guard and

the tractor frame.

Remove the two bolts from the bottom of both the

R.H. and L.H. foot rests.

(onlyon models

with side muffler)

REMOVE BOLTS, NUTS

&WASHERS SHOWN REMOVE

BRACKET

STEP 6: (SEE FIGURE 6)

Assemble the L.H. hanger bracket to the left side of

the tractor frame using two 3/8" x 1" hex bolts, two

3/8" lock washers and two 3/8" nylock nuts.

L.H. HANGER 3/8" LOCK

BRACKET WASHER

-,,, ,,,,

318"x1"

HEX BOLT

FIGURE 6 LEFT SIDE VIEW

FIGURE 4RIGHT SIDE VIEW

STEP 5: (SEE FIGURE 5)

Assemble the R.H. hanger bracket to the bottom hole

where the mower stop bracket was removed and to

the upper hole under the front of the foot rest. Fasten

with two 3/8" x 1" hex bolts, 3/8" lock washers and

3/8" nylock nuts. (On tractors with muffler guards,

slide the hanger bracket between the guard and the

tractor frame.)

R.H. HANGER

BRACKET

3/8"NYLOCK 3/8"LOCK

NUT WASHER

318"x 1"

HEX BOLT

STEP 7: (SEE FIGURE 7)

Assemble aframe bracket to the L.H. foot rest and

sway bar bracket. Use two 3/8" x 1-1/4" hex bolts, two

3/8" lock washers and one spacer.

Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

3/8" x 1-1/4" FRAME

HEX BOLT BRACKET

3/8" LOCK

WASHER

SPACER

318"FLANGED NUT(BB) /

/(snow thrower) SWAYBAR

BRACKET

SHOULDER

BOLT(P)

(snow thrower)

FIGURE 5 RIGHT SIDE VIEW FIGURE 7 LEFT SIDE VIEW

Call t-866-576-8388 for missing parts or assembly help 3

DO NOT RETURN TO STORE

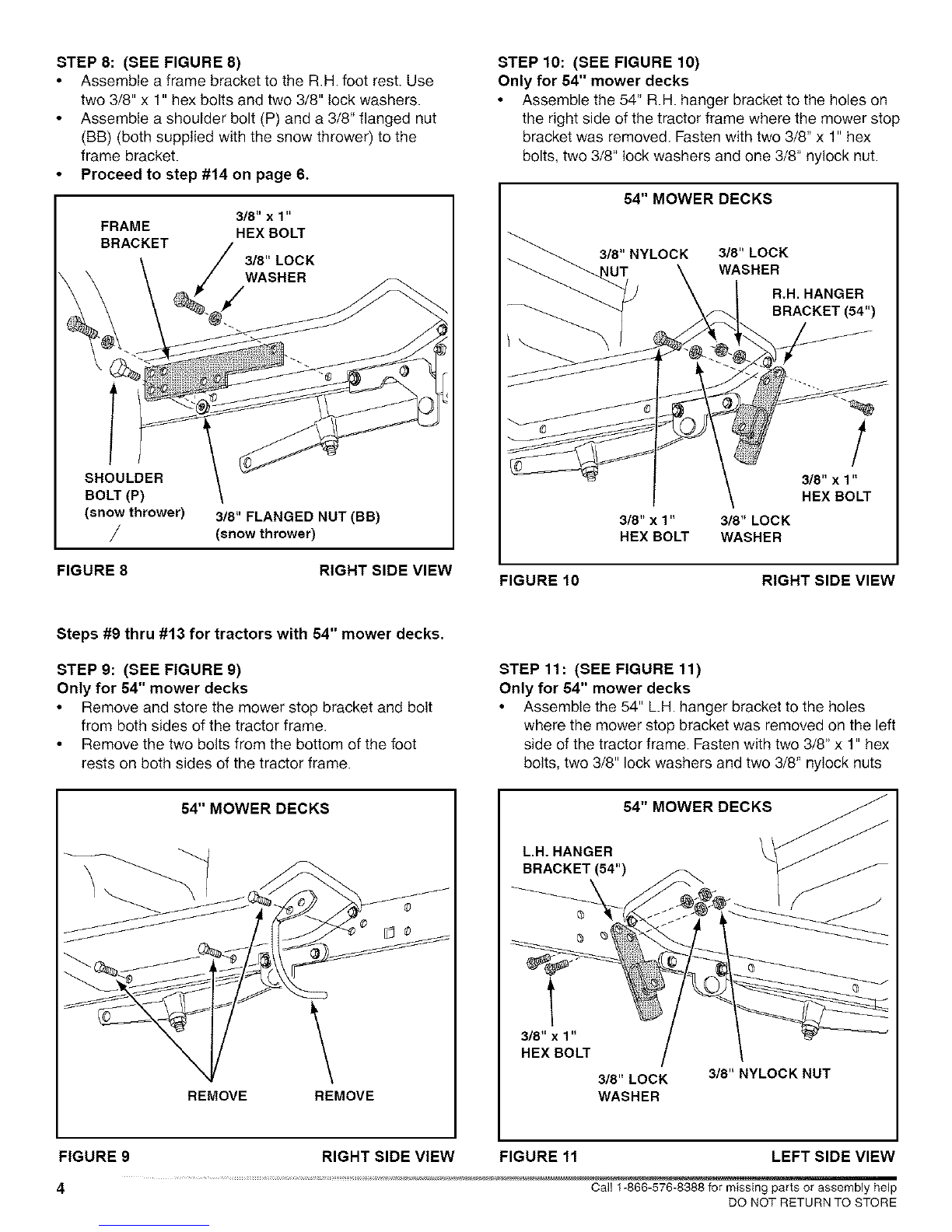

STEP 8: (SEE FIGURE 8)

Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" x 1" hex bolts and two 3/8" lock washers.

Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

Proceed to step #14 on page 6.

3/8" x 1"

FRAME HEX BOLT

BRACKET 3/8" LOCK

WASHER

SHOULDER

BOLT (P)

(snow thrower)

FIGURE 8

3/8" FLANGED NUT (BB)

(snow thrower)

RIGHT SIDE VIEW

STEP 10: (SEE FIGURE 10)

Only for 54" mower decks

Assemble the 54" R.H. hanger bracket to the holes on

the right side of the tractor frame where the mower stop

bracket was removed. Fasten with two 3/8" x 1" hex

bolts, two 3/8" lock washers and one 3/8" nylock nut.

54" MOWER DECKS

_8"NYLOCK 3/8"LOCK

NUT WASHER

R.H. HANGER

BRACKET (54")

3_"x1" _8"LOCK

HEX BOLT WASHER

3/8" x 1"

HEX BOLT

FIGURE 10 RIGHT SIDE VIEW

Steps #9 thru #13 for tractors with 54" mower decks.

STEP 9: (SEE FIGURE 9)

Only for 54" mower decks

Remove and store the mower stop bracket and bolt

from both sides of the tractor frame.

Remove the two bolts from the bottom of the foot

rests on both sides of the tractor frame.

STEP 11: (SEE FIGURE 11)

Only for 54" mower decks

Assemble the 54" L.H. hanger bracket to the holes

where the mower stop bracket was removed on the left

side of the tractor frame. Fasten with two 3/8" x 1" hex

bolts, two 3/8" lock washers and two 3/8" nylock nuts

54" MOWER DECKS

REMOVE \

REMOVE

54"MOWER DECKS

L.H. HANGER

BRACKET(54")

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

318" NYLOCK NUT

FIGURE 9 RIGHT SIDE VIEW FIGURE 11 LEFT SIDE VIEW

4 Call 1-866-576-8388for missing parts or assembly help

DO NOT RETURNTO STORE

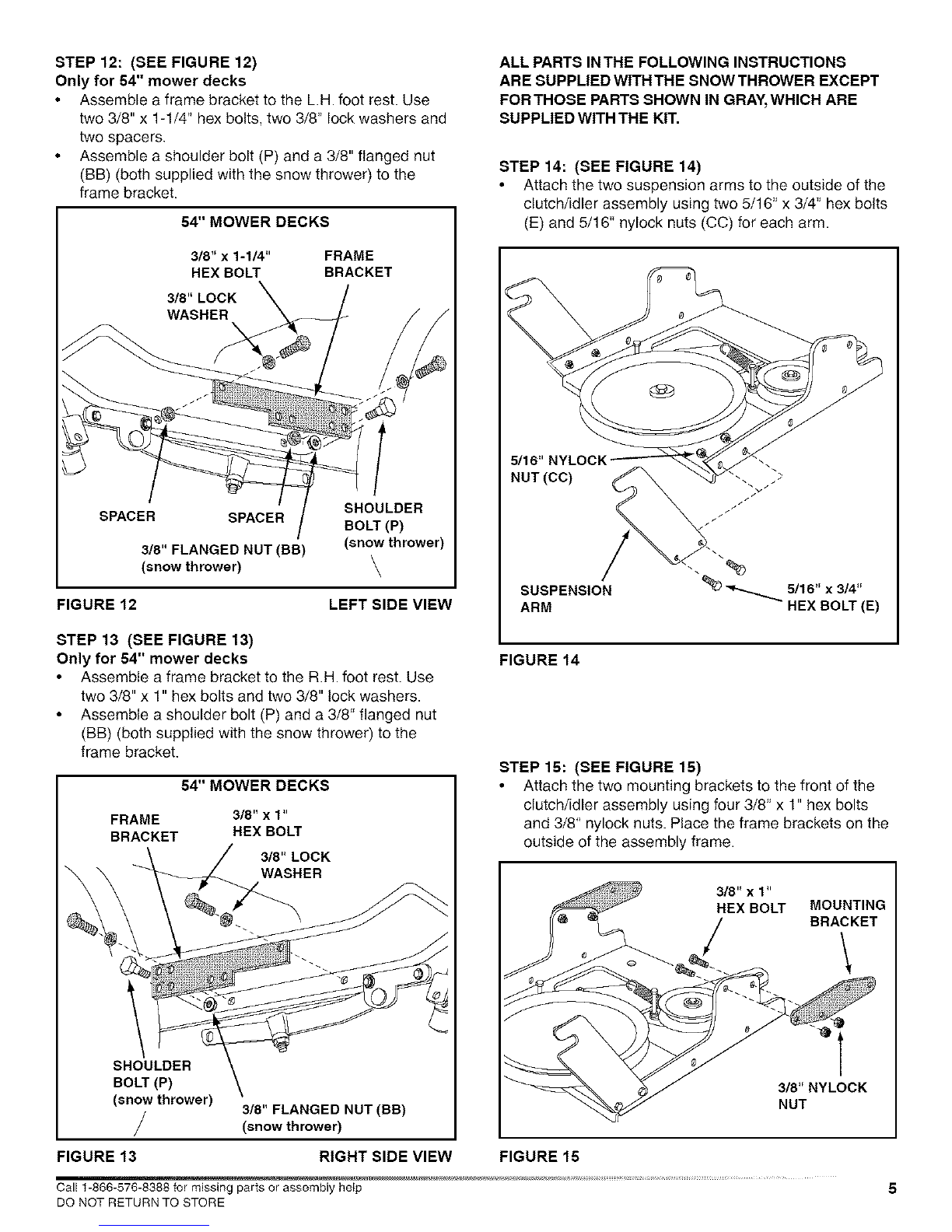

STEP 12: (SEE FIGURE 12)

Only for 54" mower decks

Assemble a frame bracket to the L.H. foot rest. Use

two 3/8" x 1-1/4" hex bolts, two 3/8" lock washers and

two spacers.

Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

54" MOWER DECKS

318" x 1-1/4"

HEX BOLT

3/8" LOCK

WASHER

FRAME

BRACKET

SPACER SPACER

318" FLANGED NUT (BB)

(snow thrower)

FIGURE 12

SHOULDER

BOLT (P)

(snow thrower)

LEFT SIDE VIEW

ALL PARTS INTHE FOLLOWING INSTRUCTIONS

ARE SUPPLIED WITH THE SNOW THROWER EXCEPT

FORTHOSE PARTS SHOWN IN GRAY,WHICH ARE

SUPPLIED WITH THE KIT.

STEP 14: (SEE FIGURE 14)

Attach the two suspension arms to the outside of the

clutch/idler assembly using two 5/16" x 3/4" hex bolts

(E) and 5/16" nylock nuts (CC) for each arm.

STEP 13 (SEE FIGURE 13)

Only for 54" mower decks

Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" x 1" hex bolts and two 3/8" lock washers.

Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

54" MOWER DECKS

FRAME 3/8"x1"

BRACKET HEX BO_

3/8"LOCK

WASHER

SHOULDER

BOLT (P)

(snow thrower) 3/8" FLANGED NUT (BB)

(snow thrower)

FIGURE 14

STEP 15: (SEE FIGURE 15)

Attach the two mounting brackets to the front of the

clutch/idler assembly using four 3/8" x 1" hex bolts

and 3/8" nylock nuts. Place the frame brackets on the

outside of the assembly frame.

3_"x1"

HEXBOLT MOUNTING

_/ BRAC\KET

_8"NYLOCK

NUT

FIGURE 13 RIGHT SIDE VIEW FIGURE 15

Call t-866-576-8388 for missing parts or assembly help 5

DO NOT RETURN TO STORE

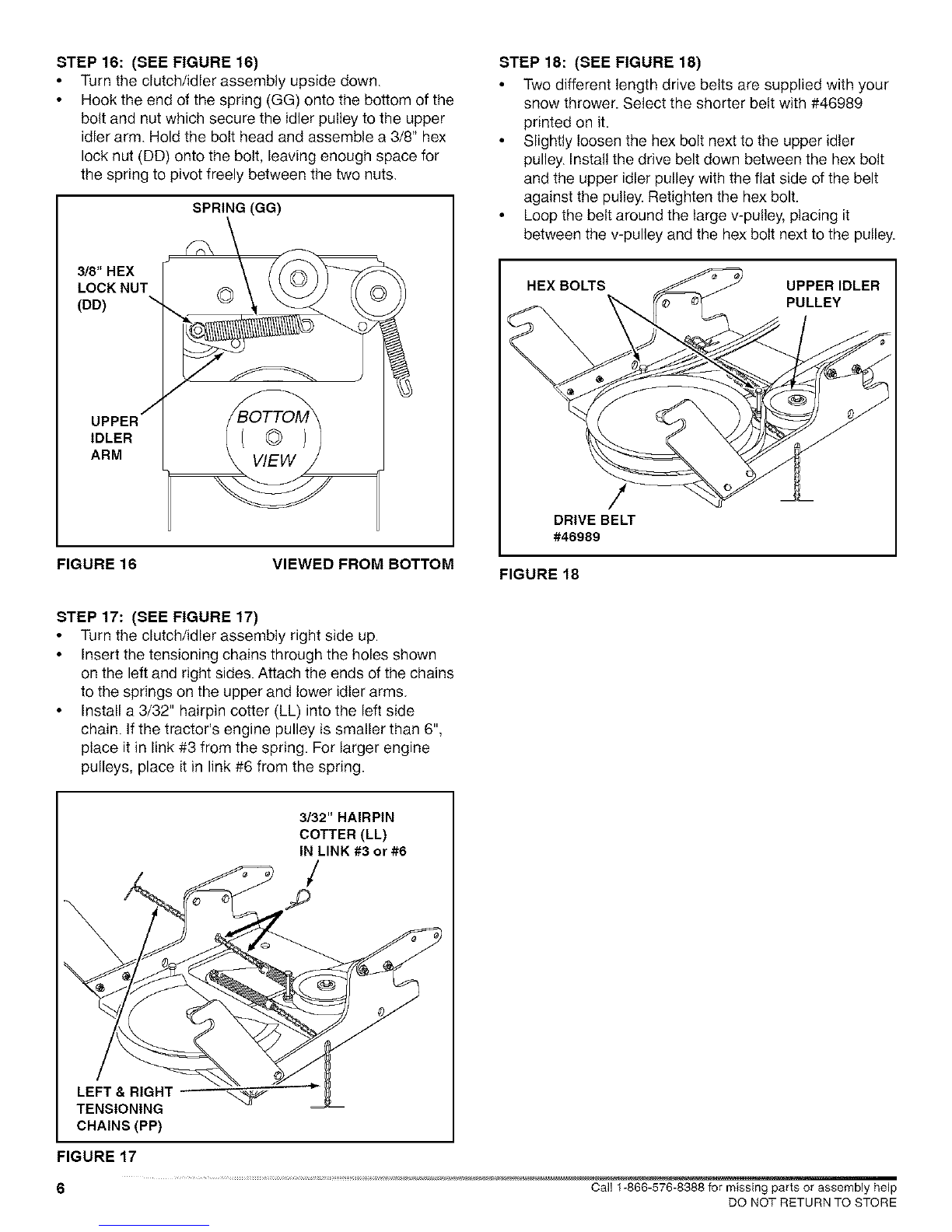

STEP 16: (SEE FIGURE 16)

Turn the clutch/idler assembly upside down.

Hook the end of the spring (GG) onto the bottom of the

bolt and nut which secure the idler pulley to the upper

idler arm. Hold the bolt head and assemble a 3/8" hex

lock nut (DD) onto the bolt, leaving enough space for

the spring to pivot freely between the two nuts.

SPRING (GG)

3/8" HEX

LOCK NUT

(DD)

IDLER

ARM

FIGURE 16 VIEWED FROM BOTTOM

STEP 18: (SEE FIGURE 18)

Two different length drive belts are supplied with your

snow thrower. Select the shorter belt with #46989

printed on it.

Slightly loosen the hex bolt next to the upper idler

pulley. Install the drive belt down between the hex bolt

and the upper idler pulley with the fiat side of the belt

against the pulley. Retighten the hex bolt.

Loop the belt around the large v-pulley, placing it

between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS UPPER IDLER

PULLEY

DRIVE BELT

#46989

FIGURE 18

STEP 17: (SEE FIGURE 17)

Turn the clutch/idler assembly right side up.

Insert the tensioning chains through the holes shown

on the left and right sides. Attach the ends of the chains

to the springs on the upper and lower idler arms.

Install a 3/32" hairpin cotter (LL) into the left side

chain. If the tractor's engine pulley is smaller than 6",

place it in link #3 from the spring. For larger engine

pulleys, place it in link #6 from the spring.

3/32" HAIRPIN

COTTER (LL)

IN LINK #3 or #6

LEFT &RIGHT

TENSIONING

CHAINS (PP)

FIGURE 17

6Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

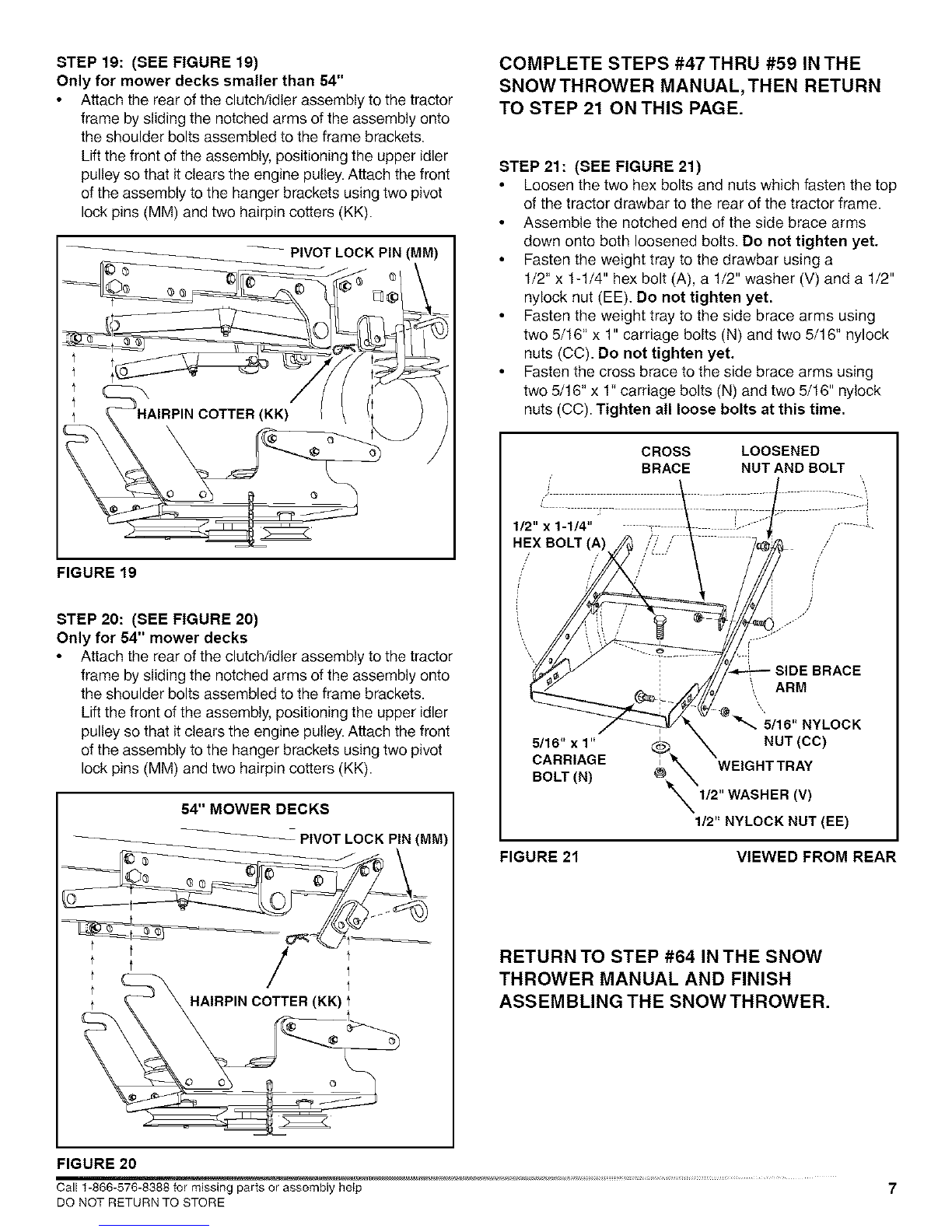

STEP 19: (SEE FIGURE 19)

Only for mower decks smaller than 54"

Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

PIVOT LOCK PIN (MM)

FIGURE 19

STEP 20: (SEE FIGURE 20)

Only for 54" mower decks

Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

54" MOWER DECKS

_PIVOT LOCK PIN (MM)

fHAIRPIN COTTER (KK) f

COMPLETE STEPS #47 THRU #59 IN THE

SNOWTHROWER MANUAL,THEN RETURN

TO STEP 21 ON THIS PAGE.

STEP 21: (SEE FIGURE 21)

Loosen the two hex bolts and nuts which fasten the top

of the tractor drawbar to the rear of the tractor frame.

Assemble the notched end of the side brace arms

down onto both loosened bolts. Do not tighten yet.

Fasten the weight tray to the drawbar using a

1/2" x 1-1/4" hex bolt (A), a 1/2" washer (V) and a 1/2"

nylock nut (EE). Do not tighten yet,

Fasten the weight tray to the side brace arms using

two 5/16" x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Do not tighten yet.

Fasten the cross brace to the side brace arms using

two 5/16" x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Tighten all loose bolts at this time,

CROSS LOOSENED

BRACE NUTANDBOLT

1/2"x 1-1/4" ,...... _.

HEX BOLT(A) ,"

rrr'

5/16" x 1"

CARRIAGE

BOLT (N)

BRACE

ARM

-_ _"_ '5/16" NYLOCK

NUT(CO)

WEIGHTTRAY

1/2" WASHER (V)

1/2" NYLOCK NUT (EE)

FIGURE 21 VIEWED FROM REAR

RETURN TO STEP #64 IN THE SNOW

THROWER MANUAL AND FINISH

ASSEMBLING THE SNOW THROWER.

FIGURE 20

Call t-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night(U.S.A, and Canada)

www.sears.com www.sears.ca

For expert home solutions advice: www.rnanagemyhome.com

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime, day or night

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n Au Canada pour service en frangais:

a domicilio, y para ordenar piezas: 1-800-LE-FOYER M°

1-888-SU-HOGAR ® (1-800-533-6937)

(1-888-784-6427) www.sears.ca

esirs

TM Skl

@ Registered Trademark /Trademark /Service Mark of Sears Brands, LLC

TM S_1

@ Marca Registrada /Marca de Fabrica /Marca de Servicio de Sears Brands, LLC

MC I_ID

Table des matières

Autres manuels Craftsman Souffleuse à neige

Craftsman

Craftsman 536.886141 Manuel utilisateur

Craftsman

Craftsman 88690 - 250cc 28" Path Two Stage Snow... Manuel utilisateur

Craftsman

Craftsman C950-52133-0 Manuel utilisateur

Craftsman

Craftsman CX Series Manuel utilisateur

Craftsman

Craftsman 536.881501 Manuel utilisateur

Craftsman

Craftsman 247.881733 Manuel utilisateur

Craftsman

Craftsman 486.248462 Manuel utilisateur

Craftsman

Craftsman 536.886261 Manuel utilisateur

Craftsman

Craftsman 88957 - 179 CC 24" 2 Stage Snow Thrower Manuel utilisateur

Craftsman

Craftsman C459-52101 Manuel utilisateur

Craftsman

Craftsman 247.889571 Manuel utilisateur

Craftsman

Craftsman 247.985370 Manuel utilisateur

Craftsman

Craftsman C459-52102 Manuel utilisateur

Craftsman

Craftsman PRO series Manuel utilisateur

Craftsman

Craftsman 247.88780 Manuel utilisateur

Craftsman

Craftsman 536.887996 Manuel utilisateur

Craftsman

Craftsman 247.88845 Manuel utilisateur

Craftsman

Craftsman 247.885550 Manuel utilisateur

Craftsman

Craftsman 247.88455.1 Manuel utilisateur

Craftsman

Craftsman 247.881990 Manuel utilisateur

Craftsman

Craftsman 247.889702 Manuel utilisateur

Craftsman

Craftsman 536.887750 Manuel utilisateur

Craftsman

Craftsman 247.985380 Manuel utilisateur

Craftsman

Craftsman 247.881732 Manuel utilisateur

Manuels Souffleuse à neige populaires d'autres marques

Murray

Murray 624504X4A Manuel utilisateur

Blizzard

Blizzard POWER PLOW 8100PP Manuel utilisateur

Yard-Man

Yard-Man E2B5 Manuel utilisateur

ST ST 526 A Manuel utilisateur

MTD

MTD 3AA Manuel utilisateur

Toro

Toro Power TRX 1428 OHXE Manuel utilisateur

Ryobi

Ryobi RYAC800 Manuel utilisateur

Poulan Pro

Poulan Pro 416829 Manuel utilisateur

Poulan Pro

Poulan Pro 437986 Manuel utilisateur

MTD

MTD 319-180-00 Manuel utilisateur

Brute

Brute 1695565 Manuel utilisateur

Egholm

Egholm City Ranger 2250 Manuel utilisateur

Poulan Pro

Poulan Pro 420915 Manuel utilisateur

GreenWorks

GreenWorks SNF402 Manuel utilisateur

LOFTNESS

LOFTNESS 601D1 Manuel utilisateur

LOFTNESS

LOFTNESS 1082I Manuel utilisateur

LOFTNESS

LOFTNESS 481EL Manuel utilisateur

White Outdoor

White Outdoor 769-01923A Manuel utilisateur
