Craftsman CMXPTSG1014NB Manuel utilisateur

6 in. Dual Action Sander

Ponceuse à double action de

15,24 cm

Lijadora de doble acción de 6"

CMXPTSG1014NB

INSTRUCTIONMANUAL | GUIDE D’UTILISATION | MANUAL DE INSTRUCCIONES

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.

SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.

1-888-331-4569 WWW.CRAFTSMAN.COM

ENGLISH

Components

16 in. DA Sander

2 Sanding Pad

3Bearing Seat

4Spindle Lock Button

5Air Regulating Knob

6Trigger

7Air Inlet

Fig. A

Deﬁnitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to

hazardous situations and your risk of personal injury or property damage.

DANGER:Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING:Indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

NOTICE:Indicates a practice not related to personal injury which, if not avoided, may

result in property damage.

(Used without word) Indicates a safety relatedmessage.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings

and instructions may result in electric shock, ﬁre

and/or serious injury.

WARNING: Never modify the product or any

part of it. Damage or personal injury could result.

WARNING:To reduce the risk ofinjury,read the

instruction manual.

If you have any questions or comments about

this or any product, call CRAFTSMAN toll free

at: 1-888-331-4569.

Speciﬁcations

ModelCMXPTSG1014NB

Sanding Pad 6" (152.4 mm)

Free Speed 10,000 rpm

Average Air Consumption 5.2 scfm

Air Inlet 1/4" npt

Air Hose 3/8" (9.52 mm)

Working Pressure 90 psi

6 in. Dual Action Sander

ENGLISH

WARNING:Failure to observe and follow safety instructions could result in injury or death.

WARNING:Improper operation or maintenance of this tool could result in serious injury

and property damage. Read and understand all warnings and operation instructions before

using this tool. When using any tool, basic safety precautions should always be followed to

reduce the risk of personal injury. Anticipate and be alert for sudden changes in motion

during startup and operation of any power tool. Do not operate tool if trigger does not turn

the tool on or oﬀ. Do not use this tool at heights exceeding 6 feet (2m). Use each tool for its

intended function only. Do not use this product in unsafe work conditions. It is always

recommended to keep a ﬁre extinguisher and ﬁrst aid kit near work areas.

WARNING:User must also read the compressor manual and follow all compressor safety

instructions.

CMXPTSG1014NB

Compressor requirements

IMPORTANT: To operate correctly, this tool requires airﬂow that is at least 5.2 Standard

Cubic Feet per Minute (SCFM) per minute at 90 pounds per square inch (PSI). Check the

speciﬁcations of your air compressor to be sure that it can support both the minimum SCFM

and PSI required. The air hose length could aﬀect how much air pressure the tool is actually

receiving. You may need to adjust the air pressure higher on the air regulator to achieve the

working pressure of 90 PSI.

™

5.2 SCFM @ 90 PSI

Tool Requirements

Exigences relatives aux outils

Requisitos de herramientas

What can happen How to prevent it

This air powered tool is capable of propelling materials

such as fasteners, metal chips, and other debris at high

speed which could result in serious injury.

Always wear ANSI approved Z87.1 safety glasses.

Never leave operating tool unattended.

Disconnect tool from air supply when tool is not in use or

when changing accessories to prevent accidental operation.

Compressed air can be hazardous, propelling objects or

particles that can cause injury into soft tissues such as eyes

and ears.

For additional protection, use an approved face shield in

addition to safety glasses.

Tool attachments can become loose or break and ﬂy apart,

becoming projectiles or propelling other objects at the

operator or bystanders in the work area.

Make sure the sanding pad is tight prior to each use.

ENGLISH

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

What can happen How to prevent it

This tool is capable of generating sparks, which can result

in ignition of ﬂammable materials. Never operate tools near ﬂammable substances such as

gasoline, naphtha, cleaning solvents, etc.

Work in a clean, well-ventilated area free of combustible

materials.

Never use oxygen, carbon dioxide or other bottled gases as

a power source for air tools.

What can happen How to prevent it

Exposure to noise produced by air tools can lead to

permanent hearing loss. Always wear ANSI S3.19 hearing protection.

RISK OF EYE OR HEAD INJURY

WARNING

WARNING RISK OF FIRE OR EXPLOSION

RISK OF LOSS OF HEARING

ENGLISH

What can happen How to prevent it

This tool is not provided with an insulated gripping

surface. Contact with a “live” wire will also make exposed

metal parts of the tool “live” and can result in electrical

shock, electrocution or death.

Never use air tools where they may come in contact with

energized electrical wiring.

What can happen How to prevent it

Loose hair, clothing, jewelry or other loose objects can

become entangled in the moving elements of this tool and

can cause serious injury.

Do not wear loose clothing, jewelry, or anything that may

get caught or tangled when using tool.

Remove any jewelry which may be caught by the tool.

Always keep hands and body parts away from moving

parts.

Always wear properly ﬁtted clothing and other properly

ﬁtted safety equipment when using this tool.

What can happen How to prevent it

This tool is capable of causing serious injury if operated

improperly, or in a manner for which the tool is not

intended.

Keep the working part of the tool away from hands and

body.

Understand the tool’s limitations.

Read and understand instruction manual.

WARNING

WARNING RISK OF ELECTRIC SHOCK

RISK OF ENTANGLEMENT

RISK OF CUTS OR BURNS OR HAND ENTRAPMENT

ENGLISH

What can happen How to prevent it

A tool left unattended or with the air hose attached can be

activated by unauthorized persons leading to their injury

or injury to others.

Remove air hose when the tool is not in use and store tool

in a secure location away from reach of children and

untrained users.

Air tools can propel materials throughout the work area. Use only parts and accessories recommended by the

manufacturer.

Keep work area clean and free of clutter.

Do not allow children to operate tool, and keep children

away from the work area.

Keep work area well lit.

Make sure the sanding pad is tight and secure. Missing or

damaged items should be replaced before use.

Keep bystanders a safe distance away from work area.

Anyone entering the work area must wear personal

protective equipment.

Fragments of workpiece or of a broken accessory may ﬂy

away and cause injury beyond immediate area of

operation.

Air tools can become activated by accident during

maintenance or tool changes. Disconnect the tool from the air supply during accessory

changes, tool changes, maintenance or repair.

Never carry the tool by the air hose.

To avoid unintentional operation, never carry the tool with

the trigger depressed or engaged.

Only an authorized service representative should service

the tool.

Loss of control of the tool can lead to operator injury or

injury to others in the work area. Before changing accessories, making repairs, or when tool

is not in use, shut oﬀ the air supply and release/drain air

pressure from hose.

Disconnect tool from air supply and store in a safe location.

Never use the tool while using medications, drugs or

alcohol.

Air tools can cause the workpiece to move upon contact,

leading to injury. Always make sure the workpiece is secure. Use clamps or

other devices to prevent movement.

WARNING RISK OF PERSONAL INJURY

ENGLISH

There is a risk of bursting if the tool is damaged. Follow lubrication instructions for best and safest

operation.

Follow instructions on how to properly change accessories.

Poor quality, improper or damaged attachments can

detach or ﬂy apart during operation, sending projectiles

through the work area and causing serious injury.

Always use tool attachments rated for the speed of the

power tool.

Never use tools, which have been dropped, impacted, or

are damaged.

Do not apply excessive force to the tool; let the tool

perform the work.

Never use a tool that is leaking air, has missing or

damaged parts, or requires repairs.

Always follow assembly, operation, maintenance

instructions.

Improperly maintained tools and accessories can cause

serious injury. Do not use damaged, frayed or deteriorated air hoses

and/or ﬁttings.

Maintain the tool and accessories with care.

Keep tools clean and properly oiled for best and safest

performance.

Do not lubricate tools with ﬂammable or volatile liquids

such as kerosene, diesel or jet fuel.

Repetitive motions, awkward positions and exposure to

vibration can be harmful to hands and arms. Discontinue use of tool if discomfort, tingling feeling or

pain occurs.

Consult a physician before resuming use if any of these

symptoms occur.

Using an accessory not intended for a speciﬁc tool

increases the risk of injury to the operator and everyone

else in the work area.

Always use accessories and attachments designed for the

tool and the work at hand.

Do not improvise or modify tools or accessories.

Loss of control of the tool can lead to operator injury or

injury to others in the work area. Keep proper footing at all times when handling tools.

Slipping, tripping falling or over reaching are major

causes of serious injury and/or death.

Keep tool handles dry, clean and free from oil/grease.

Stay alert. Use common sense. Do not operate tools when

you are tired.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are

missing, call 1-888-331-4569 for a free replacement.

Do not remove any labels – replace any damaged label.

ENGLISH

NOTICE:Use threaded sealant tape (not

included) on the threading of the male

plug.

PREPARATION

ASSEMBLY

Estimated Assembly Time: 1 – 3 minutes

Before beginning the assembly of the product, make sure all parts are present. Compare parts

with package contents list and hardware contents list. If any part is missing or damaged, do

not attempt to assemble the product.

Tools Required for Assembly (not included):

• 9/16 in. (14 mm) or adjustable wrench

• Thread sealant tape

• Tool oil

• Male plug

1. Remove plastic air inlet protective cap

from air inlet .

3. Place 2-3 drops of air tool oil (not

provided) into the male plug

before each use.

2. Tighten male plug (not included),

turning clockwise with a wrench (not

included) for air tight connection.

DO NOT OVERTIGHTEN.

ENGLISH

NOTICE:Working pressure refers to the

air line pressure set to tool when tool is

under working conditions.

NOTICE:The tool features an air

regulating knob . The tool speed can

be adjusted by turning the air regulator

knob either clockwise or

counterclockwise. The maximum tool

speed can be obtained when the

concave line on the knob is pointing

horizontally.

4. Connect the air supply hose to the

male plug. Set the working pressure

at 90 PSI for best tool performance.

OPERATING

1. Press down on the trigger to start

the tool.

When ﬁrst making contact with the

surface you intend to sand, ensure the

speed is set to the lowest setting.

Gradually increase the power/speed as

needed for your particular sanding

application instead of using too much

power/speed from the start.

ENGLISH

NOTICE:If the sanding pad will not

come loose, there are 2 holes on either

side of the spindle lock button .

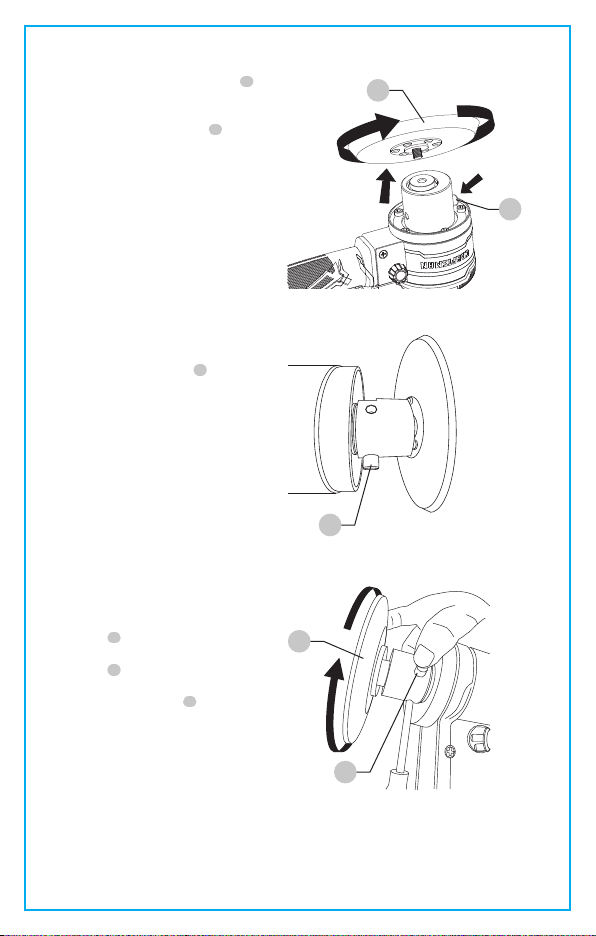

REMOVE SANDING PAD

1. Push in on the spindle lock button

and rotate the spindle until you hear

the spindle lock into position. Loosen

and remove the sanding pad by

spinning the pad in a

counterclockwise direction.

2. Place the end of a #2 Phillips

screwdriver (not included) into one of

the holes and push in on the spindle

lock button . You can hold the

screwdriver and push in the spindle

lock button with the same hand.

Using your other hand, loosen and

remove the sanding pad by

spinning the pad counterclockwise.

PUSH

Table des matières

Langues :

Autres manuels Craftsman Sander

Craftsman

Craftsman 351.215000 Manuel utilisateur

Craftsman

Craftsman 315.116160 Manuel utilisateur

Craftsman

Craftsman 315.117120 Manuel utilisateur

Craftsman

Craftsman 315.116301 Manuel utilisateur

Craftsman

Craftsman 351.215 Manuel utilisateur

Craftsman

Craftsman 351.215421 Manuel utilisateur

Craftsman

Craftsman 315.116310 Manuel utilisateur

Craftsman

Craftsman 315.279570 Manuel utilisateur

Craftsman

Craftsman 351.226711 Manuel utilisateur

Craftsman

Craftsman 172.27670 Manuel utilisateur

Craftsman

Craftsman 320.39596 Manuel utilisateur

Craftsman

Craftsman 103.0803 Manuel utilisateur

Craftsman

Craftsman 646.107391 Manuel utilisateur

Craftsman

Craftsman 911633 Manuel utilisateur

Craftsman

Craftsman 315.117130 Manuel utilisateur

Craftsman

Craftsman 315.277171 Manuel utilisateur

Craftsman

Craftsman 113.22560 Manuel utilisateur

Craftsman

Craftsman 27675 - Professional 5 in. 3.0 Amp Random Orbit... Manuel utilisateur

Craftsman

Craftsman CMEW210 Manuel utilisateur

Craftsman

Craftsman 315.117270 Manuel utilisateur

Craftsman

Craftsman 315.11701 Manuel utilisateur

Craftsman

Craftsman 875.199601 Manuel utilisateur

Craftsman

Craftsman 172.259270 Manuel utilisateur

Craftsman

Craftsman 21181 - 8 in. Bench Buffer Manuel utilisateur

Manuels Sander populaires d'autres marques

Oliver

Oliver 6305 Manuel utilisateur

Jet

Jet 22-44 Pro-3 Manuel de service

Makita

Makita M9204 Manuel

Makita

Makita M9204 Manuel utilisateur

Clarke

Clarke Woodworker CBS1-5B Mode d’emploi

Chicago Pneumatic

Chicago Pneumatic CP9778 Manuel utilisateur

Nitto Kohki

Nitto Kohki BB-20 Manuel utilisateur

Ferm

Ferm FEOS-135 Manuel utilisateur

Unior

Unior 1510 Manuel utilisateur

stayer

stayer ls1200 Manuel utilisateur

Jet

Jet JSG-96 Manuel de service

Parkside

Parkside PDS 290 B2 Manuel utilisateur

Status

Status XPA Series Manuel utilisateur

Clarke

Clarke EZ Sand Manuel utilisateur

CLAS

CLAS OP 1429 Manuel utilisateur

Parkside

Parkside PEXS 270 Al Manuel utilisateur

Makita

Makita 9207SPB Manuel utilisateur

Flex

Flex ST 1005 VE Manuel utilisateur
