Craftsman EZ3 917.271071 Manuel utilisateur

Owner's Manual

CRAFTXMRNo

16 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No

917.271071

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mort - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman Website: ww,x,.sears.com/craftsman

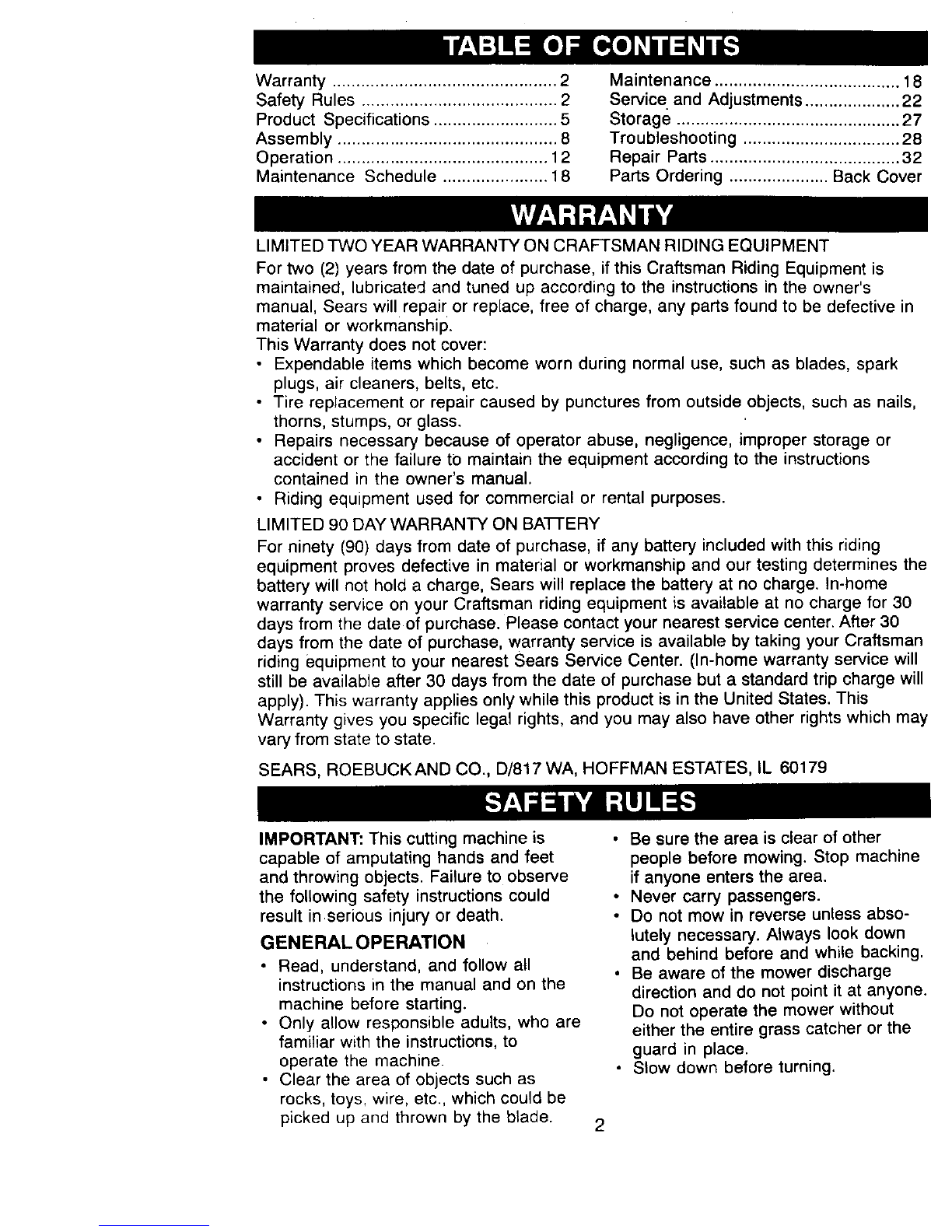

Warranty...............................................2

SafetyRules.........................................2

ProductSpecifications..........................5

Assembly..............................................8

Operation............................................12

MaintenanceSchedule......................18

Maintenance.......................................18

ServiceandAdjustments....................22

Storage...............................................27

Troubleshooting.................................28

RepairParts........................................32

PartsOrdering.....................BackCover

LIMITEDTWOYEARWARRANTYONCRAFTSMANRIDINGEQUIPMENT

Fortwo (2)yearsfromthe dateof purchase,ifthisCraftsmanRidingEquipmentis

maintained,lubricatedandtunedup accordingto theinstructionsin theowner's

manual,Searswillrepairor replace,free ofcharge,anypartsfoundto be defectivein

materialor workmanship.

ThisWarrantydoesnotcover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or

accident or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BAFFERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman riding equipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but a standard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all •

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to

operate the machine. .

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade. 2

Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or

drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO"

Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do notturn on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

•Do not mow near drop-effs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine'and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adulL

• Be alert and turn machine off if

children enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching

blind corners, shrubs, trees, or other

objects that may obscure vision.

SERVICE

Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container:

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing

them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers.

• Do not mew in reverse unless'abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children ou' ff the mowing area

and under the w_ hful care of another

responsible adult.

Be alert and turn machine off if

children enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obsta-

cles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•Do notturn on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

• i, Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEAWARE!!!YOUR

SAFETY IS INVOLVED.

_i_CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE t.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 10W-30

API-SF/SG/SH): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F}

OILCAPACITY: W/FILTER: 4.0PINTS

W/O FILTER: 3.5 PINT5

SPARK PLUG: CHAMPION RC12YC

GAP: .040")

VALVE CLEARANCE: NOTADJUSTABLE

GROUND SPEED

(MPH): FORWARD:

1s'r 1.2

2N° 1.5

3R° 2.3

4TM 3.5

5TM 4.8

6TM 5.4

REVERSE: 1.5

TIRE PRESSURE:FRONT: 14 PSI

REAR: 10 PSI

CHARGING 15 AMPS @ 3600 RPM

SYSTEM:

BA"N-ERY: AMP/HR: 30

MIN CCA: 240

I " . CASE SIZE: U1R

BLADE BOLT 27-35 F7". LBS.

ITORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible depend-

ability and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless

the engine's exhaust system is equipped

with a spark arrester meeting applicable

local or state laws (if any). If a spark

arrester is used, it Should be maintained

in effective working order by the opera-

tor.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the, muffler is available

through your nearest Sears Authorized

Service Center (See REPAIR PARTS

section of this manual).

Parts Bag contents shown full size

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Lockwasher 3/8

(1) Large Flat Washer

(1) Hex Bolt

3/8-16 x 1

(1) Locknut 5/16-18

(1) Knob

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Shoulder

Bolt 5/16-18

(2) ckWashers #10

(2) Weld

Nuts #10

(2) Screws #10 x 5/8

(2) Washers

3/16 x 3/4 x 16 Gauge

Parts packed separately in carton

Steering

Boot

Seat

Video

Cassette

Mulcher

Plate

Manual Parts Bag Steering

Wheel

Parts Bag contents not shown full size

Slope Sheet

t teering

Extension

Shaft

_ teering

Wheel

Insert

Steering Wheel

, , Adapter (2) Keys

_2 I I

) Latch Hook

Assemblys

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe.and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRF") FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) 3/4" Socket w/(1 )

Utility knife drive rachet

(2) 1/2" wrench (1) Phillips Screw-

(1) Tire pressure driver

gauge

When right or left h qd is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRA, ;TOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts

and parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

•Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENS!ON SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes in

extension and lower shafts and install

5/16 hex bolt and Iocknut. Tighten

securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs. torque.

•Place tabs of steering boot over tab

slots in dash and push down to

secure.

Insert

r_ _ 3/8 Hex Bolt

3/8

Lockwasher

_ Large Flat

_ -_-_-_Wash er

Stee?ing __ Steering

Wheel _ _,_ Boot

Extension _:> Tabs

Shaft _ _ Adapter

5/16

Locknut 5/16 Hex

Bolt

Tab

Slots

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

•Slide steering wheel adapter onto

steering shaft extension.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

•Lift seat pan to raised position and

open battery box door.

• If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BA-i-FERY" in

Maintenance section of this manual

for charging instructions).

Battery Label

Box Door

Terminal Terminal

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove cardboard packing on seat

pan.

•Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely,

•Assemble adjustment knob and flat

washer loosely, Do not tighten,

•Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its ad-

justed position.

• Raise seat and tighten adjustment

knob securely. Seat

Seat Pan

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

Press lift lever plunger and raise

attachment lift lev_. to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

Place gearshift lever in neutral (N)

position.

• Roll tractor forward off skid.

• Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

_1, WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check.engine oil level and fill fuel tank

with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

• Place gearshift lever in neutral (N)

position.

• Press lift lever plunger and raise

attachment lift lev, to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and

slowly drive tractor off skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

Shoulder

Bolt 'k . .

Adjustment Knob

Flat Washer

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purpos-

es. Correct tire pressure is important for

best cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

sectoin of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

•Install two latch hooks to mulc.her plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

•Tighten hardware securely.

• Raise and hold deflector shield in

upright position.

• Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

mower deck.

Weld Nut From

The Top

Lock

Weld .Washer

Nut

Hook Points

Down

Latch Latch

Mulcher

Plate

Deflector

Shield

Lock Washer

Washer

'_/-" Screw

ooks

_I, CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow

it to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store

in a safe place. Your mower is now ready

for discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging

also.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman CX Series Manuel utilisateur

Craftsman

Craftsman 917.376301 Manuel utilisateur

Craftsman

Craftsman 917.376231 Manuel utilisateur

Craftsman

Craftsman 917.389380 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377260 Manuel utilisateur

Craftsman

Craftsman 917.258524 Manuel utilisateur

Craftsman

Craftsman 917.388560 Manuel utilisateur

Craftsman

Craftsman 917.275970 Manuel utilisateur

Craftsman

Craftsman 917.274650 Manuel utilisateur

Craftsman

Craftsman 917.272862 Manuel utilisateur

Craftsman

Craftsman 917.387600 Manuel utilisateur

Craftsman

Craftsman Remote Controller Manuel utilisateur

Craftsman

Craftsman 917.286420 Manuel utilisateur

Craftsman

Craftsman 917.257462 Manuel utilisateur

Craftsman

Craftsman 917.273756 Manuel utilisateur

Craftsman

Craftsman 917.378441 Manuel utilisateur

Craftsman

Craftsman 37102 Manuel utilisateur

Craftsman

Craftsman 247.377051 Manuel utilisateur

Craftsman

Craftsman 247.288853 Manuel utilisateur

Craftsman

Craftsman 25416 Manuel utilisateur

Craftsman

Craftsman 358.792400 Manuel utilisateur

Craftsman

Craftsman 917.370930 Manuel utilisateur

Craftsman

Craftsman 917.275044 Manuel utilisateur

Craftsman

Craftsman 27726 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
