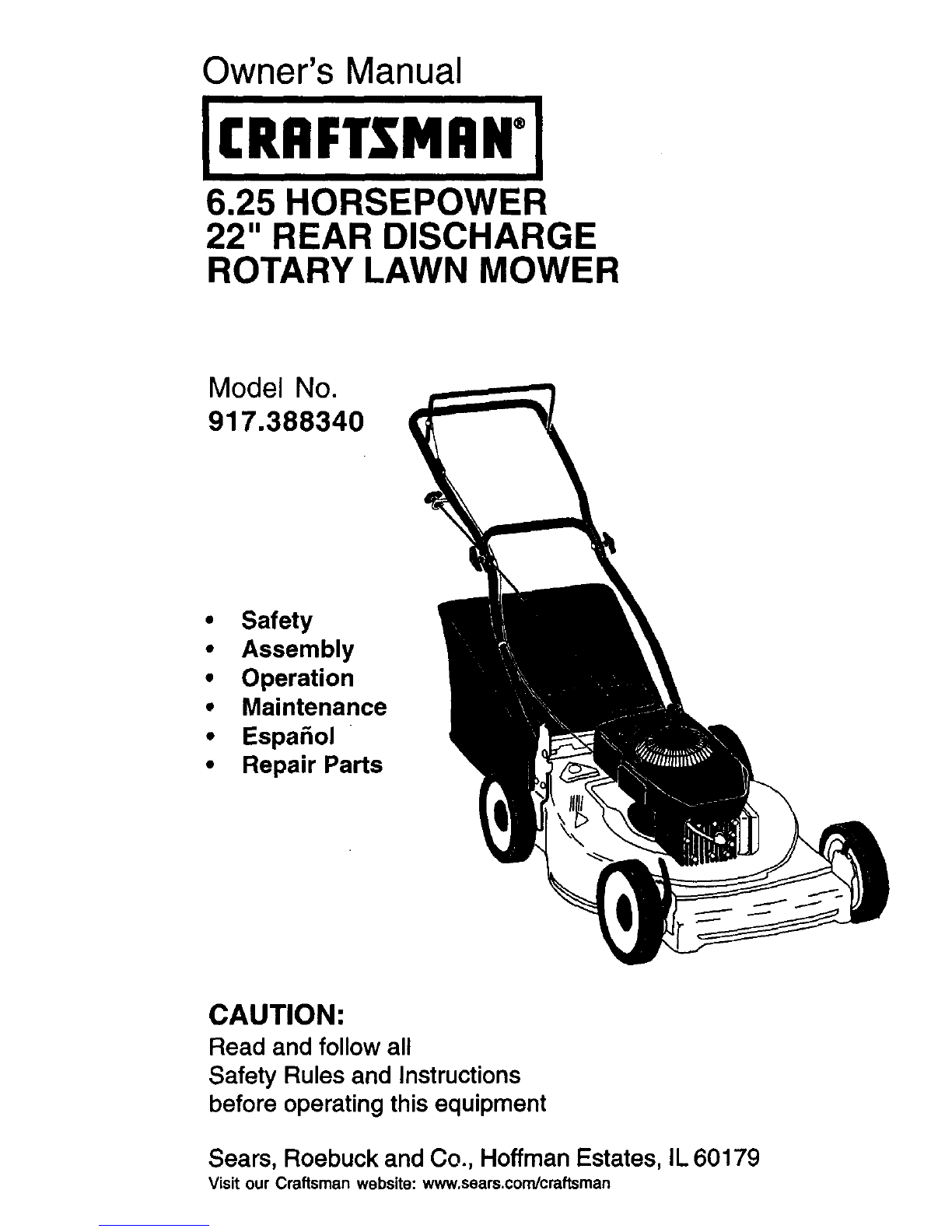

Owner's Manual

JCRAFTSMIIN'J

6.25 HORSEPOWER

22" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.388340

•Safety

•Assembly

•Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

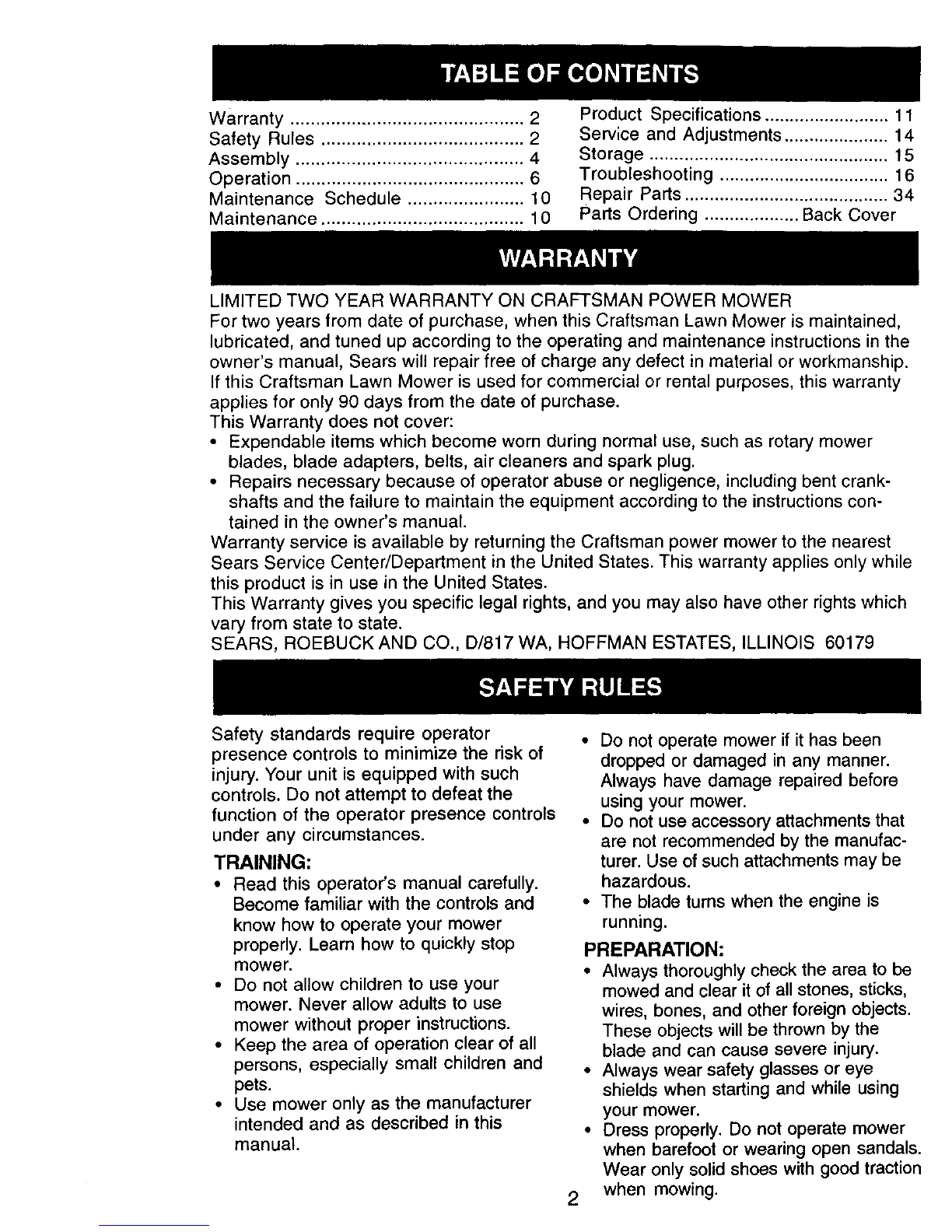

Warranty .............................................. 2

Safety Rules ........................................ 2

Assembly ............................................. 4

Operation ............................................. 6

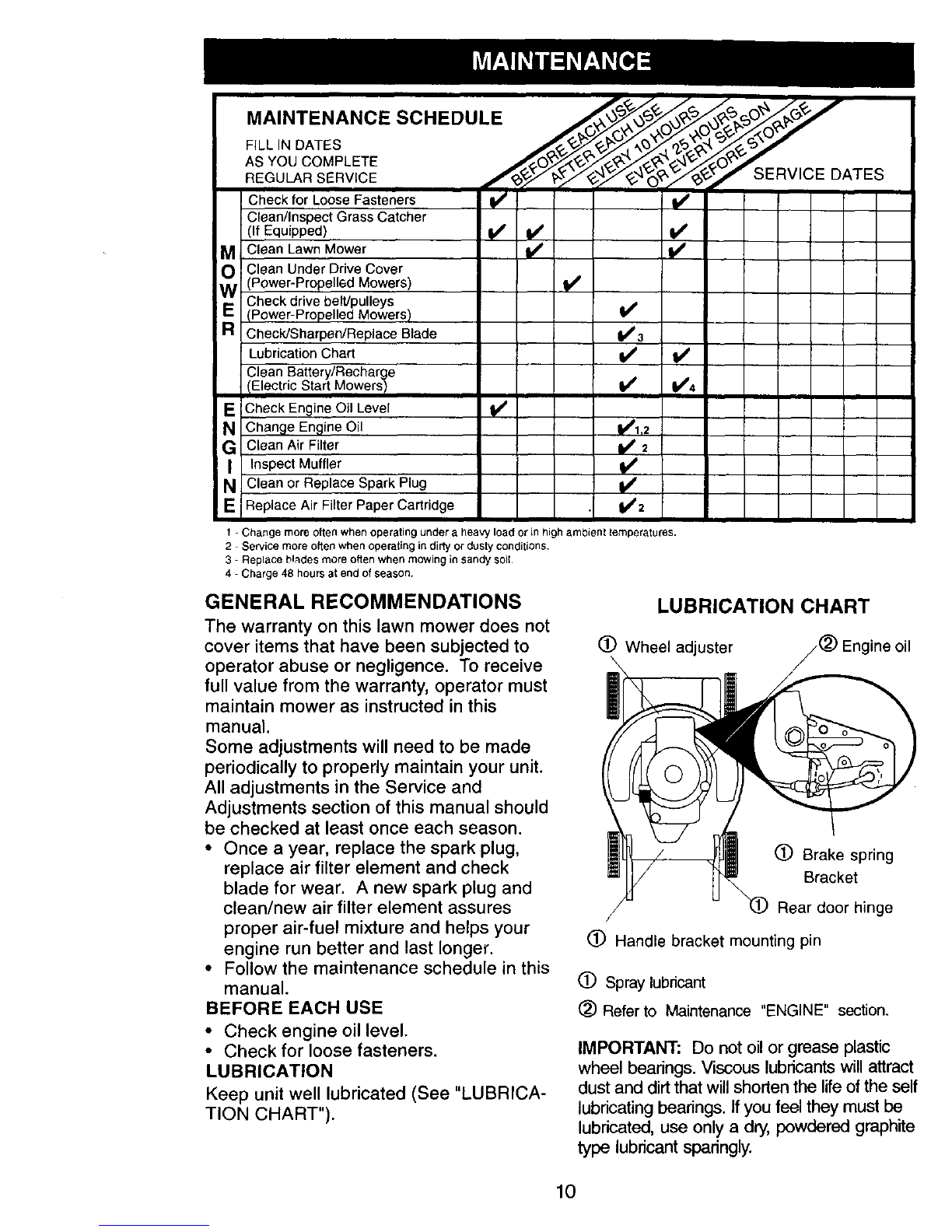

Maintenance Schedule ....................... 10

Maintenance ........................................ 10

Product Specifications ......................... 11

Service and Adjustments ..................... 14

Storage ................................................ 15

Troubleshooting .................................. 16

Repair Parts ......................................... 34

Parts Ordering ................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence controls to minimize the risk of

injury. Your unit is equipped with such

controls. Do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully,

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

• Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

• Keep the area of operation clear of all

persons, especially small children and

pets.

• Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

• The blade turns when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while using

your mower.

• Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

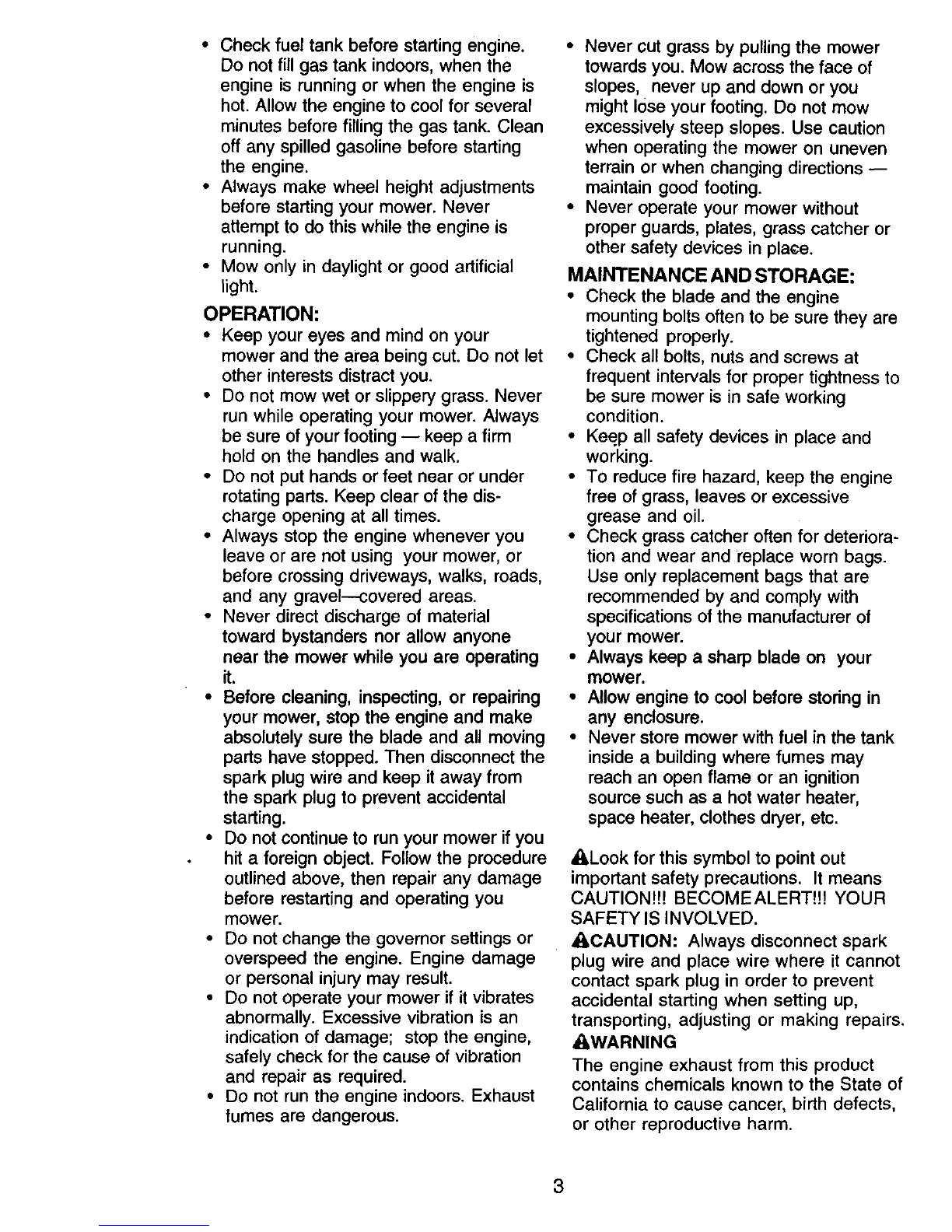

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank. Clean

off any spilled gasoline before starting

the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

• Mow only in daylight or good artificial

light.

OPERATION:

• Keep your eyes and mind on your

mower and the area being cut. Do not let

other interests distract you.

• Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing -- keep a firm

hold on the handles and walk.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel---covered areas.

• Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

• Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep it away from

the spark plug to prevent accidental

starting.

• Do not continue to run your mower if you

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

mower.

• Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

• Do not run the engine indoors. Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions --

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

• Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

• Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

• Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

• Allow engine to cool before storing in

any enclosure.

• Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

ACAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_kWARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

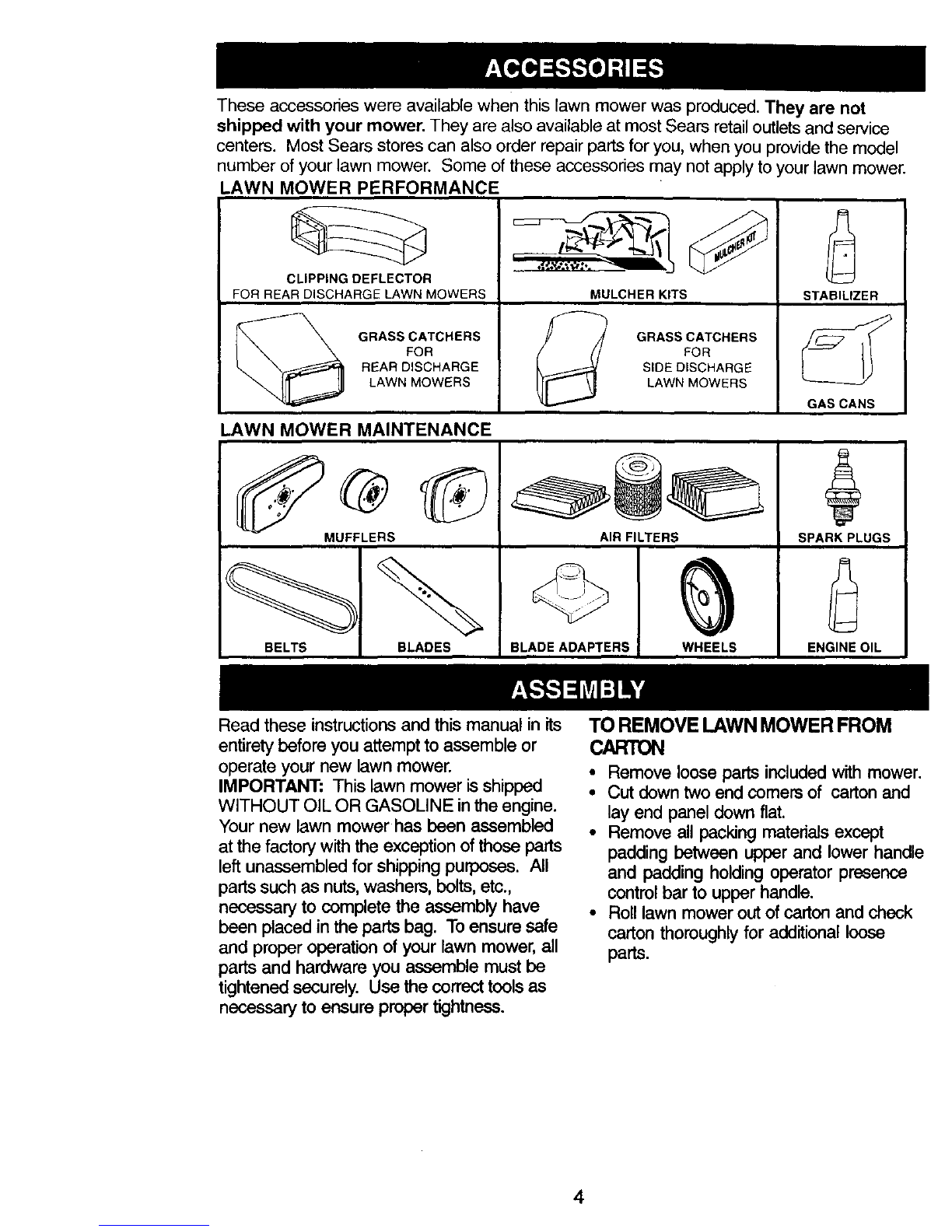

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructionsand this manual in its

entirety before you attempt to assemble or

operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been assembled

at the factory with the exception of those parts

left unassembled for shipping purposes. All

parts such as nuts, washers, belts, etc.,

necessary to complete the assembly have

been placed in the parts bag. To ensure safe

and proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools as

necessary to ensure proper tightness.

TO REMOVELAWNMOWERFROM

CARTON

•Remove loose parts includedwith mower.

•Cut down two end comers of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

controlbar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

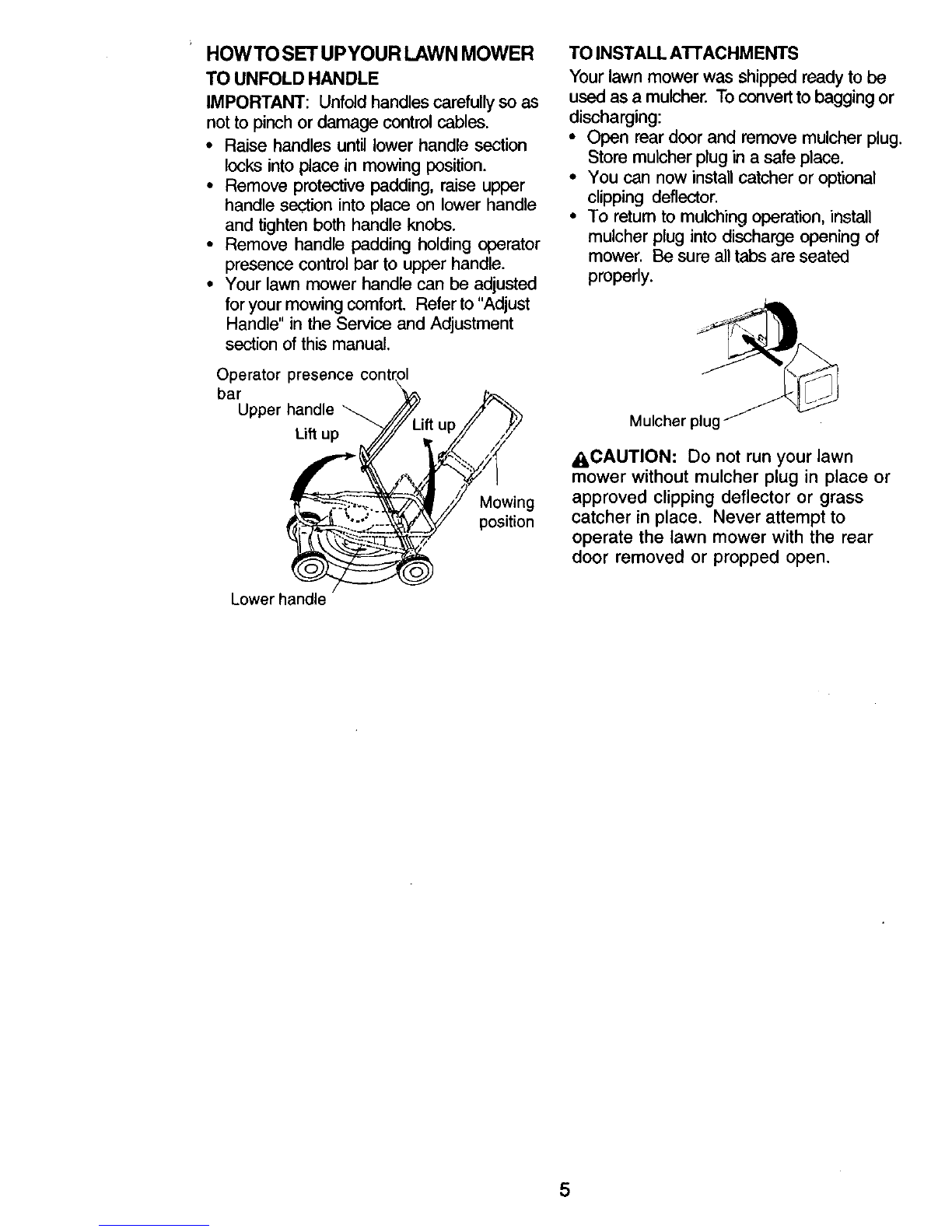

HOWTO SET UPYOUR LAWN MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefully so as

not to pinch or damage control cables.

•Raise handles until lower handle section

locks intoplace in mowing position.

• Remove protective padding, raise upper

handle section into place on lower handle

and tighten both handle knobs.

•Remove handle padding holding operator

presence control bar to upper handle.

•Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustment

section ofthis manual.

Operator presence cont

bar

Upper handle _

Lift up

Mowing

position

TO INSTALL A'I-rACHMENTS

Your lawn mower was shipped ready to be

used as amulcher. To convert to bagging or

discharging:

• Open rear door and remove mulcher plug.

Store mulcher plug in a safe place.

• You can now install catcher or optional

clipping deflector.

• To retum to mulching operation, install

mulcher plug into discharge opening of

mower. Be sure all tabs are seated

properly.

Mulcher plu_c

ACAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Lower handle

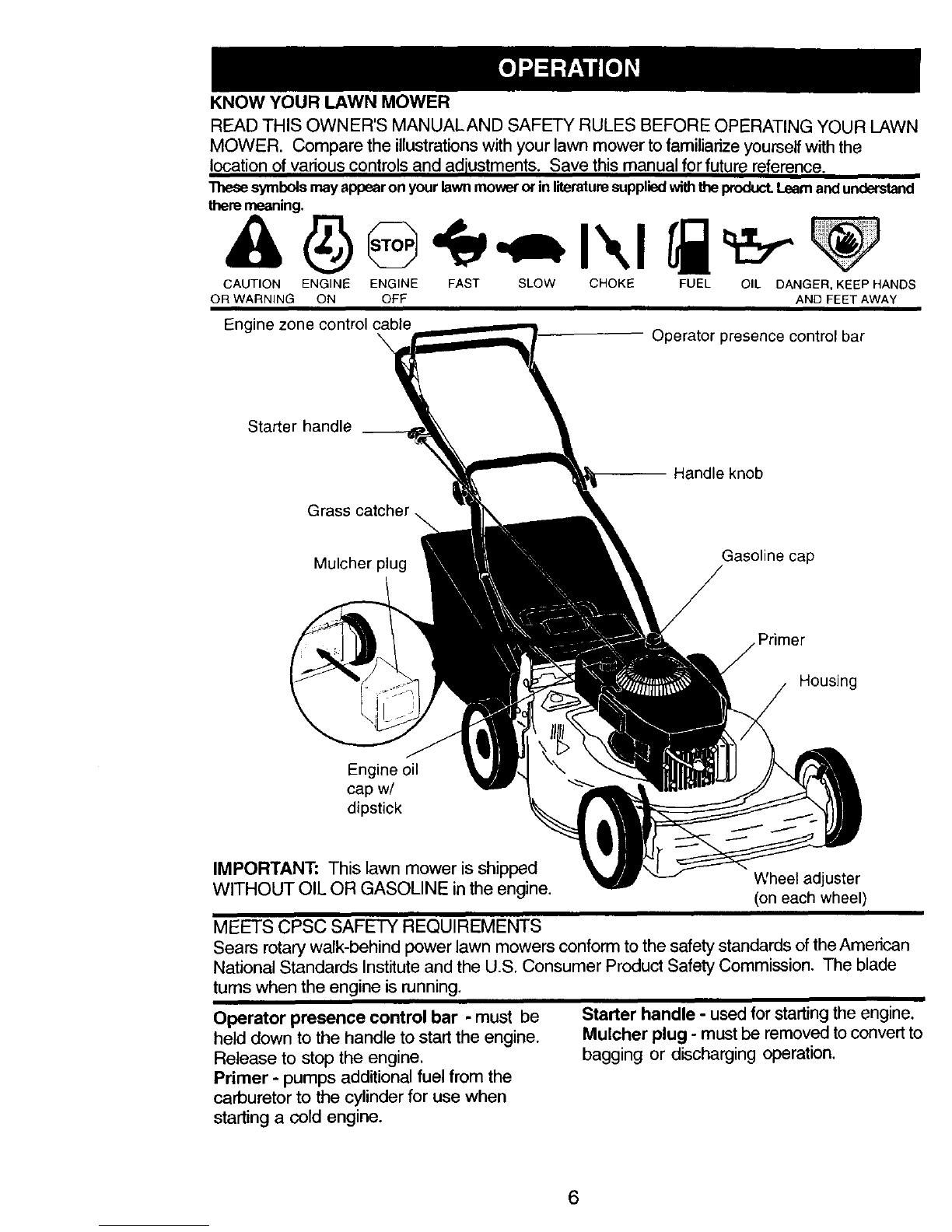

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbolsmay appearon yourlawn moweror in literaturesuppliedwiththeproduct.Learnand understand

theremeaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WANNING ON OFF AND FEET AWAY

Engine zone control cable

\Operator presence control bar

Starter handle __

Grass

Handle knob

Mulcher plug Gasoline cap

Primer

Housing

Engine oil

cap w/

dipstick

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE inthe engine. Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

tums when the engine is running.

Operator presence control bar -must be

held down to the handle to start the engine.

Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the engine.

Mulcher plug -must be removed to convert to

bagging or discharging operation.

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye shields

while operating your lawn mower or

performing any adjustments or repairs.

We recommend a wide vision safety mask

over spectacles or standard safety

glasses.

HOWTO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

ACAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST cUTrlNG HEIGHT

•Raise wheels for low cut and lower wheels

for high cut.

• Adjust cutting height to suityour require-

ments. Medium position is best for most

lawns.

• To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Plate Tab

Lower Wheels for High Cut

Raise Wheels for Low Cut

TO AI-rACH GRASS CATCHER

• Lift the rear door of the lawn mower

and place the grass catcher frame

hooks onto the door pivot pins.

• The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

A, CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

door

Grass

catcher

handle

Pivot

pins Catcher

frame hook

TO EMPTY GRASSCATCHER

•Lift up on grass catcher using the frame

handle.

• Remove grass catcher with clippings

from under lawn mower handle.

• Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Bag handle

Grass

frame

handle

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil

in the engine.

•Be sure mower is level and area

around oil fill is clean.

• Remove engine oil cap and fill to the

full line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

• Engine holds 20 ozs. of oil. For type

and grade of oil to use, see "ENGINE"

in Maintenance section of this manual.

• Pour oil slowly. Do not over fill.

•Check oil level before each use. Add

oil if needed. Fill to full line on

dipstick.

• To read proper level, tighten engine oil

cap each time.

• Reinstall engine oil cap and tighten.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gaso-

line. Purchase fuel in quantities that

can be used within 30 days to assure

fuel freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions

for additional information. Never use

engine or carburetor cleaner products in

the fuel tank or permanent damage may

occur.

AI_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engine oil cap Gasoline filler cap

TO START ENGINE

• To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

• Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

• To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

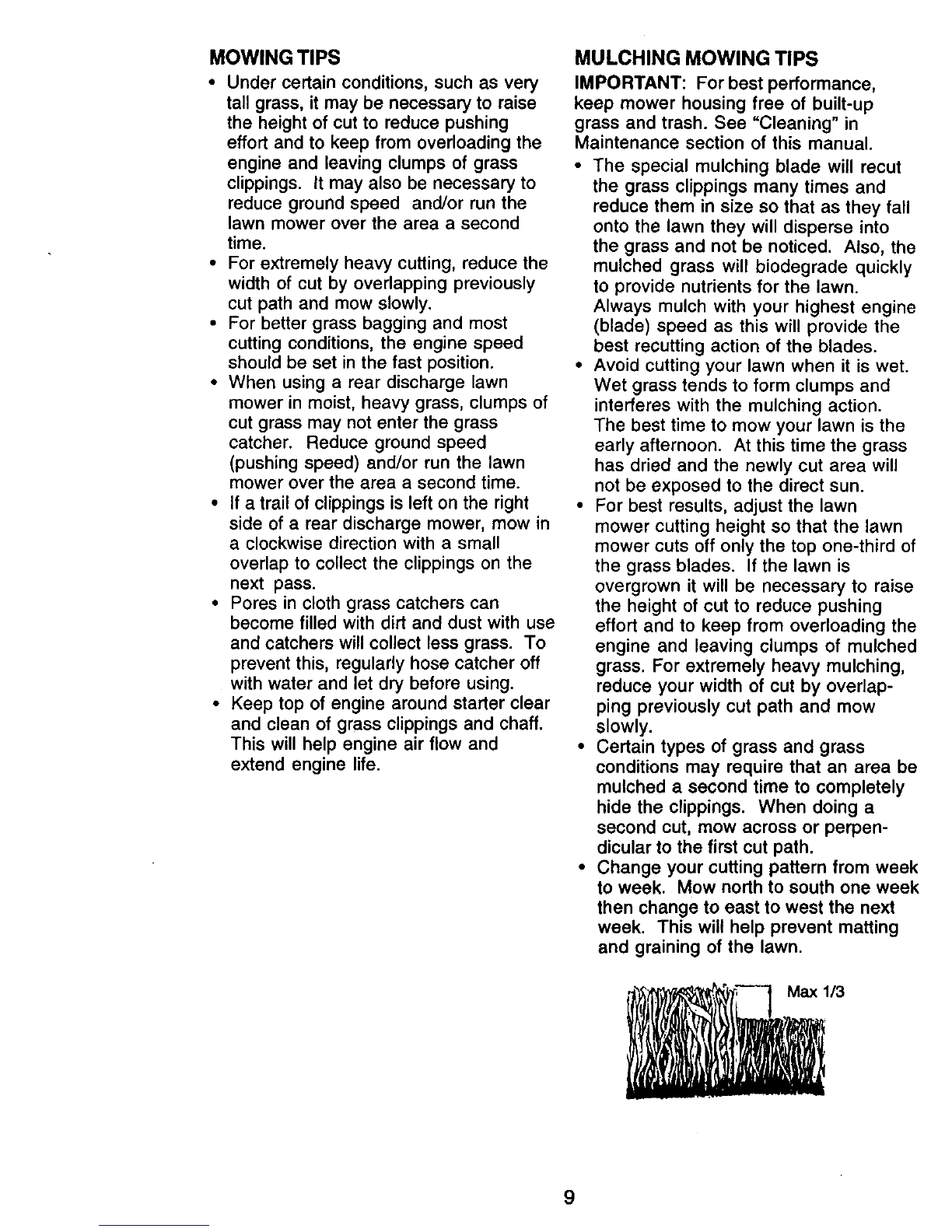

MOWING TIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

•If a trail of clippings is left on the right

side of a rear discharge mower, mow in

aclockwise direction with a small

overlap to collect the clippings on the

next pass.

•Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "Cleaning" in

Maintenance section of this manual.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the lawn

mower cutting height so that the lawn

mower cuts off only the top one-third of

the grass blades. If the lawn is

overgrown it will be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of mulched

grass. For extremely heavy mulching,

reduce your width of cut by overlap-

ping previously cut path and mow

slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpen-

dicular to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Clean/Inspect Grass Catcher

(,fEquippe0) W

o_i Clean Lawn Mower

Clean Under Drive Cover

(Power-Propelled Mowers)

Check drive belVpulieys

(P0wer-Propelled Mowers) I_

RCheck/SharperVRepiace Blade t/3

Lubrication Chart I/ I_

Clean Battery/Recharge

/Electric Start Mowers) I/ I/'4

NE Check Engine Oil Level I_

Change Engine Oil i/1,2

(_ Clean Air Filter l_ 2

inspect Muffler

EN Clean or Replace Spark Plug

Replace Air Filter Paper Cartridge 1_2

..,.TE.ANOESO.EOU'E

/__0 _r/_O_i_'O_q.,_ u L) ,_._ 0_:

AS YOU COMPLETE /__£_,q'/_.'_."[_._'4¢_/_"_O_'._ '_.....

REGULAR SERVICE /'_"£c_/_.,_£!j/" SERVICE DATES

EIIN /_

Check for Loose Fasteners !l/

t - Change more often when operating under aheavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soiL

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain mower as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

LUBRICATION CHART

(_) Wheel adjuster /(_) Engine oil

(_) Brake spring

Bracket

Rear door hinge

(_) Handle bracket mounting pin

(_ Spray lubricant

_) Refer to Maintenance "ENGINE" section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the self

lubricating bearings. If you feel they must be

lubricated, use only a dry, powdered graphite

type lubricant sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.28947 Manuel utilisateur

Craftsman

Craftsman 917.376225 Manuel utilisateur

Craftsman

Craftsman 27701 Manuel utilisateur

Craftsman

Craftsman 247.288831 Manuel utilisateur

Craftsman

Craftsman 917.273134 Manuel utilisateur

Craftsman

Craftsman 917.27636 Manuel utilisateur

Craftsman

Craftsman 917.385410 Manuel utilisateur

Craftsman

Craftsman 917.254611 Manuel utilisateur

Craftsman

Craftsman 917.376781 Manuel utilisateur

Craftsman

Craftsman 917.376169 Manuel utilisateur

Craftsman

Craftsman 917.275660 Manuel utilisateur

Craftsman

Craftsman 917.256501 Manuel utilisateur

Craftsman

Craftsman 247.290004 Manuel utilisateur

Craftsman

Craftsman 917.370830 Manuel utilisateur

Craftsman

Craftsman 3One 917.373680 Manuel utilisateur

Craftsman

Craftsman 917.377422 Manuel utilisateur

Craftsman

Craftsman 917.377710 Manuel utilisateur

Craftsman

Craftsman 917.28821 Manuel utilisateur

Craftsman

Craftsman 917.387851 Manuel utilisateur

Craftsman

Craftsman 917.271811 Manuel utilisateur

Craftsman

Craftsman 917.371032 Manuel utilisateur

Craftsman

Craftsman 944.362080 Manuel utilisateur

Craftsman

Craftsman 28927 - YT 4000 24 HP 42" Yard Tractor Manuel utilisateur

Craftsman

Craftsman EZ3 917.388152 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
