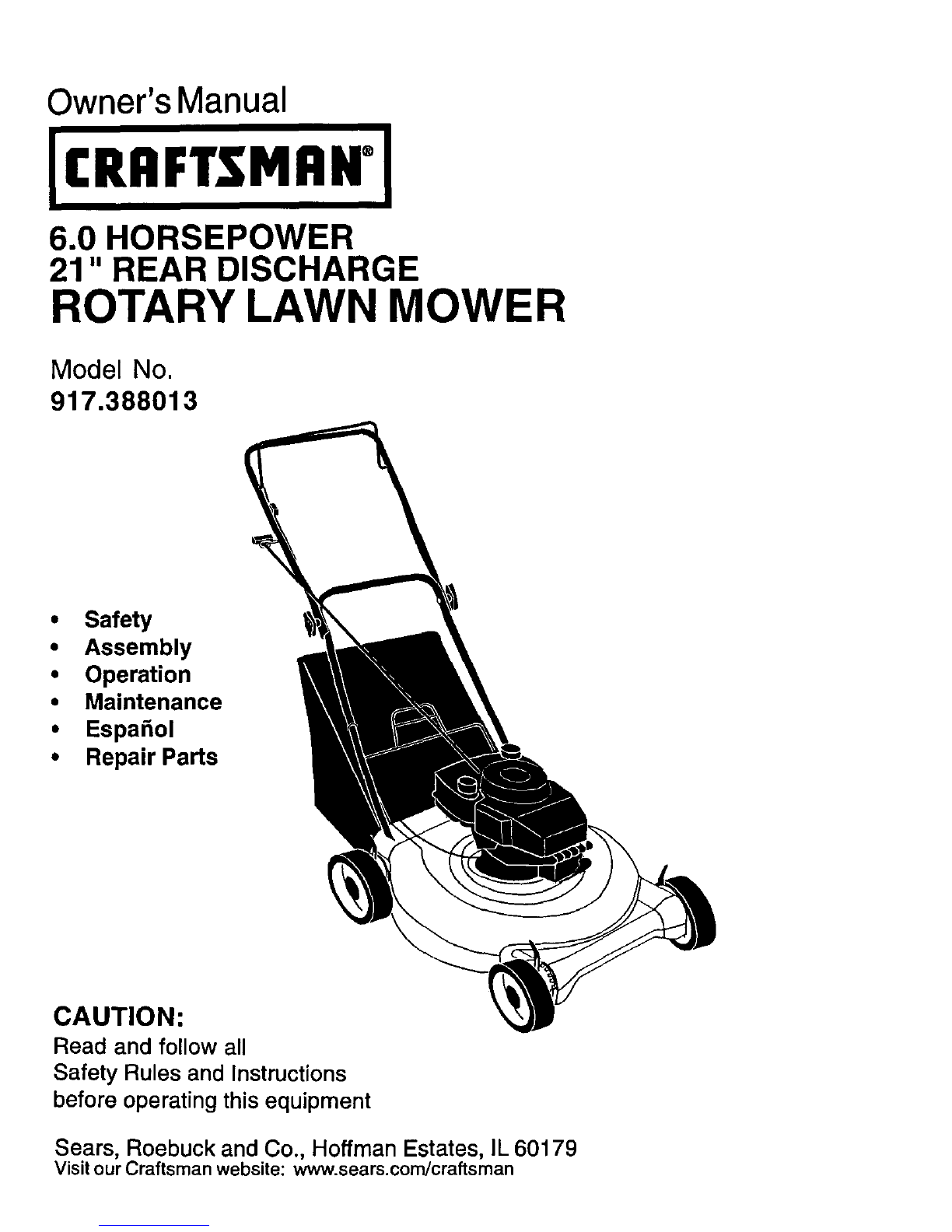

Craftsman 917.388013 Manuel utilisateur

Owner's Manual

6.0 HORSEPOWER

21" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.388013

• Safety

•Assembly

•Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website" www.sears.com/craftsman

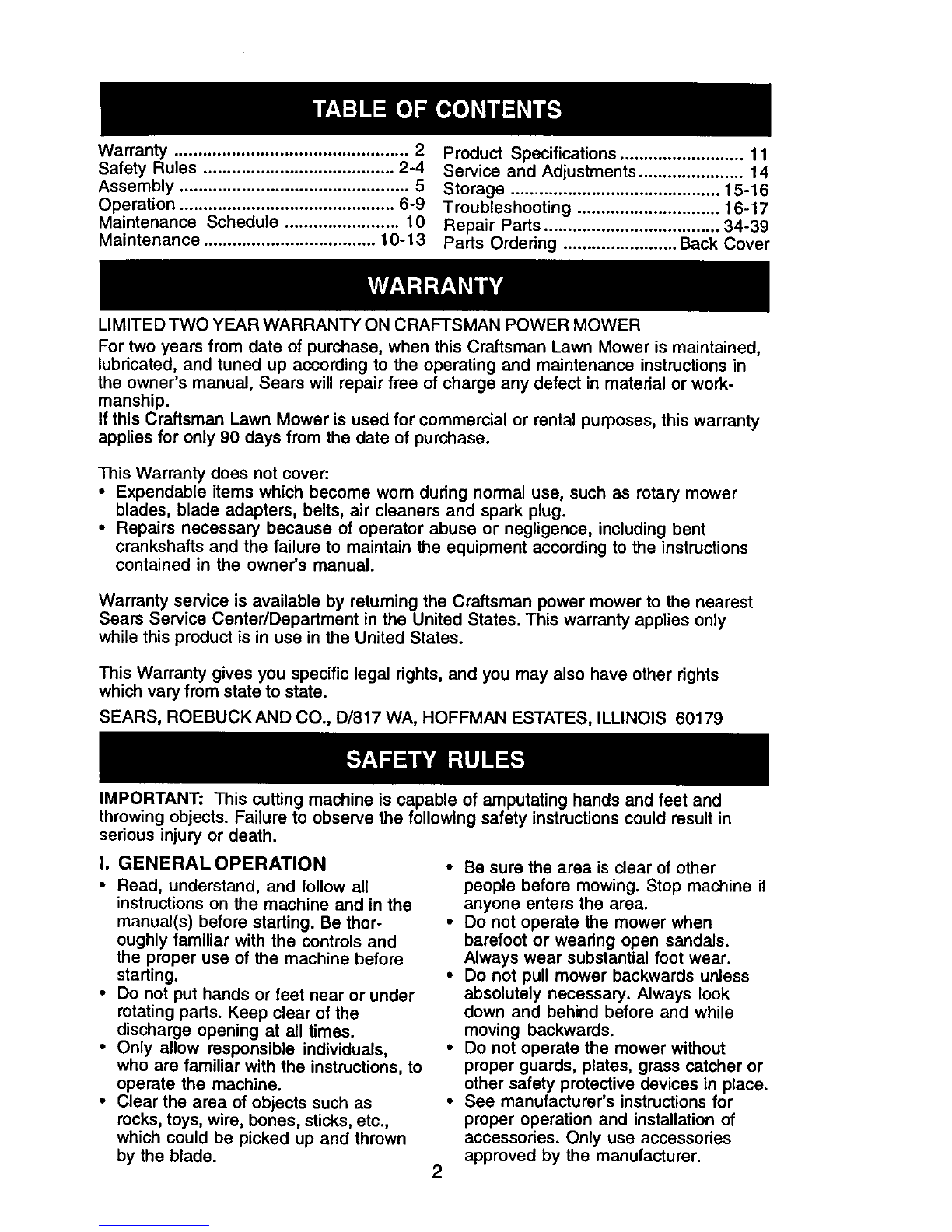

Warranty ................................................. 2

Safety Rules ........................................ 2-4

Assembly ................................................ 5

Operation ............................................. 6-9

Maintenance Schedule ........................ 10

Maintenance .................................... 10-13

Product Specifications .......................... 11

Service and Adjustments ...................... 14

Storage ............................................ 15-16

Troubles hooting .............................. 16-17

Repair Parts ..................................... 34-39

Parts Ordering ........................ Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or work-

manship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not coven

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights

which vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I. GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and

the proper use of the machine before

starting.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

•Only allow responsible individuals,

who are familiar with the instructions, to

operate the machine.

•Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown

by the blade. 2

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

•See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

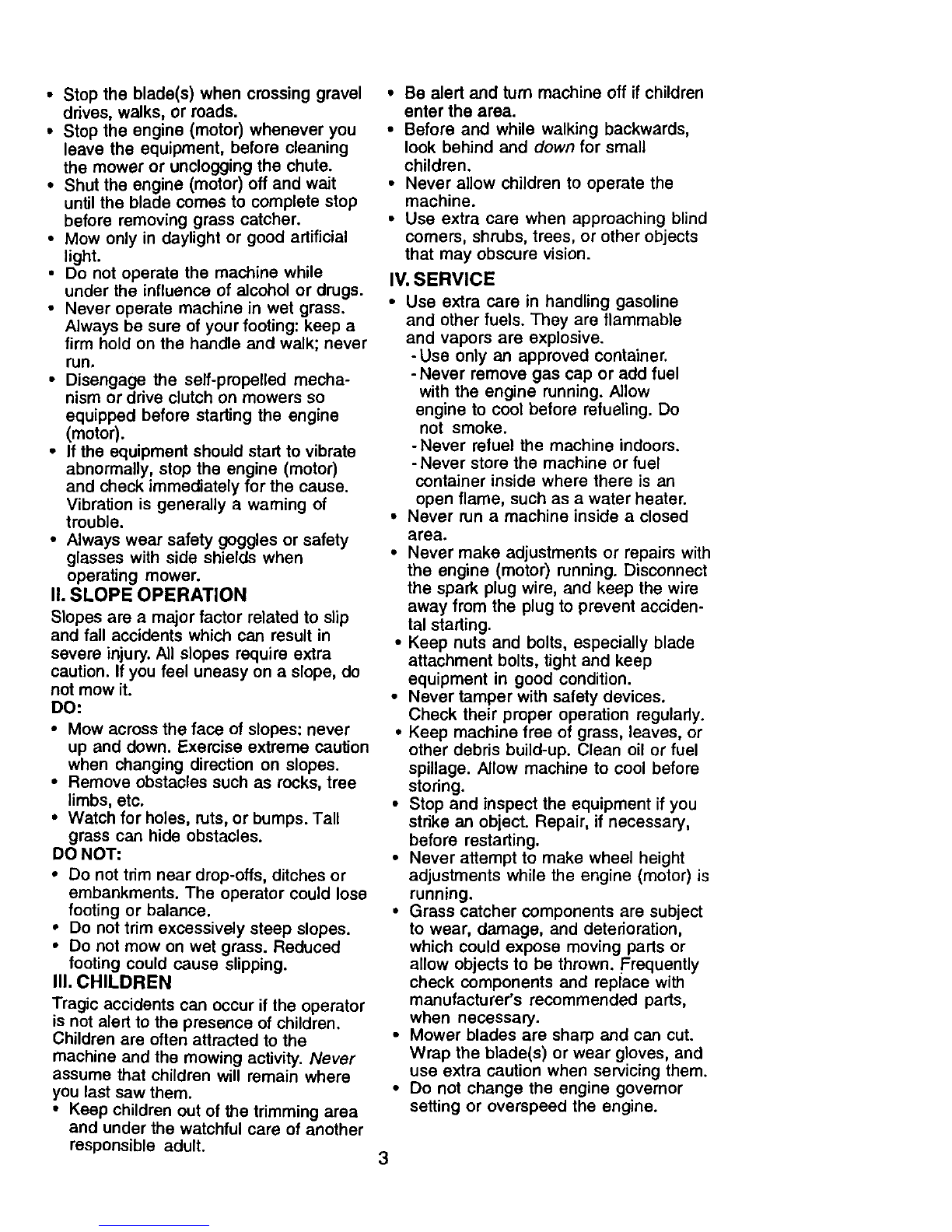

•Stop the blade(s) when crossing gravel

drives, walks, or roads.

•Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run,

•Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

•If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

•Always wear safety goggles or safety

glasses with side shields when

operating mower.

I1.SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

* Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not trim excessively steep slopes.

•Do not mow on wet grass. Reduced

footing could cause slipping.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as awater heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor

setting or overspeed the engine.

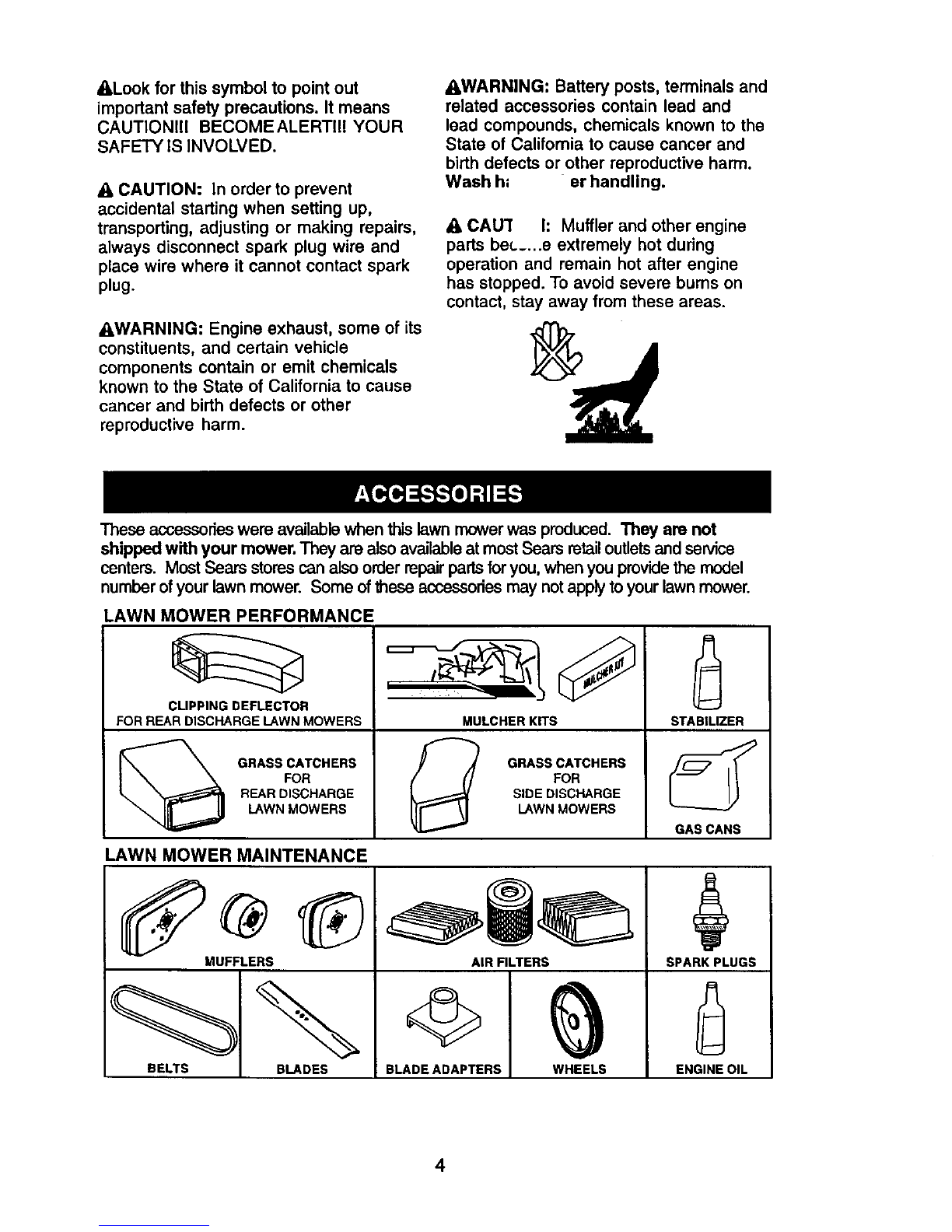

ALook for this symbol to point out

important safety precautions. It means

CAUTIONI!I BECOMEALERTII! YOUR

SAFETY IS INVOLVED.

A CAUTION: in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other

reproductive harm.

AWARNING; Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of Califomia to cause cancer and

birth defects or other reproductive harm.

Wash hi er handling.

_, CAU'r h Muffler and other engine

parts be_._...e extremely hot during

operation and remain hot after engine

has stopped. To avoid severe bums on

contact, stay away from these areas.

These accessorieswere availablewhen thislawnmowerwas produced. They are not

shipped with your mower. They are alsoavailableat mostSoars retailoutletsand service

centers. MostSoars storescan alsoorder repairpartsfor you,when you providethe model

numberofyourlawnmower. Some ofthese accessories may notapplytoyour lawnmower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

/_ GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

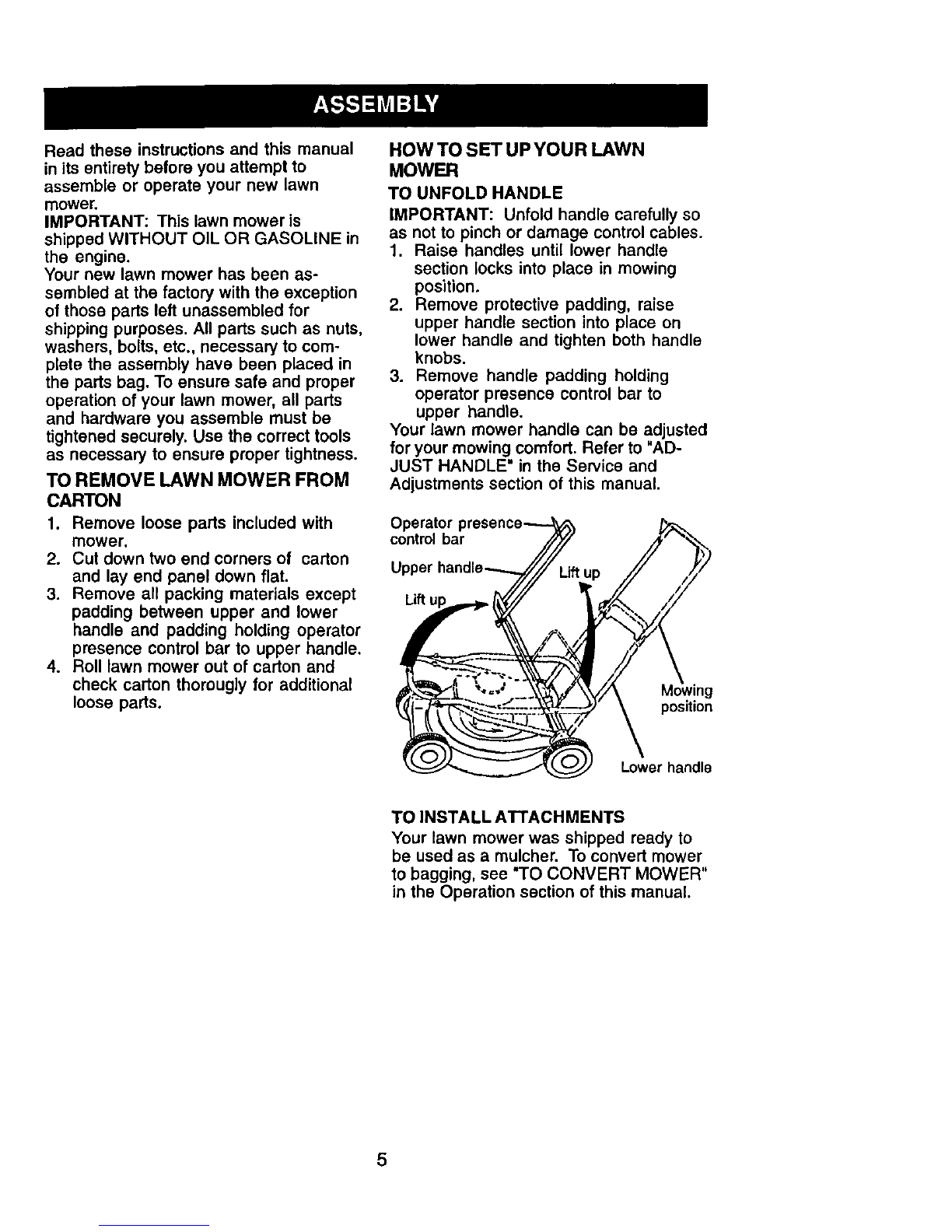

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: Thislawnmower is

shippedWITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled atthefactorywiththe exception

ofthosepartsleftunassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down fiat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and

Adjustments section of this manual.

Operator [

control bar

Lift u

Mowing

position

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert mower

to bagging, see "TO CONVERT MOWER"

in the Operation section of this manual.

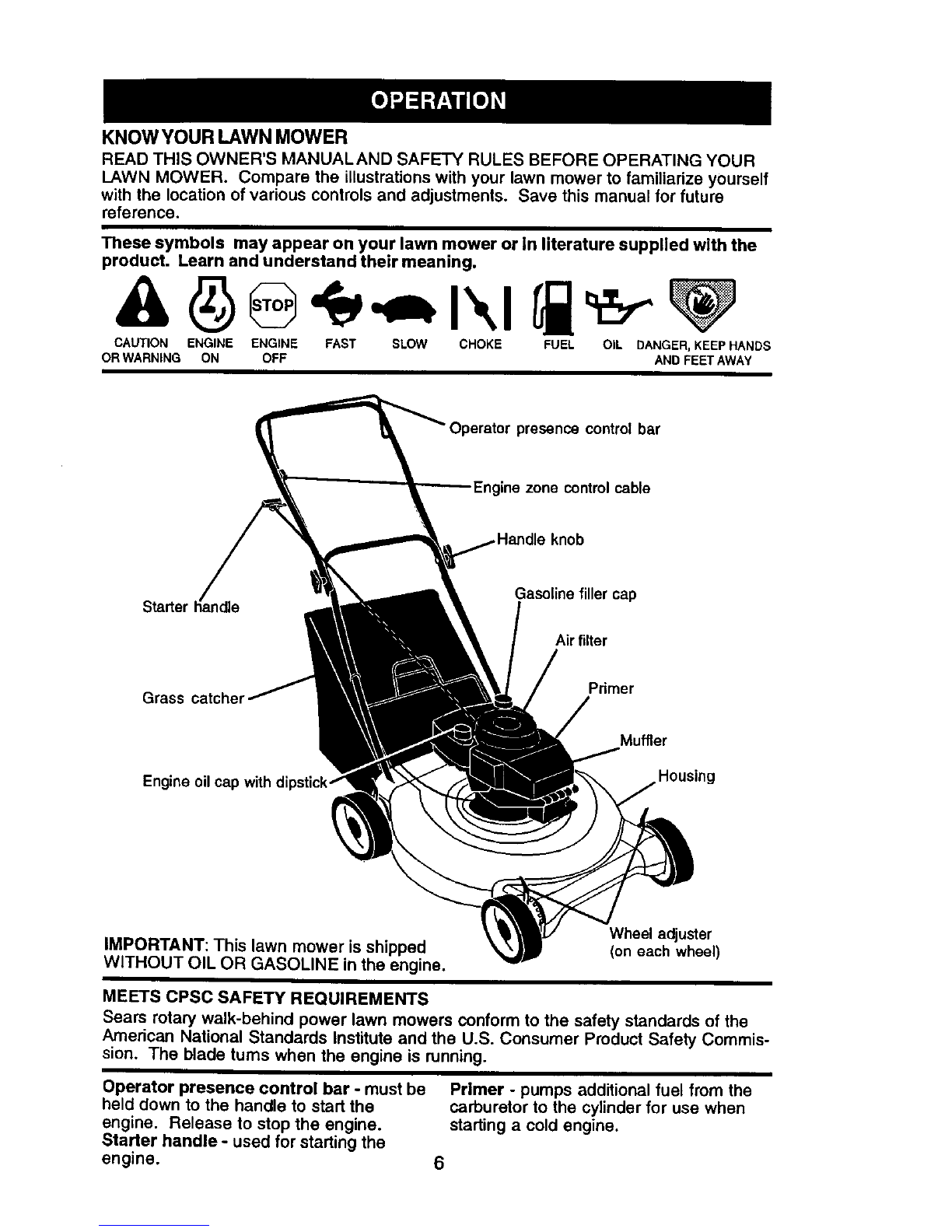

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

reference.

These symbols may appear on your lawn mower or In literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control bar

,gine zone control cable

Starter Gasoline filler cap

Airfilter

Grass catche Primer

Engine oilcap with

Muffler

Housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

Amedcan National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must be

held down to the handle to start the

engine. Release to stop the engine.

Starter handle -used for starting the

engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

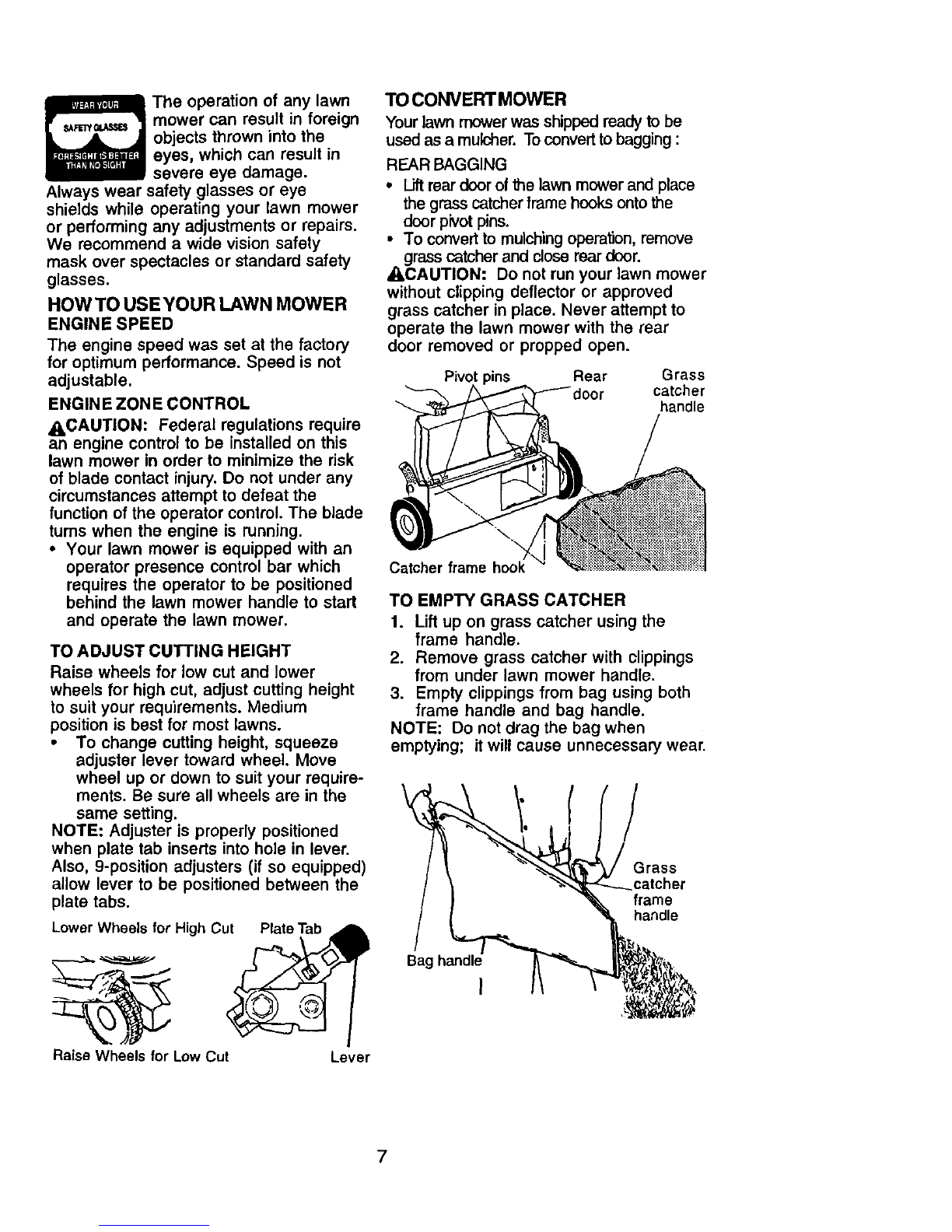

The operation of any lawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

ACAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

rums when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST cu'n'ING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

•To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or clown to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower Wheels for High Cut Plate Tab

Raise Wheels for Low Cut Lever

TO CONVERT MOWER

Yourlawnmowerwas shippedready to be

usedas a mulcher. Toconverttobagging:

REAR BAGGING

• Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

door pivot pins.

• To convert to mulching operation, remove

grass catcher and close rear door.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Pivot " Rear Grass

catcher

handle

Catcher frame hoo? ''J

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Grass

catcher

frame

handle

Bag handleI

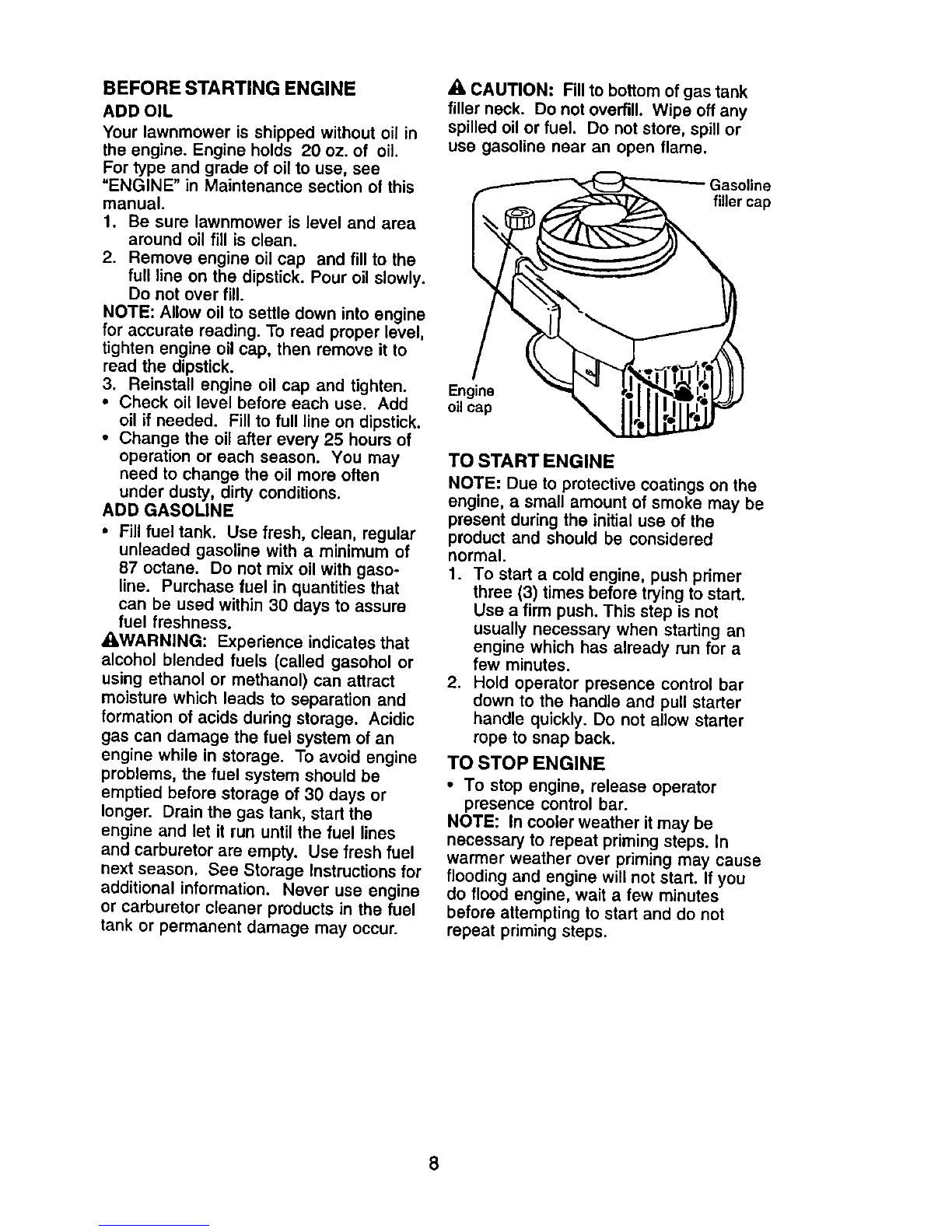

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz. of oil.

For type and grade of oil to use, see

"ENGINE" in Maintenance section of this

manual.

I. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick. Pour oil slowly.

Do not over fill.

NOTE: Allow oil to settle down into engine

for accurate reading. To read proper level,

tighten engine oil cap, then remove it to

read the dipstick.

3. Reinstall engine oil cap and tighten.

• Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gaso-

line. Purchase fuel in quantities that

can be used within 30 days to assure

fuel freshness.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

• 1,CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Gasoline

filler cap

Engine

oil cap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a cold engine, push pdmer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

•To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

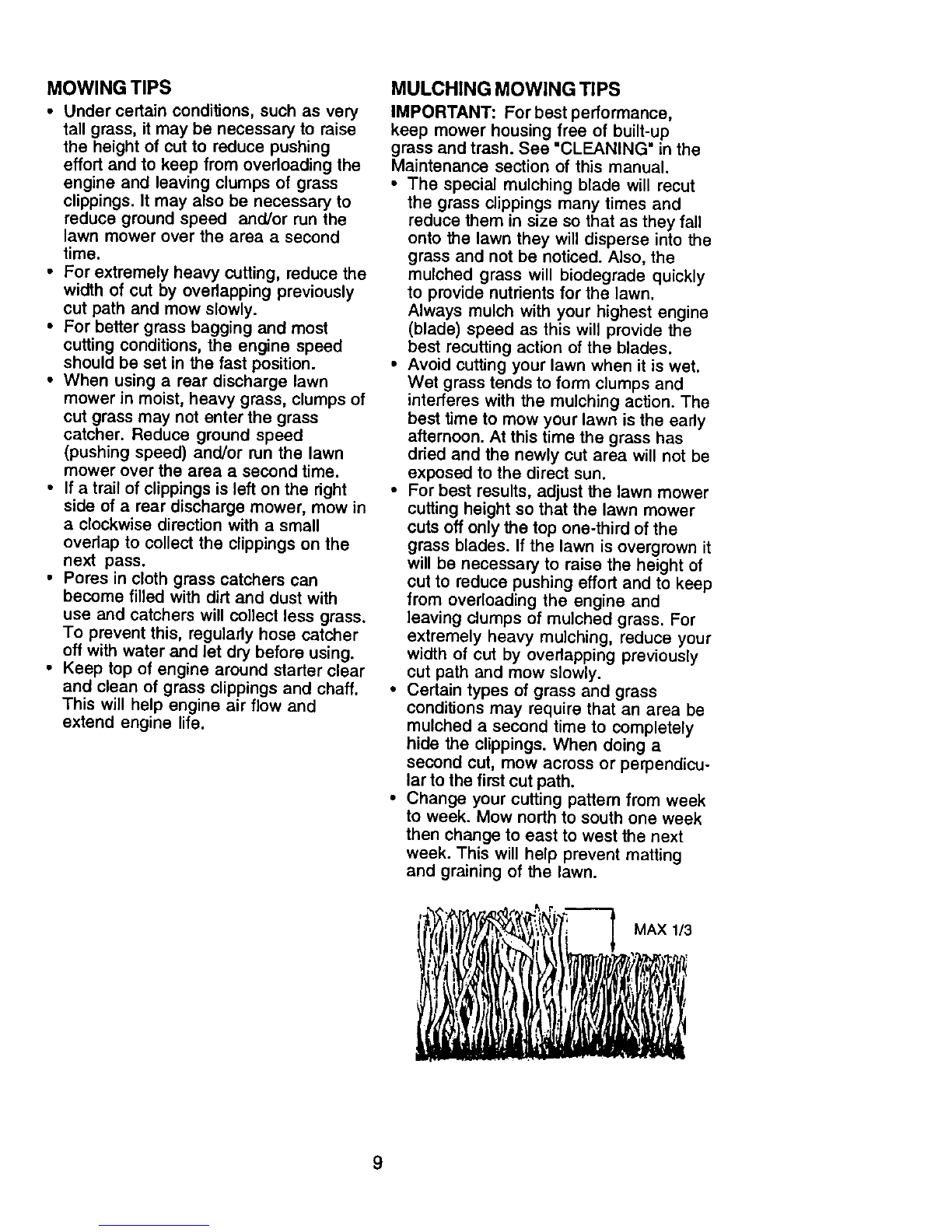

MOWINGTIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

aclockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "CLEANING" in the

Maintenance section of this manual.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the eady

attemoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and

leaving clumps of mulched grass. For

extremely heavy mu}ching, reduce your

width of cut by overlapping previously

cut path and mow slowly.

•Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

MAX 1/3

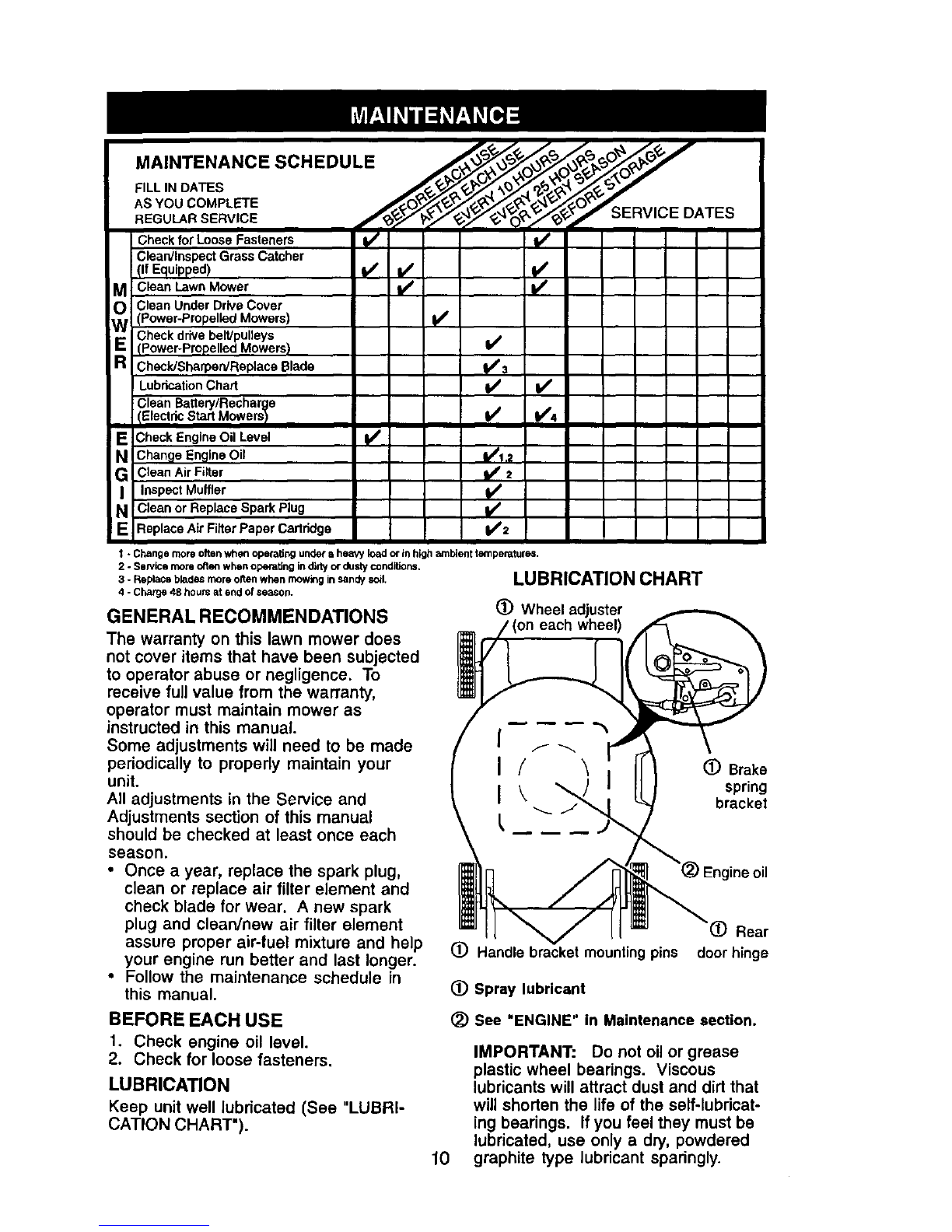

M,,,T ,ANC SC,EDULE

FILL IN DATES _:_ _:_ ,_

REGULARSERVICE ICE DATES

Checkfor Loose Fasteners if If

Clean/InspectGrass Catcher

(If Equipped) If _

oa Clean Lawn Mower !

Clean Under Drive Cover

W(Power-Propelled Mowers) _/'

Check drive belt/pulleys

(Power-PropelledMowers) I_

RCheck/Sharpen/Replace Blade t/3

I LubricationChart ik/ I_

Clean Battery/Recharge

IEIeclric Start Mowers) _If4

iE Check Engine Oil Level

Change Engine Oil I_1.=

Clean Air Filter _2

NI Inspect Muffler

Clean or Replace Spark Plug

E ReplaceAirFilterPaperCanddge I/2

I - Change more olten when operating undo" a heavy load or in h_ghambient temperatures.

2-Sentica more often when operating in dirty or dusty condiUons.

3- Replace blades more often when mowing insandy sodl.

4 - Chmge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

•Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assure proper air-fuel mixture and help

your engine run better and last longer.

• Follow the maintenance schedule in

this manual.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART").

LUBRICATION CHART

(_) Wheel adjuster

each wheel)

(!) Brake

spring

bracket

Engine oil

(_) Rear

(_) Handle bracket mounting pins door hinge

(_) Spray lubricant

(_) See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease

plastic wheel bearings. Viscous

lubricants will attract dust and dirt that

will shorten the life of the self-lubricat-

ing bearings. If you feel they must be

lubricated, use only a dry, powdered

graphite type lubricant sparingly.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.255441 Manuel utilisateur

Craftsman

Craftsman 917.273860 Manuel utilisateur

Craftsman

Craftsman 917.377061 Manuel utilisateur

Craftsman

Craftsman 917.28858 Manuel utilisateur

Craftsman

Craftsman 917.386121 Manuel utilisateur

Craftsman

Craftsman 917.371570 Manuel utilisateur

Craftsman

Craftsman C459-36201-1 Manuel utilisateur

Craftsman

Craftsman 917.28872 Manuel utilisateur

Craftsman

Craftsman 258360 Manuel du propriétaire

Craftsman

Craftsman EZ3 917.272052 Manuel utilisateur

Craftsman

Craftsman 37411 Manuel utilisateur

Craftsman

Craftsman 917.376582 Manuel utilisateur

Craftsman

Craftsman 917.255551 Manuel utilisateur

Craftsman

Craftsman 3One 917.252531 Manuel utilisateur

Craftsman

Craftsman 27716 Manuel utilisateur

Craftsman

Craftsman 917.271100 Manuel utilisateur

Craftsman

Craftsman 917.271131 Manuel utilisateur

Craftsman

Craftsman 536.270280 Manuel utilisateur

Craftsman

Craftsman 917.28853 Manuel utilisateur

Craftsman

Craftsman 917.378933 Manuel utilisateur

Craftsman

Craftsman 291.376400 Manuel utilisateur

Craftsman

Craftsman 917.388510 Manuel utilisateur

Craftsman

Craftsman 917.9994A Manuel utilisateur

Craftsman

Craftsman 917.28015 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
