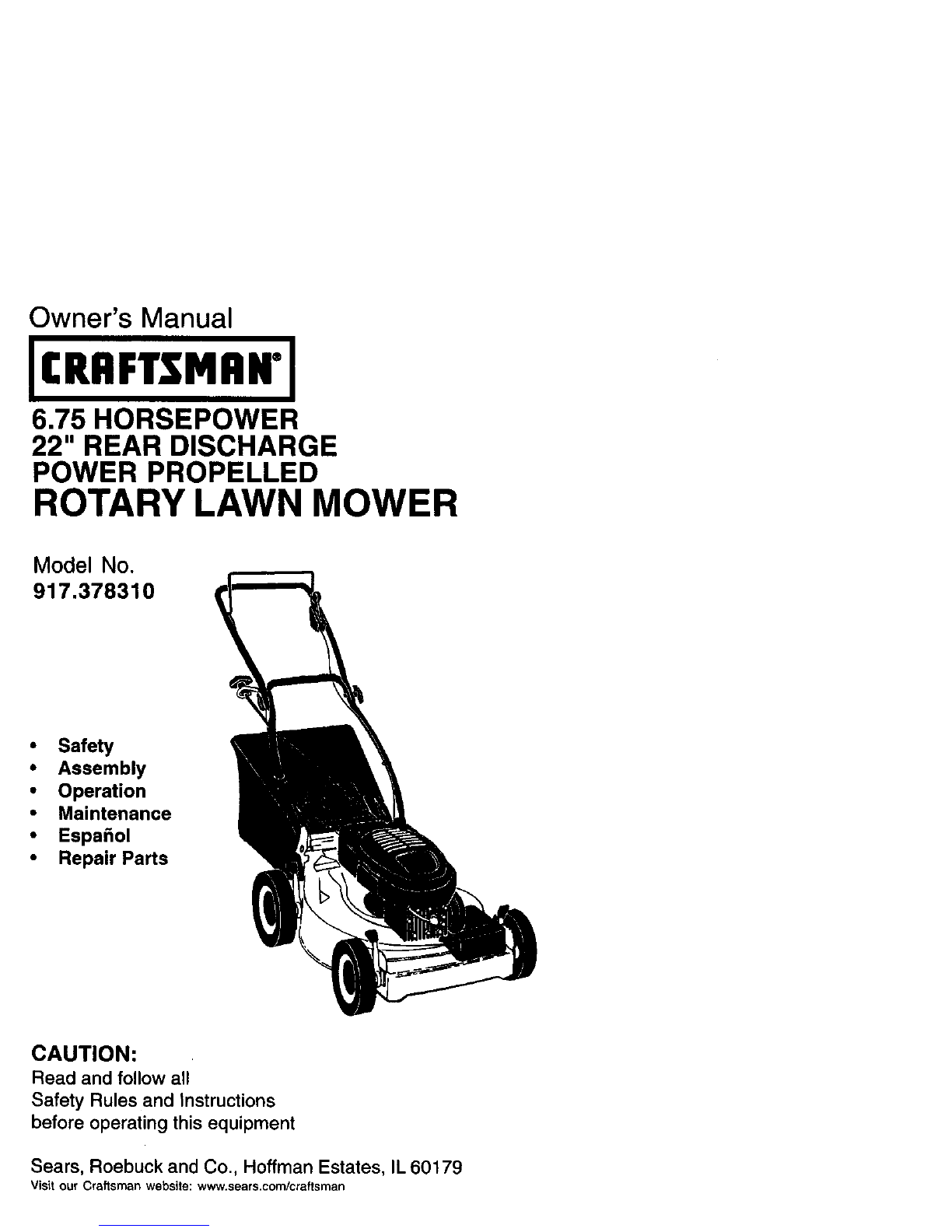

Owner's Manual

ICRIIFTSMAN'I

6.75 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No.

917.378310

•Safety

•Assembly

•Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

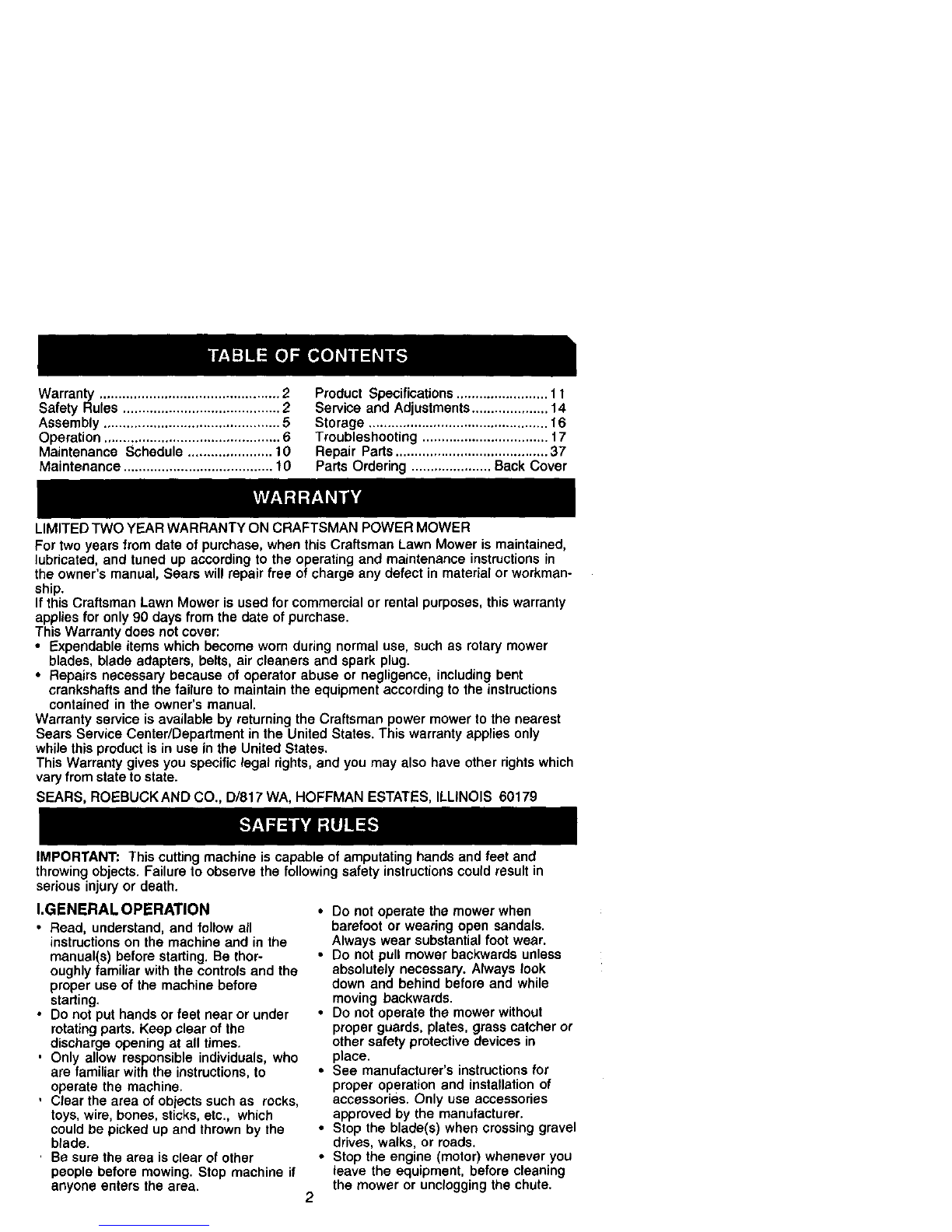

Warranty ............................................... 2

Safety Rules .........................................2

Assembly .............................................. 5

Operation .............................................. 6

Maintenance Schedule ...................... 10

Maintenance ....................................... 10

Product Specifications ........................ 11

Service and Adjustments .................... 14

Storage ............................................... 16

Troubleshooting ................................. 17

Repair Parts ........................................ 37

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUGKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

IMPORTANT= This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I.GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and the

proper use of the machine before

starting.

•Do not put hands or feet near or under

rotating pads. Keep clear of the

discharge opening at all times.

,Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

,Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade.

' Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area. 2

• Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

•Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in

place.

•See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

•Stop the blade(s) when crossing gravel

drives, walks, or roads.

•Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

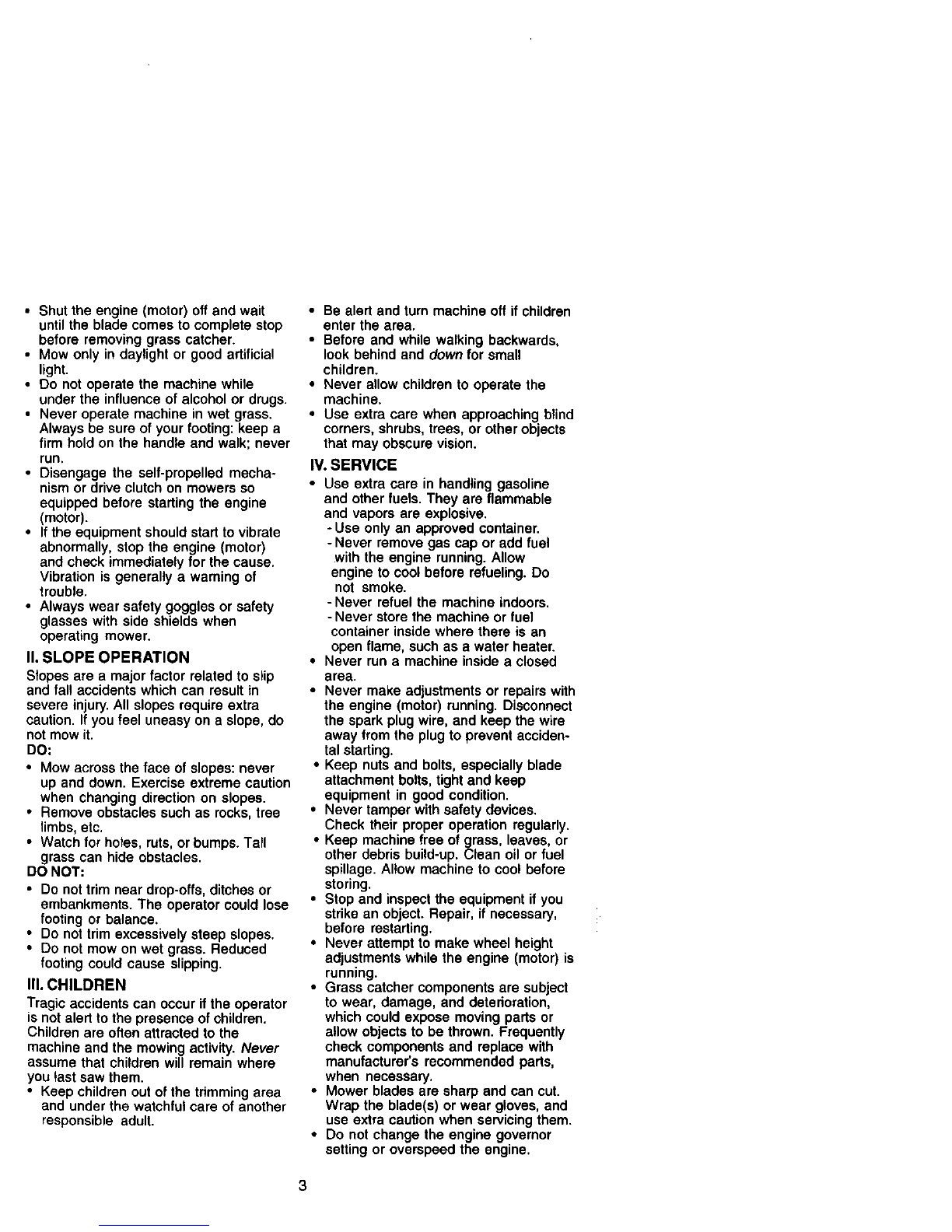

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when

operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fal! accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

In. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you tast saw them.

•Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run amachine inside a closed

area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Do not change the engine governor

setting or overspeed the engine.

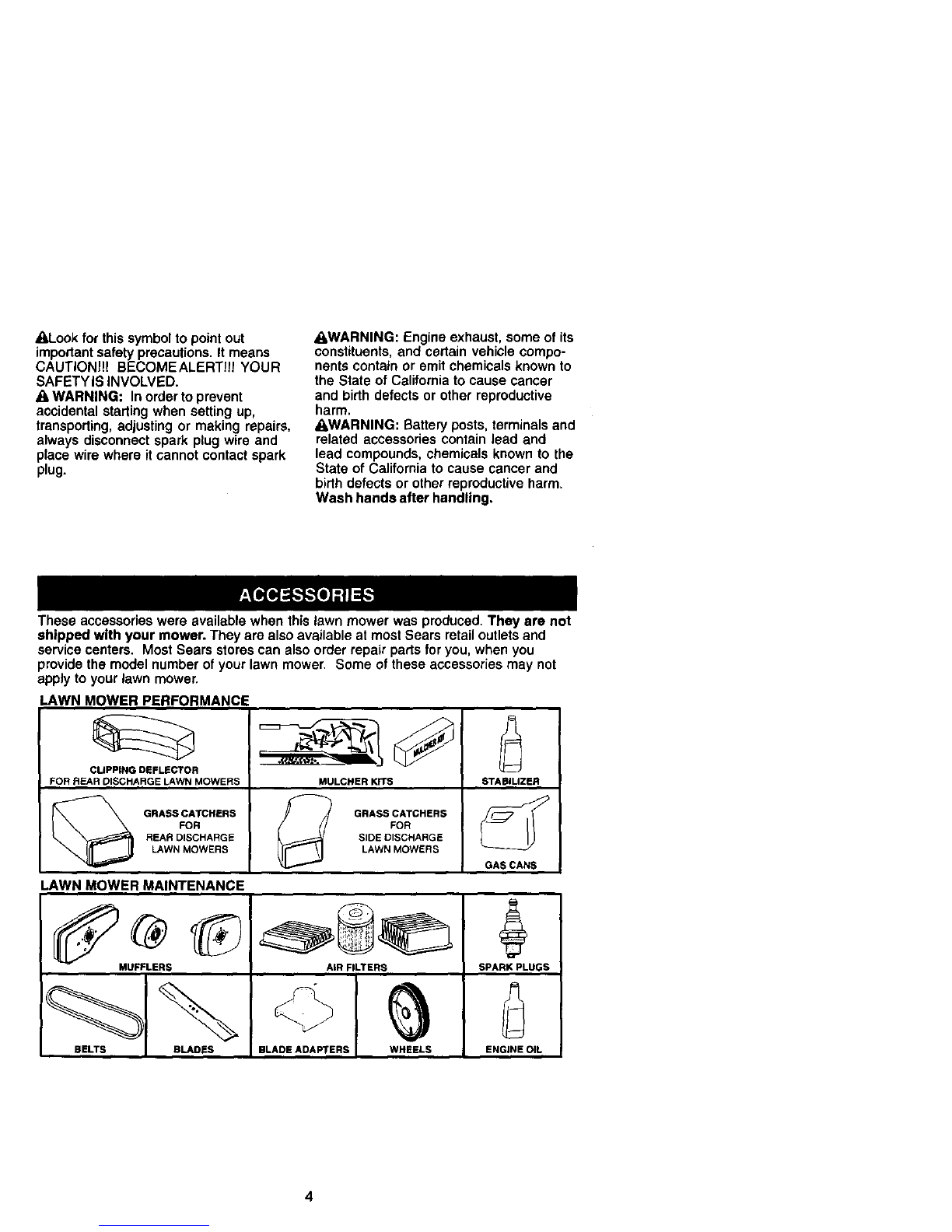

_Look forthissymbolto pointout

importantsafetyprecautions.It means

CAUTIONI!! BECOMEALERT!FrYOUR

SAFETYISINVOLVED.

,A WARNING: Inordertoprevent

accidentalstartingwhensettingup,

transporting,adjustingor makingrepairs,

always disconnect sparkplugwire and

placewirewhere itcannotcontactspark

plug.

_WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Most Sears stores can also order repair parts for you, when you

provide the model number of your lawn mower. Some of these accessories may not

apply to your lawn mower,

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS _1 GRASSCATCHERS

FOR

SIDEDISCHARGE

LAWNMOWER$

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR FILTERS

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

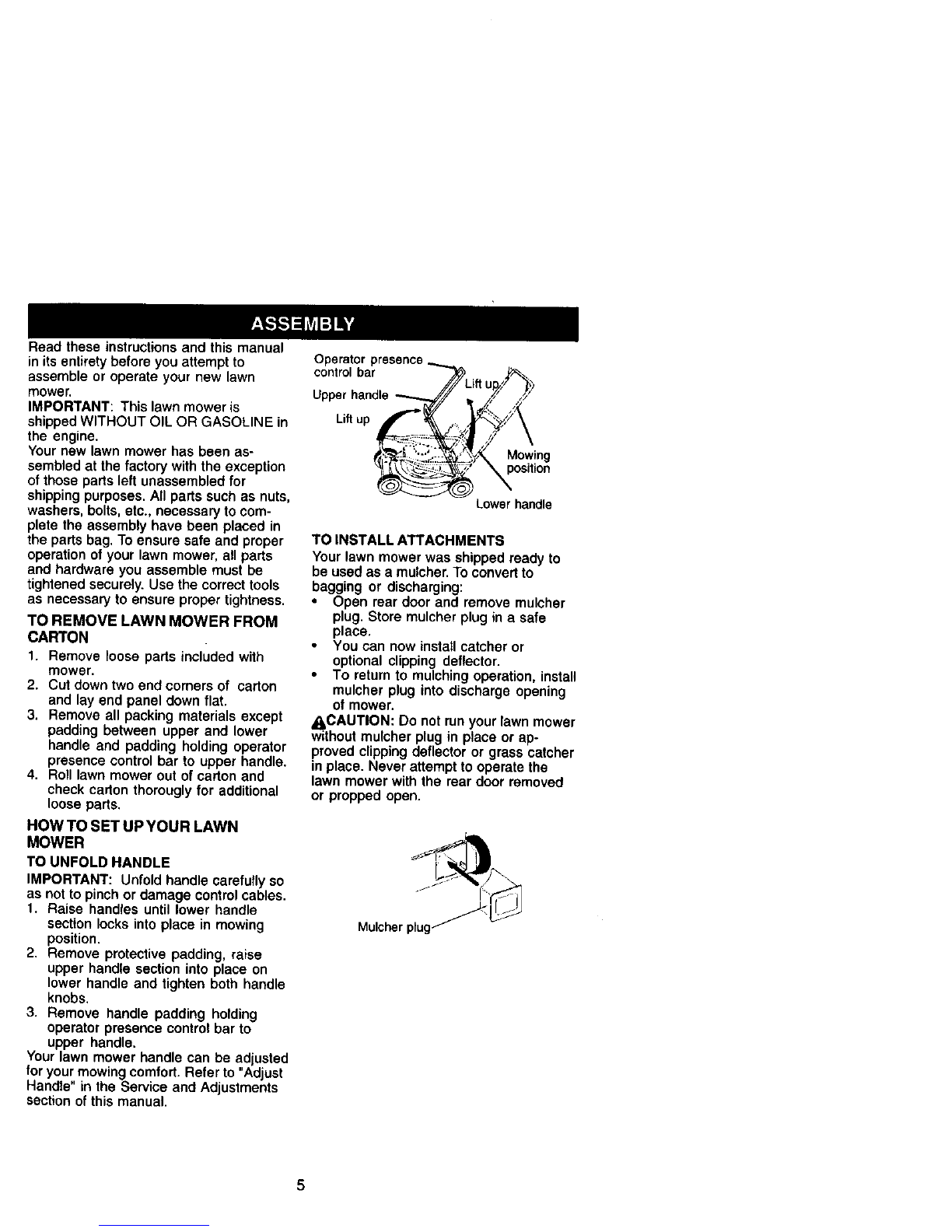

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end comers of cadon

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4, Roll lawn mower out of carton and

check cadon thorougly for additional

loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustments

section of this manual.

Operator presence

control bar

Upper

Liftup

Mowing

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as amulcher. To convert to

bagging or discharging:

• Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

You can now instatl catcher or

optional clipping deflector.

• To return to mulching operation, install

mulcher plug into discharge opening

ofmower.

_CAUTION: Do not run your lawn mower

without mulcher plug in place or ap-

proved clipping deflector or grass catcher

in place. Never attempt to operate the

lawn mower with the rear door removed

or propped open.

Mulcherplug/_'/L<

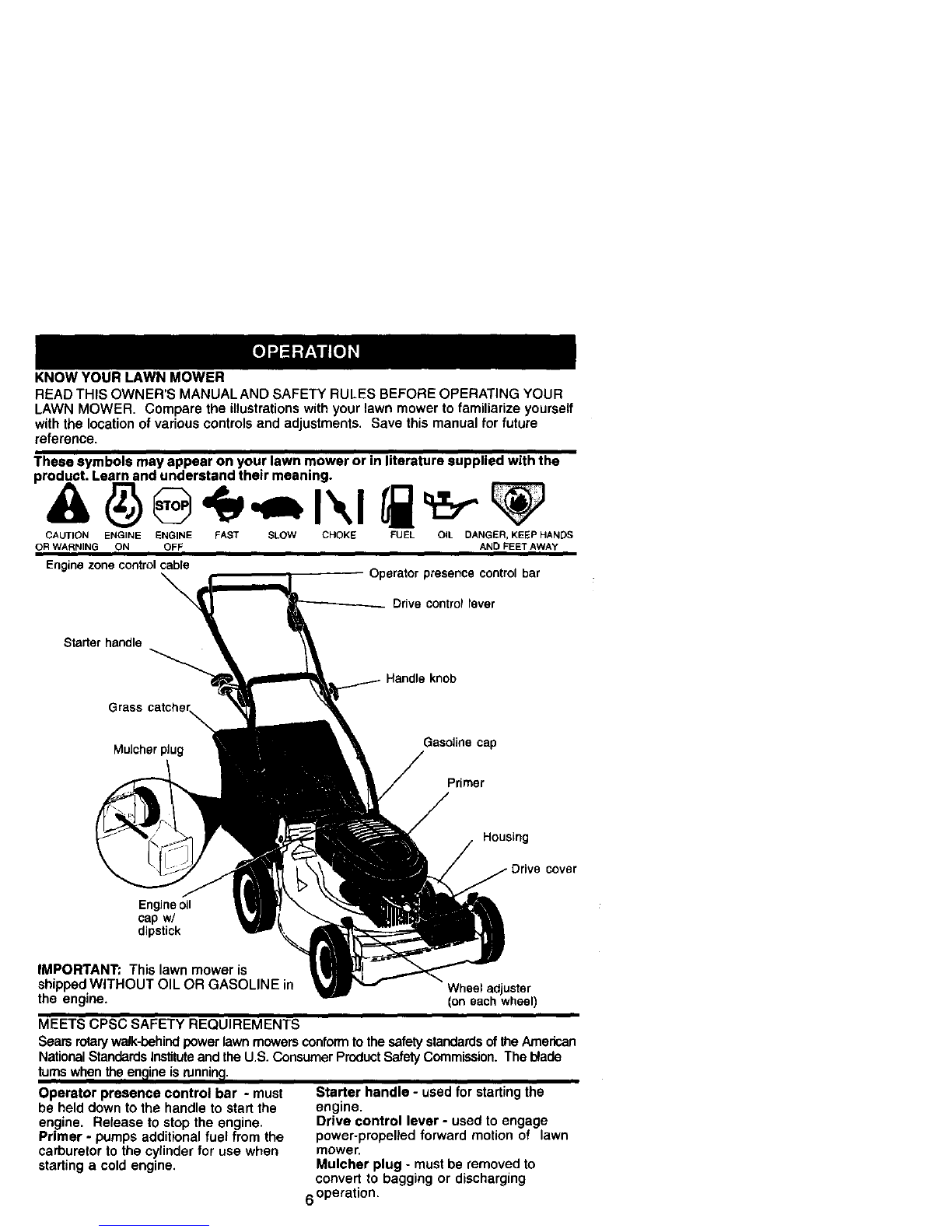

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL Oil DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Enginezone controlcable

\Operator presencecontrol bar

Drive controllever

Starter handle

Mulcherplug Gasoline cap

Primer

Housing

cover

Engine oil

cap w/

dipstick

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in Wheeladjuster

the engine. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotarywalk-behindpower lawn mowers conformto the safety standardsofthe American

NationalStandards Instituteandthe U.S. Consumer ProductSafety Commission.The blade

turns when the engine is mnnin_l.

Operator presence control bar - must

be held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower.

Mulcher plug - must be removed to

convert to bagging or discharging

6 operation.

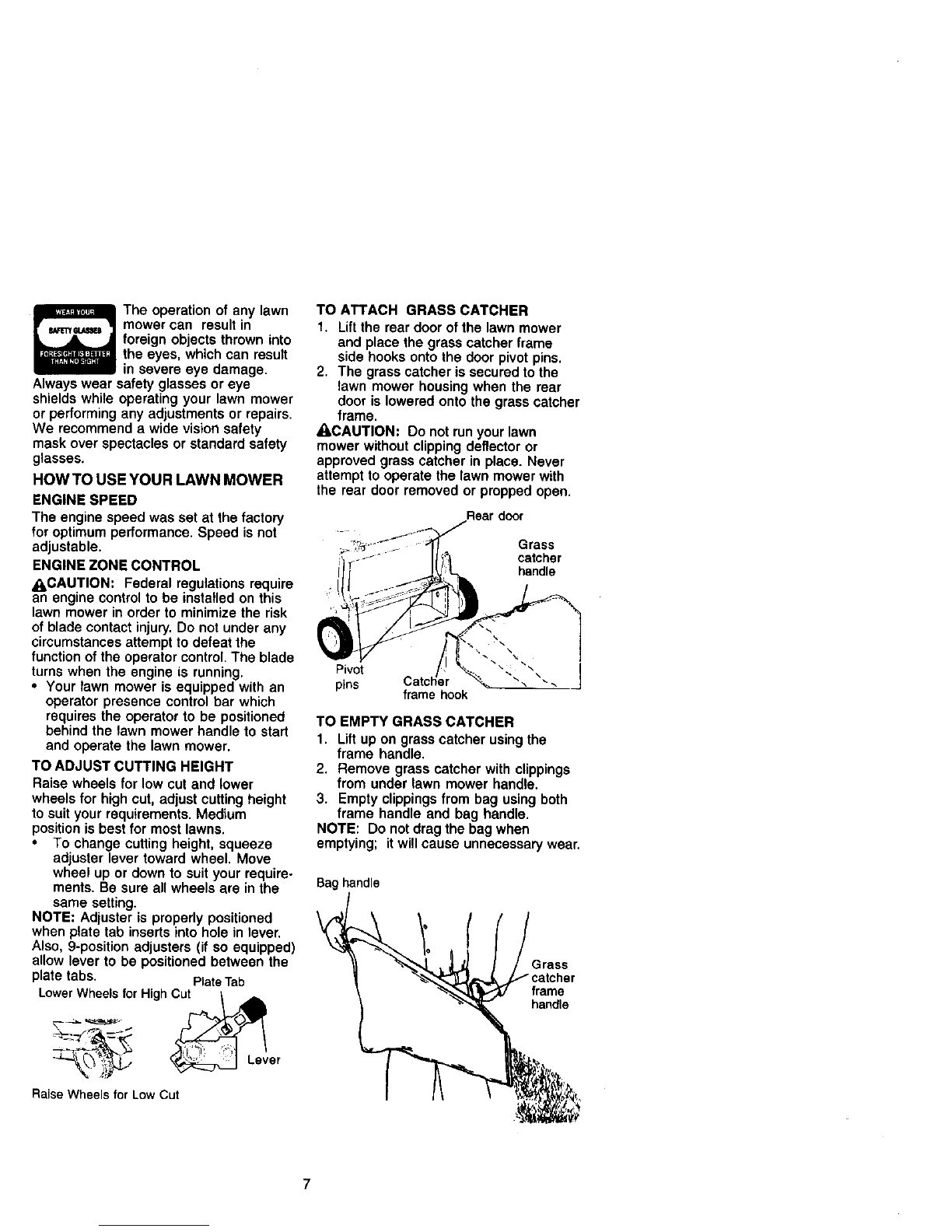

Theoperationof any lawn

mower can result in

foreign objects thrown into

the eyes, which can result

in severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

_I,CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

•To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE; Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs. PlateTab

LowerWheelsfor HighCutr,._L,_

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks onto the door pivot pins.

2. The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

•iLCAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Rear door

Grass

catcher

handle

TO EMPTY GRASS CATCHER

1, Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear,

Bag handle

Grass

frame

handle

DRIVECONTROL

• Self-propellingiscontrolledby holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

•Forward motion will stop when the

operator presence control bar is

released. To step forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down

against handle to continue mowing

without self-propelling.

• To keep drive control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower.

Operator presence control bar Drive

_\ ,_ __ control

Toengage Drive control

drive control disengaged

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz. of oil.

For type and grade of oil to use, see

"ENGINE" in Maintenance section of this

manual.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick, Pour oil slowly.

Do notover fill.

NOTE: Allow oil to settle down into engine

for accurate reading. To read proper level,

tighten engine oil cap, then remove it to

read the dipstick.

3. Reinstall engine oil cap and tighten.

• Check oil level before each use. Add

oil if needed. Fillto full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often under

dusty, didy conditions.

ADD GASOLINE

•Fillfuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gasoline,

Purchase fuel in quantities that can be

used within 30 days to assure fuel

fre_hr,_. ,;

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_l, CAUTION: Fill to bottom ofgas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engineoilcap Gasolinefiller cap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

•To stop engine, release operator

presence control bar.

NOTE: In cooler weather itmay be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not stad. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area asecond

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in Maintenance

section of this manual.

•The special mulching blade will recur

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly out area will not be

exposed to the direct sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

wil! be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and

leaving clumps of mulched grass. For

extremely heavy mulching, reduce your

width of cut by overlapping previously

cut path and mew slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3

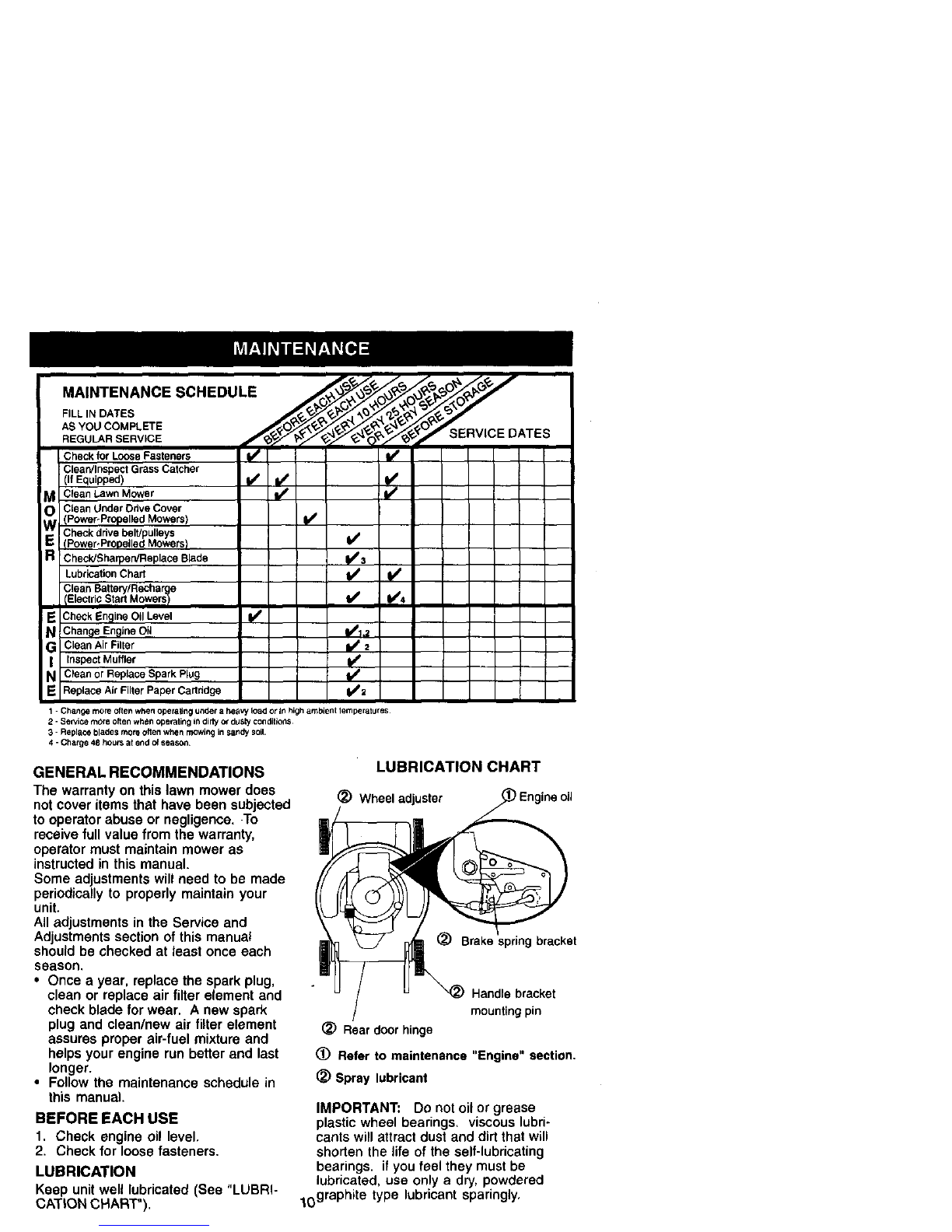

REGULAR SERVICE

ICE DATES

Check for Loose Fasteners I_#

Clean/Inspect Grass Catcher

(If Equipped) _I_

M Clean Lawn Mower li/ bf/

O CLean Under Drive Cover

(Power-Propelled Mowers) I_

Check drive belt/pulleys

RE Poweropropeilad Mowers) _/

CheclVShalpeniReplace Blade _3

Lubrication Chart I_ Ii/

CleanBattery/Recharree

ElectricStart Mowers'_ I/ IIS'4

ECheck Engine 011Level

NChange Engine Oil ql/!,_

JCleanAirFilter l/=

InspectMuffler v'

aClean or Replace Spark Plug II/

EReplace Air Filter Paper Cartridge ip#=

1-Change more oftenwhen operating under a heavy load or in high ambient lemperatgres

2 - Se_'lce more oflen when operating in dirty or duSlycond_tion$

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence, .To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assures proper air-fuel mixture and

helps your engine run better and last

longer.

• Follow the maintenance schedule in

this manual.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CAT|ON CHART"),

LUBRICATION CHART

(_) Wheel adjuster ne oil

_) Brake spring bracket

'(_) Handle bracket

mounting pin

(_) Rear door hinge

(!) Refer to maintenance "Engine" section.

(_) Spray lubricant

IMPORTANT: Do not oil or grease

plastic wheel bearings, viscous lubri-

cants will attract dust and dirt that will

shorten the life of the self-lubricating

hearings, ifyou feel they must be

lubricated, use only a dry, powdered

lographite type lubricant sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.371570 Manuel utilisateur

Craftsman

Craftsman 917.388431 Manuel utilisateur

Craftsman

Craftsman 917.376223 Manuel utilisateur

Craftsman

Craftsman 917.273640 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258531 Manuel utilisateur

Craftsman

Craftsman EZ3 917.272021 Manuel utilisateur

Craftsman

Craftsman 37411 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270812 Manuel utilisateur

Craftsman

Craftsman 917.376653 Manuel utilisateur

Craftsman

Craftsman 247.288861 Manuel utilisateur

Craftsman

Craftsman 917.389053 Manuel utilisateur

Craftsman

Craftsman CX Series Manuel utilisateur

Craftsman

Craftsman 917.27317 Manuel utilisateur

Craftsman

Craftsman 917.374820 Manuel utilisateur

Craftsman

Craftsman 917.377794 Manuel utilisateur

Craftsman

Craftsman 917.377840 Manuel utilisateur

Craftsman

Craftsman 917.375502 Manuel utilisateur

Craftsman

Craftsman 917.272953 Manuel utilisateur

Craftsman

Craftsman 917.37775 Manuel utilisateur

Craftsman

Craftsman 917.25355 Manuel utilisateur

Craftsman

Craftsman 917.379371 Manuel utilisateur

Craftsman

Craftsman 917.275630 Manuel utilisateur

Craftsman

Craftsman EZ3 917.386153 Manuel utilisateur

Craftsman

Craftsman 25550 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
