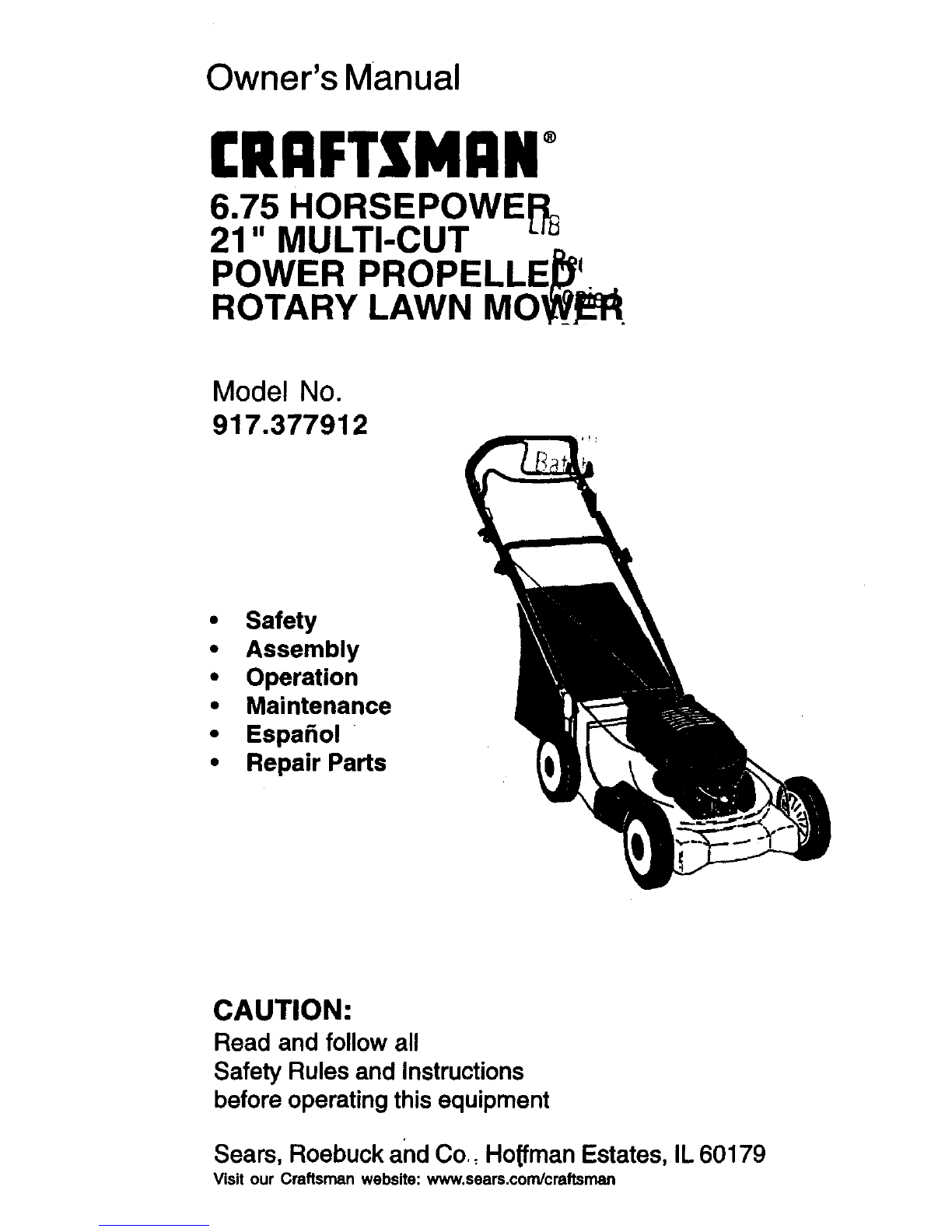

Craftsman 917.377912 Manuel utilisateur

Owner's Manual

£RAFTZMANo

6.75 HORSEPOWER

21" MULTI-CUT L,_

POWER PROPELLE_ _

ROTARY LAWN MO__EI:_

Model No.

917.377912

• Safety

• Assembly

• Operation

• Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Seam, Roebuck and Co,, Hotfman Estates, IL 60179

Visit our Craftsman webslte: www.sears.condcraftsman

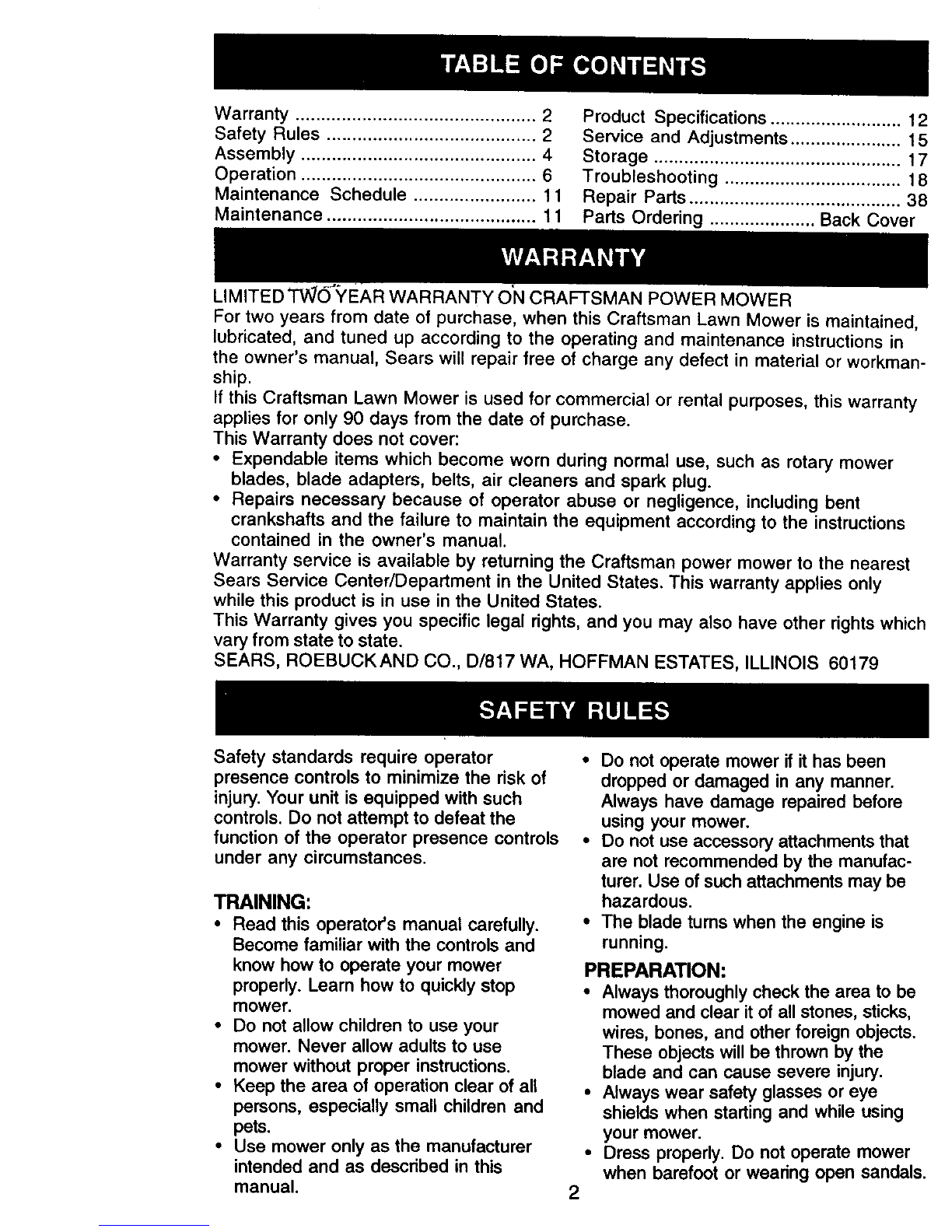

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 4

Operation .............................................. 6

Maintenance Schedule ........................ 11

Maintenance ......................................... 11

Product Specifications .......................... 12

Service and Adjustments ...................... 15

Storage ................................................. 17

Troubleshooting ................................... 18

Repair Parts .......................................... 38

Parts Ordering ..................... Back Cover

LIMITED TWO-_'EAR WARRANTY O'N CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence controls to minimize the risk of

injury. Your unit is equipped with such

controls. Do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

•Do not allow children to use your

mower, Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

• Use mower only as the manufacturer

intended and as described in this

manual.

•Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

• Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

• The blade turns when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while using

your mower.

• Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank. Clean

off any spilled gasoline before starting

the engine.

• Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not let

other interests distract you.

•Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing -- keep afirm

hold on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

°Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel-covered areas.

° Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep itaway from

the spark plug to prevent accidental

starting.

•Do not continue to run your mower ifyou

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

• Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous. 3

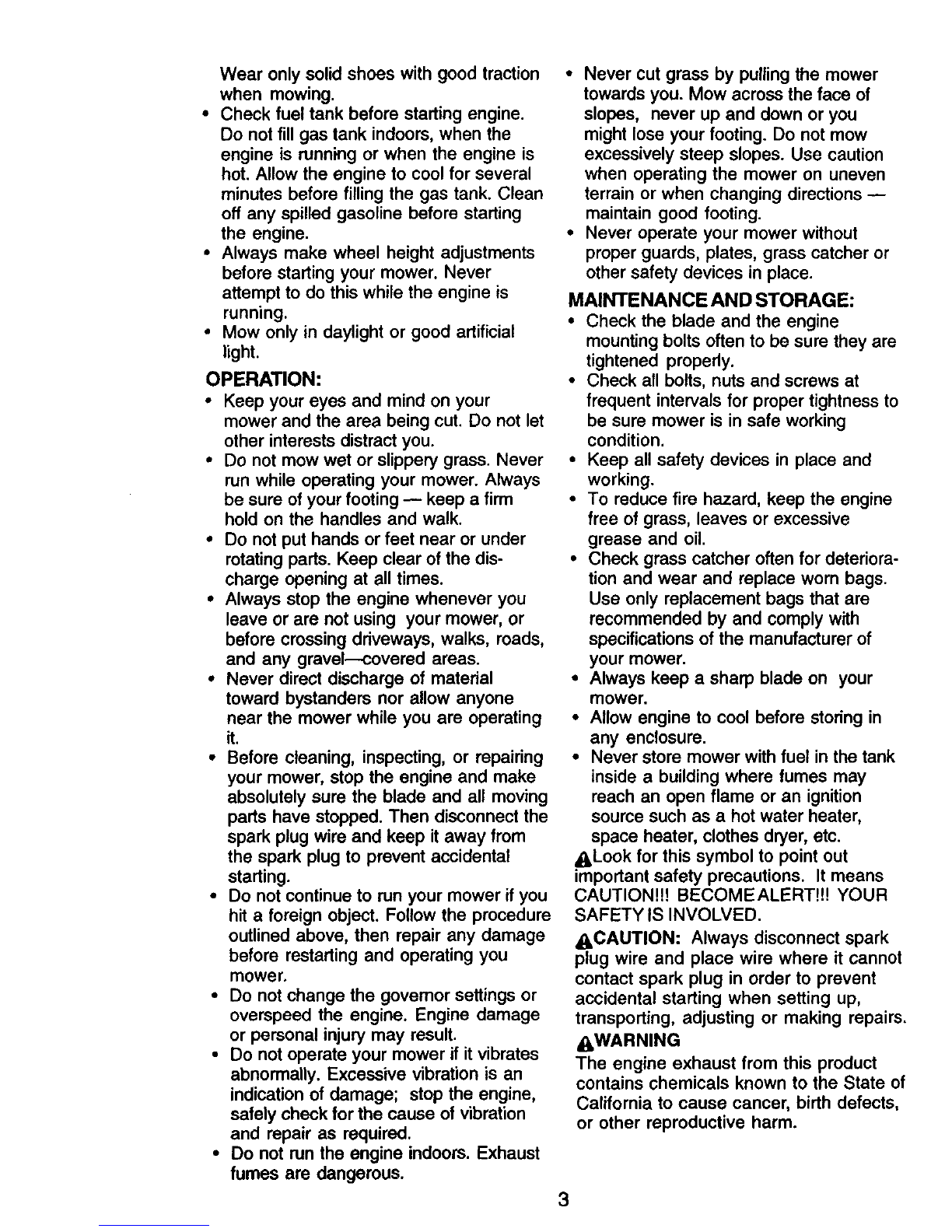

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

_Look for this symbol to point out

important safety precautions. It means

CAUTIONH! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

ACAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

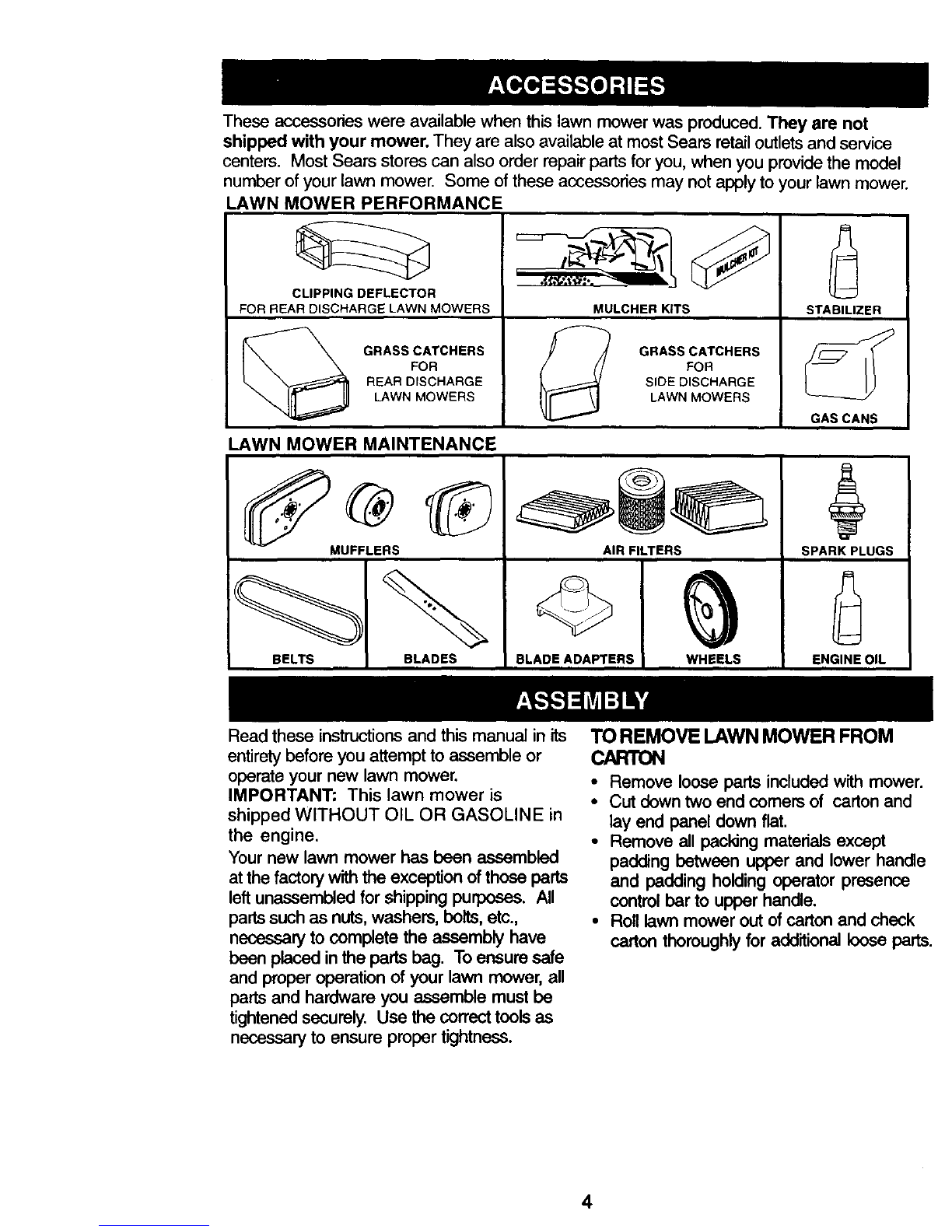

Theseaccessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS !GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructionsand this manual in its

entirety before you attempt to assemble or

operate your new lawn mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been assembled

at the factory with the exception of those parts

leftunassembled for shipping purposes. All

partssuch as nuts, washers, bolts,etc.,

necessary to complete the assembly have

been placed in the pads bag. To ensure safe

and proper operation of your lawn mower, all

pads and hardware you assemble must be

tightened securely. Use the correct tools as

necessary to ensure proper tightness.

TOREMOVE LAWNMOWER FROM

CARTON

•Remove loose pads includedwith mower.

•Cut down two end comers of carton and

lay end panel down flat.

• Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose pads.

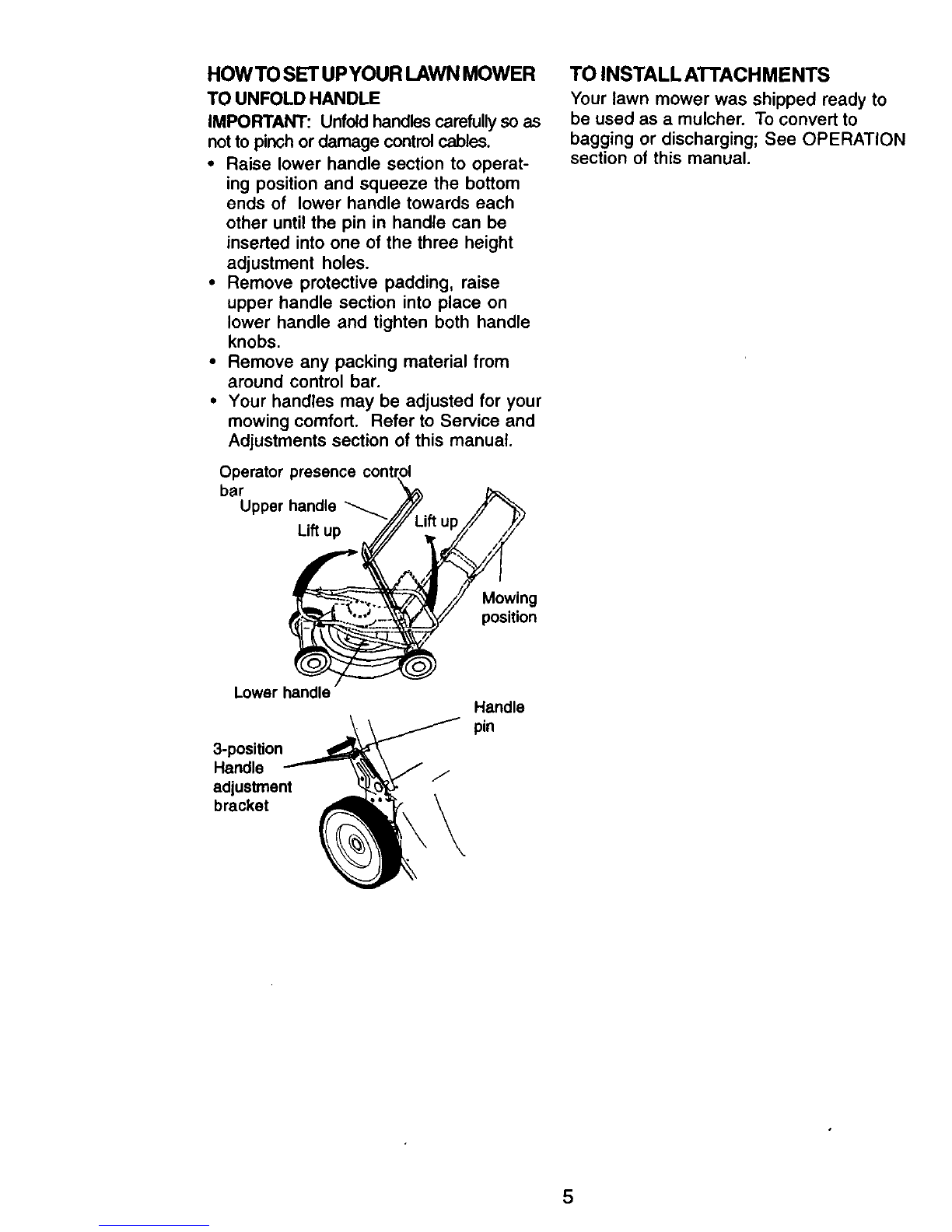

HOWTO SETUPYOUR LAWNMOWER

TO UNFOLDHANDLE

IMPORTANT: Unfold handles carefully so as

not to pinch or damage control cables.

•Raise lower handle section to operat-

ing position and squeeze the bottom

ends of lower handle towards each

other until the pin in handle can be

inserted into one of the three height

adjustment holes.

•Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

•Remove any packing material from

around control bar.

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator presence

barUpper handle

Lift up

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging; See OPERATION

section of this manual.

Mowing

position

Lower handle

3-position

Handle

adjustment

bracket

Handle

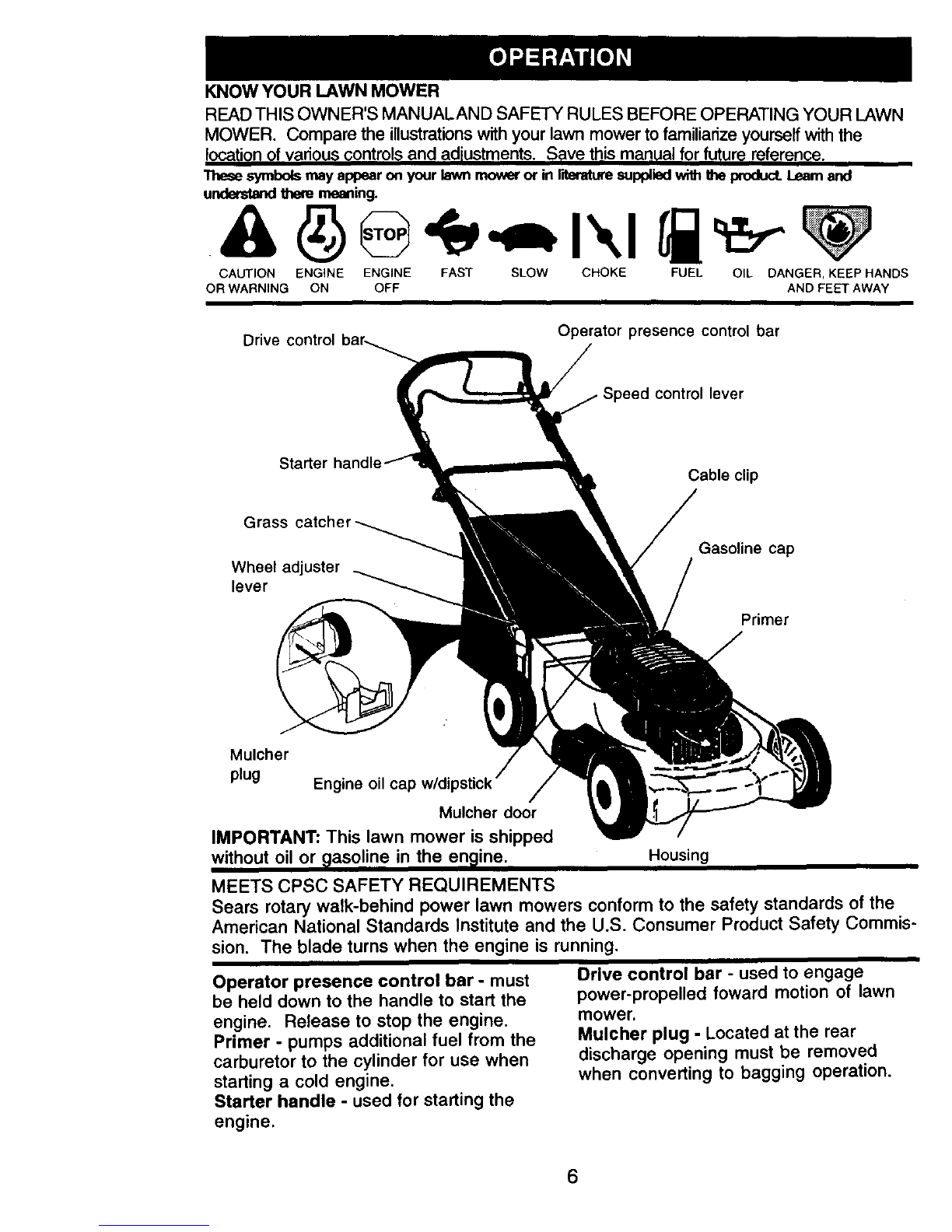

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER, Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adiustments. Save this manual for future reference.

_symbolsmayappearon yourlawnmoweror inr_eraturesuppliedwithU,deproduct.Leamend

understandthem meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Drive control Operator presence control bar

Speed control lever

Starter Cable clip

Grass catcher

Wheel adjuster

lever

Gasoline cap

Primer

Mulcher

plug Engine oil cap

Mulcher door

IMPORTANT: This lawn mower is shipped

without oil or gasoline in the en_line. Housing

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control bar - used to engage

power-propelled foward motion of lawn

mower.

Mulcher plug -Located at the rear

discharge opening must be removed

when converting to bagging operation.

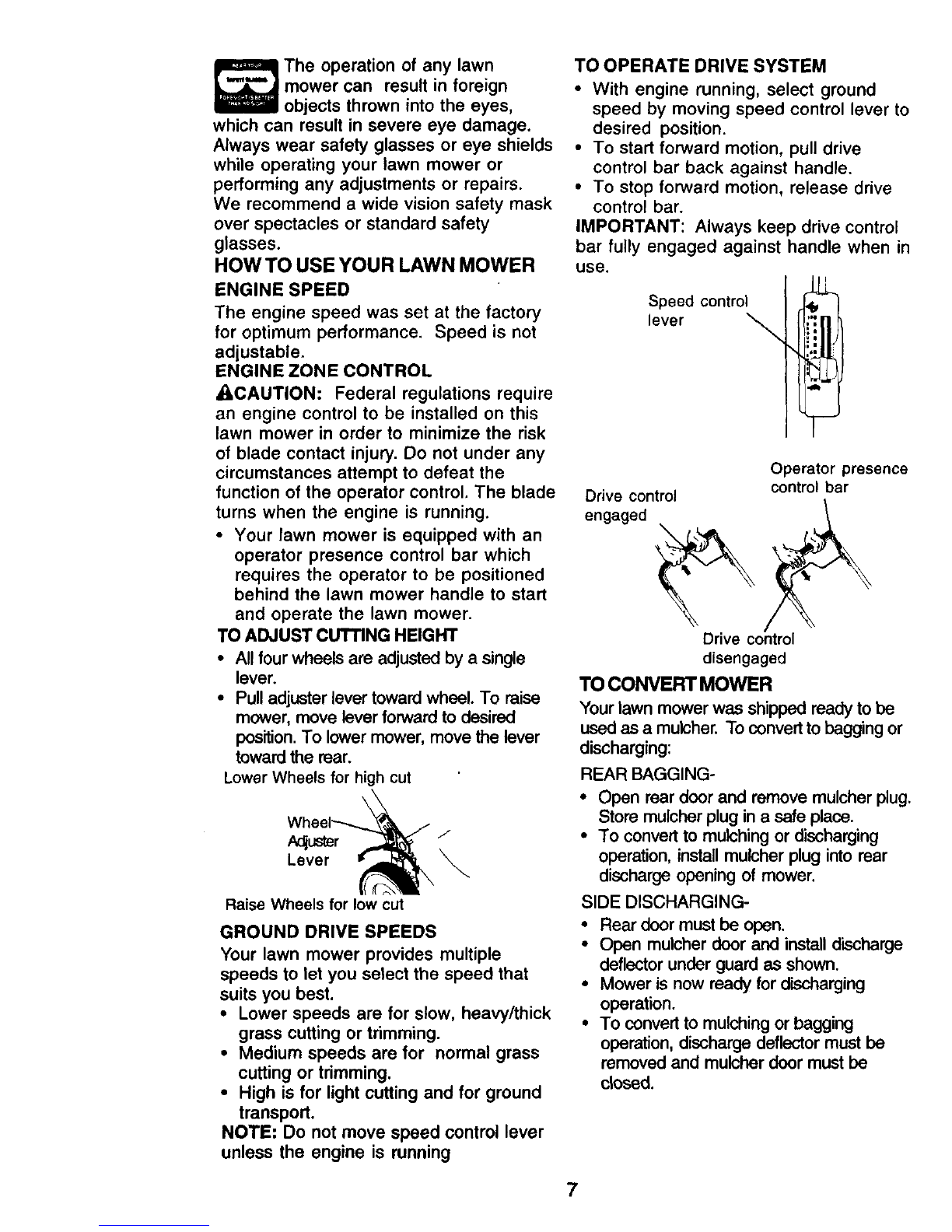

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye shields

while operating your lawn mower or

performing any adjustments or repairs.

We recommend a wide vision safety mask

over spectacles or standard safety

glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

•-CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

• All four wheels are adjusted by a single

lever.

•Pull adjuster lever toward wheel. To raise

mower, move lever forward to desired

position.To lower mower, move the lever

toward the rear.

LowerWheels for high cut

Adjuster J

Lever

Raise Wheels for low cut

GROUND DRIVE SPEEDS

Your lawn mower provides multiple

speeds to let you select the speed that

suits you best.

•Lower speeds are for slow, heavy/thick

grass cutting or trimming.

•Medium speeds are for normal grass

cutting or trimming.

•High is for light cutting and for ground

transport.

NOTE: Do not move speed control lever

unless the engine is running

TO OPERATE DRIVE SYSTEM

• With engine running, select ground

speed by moving speed control lever to

desired position.

• To start forward motion, pull drive

control bar back against handle.

• To stop forward motion, release drive

control bar.

IMPORTANT: Always keep drive control

bar fully engaged against handle when in

use.

Speed control

lever

Drive control

engaged

Operator presence

control bar

Drive control

disengaged

TOCONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging or

discharging:

REAR BAGGING-

•Open rear door and remove mulcher plug.

Store mulcher plug in asafe place.

•To convert to mulching or discharging

operation, install mulcher plug into rear

discharge opening of mower.

SIDE DISCHARGING-

•Rear door must be open.

• Open mulcher door and install discharge

deflector under guard as shown.

•Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

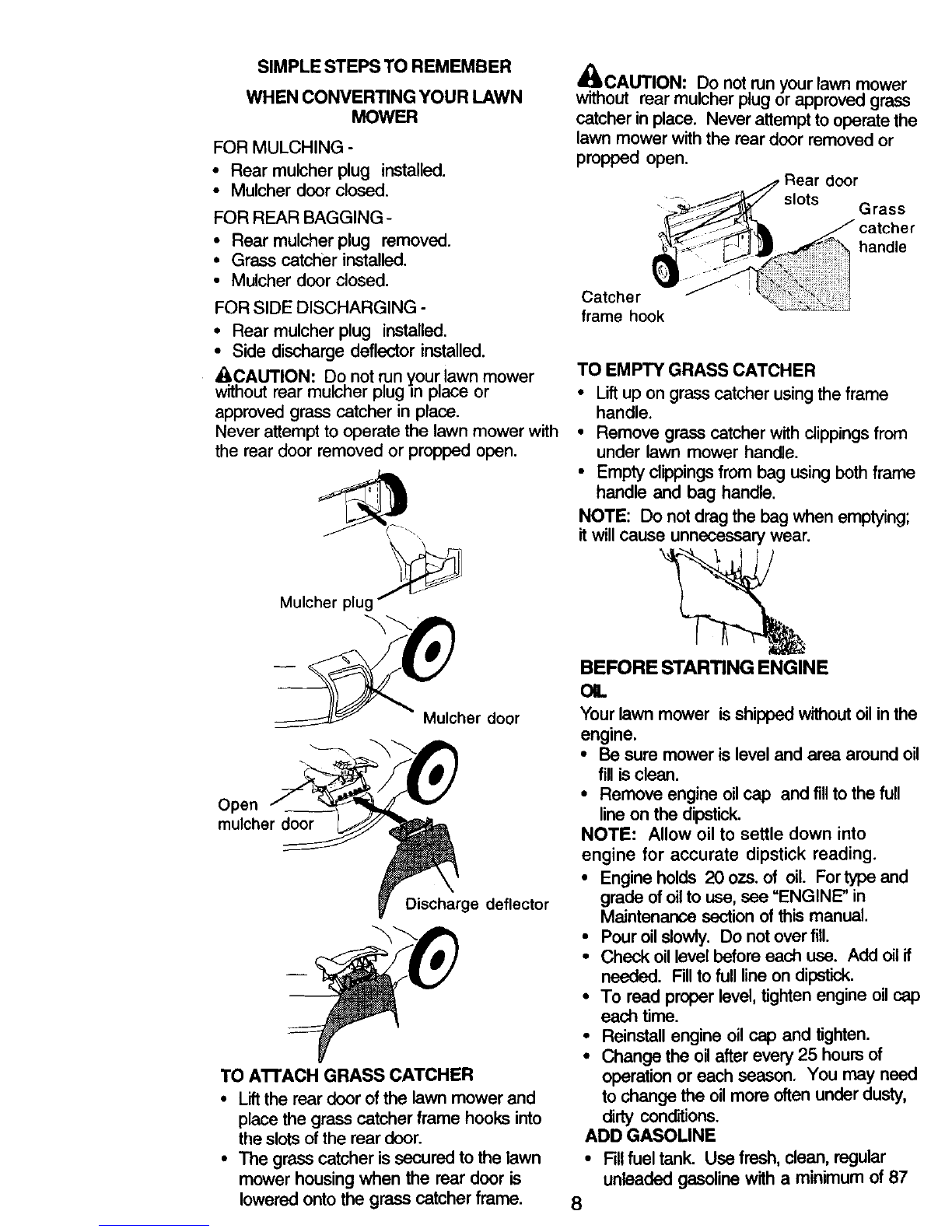

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear mulcher plug installed.

• Mulcher door closed.

FOR REAR BAGGING -

• Rear mulcher plug removed.

• Grass catcher installed.

•Mulcher door closed.

FOR SIDE DISCHARGING -

• Rear mulcher plug installed.

• Side discharge deflector installed.

&CAUTION: D.onot _n your lawn mower

without rear mulcner plug m place or

approved grass catcher in place.

Never attempt to operate the lawn mower with

the rear door removed or propped open.

Mulcher plug _

£t

m_CAUTION: Do not run your lawn mower

without roar mulcher plug or approved grass

catcher in place. Never attempt to operate the

lawn mower with the roar door removed or

propped open. door

slots Grass

Catcher

frame hook

handle

TO EMPTYGRASSCATCHER

• Lift up on grass catcher using the frame

handle.

• Remove grass catcher with clippings from

under lawn mower handle.

• Empty clippings from bag using both frame

handle and bag handle.

NOTE: Do not drag the beg when emptying;

it willcause unnecessary wear.

Mulcher door

Open

mulcher door

Discharge deflector

TO A'B'ACH GRASS CATCHER

•Liftthe rear door ofthe lawn mower and

peacethe grass catcher frame hooks into

the slotsof the rear door.

•The grass catcher is secured to the lawn

mower housing when the roar door is

lowered onto the grass catcher frame.

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped withoutoil in the

engine.

•Be sure mower is level and area around oil

fillis clean.

•Remove engine oilcap and fillto the full

lineon the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20 ozs. of oil. For type and

grade of oil to use, see "ENGINE" in

Maintenance section of this manual.

• Pour oil slowly. Do not over fill.

• Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

• To read proper level, tighten engine oil cap

each time.

• Reinstall engine oil cap and tighten.

• Change the oil after every 25 hours of

operation or each season, You may need

to change the oil more often under dusty,

dirty conditions.

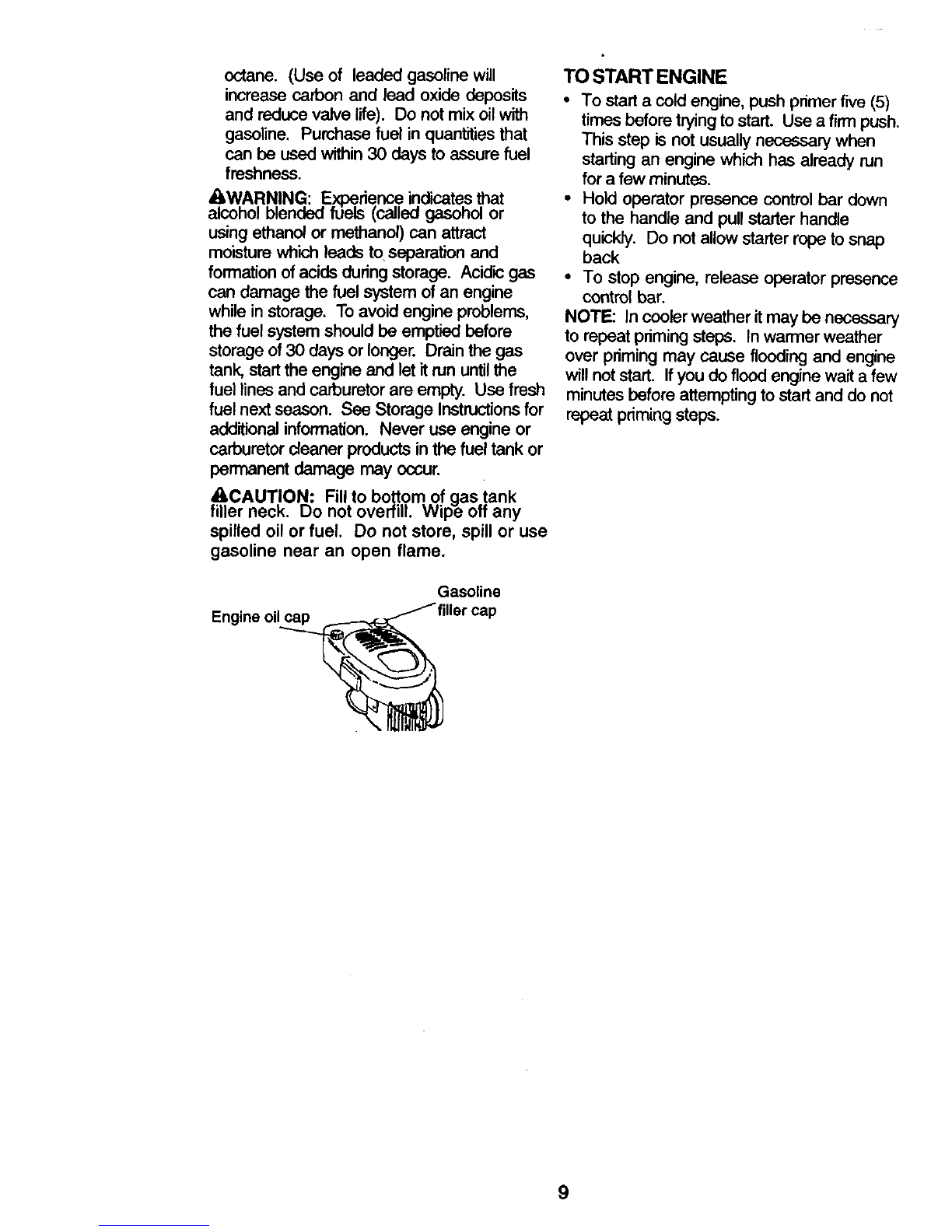

ADD GASOLINE

•Fillfuel tank. Use frosh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with

gasoline. Purchase fuel in quan_les that

can be used within 30 days to assure fuel

freshness.

_WpAoRNING: E.xp#.rieneaindicatesthat

I blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine

while in storage. To avoid engine problems,

the fuel system should be emptied before

storage of30 days or longer. Drain the gas

tank, startthe engine and let it run untilthe

fuel lines and carburetor are empty. Use fresh

fuel next season. Sea Storage Instructionsfor

additionalinformation. Never use engine or

carburetor cleaner products in the fuel tank or

permanent damage may occur.

f._CAUT.ION: Fill.to bosom of gas.tank

iher necK. uo not overfill, wipe on any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

Engine oil cap

Gasoline

cap

TO START ENGINE

•To start a cold engine, push primer five (5)

times before tryingto start. Use a firm push.

This step is not usually necessary when

starting an engine which has already run

for a few minutes.

• Hold operator presence control bar down

to the handle and pullstarter handle

quickly. Do not allow starter rope to snap

back

•To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be necessary

to repeat priming steps. In warmer weather

over priming may cause flooding and engine

will not start. If you do flood engine wait a few

minutes before attempting to start and do not

repeat priming steps.

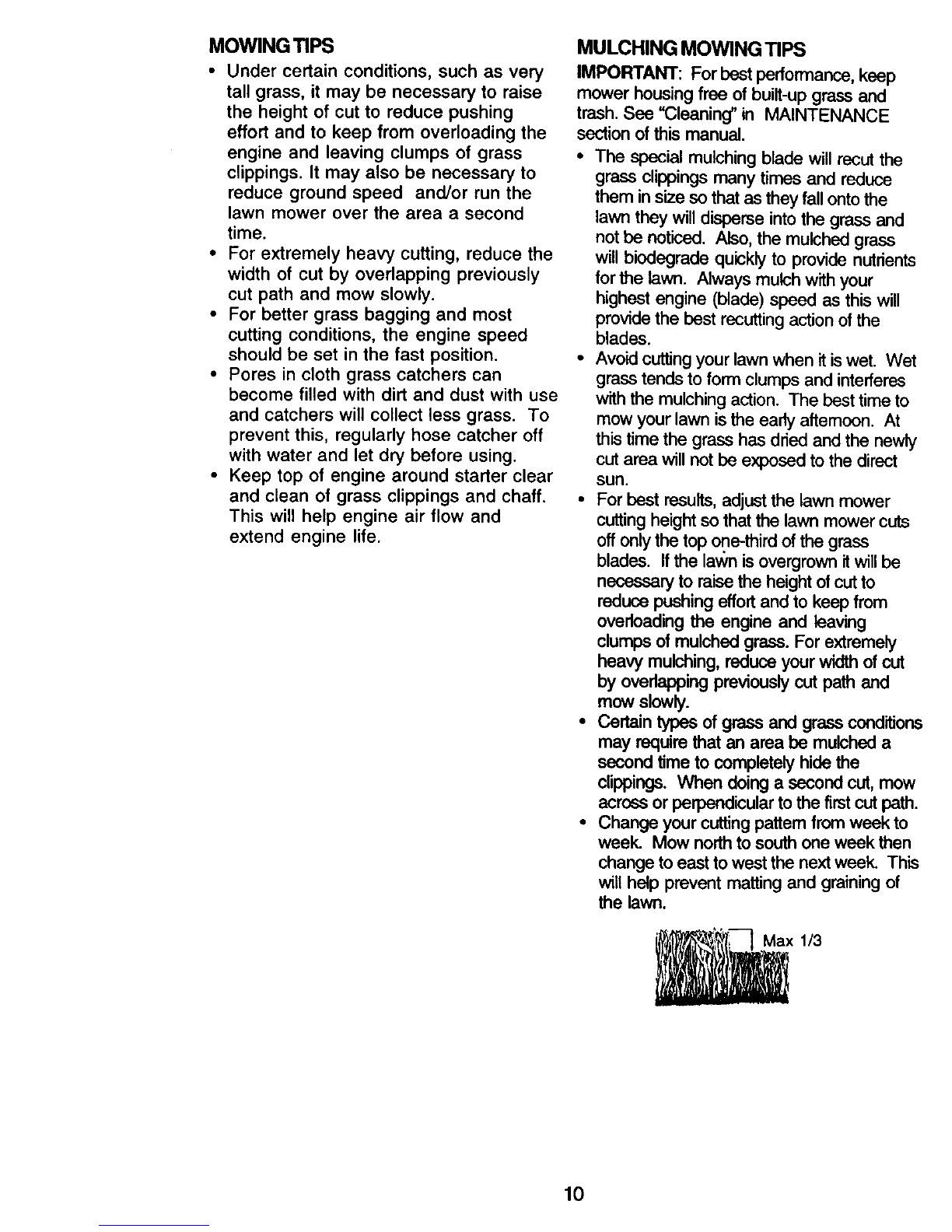

MOWING TIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-upgrass and

trash. See "Cleaning" in MAINTENANCE

section of this manual,

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall ontothe

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass

will biodegrade quickly to provide nutrients

for the lawn. Always mulch with your

highest engine (blade) speed as this will

provide the best recutting action of the

blades.

• Avoid cutting your lawn when it iswet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemoon. At

this time the grass has dried and the newly

cut area willnot be exposed to the direct

sun.

•For best results,adjustthe lawn mower

cuttingheight so that the lawn mower cuts

off only the top one-thirdof the grass

blades. If the lawn isovergrown it willbe

necessary to raise the height of cut to

reduce pushing effortand to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width ofcut

by overlapping previously cut path and

mowslowly.

•Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the firstcut path.

•Change your cuttingpattem from week to

week. Mow northto south one week then

change to east to west the nextweek. This

will help prevent matting and grainingof

the lawn.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman EZ3 917.377530 Manuel utilisateur

Craftsman

Craftsman 917.20381 Manuel utilisateur

Craftsman

Craftsman 917.273391 Manuel utilisateur

Craftsman

Craftsman 917.276782 Manuel utilisateur

Craftsman

Craftsman 917.275010 Manuel utilisateur

Craftsman

Craftsman 917.388511 Manuel utilisateur

Craftsman

Craftsman M100 Manuel utilisateur

Craftsman

Craftsman 917.273392 Manuel utilisateur

Craftsman

Craftsman 900.370510 Manuel utilisateur

Craftsman

Craftsman 917.272962 Manuel utilisateur

Craftsman

Craftsman 944.603620 Manuel utilisateur

Craftsman

Craftsman 917.9998C Manuel utilisateur

Craftsman

Craftsman 917.389620 Manuel utilisateur

Craftsman

Craftsman 917.377576 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271011 Manuel utilisateur

Craftsman

Craftsman 917.370447 Manuel utilisateur

Craftsman

Craftsman 37147 Manuel utilisateur

Craftsman

Craftsman 944.361330 Manuel utilisateur

Craftsman

Craftsman EZ3 917.387120 Manuel utilisateur

Craftsman

Craftsman 917.378551 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270642 Manuel utilisateur

Craftsman

Craftsman 917.388760 Manuel utilisateur

Craftsman

Craftsman 917.374092 Manuel utilisateur

Craftsman

Craftsman 27732 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
