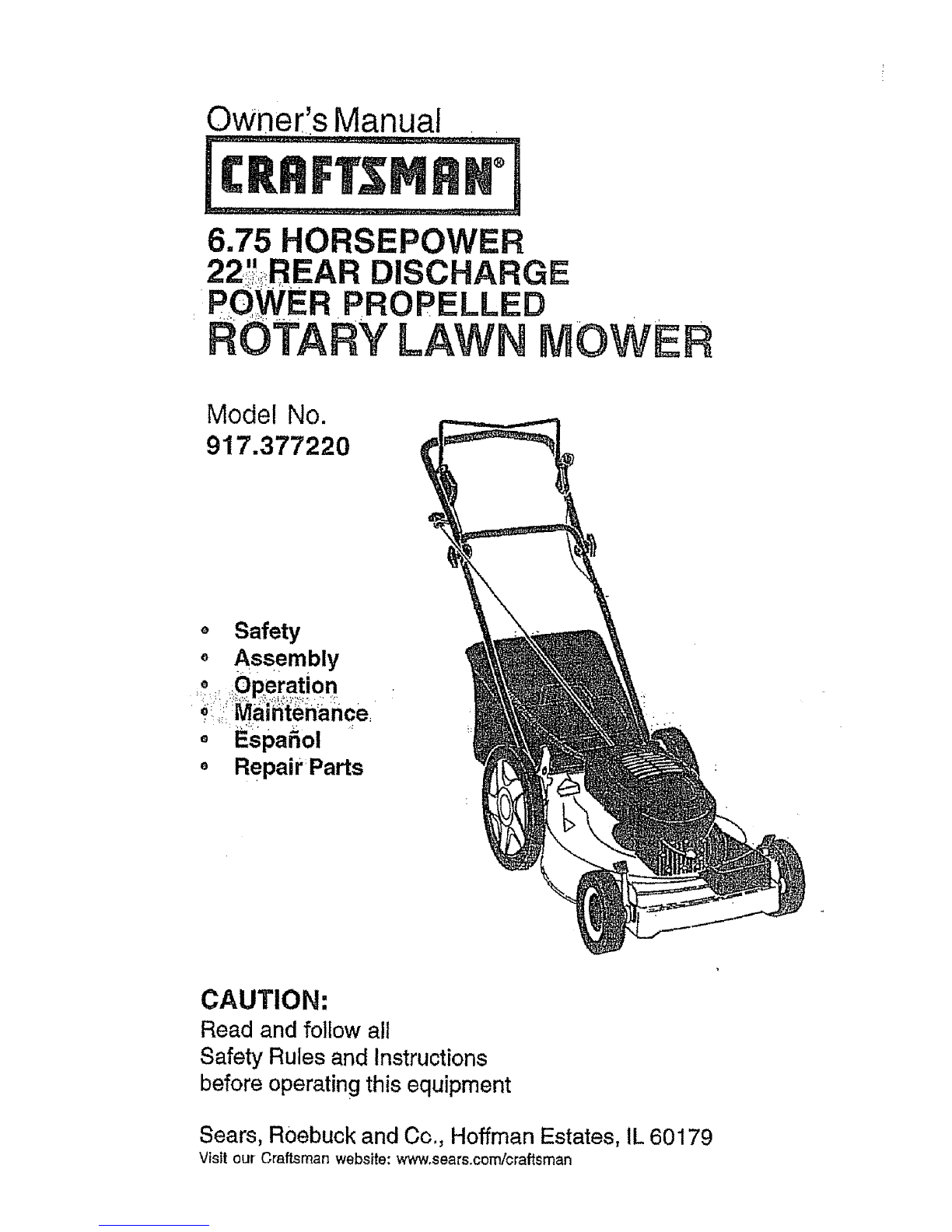

Craftsman 917.377220 Manuel utilisateur

Owne[,s Manual

6.75 HORSEPOWER

22!_i!,iREARDISCHARGE

POWER PROPELLED

ROTARY LAWN MOWE

Model No.

917.377220

Safety

oAssembly

o• Operation

....:i_:Spa6ol :

oRepair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, tL 60179

Visit our Craftsman website: www_sears.com/craftsman

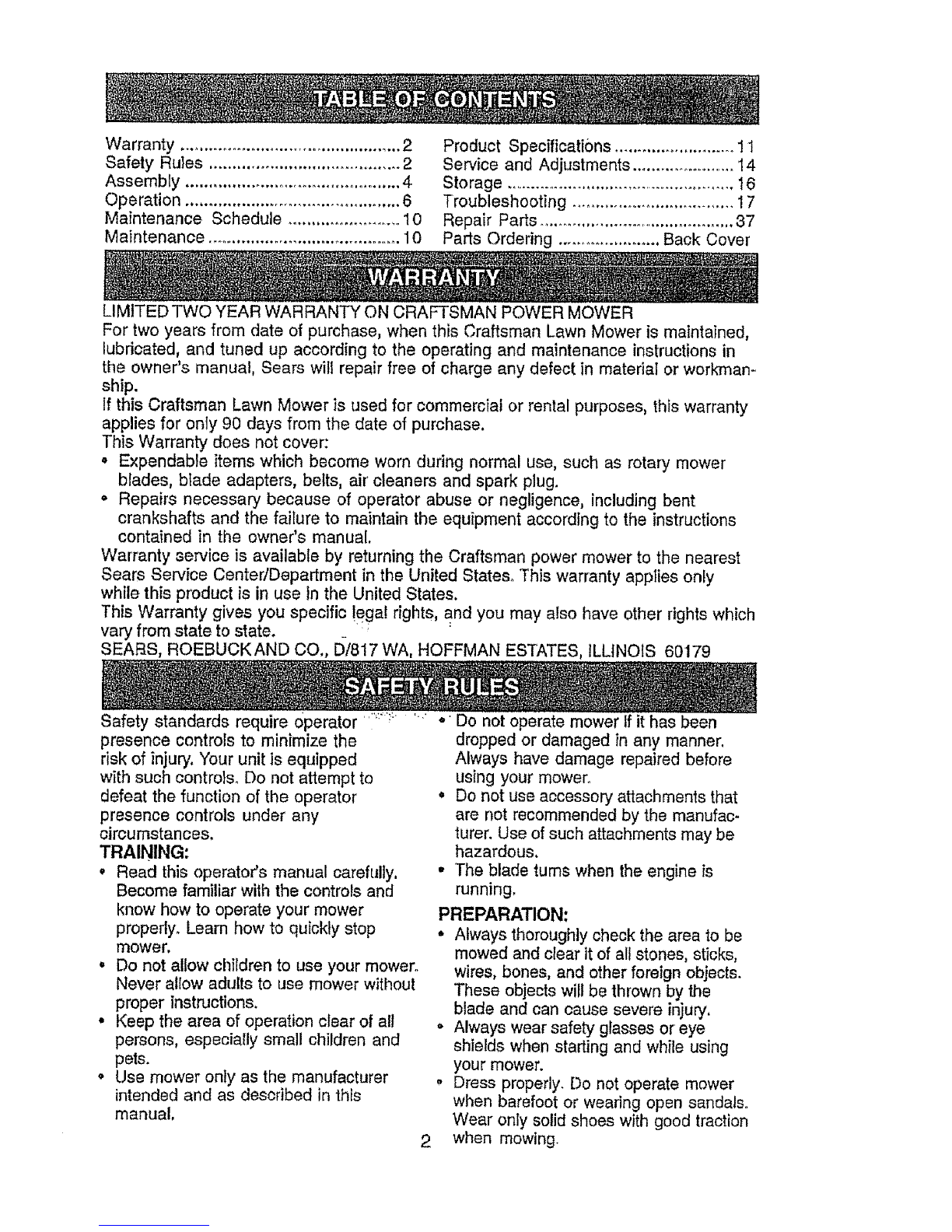

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 4

Operation .............................................. 6

Maintenance Schedule ........................ 10

Maintenance .............................................10

Product Specifications .......................... ! 1

Service and Adjustments .........................14

Storage .................................................... 16

Troubleshooting .................................... 17

Repair Parts ........................................... 37

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubdcated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or renlal purposes, thts warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

o Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific !ega! rights, and you may also have other rights which

vary from state to state.

SEAF3S,ROEBUCKAND CO,, 1_/817WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require Operator ': ;:.... ' ,, Do not operate mower If it has been

presence controls to minimize the

risk of injury. Your unit is equipped

with such controls. Do not attempt to

defeat the function of the operator

presence controls under any

circumstances,

TRAINING"

• Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

° Do not allow children to use your mower_

Never allow adults to use mower without

proper instructions.

° Keep the area of operation clear of all

persons, especially small children and

pots.

° Use mower only as the manufacturer

intended and as described in this

manual,

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

o Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous,

• The blade turns when the engine is

running,

PREPARATION:

° Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

oAlways wear safety glasses or eye

shields when starting and while using

your mower.

° Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

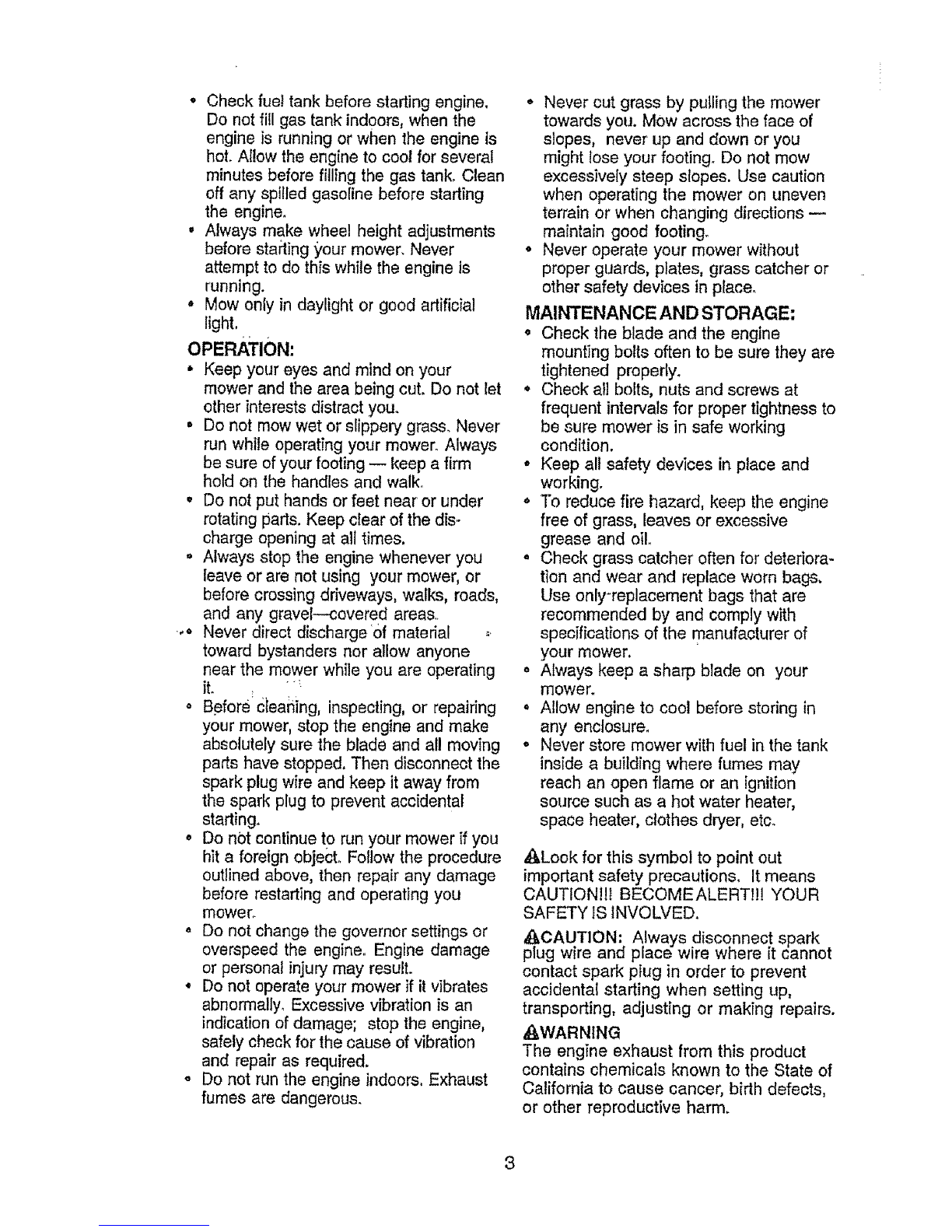

• Checkfueltankbeforestartingengine,

Donotfill gastankindoors,whenthe

engineis runningorwhentheengineis

hot.Allowtheenginetocoolforseveral

minutesbeforefitltngthegastank.Clean

offanyspilledgasolinebeforestarting

the engine.

• Alwaysmakewheelheightadjustments

beforestaffingyourmower.Never

attempttodothiswhiletheenginets

running.

•Mow only in daylight or good artificial

light,

OPERATION=

• Keep your eyes and mind on your

mower and the area being cut. Do not let

other interests distract you.

° Do not mow wet or slippery grass. Never

run while operating your mower_ Always

be sure of your footing -- keep a firm

hold on the handles and walk.

° Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

oAlways stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel--covered area&

,o Never direct discharge0f material o.

toward bystanders nor allow anyone

near the mower while you are operating

, Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep it away from

the spark plug to prevent accidental

starting.

•Do not continue to run your mower if you

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

m owe ro

, Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

• Do not operate your mower if it vibrates

abnormally_ Excessive vibration is an

indication of damage; step the engine,

safely check for the cause of vibration

and repair as required.

o Do not run the engine indoors, Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. MOw across the face of

slopes, never up and down or you

might lose your footing_ Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions --

maintain good footings1

• Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE;

• Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

°Check all belts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

° Keep all safety devices in place and

working.

° To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil

° Check grass catcher often for deteriora-

tion and wear and replace worn bags,

Use only-replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

o Always keep a sharp blade on your

mower.

°Allow engine to cool before storing in

any enclosure.

• Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

&Look for this symbol to point out

important safety precautions. It means

CAUTtON!!! BECOMEALERTI!! YOUR

SAFETY IS iNVOLVED.

&CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

&WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

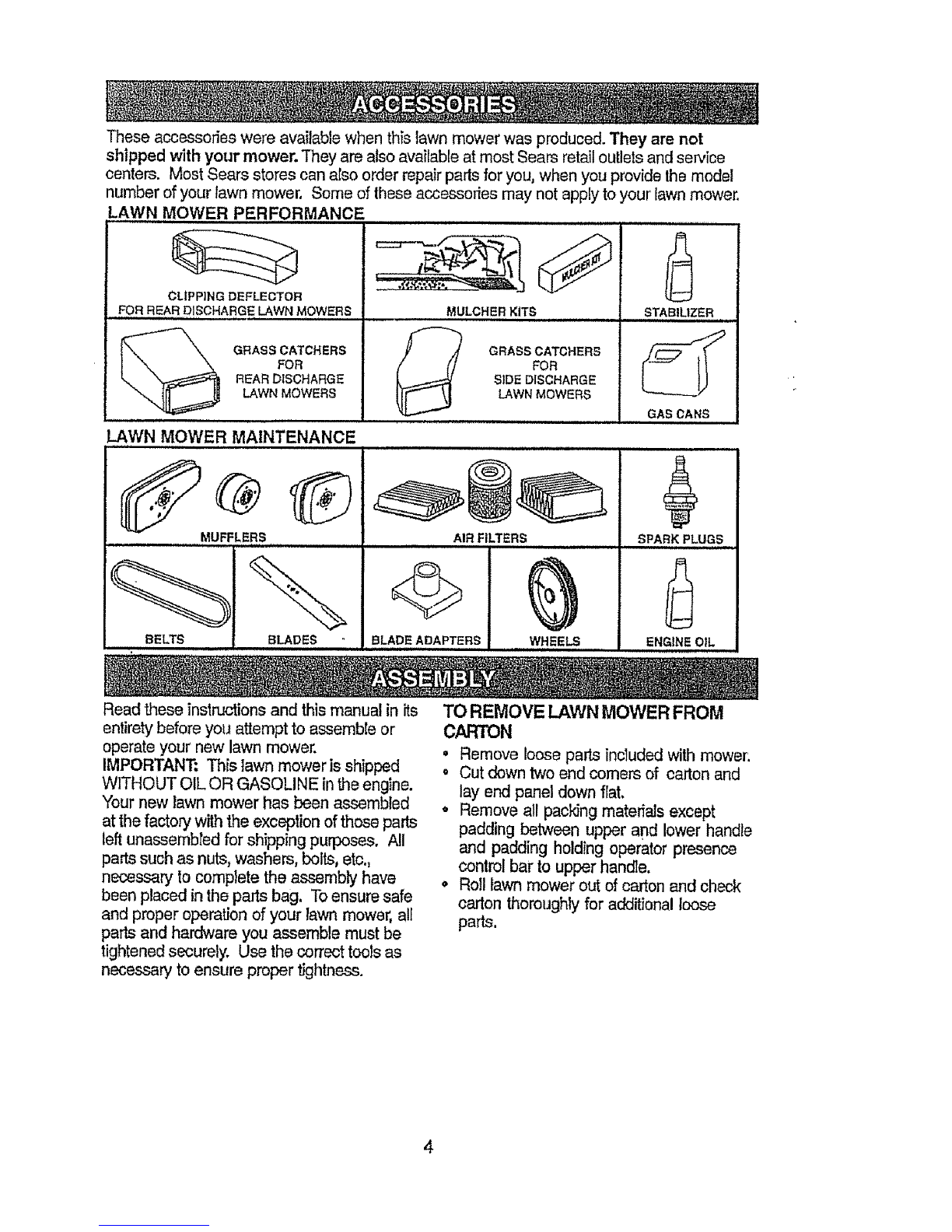

These accessories were available when thb fawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower, Some of these accessories may not apply to your lawn mower,

LAWN MOWER PERFORMANCE

CL|PP]NG DEFLECTOR

FORREAR,,,DI,SCHARGELAWNMOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS ,,11

__, GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

i, ....................

LAWN MOWER MAINTENANCE

STABILIZER....

GAS CANS

MUFFLERS ............................

BELTS BLADES

illll L

BLADE ADAPTERS

,,i ,lli

AIR FILTERS

WHEELS

SPARK PLUGS

Li L I IJ,I

ENGINE OIL

Read these instructionsand this manual in its

entirety before you attempt to assemble or

operate your new lawn mower.

IMPORTANT; This lawn mower is shipped

WITHOUT OIL OR GASOLINE inthe engine.

Your new lawn mower has been assembled

at the factory with the exception of those parts

left unassembted for shipping purposes. All

parts such as nuts, washers, bolts, etc.,

necessary tocomplete the assembly have

been placed in the parts bag. Toensure safe

and proper operation of your lawn mower, all

parts and hardware you assemblemust be

tightenedsecurely. Use the correct toolsas

necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

o Remove loose parts included with mower.

oCut down two end comers of carton and

lay end panel down flat,

*Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handle.

o Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts,

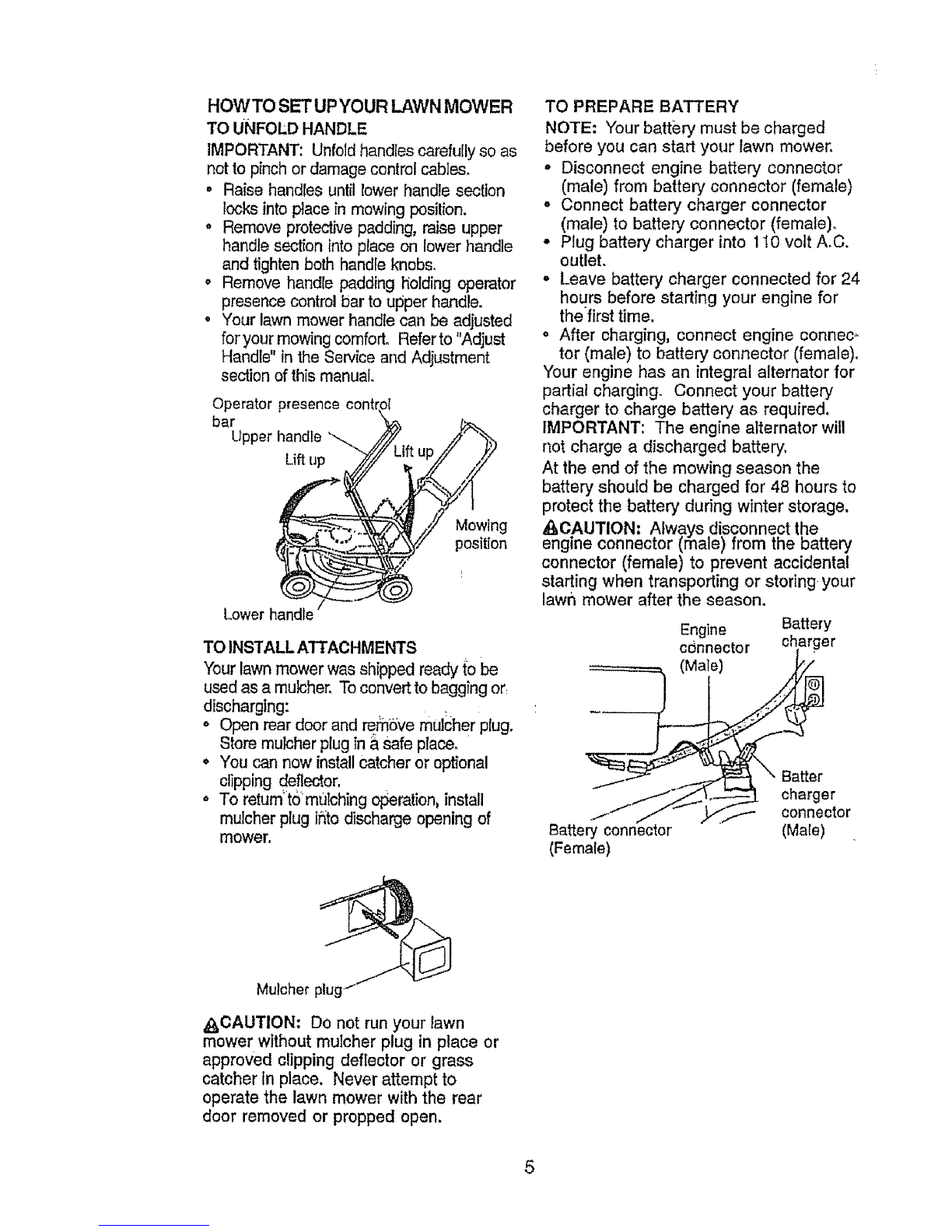

HOWTO SET UP YOUR LAWN MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefully so as

not to pinch or damage control cables.

• Raise handtes until lower handle section

locks into place in mowing position.

o Remove protective padding, raise upper

handle section into place on lower handle

and tighten both handre knobs,

o Remove handle padding Holding operator

presence control bar to upper handle.

• Your lawn mower handle can be adjusted

foryour mowing comfort, Refer to "Adjust

Handle" in the Service and Adjustment

section of this manual

Operator presence contr

barUpper handle "-.......

Lift up

Mowing

position

Lower handle

TO INSTALL A'TTACHMENTS

Yourlawn mower was shipped ready _obe

used as a mulcher, To convert to bagging or,

discharging:

o Open rear door and remove mulcher plug.

Store muk_herplugin & safe place,

• You can now installcatcher or optional

clipping ,deflector,

o To return to mt)tching operation, install

mulcher plug if_todischarge opening of

mower.

TO PREPARE BATTERY

NOTE: Your battery must be charged

before you can start your lawn mower,

• Disconnect engine battery connector

(male) from battery connector (female)

o Connect battery charger connector

(male) to battery connector (female)_

o Plug battery charger into 110 volt ArC.

outlet.

° Leave battery charger connected for 24

hours before starting your engine for

thefirst time.

• After charging, connect engine connec°,

tor (male) to battery connector (female),

Your engine has an integral alternator for

partial charging. Connect your battery

charger to charge battery as required,

IMPORTANT: The engine alternator will

r;ot charge a discharged battery,

At the end of the mowing season the

battery should be charged for 48 hours to

protect the battery during winter storage.

.&CAUTION: .Always.disconnect the

engme connector [mate) from the battery

connector (female) to prevent accidental

starting when transporting or storing, your

lawn mower after the season.

Engtne Battery

connector charger

(MaTe)

Battery connector

(Female)

Batter

charger

connector

(Male)

Mulcher plug

.&CAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher In place. Never attempt to

operate the lawn mower with the rear

door removed or propped open,

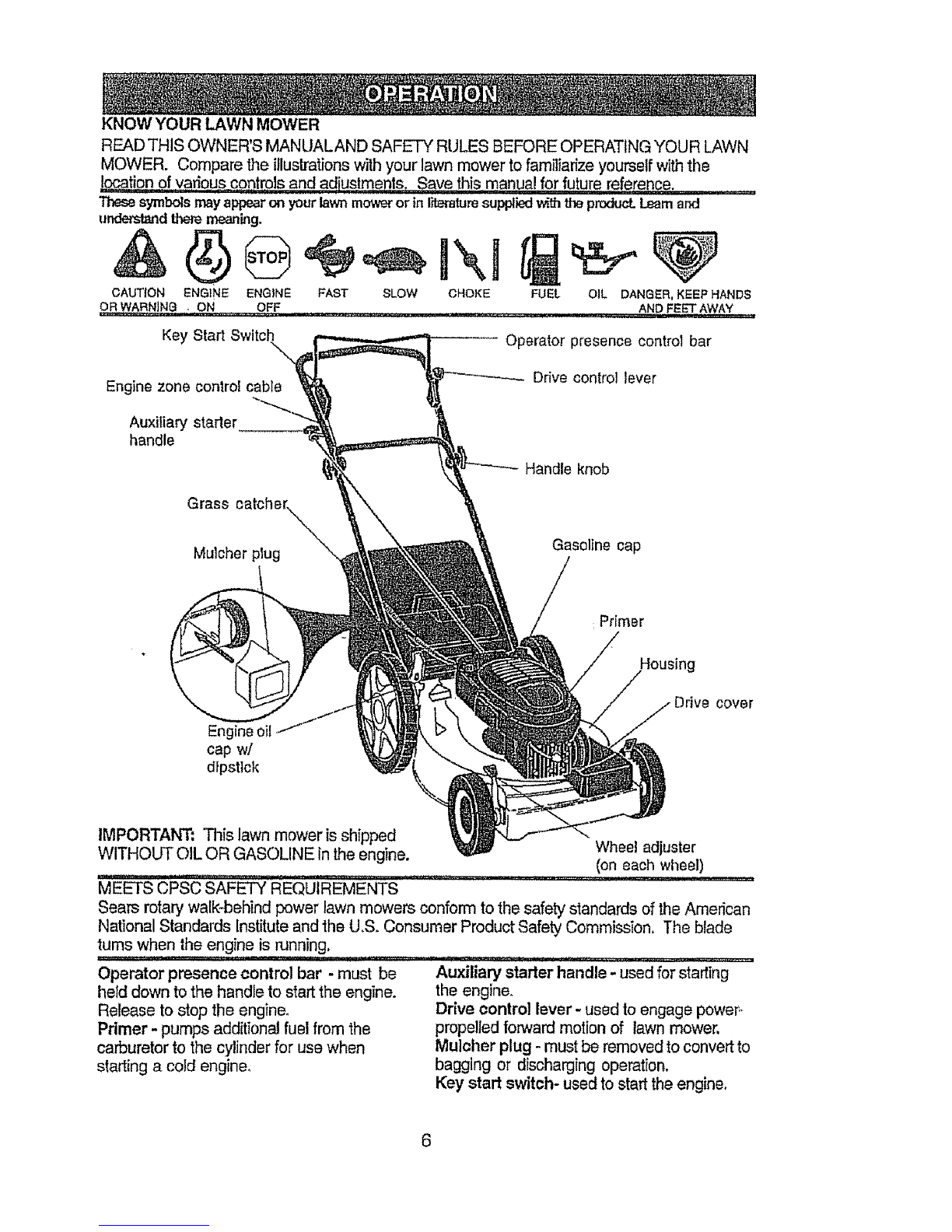

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrationswith your lawn mower to familiarize yourself with the

location of various contro s and adiuslments_ Save this manua for future reference.

These symbols may appear on your lava1 mower or in literaturesupplied v4th the product, Learn and

u_d theremeaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR t/V.A__.R.NINGON ........ OFF .......................... AND FEET AWAY

Key Start Switch-\ Operator presence control bar

Engine zone control cable Drive control lever

Auxiliary starter

handle

Handle knob

Grass catcher

Mulcher plug

Engine oil

cap wl

dipstick

Gasoline cap

:Primer

Housing

cover

IMPORTANT: This lawn mower isshipped

WITHOUT OiL OR GASOLINE in the engine. Wheel adjuster

(on each wheel)

ME_s cPsc SAFETY REQUIREME_ITS' '" ...........................................

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American

National Standards Institute and the UoS. Consumer Product Safety Commission. The blade

turns when the engine is running.

Operator presence control bar -must be

held down to the handle to start the engine.

Release to stop the engine,

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine,

Auxiliary starter handle -usedfor starting

the engine,

Drive control lever- used to engage power°

propelled forward motion of lawn mower.

Mulcher plug - must beremoved toconvert to

bagging or discharging operation.

Key start switch- used to start the engine,

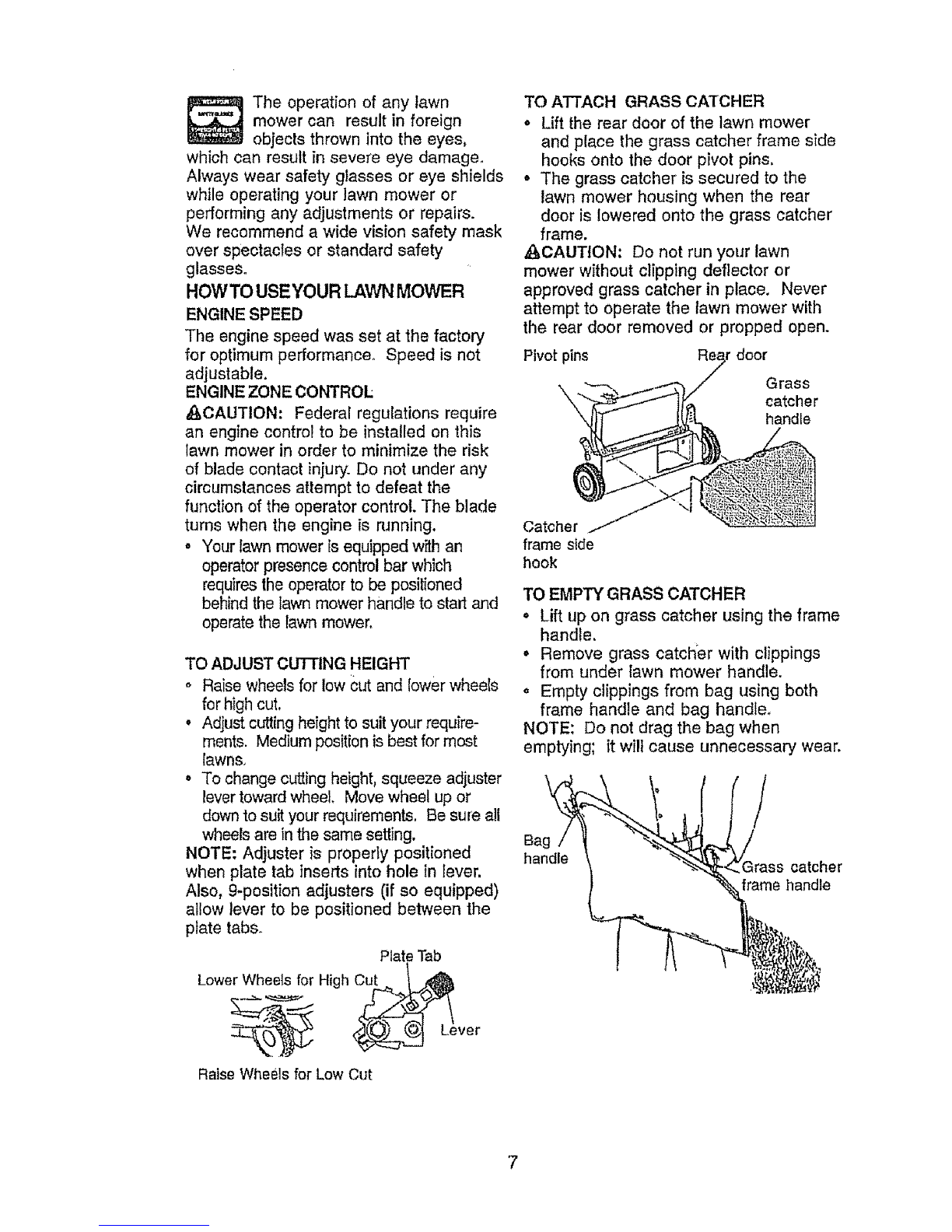

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye damage°

Always wear safety glasses or eye shields

while operating your lawn mower or

performing any adjustments or repairs.

We recommend a wide vision safety mask

over spectacles or standard safety

glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance, Speed is not

adjustable.

ENGINE ZONE CONTROl;

_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

o Your lawn mower _sequipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

o Raise wheels for low cut and lower wheels

for high cut,

• Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns.

• To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements, Be sure all

wheels are in the same setting,

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in fever,

Also, g-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Plate Tab

Lower Wheels for High Cut

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

o Lift the rear door of the lawn mower

and place the grass catcher frame side

hooks onto the door pivot pins.

° The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Pivot pins r door

Grass

catcher

handle

Catcher

frame side

hook

TO EMPTY GRASS CATCHER

• Lift up on grass catcher using the frame

handle.

° Remove grass catcher with clippings

from under lawn mower handle.

a Empty clippings from bag using both

frame handle and bag handle,

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Bag

handle /

catcher

frame handle

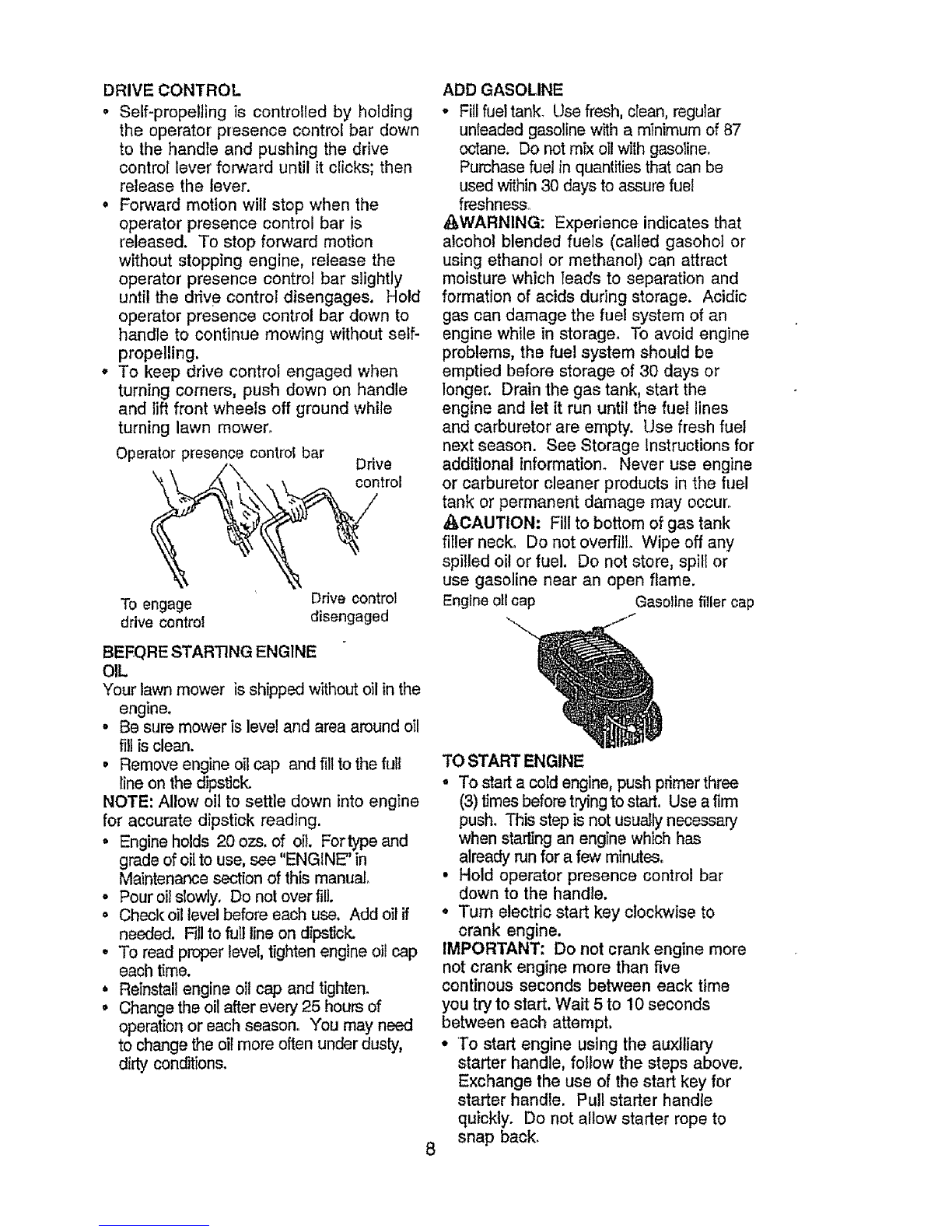

DRIVE CONTROl.

• Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pusNng the drive

control lever forward until it clicks; then

release the lever.

• Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive controI disengages. Hold

operator presence control bar down to

handle to continue mowing without self-

propelling.

° To keep drive control engaged when

turning corners, push down on handle

and liftfront wheels off ground while

turning lawn mower.

Operator presence controi bar

•_ /\ Drive

\_\ _\\ I:. control

Drive oontrol

To engage

drive control disengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped w'_thoutoil in the

engine.

*Be sure mower is level and area around oil

fillis clean.

, Remove engine oilcap and fillto the full

line on the dipstick.

NOTE'. Allow oil to settle down into engine

for accurate dipstick reading.

. Engine holds 20 ozs. of oil. Fortype and

grade of oil to use, see "ENGINE" in

Maintenance section of this manual°

oPour oilslowly. Do not over fill.

, Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

*To read proper level, tighten engine oil cap

each time.

,Reinstall engine oi! cap and tighten.

oChange the oil after every 25 hours of

operation or each season° You may need

to change the oil more often under dusty,

dirty conditions.

ADD GASOLINE

• Fill fueltank. Use fresh, clean, regular

unleaded gasoline w'_ha minimum of 87

octane. Do not mix o;Iwithgasoline,

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness°

&WARNING: Experience indicates that

alcohol blended fuels (called gasoho] or

using ethanol or methanol) can attract

moisture which Ieads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur,

&CAUTION: Fill to bottom of gas tank

fiiler neck. Do not overfill Wipe off any

spilled oi! or fuel. Do not store, spill or

use gasoline near an open flame.

Englne OHcap Gasoline filler cap

TO START ENGINE

oTo start a cold engine, push primer three

(3)times before tryingto start. Use afirm

push. This step is not usuallynecessary

when starling an engine which has

already run for a few minutes°

, Hold operator presence control bar

down to the handle.

• Turn electric start key clockwise to

crank engine.

IMPORTANT: Do not crank engine more

not crank engine more than five

continous seconds between eack time

you try to start. Wait 5 to 10 seconds

between each attempt,

•To start engine using the auxiliary

starter handle, follow the steps above.

Exchange the use of the start key for

starter handle. Pull starter handle

quickly. Do not allow starter rope to

snap back.

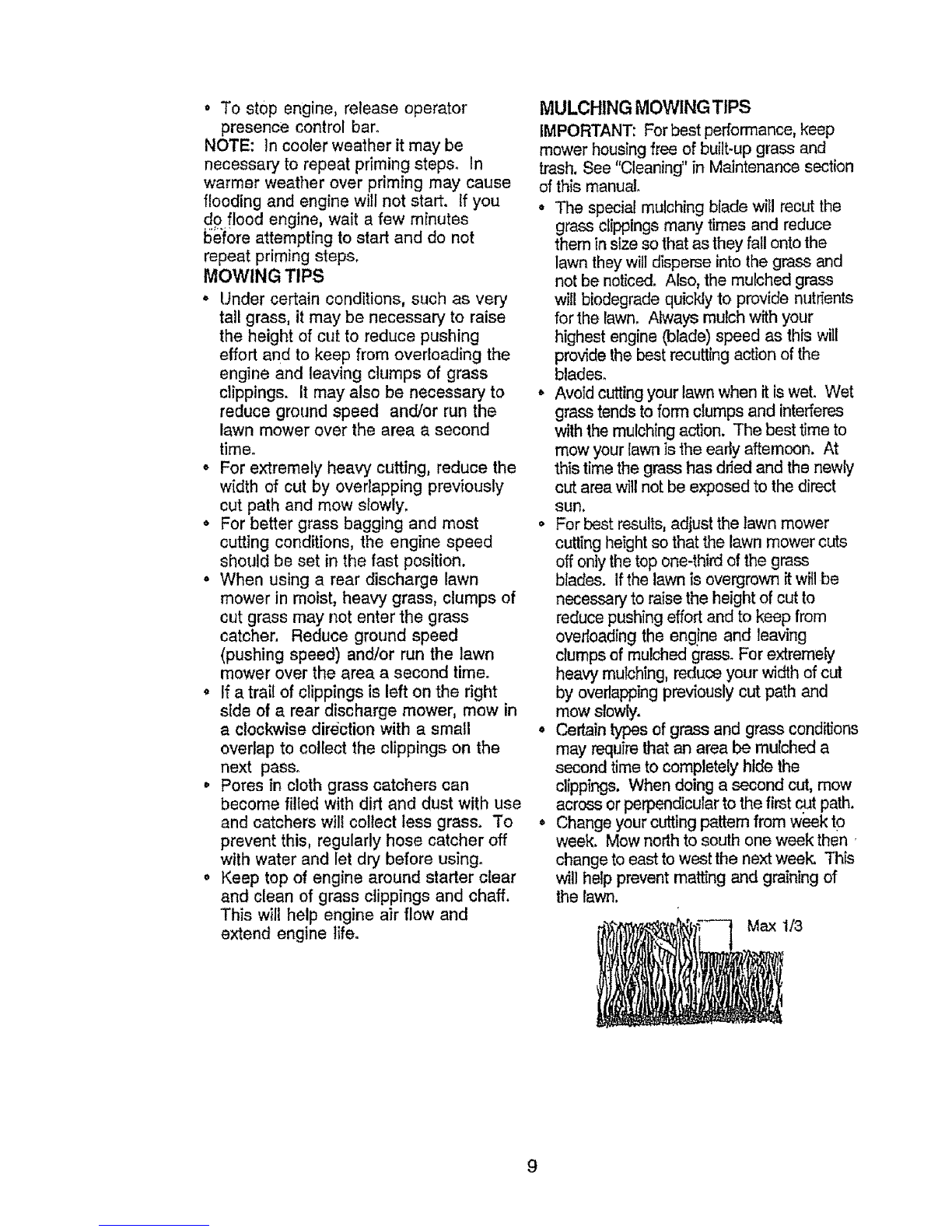

• Tostop engine,releaseoperator

presencecontrolbar°

NOTE:Incoolerweatherit maybe

necessaryto repeatprimingstep& In

warmerweatheroverprimingmaycause

floodingandenginewillnotstart. Ifyou

dofloodengine,wait afew minutes

beforeattemptingto startanddo not

repeatprimingsteps.

MOWING TIPS

, Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and!or run the

lawn mower over the area a second

time°

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

o For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mew in

a clockwise direction with a small

overlap to collect the clippings on the

next pass°

o Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

o Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: Forbest performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in Maintenance section

of this manual°

• The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass

will biedegrade quickly to provide nutrTents

for the lawn. Always mulch with your

highest engine (blade) speed as thiswill

provide the best recutting action of the

blades.

• Avoid cutting your lawn when it iswet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn isthe early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun,

•For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. Ifthe lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the eng!ne and leaving

clumps ef mulched grass. For extremely

heavy mulching, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass cond_ons

may requirethat an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

° Change your cutting pattern from week to

week. Mow north to south one week then

change to east to west the next week, This

will help prevent ma_ng and graining of

the lawn.

Max 1/3

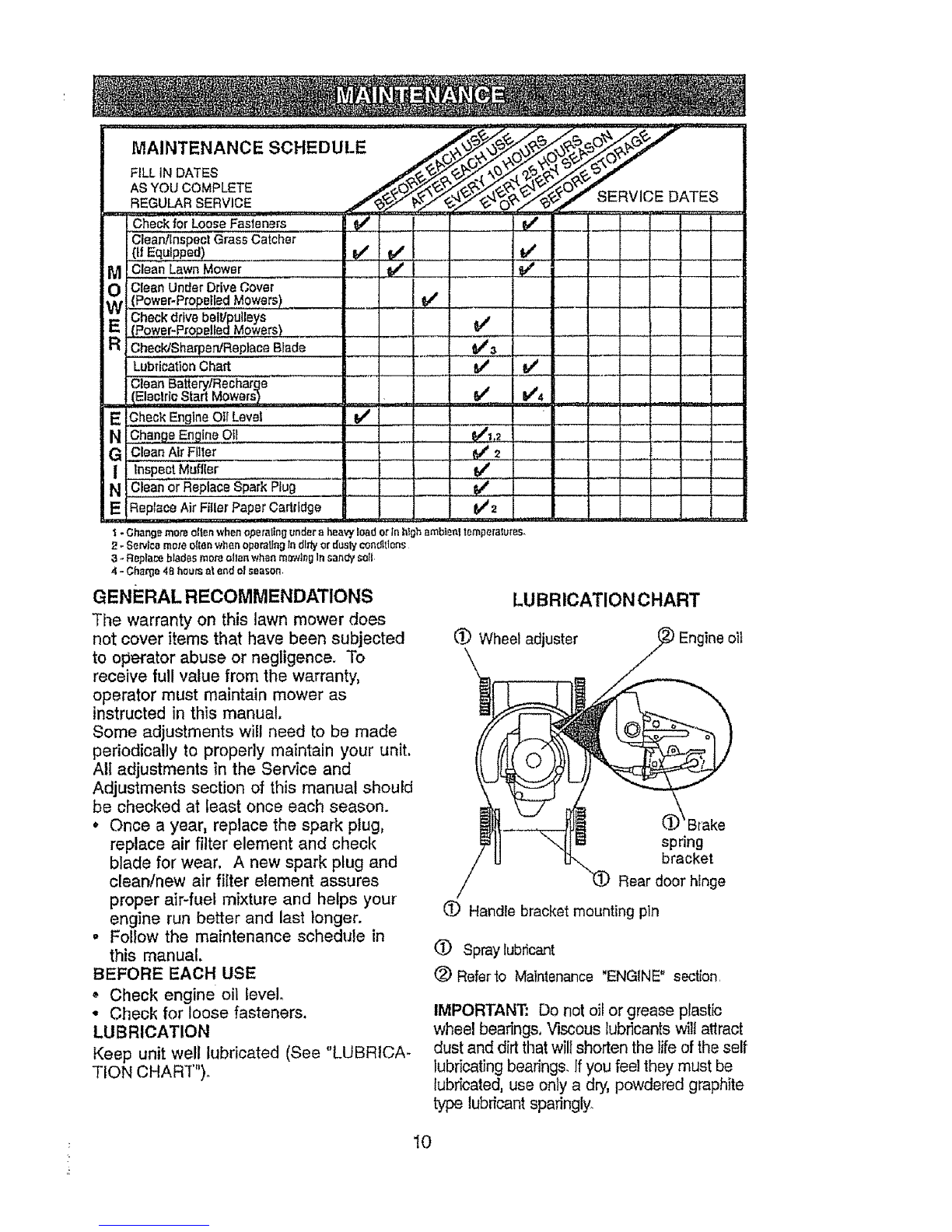

Check for Loose Fasteners

i Clean/inspect Grass Catcher

(If Equipped)

M Clean LawnMower

OClean Under Drive Cover

(Power-Propelred Mowers)

Check drive belt/pulleys

_ (Power-Pro_e,!!edMowers)

Check/Sharpen/Replace Blade

LubricationChart

Clean Battery'Recharge

IE!ectrlostart Mowers)

E Check Engine OIl Level

N__o!_ __

GClean Air Filter

I!nspeot Muffler

N clean or RepLaceSpark Plug

EReplace Air Filler Paper Cartridge

,,,, ,

V' V'4

I- Ghange more olton when operatlng under a heavy load or tn htgh ambie#,l lemperalures_

2-Servlcemoleoltenwhenopotat_r_Indirty or dosly conditions

3..Replacebladesmoreellen whenrnr_wtngInsart_ysell,

4 - Charge 4S hours at end of season,

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to propedy maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

•Follow the maintenance schedule in

this manual.

LUBRICATIONCHART

(_ Wheel adjuster

BEFORE EACH USE

Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART")°

Brake

spring

bracket

Rear door hinge

L'_ Handle bracket mounting pln

(_) Spray lubricant

(_) Refer to Maintenance "ENGINE" section

IMPORTANT: Do not oil or grease plastic

wheel bearings, Viscous lubricants will attract

dust and dirt that will shorten the life of the self

lubricating bearings. If you feel they must be

lubricated, use onty adry, powdered graphite

type lubricant sparingly..

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.9997A Manuel utilisateur

Craftsman

Craftsman 917.255890 Manuel utilisateur

Craftsman

Craftsman 25364 Manuel utilisateur

Craftsman

Craftsman EZ3 917.387151 Manuel utilisateur

Craftsman

Craftsman 247.377051 Manuel utilisateur

Craftsman

Craftsman 917.378421 Manuel utilisateur

Craftsman

Craftsman 917.270730 Manuel utilisateur

Craftsman

Craftsman E410 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259172 Manuel utilisateur

Craftsman

Craftsman 917.273811 Manuel utilisateur

Craftsman

Craftsman 917.2736403 Manuel utilisateur

Craftsman

Craftsman 917.255690 Manuel utilisateur

Craftsman

Craftsman 917.388910 Manuel utilisateur

Craftsman

Craftsman 917.289271 Manuel utilisateur

Craftsman

Craftsman 917.271742 Manuel utilisateur

Craftsman

Craftsman 917.273505 Manuel utilisateur

Craftsman

Craftsman 917.37658 Manuel utilisateur

Craftsman

Craftsman 917.28851 Manuel utilisateur

Craftsman

Craftsman 917.28851 Manuel utilisateur

Craftsman

Craftsman 917.388193 Manuel utilisateur

Craftsman

Craftsman 917.275034 Manuel utilisateur

Craftsman

Craftsman 5.0 HORSEPOWER 19" REAR BAGGER ROTARY LAWN MOWER... Manuel utilisateur

Craftsman

Craftsman 917.273482 Manuel utilisateur

Craftsman

Craftsman 917.28035 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
