Craftsman 917.372290 Manuel utilisateur

MODELNUMBER917o372290 OWNER'SMANUAL

oAssembly

oOperation

Maintenance

°Service

_,Adjustments

®RepairParts

Caution:

Readand Follow

all SafetyRules

and Rnstructions

BeforeOperating

ThisEquipment

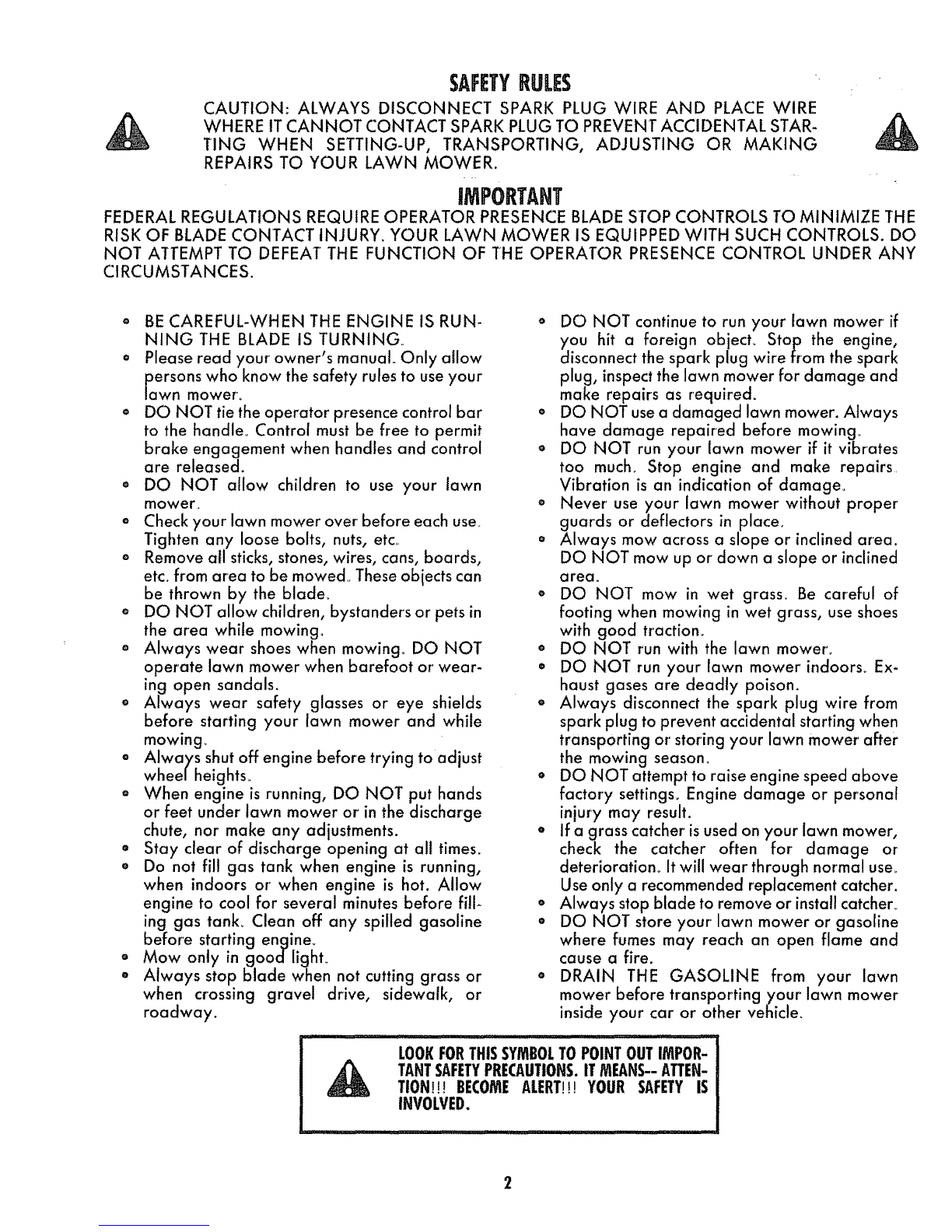

SAFETYRULES

CAUTION:ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACEWIRE

WHERE IT CANNOT CONTACT SPARK PLUG TO PREVENT ACCIDENTAL STAR-

T AO U T, O

IMPORTANT

FEDERAL REGULATIONS REQUIRE OPERATOR PRESENCE BLADE STOP CONTROLS TO MINIMIZE THE

RISK OF BLADE CONTACT INJURY, YOUR LAWN MOWER IS EQUIPPED WITH SUCH CONTROLS. DO

NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROL UNDER ANY

CIRCUMSTANCES.

oBE CAREFUL-WHEN THE ENGINE IS RUN-

NING THE BLADE IS TURNING

• Please read your owner's manual. Only allow

persons who know the safety rules to use your

lawn mower'.

oDO NOT tie the operator presence control bar

to the handle_ Control must be free to permit

brake engagement when handles and control

are released.

o DO NOT allow children to use your lawn

mower.

oCheck your lawn mower over before each use.

Tighten any loose bolts, nuts, etc.

oRemove all sticks, stones, wires, cans, boards,

etco from area to be mowed. These objects can

be thrown by the blade.

° DO NOT allow children, bystanders or pets in

the area while mowing°

o Always wear shoes when mowing_ DO NOT

operate lawn mower when barefoot or' wear-

ing open sandals.

o Always wear safety glasses or eye shields

before starting your lawn mower and while

mowing°

o Always shut off engine before trying to adjust

whee/heights.

o When engine is running, DO NOT put hands

or feet under lawn mower or" in the discharge

chute, nor make any adjustments.

o Stay clear of discharge opening at all times.

o Do not fill gas tank when engine is running,

when indoors or' when engine is hot. Allow

engine to cool for several minutes before fill-

ing gas tank_ Clean off any spilled gasoline

before starting engine.

o Mow only in goodlight.

° Always stop blade when not cutting grass or

when crossing gravel drive, sidewalk, or

roadway.

o DO NOT continue to run your lawn mower if

c_OU hit a foreign object. Stop the engine,

isconnect the spark plug wire from the spark

plug, inspect the lawn mower for damage and

make repairs as required.

o DO NOT use a damaged lawn mower. Always

have damage repaired before mowing.

o DO NOT run your lawn mower if it vibrates

too much. Stop engine and make repairs

Vibration is an indication of damage.

o Never' use your lawn mower without proper'

guards or deflectors in place.

o Always mow across a slope or inclined area.

DO NOT mow up or down a slope or inclined

areao

o DO NOT mow in wet grass. Be careful of

footing when mowing in wet grass, use shoes

with good traction.

o DO NOT run with the lawn mower'.

• DO NOT run your lawn mower indoors° Ex-

haust gases are deadly poison.

o Always disconnect the spark plug wire from

spark plug to prevent accidental starting when

transporting or' storing your lawn mower' after

the mowing season.

o DO NOT attempt to raise engine speed above

factory settings. Engine damage or personal

injury may result.

°If a grass catcher' is used on your lawn mower,

check the catcher often for damage or

deterioration° it will wear through normal use.

Use only a recommended replacement catcher.

o Always stop blade to remove or insta!l catcher.

o DO NOT store your lawn mower or gasoline

where fumes may reach an open flame and

cause a fire.

• DRAIN THE GASOLINE from your lawn

mower before transporting your lawn mower

inside your car or other vehicle.

ILOOKFORTHISSYMBOLTO POINTOUT IMPOR-

,_ TANTSAFETYPRECAUTIONS.IT MEANS-- ATTEN-

TION!!! BECOME ALERT!!! YOUR SAFETY IS

INVOLVED

i .......... ................................

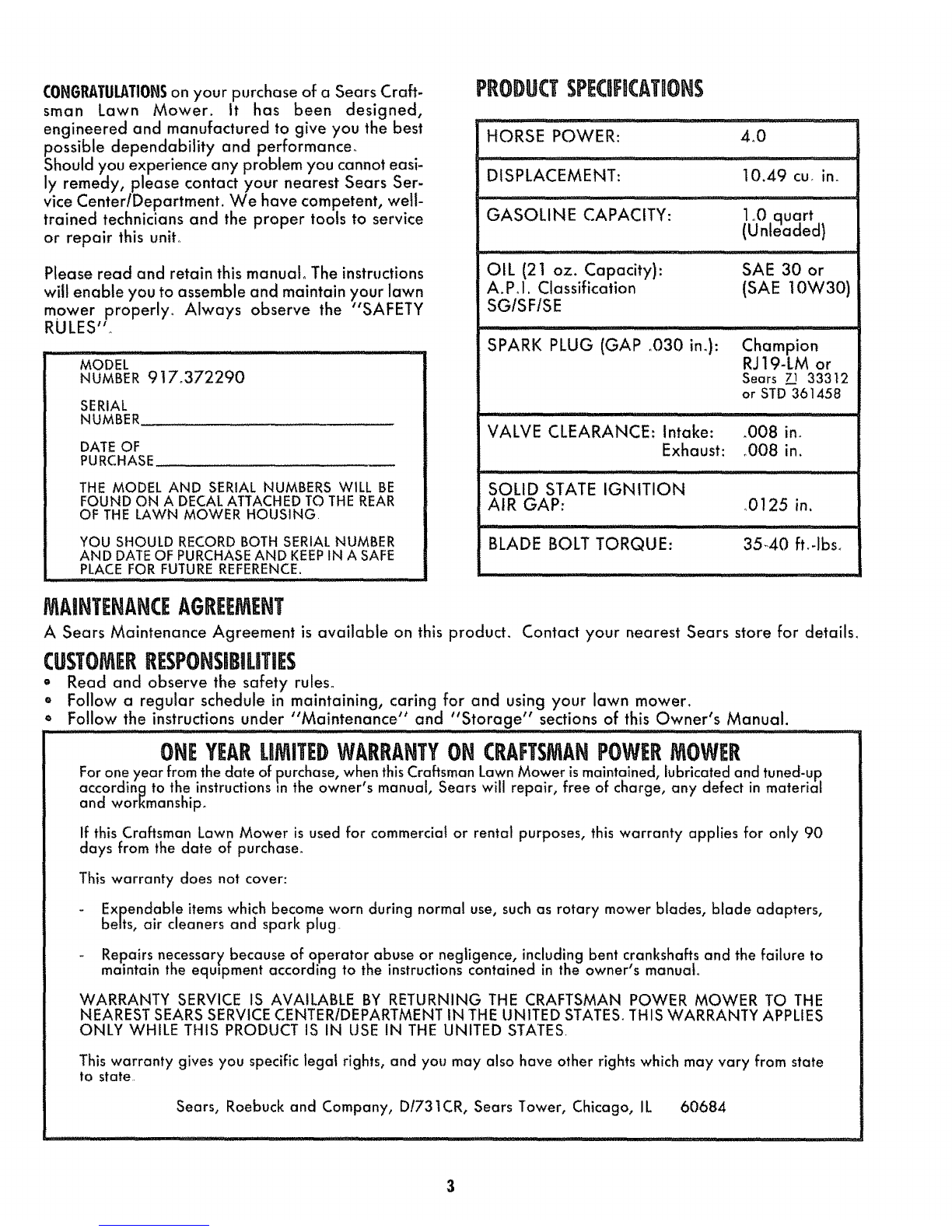

CONGRATULATIONSon your purchase of a Sears Craft-

sman Lawn Mower. It has been designed,

engineered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you cannot easi-

ly remedy, please contact your nearest Sears Ser-

vice Center/Department. We have competent, well-

trained technicians and the proper tools to service

or repair this unit..

Please read and retain this manual, The instructions

will enable you to assemble and maintain your lawn

mower properly° Always observe the "SAFETY

RULES".

,, ,,,,,,,,,,,,,,,,,,,,,,,,i i,

MODEL

NUMBER 9t7o372290

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON A DECAL ATTACHED TO THE REAR

OF THE LAWN MOWER HOUSING

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASEAND KEEPIN A SAFE

PLACEFOR FUTUREREFERENCE.

PBODUCTSP[CBFICATUGNS

HORSE POWER: 4.0

DISPLACEMENT: 10.49 cu. in.

GASOLINE CAPACITY:

OIL (21 oz. Capacity):

A.Pol. Classification

SG/SF/SE

SPARK PLUG (GAP °030 in.):

VALVE CLEARANCE: Intake:

Exhaust:

I II II1' '111 I I

SOLID STATE IGNITION

AIR GAP:

BLADE BOLT TORQUE:

l oO.quart ,,

unteaaecll

SAE 30 or

(SAE10W30)

Champion

RJ19-LM or

Sears 7_j 33312

or STD 361458

.008 inn

°008 in,

..0125 in.

35-40 ft.-Ibs..

MAIHT :NAHCEAGREEMEHT

A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for details_

CLISTOMEERESPONSRBlUTIES

" Read and observe the safety rules°

oFollow a regular schedule in maintaining, caring for and using your lawn mower.

° Follow the ins!ructions under "Maintenance" and "Storage" sections of this Owner's Manua...!..

OHEY[ARLIMIT[DWARBANTYOH CRA[:TSMAHPOWEBMOWEP,

For one year from the date of purchase, when this Craftsman Lawn Mower ismaintained, lubricated and tuned-u R

accordinq to the instructions I'n the owner's manual, Sears will repair, free of charge, any defect in material

and workmanship°

if this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90

days from the date of purchase.

This warranty does not cover:

Expendable items which become worn during normal use, such as rotary mower blades, blade adapters,

belts, air cleaners and spark plug.

Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner s manual°

WARRANTY SERVICE 1S AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT tN THE UNITED STATES_ THIS WARRANTY APPLIES

ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which may vary from state

to state..

Sears, Roebuck and Company, D/731CR, Sears Tower, Chicago, IL 60684

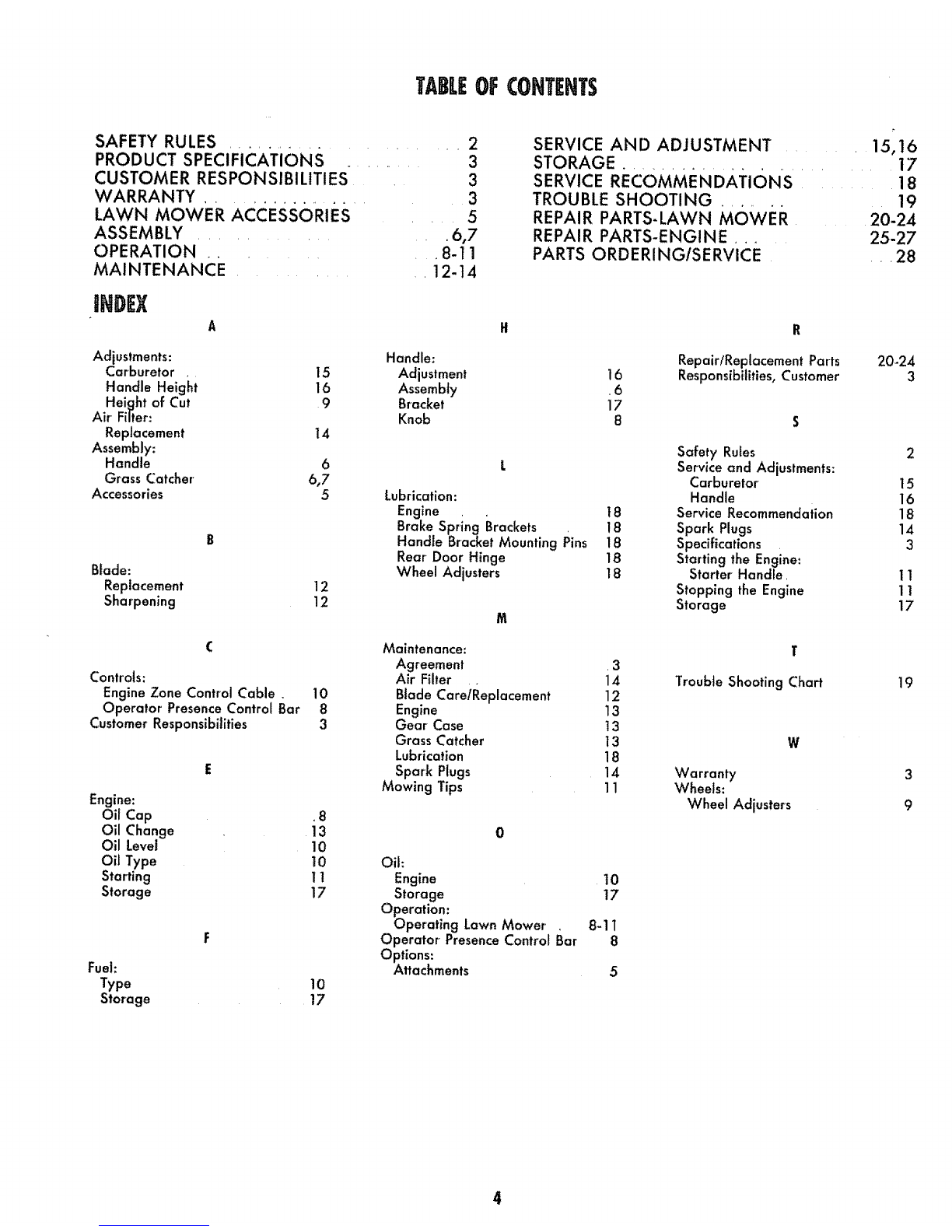

TABLEOFCONTENTS

SAFETY RULES ..................... 2

PRODUCT SPECIFICATIONS ...... 3

CUSTOMER RESPONSIBILITIES 3

WARRANTY .............. 3

LAWN MOWER ACCESSORIES 5

ASSEMBLY .............. 6,7

OPERATION ..... 8-11

MAINTENANCE ........... 12-14

SERVICE AND ADJUSTMENT 15,16

STORAGE ...................... 17

SERVICE RECOMMENDATIONS ........ 18

TROUBLE SHOOTING ....... 19

REPAIR PARTS-LAWN MOWER 20-24

REPAIR PARTS-ENGINE ..... 25-27

PARTS ORDERING/SERVICE 28

Adjustments:

Carburetor ,15

Handle Height 16

Height of Cut 9

Air Filter:

Replacement 14

Assembly:

Handle 6

Grass Catcher 6,7

Accessories 5

Blade:

Replacement 12

Sharpening 12

Handle:

Adjustment t6

Assembly .6

Bracket 17

Knob 8

Lubrication:

Engine t 8

Brake Spring Brackets _ 18

Handle Bracket Mounting Pins 18

Rear Door Hinge 18

Wheel Adjusters 18

Repair/Replacement Parts 20-24

Responsibilities, Customer 3

Safety Rules 2

Service and Adjustments:

Carburetor' 15

Handle 16

Service Recommendation 18

Spark Plugs 14

Specifications 3

Starting the Engine:

Starter Handle_ 11

Stopping the Engine 1]

Storage 17

Controls:

Engine Zone Control Cable •10

Operator Presence Control Bar 8

Customer Responsibilities 3

Engine:

Oil Cap .8

Oil Change 13

Oil Levet 10

Oil Type 10

Starting 1t

Storage 17

Fuel:

Type 10

Storage 17

Maintenance:

Agreement .3

Air Filter 14

Blade Care/Replacement 12

Engine 13

Gear Case t3

Grass Catcher 13

Lubrication 18

Spark Plugs 14

Mowing Tips 11

Oil:

Engine 10

Storage 17

Operation:

Operating Lawn Mower' . 8-11

Operator Presence Control Bar 8

Options:

Attachments 5

Trouble Shooting Chart

Warranty

Wheels:

Wheel Adjusters

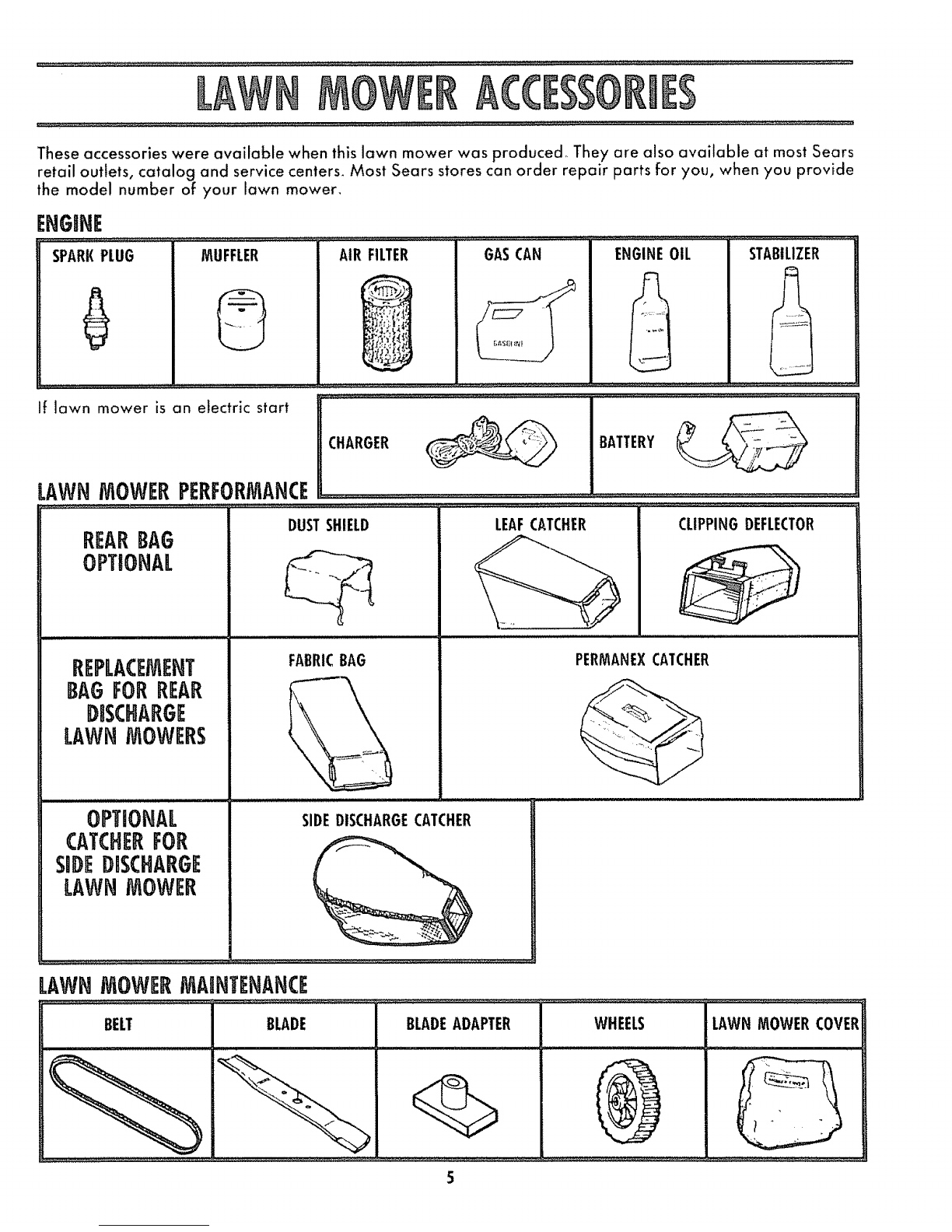

These accessories were available when this lawn mower was produced, They are also available at most Sears

retail outlets, catalog and service centers_ Most Sears stores can order repair parts for you, when you provide

the model number of your lawn mower,

ENGINE

SPARKPLUG MUFFLER AIR FILTER GAS(:AN ENGINEOIL STABILIZER

If lawn mower is an electric start

LAWNMOWERPERFORh'iANCE

DUSTSHIELD

REARBAG

OPTIONAL

REPLACEMENT FABRICBAG

BAGFORREAR

DISCHARGE

LAWN_OWERS

OPTIONAL

CATCHERFOR

SiDEDISCHARGE

LAWNt_OWER

LAWNMOWEBt_A_NTENANCE

BELT BLADE

LEAFCATCHER CLIPPINGDEFLECTOR

PERMANEXCATCHER

SIDEDISCHARGECATCHER

BLADEADAPTER WHEELS LAWN MOWER COVER

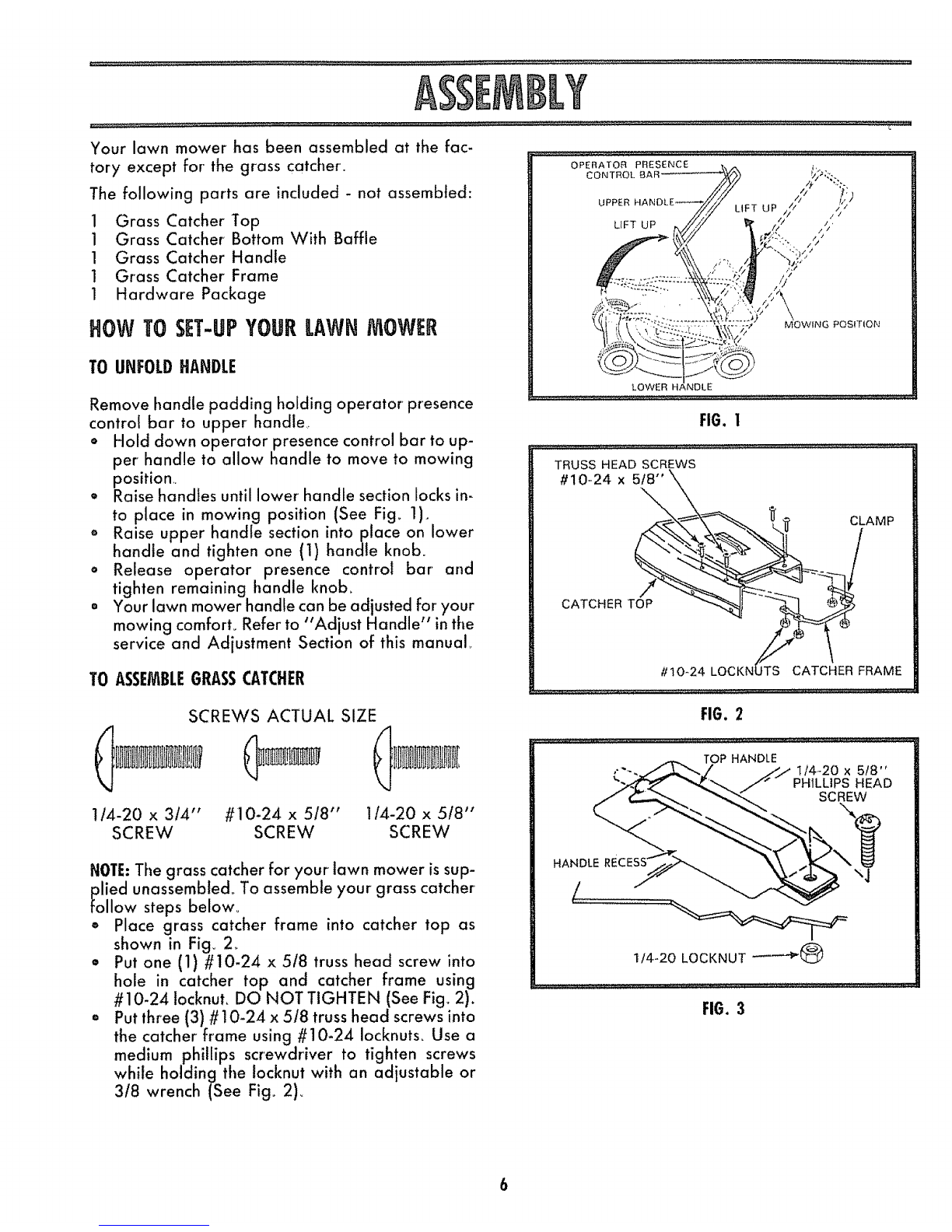

Your lawnmowerhasbeenassembledat the fac-

tory except for' the grass catcher,.

The following parts are included -not assembled:

1 Grass Catcher' Top

1 Grass Catcher Bottom With Baffle

1 Grass Catcher Handle

1 Grass Catcher' Frame

1 Hardware Package

HOW TO S T-UP YOURLAWNMOWER

TO UNFOLDHANDLE

Remove handle padding holding operator presence

control bar to upper handle_

.Hold down operator presence control bar to up-

per handle to allow handle to move to mowing

position.

Raise handles until lower handle section locks in-

to place in mowing position (See Fig. 1).

o Raise upper handle section intoplace on lower

handle and tighten one (1) handle knob.

o Release operator presence controt bar' and

tighten remaining handle knob_

o Your lawn mower handle can be adjusted for your

mowing comfort. Refer to "Adjust Handle" in the

service and Adjustment Section of this manual_

TO ASSEMBLEGRASSCATCHER

SCREWS ACTUAL SIZE

1/4-20 x 3/4" #10-24 x 5/8" t/4-20 x 5/8"

SCREW SCREW SCREW

NOTE:The grass catcher for your lawn mower is sup-

lied unassemMedo To assemble your grass catcher

Ilow steps below_

oPlace grass catcher frame into catcher top as

shown in Fig_ 2_

• Put one (1) #10-24 x 5/8 truss head screw into

hole in catcher top and catcher frame using

#10-24 locknuL DO NOT TIGHTEN (See Fig. 2).

o Put three (3) # 10-24 x 5/8 truss head screws into

the catcher frame using #10-24 iocknuts. Use a

medium phillips screwdriver to tighten screws

while holding the tocknut with an adjustable or

3/8 wrench (See Fig° 2)_

OPERATOR PRESENCE

CONTROL BAR

UPPER LIFT UP

UFT UP !?

LOWER ,NDLE

FIG. 1

TRUSS HEAD SCREWS

#10_24 x 5t8"

CLAMP

CATCHER TOP

#10-24 CATCHER FRAME

FIG. 2

TOP HANDLE

,'--, t/4-20 x 5/8"

k PHILLIPS HEAD

SCREW

1/4-20 LOCKNUT "-'-_(_

FIG. 3

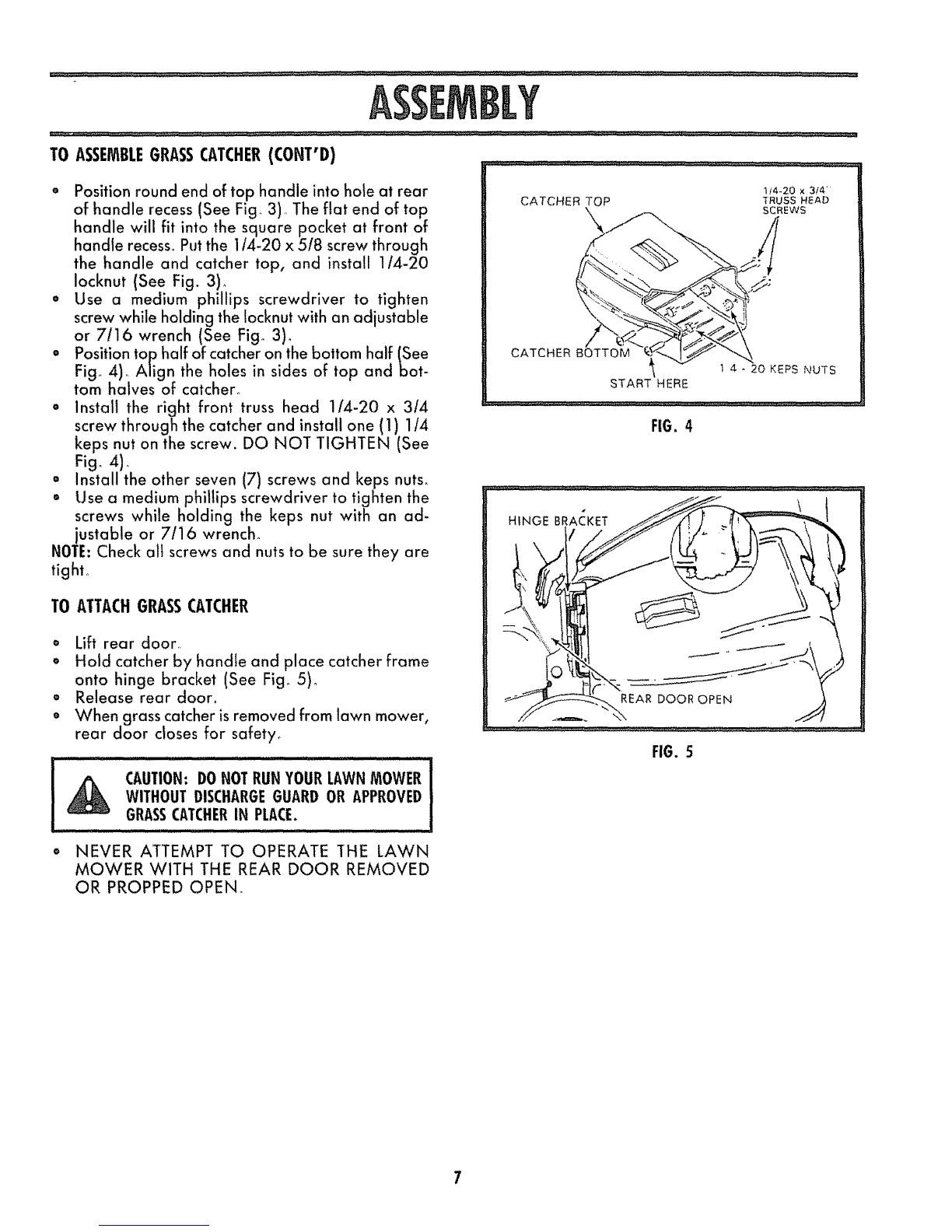

TO ASSEmblE 6RASS CATCHER ICO_TID) .............................. _ ..................................... .................................................................................................................. _o:_

• Position round end of top handle into hole at rear

of handle recess (See Fig 3), The flat end of top

handle will fit into the square pocket at front of

handle recess° Put the I/4-20 x 5/8 screw through

the handle and catcher top, and install 1!4-20

Iocknut (See Fig. 3)_

o Use a medium phillips screwdriver to tighten

screw while holding the Iocknut with an adjustable

or 7116 wrench (See Fig_ 3)°

o Position top half of catcher on the bottom half ISee

Fig 4)° Align the holes in sides of top and bot-

tom halves of catcher°

o Instal) the right front truss head 114-20 x 3/4

screw through the catcher and install one (1) 1/4

keps nut on the screw. DO NOT TIGHTEN (See

Fig_ 4)_

• Install the other seven (7) screws and keps nuts,

• Use a medium phillips screwdriver to tighten the

screws while holding the keps nut with an ad-

justable or 7116 wrench_

NOTE: Check all screws and nuts to be sure they are

tight,

TO ATTACHGRASSCATCHER

° Lift rear door,

o Hold catcher by handle and place catcher frame

onto hinge bracket (See Fig_ 5)°

° Release rear door,

o When grass catcher is removed from lawn mower,

rear door doses for safety°

CAUTION: DONOT RUNYOUR LAWN MOWER !

° NEVER ATTEMPT TO OPERATE THE LAWN

MOWER WITH THE REAR DOOR REMOVED

OR PROPPED OPEN_

1/4-20 x3f4"

CATCHER TOP TRUSS HEAD

SCREWS

CATCHER BOTTOM

START HERE 1 4 -20 KEPS NUTS

FIG. 4

HINGE BRACKET

REAR DOOR OPEN

FIG. 5

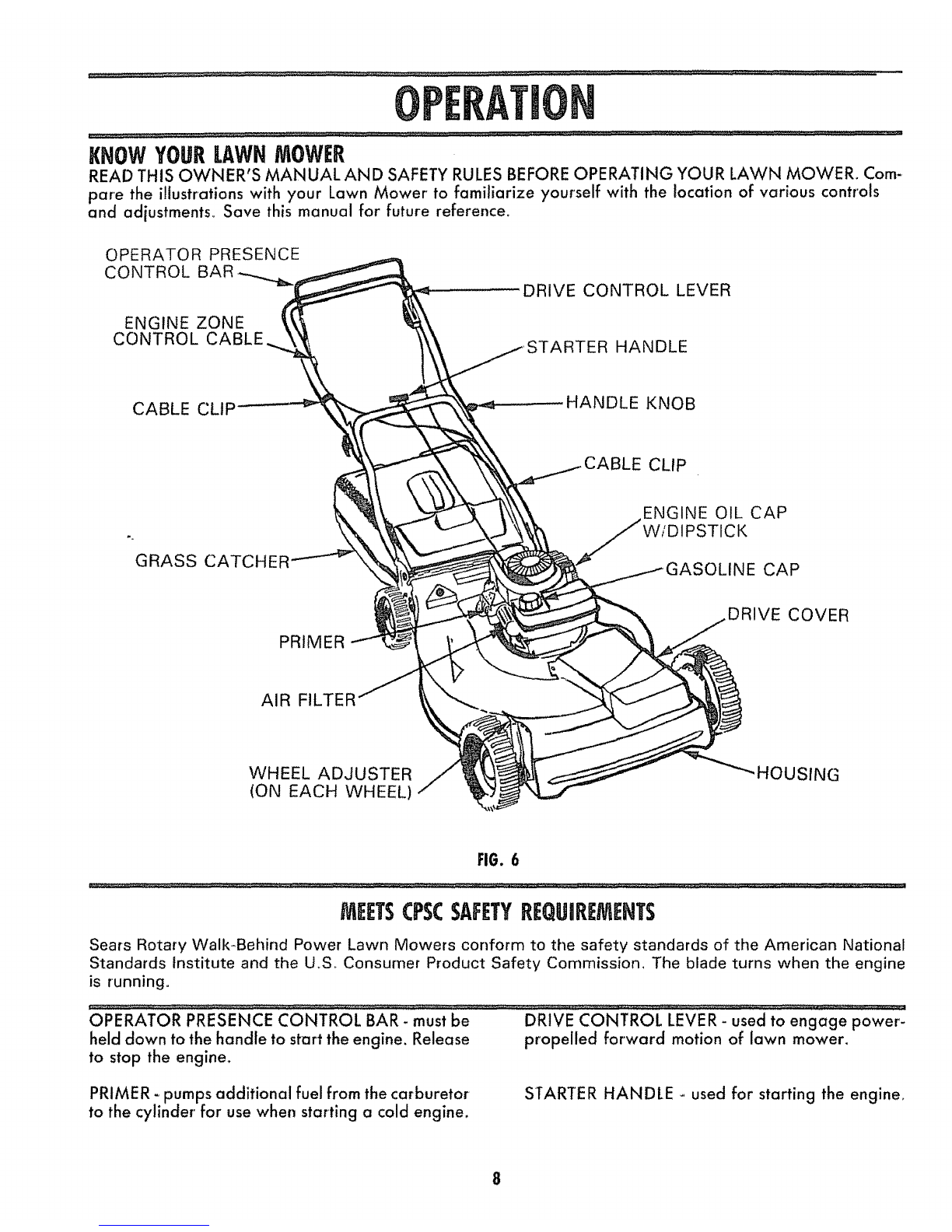

ENOWYOURLAWNMOW[R

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Cam-

pare the illustrations with your Lawn Mower to familiarize yourself with the location of various controls

and adiustmentso Save this manual For future reference,

OPERATOR PRESENCE

CONTROL BAR---_..,.._

ENGINE ZONE

CONTROL CABLE,

DRIVE CONTROL LEVER

;TARTER HANDLE

CABLE CLIP HANDLE KNOB

CABLE CLIP

GRASS CATCHER

ENGINE OIL CAP

PSTICK

INE CAP

PRIMER

COVER

AIR FILTER

WHEEL ADJUSTER

(ON EACH WHEEL) "HOUSING

FIG. 6

MELTSCPSCSAF[TYREQUHREM[NTS

Sears Rotary Walk-Behind Power Lawn Mowers conform to the safety standards of the American National

Standards Institute and the U.S, Consumer Product Safety Commission, The blade turns when the engine

is running.

OPERATOR PRESENCE CONTROL BAR- must be DRIVE CONTROL LEVER - used to engage power'-

held down to the handle to start the engine. Release propelled forward motion of lawn mower.

to stop the engine.

PRIMER - pumps additional fuel from the carburetor

to the cylinder' for use when starting a cold engine. STARTER HANDLE o,used for starting the engine.

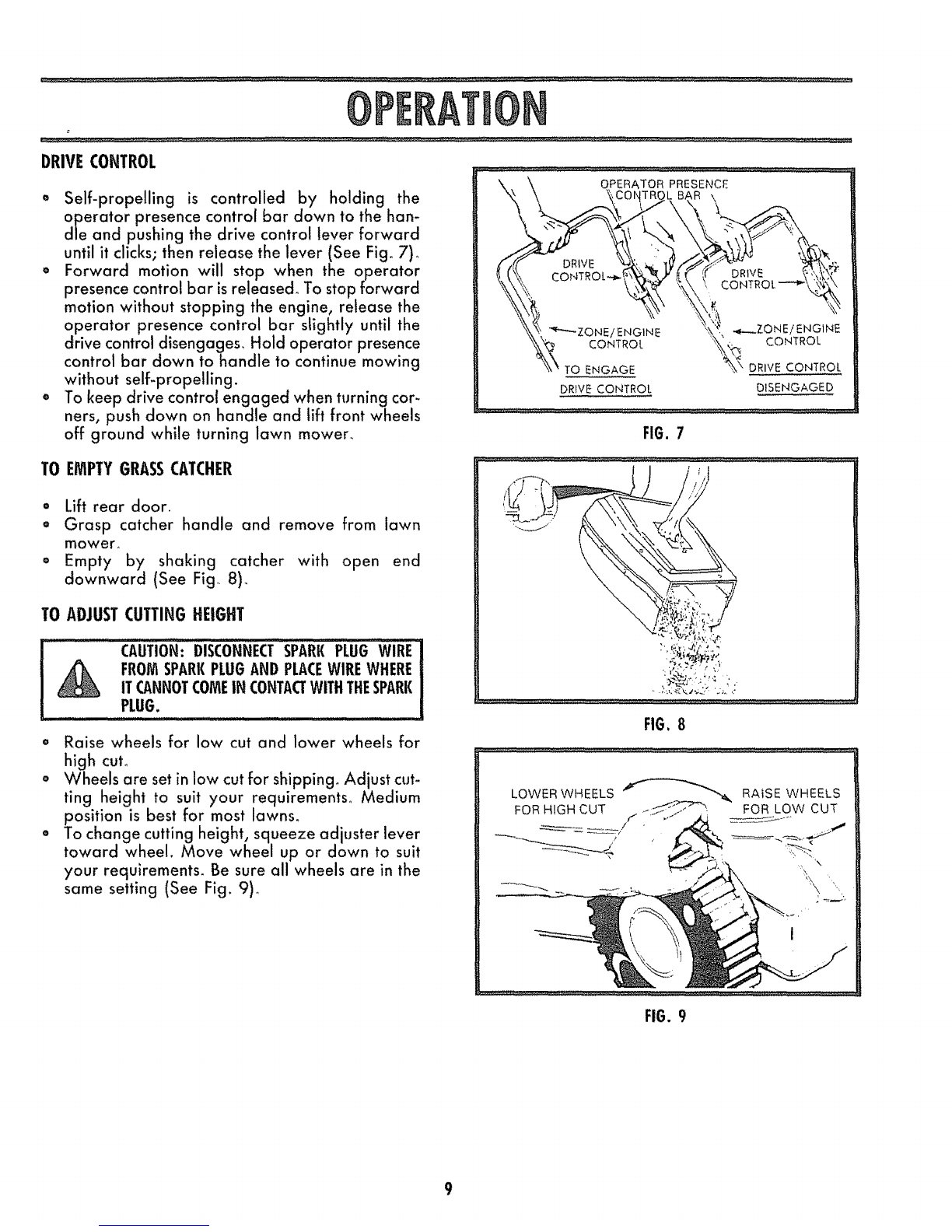

DRIVECONTROL

Self-propelling is controlled by holding the

operator presence control bar down to the han-

dle and pushing the drive control lever forward

until it clicks; then release the lever (See Fig_ 7)°

o Forward motion will stop when the operator

presence control bar is released_ To stop forward

motion without stopping the engine, release the

operator presence control bar slightly until the

drive control disengages_ Hold operator presence

control bar down to handle to continue mowing

without self-propelling.

o To keep drive control engaged when turning cor_

ners, push down on handle and Hft front wheels

off ground while turning lawn mower.

TO EMPTYGRASSCATCHER

o Lift rear door.

o Grasp catcher handle and remove from lawn

mower_

o Empty by shaking catcher with open end

downward (See Fig 8)_

TO ADJUSTCUTTINGHEIGHT

: cAuTION: DISCONNECTSPARK PLUG WiRE

FROMSPARKPLUGAND PLACEWIRE WHERE

IT CANNOTCOMEIN CONTACTWITH THESPARK

PLUG.

o Raise wheels for low cut and lower wheels for

high cut°

o Wheels are set in low cut for shipping_ Adjust cut-

ting height to suit your requirements° Medium

position is best for most lawns_

o To change cutting height, squeeze adjuster lever

toward wheel. Move wheel up or down to suit

your requirements. Be sure all wheels are in the

same setting (See Fig. 9)°

LPREBASE C

\\' TO ENGAGE _\ ORIVE CONTROL

DRIVE CONTROL DISENGAGED

FIG. 7

FIG. 8

LOWER WHEELS "- -',._, RAISE WHEELS

FOR LOW CUT

FIG. 9

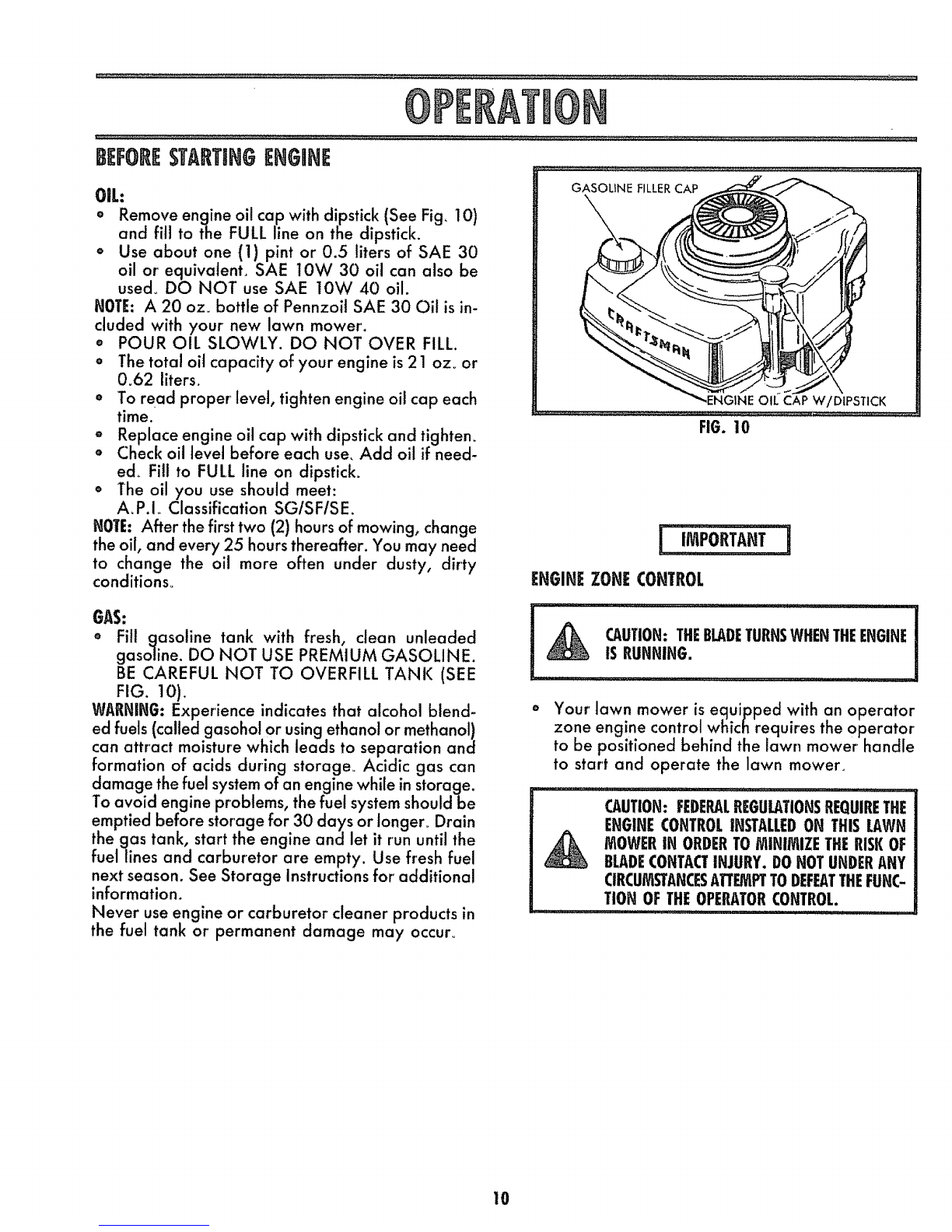

OiL: GASOLINE FILLERCAP

Remove engine oil cap with dipstick (See Fig, 10)

and fill to the FULL line on the dipstick.

o Use about one (1) pint or 0.5 liters of SAE 30

oil or equivalent SAE 10W 30 oil can also be

used_ DO NOT use SAE 10W 40 oil.

NOTE: A 20 oz. bottle of Pennzoil SAE 30 Oil is in-

cluded with your new lawn mower.

POUR OIL SLOWLY. DO NOT OVER FILL.

o The total oil capacity of your engine is 21 ozo or

0_62 liters°

° To read proper level, tighten engine oil cap each

time.

o Replace engine oil cap with dipstick and tighten.

Check oil level before each use, Add oil if need-

edo Fill to FULL line on dipstick°

The oil you use should meet:

A,P.I.. Classification SG/SFISE.

NOTE:After the first two (2) hours of mowing, change

the oil, and every 25 hours thereafter. You may need

to change the oil more often under dusty, dirty

conditions°

,ENGINE OIL CAP W/DIPSTICK

FIG. 10

ENGINe:ZONECONTROL

GAS:

Fill gasofine tank with fresh, clean unleaded

gasoline. DO NOT USE PREMIUM GASOLINE.

BE CAREFUL NOT TO OVERFILL TANK (SEE

FIG. 10).

WARNING: Experience indicates that alcohol blend-

ed fuels (called gasohol or using ethanol or methanol)

can attract moisture which leads to separation and

formation of acids during storage° Acidic gas can

damage the fuel system of an engine while in storage.

To avoid engine problems, the fuel system shouldbe

emptied before storage for 30 days or tonger_ Drain

the gas tank, start the engine and let it run until the

fuel lines and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for additional

information.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur_

CAUTION: THEBLADETURNSWHENTHEENGINEI

IS RUNNING. I

Your' lawn mower is equipped with an operator

zone engine control which requires the operator

to be positioned behind the lawn mower' handle

to start and operate the lawn mower_

CAUTION: FEDERALREGULATIONSREQUIRETHE

ENGINE CONTROLINSTALLEDON THIS LAWN

MOWER IN ORDERTO MINIMIZE THE RISKOF

BLADECONTACTINJURY. DO NOT UNDERANY

CIRCUMSTANCESATTEMPTTODEFEATTHEFUNC-

TION OF THE OPERATORCONTROL.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.374350 Manuel utilisateur

Craftsman

Craftsman 917.274351 Manuel utilisateur

Craftsman

Craftsman 917.385340 Manuel utilisateur

Craftsman

Craftsman 944.360080 Manuel utilisateur

Craftsman

Craftsman 247.370960 Manuel utilisateur

Craftsman

Craftsman 917.388480 Manuel utilisateur

Craftsman

Craftsman 99211 Manuel utilisateur

Craftsman

Craftsman 247.290004 Manuel utilisateur

Craftsman

Craftsman 917.275241 Manuel utilisateur

Craftsman

Craftsman 944.367742 Manuel utilisateur

Craftsman

Craftsman 917.378442 Manuel utilisateur

Craftsman

Craftsman 917.376223 Manuel utilisateur

Craftsman

Craftsman 917.385390 Manuel utilisateur

Craftsman

Craftsman 944.362470 Manuel utilisateur

Craftsman

Craftsman 917.287440 Manuel utilisateur

Craftsman

Craftsman 25380 Manuel utilisateur

Craftsman

Craftsman 917.273131 Manuel utilisateur

Craftsman

Craftsman 917.389151 Manuel utilisateur

Craftsman

Craftsman 917.275703 Manuel utilisateur

Craftsman

Craftsman 917.370810 Manuel utilisateur

Craftsman

Craftsman 917.254750 Manuel utilisateur

Craftsman

Craftsman 917.273398 Manuel utilisateur

Craftsman

Craftsman EZ 917.270922 Manuel utilisateur

Craftsman

Craftsman 917.376301 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
