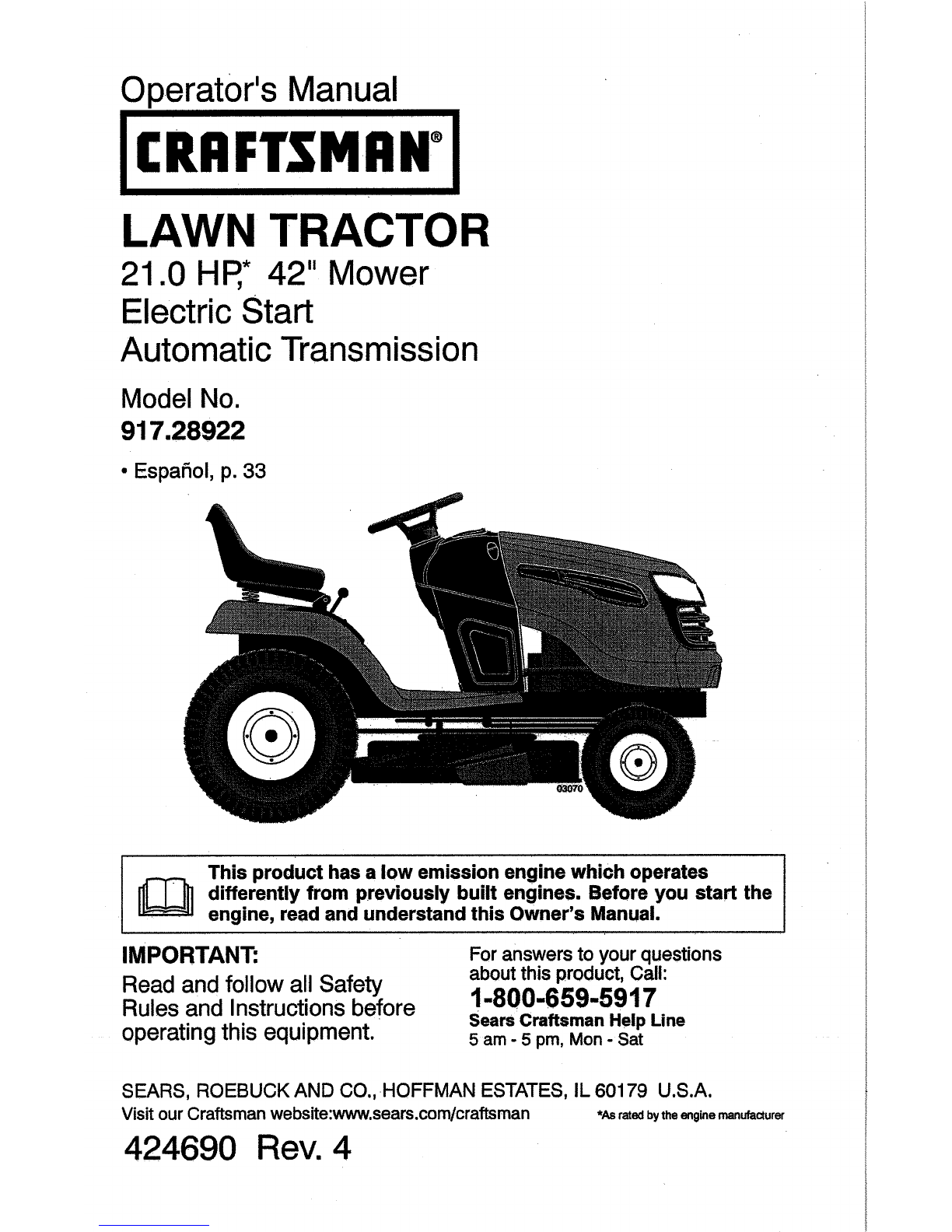

Craftsman 917.28922 Manuel utilisateur

Operator's Manual

[CRRFT.TMRN°[

LAWN TRACTOR

21.0 HR* 42" Mower

Electric Start

Automatic Transmission

Model No.

917.28922

• EspaSol, p. 33

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO.,-HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.comtcraftsman *AsrataWtheeng_er=nu_=urer

424690 Rev. 4

Warranty .................................................. 2

Safety Rules ............................................ 3

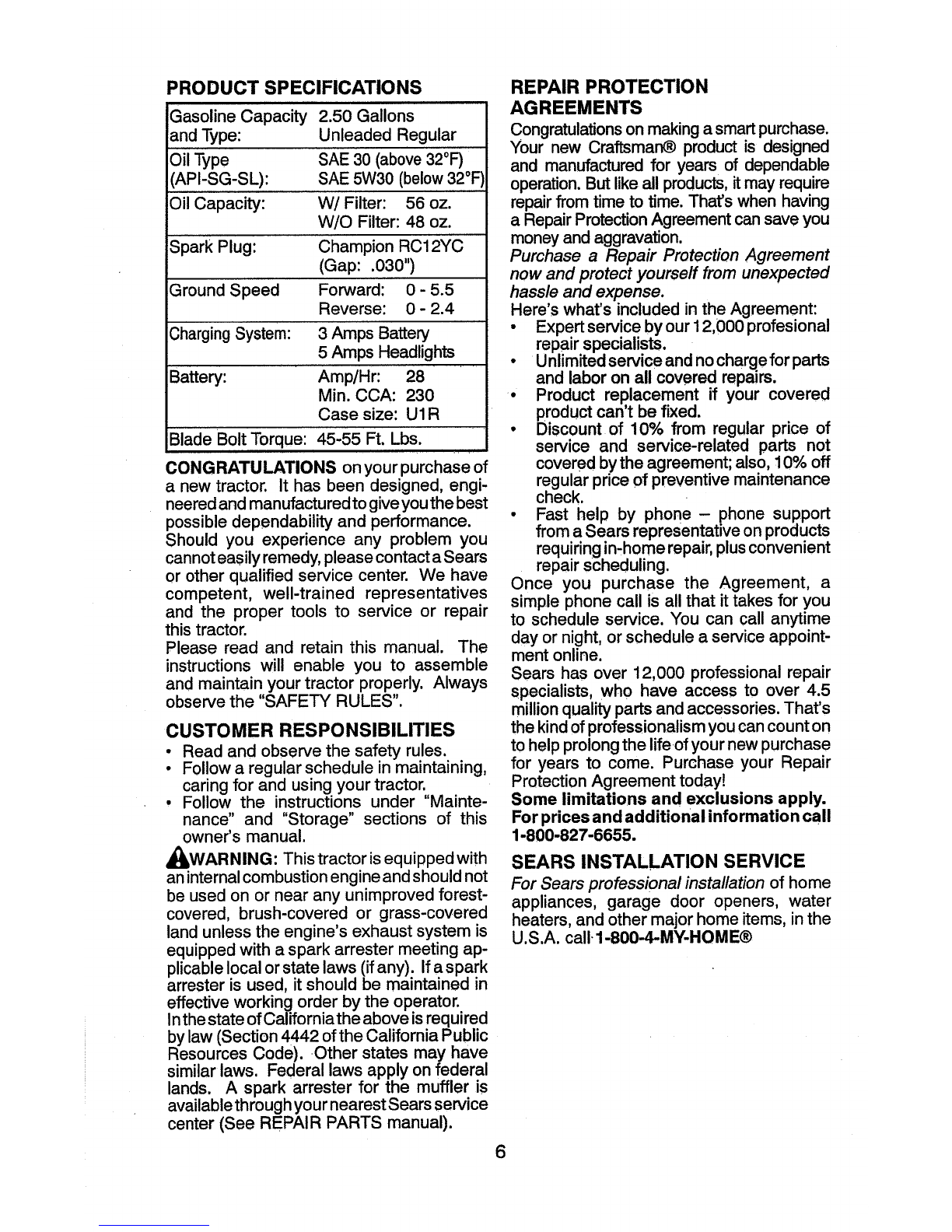

Product Specifications ............................. 6

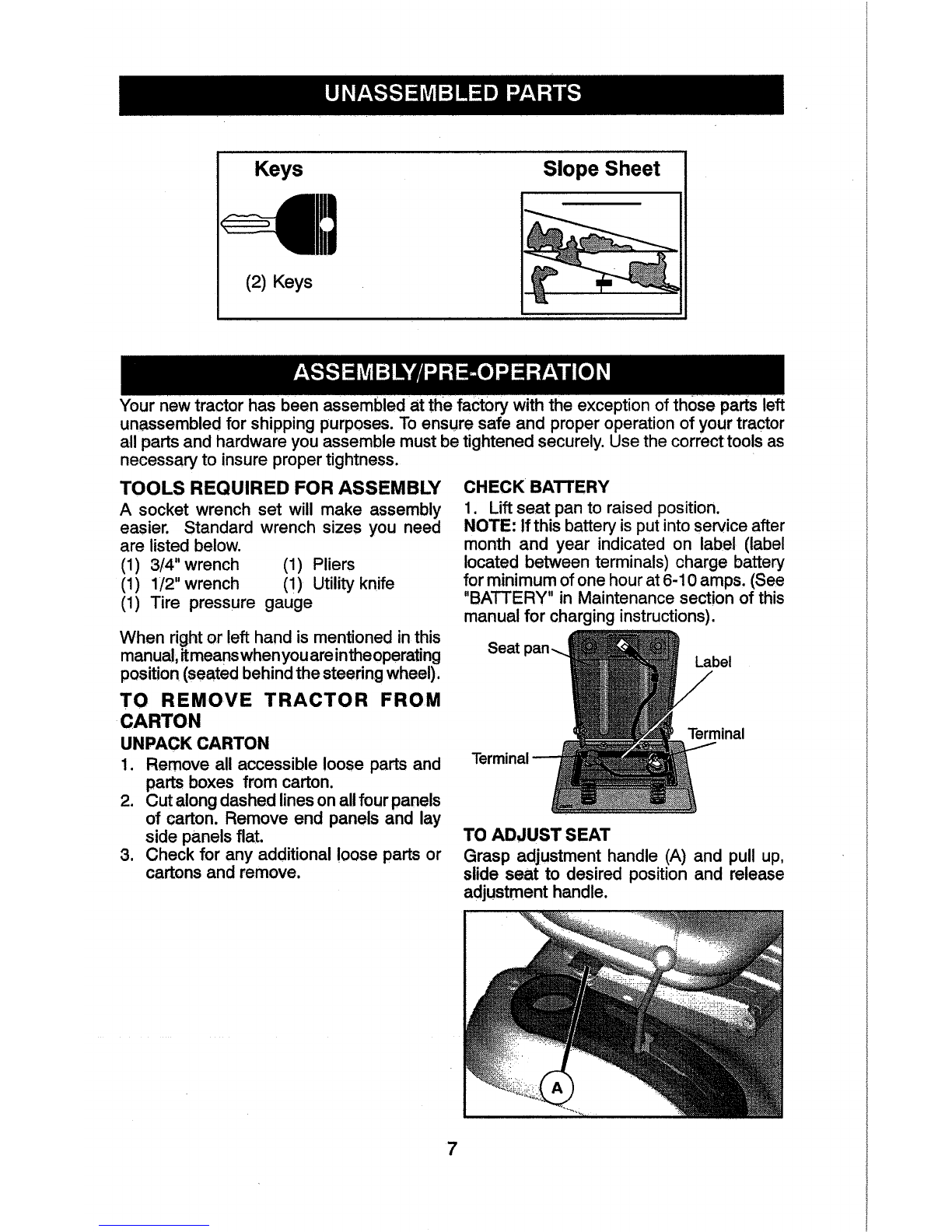

Assembly/Pre-Operation ......................... 7

Operation ................................................. 9

Maintenance Schedule .......................... 16

Maintenance .......................................... 16

Service and Adjustments ....................... 21

Storage .................................................. 27

Troubleshooting ................. .................... 28

Sears Service .......................... Back Cover

Craftsman Riding Equipment Warranty:

Lawn Tractors, Garden Tractors, Zero Turn Riders

CRAFTSMAN TWO YEAR FULL WARRANTY

FOR TWO YEARS from the date of purchase, if any non-expendable part of this riding

equipmentfails due to a defect in material or workmanship,visit www.craftsman.com or

call 1-800-659-5917 to arrange for free in-home repair.

The frame and front axle will be repaired free of charge for five years from the date of

purchase if defective in material or workmanship.

In all cases, if repair proves impossible, the riding equipment will be replaced free of

charge with the same or an equivalent model.

The battery will be replaced free of charge for 90 days from the date of purchase if

defective in material or workmanship (our testing proves that it will not hold a charge).

This warranty is void if this product is ever used while providing commercial services or if

rented to another person.

This warranty covers ONLY defects in material and workmanship. Warranty

coverage does NOT include:

• Expendable items that can wear out from normal use within the warranty period,

including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard maintenance servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance.

• Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris, or

failure to maintain the riding equipment according to the instructions contained in the

operator's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be con-

taminated or oxidized (stale). In general, fuel should be used within 30 days of its

•purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

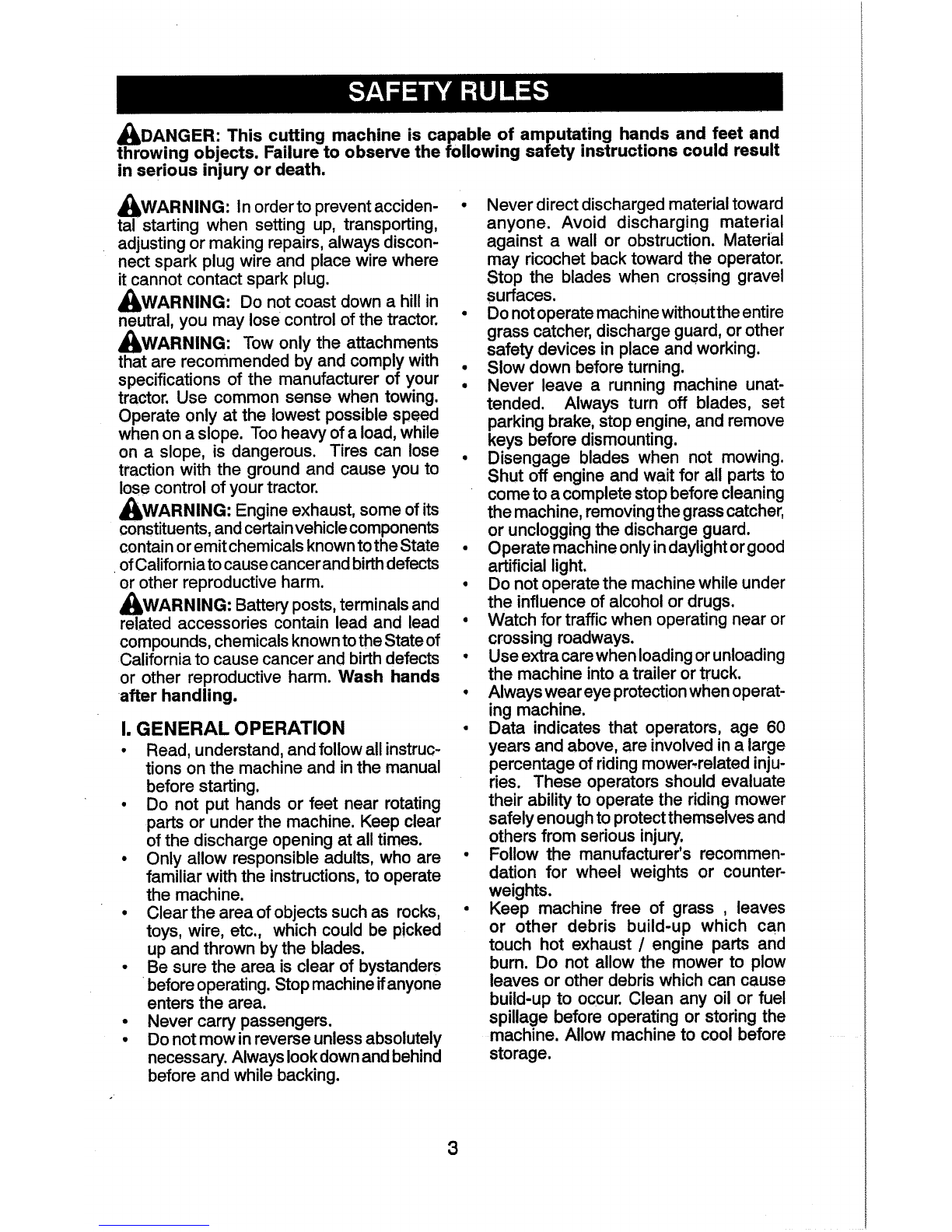

_,DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_!bWARNING: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on aslope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_WARNING: Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known to the State

•of California to cause cancer and birthdefects

or other reproductive harm.

_JLWARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

•Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blades.

•Be sure the area is clear of bystanders

•before operating. Stop machine ifanyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator.

Stop the blades when crossing gravel

surfaces.

•Do not operate machine withoutthe entire

grass catcher, discharge guard, or other

safety devices in place and working.

•Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge guard.

• Operate machine only in daylight or good

artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

•Use extra carewhen loading or unloading

the machine into a trailer or truck.

° Always wear eye protection when operat-

ing machine.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower, related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

•Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

•Keep machine free of grass , leaves

or other debris build-up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II, SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back up the slope or ifyou feel uneasy

on it, do not mow it.

,Mow up and down slopes, not across.

•Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that you

will not have to stop or shift while on the

• slope.

• Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shiftto neutral

and coast downhill.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

•Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

•Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

•Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

•Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

•Never allow children to operate the ma-

chine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV.TOWING

Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

Follow the manufacturer's recomm_ ;nda-

tion for weight limits for towed equipment

and towing on slopes.

Never allow children or others in or on

towed equipment.

On slopes, the weight ofthe towed equip-

ment may cause loss of traction and loss

of control.

Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

•Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

•Never fuel the machine indoors.

•Neverstorethemachineorfuelcontainer

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

•Never fill'containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

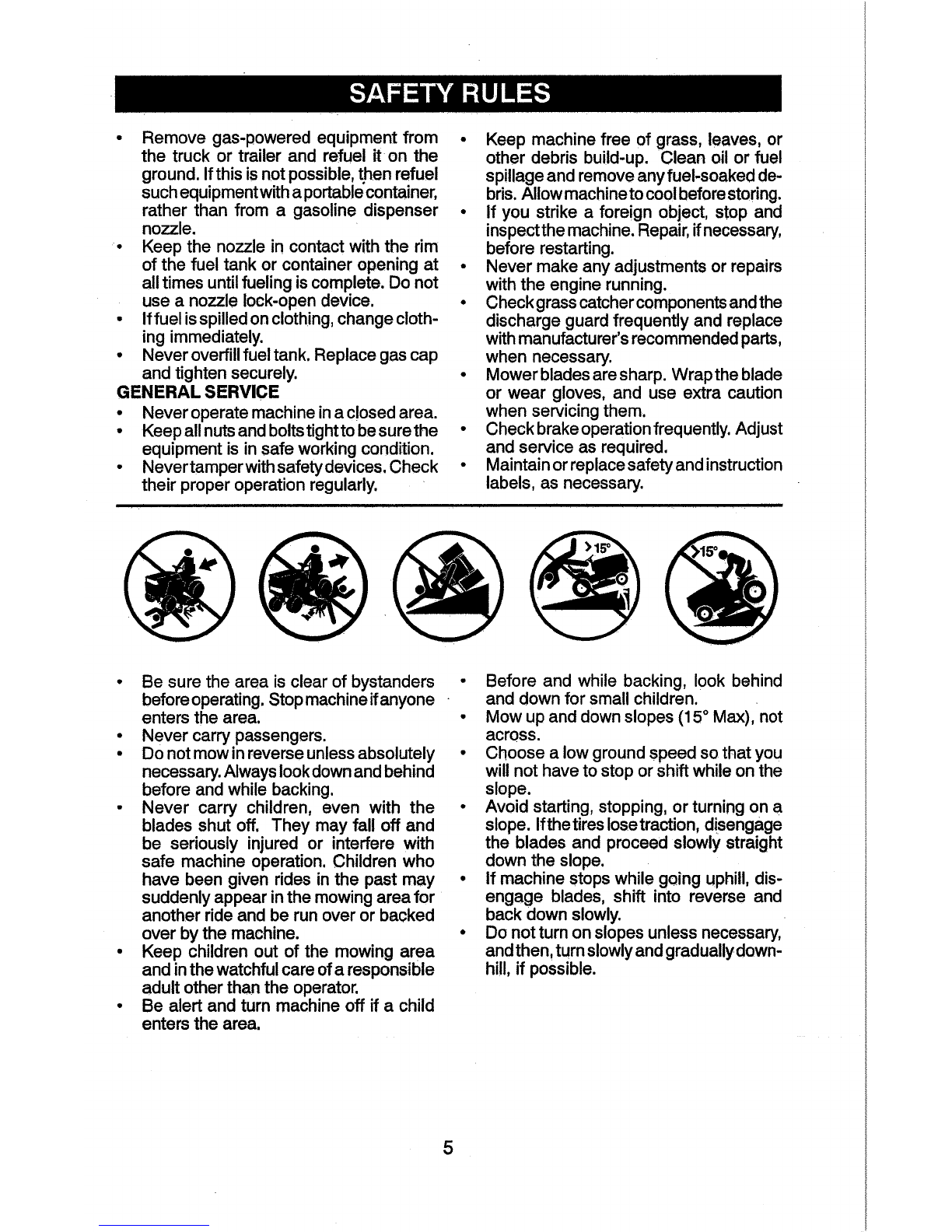

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then refuel

such equipment with a portable container,

rather than from a gasoline dispenser

nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• Iffuel is spilled on clothing, change cloth-

ing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

•Never operate machine in a closed area.

• Keep all nuts and bolts tightto be surethe

equipment is in safe working condition.

•Nevertamperwith safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked de-

bris. Allow machine to cool before storing.

•If you strike a foreign object, stop and

inspectthe machine. Repair, ifnecessary,

before restarting.

• Never make any adjustments or repairs

with the engine running.

•Check grass catcher components and the

discharge guard frequently and replace

with manufacturer's recommended parts,

when necessary.

•Mower blades are sharp. Wrapthe blade

or wear gloves, and use extra caution

when servicing them.

• Check brakeoperationfrequently. Adjust

and service as required.

• Maintain or replace safety and instruction

labels, as necessary.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15°Max), not

across.

• Choose a low ground speed sothat you

will not have to stop or shiftwhile on the

slope.

•Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

•If machine stops while going uphill, dis-

engage blades, shift into reverse and

back down slowly.

•Do not turnon slopes unless necessary,

andthen,turnslowlyandgraduallydown-

hill,if possible.

• Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never carry children, even with the

blades shut off, They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

Be alert and turn machine off if a child

enters the area.

PRODUCT SPECIFICATIONS

Gasoline Capacity

and Type:

Oil Type

(API-SG-SL):

Oil Capacity:

2.50 Gallons

Unleaded Regular

SAE 30 (above 32°F)

SAE 5W30 (below 32°F

W/Filter: 56 oz.

W/O Filter: 48 oz.

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0 - 5.5

Reverse: 0 - 2.4

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a Sears

or other qualified service center. We have

competent, well-trained representatives

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintaining,

caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor s equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained in

effective working order by the operator.

In the state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsmar_ product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profesional

repair specialists.

• Unlimited service and no charg.e for parts

and labor on all covered repa!rs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check.

• Fast help by phone - phone support

from a Sears representative on products

requiring in,home repair, plus convenient

repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service appoint-

ment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the lifeof your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call.1-800-4-MY-HOME®

Keys

(2) Keys

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. Toensure safe and proper operation of your tractor

allparts and hardware you assemble must be tightened securely. Use the correct toolsas

necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in this

manual, itmeanswhenyou areintheoperating

position(seated behind the steering wheel).

CHECK BA'I-FERY

1. Liftseat pan to raised position.

NOTE: If this batteryisput intoservice after

month and year indicated on label (label

located between terminals) charge battery

forminimum of one hourat 6-10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions).

Seat Label

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dashed lines on all four panels

of carton. Remove end panels and lay

side panels flat.

3. Check for any additional loose parts or

cartons and remove.

Terminal

TO ADJUST SEAT

Grasp adjustment handle (A) and pull up,

slide seat to desired position and release

adjustment handle.

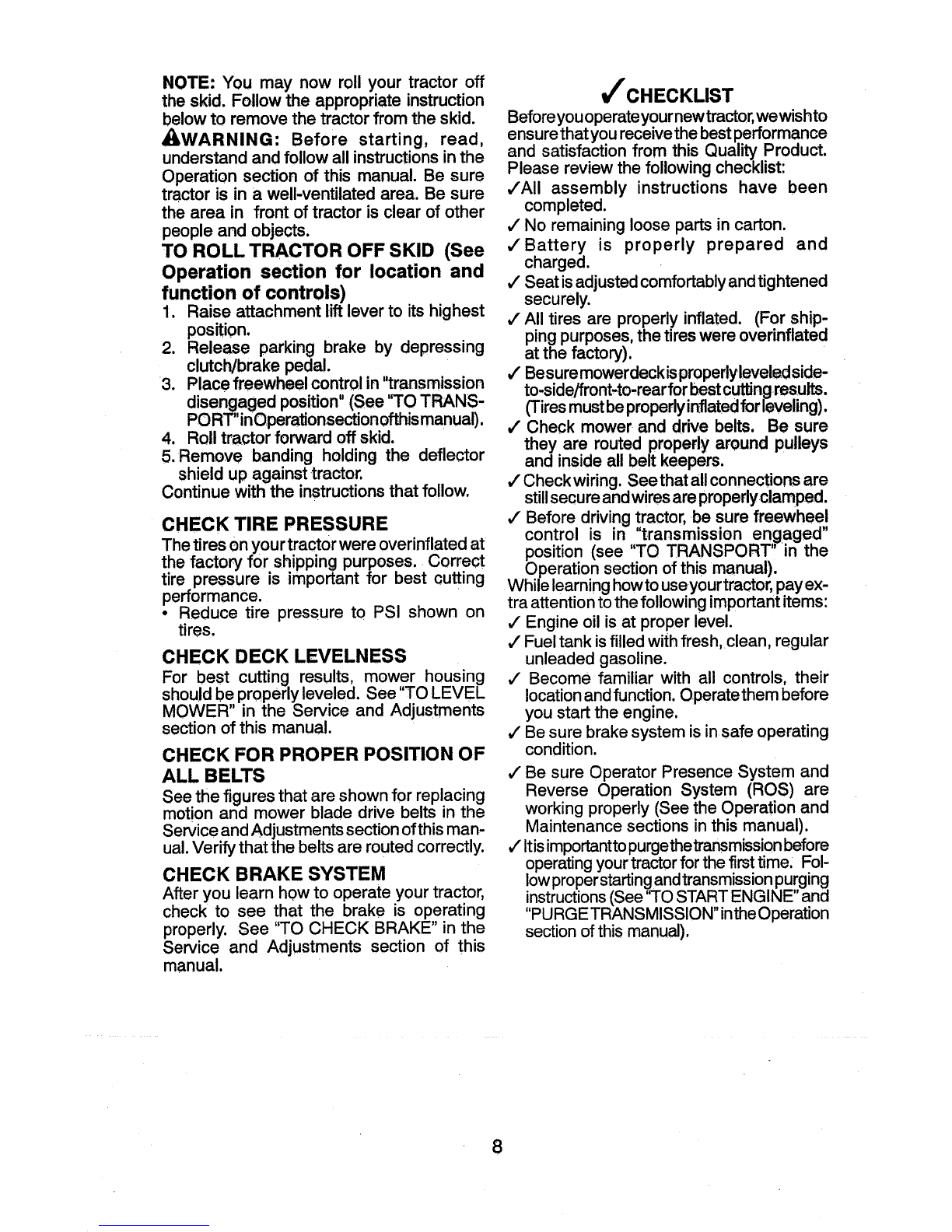

NOTE: You may now roll your tractor off

the skid. Follow the appropriate instruction

below to remove the tractor from the skid.

_WARNING: Before starting, read,

understand and follow all instructionsin the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "transmission

disengaged position"(See "TO TRANS-

PORT' inOperationsectionofthismanual).

4. Roll tractor forward off skid.

5.Remove banding holding the deflector

shield up against tractor.

Continue with the instructionsthat follow.

CHECK TIRE PRESSURE

The tireson yourtractorwere overinflated at

the factory for shipping purposes. Correct

tire pressure is important for best cutting

performance.

•Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEE

MOWER" in the Service and Adjustments

section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section of this man-

ual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating

properly. See "TO CHECK BRAKE" in the

Service and Adjustments section of this

manual.

_'CHECKLIST

Beforeyouoperateyournewtractor,wewishto

ensurethatyou receivethe bestperformance

and satisfaction from this Quality Product.

Please review the followingchecklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged.

,/Seat isadjustedcomfortablyandtightened

securely.

,/All tires are properly inflated. (For ship-

ping purposes,the tires were overinflated

at the factory).

,/Besure mowerdeckisproperlyleveledside-

to-side/front-to.rearforbest cuttingresults.

(Tiresmustbeproperlyinflatedforleveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See thatall connectionsare

stillsecureandwiresare properlyclamped.

,/Before drivingtractor,be sure freewheel

control is in "transmission engaged"

pos tion (see "TO TRANSPORT" in the

Operation section of this manual).

While learninghowtouseyourtractor,payex-

tra attentiontothe following importantitems:

4Engine oil is at proper level.

,/Fuel tank isfilled withfresh, clean, regular

unleaded gasoline.

,/ Become familiar with all controls, their

locationandfunction.Operatethem before

you start the engine.

,/Be sure brake system isinsafe operating

condition.

`/Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

,/It isimportanttopurgethetransmissionbefore

operatingyourtractorfor the firsttime: Fol-

lowproperstartingandtransmissionpurging

instructions(See'q'O STARTENGINE" and

"PURGETRANSMISSION"inthe Operation

sectionofthismanual).

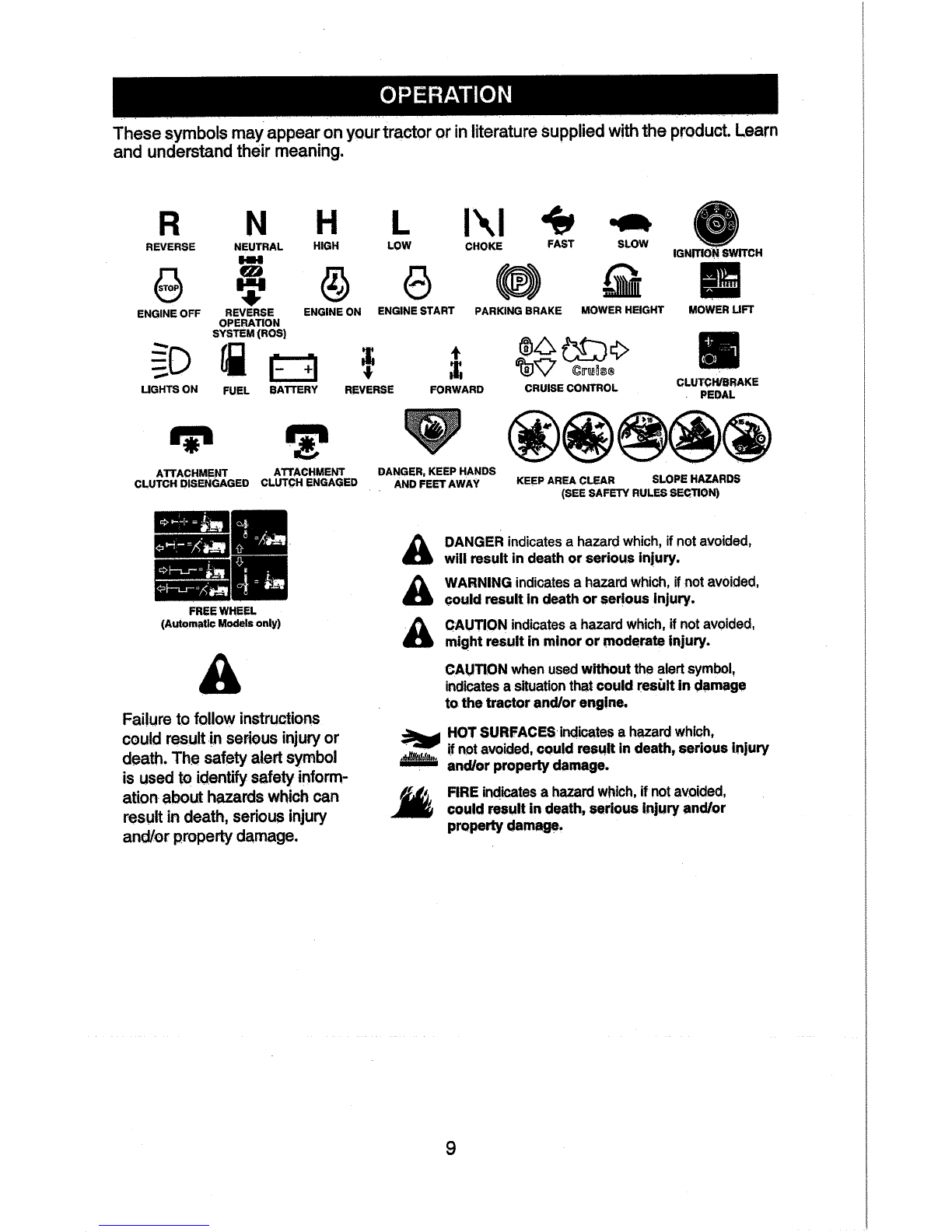

These symbols may appear onyourtractor or inliterature supplied with the product, Learn

and understand their meaning.

R N H L I\1 "e

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

i.ml

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

CRUISE CONTROL

UGHTS ON FUEL BATTERY REVERSE FORWARD

IGNmON SWITCH

MOWER UFT

CLUTCH/BRAKE

PEDAL

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious inj_ or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazardwhich,ifnotavoided,

will resultin death or serious injury.

WARNING indicatesa hazardwhich,ifnotavoided,

could result in death or serious Injury.

CAUTION indicatesa hazardwhich,ifnotavoided,

mightresult in minoror moderate injury.

CAUTIONwhenusedwithout thealertsymbol,

indicatesa situationthatcould resultin damage

to the tractorand/or engine,

:_1_, HOT SURFACES indicates a hazard which,

if notavoided, could result in death, serious Injury

and/or property damage.

._ RRE indicatesa hazardwhich,ifnotavoided,

could result in death,serious injury and/or

propertydamage,

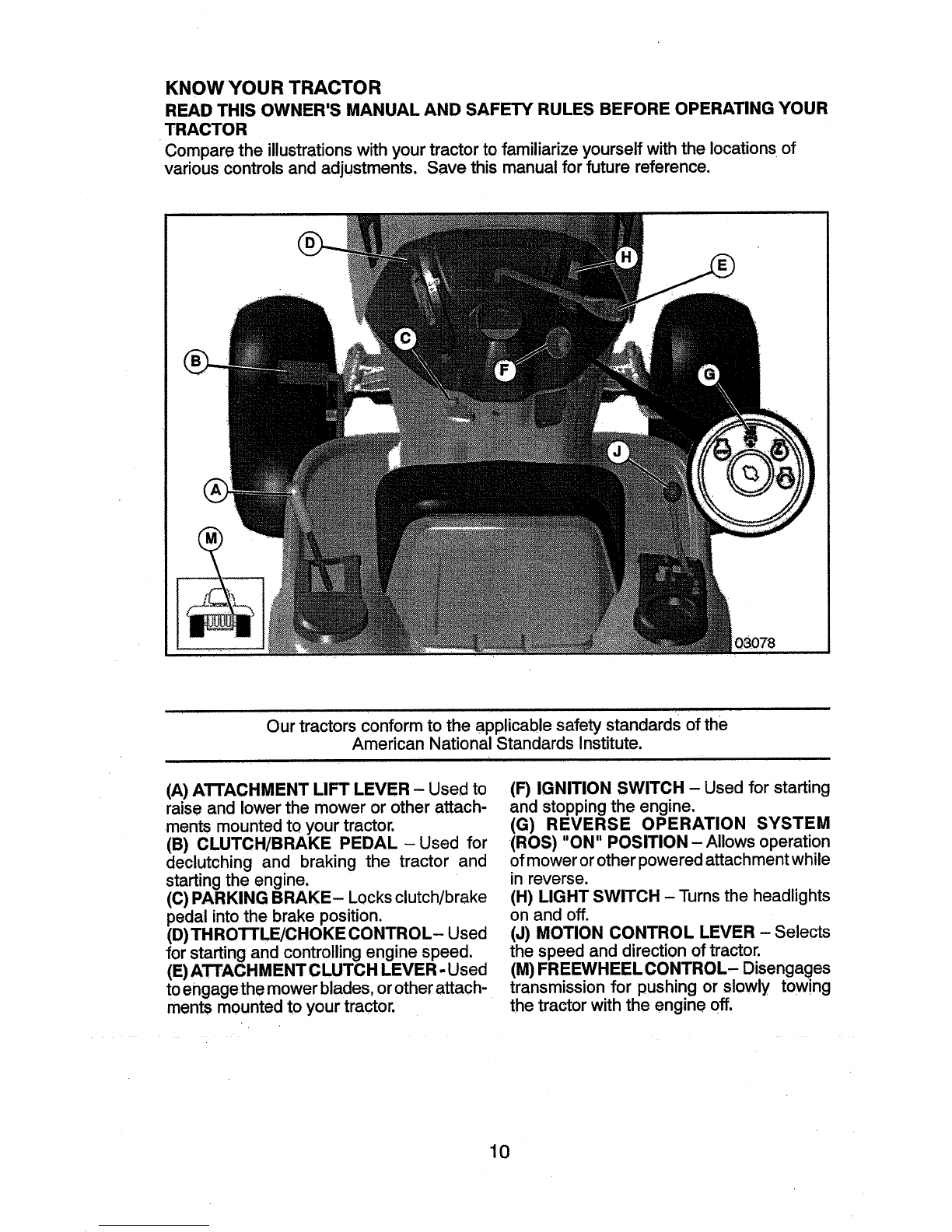

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

03078

Our tractors conform to the applicable safety standards of the

American National Standards Institute.

(A) ATTACHMENT LIFT LEVER - Used to

raise and lower the mower or other attach-

ments mounted to your tractor.

(B) CLUTCH/BRAKE PEDAL- Used for

declutching and braking the tractor and

starting the engine.

pedal into the brake position.

(D) THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

(E) ATTACH MENT CLUTCH LEVER. Used

to engage the mower blades, or other attach-

ments mounted to your tractor.

(F) IGNITION SWITCH - Used for starting

and stopping the engine.

(G) REVERSE OPERATION SYSTEM

(ROS) "ON" POSITION - Allows operation

of mower or other powered attachment while

in reverse.

(H) LIGHT SWITCH - Turns the headlights

on and off.

(J) MOTION CONTROL LEVER -Selects

the speed and direction of tractor.

(M) FREEWHEEL CONTROL- Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

Autres manuels pour 917.28922

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.388153 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259551 Manuel utilisateur

Craftsman

Craftsman 917.28947 Manuel utilisateur

Craftsman

Craftsman 917.271531 Manuel utilisateur

Craftsman

Craftsman 502.255070 Manuel utilisateur

Craftsman

Craftsman 917.272263 Manuel utilisateur

Craftsman

Craftsman EZ3 917.388152 Manuel utilisateur

Craftsman

Craftsman 917.370860 Manuel utilisateur

Craftsman

Craftsman 917.387490 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273031 Manuel utilisateur

Craftsman

Craftsman 917.374550 Manuel utilisateur

Craftsman

Craftsman 917.20390 Manuel utilisateur

Craftsman

Craftsman 247.38529 Manuel utilisateur

Craftsman

Craftsman 917.376452 Manuel utilisateur

Craftsman

Craftsman 25321 Manuel utilisateur

Craftsman

Craftsman 917.370940 Manuel utilisateur

Craftsman

Craftsman 247.28901 Manuel utilisateur

Craftsman

Craftsman 27717 Manuel utilisateur

Craftsman

Craftsman 917.25958 Manuel utilisateur

Craftsman

Craftsman 3One 917.254860 Manuel utilisateur

Craftsman

Craftsman 247.38821 Manuel utilisateur

Craftsman

Craftsman ZTS 7000 Manuel utilisateur

Craftsman

Craftsman 917.288670 Manuel utilisateur

Craftsman

Craftsman 917.272351 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
