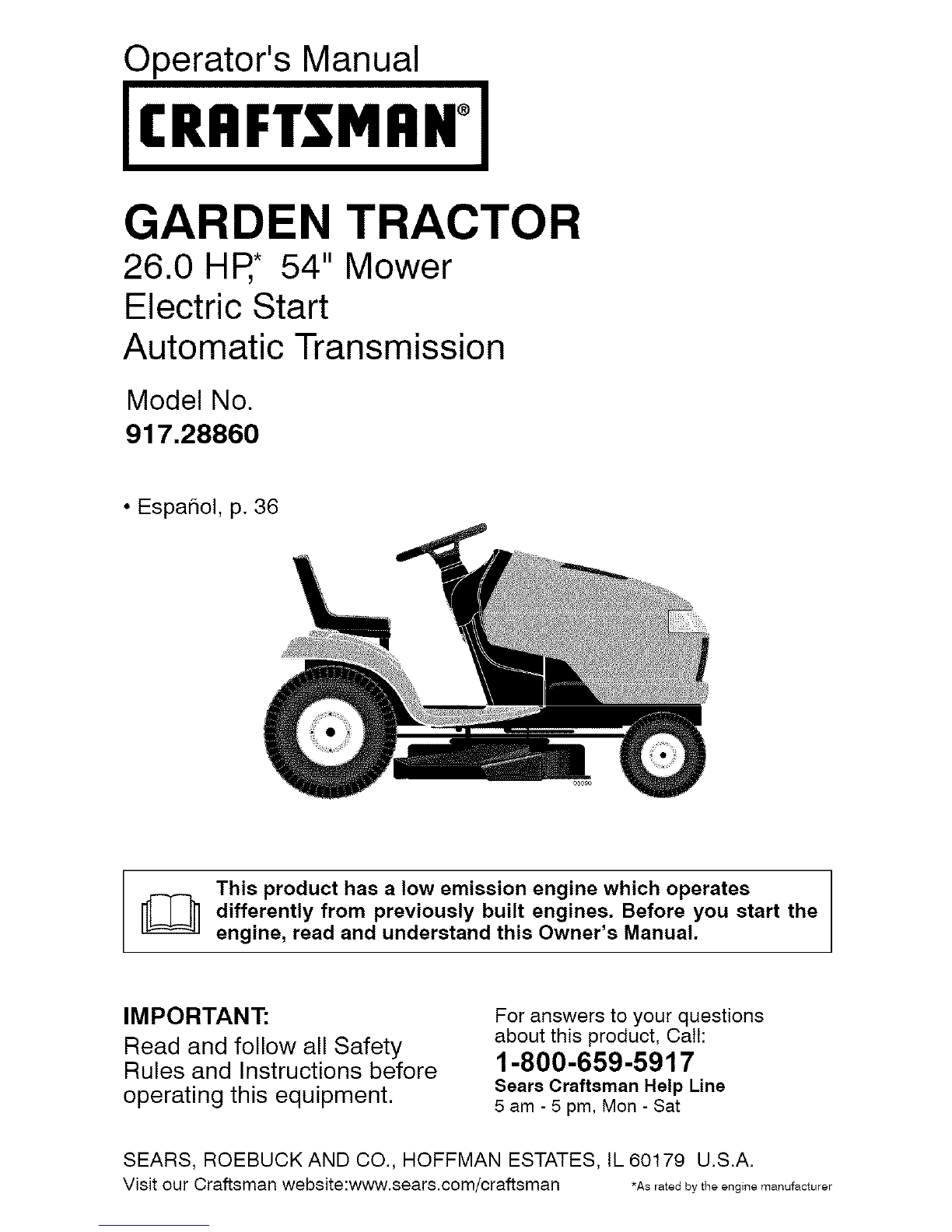

Craftsman 917.288600 Manuel utilisateur

Operator's Manual

JCRIIFTSMI N°J

GARDEN TRACTOR

26.0 HR* 54" Mower

Electric Start

Automatic Transmission

Model No.

917.28860

• Espar_ol, p. 36

This product has a low emission engine which operates

[_]]] differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mort -Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

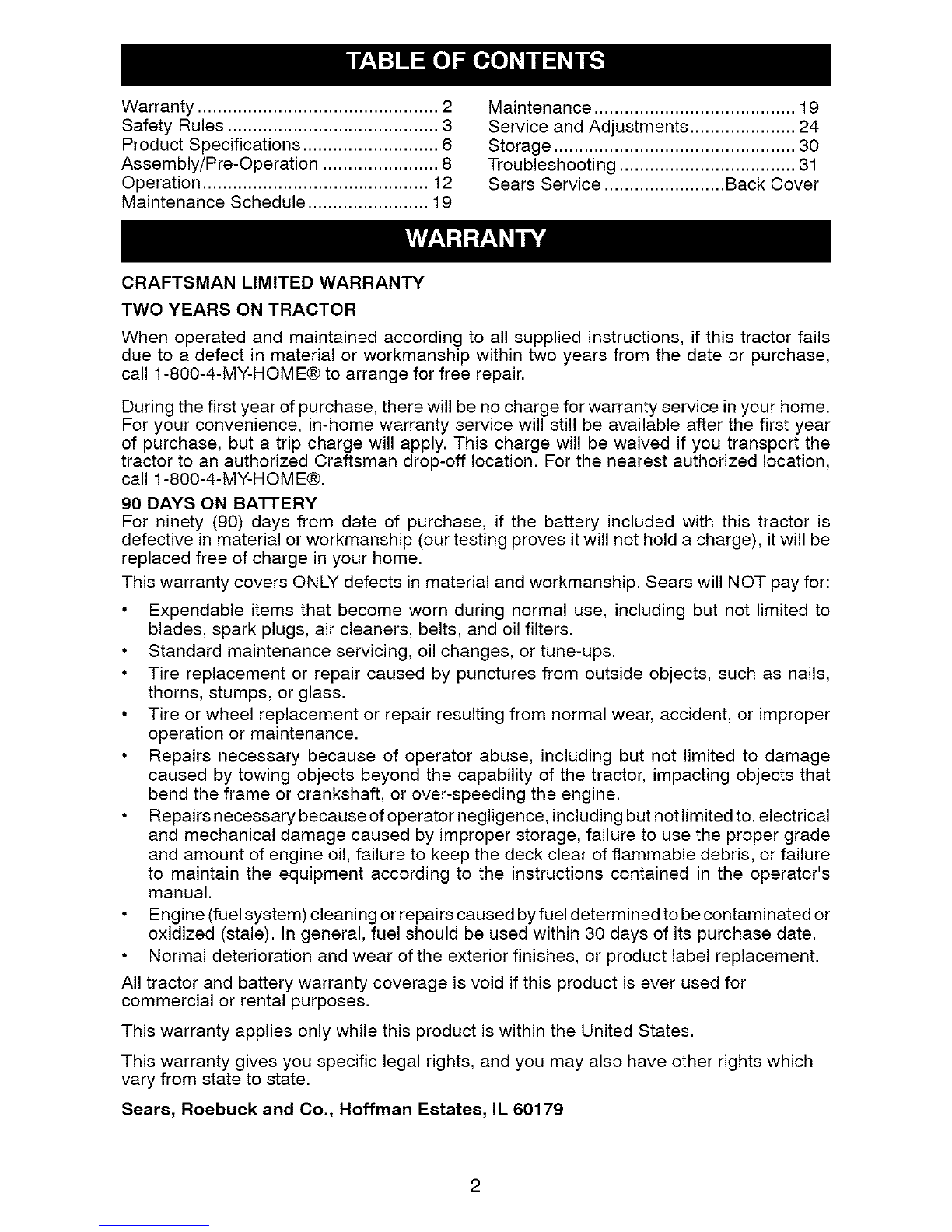

Warranty ................................................ 2

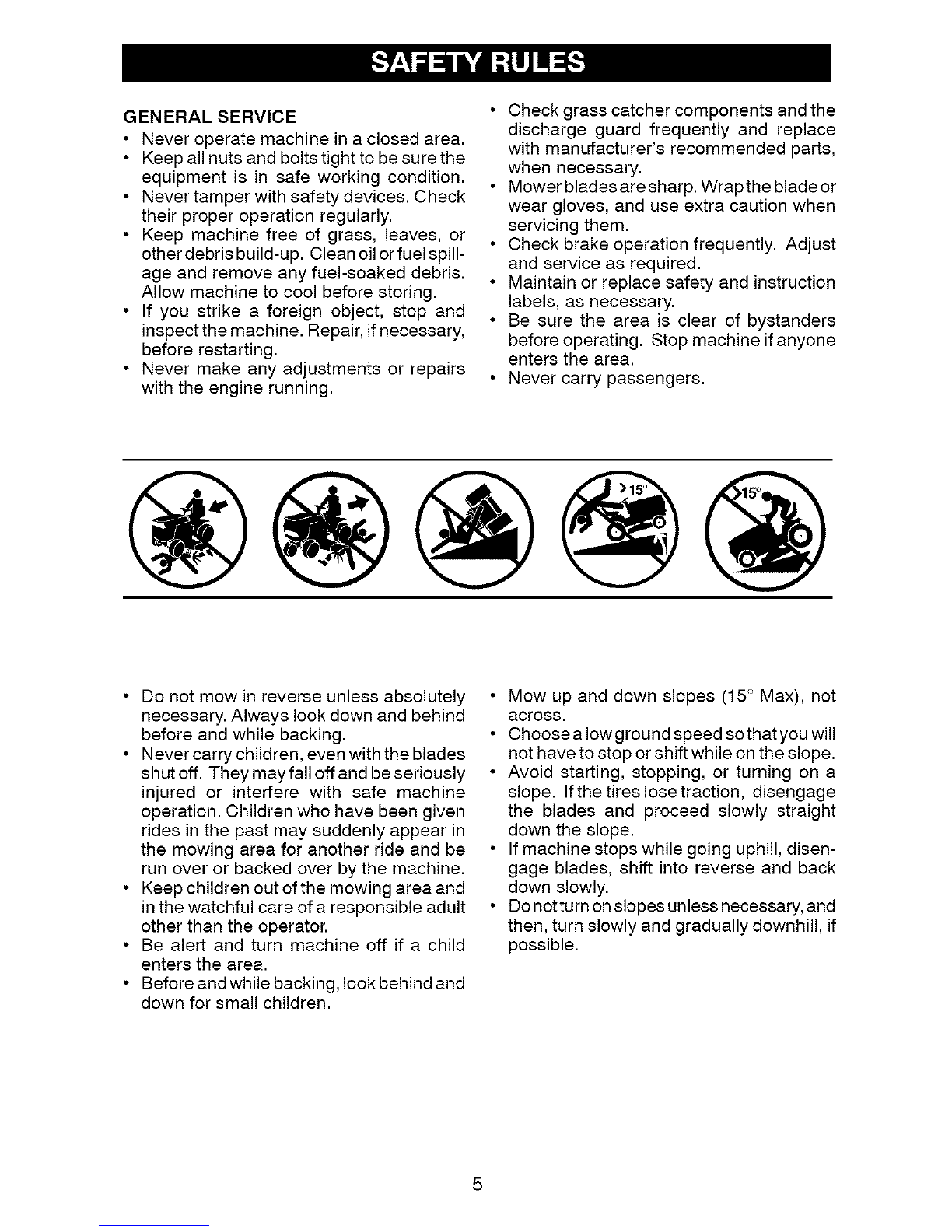

Safety Rules .......................................... 3

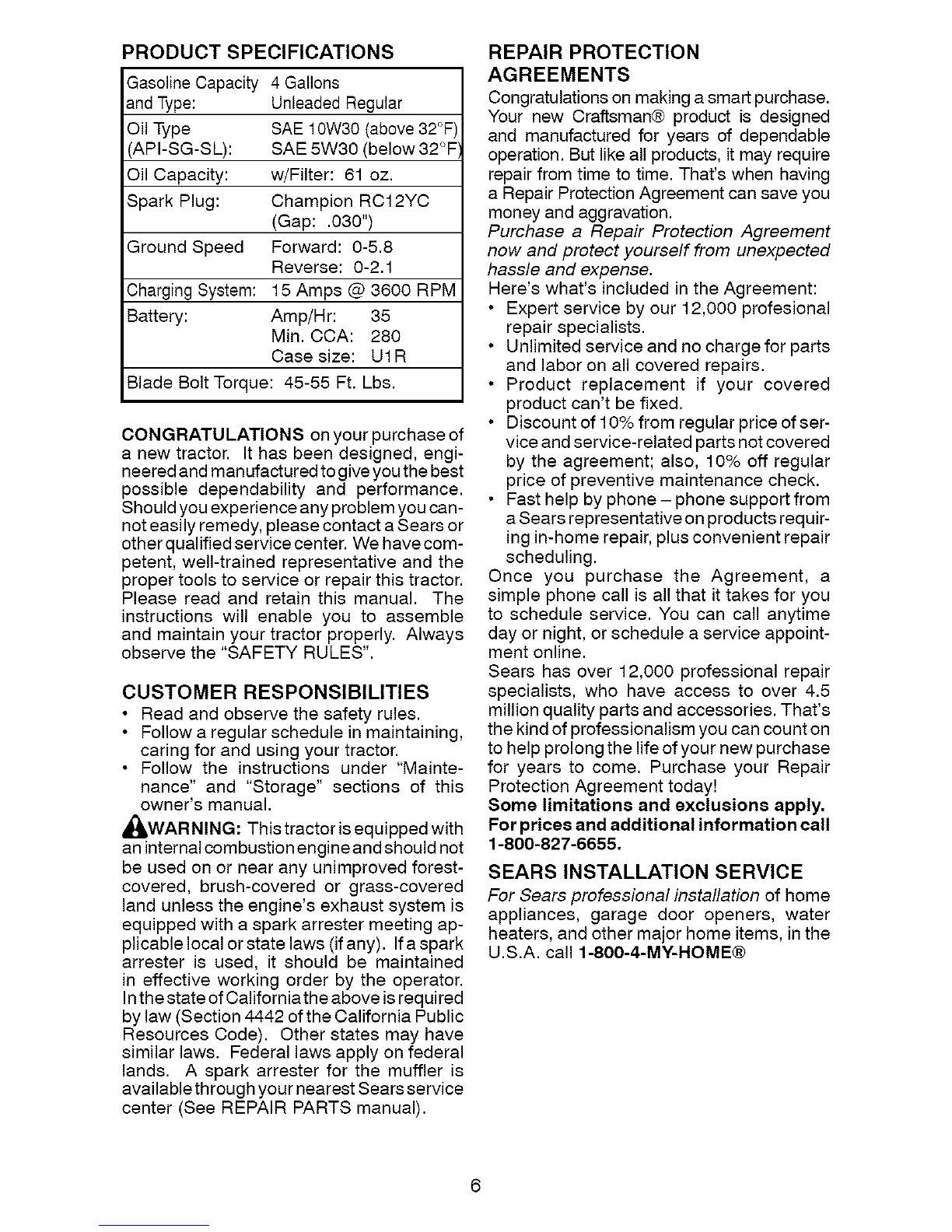

Product Specifications ........................... 6

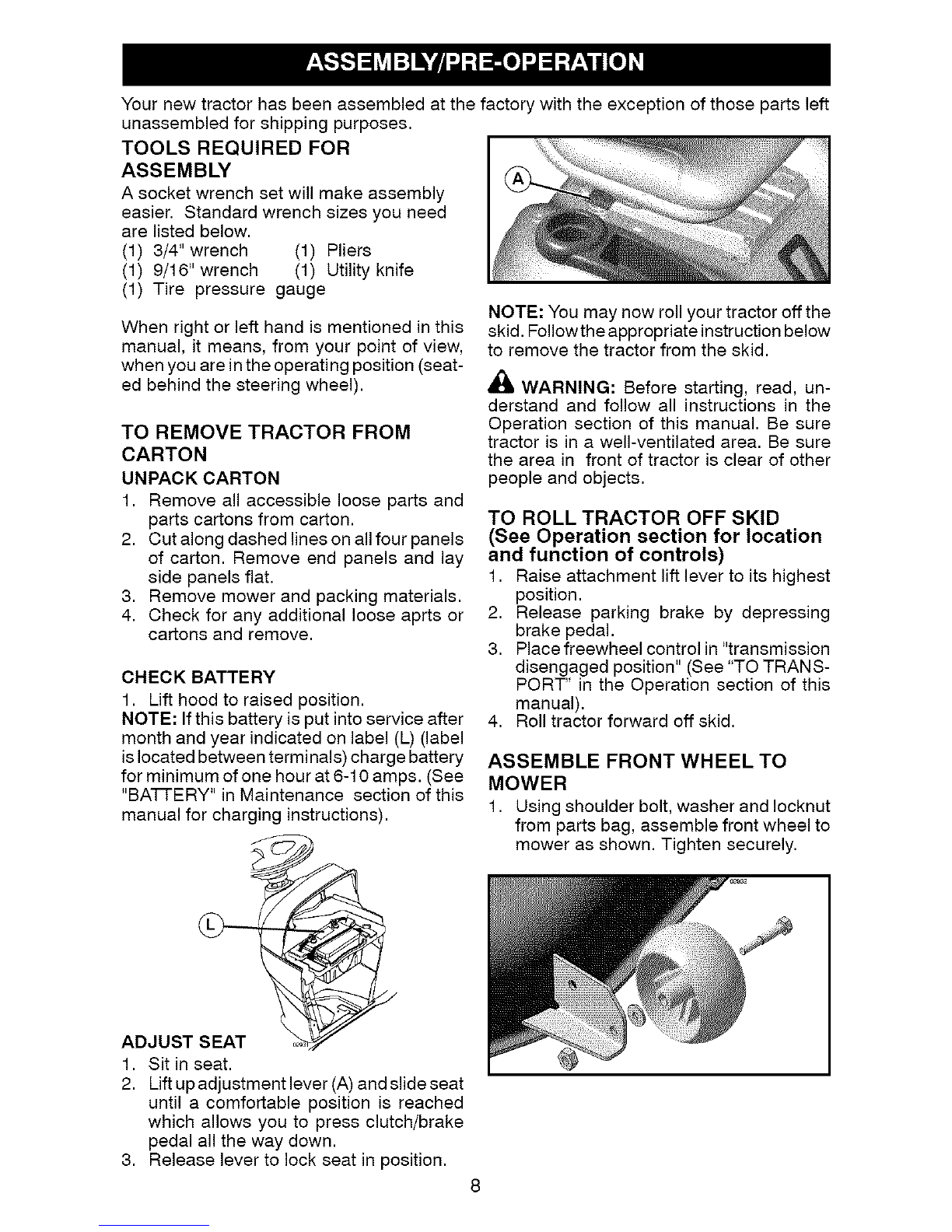

Assembly/Pre-Operation ....................... 8

Operation ............................................. 12

Maintenance Schedule ........................ 19

Maintenance ........................................ 19

Service and Adjustments ..................... 24

Storage ................................................ 30

Troubleshooting ................................... 31

Sears Service ........................ Back Cover

CRAFTSMAN LIMITED WARRANTY

TWO YEARS ON TRACTOR

When operated and maintained according to all supplied instructions, if this tractor fails

due to a defect in material or workmanship within two years from the date or purchase,

call 1-800-4-MY-HOME® to arrange for free repair.

During the first year of purchase, there will be no charge for warranty service in your home.

For your convenience, in-home warranty service will still be available after the first year

of purchase, but a trip charge will apply. This charge will be waived if you transport the

tractor to an authorized Craftsman drop-off location. For the nearest authorized location,

call 1-800-4-MY-HOME®.

90 DAYS ON BA'B'ERY

For ninety (90) days from date of purchase, if the battery included with this tractor is

defective in material or workmanship (our testing proves it will not hold a charge), it will be

replaced free of charge in your home.

This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:

Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard maintenance servicing, oil changes, or tune-ups.

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance.

Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor, impacting objects that

bend the frame or crankshaft, or over-speeding the engine.

Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure

to maintain the equipment according to the instructions contained in the operator's

manual.

Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or

oxidized (stale). In general, fuel should be used within 30 days of its purchase date.

Normal deterioration and wear of the exterior finishes, or product label replacement.

All tractor and battery warranty coverage is void if this product is ever used for

commercial or rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

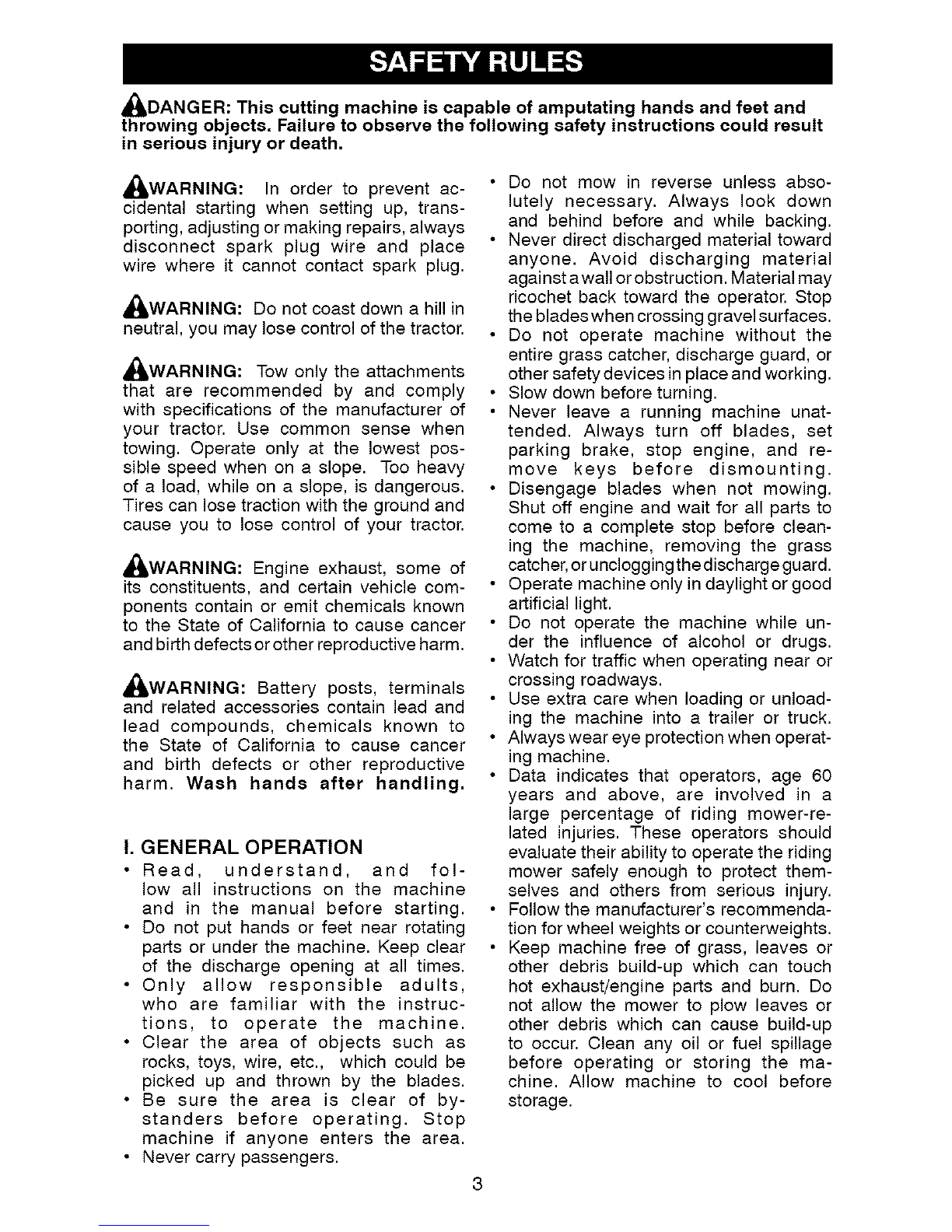

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death,

A_,WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs, always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

_,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest pos-

sible speed when on a slope. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

_IbWARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive harm.

,_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

Read, understand, and fol-

low all instructions on the machine

and in the manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults,

who are familiar with the instruc-

tions, to operate the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of by-

standers before operating. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material toward

anyone. Avoid discharging material

against awall or obstruction. Material may

ricochet back toward the operator. Stop

the bladeswhen crossing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard, or

other safety devices in place and working.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and re-

move keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge guard.

• Operate machine only in daylight or good

artificial light.

• Do not operate the machine while un-

der the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Always wear eye protection when operat-

ing machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Follow the manufacturer's recommenda-

tion for wheel weights or counterweights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust/engine parts and burn. Do

not allow the mower to plow leaves or

other debris which can cause build-up

to occur. Clean any oil or fuel spillage

before operating or storing the ma-

chine. Allow machine to cool before

storage.

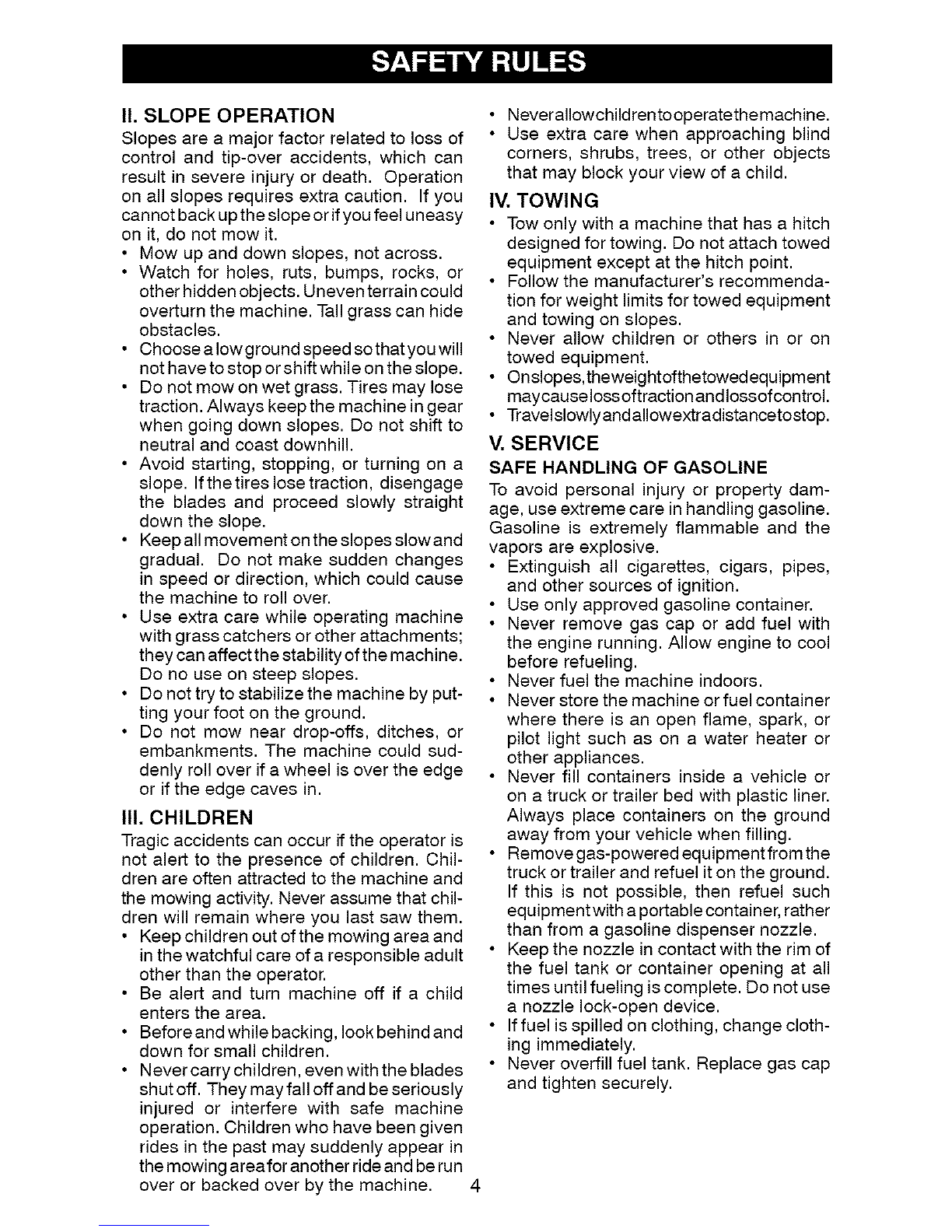

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

can not back up the slope or if you feel uneasy

on it, do not mow it.

•Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain could

overturn the machine. Tall grass can hide

obstacles.

•Choose alowground speed sothat you will

not have to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose

traction. Always keep the machine in gear

when going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• Keep all movement on the slopes slowand

gradual. Do not make sudden changes

in speed or direction, which could cause

the machine to roll over.

• Use extra care while operating machine

with grass catchers or other attachments;

they can affectthe stability of the machine.

Do no use on steep slopes.

• Do not try to stabilize the machine by put-

ting your foot on the ground.

• Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator is

not alert to the presence of children. Chil-

dren are often attracted to the machine and

the mowing activity. Never assume that chil-

dren will remain where you last saw them.

• Keep children out of the mowing area and

in the watchful care of a responsible adult

other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind and

down for small children.

• Never carry children, even with the blades

shutoff. They may fall offand be seriously

injured or interfere with safe machine

operation. Children who have been given

rides in the past may suddenly appear in

the mowing area for another ride and be run

over or backed over by the machine. 4

Neverallowchildrentooperatethemachine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

• Follow the manufacturer's recommenda-

tion for weight limits for towed equipment

and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes,theweig htofthetowed equipment

maycause loss oftraction and Iossofcontrol.

• Travelslowly and allowextradistancetostop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

• Remove gas-powered equipment from the

truck or trailer and refuel it on the ground.

If this is not possible, then refuel such

equipment with a portable container, rather

than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of

the fuel tank or container opening at all

times until fueling is complete. Do not use

a nozzle lock-open device.

• If fuel is spilled on clothing, change cloth-

ing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the

equipment is in safe working condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuelspill-

age and remove any fuel-soaked debris.

Allow machine to cool before storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if necessary,

before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and the

discharge guard frequently and replace

with manufacturer's recommended parts,

when necessary.

• Mower blades are sharp. Wrap the blade or

wear gloves, and use extra caution when

servicing them.

• Check brake operation frequently. Adjust

and service as required.

• Maintain or replace safety and instruction

labels, as necessary.

• Be sure the area is clear of bystanders

before operating. Stop machine ifanyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never carry children, even with the blades

shut off. They may fall off and be seriously

injured or interfere with safe machine

operation. Children who have been given

rides in the past may suddenly appear in

the mowing area for another ride and be

run over or backed over by the machine.

• Keep children out of the mowing area and

in the watchful care of a responsible adult

other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind and

down for small children.

• Mow up and down slopes (15 ° Max), not

across,

• Choose a Iowground speed sothatyou will

not have to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disengage

the blades and proceed slowly straight

down the slope.

• If machine stops while going uphill, disen-

gage blades, shift into reverse and back

down slowly.

• Do not turn on slopes unless necessary, and

then, turn slowly and gradually downhill, if

possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and Type: Unleaded Regular

Oil Type SAE 10W30 (above 32°F)

'API-SG-SL): SAE 5W30 (below 32°F

Oil Capacity: w/Filter: 61 oz.

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0-5.8

Reverse: 0-2.1

Charging System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and man ufactured to give you the best

possible dependability and performance.

Should you experience any problem you can-

not easily remedy, please contact a Sears or

other qualified service center. We have com-

petent, well-trained representative and the

proper tools to service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining,

caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is req ui red

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsman@ product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profesional

repair specialists.

Unlimited service and no charge for parts

and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of ser-

vice and service-related parts not covered

by the agreement; also, 10% off regular

price of preventive maintenance check.

Fast help by phone - phone support from

a Sears representative on products requir-

ing in-home repair, plus convenient repair

scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service appoint-

ment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME@

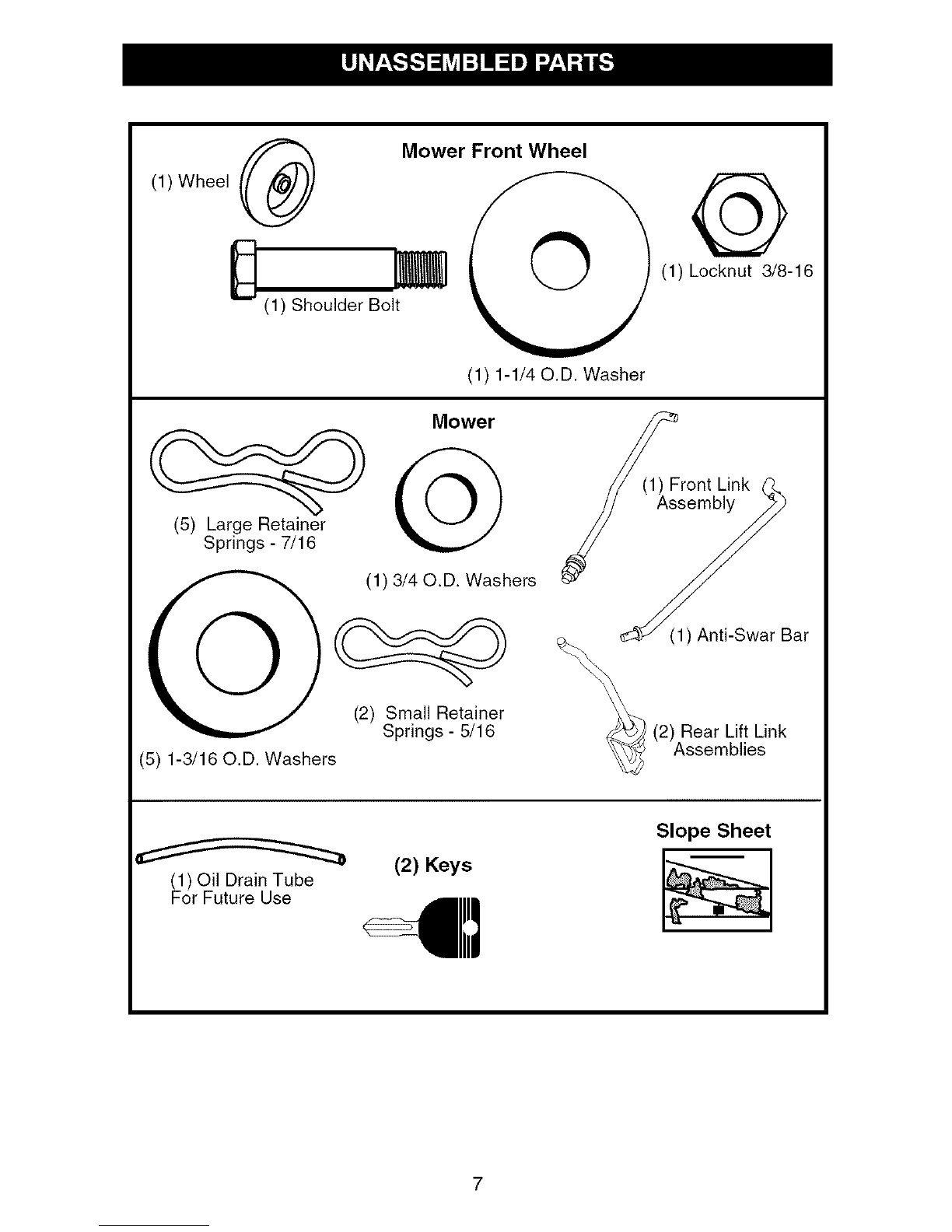

(1)Wheel

DMower Front Wheel

(1) Shoulder Bolt

(1) 1-1/40.D. Washer

(1) Locknut 3/8-16

Mower

(1) 3/40.D. Washers

(2) Small Retainer

Springs- 5/16

(5) 1-3/16 O.D. Washers

_ (_1 _srOnt Link

embly

(1) Anti-Swar Bar

(2) Rear Lift Link

Assemblies

(1) Oil Drain Tube

For Future Use

(2) Keys

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 9/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in this

manual, it means, from your point of view,

when you are in the operating position (seat-

ed behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts cartons from carton.

2. Cut along dashed lines on all four panels

of carton. Remove end panels and lay

side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose aprts or

cartons and remove.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (L) (label

is located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BA'i-I-ERY" in Maintenance section of this

manual for charging instructions).

ADJUST SEAT

1. Sit in seat.

2. Lift up adjustment lever (A) and slide seat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

3. Release lever to lock seat in position.

NOTE: You may now roll your tractor off the

skid. Followthe appropriate instruction below

to remove the tractor from the skid.

WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID

(See Operation section for location

and function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in "transmission

disengaged position" (See "TO TRANS-

PORT" in the Operation section of this

manual).

4. Roll tractor forward off skid.

ASSEMBLE FRONT WHEEL TO

MOWER

1. Using shoulder bolt, washer and Iocknut

from parts bag, assemble front wheel to

mower as shown. Tighten securely.

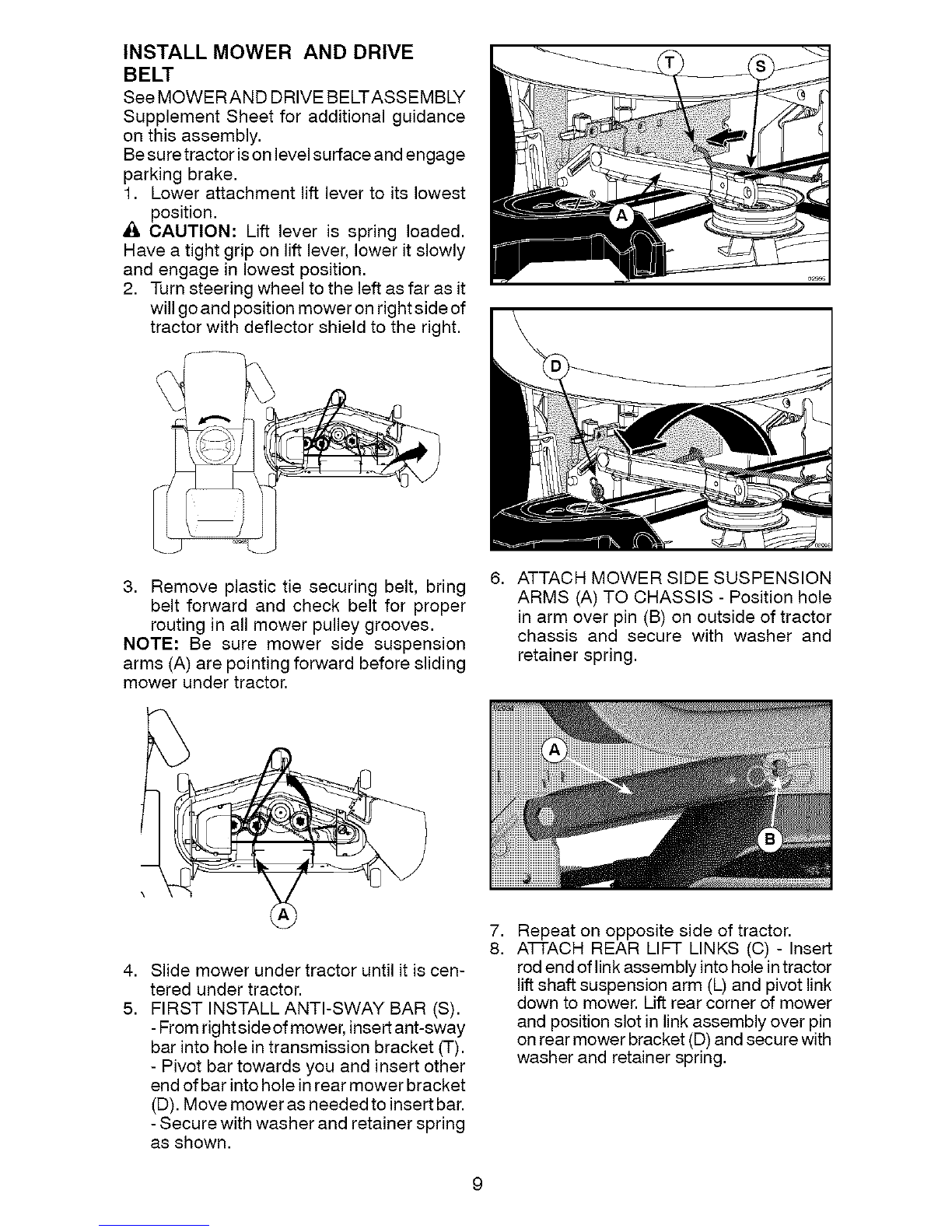

INSTALL MOWER AND DRIVE

BELT

See MOWERAND DRIVE BELTASSEMBLY

Supplement Sheet for additional guidance

on this assembly.

Be sure tractor is on level surface and engage

parking brake.

1. Lower attachment lift lever to its lowest

position.

CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it slowly

and engage in lowest position.

2. Turn steering wheel to the left as far as it

will go and position mower on right side of

tractor with deflector shield to the right.

3. Remove plastic tie securing belt, bring

belt forward and check belt for proper

routing in all mower pulley grooves.

NOTE: Be sure mower side suspension

arms (A) are pointing forward before sliding

mower under tractor.

6. ATTACH MOWER SIDE SUSPENSION

ARMS (A) TO CHASSIS - Position hole

in arm over pin (B) on outside of tractor

chassis and secure with washer and

retainer spring.

4. Slide mower under tractor until it is cen-

tered under tractor.

5. FIRST INSTALL ANTI-SWAY BAR (S).

- From rightsideof mower, insert ant-sway

bar into hole in transmission bracket (T).

- Pivot bar towards you and insert other

end of bar into hole in rear mower bracket

(D). Move mower as needed to insert bar.

- Secure with washer and retainer spring

as shown.

7. Repeat on opposite side of tractor.

8. A-Ft-ACH REAR LIFT LINKS (C) - Insert

rod end of link assembly into hole in tractor

lift shaft suspension arm (L) and pivot link

down to mower. Lift rear corner of mower

and position slot in link assembly over pin

on rear mower bracket (D) and secure with

washer and retainer spring.

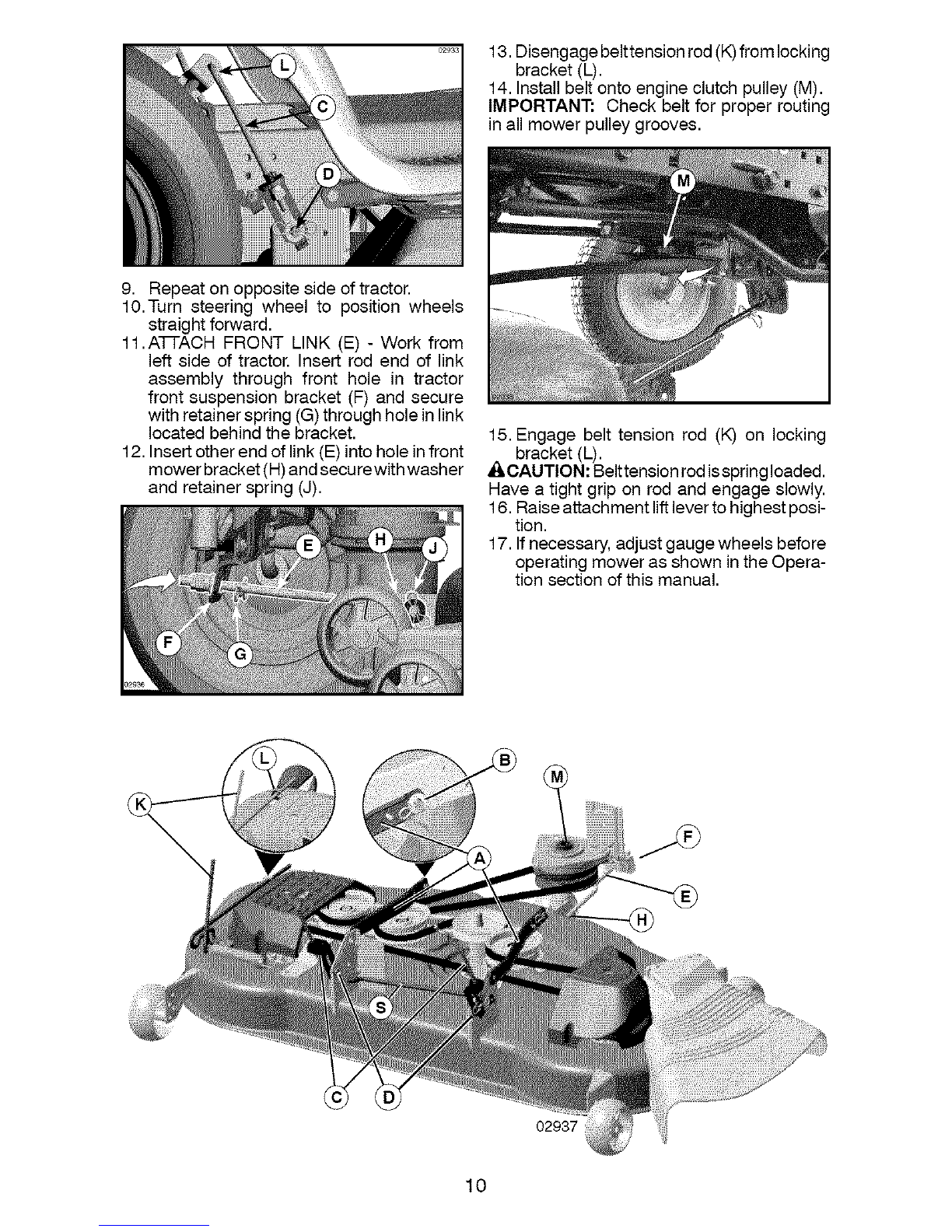

13.Disengagebelttensionrod(K)fromlocking

bracket(L).

14.Installbeltontoengineclutchpulley(M).

IMPORTANT:Checkbeltfor properrouting

in allmowerpulleygrooves.

9. Repeaton oppositesideoftractor.

10.Turn steering wheel to positionwheels

straightforward.

11.AFfACH FRONTLINK (E) - Work from

left side of tractor.Insertrod end of link

assembly through front hole in tractor

frontsuspensionbracket(F) and secure

withretainerspring(G)throughholeinlink

locatedbehindthebracket.

12.Insertotherendoflink(E)intoholeinfront

mowerbracket(H)andsecurewithwasher

andretainerspring(J).

15.Engage belt tensionrod (K) on locking

_ bracket(L).

CAUTION:Belttensionrodisspringloaded.

Haveatight gripon rod andengageslowly.

16.Raiseattachmentliftlevertohighestposi-

tion.

17.Ifnecessary,adjustgaugewheelsbefore

operatingmowerasshownintheOpera-

tion sectionofthismanual.

02937

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.385190 Manuel utilisateur

Craftsman

Craftsman 917.28808 Manuel utilisateur

Craftsman

Craftsman 917.273780 Manuel utilisateur

Craftsman

Craftsman 917.388104 Manuel utilisateur

Craftsman

Craftsman 917.374054 Manuel utilisateur

Craftsman

Craftsman EZ 917.273111 Manuel utilisateur

Craftsman

Craftsman 917.271742 Manuel utilisateur

Craftsman

Craftsman 917.276630 Manuel utilisateur

Craftsman

Craftsman 917.388021 Manuel utilisateur

Craftsman

Craftsman 917.271920 Manuel utilisateur

Craftsman

Craftsman 917.375920 Manuel utilisateur

Craftsman

Craftsman 247.377440 Manuel utilisateur

Craftsman

Craftsman 247.203723 Manuel utilisateur

Craftsman

Craftsman 917.377180 Manuel utilisateur

Craftsman

Craftsman 917.273802 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273113 Manuel utilisateur

Craftsman

Craftsman 917.27686 Manuel utilisateur

Craftsman

Craftsman 917.258532 Manuel utilisateur

Craftsman

Craftsman 917.257721 Manuel utilisateur

Craftsman

Craftsman 917.389071 Manuel utilisateur

Craftsman

Craftsman 917.377040 Manuel utilisateur

Craftsman

Craftsman 917.385142 Manuel utilisateur

Craftsman

Craftsman 917.376231 Manuel utilisateur

Craftsman

Craftsman 247.37124 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
