Craftsman 917.28824 Manuel utilisateur

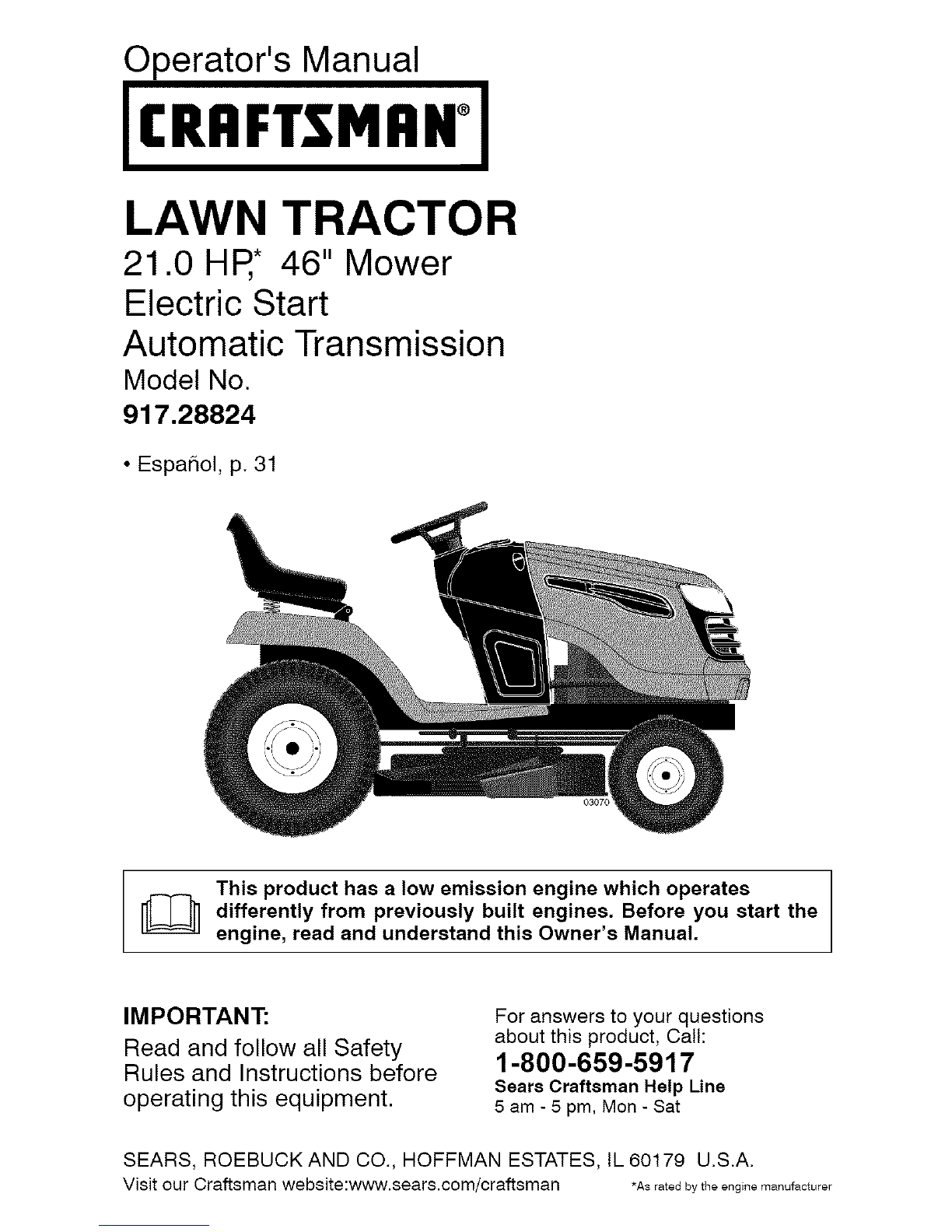

Operator's Manual

JCRgFTSMgN°J

LAWN TRACTOR

21.0 HP,* 46" Mower

Electric Start

Automatic Transmission

Model No.

917.28824

• Espar_ol, p. 31

This product has a low emission engine which operates

[]_ differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

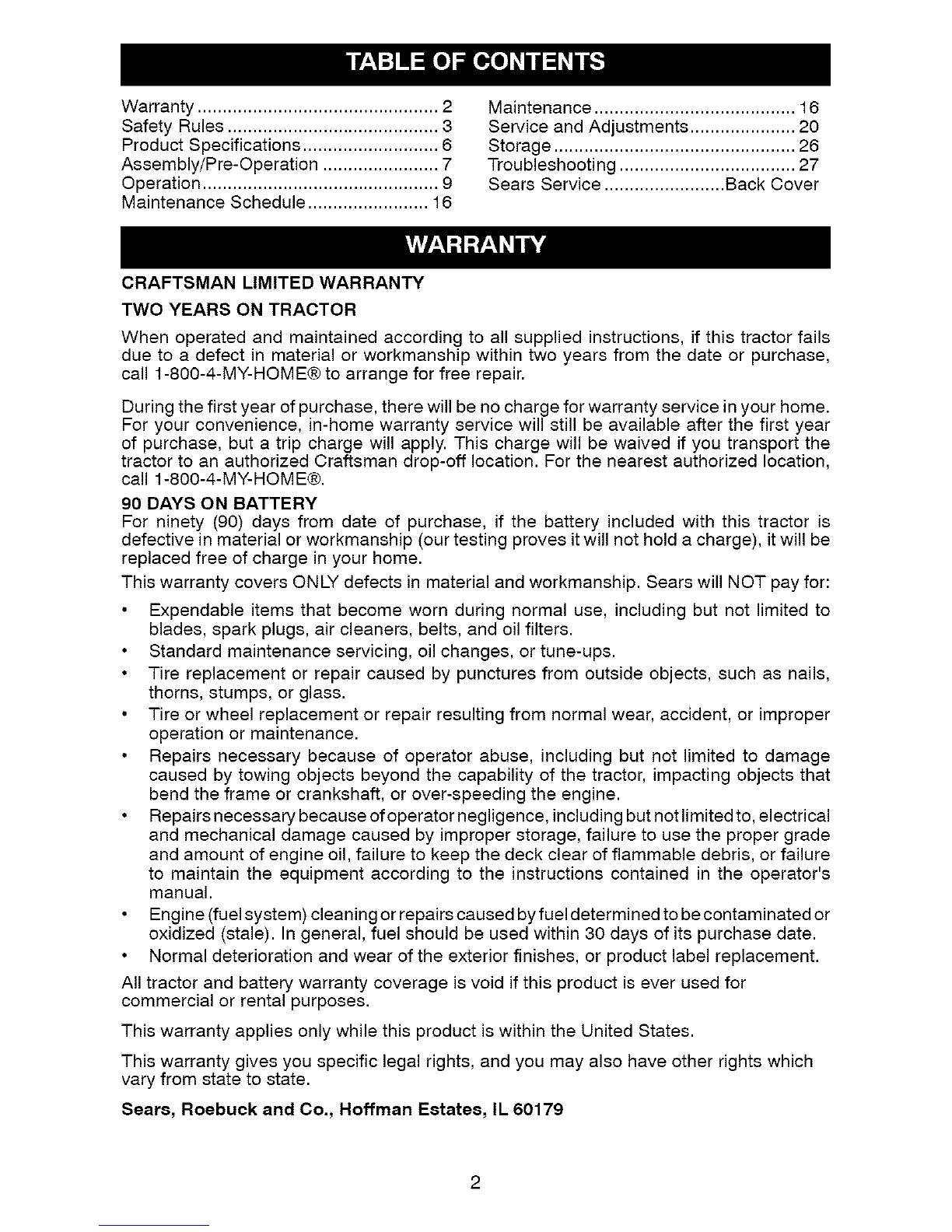

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 7

Operation ............................................... 9

Maintenance Schedule ........................ 16

CRAFTSMAN LIMITED WARRANTY

Maintenance ........................................ 16

Service and Adjustments ..................... 20

Storage ................................................ 26

Troubleshooting ................................... 27

Sears Service ........................ Back Cover

TWO YEARS ON TRACTOR

When operated and maintained according to all supplied instructions, if this tractor fails

due to a defect in material or workmanship within two years from the date or purchase,

call 1-800-4-MY-HOME® to arrange for free repair.

During the first year of purchase, there will be no charge for warranty service in your home.

For your convenience, in-home warranty service will still be available after the first year

of purchase, but a trip charge will apply. This charge will be waived if you transport the

tractor to an authorized Craftsman drop-off location. For the nearest authorized location,

call 1-800-4-MY-HOME®.

90 DAYS ON BATTERY

For ninety (90) days from date of purchase, if the battery included with this tractor is

defective in material or workmanship (our testing proves itwill not hold a charge), it will be

replaced free of charge in your home.

This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:

Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard maintenance servicing, oil changes, or tune-ups.

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance.

Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor, impacting objects that

bend the frame or crankshaft, or over-speeding the engine.

Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure

to maintain the equipment according to the instructions contained in the operator's

manual.

Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or

oxidized (stale). In general, fuel should be used within 30 days of its purchase date.

Normal deterioration and wear of the exterior finishes, or product label replacement.

All tractor and battery warranty coverage is void if this product is ever used for

commercial or rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

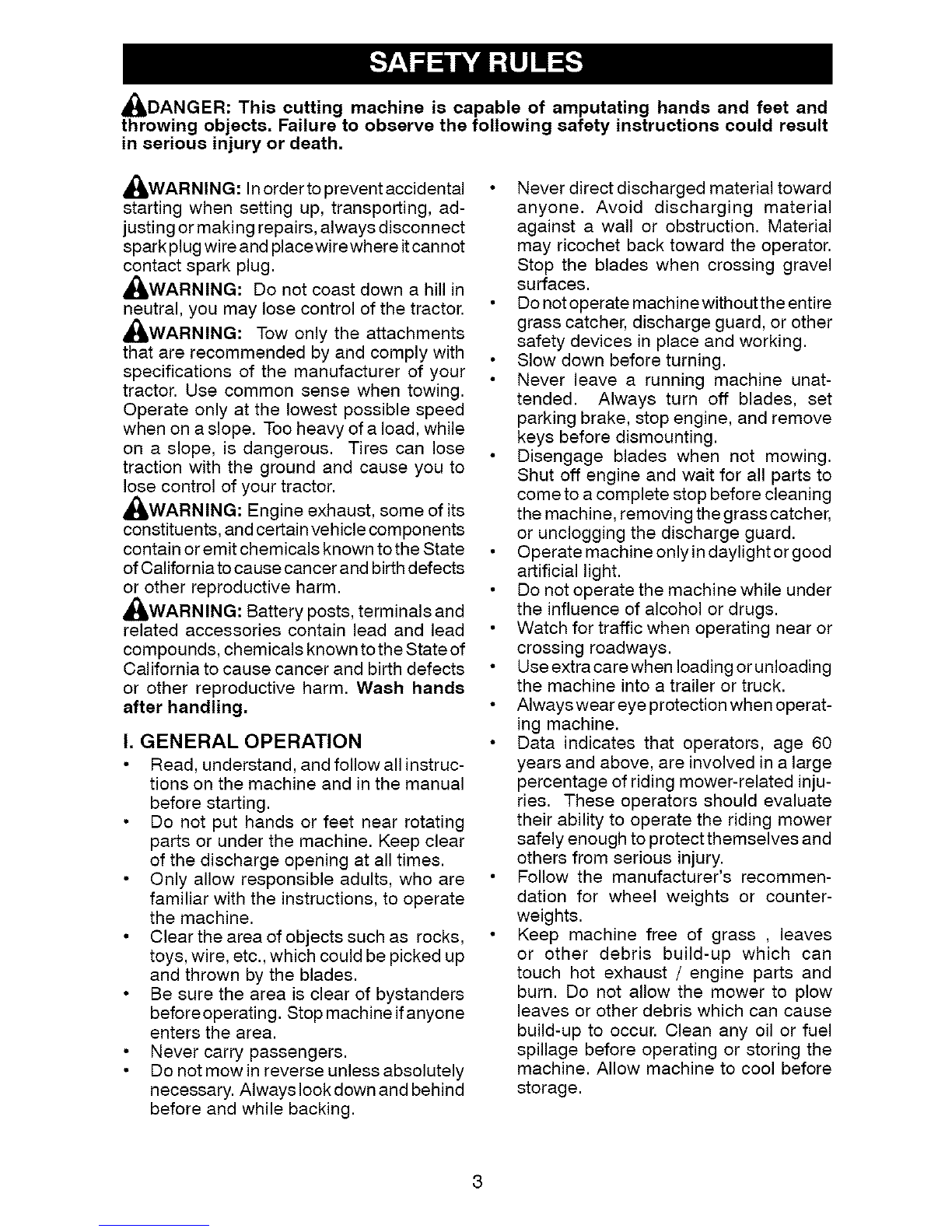

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_,WARNING: In order to prevent accidental

starting when setting up, transporting, ad-

justing or making repairs, always disconnect

spark plug wire and placewirewhere itcannot

contact spark plug.

,_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_,WARNING: Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known tothe State

of California to cause cancer and birth defects

or other reproductive harm.

,_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

Clear the area of objects such as rocks,

toys, wire, etc., which could be picked up

and thrown by the blades.

Be sure the area is clear of bystanders

beforeoperating. Stop machine ifanyone

enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator.

Stop the blades when crossing gravel

surfaces.

Do not operate machine without the entire

grass catcher, discharge guard, or other

safety devices in place and working.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge guard.

Operate machine only in daylight or good

artificial light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unloading

the machine into a trailer or truck.

Always wear eye protection when operat-

ing machine.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

Keep machine free of grass , leaves

or other debris build-up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

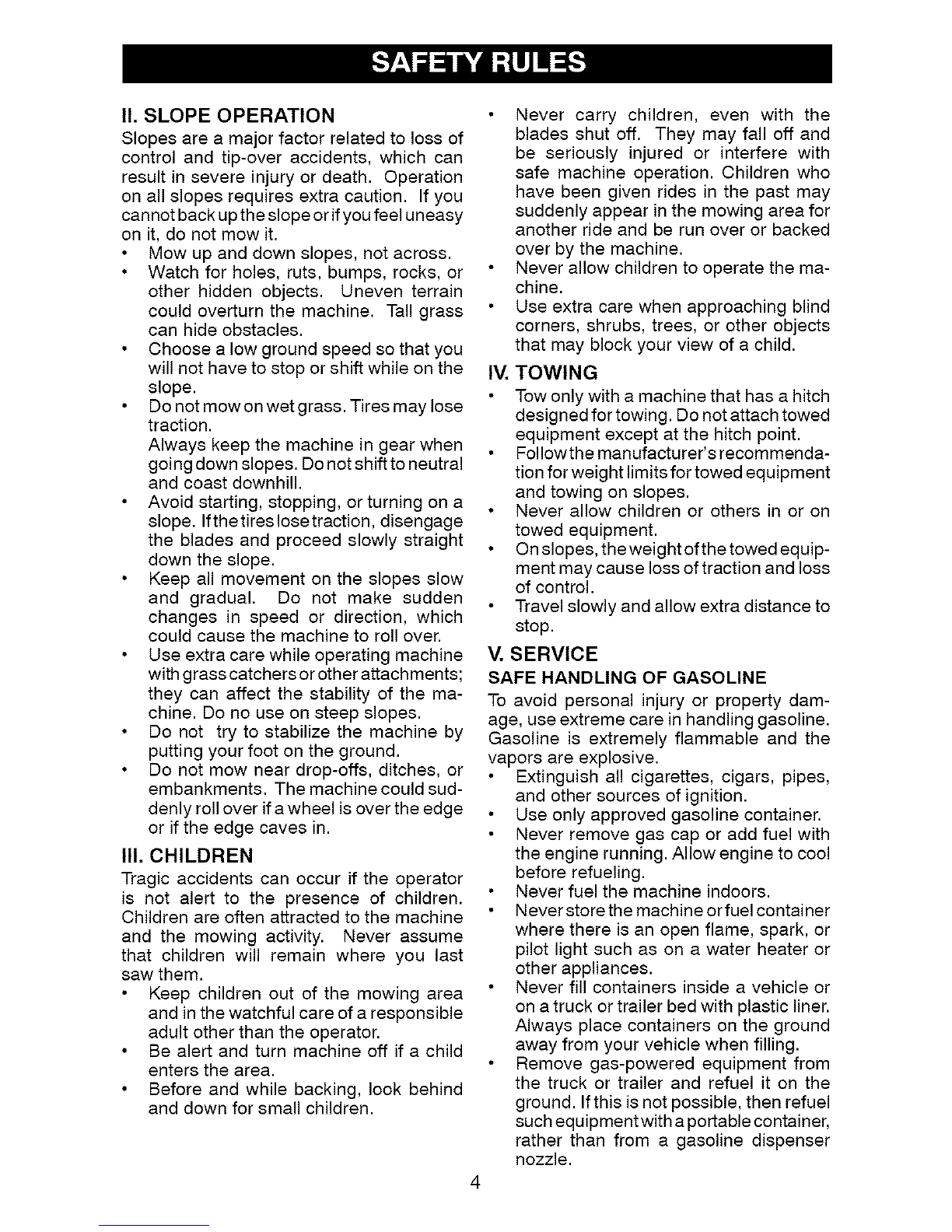

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

can not back up the slope or if you feel uneasy

on it, do not mow it.

Mow up and down slopes, not across.

Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

Avoid starting, stopping, or turning on a

slope. Ifthetireslosetraction, disengage

the blades and proceed slowly straight

down the slope.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

Do not try to stabilize the machine by

putting your foot on the ground.

Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

Be alert and turn machine off if a child

enters the area.

Before and while backing, look behind

and down for small children.

Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

Never allow children to operate the ma-

chine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

Followthe manufacturer's recommenda-

tion for weight limits for towed equipment

and towing on slopes.

Never allow children or others in or on

towed equipment.

On slopes, theweight of the towed equip-

ment may cause loss of traction and loss

of control.

Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

Use only approved gasoline container.

Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

Never fuel the machine indoors.

Never store the machine or fuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then refuel

such equipmentwith a portable container,

rather than from a gasoline dispenser

nozzle.

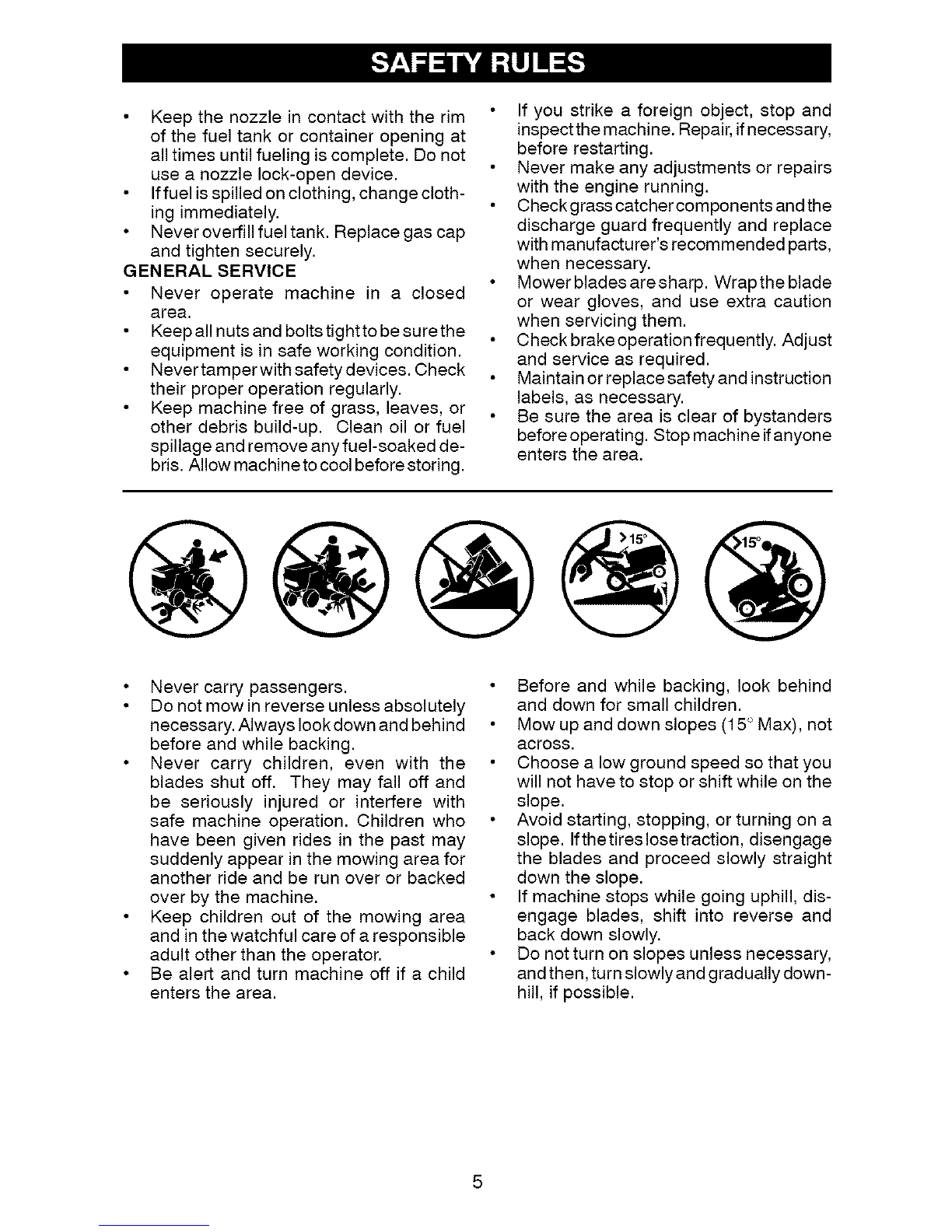

Keepthe nozzle in contactwith the rim

of the fuel tank or container openingat

alltimesuntilfueling iscomplete.Donot

usea nozzlelock-opendevice.

Iffuel isspilledonclothing,changecloth-

ingimmediately.

Neveroverfillfueltank. Replacegascap

and tightensecurely.

GENERAL SERVICE

Never operate machine in a closed

area.

Keepallnutsandboltstighttobesurethe

equipmentis in safeworkingcondition.

Nevertamperwithsafetydevices.Check

their properoperationregularly.

Keepmachinefree of grass, leaves,or

other debris build-up. Clean oil or fuel

spillageandremoveanyfuel-soakedde-

bris.Allowmachinetocoolbeforestoring.

If you strike a foreign object, stop and

inspectthemachine.Repair,ifnecessary,

beforerestarting.

Nevermakeany adjustmentsor repairs

withthe engine running.

Checkgrasscatchercomponentsandthe

dischargeguardfrequentlyand replace

withmanufacturer'srecommendedparts,

when necessary.

Mowerbladesaresharp. Wrapthe blade

or wear gloves, and use extra caution

when servicingthem.

Checkbrakeoperationfrequently.Adjust

andserviceas required.

Maintainorreplacesafetyandinstruction

labels,asnecessary.

Besure the area is clear of bystanders

beforeoperating.Stopmachineifanyone

entersthe area.

Nevercarrypassengers.

Donotmowinreverseunlessabsolutely

necessary.Alwayslookdownandbehind

beforeand while backing.

Never carry children, even with the

blades shut off. They mayfall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenlyappearinthe mowingareafor

another rideand be run over or backed

over bythe machine.

Keep children out of the mowing area

andinthewatchfulcareofaresponsible

adult otherthan the operator.

Bealert and turn machine off if a child

entersthe area.

Before and while backing, look behind

anddownfor small children.

Mowupanddownslopes (15°Max),not

across.

Choosealowgroundspeedsothatyou

willnot haveto stop orshift whileonthe

slope.

Avoid starting,stopping,orturningon a

slope.Ifthetireslosetraction, disengage

the blades and proceed slowly straight

downthe slope.

Ifmachinestopswhile going uphill,dis-

engage blades, shift into reverse and

back downslowly.

Donotturnon slopesunlessnecessary,

andthen,turnslowlyandgraduallydown-

hill, if possible.

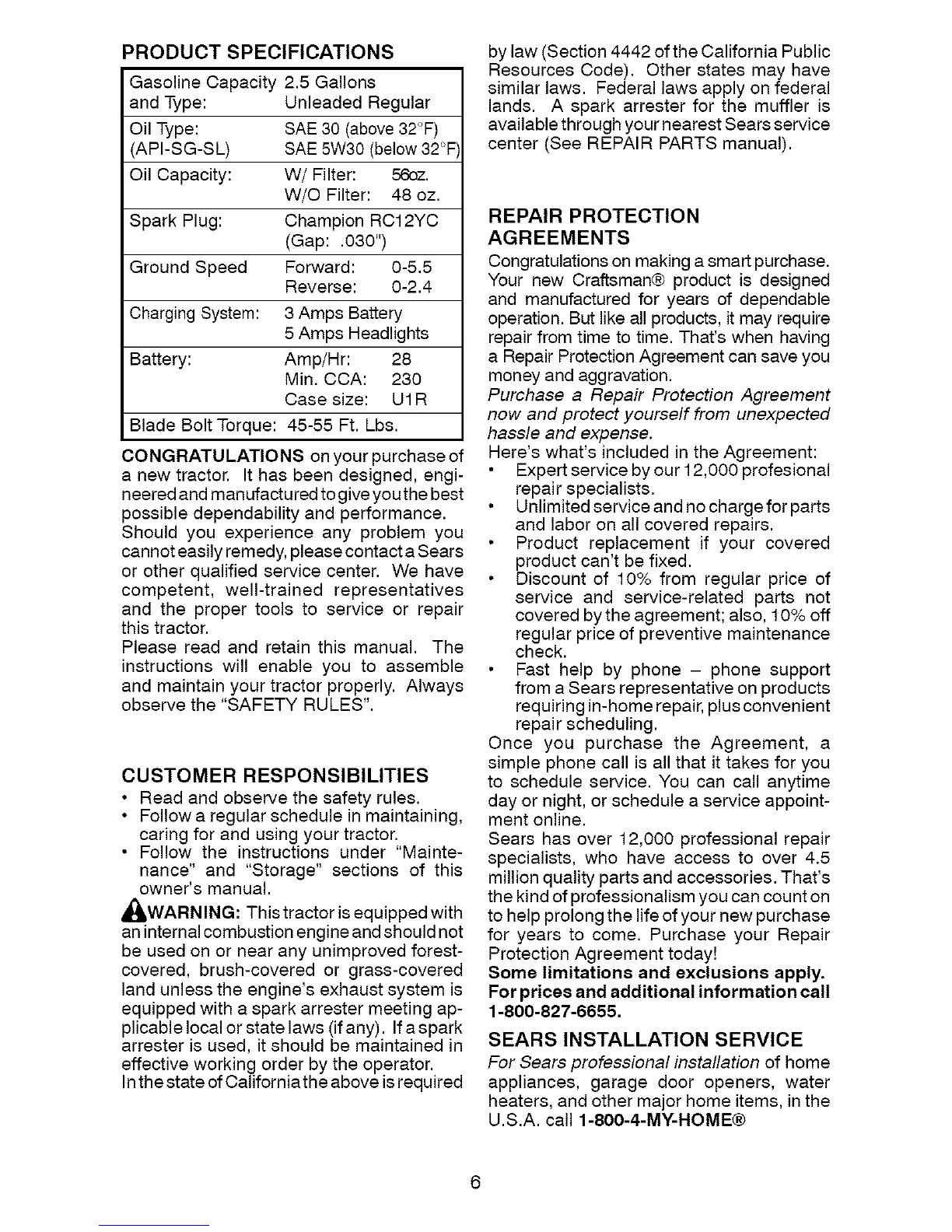

PRODUCT SPECIFICATIONS

Gasoline Capacity 2.5 Gallons

and Type: Unleaded Regular

Oil Type: SAE 30 (above 32°F)

(API-SG-SL) SAE 5W30 (below 32°F

Oil Capacity: W/Filter: 56oz.

W/O Filter: 48 oz.

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0-5.5

Reverse: 0-2.4

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a Sears

or other qualified service center. We have

competent, well-trained representatives

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining,

caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained in

effective working order by the operator.

Inthe state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsman® product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profesional

repair specialists.

Unlimited service and no charge for parts

and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check.

Fast help by phone - phone support

from a Sears representative on products

requiring in-home repair, plus convenient

repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service appoint-

ment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME®

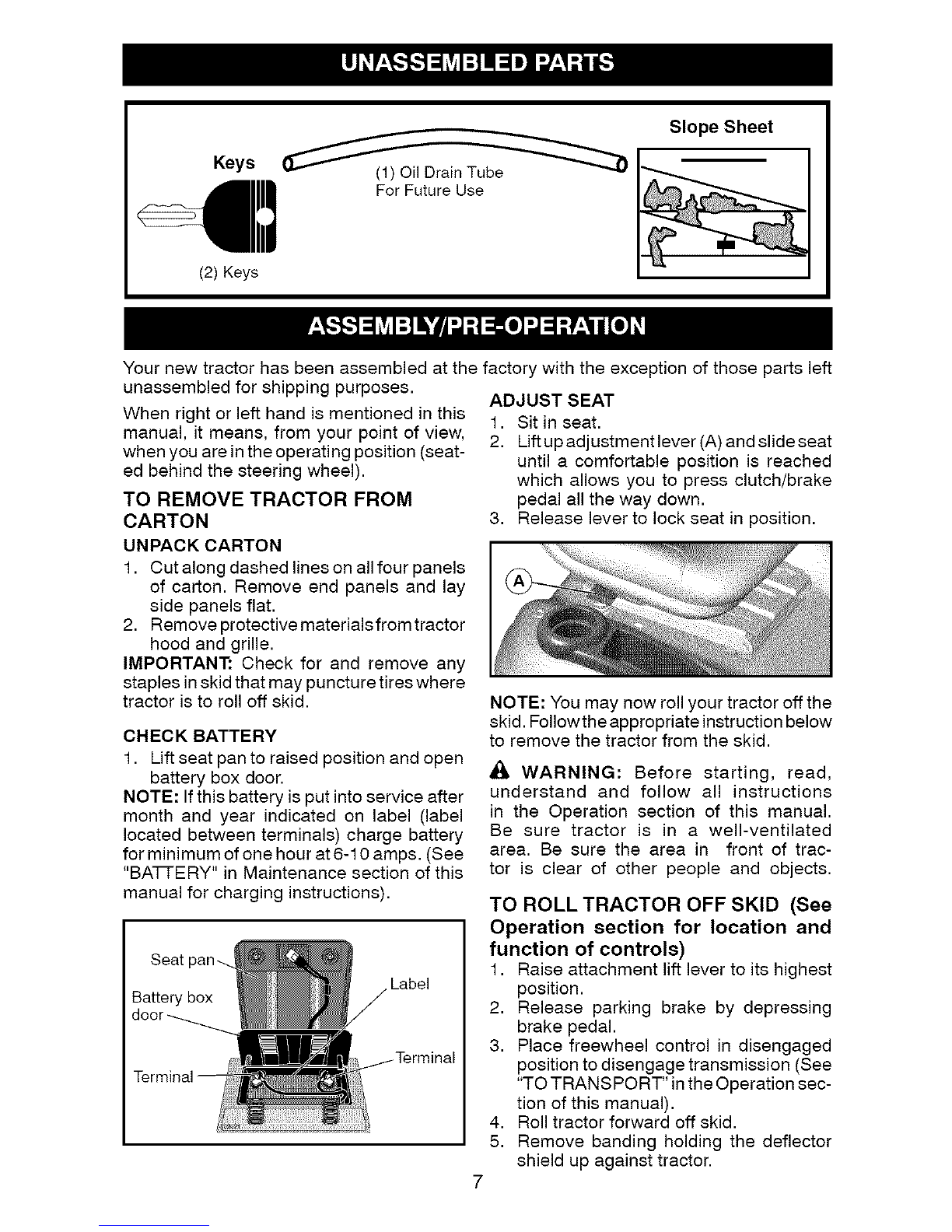

Keys (1) Oil Drain Tube

For Future Use

Slope Sheet

(2) Keys

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes.

When right or left hand is mentioned in this

manual, it means, from your point of view,

when you are in the operating position (seat-

ed behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACKCARTON

1. Cut along dashed lines on all four panels

of carton. Remove end panels and lay

side panels flat.

2. Remove protective materials from tractor

hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires where

tractor is to roll off skid.

CHECK BATTERY

1. Lift seat pan to raised position and open

battery box door.

NOTE: If this battery is put into service after

month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BA-i-TERY" in Maintenance section of this

manual for charging instructions).

Seat

Battery box Label

ADJUST SEAT

1. Sit in seat.

2. Liftupadjustmentlever (A) andslideseat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

3. Release lever to lock seat in position.

NOTE: You may now roll your tractor off the

skid. Followthe appropriate instruction below

to remove the tractor from the skid.

WARNING: Before starting, read,

understand and follow all instructions

in the Operation section of this manual.

Be sure tractor is in a well-ventilated

area. Be sure the area in front of trac-

tor is clear of other people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disengaged

position to disengage transmission (See

"TO TRANS PORT" in the Operation sec-

tion of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

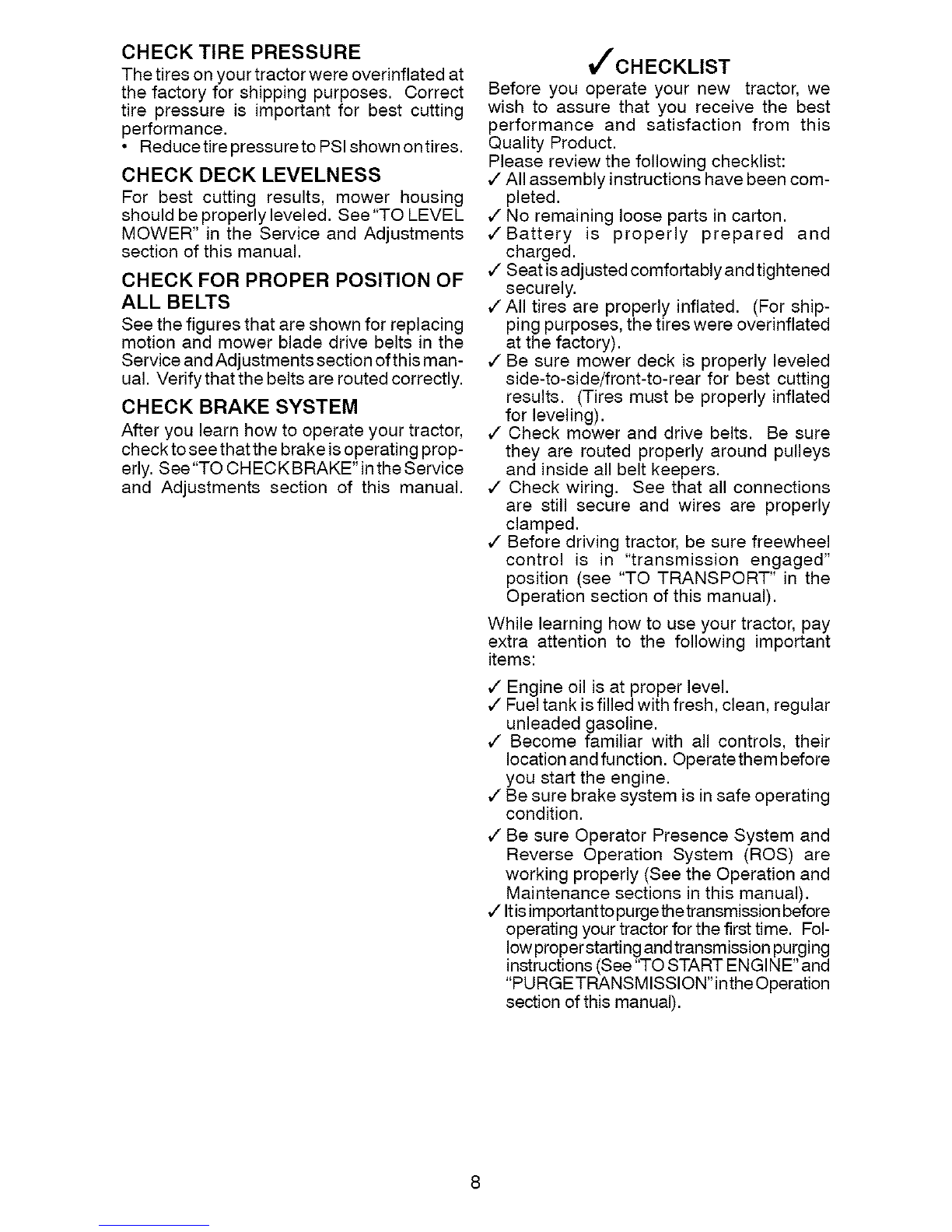

CHECKTIREPRESSURE

The tires on your tractor were overinflated at

the factory for shipping purposes. Correct

tire pressure is important for best cutting

performance.

•Reducetire pressureto PSI shown ontires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEL

MOWER" in the Service and Adjustments

section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section of this man-

ual. Verifythat the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating prop-

erly. See"TO CHECKBRAKE" inthe Service

and Adjustments section of this manual.

tfCHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

#"All assembly instructions have been com-

pleted.

#" No remaining loose parts in carton.

#'Battery is properly prepared and

charged.

#" Seat is adjusted comfortably and tightened

securely.

#"All tires are properly inflated. (For ship-

ping purposes, the tires were overinflated

at the factory).

#" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

#" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

#" Check wiring. See that all connections

are still secure and wires are properly

clamped.

#" Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

#" Engine oil is at proper level.

#" Fuel tank is filled with fresh, clean, regular

unleaded gasoline.

#" Become familiar with all controls, their

location and function. Operate them before

you start the engine.

#" Be sure brake system is in safe operating

condition.

#" Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

#"Itis importantto purgethetransmission before

operating your tractor for the first time. Fol-

low proper starting and transmission purging

instructions (See "TO START ENGINE" and

"PURGETRANSMISSION'intheOperation

section of this manual).

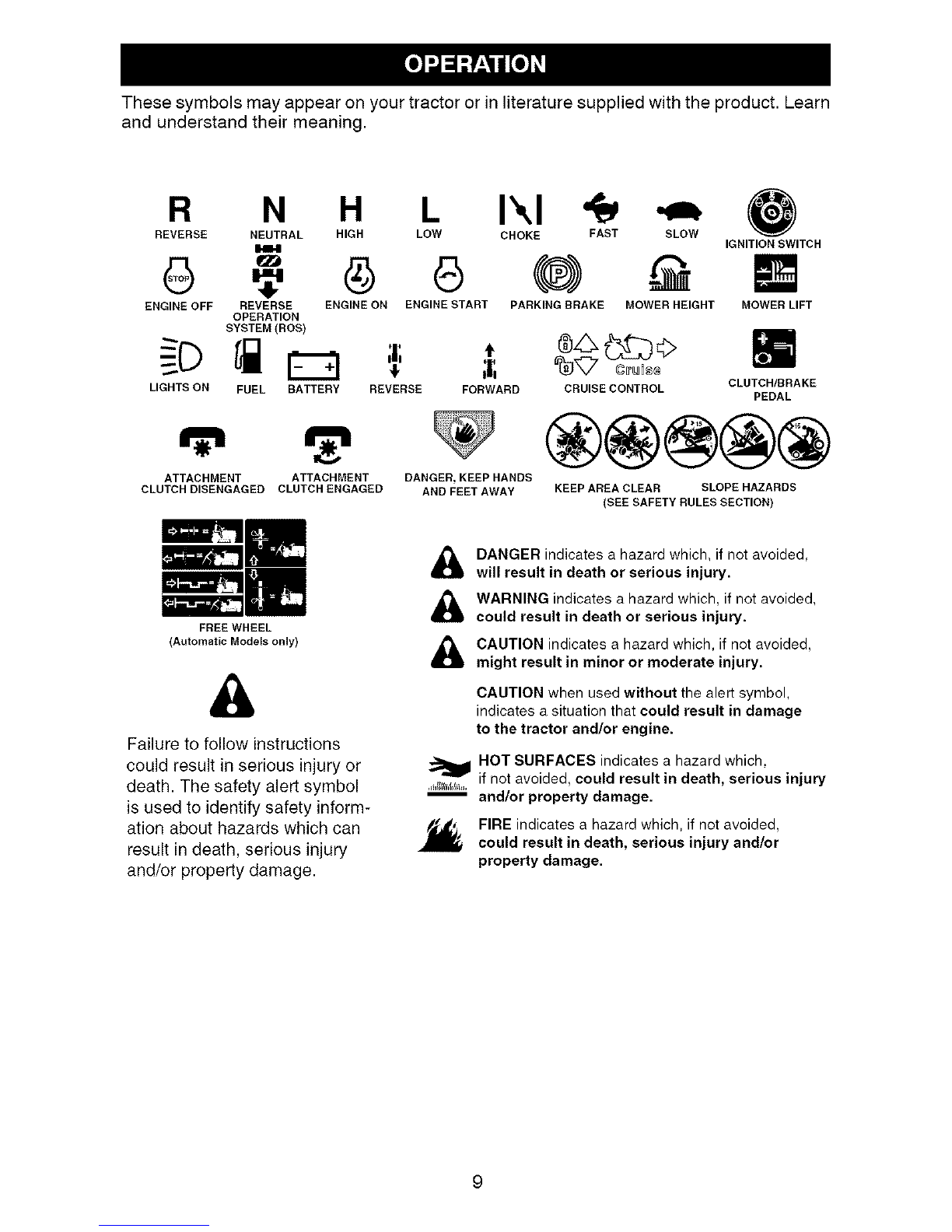

These symbolsmayappearon yourtractororin literaturesuppliedwiththe product.Learn

and understandtheir meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM (ROS)

LIGHTSON FUEL BATTERY REVERSE

IGNITION SWITCH

MOWER LIFT

' m

FORWARD CRUISE CONTROL CLUTCH/BRAKE

PEDAL

ATTACHMENT

CLUTCH DISENGAGED ATTACHMENT

CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEETAWAY ®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULESSECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

&DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which.

,,,ll_,l,l_,,,if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

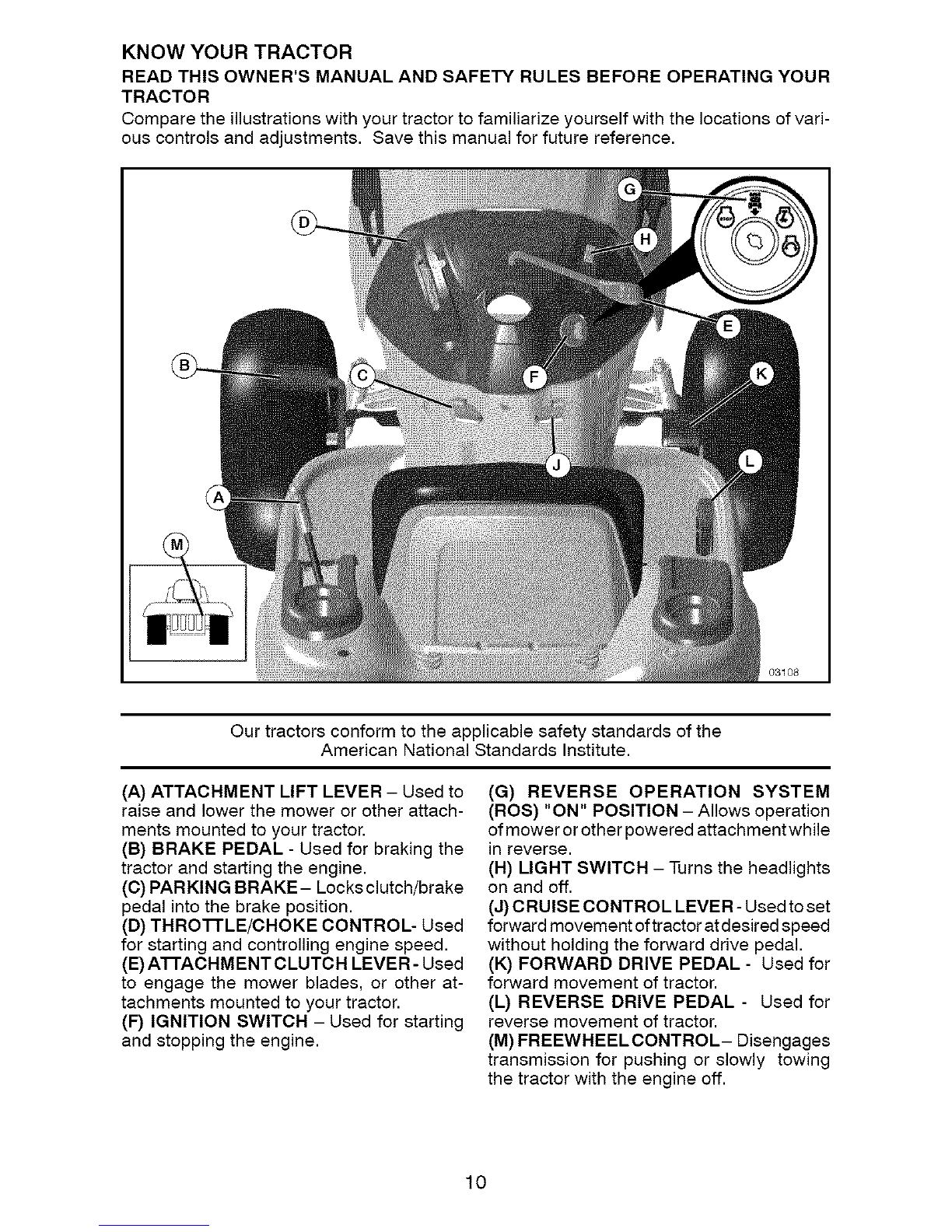

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUALAND SAFETY RULESBEFORE OPERATINGYOUR

TRACTOR

Comparethe illustrationswithyour tractorto familiarizeyourselfwiththe locationsofvari-

ous controlsandadjustments. Savethis manualfor future reference.

03108

Our tractors conform to the applicable safety standards of the

American National Standards Institute.

(A) ATTACHMENT LIFT LEVER - Used to

raise and lower the mower or other attach-

ments mounted to your tractor.

(B) BRAKE PEDAL - Used for braking the

tractor and starting the engine.

pedal into the brake position.

(D) THRO'I-FLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

(E) ATFACH MENT CLUTCH LEVER- Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

(F) IGNITION SWITCH - Used for starting

and stopping the engine.

(G) REVERSE OPERATION SYSTEM

(ROS) "ON" POSITION - Allows operation

of mower or other powered attachment while

in reverse.

(H) LIGHT SWITCH - Turns the headlights

on and off.

(J) CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired speed

without holding the forward drive pedal.

(K) FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

(L) REVERSE DRIVE PEDAL - Used for

reverse movement of tractor.

(M) FREEWHEELCONTROL- Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 944.362111 Manuel utilisateur

Craftsman

Craftsman 247.203723 Manuel utilisateur

Craftsman

Craftsman 25044 Manuel utilisateur

Craftsman

Craftsman 917.273220 Manuel utilisateur

Craftsman

Craftsman 917.28812 Manuel utilisateur

Craftsman

Craftsman 917.255942 Manuel utilisateur

Craftsman

Craftsman 917.255980 Manuel utilisateur

Craftsman

Craftsman 917.256562 Manuel utilisateur

Craftsman

Craftsman 917.271815 Manuel utilisateur

Craftsman

Craftsman 917.271743 Manuel utilisateur

Craftsman

Craftsman 917.376168 Manuel utilisateur

Craftsman

Craftsman 917.276400 Manuel utilisateur

Craftsman

Craftsman 917.273811 Manuel utilisateur

Craftsman

Craftsman 944.609940 Manuel utilisateur

Craftsman

Craftsman 502.255193 Manuel utilisateur

Craftsman

Craftsman Z6000 SERIES Manuel utilisateur

Craftsman

Craftsman 917.388193 Manuel utilisateur

Craftsman

Craftsman 917.370431 Manuel utilisateur

Craftsman

Craftsman 917.28722 Manuel utilisateur

Craftsman

Craftsman 917.270740 Manuel utilisateur

Craftsman

Craftsman 917.9995A Manuel utilisateur

Craftsman

Craftsman 917.255692 Manuel utilisateur

Craftsman

Craftsman Z6800 Manuel utilisateur

Craftsman

Craftsman 917.98636 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
