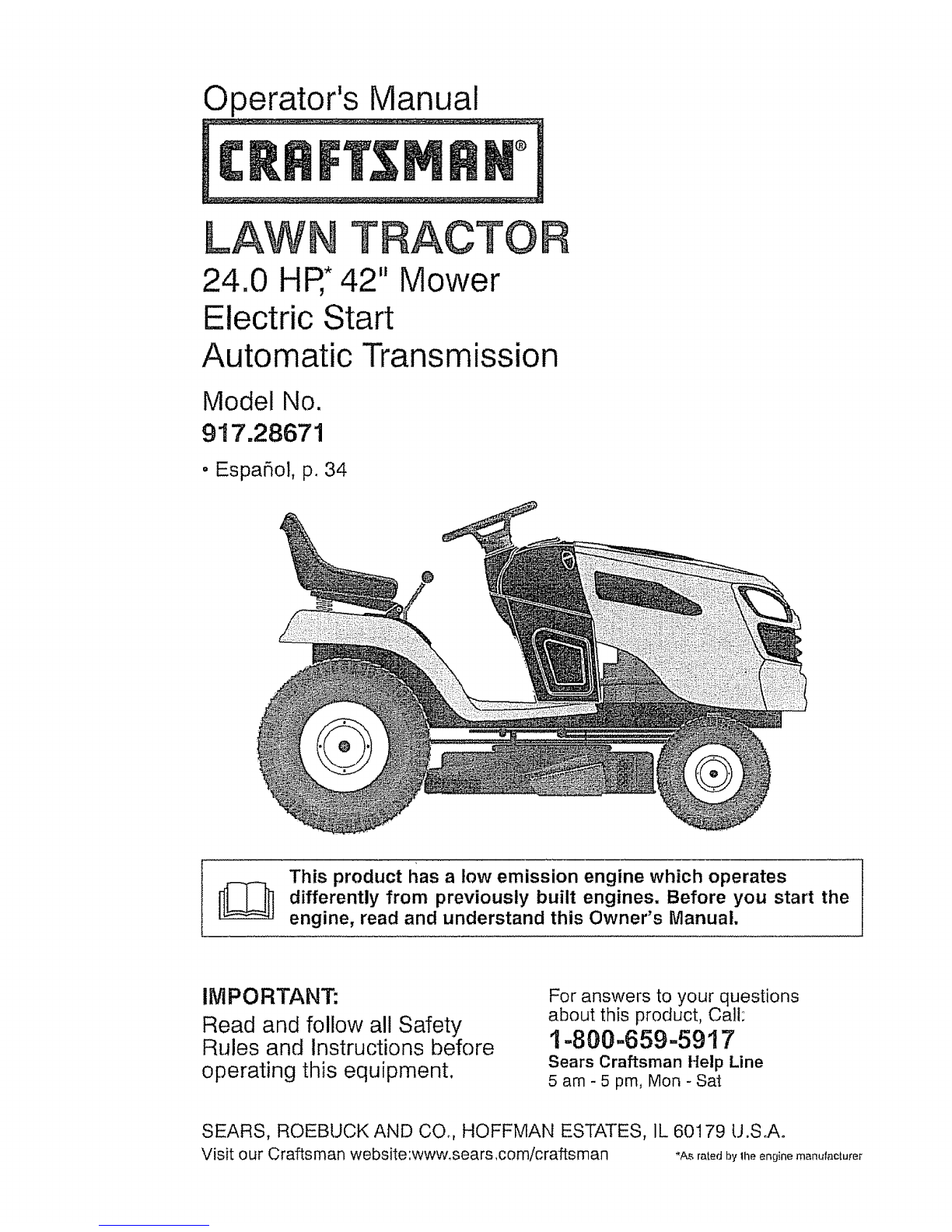

Craftsman 917.28671 Manuel utilisateur

Operator's Manual

LAW TRACTO

24.0 HR*42" Mower

Electric Start

Automatic Transmission

Model No.

917.28671

• Espa[_ol, p, 34

This product iias a low emission engine which operates

differently from previously built engines, Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Ca]i;

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND COn, HOFFMAN ESTATES, 1L60179 UoS,Ao

Visit our Craftsman website:www, sears,com/craftsman *As rated by lhe engine manufacturer

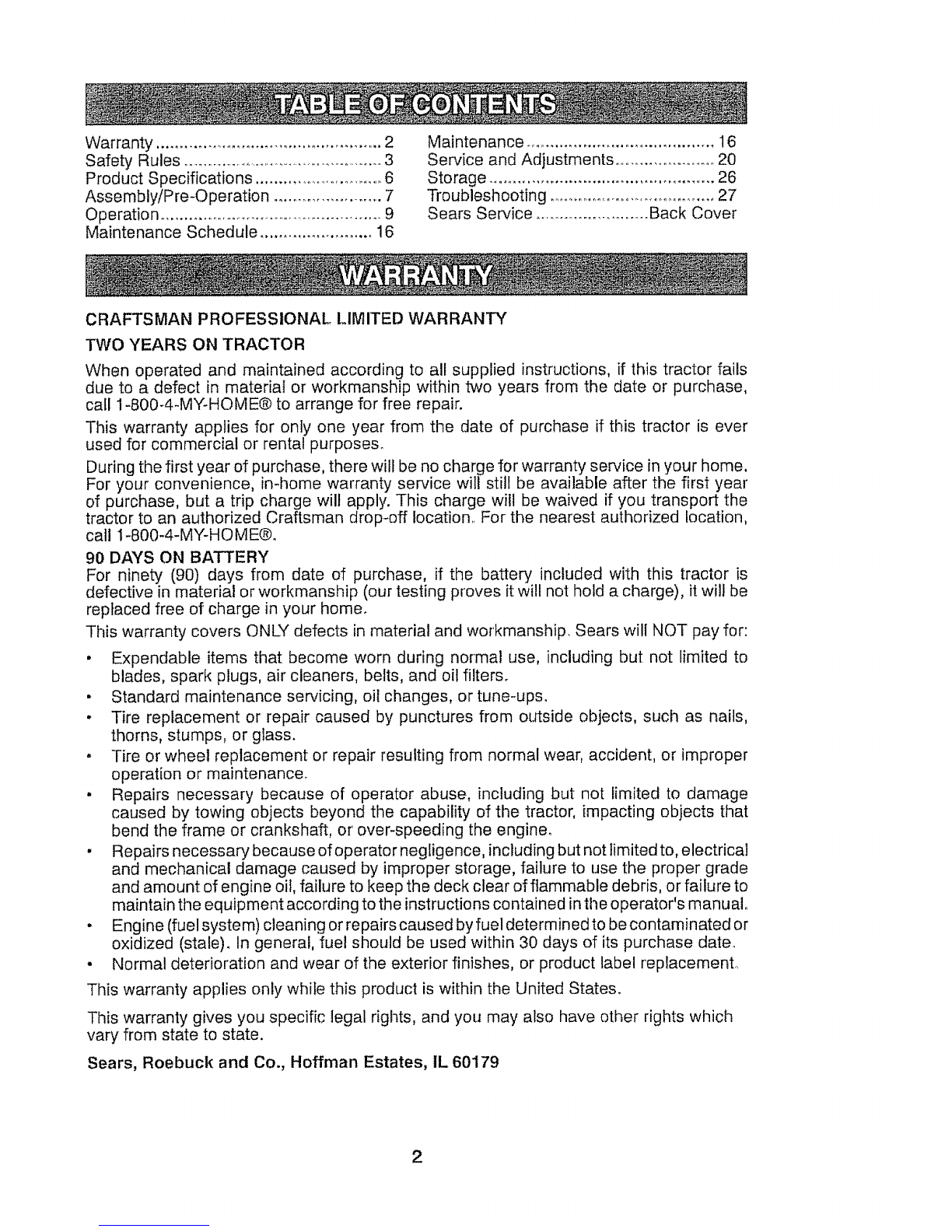

Warranty ................................................. 2

Safety Rules ........................................................3

Product Specifications .................................6

Assembly/Pre-Operation ....................... 7

Operation ................................................. 9

Maintenance Schedule ........................ 16

Maintenance ........................................ 16

Service and Adjustments ........................ 20

Storage ................................................. 26

Troubleshooting .................................... 27

Sears Service ........................ Back Cover

CRAFTSMAN PROFESSIONAL, LIMITED WARRANTY

TWO YEARS ON TRACTOR

When operated and maintained according to all supplied instructions, if this tractor fails

due to a defect in material or workmanship within two years from the date or purchase,

call 1-800-4-MY-HOME® to arrange for free repair.

This warranty applies for only one year from the date of purchase if this tractor is ever

used for commercial or rental purposes.

During the first year of purchase, there wilt be no charge for warranty service in your home.

For your convenience, in-home warranty service will still be available after the first year

of purchase, but a trip charge will apply. This charge will be waived if you transport the

tractor to an authorized Craftsman drop-off location., For the nearest authorized location,

call 1-800-4-MY-HO ME®

90 DAYS ON BATTERY

For ninety (90) days from date of purchase, if the battery included with this tractor is

defective in material or workmanship (our testing proves it will not hold a charge), it will be

replaced free of charge in your home

This warranty covers ONLY defects in material and workmanship Sears will NOT pay for:

. Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters

• Standard maintenance servicing, oil changes, or tune-ups

. Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

. Tire or wheel replacement or repair resulting from normal wear, accident or improper

operation or maintenance

. Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor impacting objects that

bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to

maintain timeequipment according to the instructions contained in the operator's manual°

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or

oxidized (stale) In general, fuel should be used within 30 days of its purchase date

• Normal deterioration and wear of the exterior finishes, or product label replacement_

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

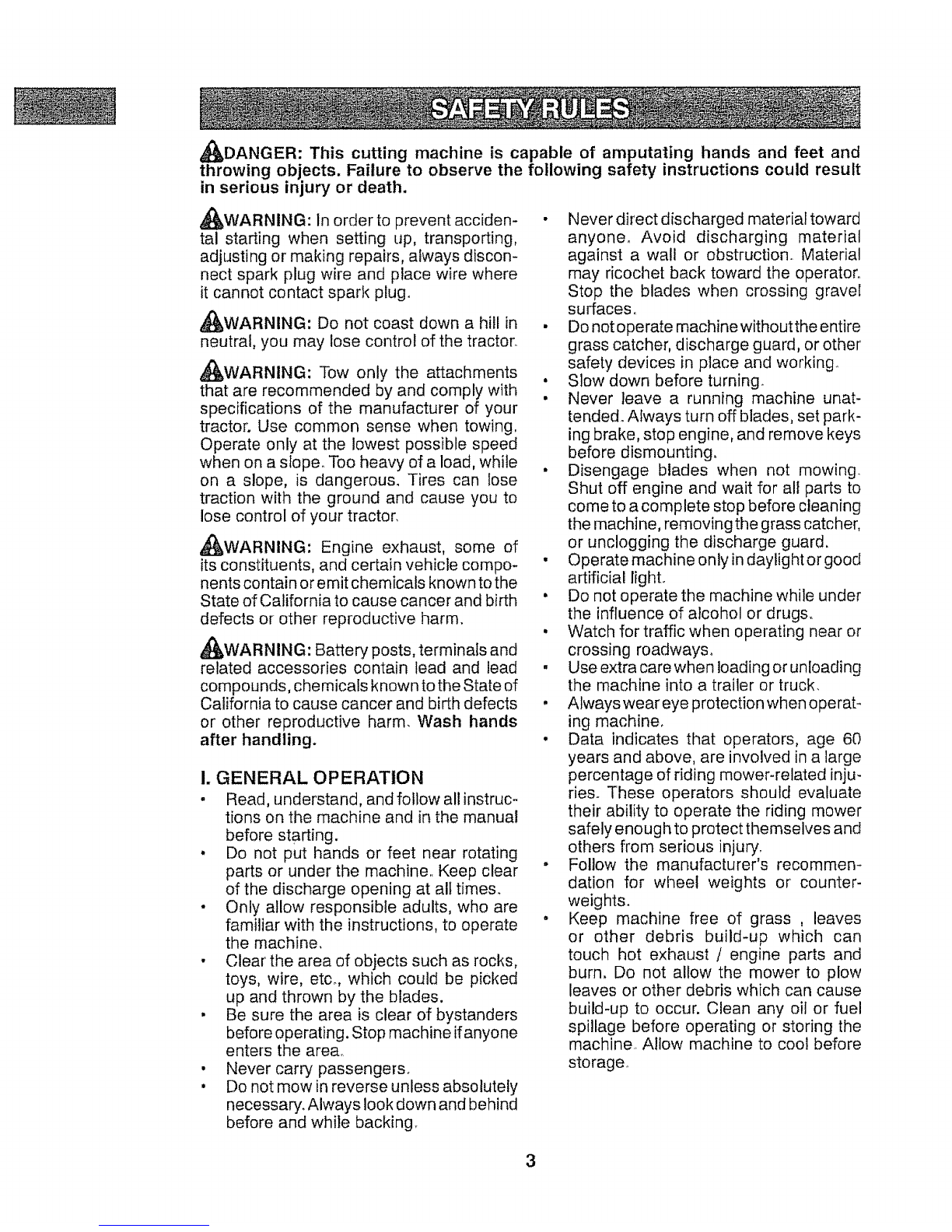

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_WARNING: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plugo

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

,_WARNING: Engine exhaust, some of

its constituents, and certain vehicle compo-

nents contain or emit chemicals known to the

State of California to cause cancer and birth

defects or other reproductive harm.

_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

!. GENERAL OPERATION

. Read, understand, andfotlow allinstruc-

tions on the machine and in the manual

before starting.

• Do not put hands or feet near rotating

parts or under the machine, Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine,

• Clear the area of objects such as rocks,

toys, wire, etc. which could be picked

up and thrown by the blades.

. Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the are&.

, Never carry passengers.

, Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never direct discharged materialtoward

anyone. Avoid discharging material

against a wall or obstruction° Material

may ricochet back toward the operator,,

Stop the blades when crossing gravel

surfaces

• Do not operate machinewithoutthe entire

grass catcher, discharge guard, or other

safety devices in place and working°

•Slow down before turning

• Never leave a running machine unat-

tended° Always turn off blades, set park-

ing brake, stop engine, and remove keys

before dismounting.

•Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge guard.

• Operate machine only in daylight or good

artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

, Watch for traffic when operating near or

crossing roadways_

. Use extra care when loading or unloading

the machine into a trailer or truck.

. Always wear eye protection when operat-

ing machine,

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

. Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

o Keep machine free of grass , leaves

or other debris build-up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine, Allow machine to cool before

storage_

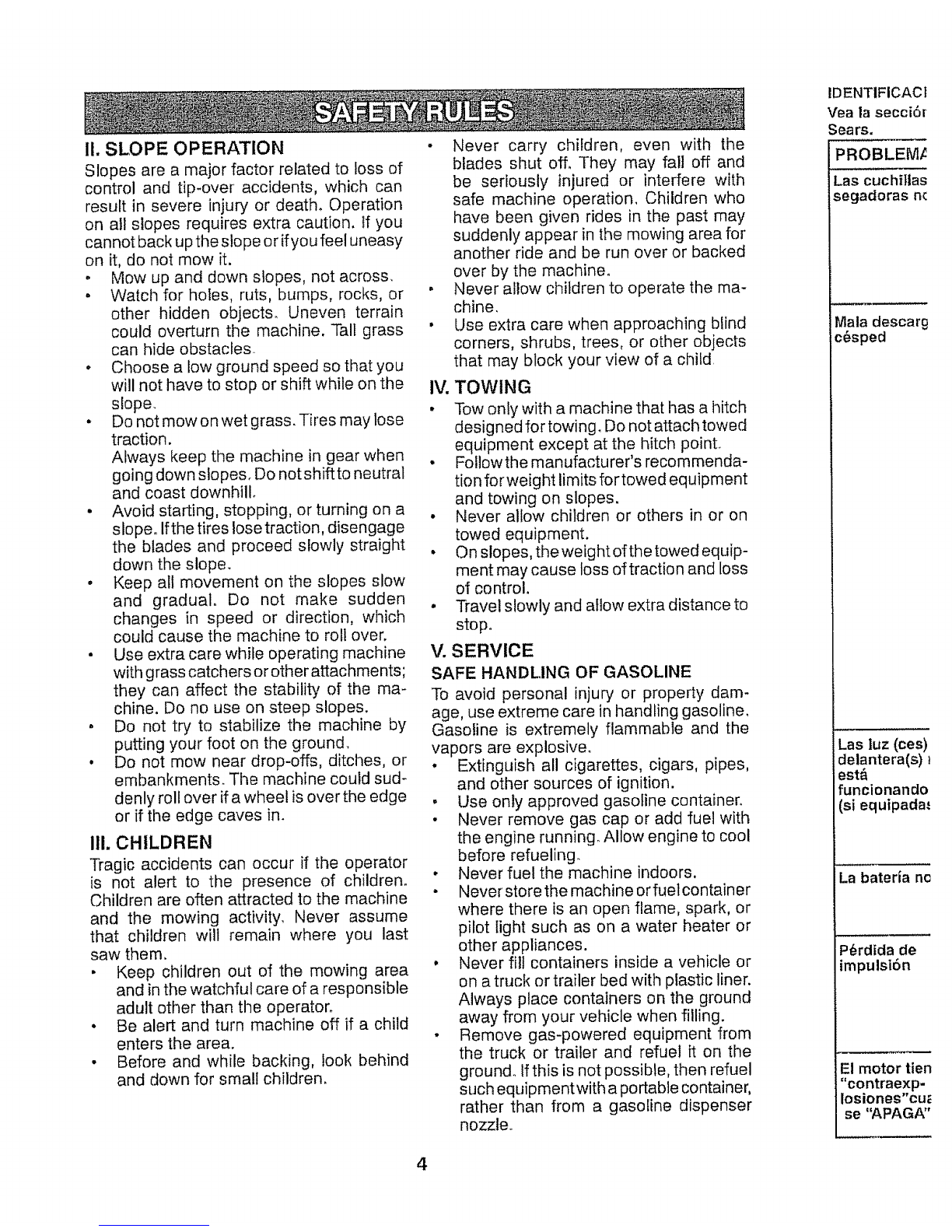

Ii. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death° Operation

on all slopes requires extra caution, tf you

cannot back up the slope or if you feel uneasy

on it, do not mow it.

. Mow up and down slopes, not across.

. Watch for holes, ruts, bumps, rocks, or

other hidden objects_ Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope_

• Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill°

• Avoid starting, stopping, or turning on a

slope. Ifthe tires lose traction, disengage

the blades and proceed slowly straight

down the slope_

• Keep all movement on the slopes slow

and gradual° Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

, Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

Iil. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children°

Children are often attracted to the machine

and the mowing activity. Never assume

that children wilt remain where you last

saw them.

•Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator_

•Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

Never allow children to operate the ma-

chine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child

IV, TOWING

•Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch poinL

• Followthemanufacturer'srecommenda-

tion forweight limits for towed equipment

and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes,theweightofthetowedequip-

ment may cause loss of traction and loss

of control.

• Travel slowly and allow extra distance to

stop°

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline_

Gasoline is extremely flammable and the

vapors are explosive°

.Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

•Use only approved gasoline container.

•Never remove gas cap or add fuel with

the engine running_ Allow engine to cool

before refueling.

•Neverfuel the machine indoors.

•Neverstorethemachineorfuetcontainer

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then refuel

such equipment with a portable container,

rather than from a gasoline dispenser

nozzle._

IDENTIFICACI

Vea la secci6r

Sears.

PROBLEM,_

Las cuchi]las

segadoras n(

Vlala descarg

c6sped

Las luz (ces)

delantera(s) _

est&

funcionando

(si equipadat

La bateria nc

P6rdida de

imputsi6n

El motor tien

"contraexp-

osiones"cu_

se "APAGA"

Jeservicio

or de la caja

o de aire.

:eite/cambie el

Jstar la

bujia.

3mbustible.

e combustible

)n gasolina

e combustible

va a ltenar el

na nueva y

Imbustible.

alambre de la

as de aire det

,mciador.

)radon

Carburador"

icio y Ajustes.

3 con un

_,O COR UFI

:iocualificado.

\priete el

3con uncentro

;on un otto

talificado,.

. Cambie las

osici6n "ON".

_eraci6n

,, ios

lexioneso

s, pongase

;entro de

un otro del

lalificadoo

\priete el

,,gador.,

or de fa caja

3 COI3 un

.=ars o coR url

:io cualificado°

los manddles

_tilaci6m

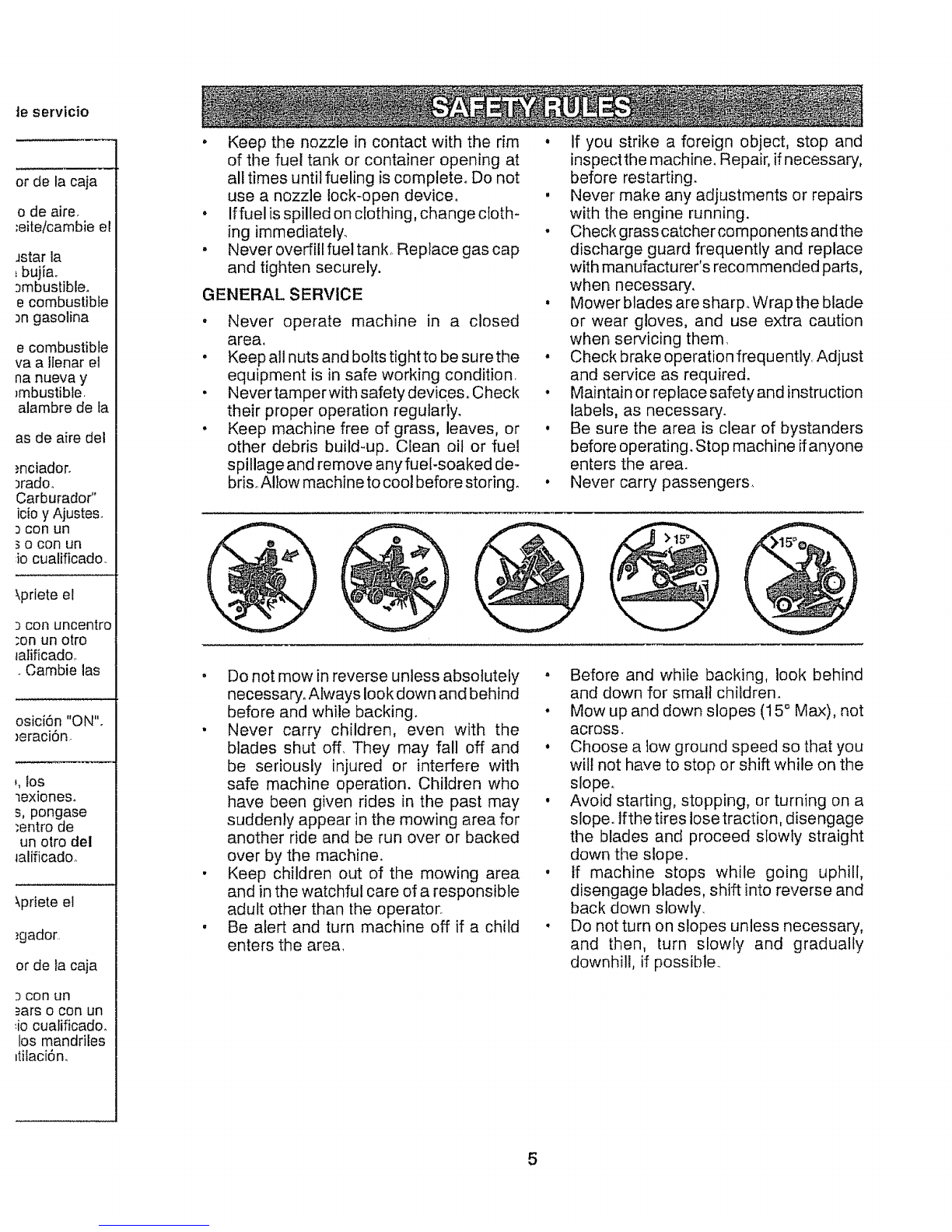

. Keep the nozzle in contact with the rim •

of the fuel tank or container opening at

all times until fueling is complete° Do not

use a nozzle lock-open device°

If fuel is spilled on clothing, change cloth-

ing immediately.

Never overfill fuel tank, Replace gas cap

and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed

area,

" Keep all nuts and bolts tightto be surethe

equipment is in safe working condition_

° NevertamperwithsafetydevicesoCheck

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked de-

brisoAllow machine to cool before storing_

If you strike a foreign object, stop and

inspectthe machine, Repair, if necessary,

before restarting.

Never make any adjustments or repairs

with the engine running.

Check grass catcher components andthe

discharge guard frequently and replace

with manufacturer's recommended parts,

when necessary,

, Mower blades are sharp.Wrap the blade

or wear gloves, and use extra caution

when servicing them

• Checkbrakeoperationfrequently.Adjust

and service as required.

• Maintainor replace safety and instruction

labels, as necessary.

o Be sure the area is clear of bystanders

before operating. Stop machine ifanyone

enters the area.

• Never carry' passengers.

. Do not mowin reverse unless absolutely

necessary. Always look down and behind

before and while backing.

. Never carry children, even with the

blades shut off, They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

, Be alert and turn machine off if a child

enters the area,

. Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

° Choose a low ground speed so that you

wilt not have to stop or shift while on the

slope,.

• Avoid starting, stopping, or turning on a

slope, lfthe tires lose traction, disengage

the blades and proceed slowly straight

down the slope.

. tf machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

. Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible..

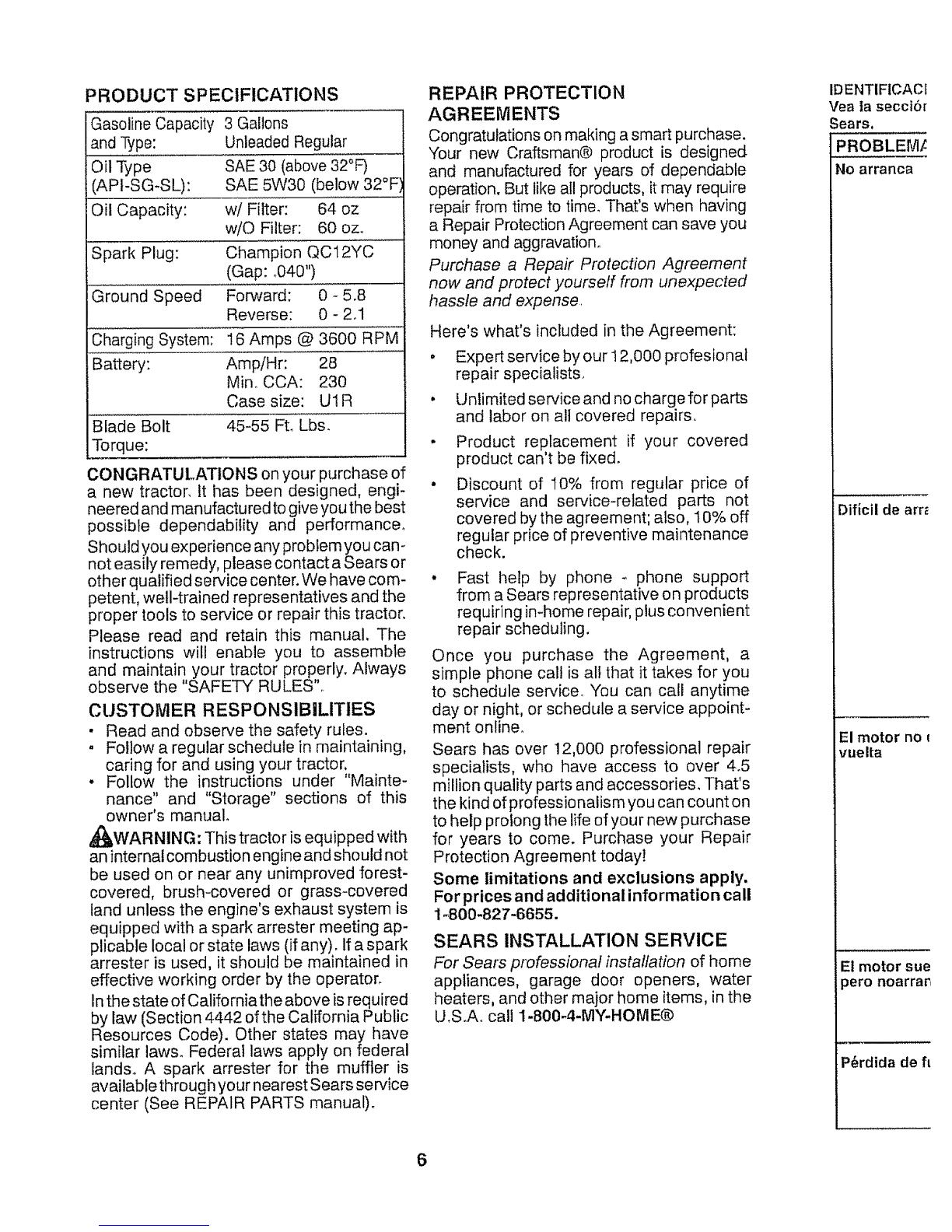

PRODUCT SPECIFICATIONS

Gasoline Capacity 3 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W30 (below 32°F

Oil Capacity: w/Filter: 64 oz

w/Q Filter: 60 oz.

Spark Plug: Champion QC12YC

(Gap: °040")

Ground Speed Forward: 0 - 5.8

Reverse: 0 - 2.1

Charging System: 16 Amps @ 3600 RPM

Battery: AmpiHr: 28

Mino CCA: 230

Case size: U1R

Blade Bolt 45-55 FL Lbs.

Torque:

CONGRATULATIONS on your purchase of

a new tractor_ tt has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance°

Should you experience any problem you can

not easily remedy, please contact a Sears or

other qualified service center. We have com-

petent, well-trained representatives and the

proper tools to service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES"°

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

.Follow a regular schedule in maintaining,

caring for and using your tractor,

. Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual

_I_WARNING: This tractor is equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained in

effective working order by the operator.

in the state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands_ A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsman@ product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense,

Here's what's included in the Agreement:

• Expert service by our 12,000 profesionat

repair specialists,,

• Unlimited service and no chargefor parts

and labor on all covered repairs,,

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check.

Fast help by phone - phone support

from a Sears representative on products

requiring in-home repair, plus convenient

repair scheduling.

Once you purchase the Agreement, a

simple phone cal! is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service appoint-

ment online,,

Sears has over 12,000 professional repair

specialists, who have access to over 4_5

million quality parts and accessories, That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1_800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.Ao call 1-800_4-MY-HOME®

IDENTIFICACE

Vea |a secci6r

Sears.

PROBLEM[

No arranca

Dificil de arr_

El motor no

vueita

El motor sue

)ero noarra_

P6rdida de fl

sistema de

el periodo de

nte poniendo

_1ofuncionar

ne el carbura-

tlimpieza de!

_stanque de

producir daSos

xima

3ustible es una

ira un minimo

ma en el com-

macenarniento.

ina en el

I envase para el

a proporci6n de

mvase del esta-

)r por Io menos

el estabilizador,

,'arburador. No

Je gasolina y el

tabilizador de

tiente) y c&m-

(Vea "MO-

_iento" de este

rav6s del

itindro(s).

posici6n de 'Ar-

lntos segundos

temporada a ta

ina si se empie-

a mugre en su

td en un recinto

erfa contra et

protector

_umedad..No

ede respirar, Io

ondensaci6n,

:Jesu unidad..

:,-actormientras

:Jdavia estan

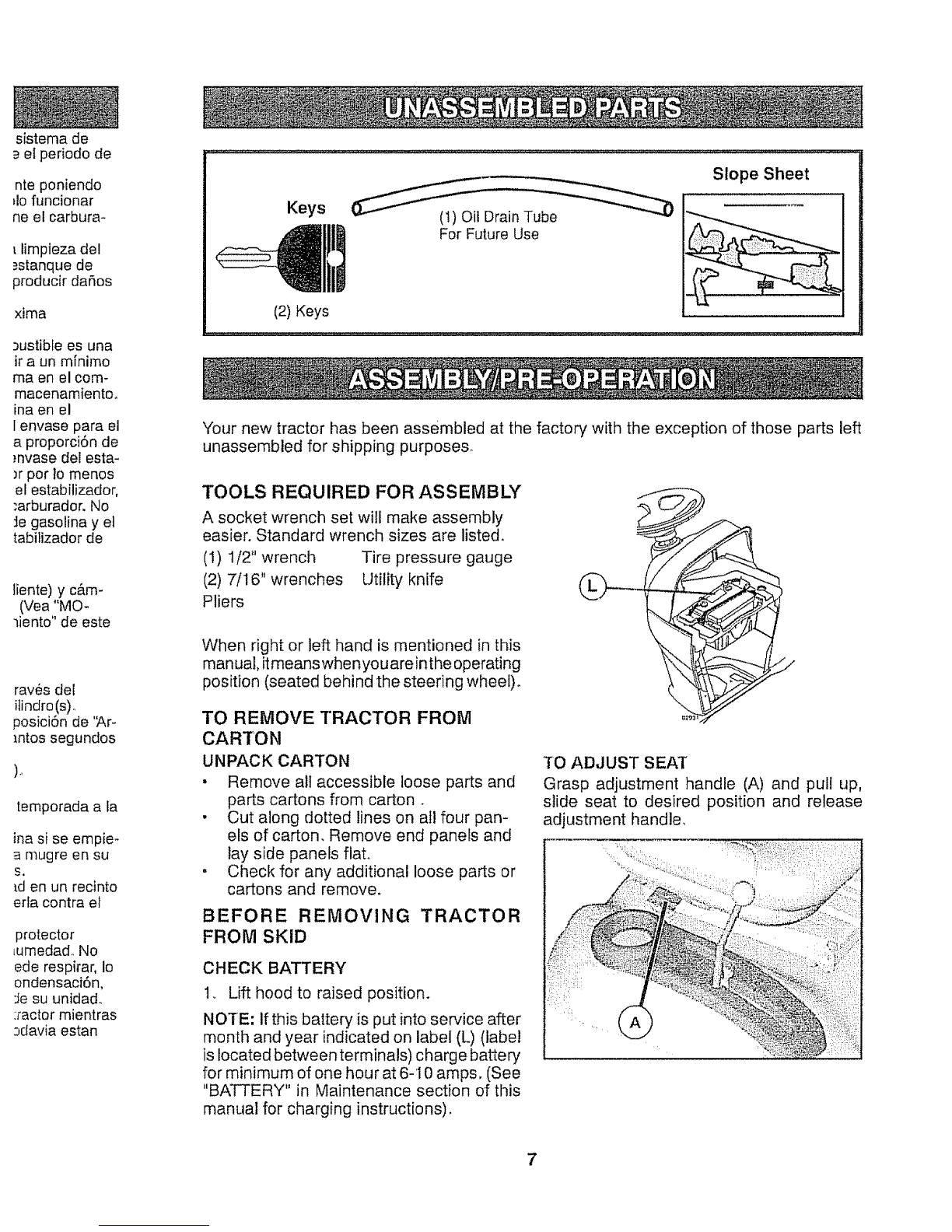

Slope Sheet

Keys (I) Oil Drain Tube

(2) Keys

"Your new tractor has been assembled at the factory' with the exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(I) 112" wrench Tire pressure gauge

(2) 7/16" wrenches Utility knife

Pliers

When right or left hand is mentioned in this

man ual, itmeans when you are in the operating

position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

" Remove all accessible loose parts and

parts cartons from carton.

• Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

. Check for any additional loose parts or

cartons and remove°

BEFORE REMOVING TRACTOR

FROM SKID

CHECK BATTERY

t., Lift hood to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (L) (label

is located between terminals) charge battery

for minimum of one hour at 6-10 amps, (See

"BATTERY" in Maintenance section of this

manual for charging instructions),

TO ADJUST SEAT

Grasp adjustment handle (A) and pull up,

slide seat to desired position and release

adjustment handle,

NOTE: "You may now roll your tractor off the

skid. Follow the instructions belowto remove

the tractor from the skid.

WARNING: Before starting, read, um

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1_ Raise attachment lift lever to its highest

position,

2o Release parking brake by depressing

brake pedal.

3_ Place freewheel control in disengaged

position to disengage transmission (See

"TO TRANS PORT" in the Operation sect

tion of this manual).

4, Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor_

Continue with the instructions that follow_

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes, Correct

tire pressure is important for best cutting

performance.

, Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled, See "TO LEVEL

MOWER" in tile Service and Adjustments

section of this manual°

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section ofthis man_

uaL Verify that the belts are routed correctly°

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating prop-

erlyoSee "TO CHECK BRAKE" in the Service

and Adjustments section of this manual,

CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality ProducL

Please review the following checklist:

_' All assembly instructions have been

compteted_

#z No remaining loose parts in carton.

Vf Battery is properly prepared and

charged.

J" Seat is adjusted comfortably and tight-

ened securely.

Vf All tires are properly inflated. (For ship-

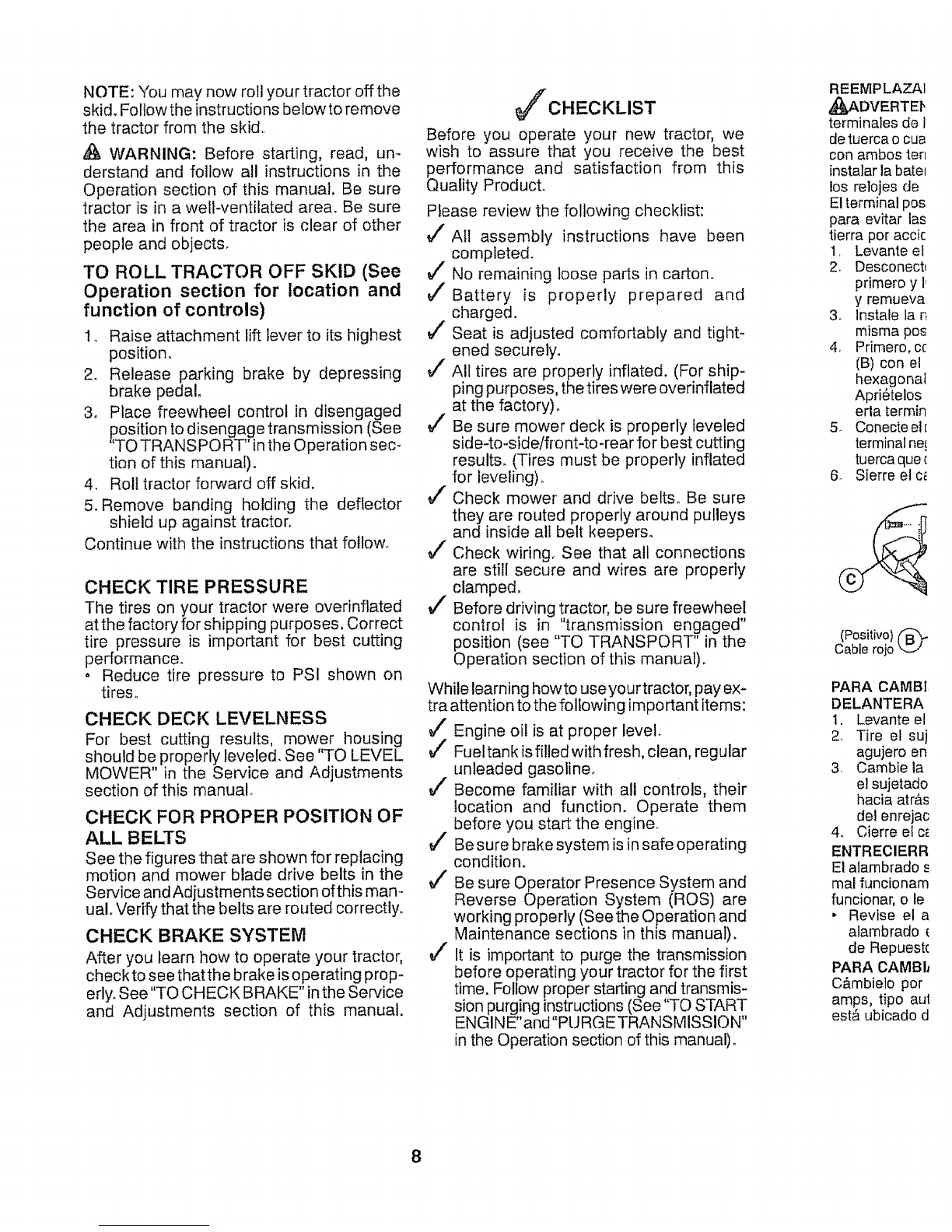

ping purposes, the tires were overinflated

at the factory),

#f Be sure mower deck is properly leveled

sid e-to-side/fro nt4o-rear for best cutting

results. (Tires must be properly inflated

for leveling).

vf Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers°

J" Check wiring. See that all connections

are still secure and wires are properly

clamped.

vfBefore driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning howto use your tractor, pay ex-

tra attention to the following important items:

/" Engine oil is at proper level.

v/' Fuel tank is filled with fresh, clean, regular

unleaded gasoline.

J" Become familiar with all controls, their

location and functiom Operate them

before you start the engine

_/" Be sure brake system is in safe operating

condition.

_" Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

V/ It is important to purge the transmission

before operating your tractor for the first

time, Follow proper starting and transmis-

sion purging instructions (See "TO START

ENGINE"and"PURGETRANSMISSlON"

in the Operation section of this manual).

REEMPLAZAI

_,DVERTEI,

terminales de I

detuerca o cue

con ambos ter_

instalar la bate1

los relojes de

El terminal pos

para evitar las

tierra por accic

1, Levante ef

2_ Desconectm

primero y I,

y remueva

3, Instale la n

misma pos

4. Primero, cc

(B) con el

hexagonal

Apri_telos

erla terrain

5, Conecte eli

terminal ne!

tuerca que [

6_ Sierre el c_

(Positivo) ('_

Cable rojo

PARA CAMBI

DELANTERA

1, Levante et

2, Tire el suj

agujero en

3, Cambie la

el sujetado

hacia atr&s

del enrejao

4, Cierre el c_

ENTREClERR

El alambrado

real funcionam

funcionar, o le

. Revise el a

alambrado €

de Repuestc

PARA CAMBlJ

C&mbie]o pot

amps, tipo aut

est& ubicado d

_famente: alinee

da trasera en el

einserte elanillo

llaranuradeteje+

el eje+

erforadas y pCra

_dasa causa de

Jcommerciante

Elsello previene

i_n la corrosiCn.

!LAS RUEDAS

s ruedas delan-

1 asi de f&brica

y la inclinaciCn

+regutables. En

_oque afecte la

ruedas delan-

sa, pCngase en

los Sears u otro

MOTOR CON

s de _cido-plo-

Mantenga las

_les para fumar

re use una pro-

de las baterias+

mja cored para

que volverse a

;iCn de Manten-

_e" para un ar-

,procedimiento:

quipado con un

_1otambi_n tiene

qo use la bateria

otros vehiculos.

DE EMPALME-

ROJO conel [er-

_dabated& preo+

suitoen elchasis+

,te NEGRO con

de una bateria

_bte(D) NEGRO

_,TIERRA DEL

ue de combus-

;, INVIERTA EL

chasis y luego

;argadao

nbas baterias+

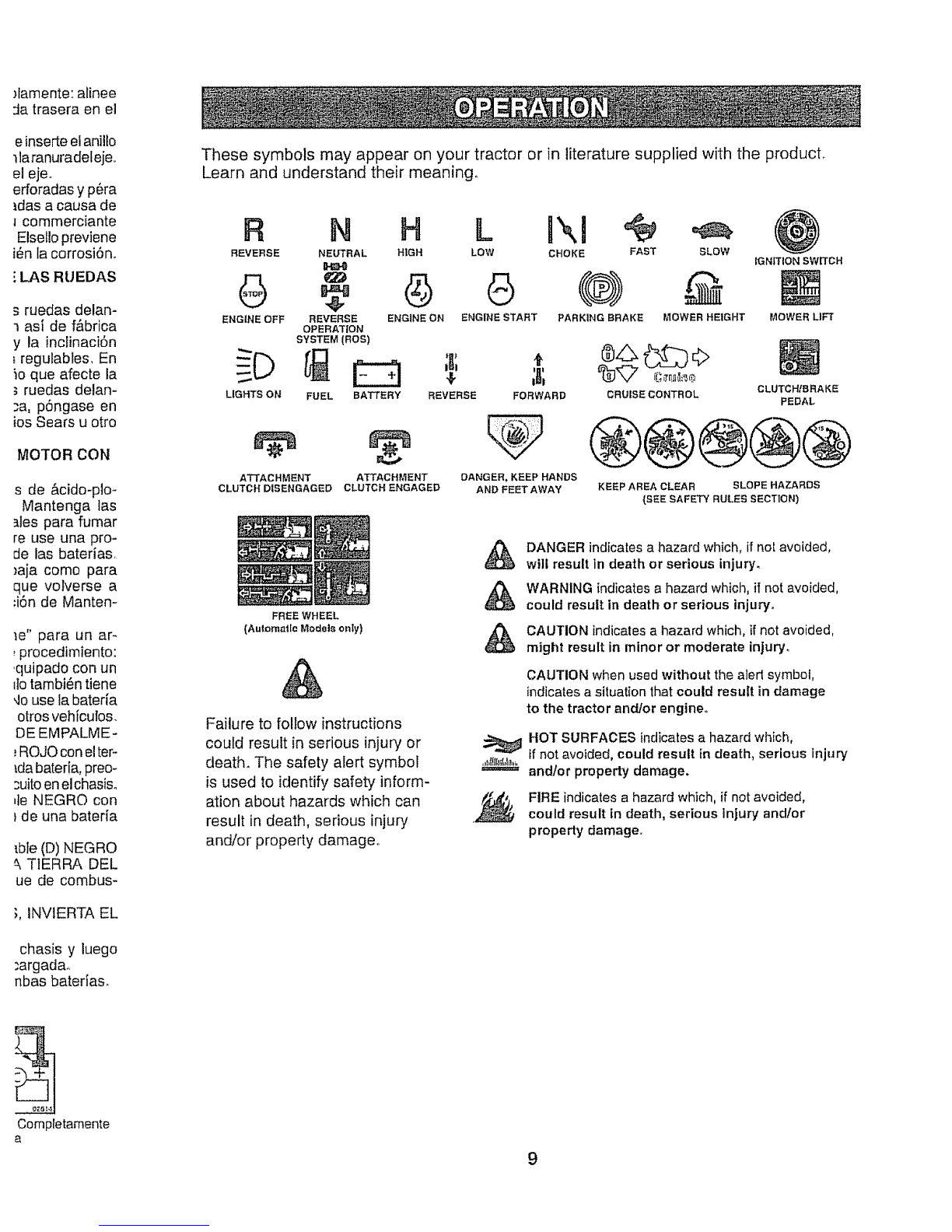

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning.

R N H L IX!i @

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM (ROS)

%+;8; _!2

LIGHTS ON FUEL BA'f'FERY REVERSE FORWARD CRUISE CONTROL

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models o_ty)

Failure to follow instructions

could result in serious injury or

death, The safety alert symbol

is used to identify safety inform-

ation about hazards whicll can

result in death, serious injury

and/or property damage.

IGNITION SWtl"CH

MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

CLUTCH/BRAKE

PEDAL

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

,_I_!+ttlShm,

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided

could result in death or serious injury°

CAUTION indicates a hazard which, if not avoided

might result in minor or moderate injury.

CAUTION when used without the aled symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious Injury andter

property damage.

Completamente

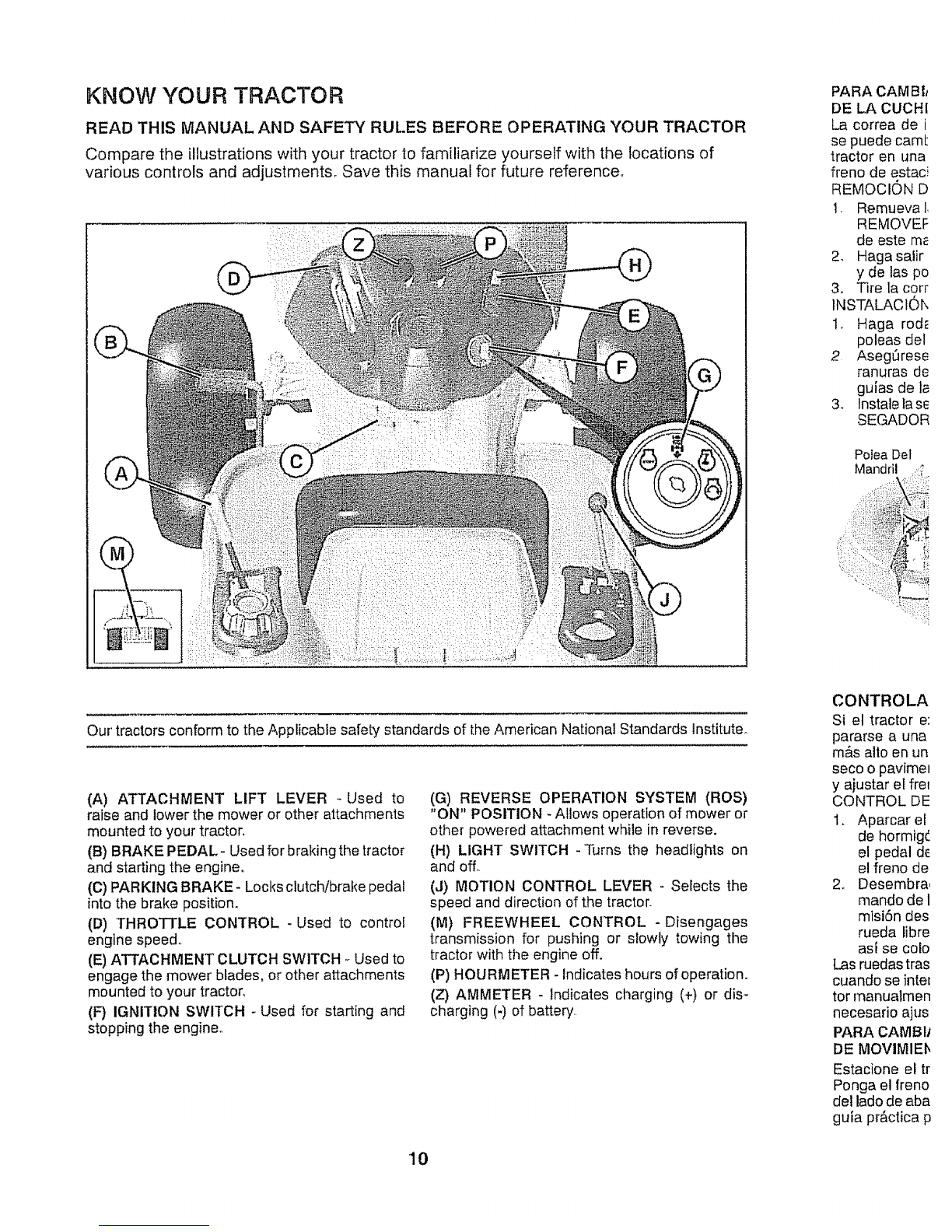

KNOW YOUR TRACTOR

READ THIS MANUAL AND SAFETY RUL.ES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference°

PARA CAMBtl

DE LA CUCH[

La correa de i

se puede carol

tractor en una

frenode estaci

REMOCION D

1. Remueva I:

REMOVEF

de este ms

2. Haga salir

y de las pc

3o Tire la corr

1NSTALACIOK

1. Haga rod_

poleas del

2Aseg0rese

ranuras de

guias de la

3. Instale la se

SEC_DOR

PoieaDef

Our'tractors conform to the Applicable safety standards of the American National Standards Institute°

(A) ATTACHMENT LIFT LEVER -Used to

raise and lower the mower or other attachments

mounted to your tractor.

(B) BRAKE PEDAL- Used for braking the tractor

and starting the engine,,

into the brake position.

(D) THROTTLE CONTROL -Used to control

engine speed°

(E) ATTACHMENT CLUTCH SWITCH -Used to

engage the mower blades, or other attachments

mounted to your tractor,

(F) IGNITION SWITCH -Used for starting and

stopping the engine.,

(G) REVERSE OPERATION SYSTEM (ROS)

"ON" POSITION - Allows operation of mower or

other powered attachment while in reverse.

(H) LIGHT SWITCH -Turns the headlights on

and off.

(J) MOTION CONTROL LEVER - Selects the

speed and direction of the tractor.

(M) FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing the

tractor with the engine off,

(P) HOURMETER - Indicates hours of operation.

(Z) AMMETER - Indicates charging (+) or dis-

charging (-) of battery,

CONTROLA

Si el tractor e:

pararse a una

m&s alto en un

seco o pavimel

y ajustar el frel

CONTROL DE

1. Aparcarel

de hormig_.

el pedal de

el freno de

2. Desembra,

mando de i

misi6n des

rueda libre

asi se colo

Las ruedas tras

cuando se inter

tor rnanualmen

necesario ajus

PARA CAMBI_

DE MOVIMIEI_

Estacione el tr

Ponga el freno

del lado de aba

gula pr&ctica p

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.271640 Manuel utilisateur

Craftsman

Craftsman 917.377050 Manuel utilisateur

Craftsman

Craftsman 917.378860 Manuel utilisateur

Craftsman

Craftsman 900.37051 Manuel utilisateur

Craftsman

Craftsman 917.274980 Manuel utilisateur

Craftsman

Craftsman 917.28858 Manuel utilisateur

Craftsman

Craftsman 917.271653 Manuel utilisateur

Craftsman

Craftsman 944.609040 Manuel utilisateur

Craftsman

Craftsman 21" MULTI-CUT 917.388732 Manuel utilisateur

Craftsman

Craftsman 917.382770 Manuel utilisateur

Craftsman

Craftsman 917.28914 Manuel utilisateur

Craftsman

Craftsman 917.388522 Manuel utilisateur

Craftsman

Craftsman 917.379590 Manuel utilisateur

Craftsman

Craftsman 917.378494 Manuel utilisateur

Craftsman

Craftsman 944.600880 Manuel utilisateur

Craftsman

Craftsman 917.276340 Manuel utilisateur

Craftsman

Craftsman 917.277252 Manuel utilisateur

Craftsman

Craftsman 917.378500 Manuel utilisateur

Craftsman

Craftsman EZ3 917.387160 Manuel utilisateur

Craftsman

Craftsman 917.370715 Manuel utilisateur

Craftsman

Craftsman 917.376670 Manuel utilisateur

Craftsman

Craftsman 917.378851 Manuel utilisateur

Craftsman

Craftsman 917.377641 Manuel utilisateur

Craftsman

Craftsman 917.377381 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
