Craftsman 917.28033 Manuel utilisateur

Operator's Manual

CR FT M No

LAWN TRACTOR

17.5 HP,*30" Mower

Electric Start

Automatic Transmission

Model No.

917.28033

oEspaSol, pg. 35

This product has a low emission engine which operates

differently from previously built engine s. Before you start the

engine, read and understand this Owner,s Manual.

IMPORTANT:

............Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this. product, Call:

1 =800 -659 =5917

Sears Craftsman Help Line

5 am - 5 pro, Mon- Sat

SEARS, ROEBUCK AND CO. HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:wwwosears,com/craftsman *Ae rated by the engine manufaclurer

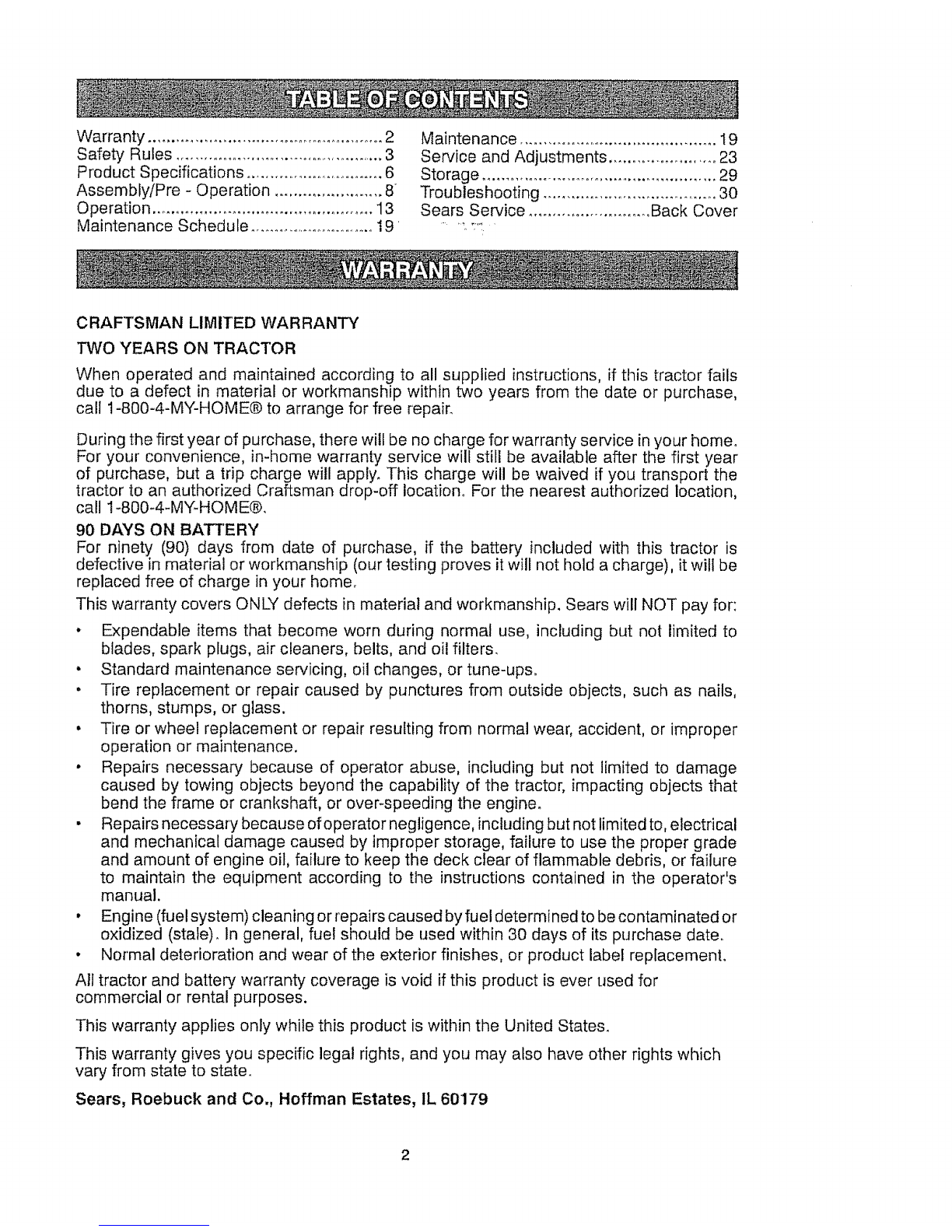

Warranty ................................................... 2

Safety Rules ............................................... 3

Product Specifications ................................. 6

Assembly/Pre - Operation ....................... 8

Operation ............................................... 13

Maintenance Schedule .............................. 19

Maintenance ............................................ 19

Service and Adjustments ....................... 23

Storage .................................................. 29

Troubleshooting ...................................... 30

Sears Service ........................... Back Cover

CRAFTSMAN LIMITED WARRANTY

TWO YEARS ON TRACTOR

When operated and maintained according to all supplied instructions, if this tractor fails

due to a defect in material or workmanship within two years from the date or purchase,

call 1-800-4-MY-HOME® to arrange for free repair_

During the first year of purchase, there will be no charge for warranty service in your home.

For your convenience, in-home warranty service will still be available after the first year

of purchase, but a trip charge will apply. This charge will be waived if you transport the

tractor to an authorized Craftsman drop-off location. For the nearest authorized location,

call !-800-4-MY-HOME®.

90 DAYS ON BATTERY

For ninety (90) days from date of purchase, if the battery included with this tractor is

defective in material or workmanship (our testing proves it will not hold a charge), it wilt be

replaced free of charge in your home.

This warranty covers ONFY defects in material and workmanship. Sears will NOT pay for:

. Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oi! filters.

• Standard maintenance servicing, oil changes, or tune-ups.

. Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance,

• Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor, impacting objects that

bend the frame or crankshaft, or over-speeding the engine°

• Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure

to maintain the equipment according to the instructions contained in the operator's

manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or

oxidized (stale). In general, fuel should be used within 30 days of its purchase date°

. Normal deterioration and wear of the exterior finishes, or product label replacement,

All tractor and battery warranty coverage is void if this product is ever used for

commercial or rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state°

Sears, Roebuck and Co., Hoffman Estates, IL 60179

l!l _ t !HI

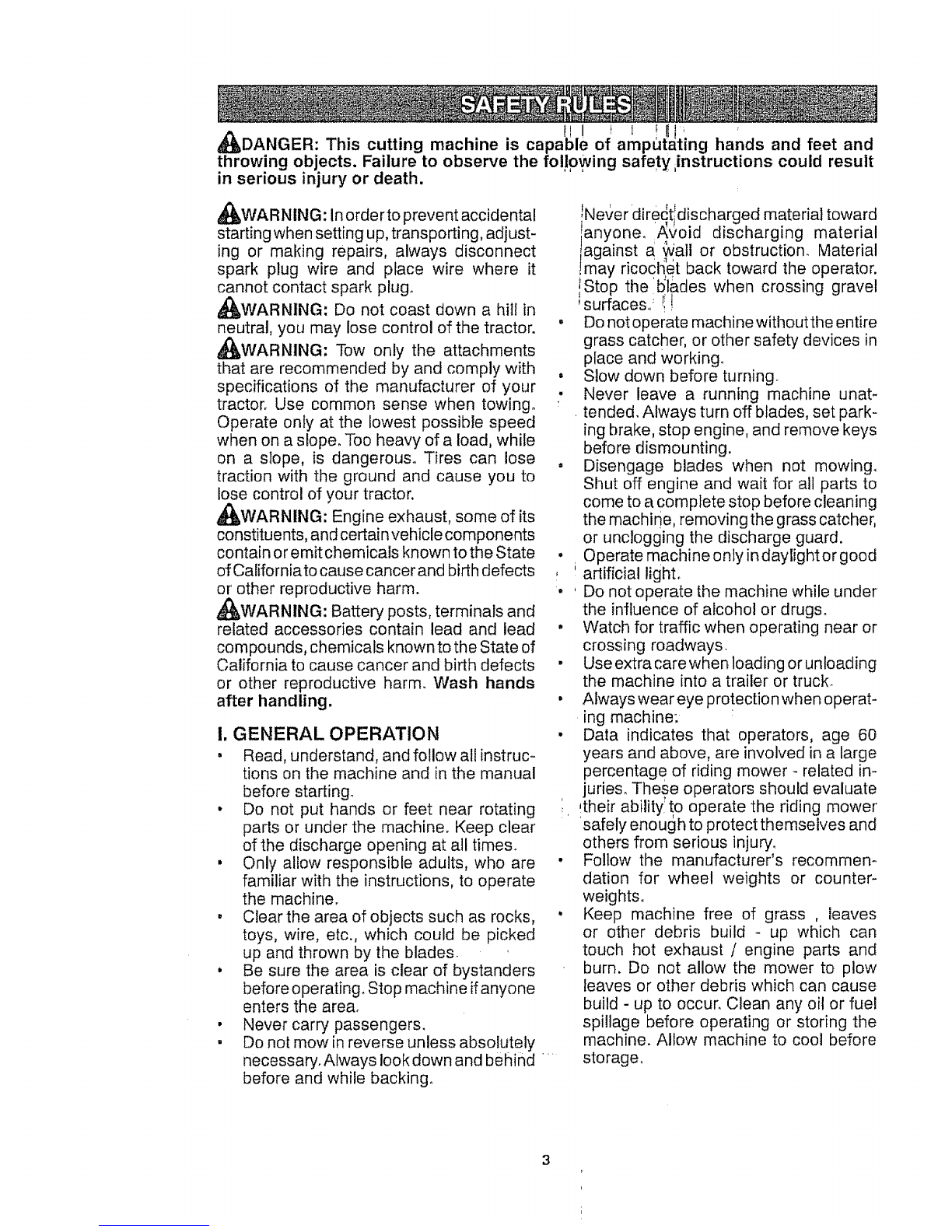

_DANGER: This cutting machine is capable of ampLItating hands and feet and

throwing objects. Failure to observe the fol!owing safety ,instructions could result

in serious injury or death.

_WARNING: In order to prevent accidental

starting when setting up, transporting, adjust-

ing or making repairs, always disconnect

spark plug wire and place wire where it

cannot contact spark plug.

_WARN1NG: Do not coast down a hill in

neutral, you may lose control of the tractor. "

_WARNING: Tow only the attachments

that are recommended by and comply with ,

specifications of the manufacturer of your ,

tractor. Use common sense when towing. :

Operate only at the lowest possible speed

when on a slope_ Too heavy of a load, while

on a slope, is dangerous° Tires can lose ,

traction with the ground and cause you to

lose control of your tractor.

,_WARNING: Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known tothe State •

ofCaliforniatocause cancerand birth defects ,

or other reproductive harm.

_WARNING: Battery posts, terminals and

related accessories contain lead and lead °

compounds, chemicals known to the State of

California to cause cancer and birth defects "

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

, Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

•De not put hands or feet near rotating !

parts or under the machine. Keep clear

of the discharge opening at all times.

, Only allow responsible adults, who are °

familiar with the instructions, to operate

the machine°

, Clearthe area of objects such as rocks, '

toys, wire, etc., which could be picked

up and thrown by the blades

,Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area°

• Never carry passengers.

, Do not mow in reverse unless absolutely

necessary° Always look down and behind

before and while backing°

INever dire_tldischaroed material toward

!anyone. /_oid discharging material

tagainst a _iall or obstruction_ Material

Imay ricochet back toward the operator.

!Stop the'i_lades when crossing gravel

isurfaces., i !i!

Do not operate machine without the entire

grass catcher, or other safety devices in

place and working°

Slow down before turning°

Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove keys

before dismounting.

Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge guard.

Operate machine only in daylight or good

artificial light,.

Do not operate the machine while under

the influence of alcohol or drugs°

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unloading

the machine into a trailer or truck.

Always wear eye p rotectio nwhen o perat-

ing machine:

Data indicates that operators, age 60

years and above, are involved in a large

percentag e of riding mower - related in-

juries, These operators should evaluate

!their abilitytto operate the riding mower

safely enough to protect themselves and

others from serious injury,

Follow the manufacturer's recommem

dation for wheel weights or counter-

weights.

Keep machine free of grass , leaves

or other debris build -up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build - up to occur, Clean any oil or fue!

spillage before operating or storing the

machine. Allow machine to cool before

storage,

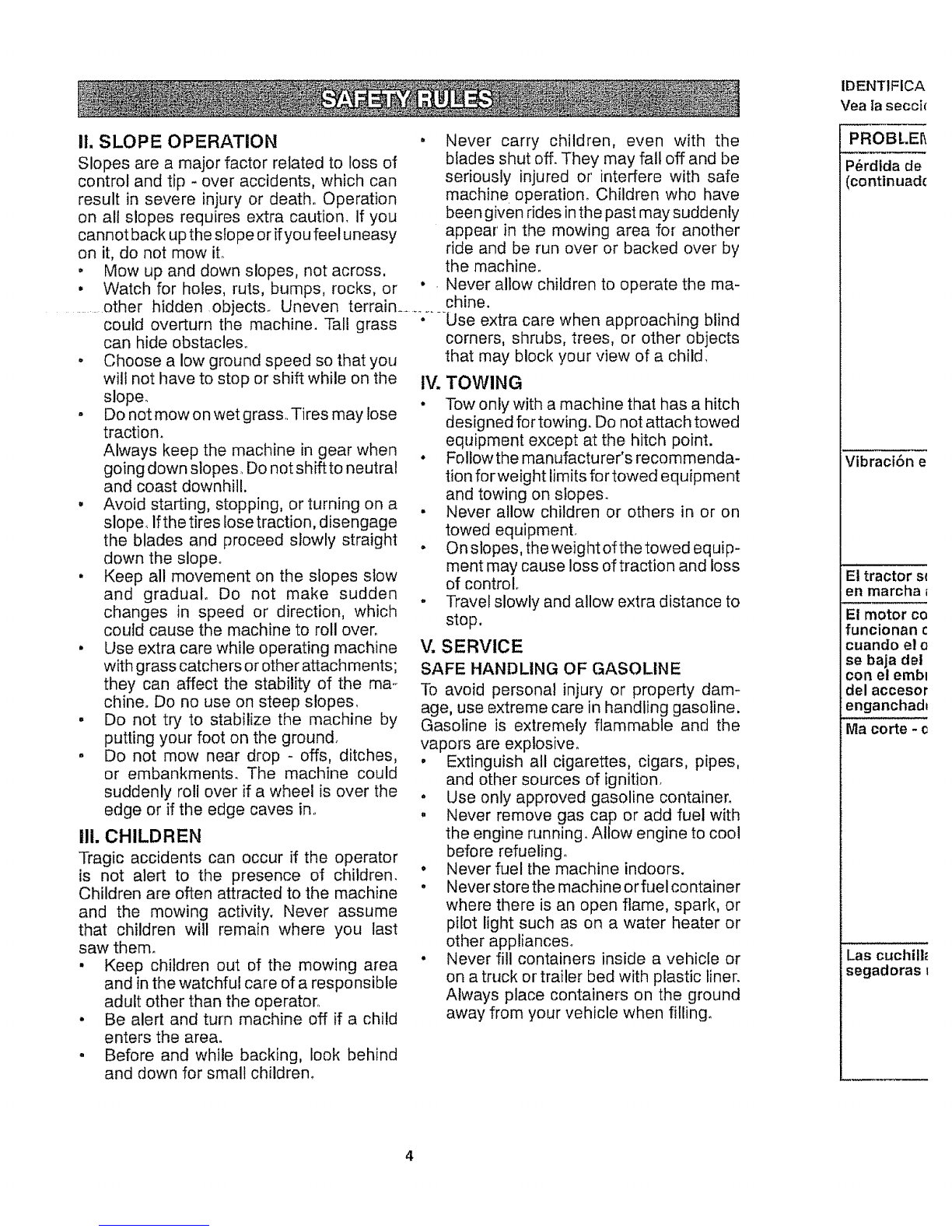

!t, SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip - over accidents, which can

result in severe injury or death° Operation

on all slopes requires extra caution, if you

cannot back up the slope or ifyou feel uneasy

on it, do not mow iL

•Mow up and down slopes, not across,

, Never carry children, even with the

blades shut off. They may fall off and be

seriously injured or interfere with safe

machine operation. Children who have

been given rides in the past may suddenly

appear in the mowing area for another

ride and be run over or backed over by

the machine,,

Watch for holes, ruts, bumps, rocks, or " Never allow children to operate the me-

............other hidden objects. Uneven terrain ........... chine.

could overturn the machine. Tall grass " Use extra care when approaching blind

can hide obstacles.

. Choose a low ground speed so that you

wilt not have to stop or shift while on the

slope.

. Do not mow on wet grass, Tires may lose

traction.

Always keep the machine in gear when

going down slopes., Do not shift to neutral

and coast downhill.

. Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disengage

the blades and proceed slowly straight

down the slope_

, Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over,

, Use extra care while operating machine

with grass catchers or other attach ments;

they can affect the stability of the ma-

chine° Do no use on steep slopes,

. Do not try to stabilize the machine by

putting your foot on the ground.

o Do not mow near drop - offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.,

Iii. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator,,

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

corners, shrubs, trees, or other objects

that may block your view of a child,

IV. TOWING

•Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

•Followthemanufacturer'srecommenda-

tion forweight limits for towed equipment

and towing on slopes.

•Never allow children or others in or on

towed equipment.

•On slopes, theweight ofthe towed equip-

ment may cause loss of traction and loss

of control.

- Travel slowly and allow extra distance to

stop.

V, SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive,

. Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

° Use only approved gasoline container_

. Never remove gas cap or add fuel with

the engine running, Allow engine to cool

before refueling

• Neverfuel the machine indoors.

° Neverstorethe machine orfuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances_

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

IDENTIFICA

Yea la seccil

PROBLEI_

P#rdida de

continuadc

Vibraci6n e

Et tractor st

en marcha

El motor co

funcionan c

cuando el e

se baja det

con el embl

del accesor

enganchadt

Ma corte - c

Las cuchill_

segadoras

_rvicioSears.

combustible,

AREL

,nde

santesde

bie la bateria.

de aire.

mbustibleo

, combustible

a a llenar el

a nueva

nbustibleo

"ado,

rburador"

_ioy Ajustes.

con un

_,rs O 00[1 url

) cualificado.

de aire.

ie la bateria.

mbustible.

_combustible

n gasolina

,ado,

_arburador"

o y Ajustes.

COn un

_rs o con uR

3 cualificado.

freno,,

rague del

bie la bateria

de la bateria.

rado,

rruptor de la

.moide o

con uP,

9.rs o OOl3 u13

cualificado.

bie la bateria.

Je tabated&

rado.

.moide o

_e,

aceleraci6n.

,r de fa caja

de aire.

._ite!cambie el

star la

bujfa,

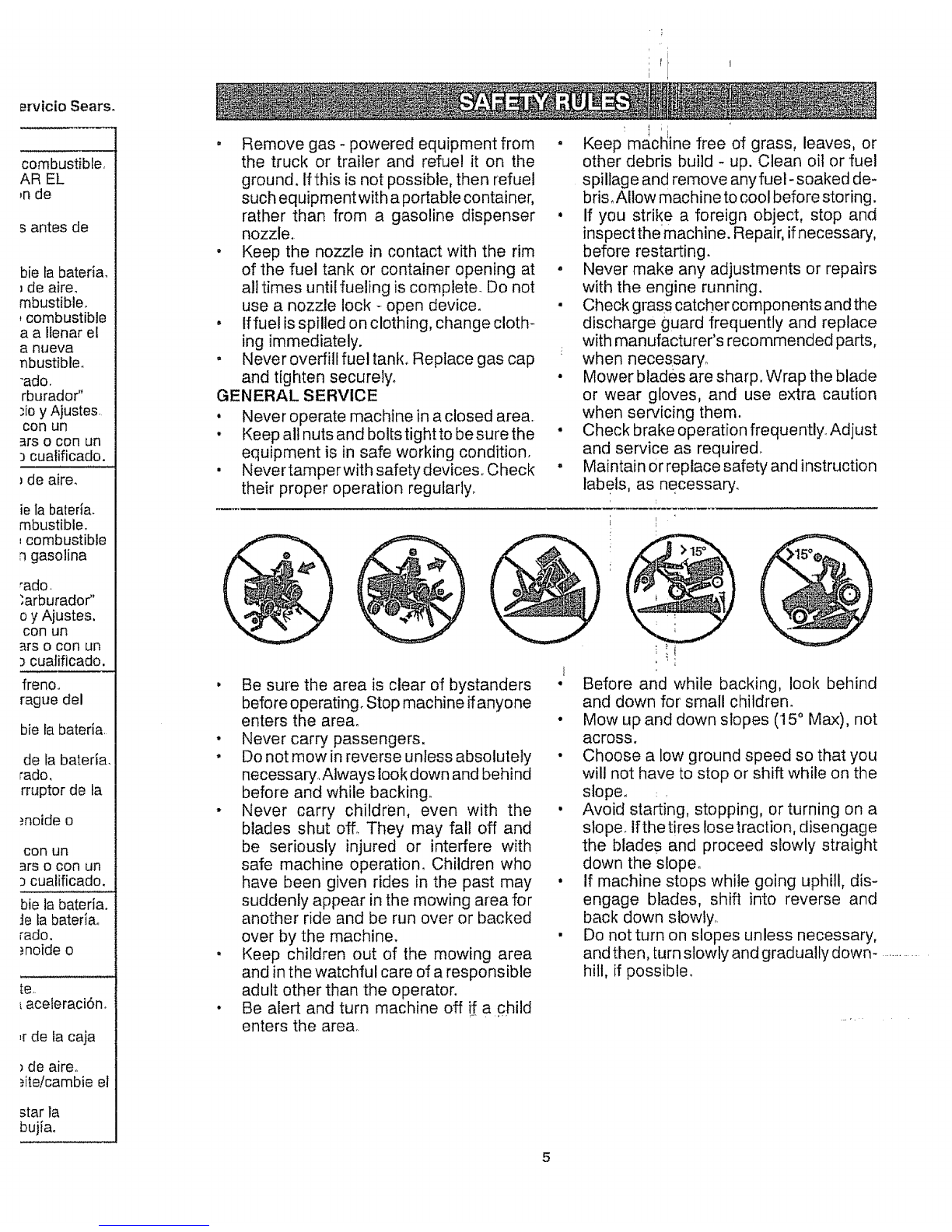

o Remove gas- powered equipment from .

the truck or trailer and refuel it on the

ground, if this is not possible, then refuel

such equipment with a portable container,

rather than from a gasoline dispenser •

nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at .

all times until fueling is complete. Do not

use a nozzle lock - open device.

• If fuel is spilled on clothing, change cloth-

ing immediately.

o [--]ever overfill fuel tank_ Replace gas cap

and tighten securely. •

GENERAL SERVICE

. Never operate machine in a closed area.

• Keepallnutsandboltstighttobesurethe "

equipment is in safe working condition,

• NevertamperwithsafetydevicesoCheck "

their proper operation regularly°

Keep maclfine4_free of grass, leaves, or

other debris build - up. Clean oit or fue!

spillage and remove anyfuel- soaked de-

bris. Allow machine to cool before storing.

If you strike a foreign object, stop and

inspect themachine. Repair, ifnecessary,

before restarting,

Never make any adjustments or repairs

with the engine running,

Check grass catcher components and the

discharge guard frequently and replace

with manufacturer's recommended parts,

when necessary,

Mower blades are sharp. Wrap the blade

or wear gloves, and use extra caution

when servicing them.

Check brake operation frequently, Adjust

and service as required,

Maintain or replace safety and instruction

labels, as necessary,

. Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mowin reverse unless absolutely

necessary, Always look down and behind

before and while backing.

- Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operatiom Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

. Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

° Be alert and turn machine off i-fa child

enters the area,

Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope_ : ,

• Avoid starting, stopping, or turning on a

slope, If the tires lose traction, disengage

the blades and proceed slowly straight

down the slope°

, If machine stops while going uphill, dis-

engage blades, shift into reverse and

back down SlOWly.

• Do nottum on slopes unless necessary,

and then, turn slowly and gradually down ....................

hill, if possible.

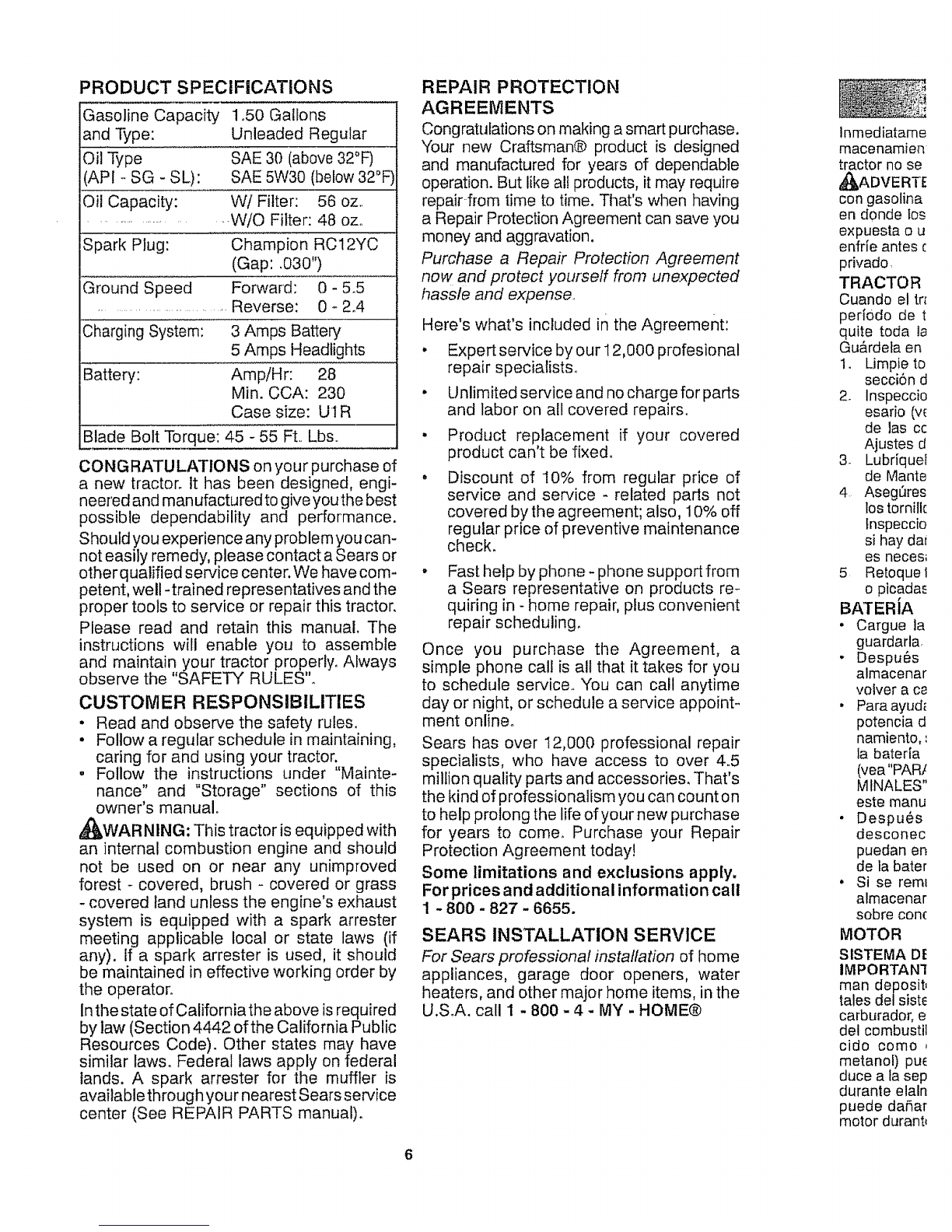

PRODUCT SPECIFICATIONS

Gasoline Capacity 1o50 Gallons

and ]_jpe: Unleaded Regular

Oil Type SAE 30 (above 32°F)

API - SG - SL): SAE 5W30 (below 32°F

Oil Capacity: Wi Filter: 56 oz,.

..................... W/O Filter: 48 ozo

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0- 5.5

.................................. Reverse: 0- 2.4

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: UIR

Blade Bolt Torque: 45 - 55 Ft.. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and man ufactured to give you the best

possible dependability and performance.

Should you experience any problem you can-

not easily remedy, please contact a Sears or

other qualified service center. We have com-

petent, well-trained representatives and the

proper tools to service or repair this tractor.

Please read and retain this manual, The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES"°

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules

•Follow a regular schedule in maintaining,

caring for and using your tractor.

. Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped with

an internal combustion engine and should

not be used on or near any unimproved

forest - covered, brush - covered or grass

- covered land unless the engine's exhaust

system is equipped with a spark arrester

meeting applicable local or state laws (if

any). If a spark arrester is used, it should

be maintained in effective working order by

the operator.

Inthe state of California the above is required

by law (Section 4442 ofthe California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark attester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsman@ product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense..

Here's what's included in the Agreement:

Expert service by our 12,000 profesional

repair specialists.

Unlimited service and no charge for parts

and labor on all covered repairs°

Product replacement if your covered

product can't be fixed,

Discount of 10% from regular price of

service and service - related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check.

Fast help by phone- phone support from

a Sears representative on products re-

quiring in - home repair, plus convenient

repair scheduling,

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service., You can call anytime

day or night, or schedule a service appoint-

ment online°

Sears has over 12,000 professional repair

specialists, who have access to over 4,5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1 - 800 - 827 - 6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1 - 800 - 4 -MY. HOME®

lnmediatame

macenamien

tractor no se

_ADVERTE

con gasolina

en d0nde los

expuesta o u

enfrie antes c

privado,

TRACTOR

Cuando el tr_

peri0do de t

quite toda la

Gu&rdela en

1. Limpieto

secci6n d

2_ Inspeccio

esario (w

de ]as cc

Ajustes d

3. Lubriquel

de Mante

4 Aseg_res

los tornillc

tnspeccio

si hay dat

es neces_

5 Retoque 1

o picadaE

BATERiA

• Cargue la

guardarla,

• Despu_s

almacenar

volver a ca

• Para ayud[

potencia d

namiento, I

la bateria

(vea "PAR/

MINALES"

este manu

• Despu6s

desconec

puedan en

de la bater

• Si se remt

almacenar

sobre con(

MOTOR

SISTEMA D[

IMPORTAN'I

man deposit,

tales del siste

carburador, e

del combustil

tide oomo ,

metanol) pu_

duce a la sep

durante elaln

puede daSar

motor durant_

i I

hufable de 30

:lor del fusible

O DEL CAPO

dambre de las

arre el cap6 en

_cia el motor y

asegerese de

Jel alambre de

Conector deI

alambre de

las Luces

Delanteras

._ser removida

_=set purgada

_=sde operar el

}MISlON" en la

manual

CONTROL DE

preajustado en

_justes. Revise

:inuaci6n, antes

necesario, yea

ido preajustado

ar ajustes.

DOR

Io en la f_,brica

in embargo, se

!or importancia

sen el combus-

-_iel carburador

de motor.

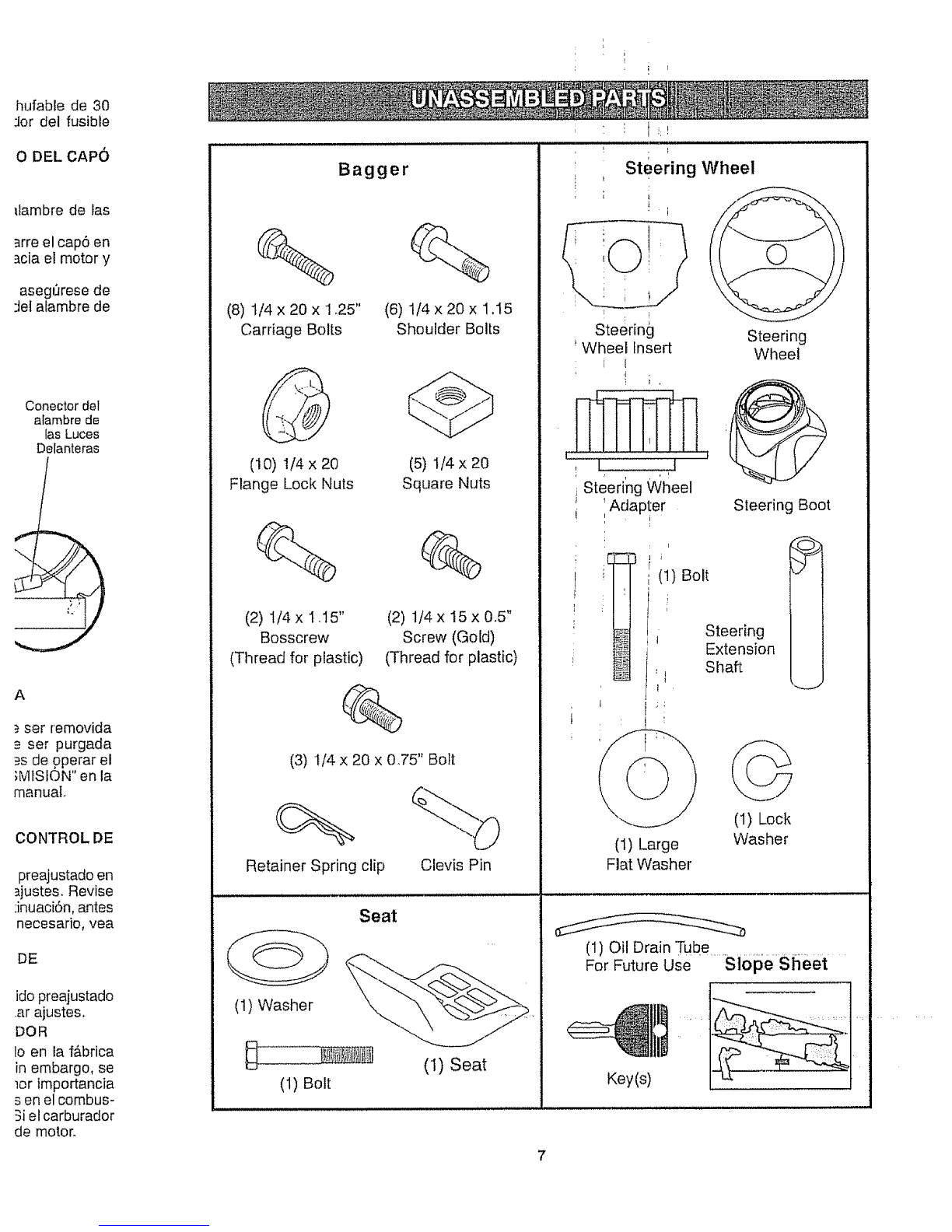

Bagger

(8) t/4 x 20 x 1.25"

Carriage Bolts

(10) 114x 20

Flange Lock Nuts

(2)1/4x 1,15"

Bosscrew

(Thread for plastic)

(6) 1/4 x 20 x 1,15

Shoulder Bolts

............... i .......

Steering Wheel

Steering

Wheel Insert Wheel

i i

i ,

(5) 114x 20

Square Nuts Steering Wheel

i Adapter Steering Boot

(2) 1/4x 15 x 0.5"

Screw (Gold)

(Thread for plastic)

,r (1) Bolt

Steering

t Extension

I i Shaft

t '

(3) t/4 x 20 x 0,75" Bolt

Retainer Spring clip Clevis Pin

Seat

(1) Washer 'k___

_ (I) Seat

(1) Bolt

(1) Large

Flat Washer

(1) Lock

Washer

(1) Oil Drain Tube

For Future Use Slope Sheet

.......

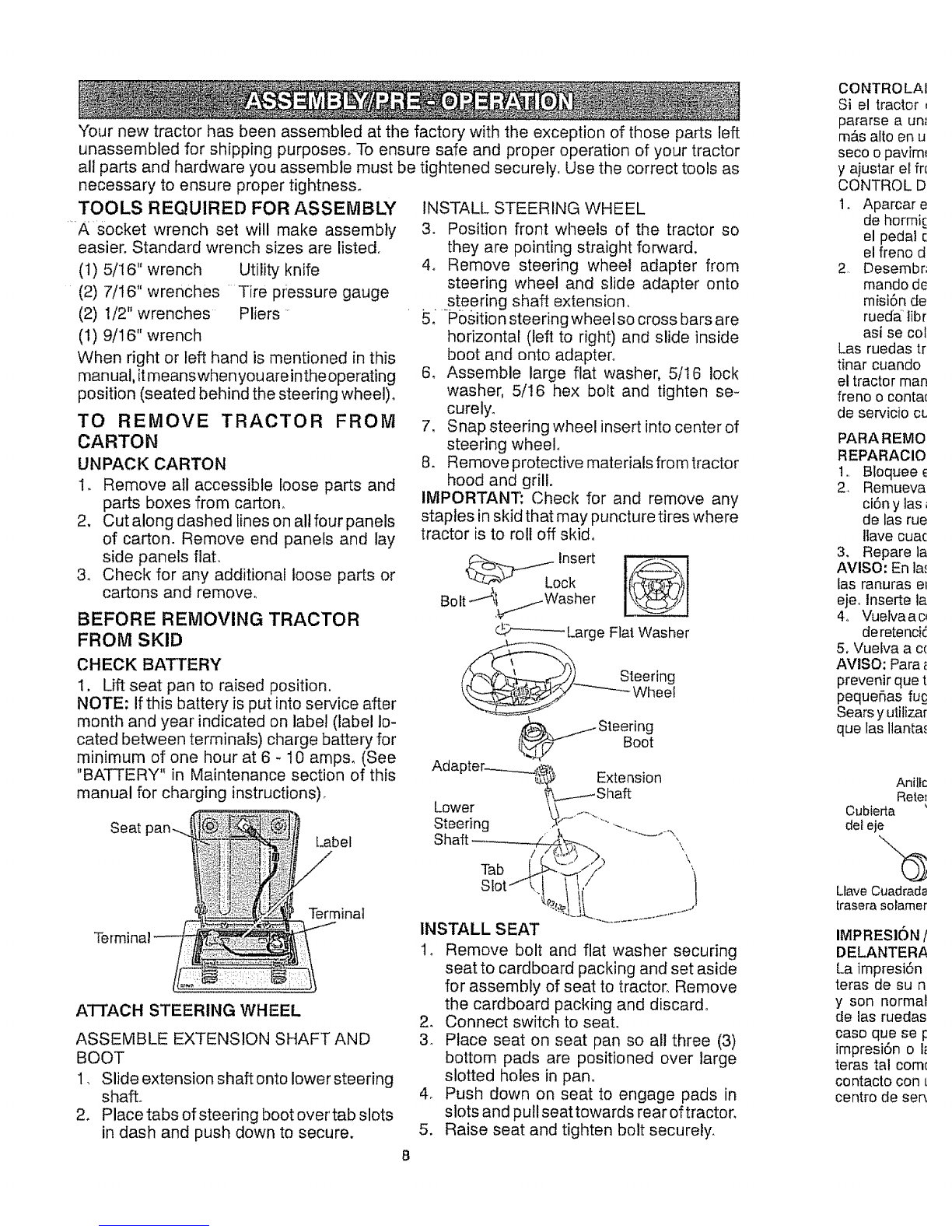

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes° To ensure safe and proper operation of your tractor

al! parts and hardware you assemble must be tightened securely. Use the correct tools as

necessary to ensure proper tightness°

TOOLS REQUIRED FOR ASSEMBEY"

....A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(t) 5/I6" wrench Utility knife

(2) 7/i 6" wrenches Tire pressure gauge

(2) 1/2" wrenches Pliers

(1) 9/16" wrench

When right or left hand is mentioned in this

manual, itmeanswhenyou are inthe operating

position (seated behind the steering wheel),

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton,,

2. Cutalong dashed lines on allfour panels

of carton. Remove end panels and lay

side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

CHECK BATTERY

1, Lift seat pan to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (label lo-

cated between terminals) charge battery for

minimum of one hour at 6 - 10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions),

Seat

Terminal

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steering

shaft.

2. Place tabs of steering boot overtab slots

in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward,

4o Remove steering wheel adapter from

steering wheel and slide adapter onto

..... steering shaft extension,

5. Position steeringwheelso cross bars are

horizontal (left to right) and slide inside

boot and onto adapter_

6. Assemble large flat washer, 5/16 lock

washer, 5/16 hex bolt and tighten se-

curely.

7, Snap steering wheel insert into center of

steering wheel°

8. Remove protective materials from tractor

hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires where

tractor is to roll off skid°

L°lnsert ck

Bolt -_}_ Washer

_c_---_Large Fla! Washer

._.__.Steering

Wheel

Steering

Boot

Adapter---_____,(_

_ Extension

_.___-_Shaft

Lower \_( .....

Steering _'P" ........

Shaft ____., k '""---.-°",,

I ./5_,;1_-'% ',

Tab {_P--'':_"'_ 1'\

Stot--"t_ [ _i./ }

INSTALL SEAT

t. Remove bolt and flat washer securing

seat to cardboard packing and set aside

for assembly of seat to tractor. Remove

the cardboard packing and discar&

2, Connect switch to seat.

3_ Place seat on seat pan so all three (3)

bottom pads are positioned over large

slotted holes in pan.

4, Push down on seat to engage pads in

slots and pull seat towards rear of tractor,

5. Raise seat and tighten bolt securely,

CONTROLAI

Si el tractor _

pararse a un_

mAs alto en u

seco o pavirn_

y ajustar eFfr(

CONTROL D

1_ Aparcar e

de hormic

el pedal c

el freno d

2. Desembn

mando de

misi6n de

rueda libr

asi se col

Las ruedas tr

tinar cuando

el tractor man

freno o contac

de servicio CL

PARA REMO

REPARAClO

1.. Bloquee

2. Remueva

ci6n y las

de ias rue

llave cuac

3. Repare la

AVISO: En la.,

las ranuras el

ejeo inserte la

4o Vuelvaac_

de retencid

5. Vuefva a c(

AVISO: Pare

prevenir que t

pequefias fuc

Sears yutilizer

que las Ilanta.,

Anillc

Rete_

Cubierta '

del eje

Llave Cuadrada

trasera solamer

IMPRESION 1

DELANTERA

La impresi6n

teras de sun

yson normal

rJe las ruedas

caso que se F

impresi6n o I_

teras tel corn(

contacto con {

centro de sen

ransmisi6n y la

rdacorreas.

acionario (A) y

tral (C).,

oia la parte de

cuidado, retire

da de la trans-

)a y pas_,ndola

ventilador (D).

_1motor movi6-

te de atr&s del

direcci6n (F) y

parte de atr&s

.-tor,pas&ndoia

._cciSn(F) y del

ue tfreno (G)o

le adelante del

._adel motor (E)_

ade atr&s del

7ueva la correa

,rdel ventilador

de la polea de

e la correa est6

Fee,

_6ncentral (C).

6n estacionario

(B),

calce en todas

_entrode todas

'ARA MONTAR

Jlodel manual).

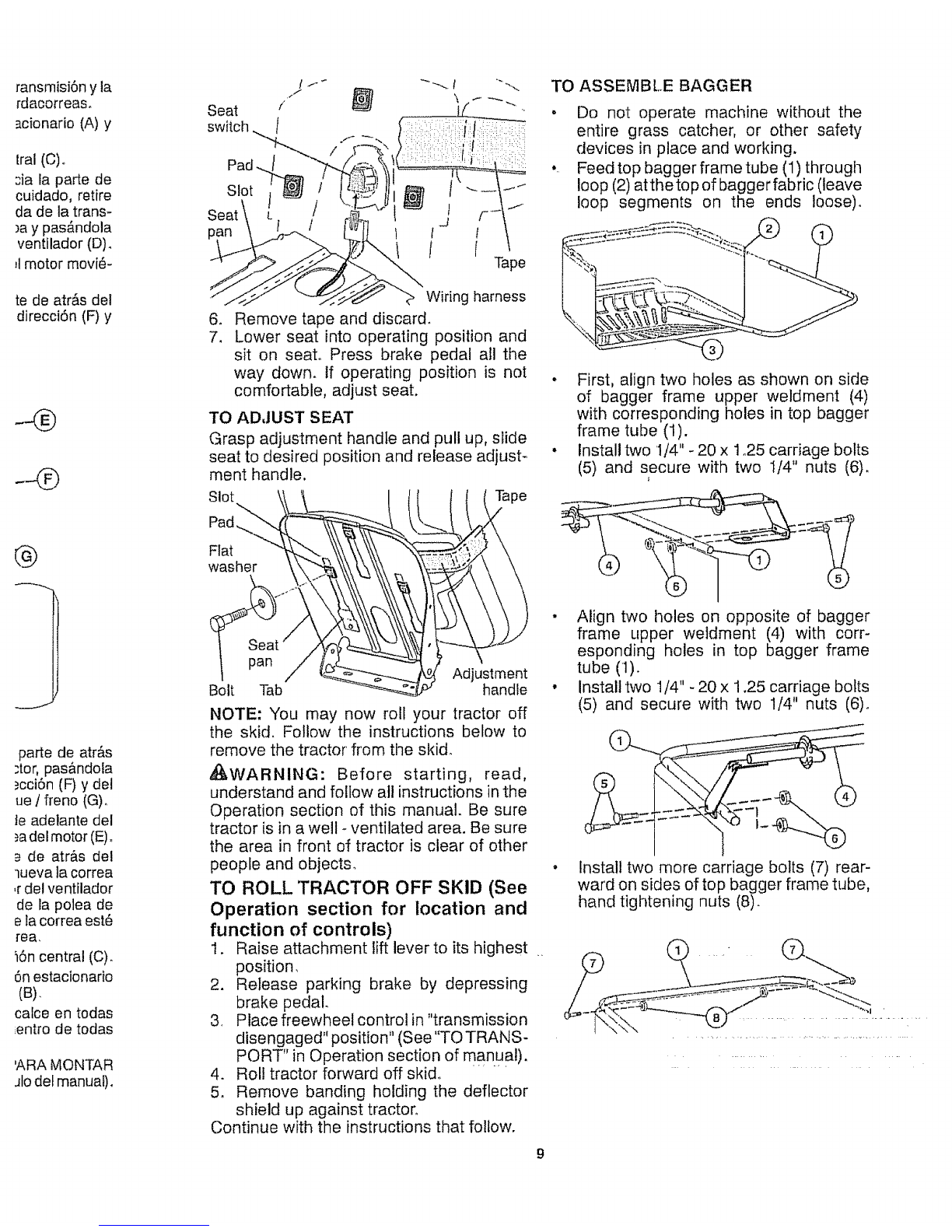

Seat

switch

Slot

Seat

Wiring harness

Remove tape and discard.

Lower seat into operating position and

sit on seat° Press brake pedal all the

way down. If operating position is not

comfortable, adjust seat.

TO ADJUST SEAT

Grasp adjustment handle and pull up, slide

seat to desired position and release adjust-

ment handle.

Slot Tape

Flat

washer

Seat

pan Adjustment

Bolt Tab handle

NOTE: "You may now roll your tractor off

the skid. Follow the instructions below to

remove the tractor from the skid.

,_kWARNING: Before starting, read,

understand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well - ventilated area. Be sure

the area in front of tractor is clear of other

people and objects_

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position,

2. Release parking brake by depressing

brake pedal.

3 Place freewheel control in "transmission

disengaged" position" (See "TO TRANS-

PORT" in Operation section of manual),

4. Roll tractor forward off skid.,

5. Remove banding holding the deflector

shield up against tractor,.

Continue with the instructions that follow.

TO ASSEMBLE BAGGER

. Do not operate machine without the

entire grass catcher, or other safety

devices in place and working.

• Feed top bagger frame tube (1)through

loop (2) atthetop of bagger fabric (leave

loop segments on the ends loose).

• First, align two holes as shown on side

of bagger frame upper weldment (4)

with corresponding holes in top bagger

frame tube (1).

• Install two 1/4" - 20 x 125 carriage bolts

(5) and secure with two 1/4" nuts (6).

• Align two holes on opposite of bagger

frame upper weldment (4) with corr-

esponding holes in top bagger frame

tube (1).

• Install two 1/4" - 20 x 1.25 carriage bolts

(5) and secure with two 1/4" nuts (6).

Install two more carriage bolts (7) rear-

ward on sides of top bagger frame tube,

hand tightening nuts (8).

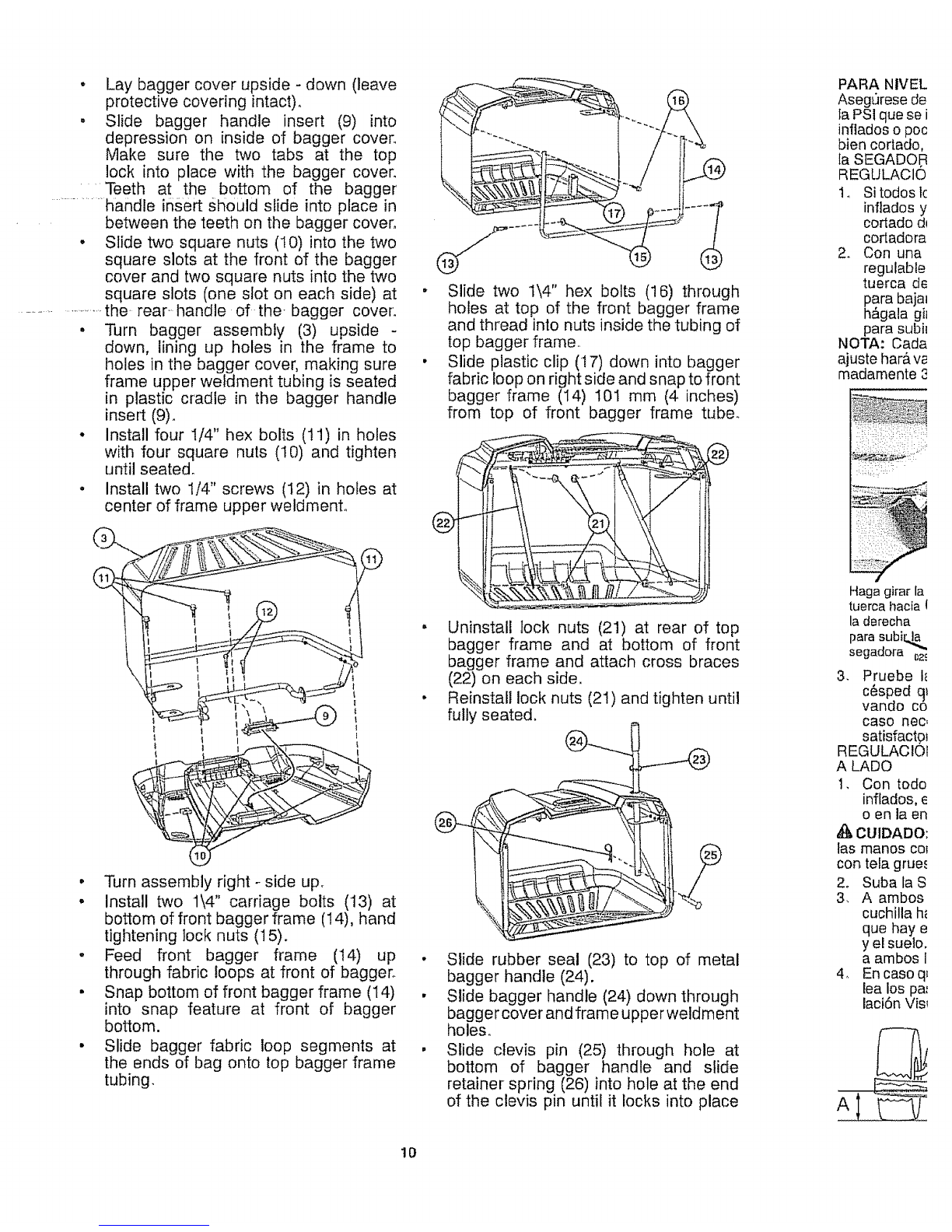

• Lay bagger cover upside - down (leave

protective covering intact),.

. Slide bagger handle insert (9) into

depression on inside of bagger cover,.

Make sure the two tabs at the top

lock into place with the bagger cover.

Teeth at the bottom of the bagger'

......................handle insert should slide into place in

between the teeth on the bagger cover,

. Slide two square nuts (10) into the two

square slots at the front of the bagger

cover and two square nuts into the two

square slots (one slot on each side) at

..........................the- rear-, handle of the- bagger cove[:

. Turn bagger assembly (3) upside

down, lining up holes in the frame to

holes in the bagger cover, making sure

frame upper weldment tubing is seated

in plastic cradle in the bagger handle

insert (9).

• Install four 1/4" hex bolts (!1) in holes

with four square nuts (10) and tighten

until seated°

• Install two 1/4" screws (12) in holes at

center of frame upper weldment.

, Turn assembly right- side up.

° Install two 1\4" carriage bolts (13) at

bottom of front bagger frame (I4), hand

tightening lock nuts (15).

. Feed front bagger frame (14) up

through fabric loops at front of bagger.

• Snap bottom of front bagger frame (14)

into snap feature at front of bagger

bottom.

• Slide bagger fabric loop segments at

the ends of bag onto top bagger frame

tubing.

• Slide two 1\4" hex bolts (16) through

holes at top of the front bagger frame

and thread into nuts inside the tubing of

top bagger frame..

• Slide plastic clip (17) down into bagger

fabric loop on right side and snap to front

bagger frame (I4) 101 mm (4 inches)

from top of front bagger frame tube.

° Uninstall lock nuts (21) at rear of top

bagger frame and at bottom of front

bagger frame and attach cross braces

(22) on each side.

• Reinstall lock nuts (21) and tighten until

fully seated.

• Slide rubber seal (23) to top of metal

bagger handle (24).

• Slide bagger handle (24) down through

bagger cover and frame upper weldment

holes.

• Slide clevis pin (25) through hole at

bottom of bagger handle and slide

retainer spring (26) into hole at the end

of the clevis pin until it locks into place

PARA NIVEL

Aseg_rese de

ta PSI que se i

inflados o poc

bien cortado,

la SEGADOR

REGULACIO

1. Sitodoslc

inflados y

codado dq

cortadora

2. Con una

regulabte

tuerca de

para bajaJ

h&gala gil

para subi_

NOTA: Cada

ajuste her& va

madamente 3

Haga girar la

tuerca f_acia!

la derecha

paresubir4a

segadora_

3. Pruebe I_

c6sped q_

vando co

case nec,

satisfact#_

REGULAClOI

A LADO

1. Con todo

inflados, e

o en la en

CUIDADO:

las manos co_

con tela grue.,

2o Suba la S

3. A ambos

cuchilla h_

que hay e

y el suelo.

a ambos I

4,. En caso q_

lea los pa_

laci6n Vis_

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 247.38911 Manuel utilisateur

Craftsman

Craftsman 917.370860 Manuel utilisateur

Craftsman

Craftsman CMXGVAMKC29C Manuel utilisateur

Craftsman

Craftsman 917.388812 Manuel utilisateur

Craftsman

Craftsman 917.28852 Manuel utilisateur

Craftsman

Craftsman 917.377332 Manuel utilisateur

Craftsman

Craftsman 944.601280 Manuel utilisateur

Craftsman

Craftsman 917.376520 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376360 Manuel utilisateur

Craftsman

Craftsman C459-36403 Manuel utilisateur

Craftsman

Craftsman 917.370892 Manuel utilisateur

Craftsman

Craftsman 917.270911 Manuel utilisateur

Craftsman

Craftsman 917.377524 Manuel utilisateur

Craftsman

Craftsman 917.376169 Manuel utilisateur

Craftsman

Craftsman 917.378494 Manuel utilisateur

Craftsman

Craftsman 917.388451 Manuel utilisateur

Craftsman

Craftsman 917.255551 Manuel utilisateur

Craftsman

Craftsman 917.271811 Manuel utilisateur

Craftsman

Craftsman CMCMW270 Manuel utilisateur

Craftsman

Craftsman 917.378311 Manuel utilisateur

Craftsman

Craftsman 12AE999P099 Manuel utilisateur

Craftsman

Craftsman 917.377011 Manuel utilisateur

Craftsman

Craftsman 247.887761 Manuel utilisateur

Craftsman

Craftsman 917.370882 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
