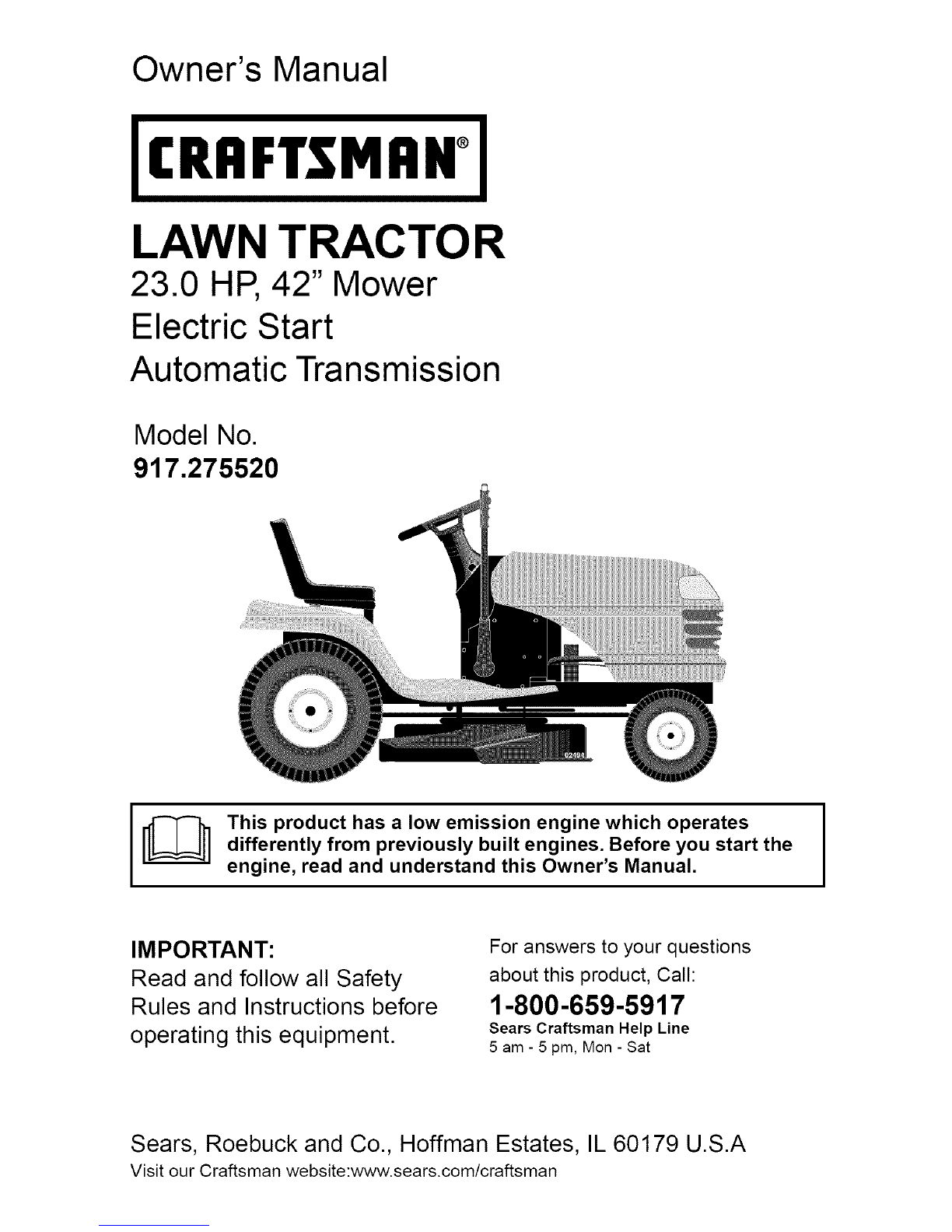

Craftsman 917.275520 Manuel utilisateur

Owner's Manual

JCRRFTSMRN°J

LAWN TRACTOR

23.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.275520

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

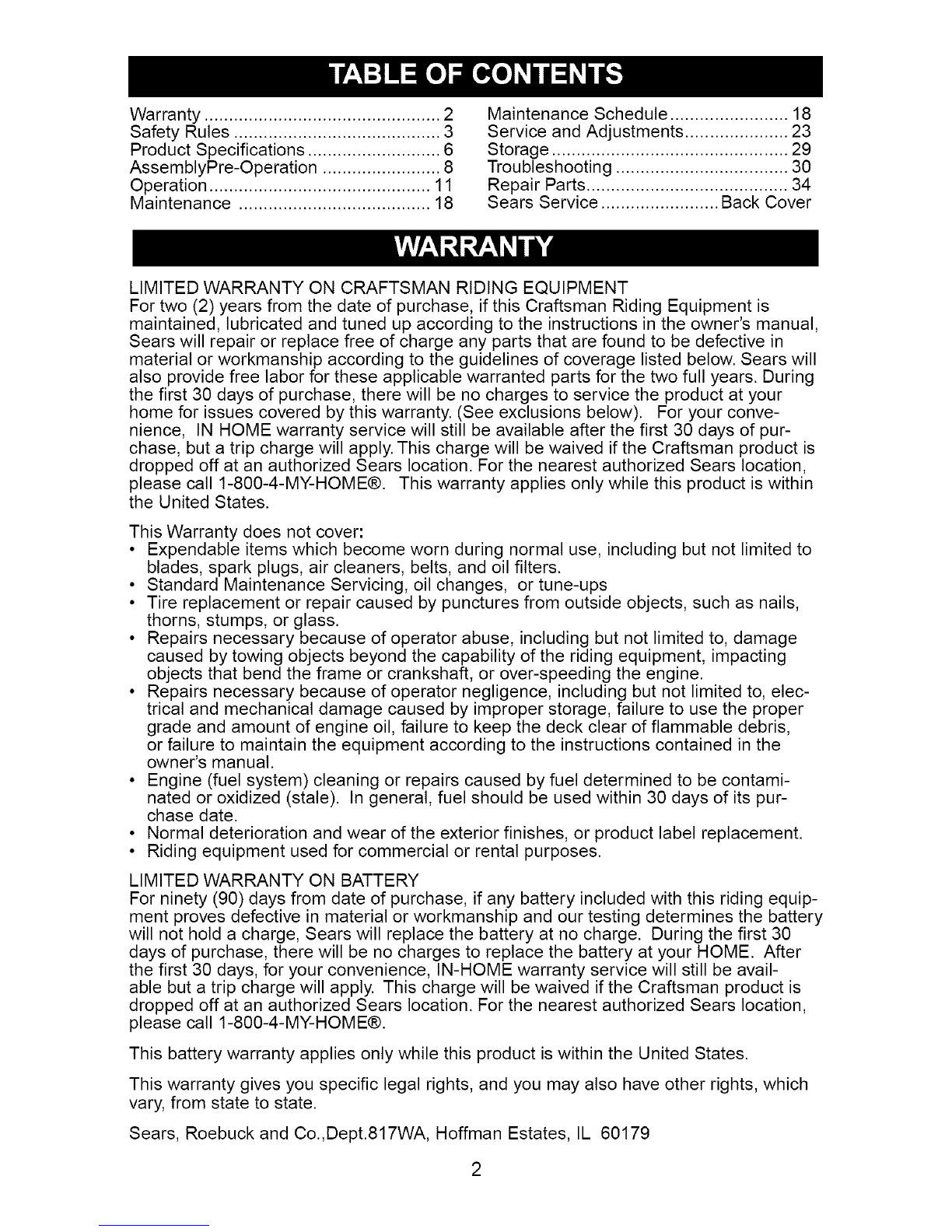

Warranty ................................................ 2

Safety Rules .......................................... 3

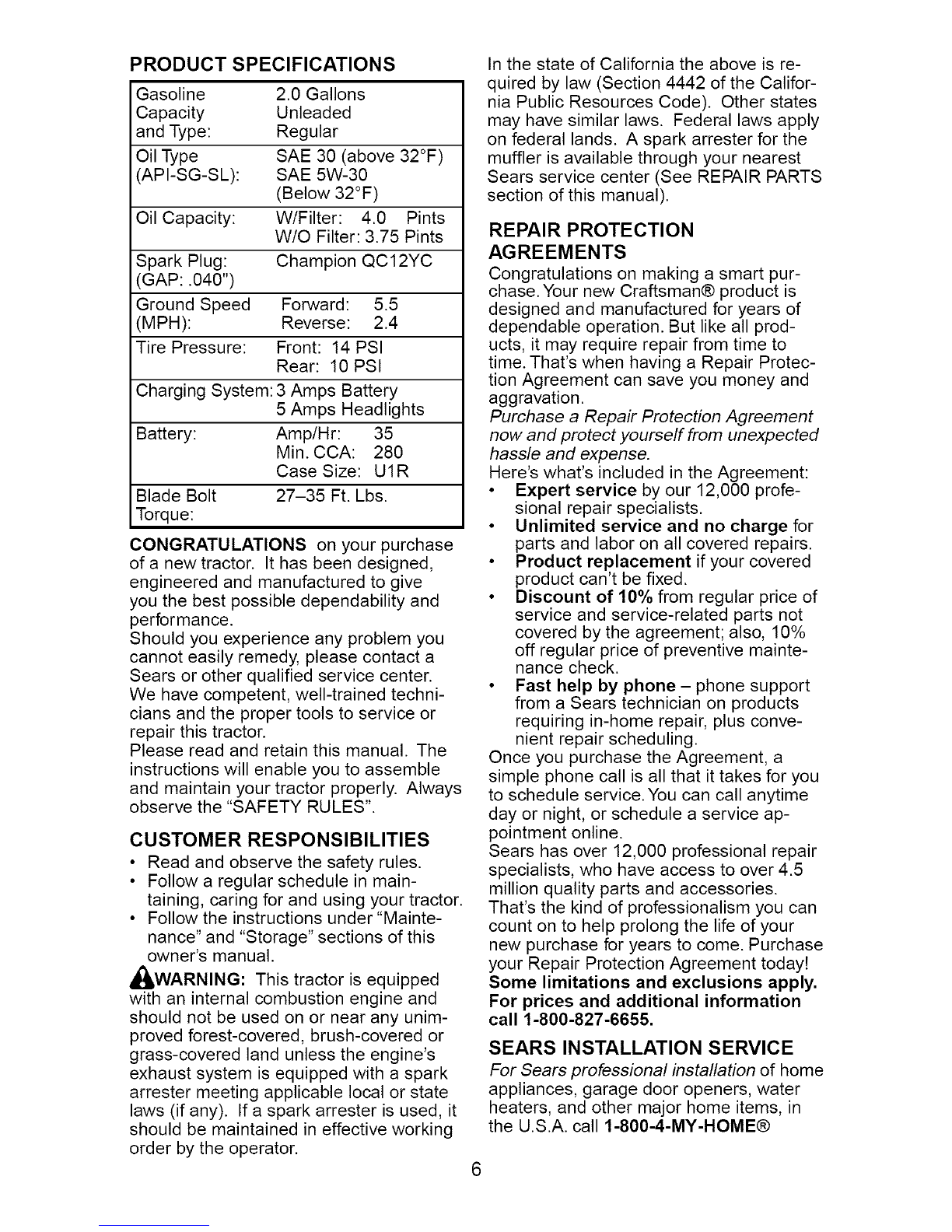

Product Specifications ........................... 6

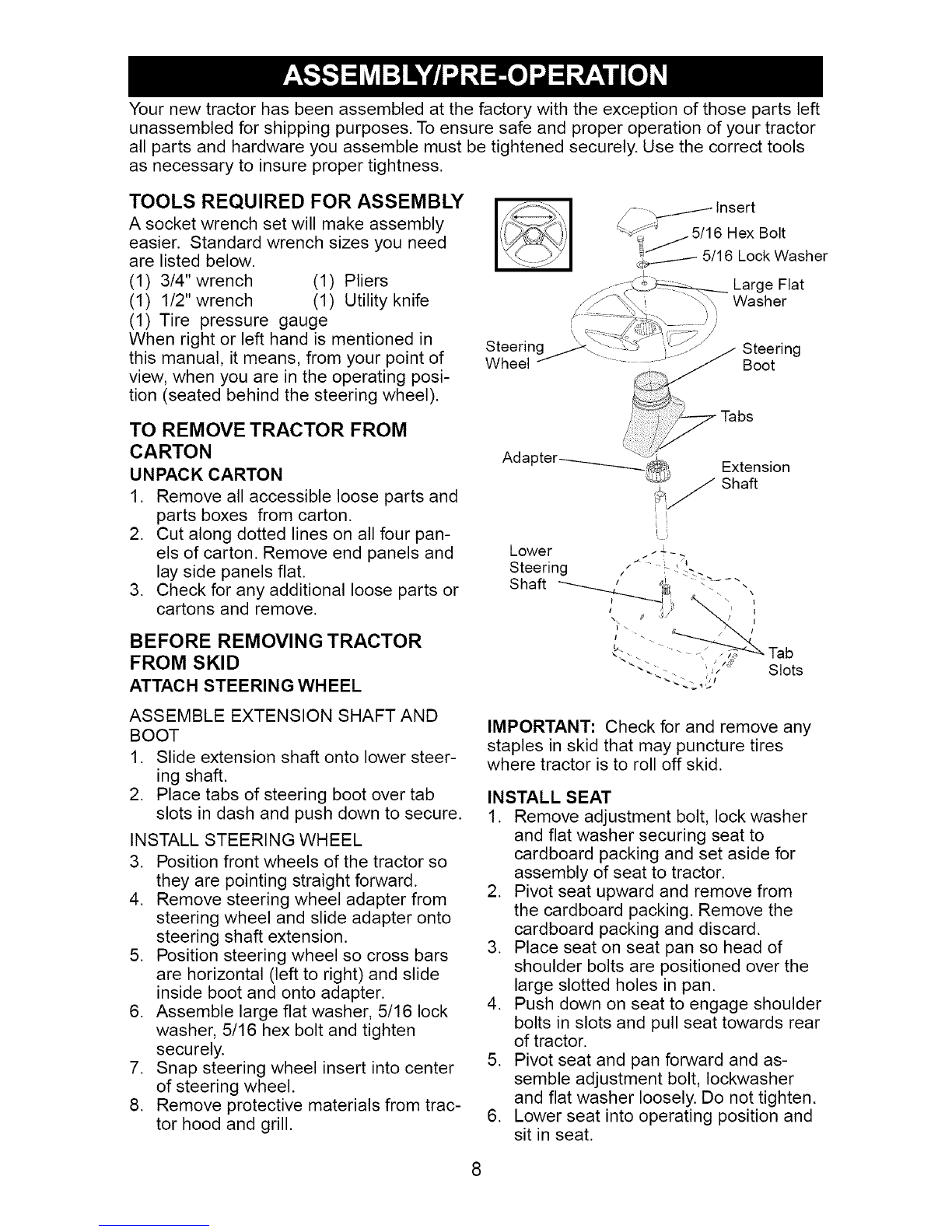

AssemblyPre-Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

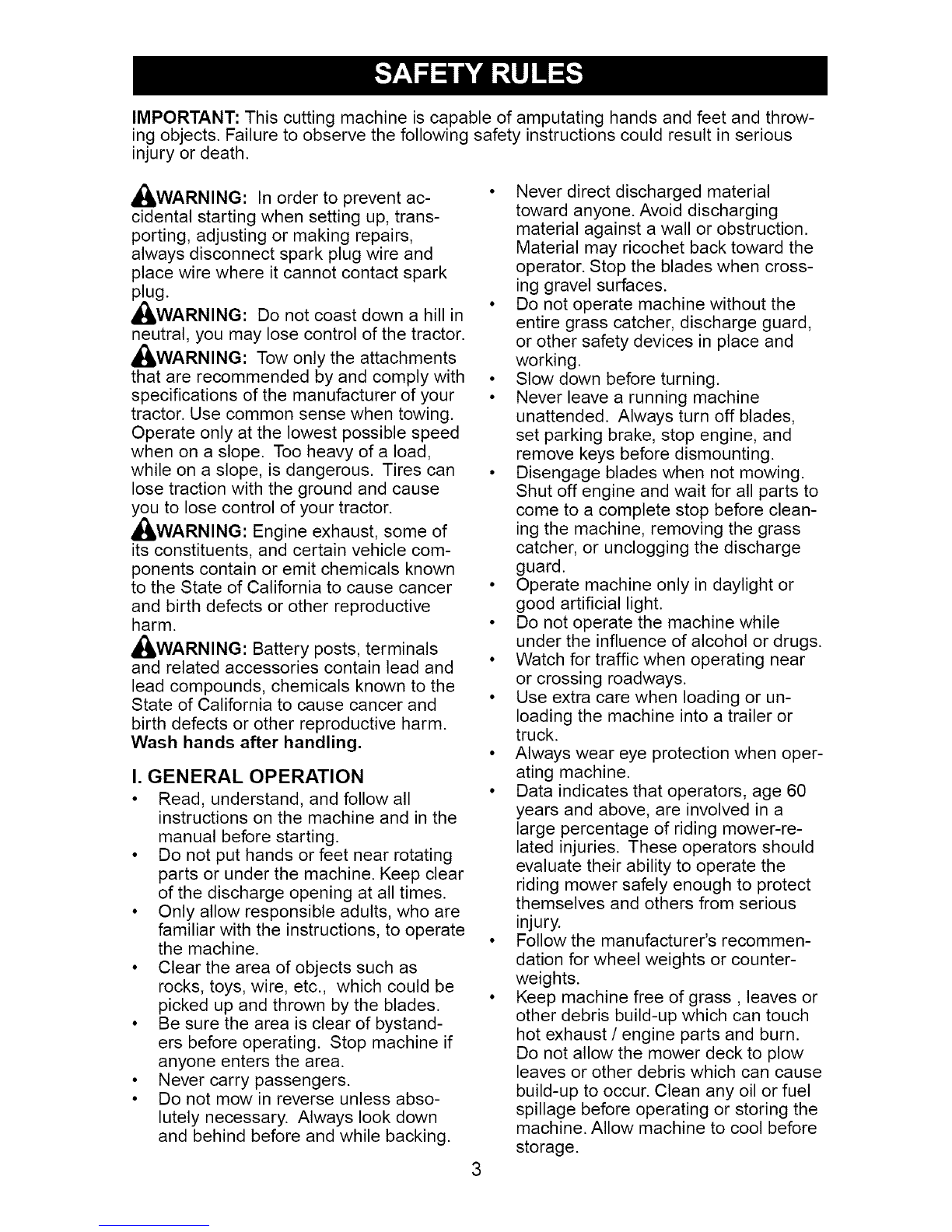

IMPORTANT:Thiscuttingmachineiscapableof amputatinghandsandfeet andthrow-

ingobjects.Failuretoobservethefollowingsafetyinstructionscouldresultin serious

injuryordeath.

_IWARNING: Inorderto preventac-

cidentalstartingwhensettingup,trans-

porting,adjustingor makingrepairs,

alwaysdisconnectspark plugwireand

placewirewhereit cannotcontactspark

plug.

_IWARNING: Do not coastdowna hillin

neutral,you maylosecontrolof thetractor.

_IWARNING: Towonlytheattachments

thatare recommendedbyandcomplywith

specificationsofthe manufacturerof your

tractor.Usecommonsensewhentowing.

Operateonlyat thelowestpossiblespeed

whenon aslope. Tooheavyof aload,

whileon aslope,isdangerous.Tirescan

losetractionwith thegroundandcause

youto losecontrolofyourtractor.

_,WARNING: Engineexhaust,someof

its constituents,andcertainvehiclecom-

ponentscontainoremitchemicalsknown

to theStateofCaliforniato causecancer

andbirth defectsor other reproductive

harm.

_f_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Followthe manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

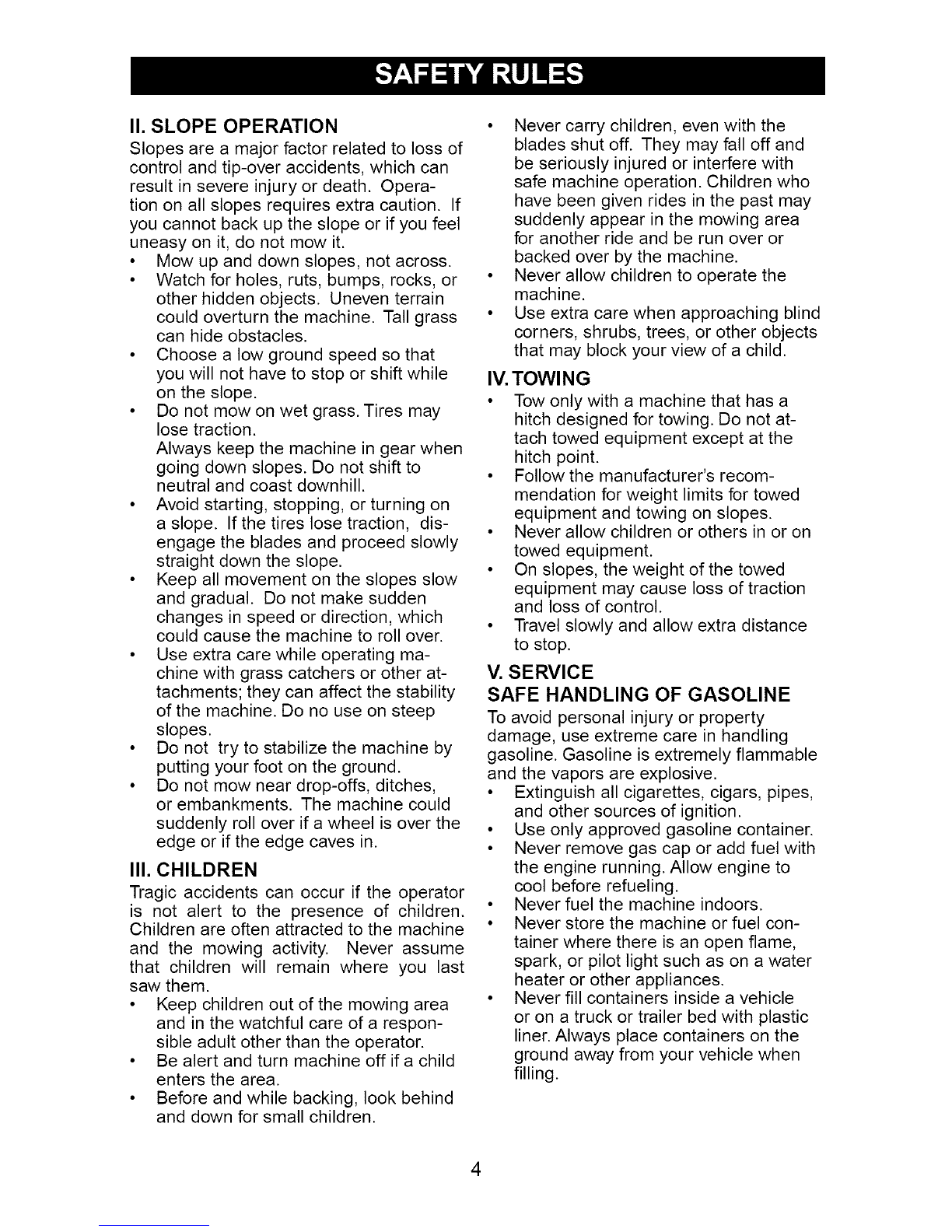

II. SLOPE OPERATION

Slopesare amajorfactorrelatedto lossof

controlandtip-overaccidents,whichcan

resultin severeinjuryor death. Opera-

tionon all slopesrequiresextracaution. If

youcannotbackuptheslopeor ifyoufeel

uneasyon it, do notmowit.

• Mowup anddownslopes,notacross.

• Watchforholes,ruts,bumps,rocks,or

otherhiddenobjects. Uneventerrain

couldoverturnthemachine.Tallgrass

can hideobstacles.

• Choosealowgroundspeedsothat

youwill nothavetostoporshiftwhile

on theslope.

• Donotmowonwet grass.Tiresmay

losetraction.

Alwayskeepthe machinein gearwhen

goingdownslopes.Do notshiftto

neutralandcoastdownhill.

• Avoidstarting,stopping,or turningon

a slope. Ifthetireslosetraction, dis-

engagethebladesandproceedslowly

straightdowntheslope.

• Keepallmovementonthe slopesslow

andgradual. Do not makesudden

changesin speedor direction,which

couldcausethe machineto rollover.

• Useextracarewhileoperatingma-

chinewith grasscatchersorother at-

tachments;theycan affectthestability

of themachine.Do nouseon steep

slopes.

• Donot try to stabilizethe machineby

puttingyour footon theground.

• Donotmowneardrop-offs,ditches,

orembankments.Themachinecould

suddenlyrolloverif awheel isoverthe

edgeorif theedgecavesin.

III. CHILDREN

Tragicaccidentscan occur if the operator

is not alert to the presence of children.

Childrenareoftenattractedto the machine

and the mowing activity. Never assume

that children will remain where you last

sawthem.

• Keepchildrenoutof themowingarea

andin thewatchfulcareof a respon-

sibleadultotherthan theoperator.

• Bealert andturnmachineoff ifa child

entersthearea.

• Beforeandwhile backing,look behind

anddownfor smallchildren.

• Nevercarrychildren,evenwith the

bladesshutoff. Theymayfall off and

be seriouslyinjuredor interferewith

safemachineoperation.Childrenwho

havebeengivenridesinthe pastmay

suddenlyappearinthemowingarea

foranotherrideandbe run overor

backedover bythemachine.

• Neverallowchildrentooperatethe

machine.

• Useextracarewhenapproachingblind

corners,shrubs,trees,orother objects

that mayblockyourviewof achild.

IV, TOWI NG

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Followthe manufacturer's recom-

mendation for weight limits for towed

equipment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

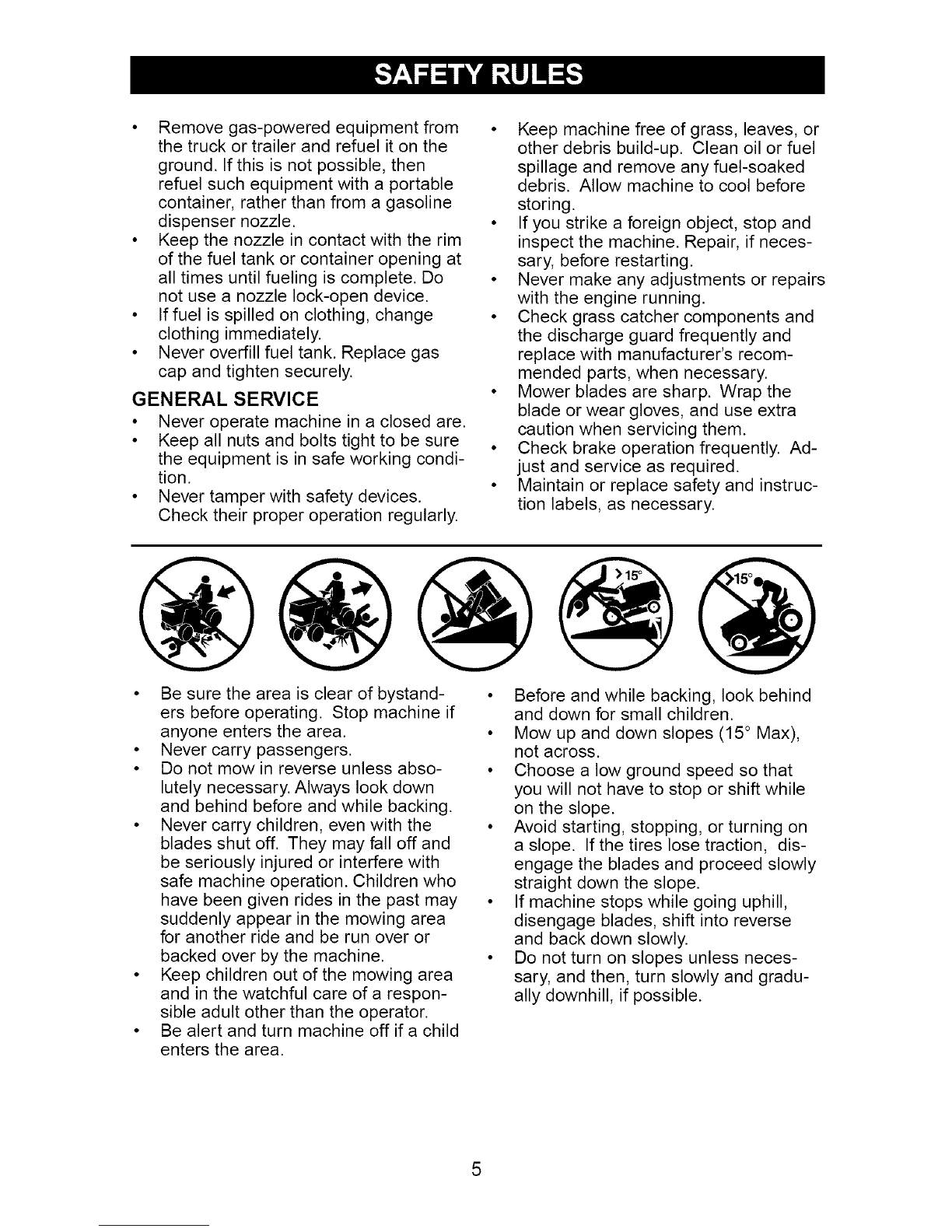

• Removegas-poweredequipmentfrom

thetruckortrailerandrefuelit onthe

ground.Ifthisis notpossible,then

refuelsuchequipmentwith a portable

container,ratherthanfromagasoline

dispensernozzle.

• Keepthenozzlein contactwith the rim

of thefueltankor containeropeningat

all timesuntilfuelingis complete.Do

notuse a nozzlelock-opendevice.

• Iffuel is spilledon clothing,change

clothingimmediately.

• Neveroverfillfuel tank.Replacegas

cap andtightensecurely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 2.0 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(GAP: .040")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_IbWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

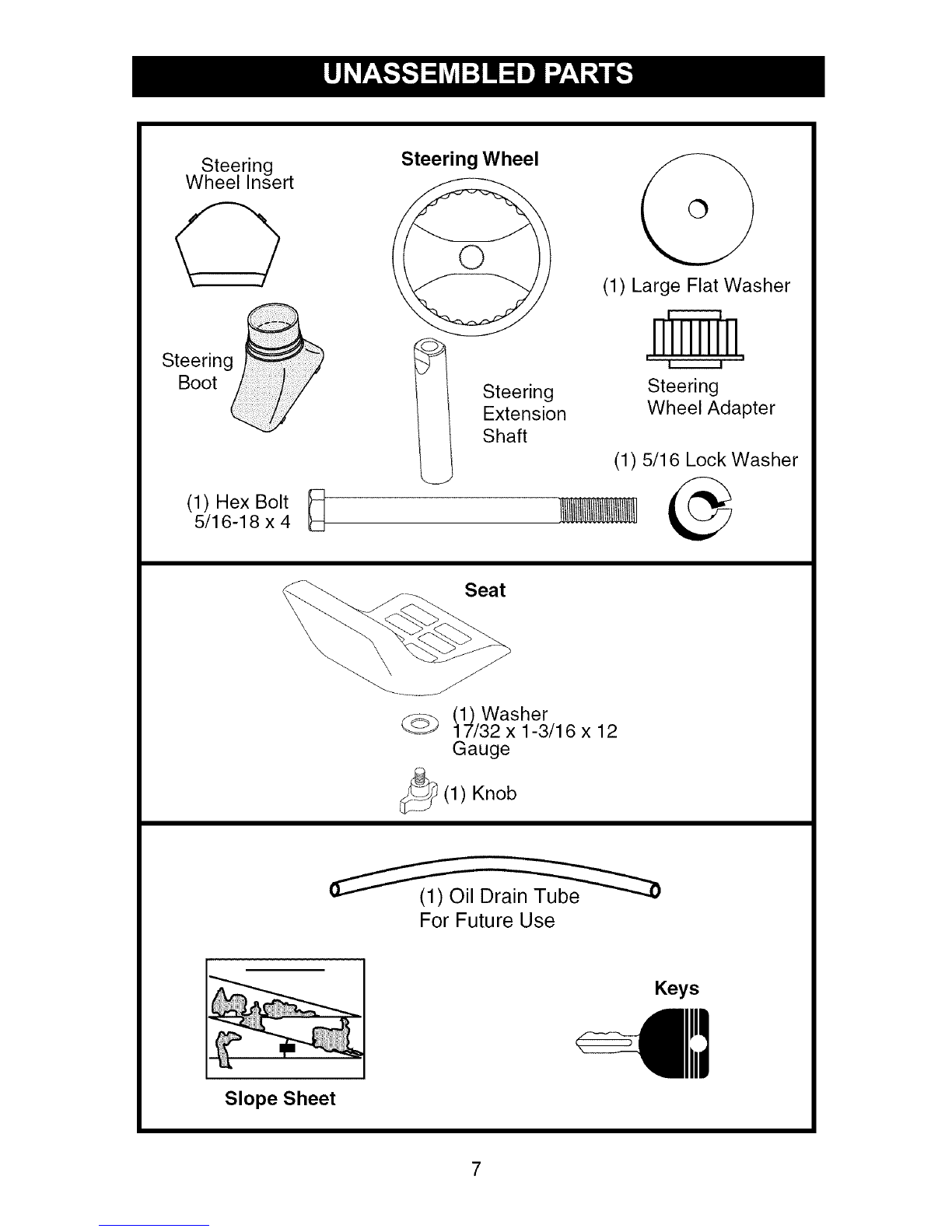

Steering

Wheel Insert

Steering

Boot

(1) Hex Bolt

5/16-18 x 4 U

Steering Wheel

Steering

Extension

Shaft

(1) Large Flat Washer

u I I w

Steering

Wheel Adapter

(1) 5/16 Lock Washer

Seat

(1) Washer

17/32 x 1-3/16 x 12

Gauge

_(1) Knob

For Future Use

Keys

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 5/16 lock

washer, 5/16 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

1. Remove adjustment bolt, lock washer

and flat washer securing seat to

cardboard packing and set aside for

assembly of seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment bolt, Iockwasher

and flat washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

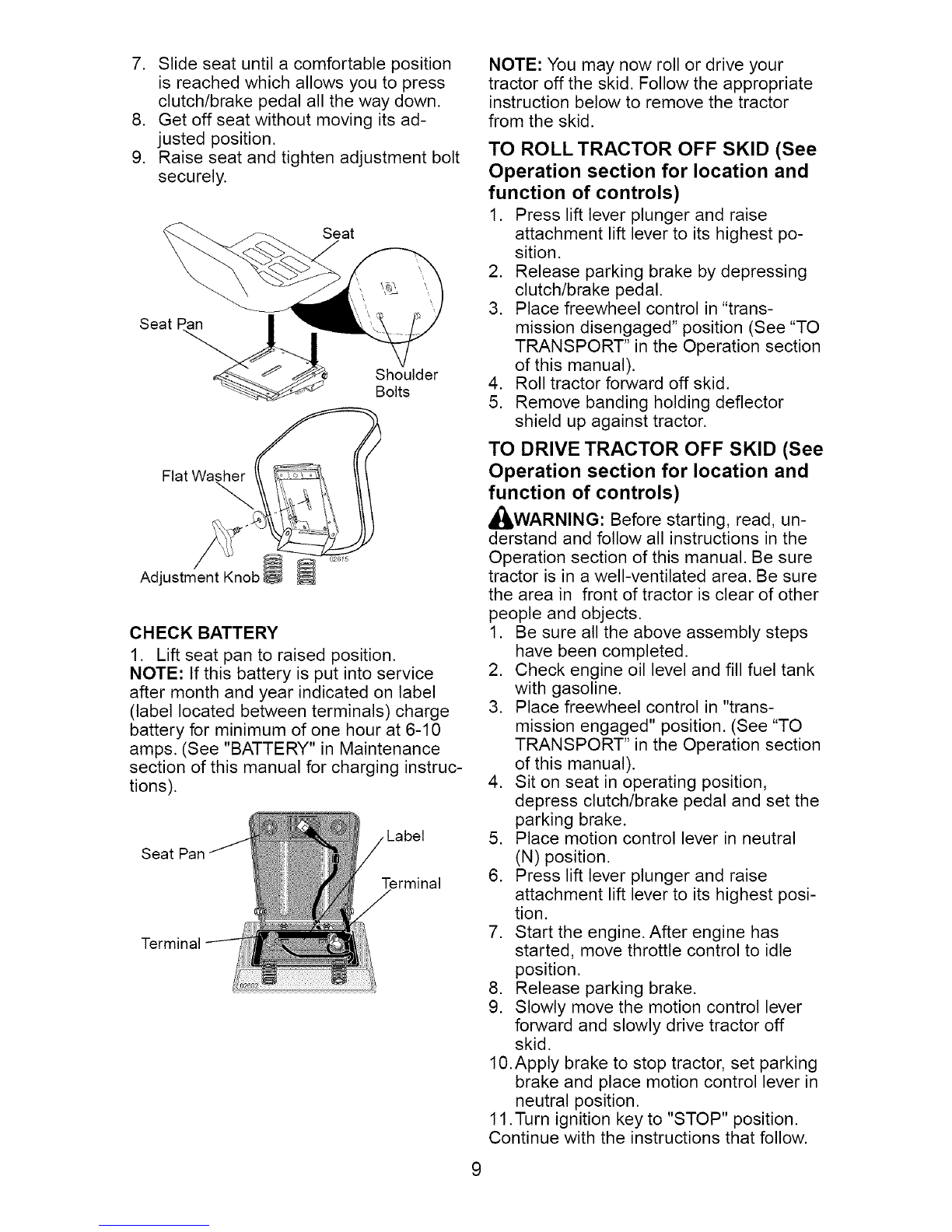

7. Slideseatuntilacomfortableposition

isreachedwhichallowsyouto press

clutch/brakepedalallthewaydown.

8. Get off seatwithoutmovingitsad-

justed position.

9. Raiseseatandtightenadjustmentbolt

securely.

Seat

Shoulder

Bolts

Flat Washer

Adjustment Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat Pan

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_,WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

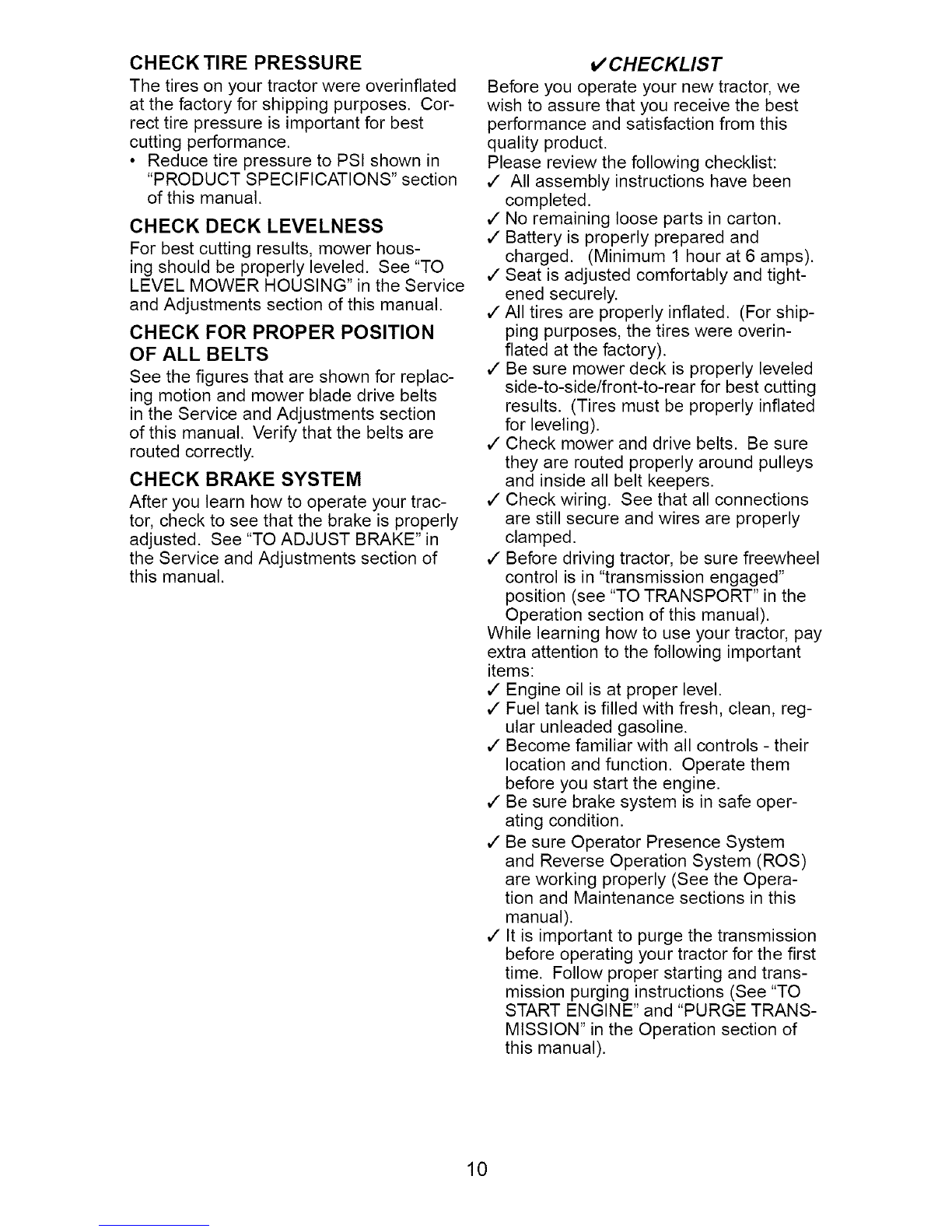

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

_CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/Be sure Operator Presence System

and Reverse Operation System (ROS)

are working properly (See the Opera-

tion and Maintenance sections in this

manual).

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.376652 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259560 Manuel utilisateur

Craftsman

Craftsman 917.374106 Manuel utilisateur

Craftsman

Craftsman 917.388115 Manuel utilisateur

Craftsman

Craftsman 917.270741 Manuel utilisateur

Craftsman

Craftsman 917.388561 Manuel utilisateur

Craftsman

Craftsman 917.377520 Manuel utilisateur

Craftsman

Craftsman 917.374358 Manuel utilisateur

Craftsman

Craftsman 247.28902 Manuel utilisateur

Craftsman

Craftsman 917.376653 Manuel utilisateur

Craftsman

Craftsman 917.389071 Manuel utilisateur

Craftsman

Craftsman 917.371682 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376272 Manuel utilisateur

Craftsman

Craftsman 917.377031 Manuel utilisateur

Craftsman

Craftsman 917.388061 Manuel utilisateur

Craftsman

Craftsman 917.259561 Manuel utilisateur

Craftsman

Craftsman 27716 Manuel utilisateur

Craftsman

Craftsman 502.270210 Manuel utilisateur

Craftsman

Craftsman EZ3 917.38713 Manuel utilisateur

Craftsman

Craftsman 917.28612 Manuel utilisateur

Craftsman

Craftsman 917.286380 Manuel utilisateur

Craftsman

Craftsman EZ3 917.387261 Manuel utilisateur

Craftsman

Craftsman 917.273900 Manuel du propriétaire

Craftsman

Craftsman 247.37035 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
