Craftsman 917.275221 Manuel utilisateur

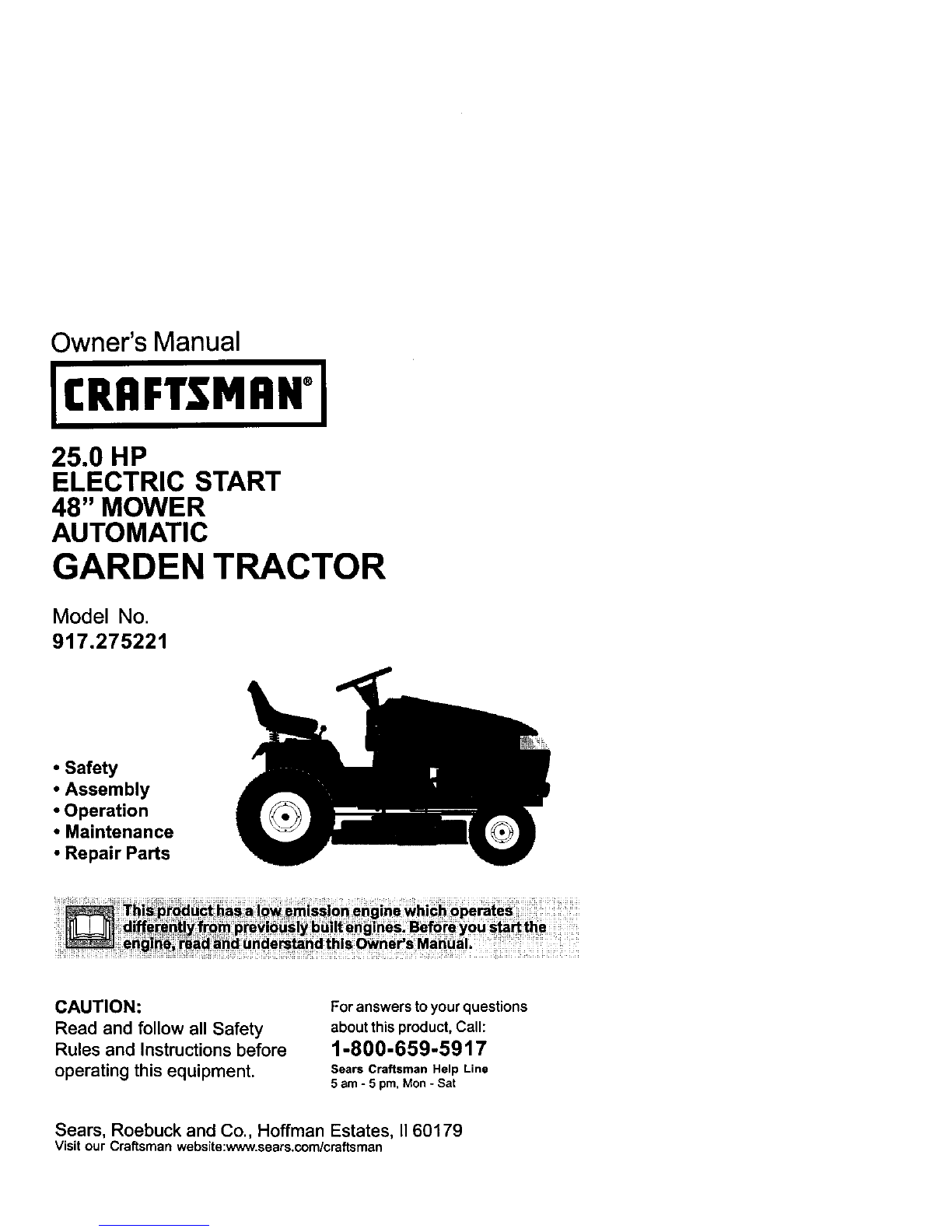

Owner's Manual

ICRAFTSMAN°J

25.0 HP

ELECTRIC START

48" MOWER

AUTOMATIC

GARDEN TRACTOR

Model No.

917.275221

• Safety

•Assembly

•Operation

•Maintenance

• Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

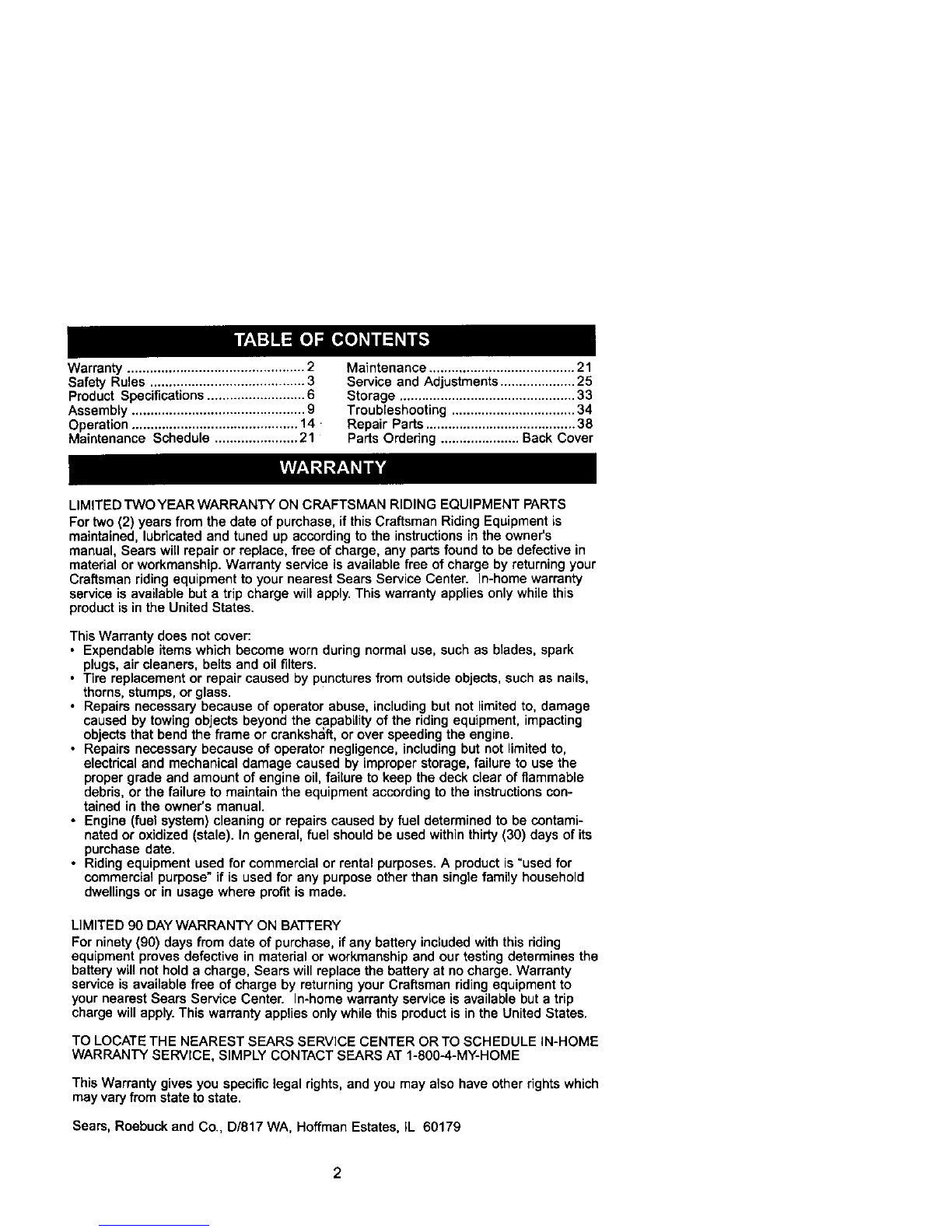

Warranty...............................................2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 9

Operation ............................................ 14

Maintenance Schedule ...................... 21

Maintenance ....................................... 21

Service and Adjustments .................... 25

Storage ............................................... 33

Troubleshooting ................................. 34

Repair Parts ........................................ 38

Parts Ordering ..................... Back Cover

LIMITED TWOYEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment Ls

maintained, lubricated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product isin the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electdcal and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship end our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-80O-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

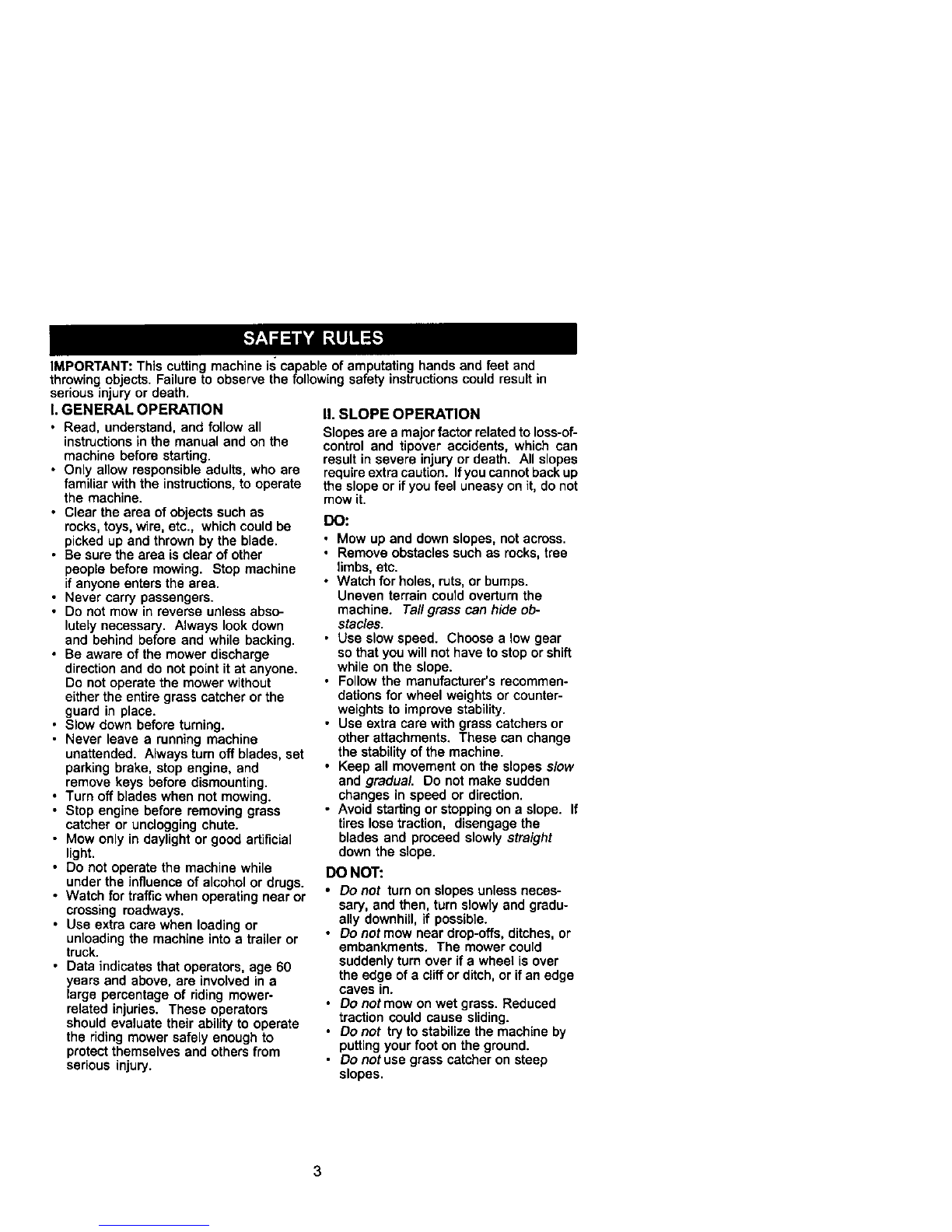

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructionscould result in

serious injury or death.

I. GENERAL OPERATION

• Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

• Clear the area of objects such as

rocks,toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine

ifanyone enters the area.

• Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Be aware of the mower discharge

directionand do not point it at anyone.

Do notoperate the mower without

either the entire grass catcher or the

guard in place.

•Slow down before turning.

• Never leave a running machine

unattended. Always tum off blades, set

parking brake, stop engine, and

remove keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loadingor

unloading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protectthemselves and others from

serious injury.

II. SLOPE OPERATION

Slopes are a majorfactor related to loss-of-

control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or ifyou feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain coutd overtum the

machine. Tallgrass can hide ob-

stacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability ofthe machine.

•Keep all movement on the slopes s/ow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do notmow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch,or ifan edge

caves in.

•Donotmowonwetgress. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

puttingyour foot on the ground.

•Do notuse grass catcher on steep

slopes.

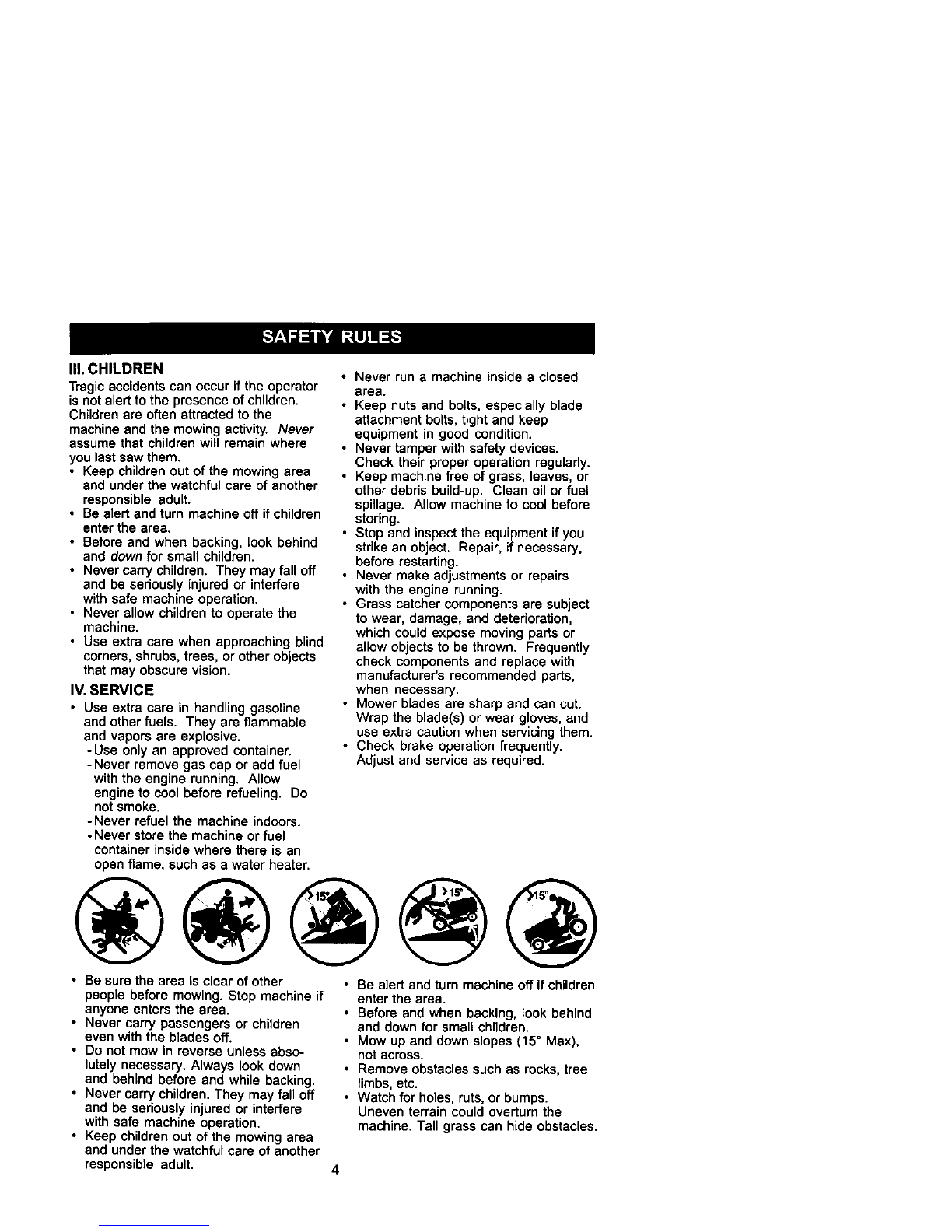

Ill. CHILDREN

Tragicaccidents can occur if the operator

is notalert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you lastsaw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off ifchildren

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear ofother

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

•Remove obstacles such as rocks, tree

limbs,etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

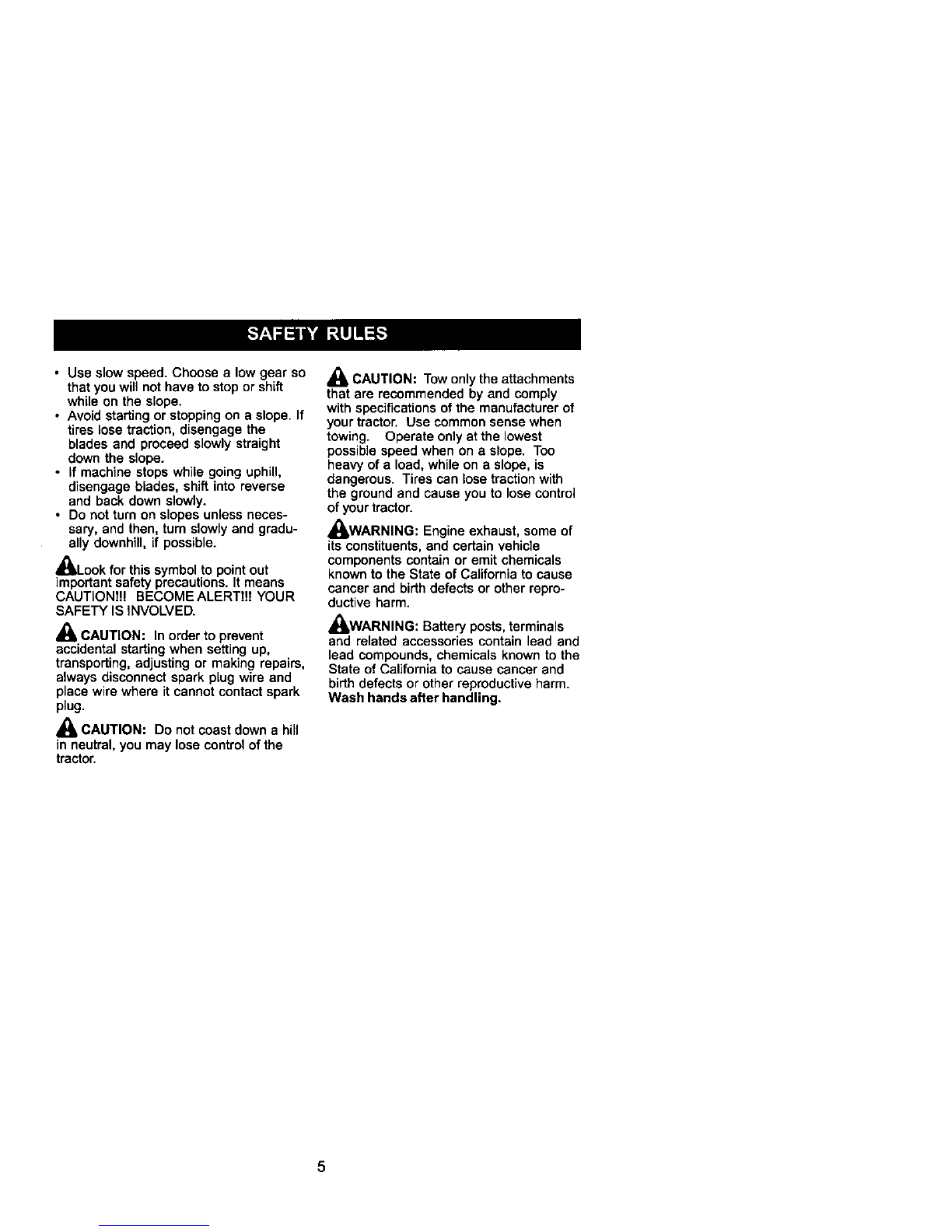

• Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

_Look for this symbol to pointout

important safety precautions. It means

CAUTIONf!! BECOMEALERTt!! YOUR

SAFETY IS iNVOLVED.

_CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

Mi, CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of yourtractor.

_IWARNING: Engine exhaust, some of

its constituents,and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birthdefects or other repro-

ductive harm.

_WARNING: Battery posts,terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birthdefects or other reproductive harm.

Wash hands after handling.

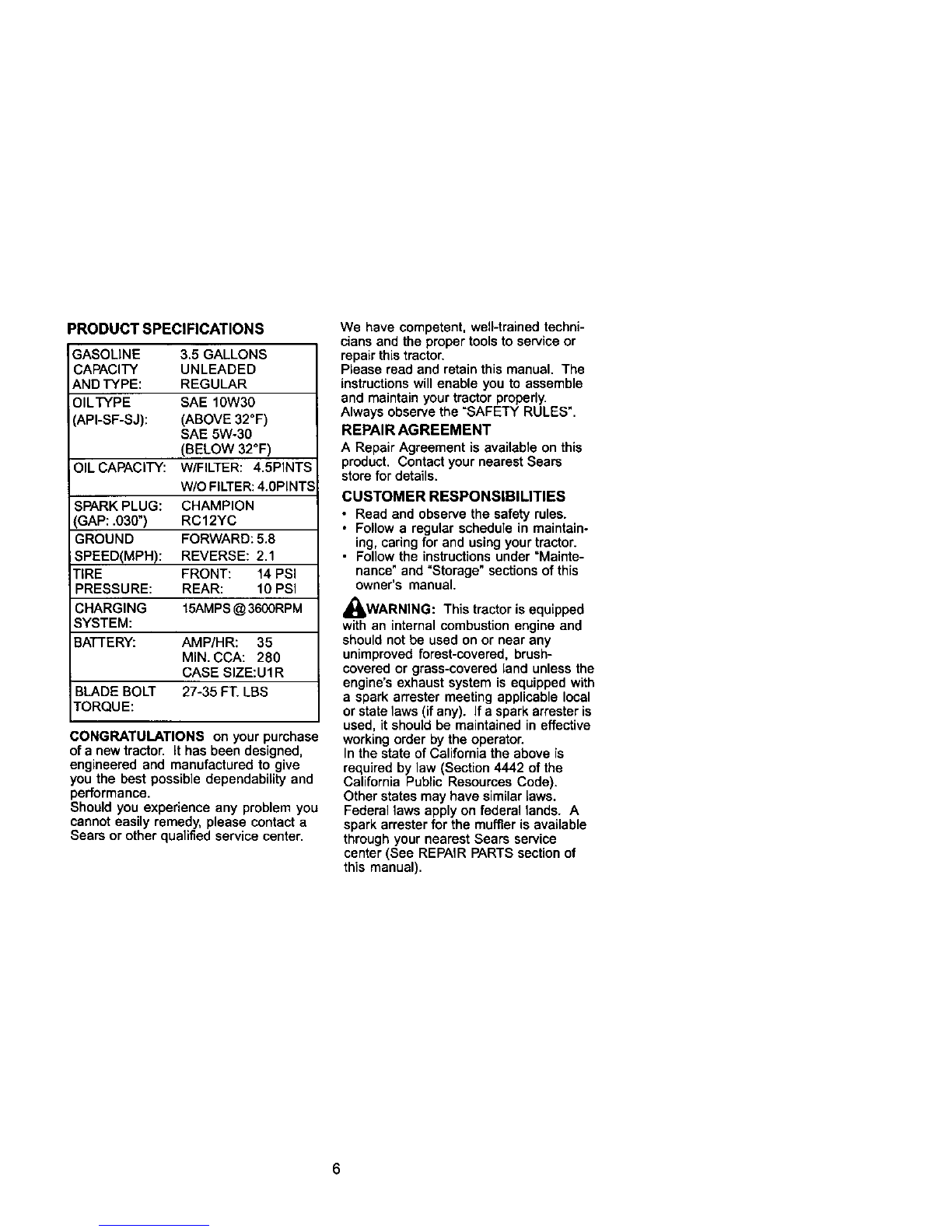

_RODUCT SPECIFICATIONS

GASOLINE 3,5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 10W30

_Pt-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OILCAPACITY: W/FILTER: 4.5PINTS

W/O FILTER:4.0PINTS

._PARK PLUG: CHAMPION

GAP: .030 ) RC12YC

GROUND FORWARD: 5.8

SPEED(MPH): REVERSE: 2.1

T_RE FRONT: 14 PSi

PRESSURE: REAR: 10 PSi

CHARGING 15AMPS@ 3600RPM

SYSTEM:

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor, it has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other quali_ed service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

ARepair Agreement is available on this

product. Contact your nearest Sears

stere for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_IjWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark srrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through yournearest Seers service

center (See REPAIR PARTS section of

this manual).

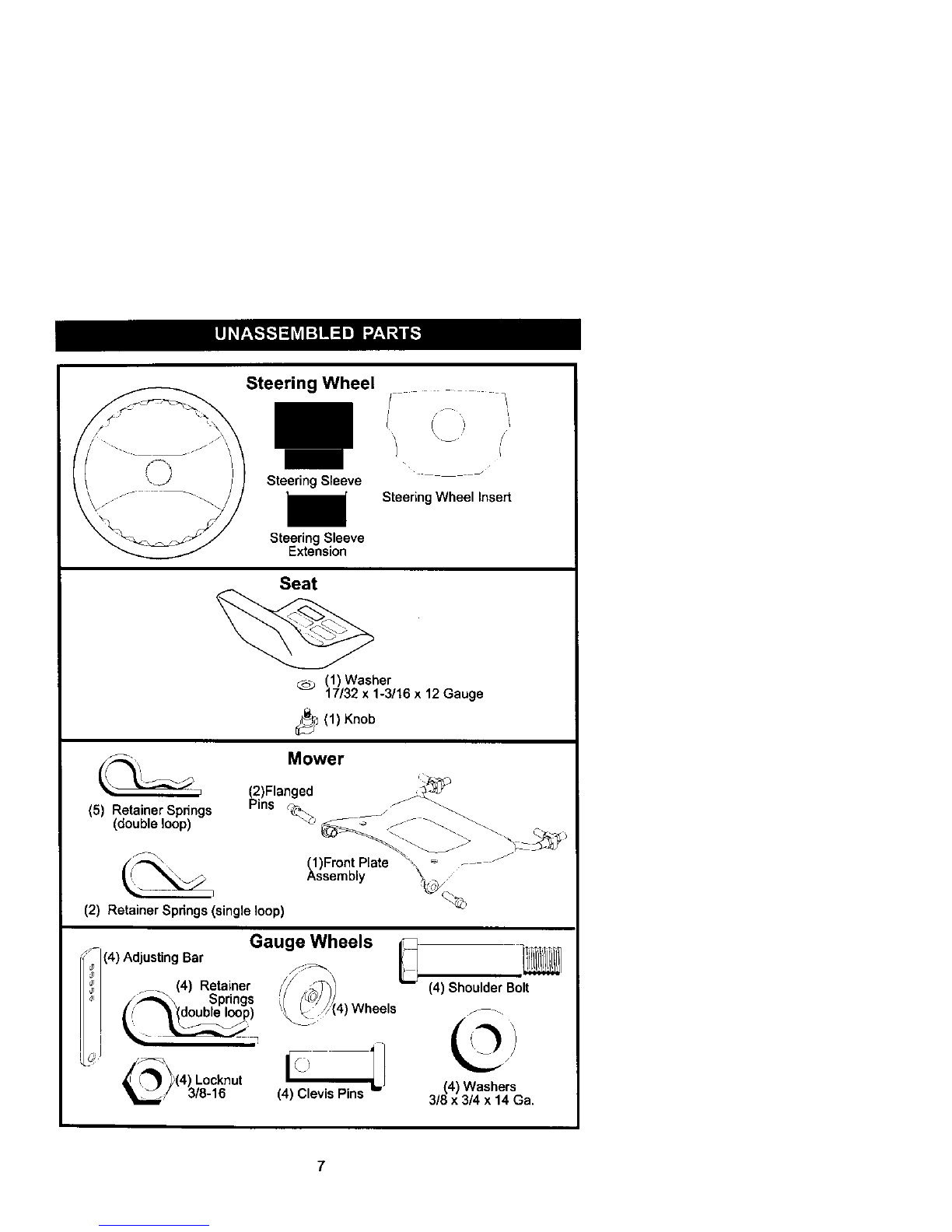

Steering Wheel

ISteering Sleeve

Steering Sleeve

Extension

Seat

I i'

_ J•

Steering Wheel Insert

(1)Washer

17132x 1-3/16x12 Gauge

_1(1) Knob

Mower

(5) Retainer Springs

(double loop)

_.2)Flanged

.,ns

(1)Front Plate

Assembly

(2) Retainer Spdngs (single loop)

Gauge Wheels

C4)Adjusting Bar _' J

_ (4) Retainer

,/_,_" Springs

_( _ (double loop)

L_'_\_(4 )Locknut

/3/8-16

Wheels

(4) Clevis Pins

(4) Shoulder Bolt

(4) Washers

3/8 x3/4 x 14 Ga.

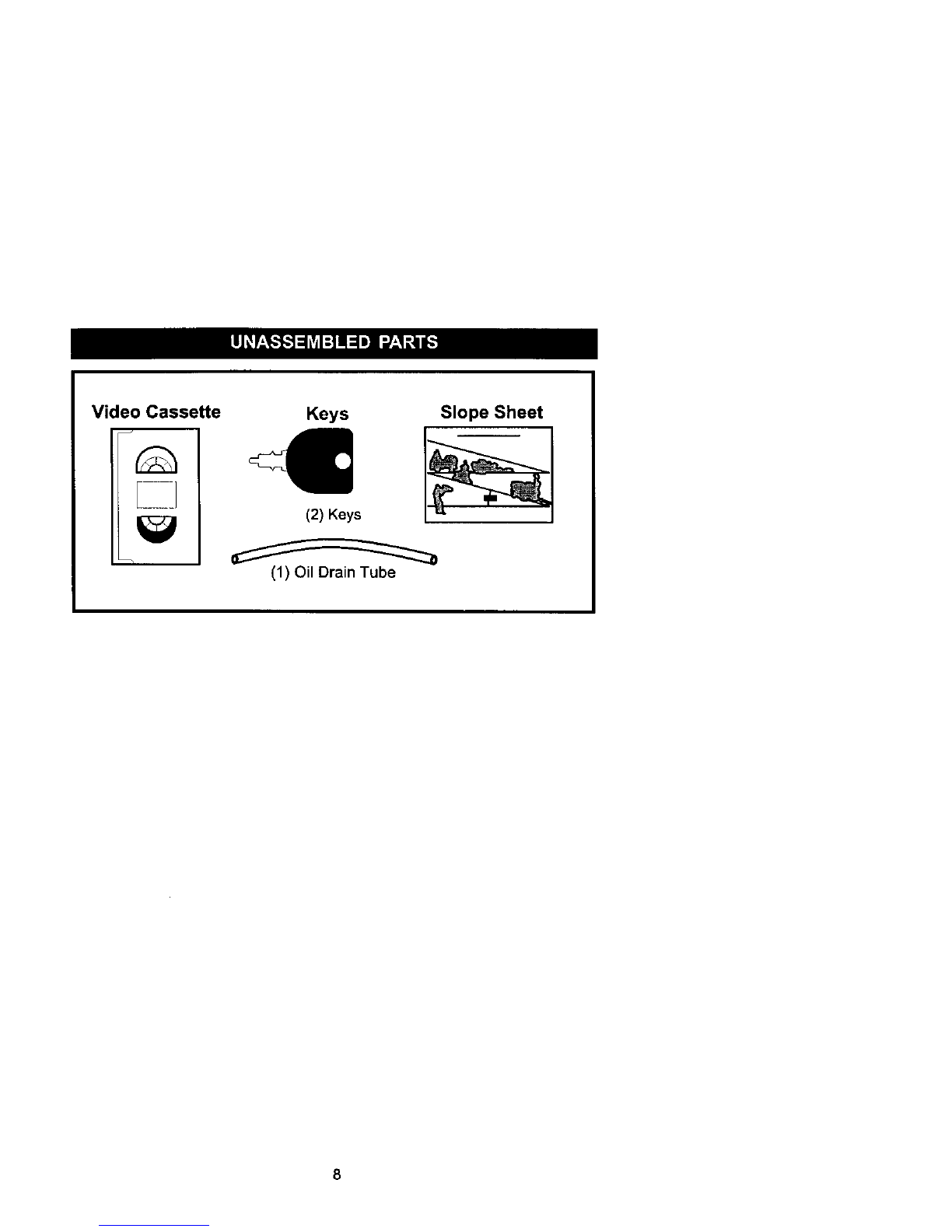

Video Cassette Keys

(2) Keys

Slope Sheet

(1) Oil Drain Tube

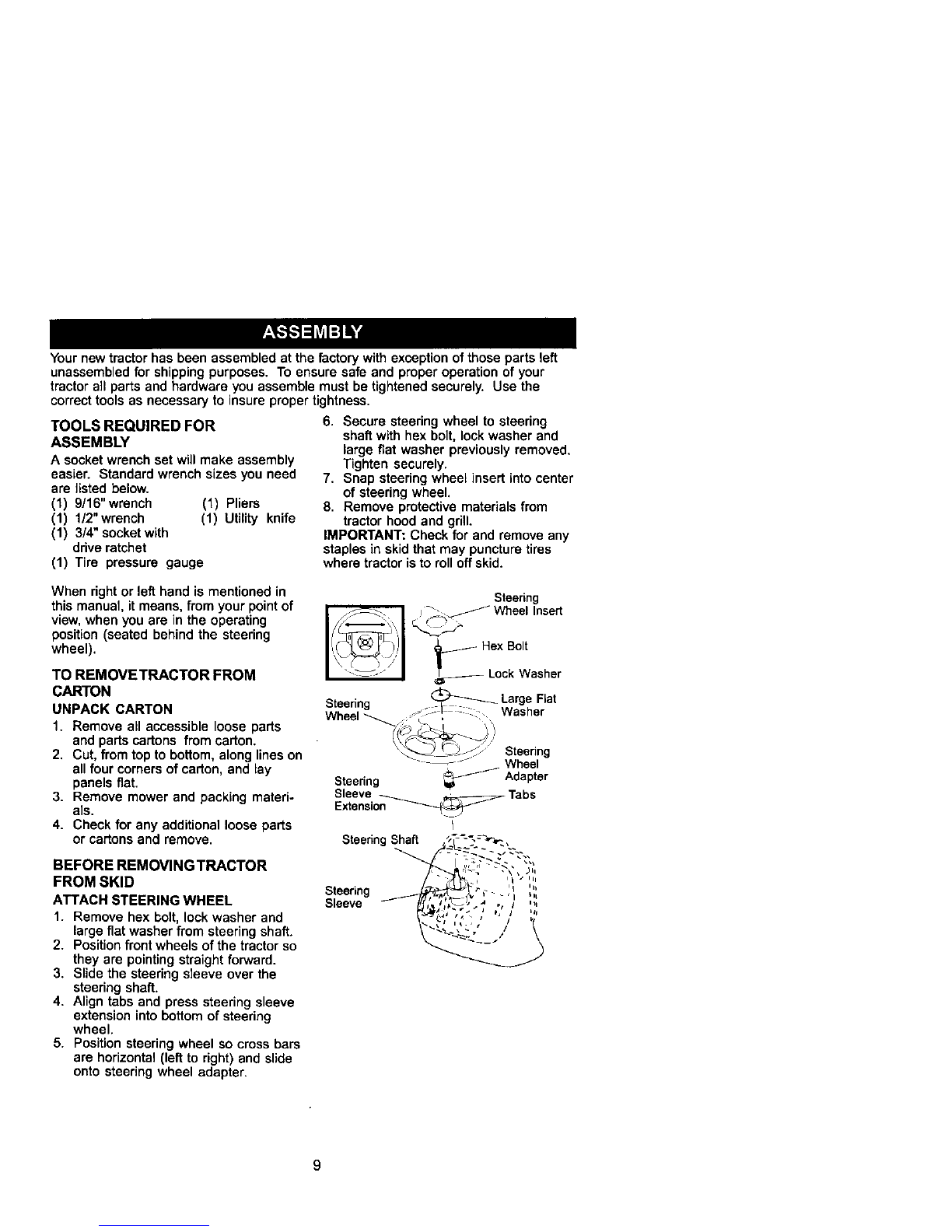

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR

ASSEMBLY

Asocket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16"wrench (1) Pliers

(1) 1/2"wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

6. Secure steering wheel to steering

shaft with hex bolt, lock washer and

large flat washer previously removed.

Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

When right or left hand is mentioned in

this manual, it means, from your pointof

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Remove mower and packing materi-

als.

4. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVINGTRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove hex bolt, lock washer and

large fiat washer from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension intobottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

Steering

Wheel Insert

Steering

Wheel

Hex Bolt

Lock Washer

_Large Flat

_;: :::: -Washer

Steering

Wheel

Steedng _ Adapter

Sleeve Tabs

Extensio__

SteeringShaft

Steering ''"

Sleeve , / ,,,

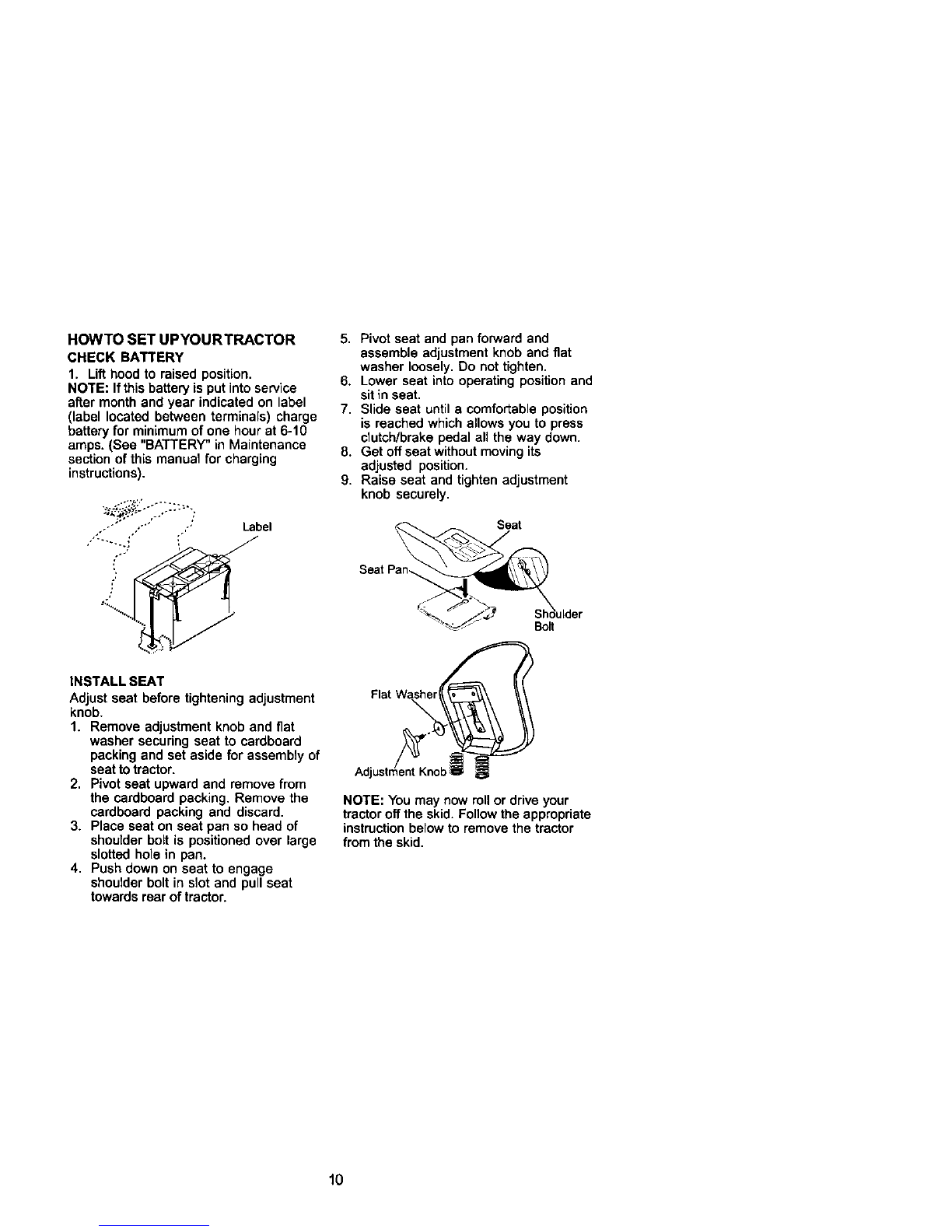

HOWTO SET UPYOURTRACTOR

CHECK BATTERY

1. Lift hood to raised position,

NOTE: Ifthis battery is putintoservice

after monthand year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps, (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

_-_?_-.'y.-..-',; Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob•

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat totractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder belt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor,

5. Pivot seat and pan forward and

assemble adjustment knob and fiat

washer loosely. Do not tighten.

6. Lower seat into operating positionand

sit in seat.

7. Slide seat until a comfortable position

is reached which allowsyou to press

clutch/brake pedal all the way down.

8. Get off seat without movingits

adjusted position.

9. Raise seat and tightenadjustment

knob securely.

Seat

Bolt

Flat Washe__

Adjustmen_t Kn

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction belowto remove the tractor

from the skid.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.274820 Manuel utilisateur

Craftsman

Craftsman 917.271733 Manuel utilisateur

Craftsman

Craftsman 917.99296 Manuel utilisateur

Craftsman

Craftsman 917.273353 Manuel utilisateur

Craftsman

Craftsman 917.385322 Manuel utilisateur

Craftsman

Craftsman 247.28885 Manuel utilisateur

Craftsman

Craftsman 917.374400 Manuel utilisateur

Craftsman

Craftsman 917.28745 Manuel utilisateur

Craftsman

Craftsman 247.37034 Manuel utilisateur

Craftsman

Craftsman 917.273351 Manuel utilisateur

Craftsman

Craftsman 944.361420 Manuel utilisateur

Craftsman

Craftsman 25411 Manuel utilisateur

Craftsman

Craftsman 917.370950 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270612 Manuel utilisateur

Craftsman

Craftsman 37114 - Rear Bag Push Lawn Mower Manuel utilisateur

Craftsman

Craftsman 107.280340 Manuel utilisateur

Craftsman

Craftsman 917.271832 Manuel utilisateur

Craftsman

Craftsman 917.371760 Manuel utilisateur

Craftsman

Craftsman 917.375452 Manuel utilisateur

Craftsman

Craftsman 917.371681 Manuel utilisateur

Craftsman

Craftsman 917.272059 Manuel utilisateur

Craftsman

Craftsman 917.388260 Manuel utilisateur

Craftsman

Craftsman 917.377576 Manuel utilisateur

Craftsman

Craftsman 917.388127 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
