Craftsman 917.273634 Manuel utilisateur

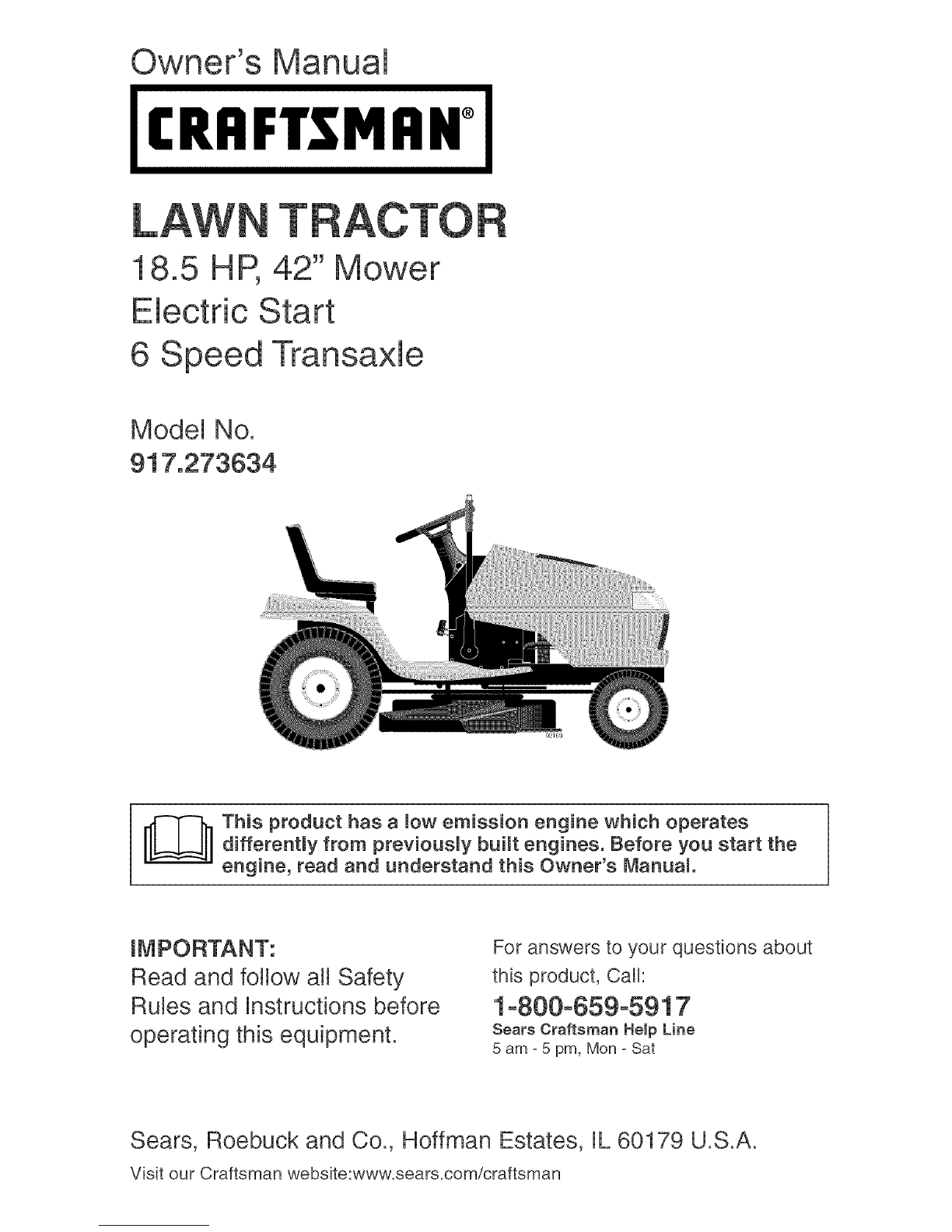

Owner's Manual

CRAFTSMIIN°

18.5 HE 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.273634

i_] his product has a mowemission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1_800-659°5917

Sears Craftsman Help Line

5 am o5 pm, Men o Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

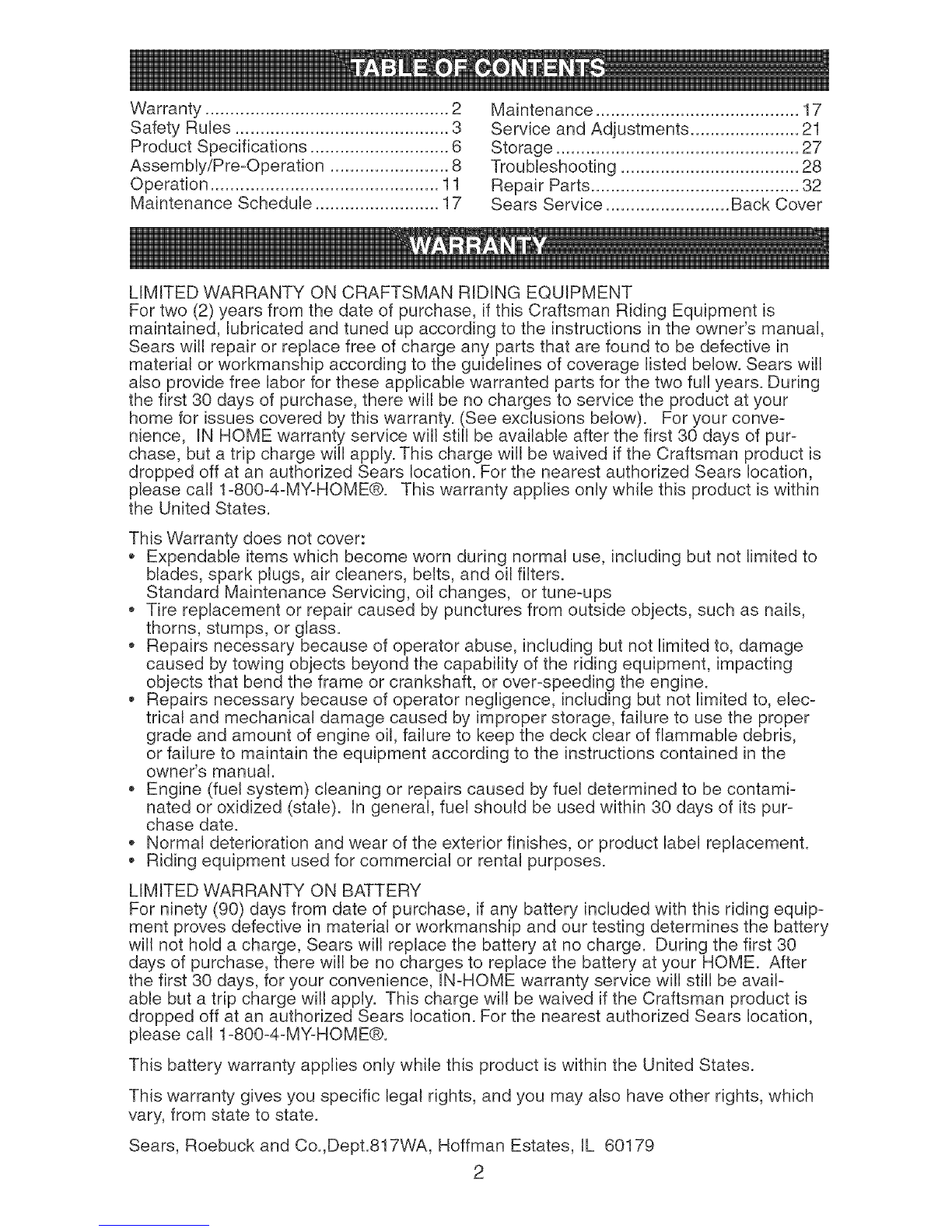

Warranty.................................................2

SafetyRules...........................................3

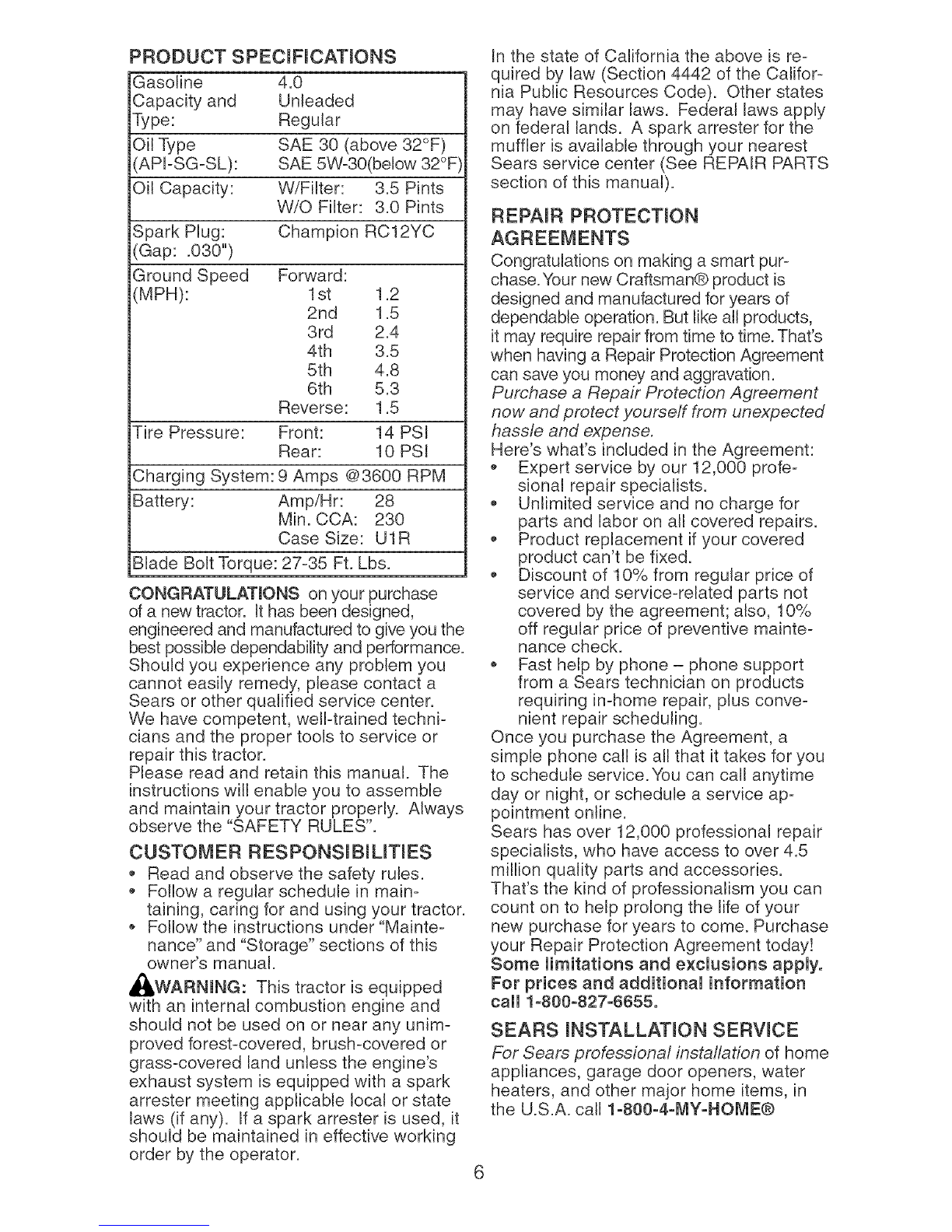

ProductSpecifications............................6

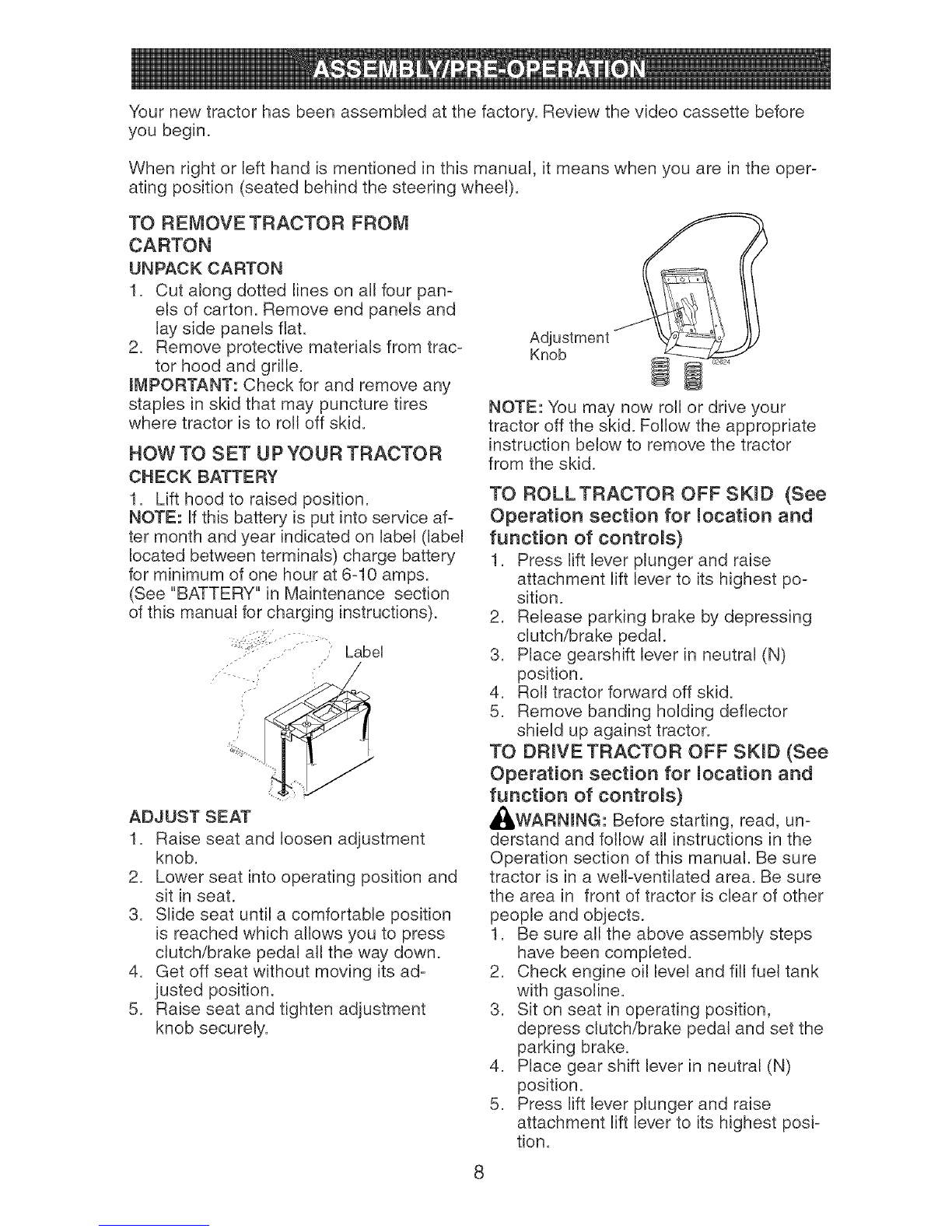

Assembly/Pre-Operation........................8

Operation..............................................11

MaintenanceSchedule.........................17

Maintenance.........................................17

ServiceandAdjustments......................21

Storage.................................................27

Troubleshooting....................................28

RepairParts..........................................32

SearsService.........................BackCover

LIMITEDWARRANTYONCRAFTSMANRIDINGEQUIPMENT

Fortwo (2)yearsfromthedate of purchase,ifthisCraftsmanRidingEquipmentis

maintained,lubricatedand tunedupaccordingto the instructionsinthe owner'smanual,

Searswill repairorreplacefreeof chargeany partsthat arefoundto bedefectivein

materialorworkmanshipaccordingto theguidelinesofcoveragelistedbelow.Searswill

alsoprovidefreelaborforthese applicablewarrantedpartsforthetwofullyears.During

thefirst 30 daysof purchase,therewill be nochargesto servicethe productatyour

homefor issuescoveredbythiswarranty.(Seeexclusionsbelow). Foryourconve-

nience, INHOMEwarrantyservicewillstill be availableafterthefirst 30 daysof pur-

chase, buta trip chargewillapply.Thischargewill bewaivedifthe Craftsmanproductis

droppedoffat an authorizedSears location.Forthe nearestauthorizedSearslocation,

pleasecall 1-800-4-MY-HOME@.Thiswarrantyappliesonlywhile this productis within

the UnitedStates.

ThisWarrantydoesnotcover:

Expendableitemswhichbecomeworn duringnormaluse,includingbutnotlimitedto

blades,spark plugs,air cleaners,belts,andoilfilters.

StandardMaintenanceServicing,oil changes, ortune-ups

Tirereplacementorrepaircausedbypuncturesfromoutsideobjects,such asnails,

thorns,stumps,orglass.

Repairsnecessarybecauseof operatorabuse,includingbutnot limitedto, damage

causedbytowingobjectsbeyondthecapabilityofthe ridingequipment,impacting

objectsthat bendtheframeorcrankshaft,or over-speedingtheengine.

Repairsnecessarybecauseof operatornegligence,includingbutnotlimitedto,elec-

tricaland mechanicaldamagecausedbyimproperstorage,failureto usetheproper

gradeandamountofengineoil,failureto keepthe deckclearof flammabledebris,

orfailureto maintaintheequipmentaccordingtothe instructionscontainedinthe

owner'smanual.

• Engine(fuelsystem)cleaningorrepairscausedbyfueldeterminedto becontami-

natedoroxidized(stale). In general,fuelshould beusedwithin30 daysof its pur-

chasedate.

• Normaldeteriorationandwearoftheexteriorfinishes,or productlabelreplacement.

• Ridingequipmentusedfor commercialor rentalpurposes.

LIMITEDWARRANTYON BATTERY

Forninety(90) daysfromdate of purchase,if anybatteryincludedwith thisridingequip-

mentprovesdefectivein materialor workmanshipandourtestingdeterminesthe battery

will notholdacharge,Searswill replacethe batteryat nocharge. Duringthe first30

daysof purchase,therewill be nochargesto replacethebatteryatyour HOME. After

thefirst 30 days,foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebutatripchargewillapply. Thischargewillbewaivedifthe Craftsmanproductis

droppedoffat an authorizedSears location.Forthe nearestauthorizedSearslocation,

pleasecall 1-800-4-MY-HOME@.

Thisbatterywarrantyappliesonlywhile this productiswithinthe UnitedStates.

Thiswarrantygivesyou specificlegalrights,andyou mayalso haveotherrights,which

vary,fromstateto state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

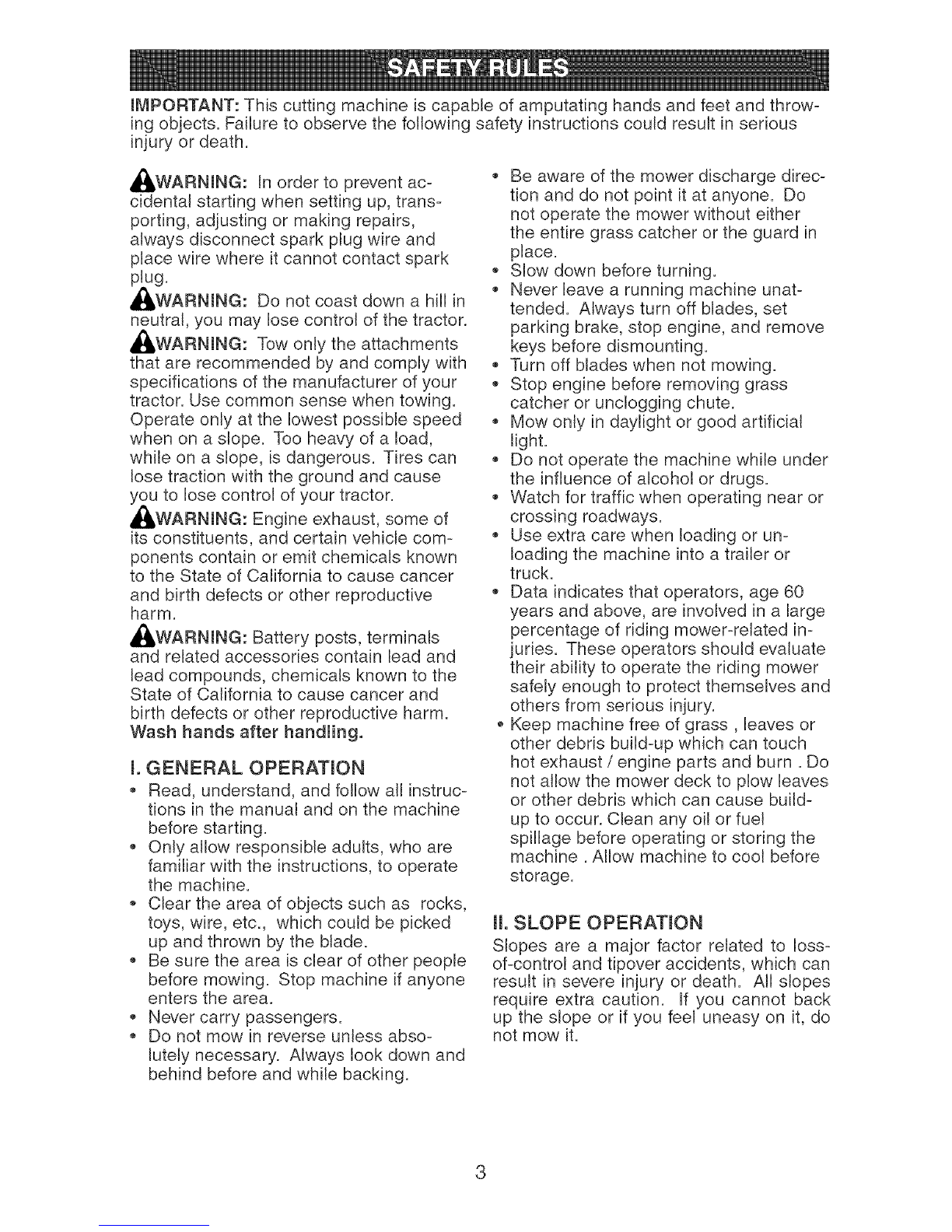

mMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNmNG: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

dHLWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with •

specifications of the manufacturer of your •

tractor. Use common sense when towing.

Operate only at the lowest possible speed •

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can •

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNmNG: Engine exhaust, some of

its constituents, and certain vehicle com- •

portents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling. *

L GENERAL OPERATmON

•Read, understand, and follow all instruc-

tions in the manuat and on the machine

before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower=related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

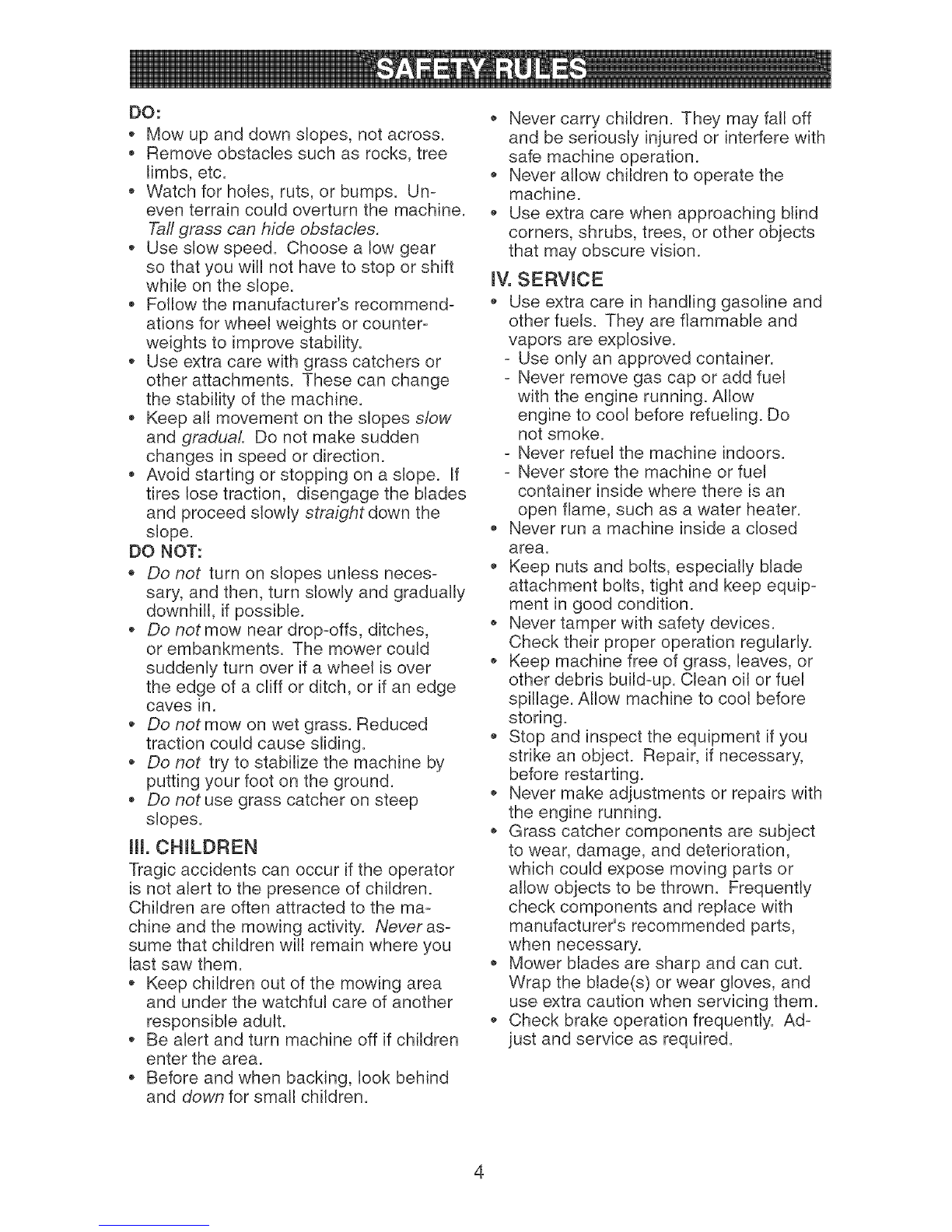

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

*Do not mow on wet grass. Reduced

traction could cause sliding.

*Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

*Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

*Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

*Never tamper with safety devices.

Check their proper operation regularly.

*Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

*Never make adjustments or repairs with

the engine running.

*Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

*Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

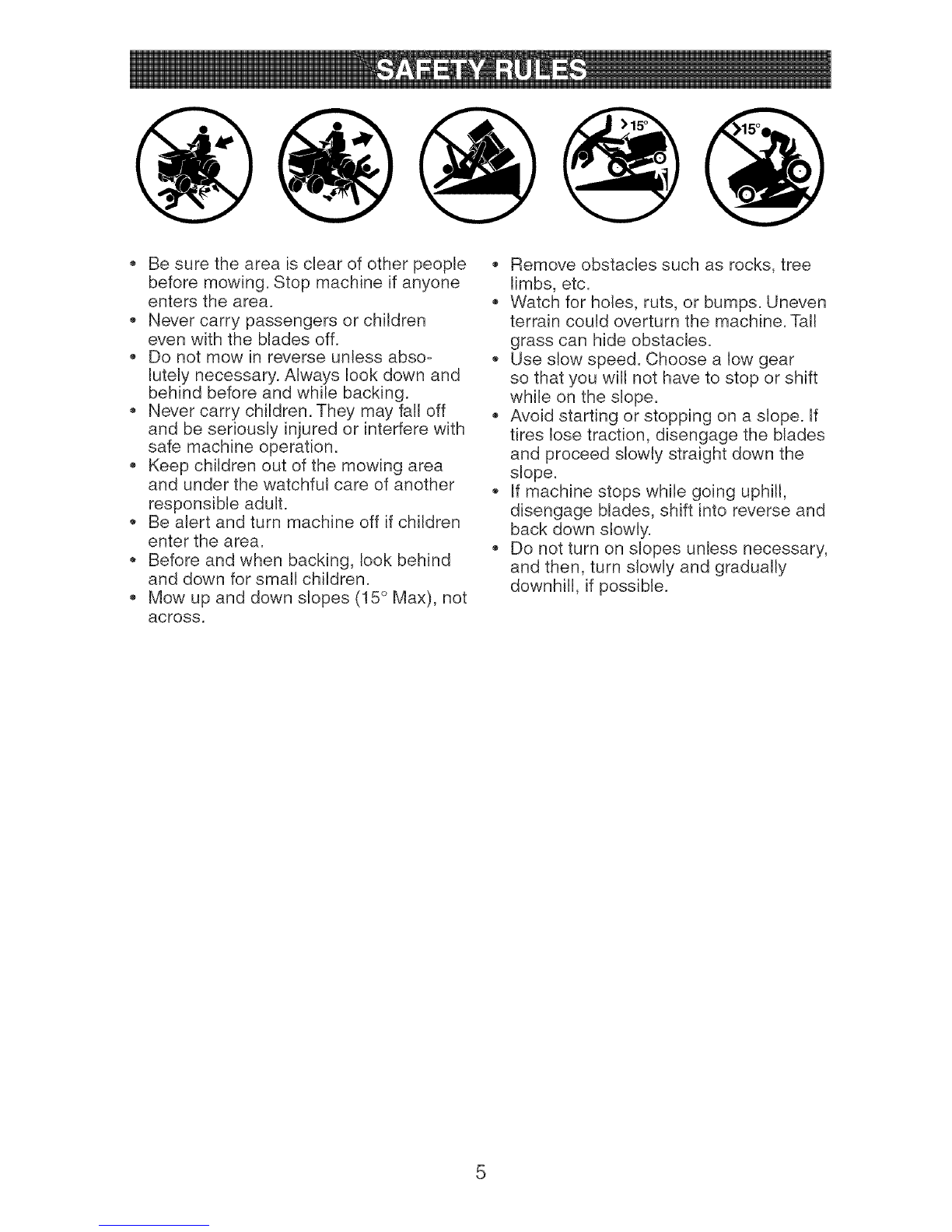

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATmONS

Gasoline 4.0

Capacityand Unleaded

Type: Regular

OilType SAE30 (above32°F)

IAPFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH): Forward:

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 9 Amps @3600 RPM

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you the

best possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITmES

Read and observe the safety rules.

Follow a regular schedule in main-

taining, caring for and using your tractor.

*Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_bWARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sionat repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regutar price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

*Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-8655.

SEARS INSTALLATmON SERVmCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4oMY-HOME®

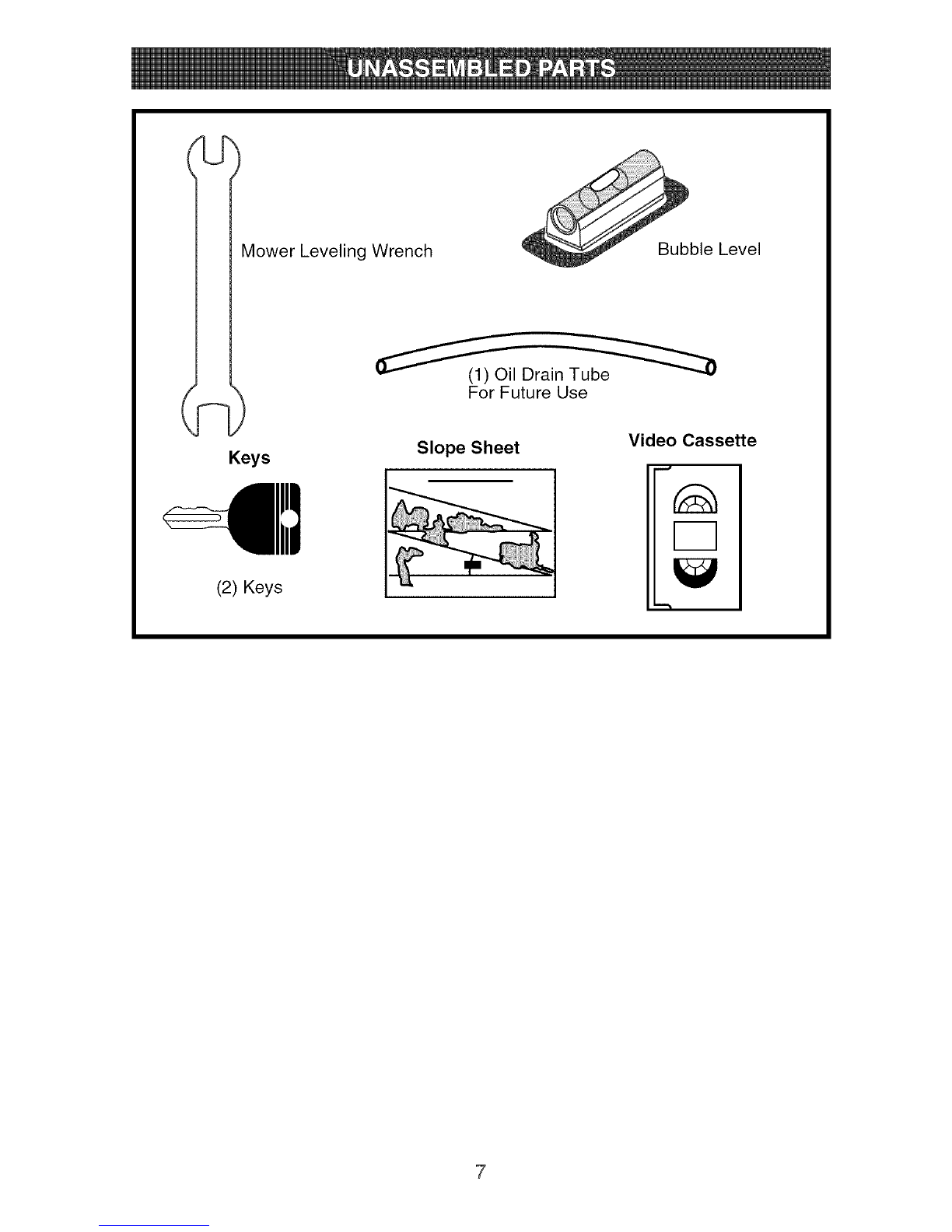

Mower Leveling Wrench Bubble Level

)

Keys

(2) Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

"'t

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac-

tor hood and grille.

mMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1, Lift hood to raised position.

NOTE: If this battery is put into service af-

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section

of this manual for charging instructions).

....

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest pc=

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRmVE TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

_L,,WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

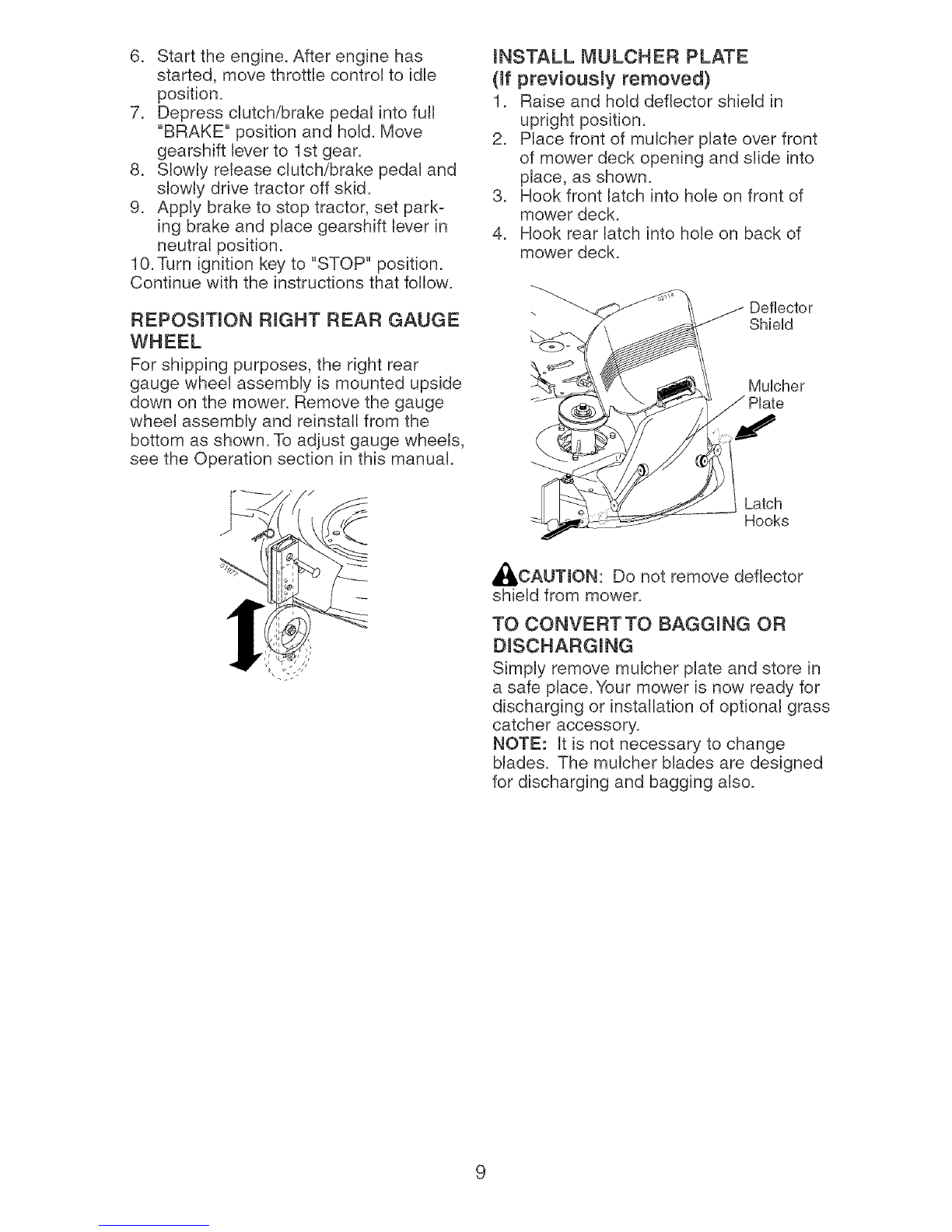

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

REPOSITION RmGHT REAR GAUGE

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

mNSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

ShbUd

Mulcher

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGmNG OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NO'rE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

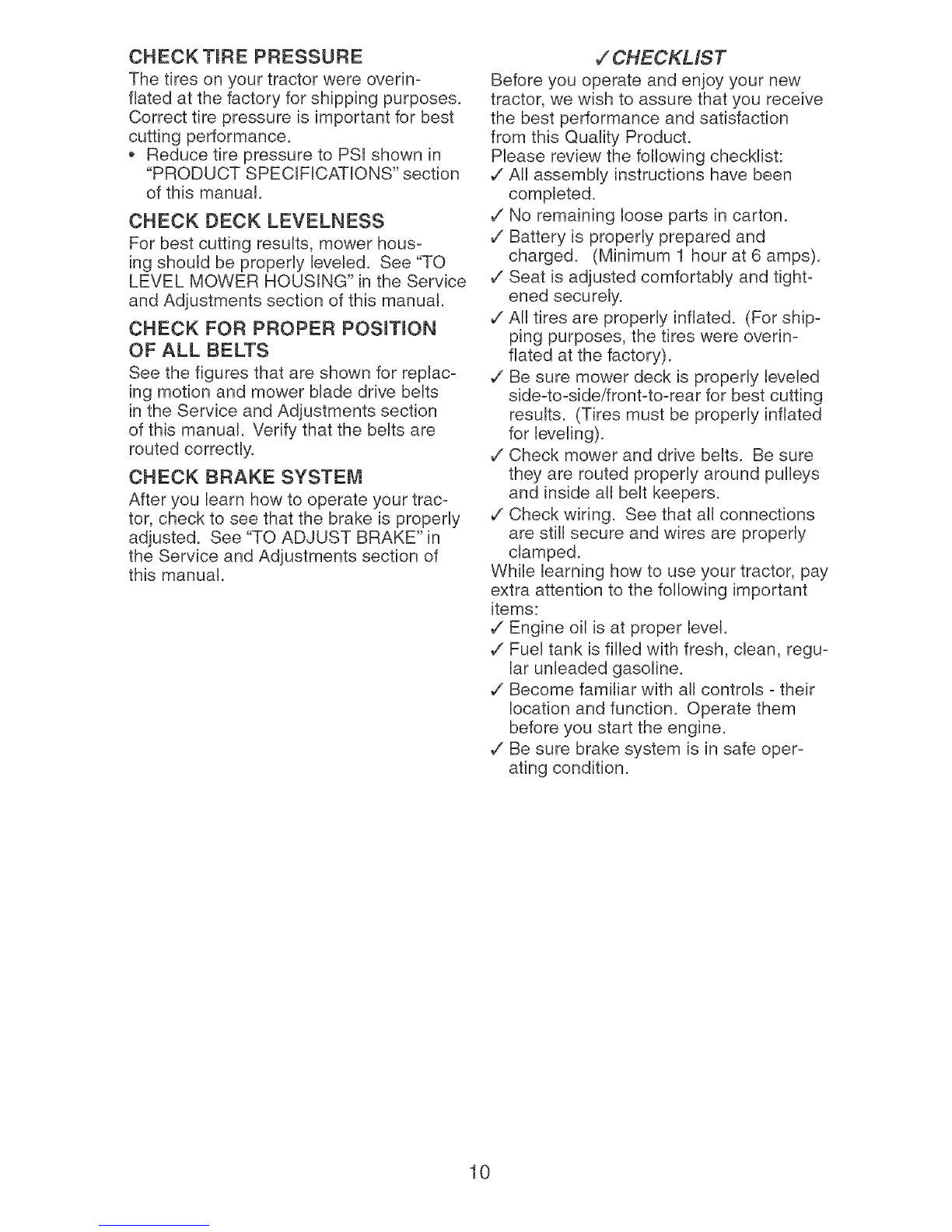

CHECK TIRE PRESSURE

Thetireson yourtractorwereoverin-

fiated atthefactoryforshipping purposes.

Correcttirepressureisimportantfor best

cutting performance.

Reducetire pressureto PSIshownin

"PRODUCTSPECIFICATIONS"section

ofthis manual.

CHECK DECK LEVELNESS

Forbestcuttingresults,mowerhous-

ingshouldbe properlyleveled. See"TO

LEVELMOWERHOUSING"inthe Service

andAdjustmentssectionofthis manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

V"CHECKMST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

fiated at the factory).

,/Be sure mower deck is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.273134 Manuel utilisateur

Craftsman

Craftsman 917.377050 Manuel utilisateur

Craftsman

Craftsman 247.28880 Manuel utilisateur

Craftsman

Craftsman 917.37658 Manuel utilisateur

Craftsman

Craftsman 154.37837 Manuel utilisateur

Craftsman

Craftsman 247.370341 Manuel utilisateur

Craftsman

Craftsman 917.376745 Manuel utilisateur

Craftsman

Craftsman 917.257462 Manuel utilisateur

Craftsman

Craftsman 917.376480 Manuel utilisateur

Craftsman

Craftsman 27705 Manuel utilisateur

Craftsman

Craftsman 917.28955 Manuel utilisateur

Craftsman

Craftsman 917.377351 Manuel utilisateur

Craftsman

Craftsman 38987 Manuel utilisateur

Craftsman

Craftsman 3One 917.255470 Manuel utilisateur

Craftsman

Craftsman 247.37035 Manuel utilisateur

Craftsman

Craftsman 917.371760 Manuel utilisateur

Craftsman

Craftsman 917.272072 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270642 Manuel utilisateur

Craftsman

Craftsman 28724 Manuel utilisateur

Craftsman

Craftsman 917.377800 Manuel utilisateur

Craftsman

Craftsman 917.272962 Manuel utilisateur

Craftsman

Craftsman 917.272912 Manuel utilisateur

Craftsman

Craftsman 917.273645 Manuel utilisateur

Craftsman

Craftsman 247.372370 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
