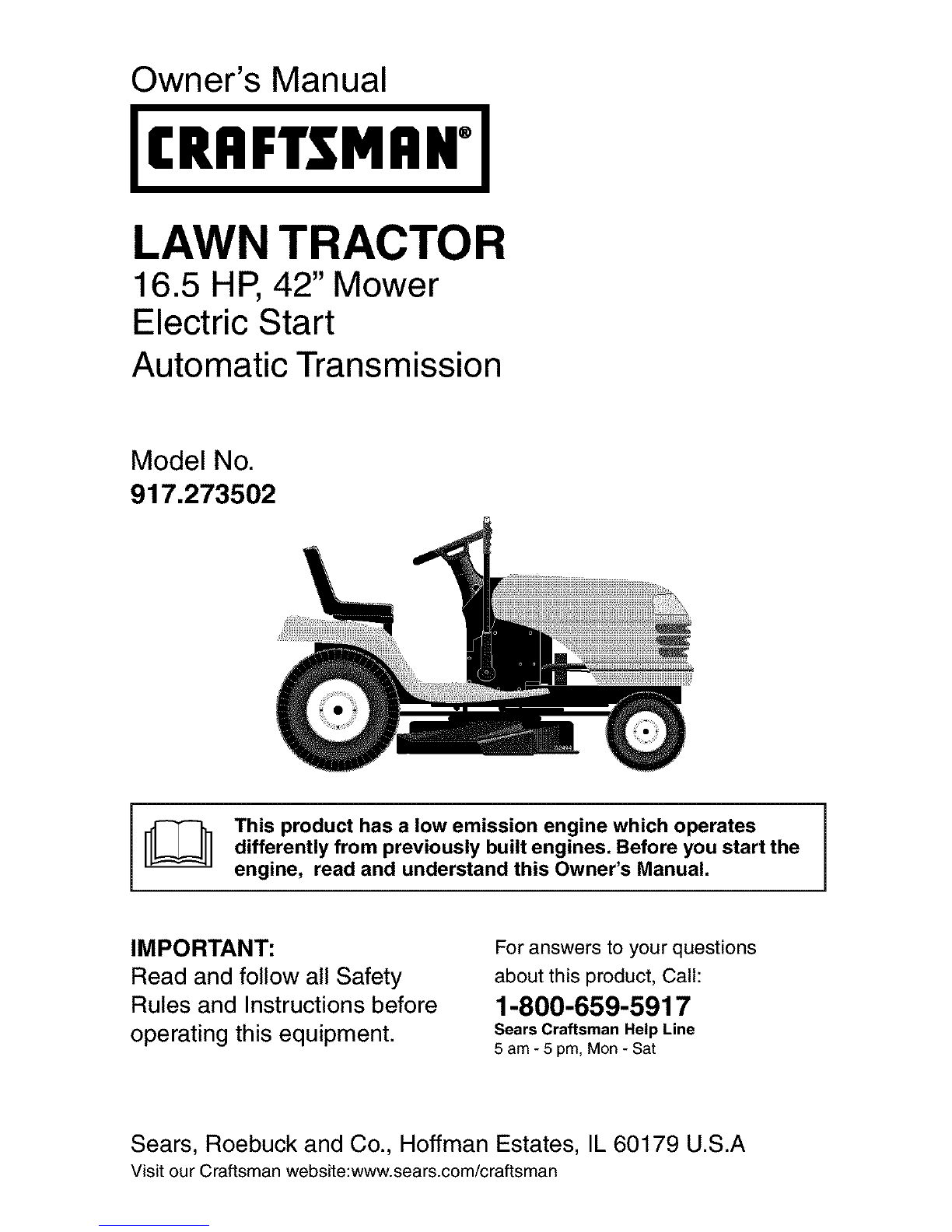

Craftsman 917.273502 Manuel utilisateur

Owner's Manual

JCRRFTSMIIN°J

LAWN TRACTOR

16.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273502

[_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the I

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

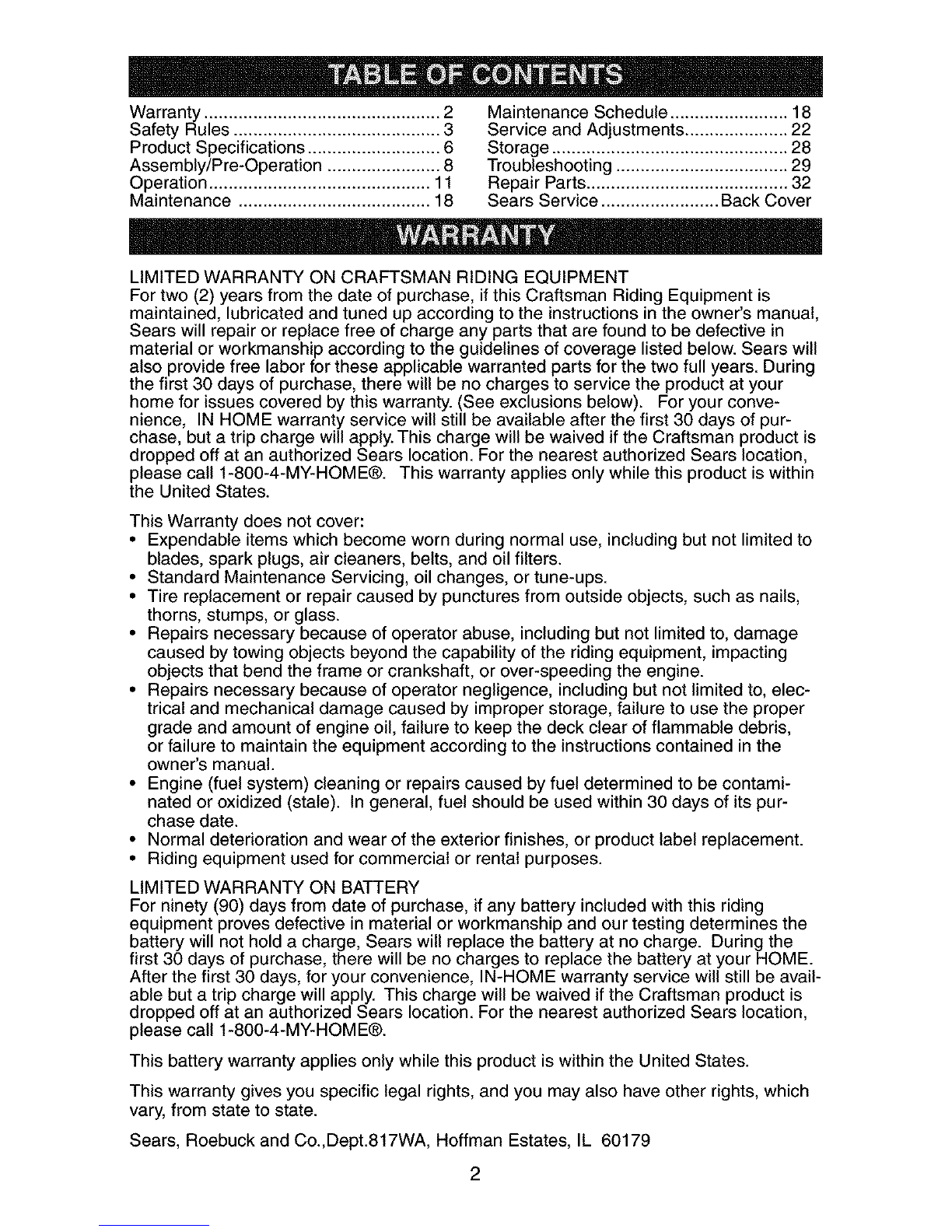

Warranty ................................................ 2 Maintenance Schedule ........................ 18

Safety Rules .......................................... 3 Service and Adjustments ..................... 22

Product Specifications ........................... 6 Storage ................................................ 28

Assembly/P re-Operation ....................... 8 Troubleshooting ................................... 29

Operation ............................................. 11 Repair Parts ......................................... 32

Maintenance ....................................... 18 Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

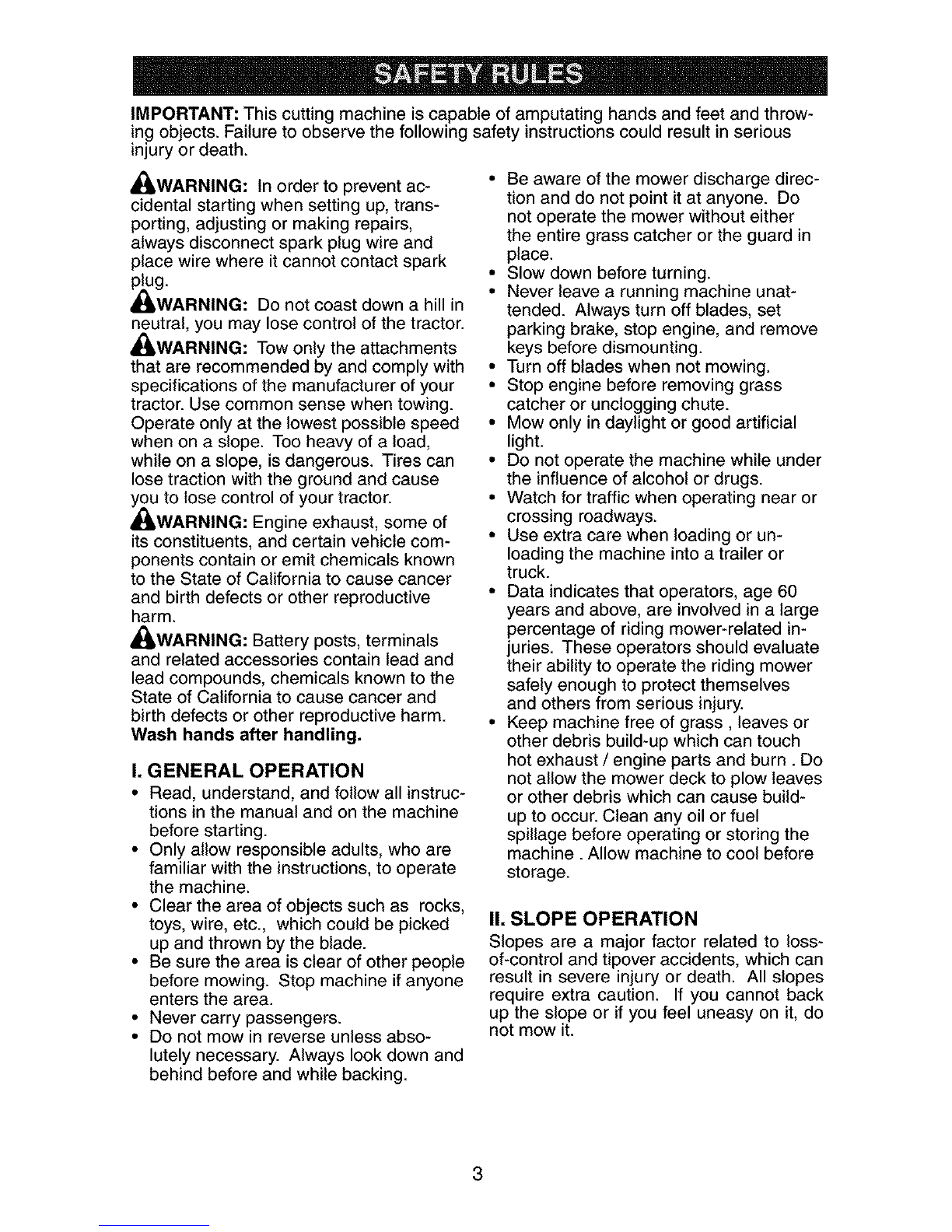

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

A(_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_I_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

A(_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope.

If tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do notmow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do notuse grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

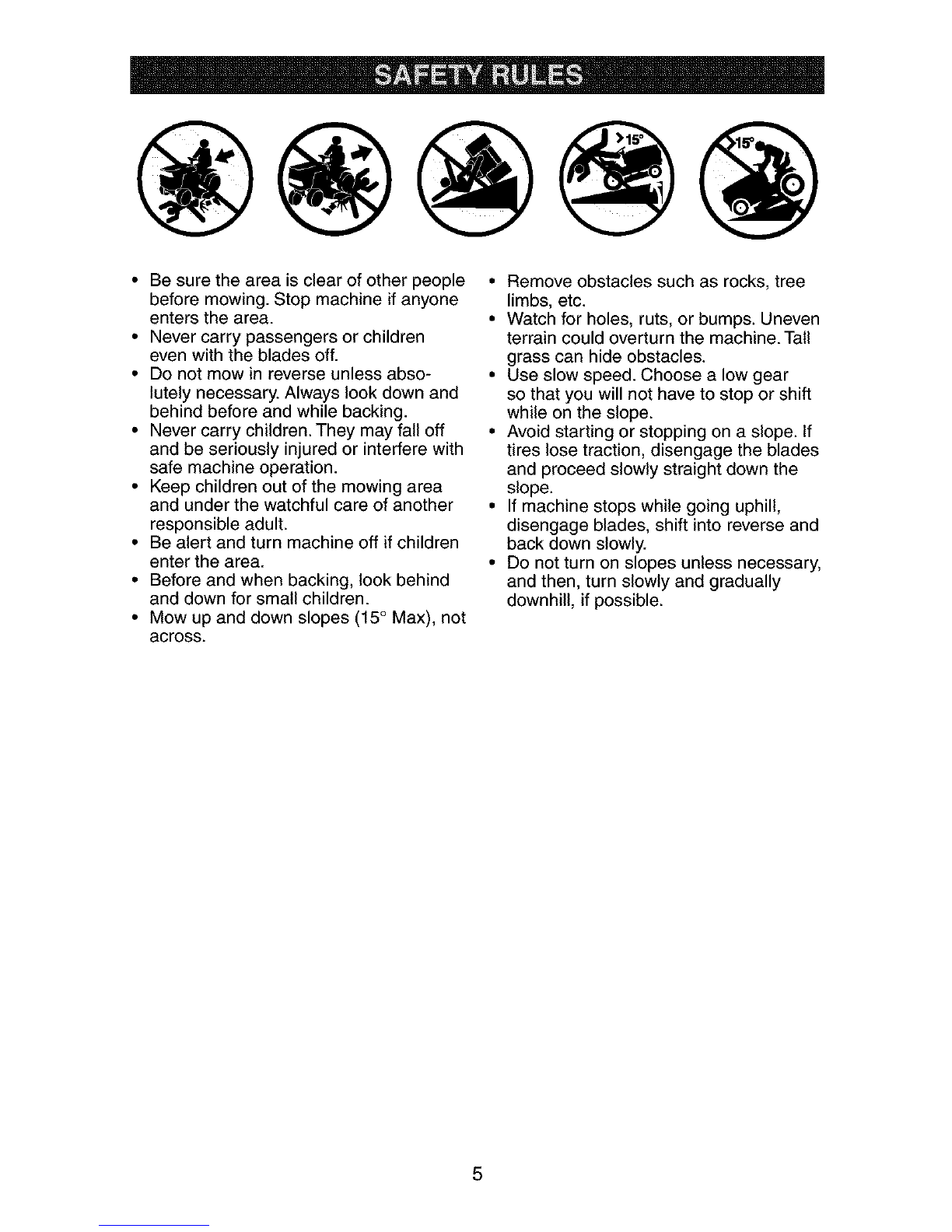

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

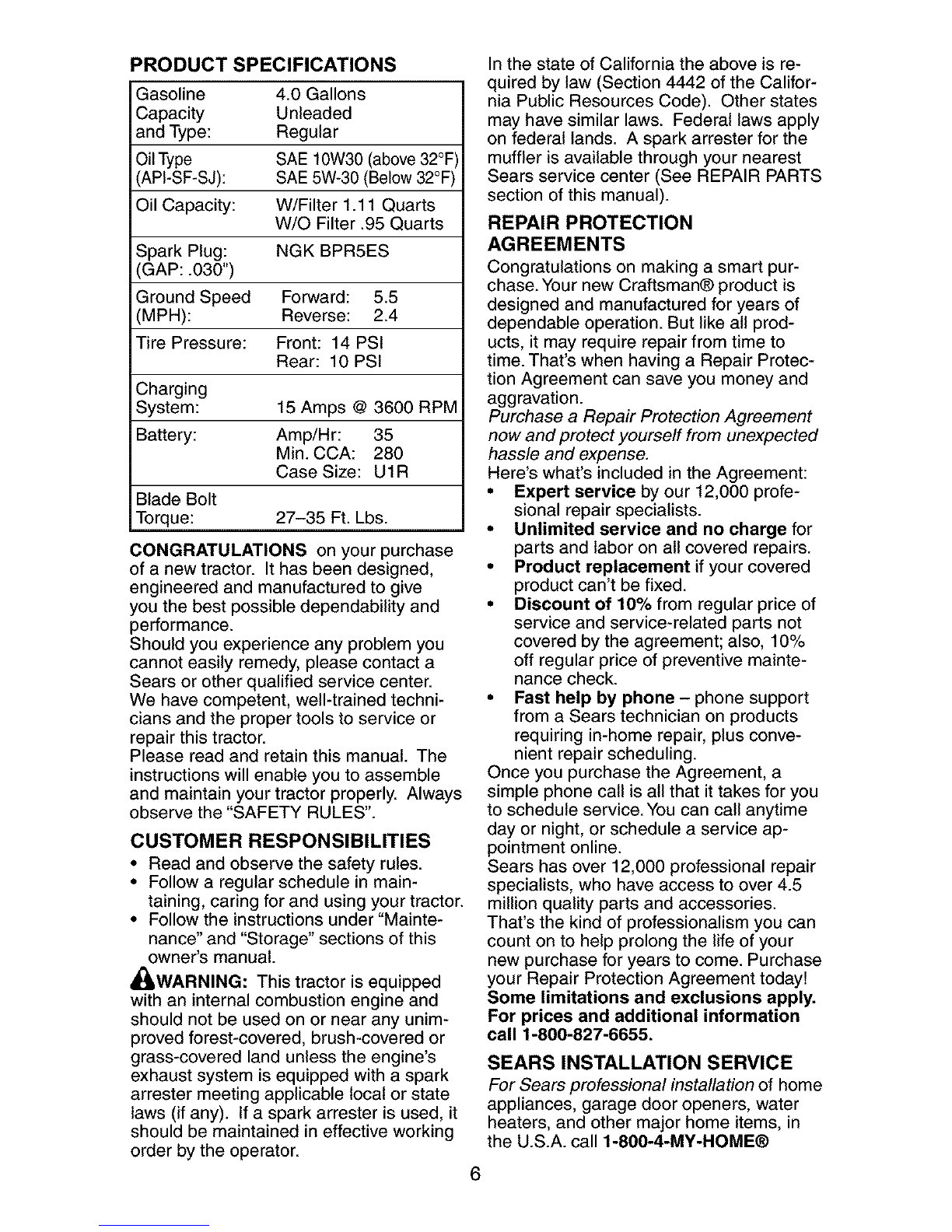

PRODUCT SPECIFICATIONS

Gasoline 4.0 Gallons

Capacity Unleaded

and Type: Regular

OilType SAE 10W30 (above 32_F)

'API-SF-SJ): SAE 5W-30 (Below 32 F)

Oil Capacity: W/Filter 1.11 Quarts

W/O Filter .95 Quarts

Spark Plug: NGK BPRhES

GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case Size: UIR

Blade Bolt

Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

•Unlimited service and no charge for

parts and labor on all covered repairs.

•Product replacement if your covered

product can't be fixed.

•Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

•Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

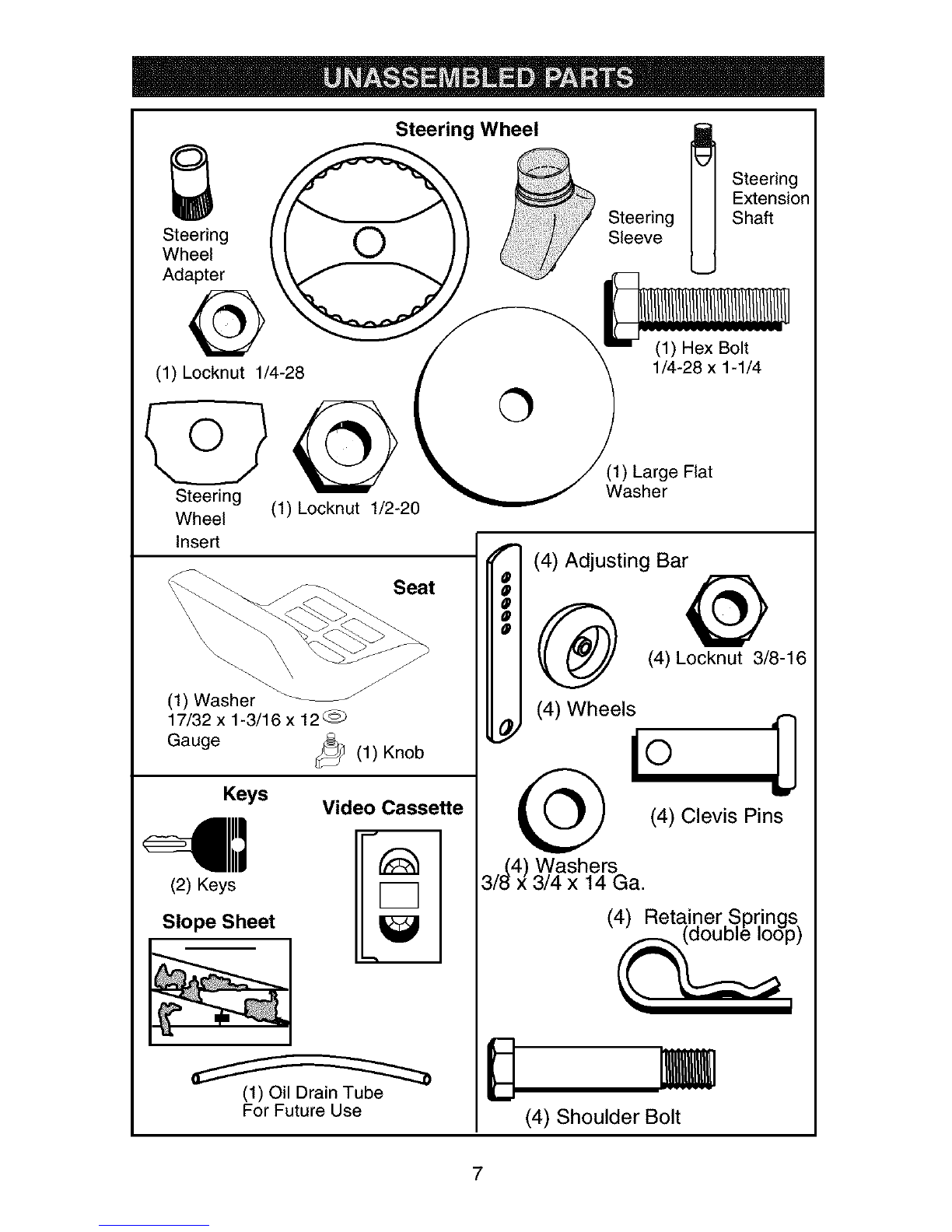

Steering

Wheel

Adapter

(1) Locknut 1/4-28

Steering

Wheel (1) Locknut 1/2-20

Insert

Steering Wheel

Seat

(1) Washer _'_

17/32 x 1-3/16 x 12 @

Gauge (1) Knob

Keys

(2) Keys

Video Cassette

Slope Sheet

(1) Oil Drain Tube

For Future Use

Steering

Sleeve

Steering

Extension

Shaft

(1) Hex Bolt

1/4-28 x 1-1/4

(1) Large Flat

Washer

(4) Adjusting Bar@

(_ (4) Locknut 3/8-16

(4) Wheels

(4) Washers

3/8 x 3/4 x 14 Ga.

(4) Clevis Pins

(4) Retainer,Springs

(4) Shoulder Bolt

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

Steering

Wheel

_o---_ Insert

_ _I-1/2 Rex Nut

Large Flat

"-" Washer

Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor isto roll off skid.

HOWTO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

_'_'" "" '_bel

sj"" j f J" jJ

j_ ,i.

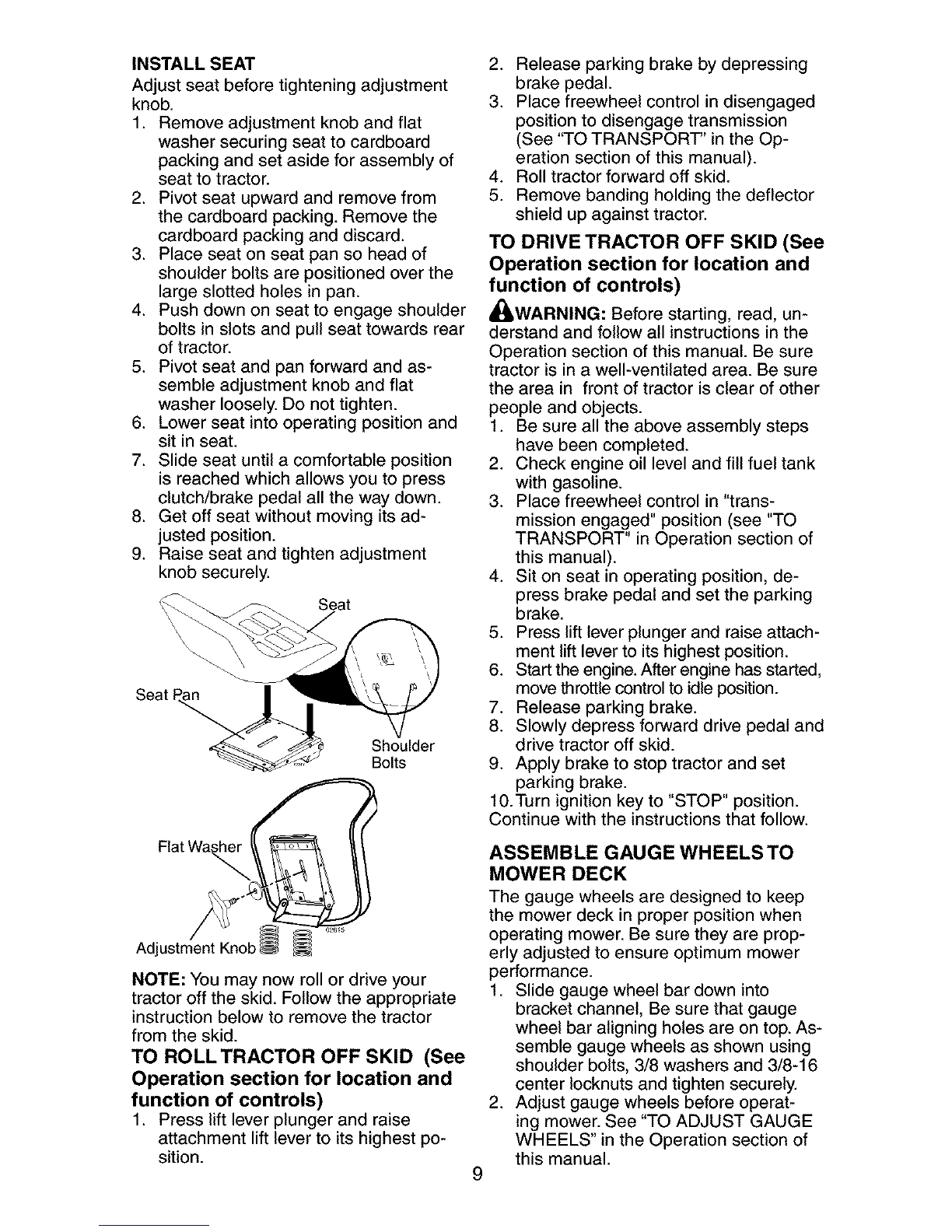

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat I

Shoulder

Bolts

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disengaged

position to disengage transmission

(See "TO TRANSPORT" in the Op-

eration section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise attach-

ment lift lever to its highest position.

6. Start the engine. After engine has started,

move throttle control to idle position.

7. Release parking brake.

8. Slowly depress forward drive pedal and

drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

Adjustment Knob i

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition. 9

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are prop-

erly adjusted to ensure optimum mower

performance.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top. As-

semble gauge wheels as shown using

shoulder bolts, 3/8 washers and 3/8-16

center Iocknuts and tighten securely.

2. Adjust gauge wheels before operat-

ing mower. See "TO ADJUST GAUGE

WHEELS" in the Operation section of

this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual. 10

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is properly adjust-

ed. See '%0 ADJUST BRAKE" in the Service

and Adjustments section of this manual.

v"CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your trac-

tor, pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 38872 Manuel utilisateur

Craftsman

Craftsman 917.250222 Manuel utilisateur

Craftsman

Craftsman Z7400 Manuel utilisateur

Craftsman

Craftsman 247.37109 Manuel utilisateur

Craftsman

Craftsman 536.270320 - 13.5 HP 30 in. Deck Manuel utilisateur

Craftsman

Craftsman 917.273470 Manuel utilisateur

Craftsman

Craftsman 27720 Manuel utilisateur

Craftsman

Craftsman 917.274391 Manuel utilisateur

Craftsman

Craftsman 25550 Manuel utilisateur

Craftsman

Craftsman 917.255891 Manuel utilisateur

Craftsman

Craftsman 917.370532 Manuel utilisateur

Craftsman

Craftsman 917.376560 Manuel utilisateur

Craftsman

Craftsman 247.203693 Manuel utilisateur

Craftsman

Craftsman 917.273755 Manuel utilisateur

Craftsman

Craftsman 917.388830 Manuel utilisateur

Craftsman

Craftsman 917.27499 Manuel utilisateur

Craftsman

Craftsman 917.371881 Manuel utilisateur

Craftsman

Craftsman 917.377151 Manuel utilisateur

Craftsman

Craftsman EZ3 917.251520 Manuel utilisateur

Craftsman

Craftsman 917.28907 Manuel utilisateur

Craftsman

Craftsman 917.270824 Manuel utilisateur

Craftsman

Craftsman 917.374944 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271014 Manuel utilisateur

Craftsman

Craftsman 917.275810 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
