Craftsman 917.27184 Manuel utilisateur

Owner's Manual

ICRRFTSMRNel

21.0 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271840

• Safety

• Assembly

•Operation

• Maintenance

• Repair Parts

Thls product has a low emlsslon englne which operates

differently from prevlously bullt englnes. Before you start the en-

glne, read and understand thls Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

Foranswers toyour questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Set

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

Warranty ...............................................2

SafetyRoles .........................................3

Product Specifications..........................6

Assembly ..............................................8

Operation............................................12

Maintenance Schedule ......................19

Maintenance .......................................19

Service and Adjustments .................... 23

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITEDTWO YEARWARRANTYON CRAFTSMAN RIDING EQUIPMENT PARTS

Fortwo(2) yearsfrom the dateofpumhase,ifthisCraftsmanRidingEquipmentis

maintained,lubricatedand tunedup accordingto the instructionsin the owner's

manual,Searswillrepairor replace,free ofcharge,anypartsfound tobe defectivein

materialor workmanship.Warrantyserviceisavailablefree ofchargebytakingyour

CraftsmanridingequipmenttoyournearestSearsService Center. In-homewarranty

serviceis availablebutatripchargewillapply.This warrantyappliesonlywhilethis

productisin theUnitedStates.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, hers and oil fiRers.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the dding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of pumhase, ff any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by taking your Craftsman riding equipment to

your nearest Sears Service Center. tn-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I. GENERAL OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as

recks, toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of dding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

I|. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in,

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

notsmoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debds build-up. Clean oil or fuel

spillage. Allow machine to cool before

stodng.

•Stop and inspect the equipment if you

stdke an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and detedoration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15 °Max),

not across,

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

_bLook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_lj CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

,_ CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

,_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_kWARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCTSPECIFICATIONS

GASOLINE 3.5GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE30

API-SF-SJ): (ABOVE32°F)

SAE5W-30

(BELOW32°F)

OILCAPACITY:3.0PINTS

SPARKPLUG: CHAMPION

3AP: .030") RJt9LM OR J19LM

VALVE INTAKE: .004"-.006"

ADJUSTMENT EXHAUST: .007"-.009"

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 3 AMPS BA'I-rERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained technio

clans and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the =SAFETY RULES".

REPAIR AGREEMENT

A RepairAgreementis availableon this

product, ContactyournearestSears

storefor details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and _Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

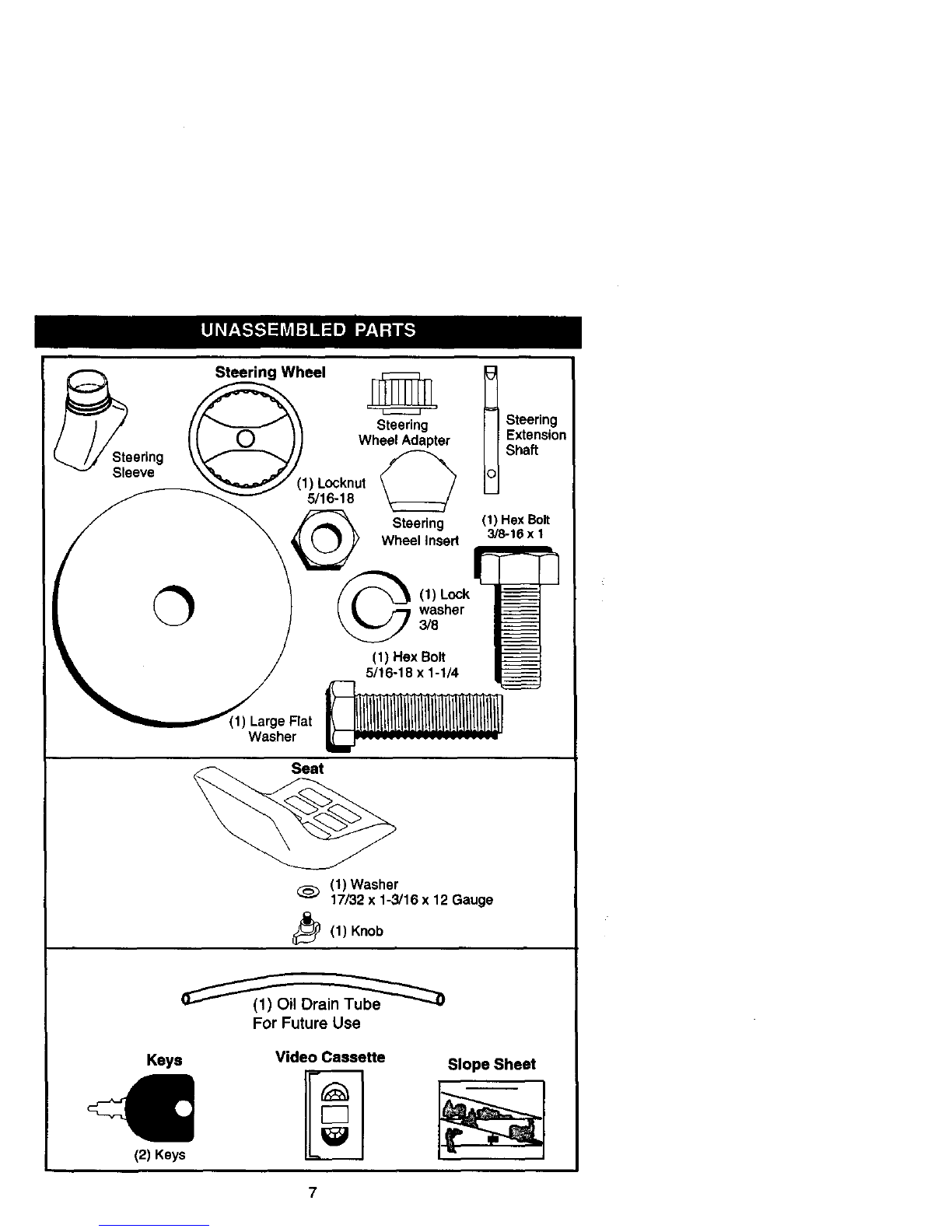

_e Steering Wheel =_

Steering _Steering

I I (.) I I Wheel Adapter I I _-xtension

eervi;g __(1)Locknut _ I°1 Shaft

/_ _ Steering (1) Hex Bolt

/"__ Wheel Insed 3/8-16 x 1

_, /(1) Hex Bolt

/5/16-18 x 1-1/4

'_11_1__(1 )_rge Flat

Washer _ ....................

(1) Washer

17/32x 1-3/16x12 Gauge

_(1) Knob

For Future Use

Keys

(2) Keys

Video Cassette Slope Sheet

Yournewtractorhasbeen assembledat thefactory withexceptionof thosepartsleft

unassembledfor shippingpurposes. To ensuresafe and properoperationofyour

tractorall parts and hardwareyou assemblemustbe tightenedsecurely. Use the

correcttoolsas necessaryto insurepropertightness.

TOOLS REQUIRED FOR ASSEMBLY

A socketwrenchsat willmake assembly

easier. Standardwrenchsizesyou need

are listedbelow.

(1) 9/16"wrench (1) Pliers

(2) 1/2"wrench (1) Utilityknife

(1) Tire pressure

gauge

When rightor lefthandismentionedin

thismanual,itmeanswhenyou are in the

operatingposition(seated behindthe

steeringwheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessiblelooseparts

and partscartons from carton.

2. Cut,from toptobottom,alonglineson

allfour cornersofcarton,and lay

panelsflat.

3. Checkfor any additionallooseparts

or cartonsand remove.

BEFORE REMOVINGTRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

2. Place tabs of steedng boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer. 3/8 lock

washer. 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Steedng

,_F Wheel Insert

'_x Bolt

_k Washer

,,-_-Large Flat

.... )Washer

SteedngwheelF _

_ _eering Boot

,.epter

Lower /'_" _'I"

Steering _ _! _ ab

Shaft '" _, Sots

HOWTO SET UPYOURTRACTOR

CHECK BA'I-rE RY

I. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY_in Maintenance

section of this manual for charging

instructions}.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

I. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing, Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

8. Raise seat and tighten adjustment

knob securely.

Seat

Flat Wa%_

_. _\\\_,_ \__ I\1

Adju = nt

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation secUon for location and

funcUon of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

s=on(See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

OperaUon section for location and

function of controls)

WARNING: Before starting, read

understand and follow all ins'tructons in

the Operation section of this manual, Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor isclear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in =transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10. Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

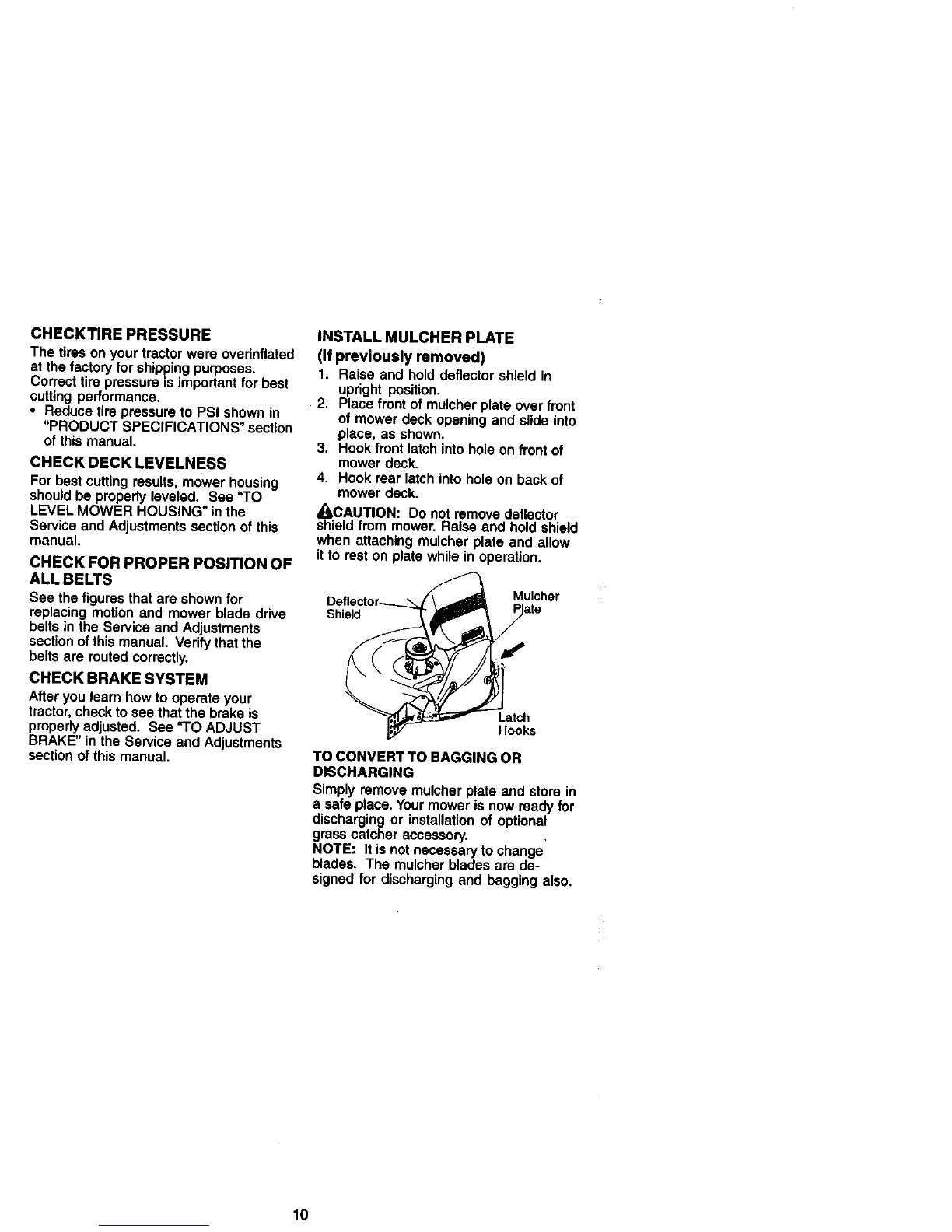

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

Forbestcuttingnesults,mowerhousing

shouldbe properlyleveled. See "TO

LEVEL MOWER HOUSING"inthe

Serviceand Adjustmentssectionofthis

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See thefiguresthatare shownfor

replacingmotionand mowerblade drive

beltsin the Serviceand Adjustments

sectionofthismanual. Verifythatthe

beltsare routedcorrectly.

CHECK BRAKE SYSTEM

Afteryou learnhowto operateyour

tractor,checktosee thatthe brakeis

preperlyadjusted. See "TO ADJUST

BRAKE"in the Service and Adjustments

sectionofthismanual.

INSTALL MULCHER PLATE

(If previously removed)

I. Raise and hold deflector shield in

upright position.

2. Place front of musher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow

it to rest on plate while in operation.

Shield

Mulcher

Latch

Hooks

TO CONVERT TO BAGGINGOR

DISCHARGING

Simplyremovemulcher plate and storein

a safe place.Yourmoweris nowreadyfor

dischargingor installationof optional

grasscatcheraccessory.

NOTE: Itisnotnecessaryto change

b_ades.The mulcher bladesare de-

signedfor dischargingand baggingalso.

Ce manuel convient aux modèles suivants

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman EZ3 917.272190 Manuel utilisateur

Craftsman

Craftsman 917.388223 Manuel utilisateur

Craftsman

Craftsman 917.376461 Manuel utilisateur

Craftsman

Craftsman 917.377940 Manuel utilisateur

Craftsman

Craftsman 917.388521 Manuel utilisateur

Craftsman

Craftsman 25336 Manuel utilisateur

Craftsman

Craftsman 917.273860 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258590 Manuel utilisateur

Craftsman

Craftsman 486.29280 Manuel utilisateur

Craftsman

Craftsman 247.375910 Manuel utilisateur

Craftsman

Craftsman 3One 917.382840 Manuel utilisateur

Craftsman

Craftsman 917.370680 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271140 Manuel utilisateur

Craftsman

Craftsman 247.377300 Manuel utilisateur

Craftsman

Craftsman 917.276760 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258870 Manuel utilisateur

Craftsman

Craftsman 917.27670 Manuel utilisateur

Craftsman

Craftsman 917.370752 Manuel utilisateur

Craftsman

Craftsman 38527 Manuel utilisateur

Craftsman

Craftsman 917.255981 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273122 Manuel utilisateur

Craftsman

Craftsman 917.374545 Manuel utilisateur

Craftsman

Craftsman 917.380221 Manuel utilisateur

Craftsman

Craftsman 917.388141 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
