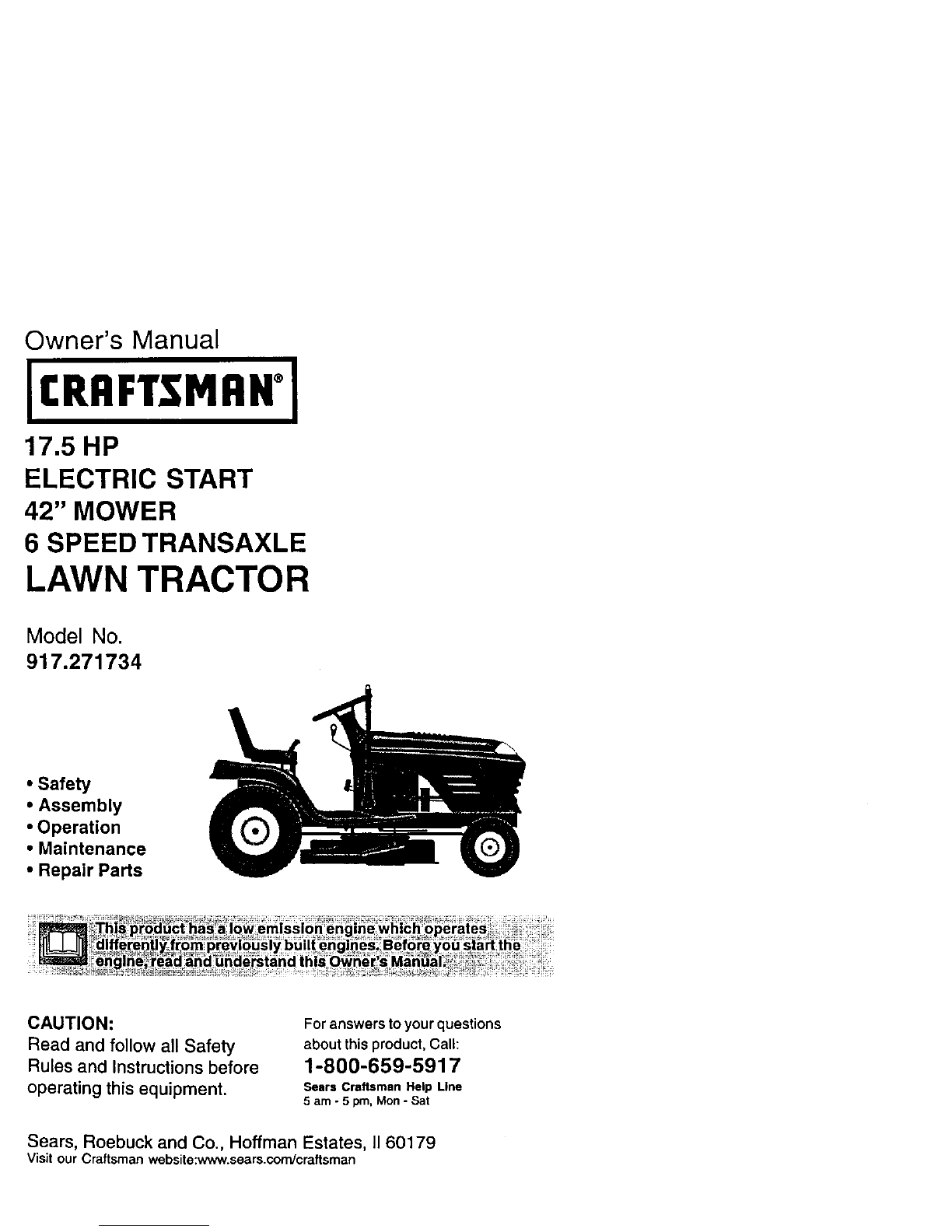

Craftsman 917.271734 Manuel utilisateur

Owner's Manual

ICRRFTSMRWI

17.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271734

•Safety

•Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

Foranswers to your questions

about this product,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.corn/craftsman

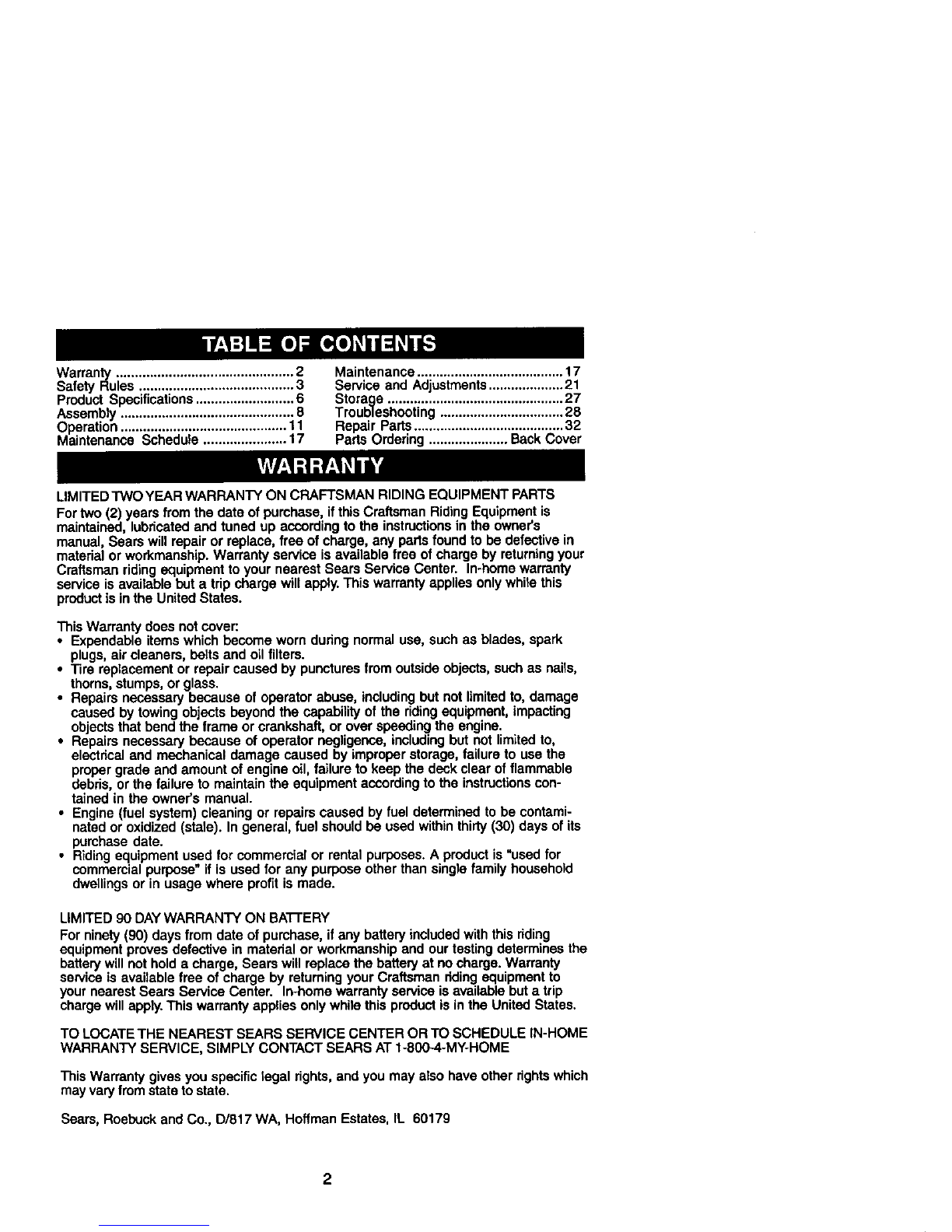

WarranT ...............................................2

Safety_tules.........................................3

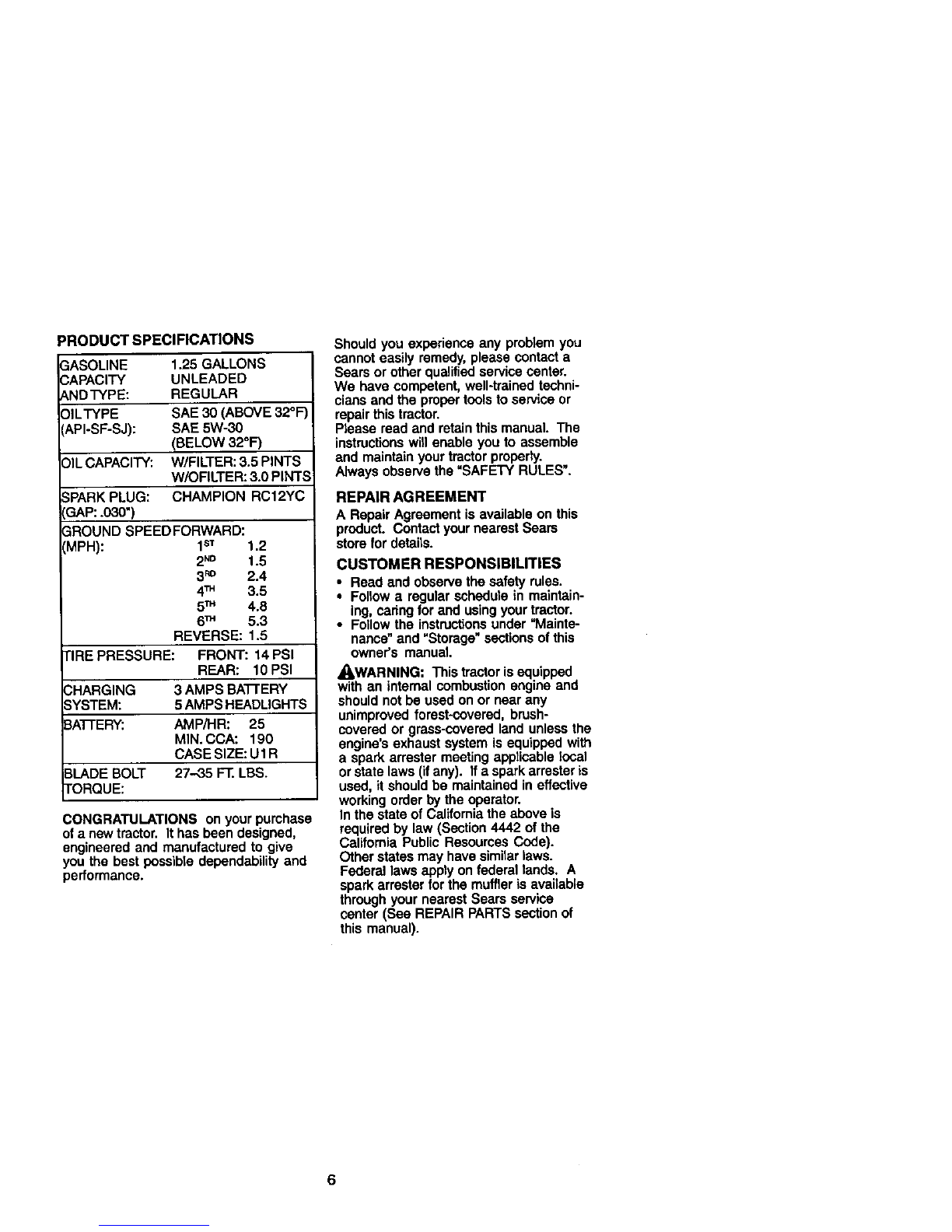

ProductSpecifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 11

Maintenance Schedule ...................... 17

Maintenance ....................................... 17

Service and Adjustments.................... 21

Storage ............................................... 27

Troubleshooting ................................. 28

Repair Parts ........................................ 32

Parts Ordering ..................... Back Cover

LIMITED 33NOYEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if thisCraftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsin the owneCs

manual Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returnng your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only whitethis

productis in the United States.

This Warranty does notcover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, includingbut not limitedto, damage

caused by towing objects beyond the capability of the ridingequipment, impacting

objectsthat bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to,

electrical end mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear offlammable

debris, or the failure to maintain the equipment according to the instructionscon-

tained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

•Riding equipment used for commercial or rental purposes. A productis "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAYWARRANTY ON BA'I-I'ERY

For ninety (90) days from date of purchase, if any battery included with this dding

equipment proves defective in matedal or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman dding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply.This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal dghts, and you may also have other dghts which

may varyfrom state to state.

Sears, Roebuck and Co., 13/817 WA, Hoffman Estates, IL 60179

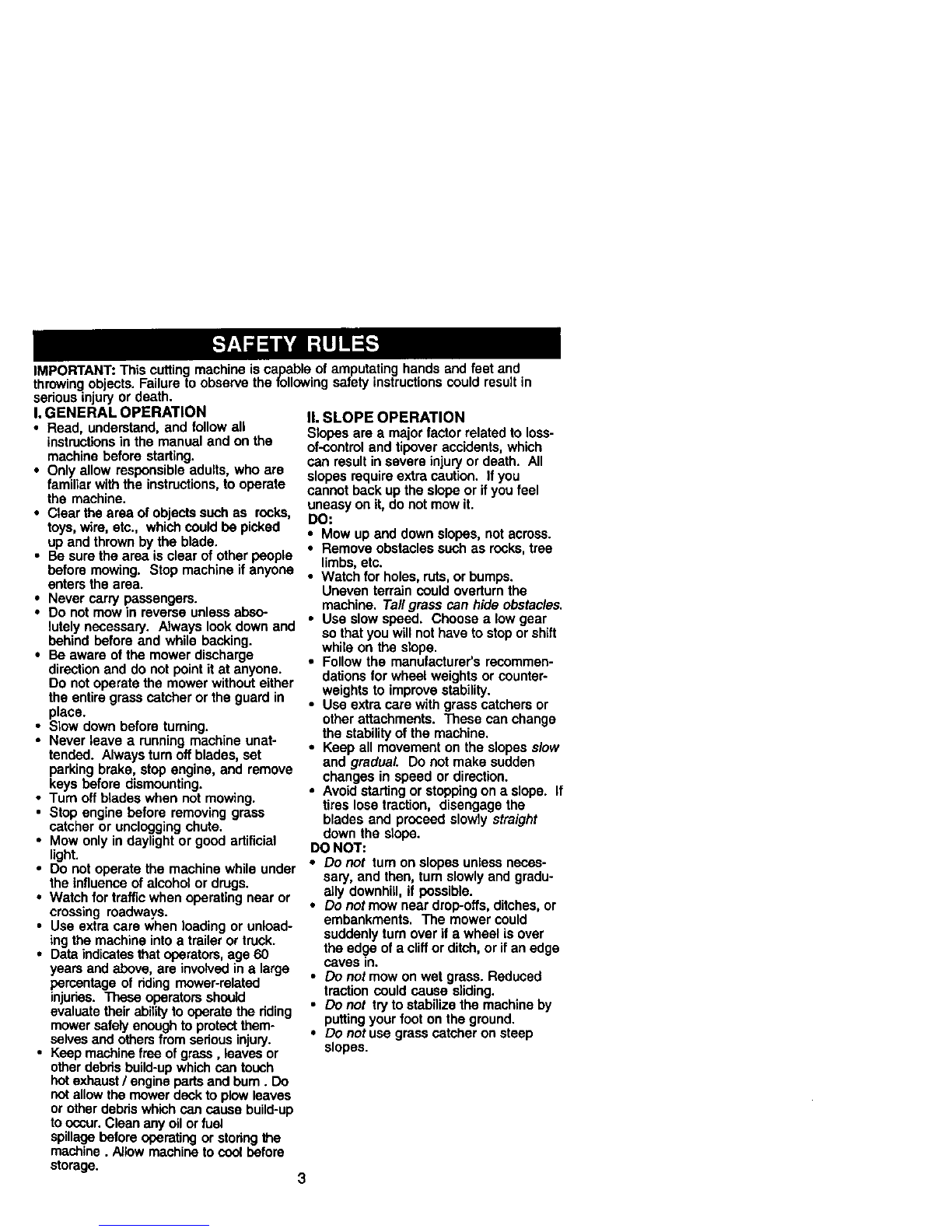

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwingob ects. Failure to observe the following safety instructionscould result in

serious injury or death.

I, GENERAL OPERATION

• Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always lock down and

behind before and while backing.

•Be aware ofthe mower discharge

directionand do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing gross

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

•Data indicatesthat operators, age 60

years and above, are involved in alarge

percentage of riding mower-related

injuries. These operators should

evaluate their abilityto operate the riding

mower safely enough to protectthem-

selvesand othersfrom serious injury.

•Keep machinefree ofgrass, leaves or

other debris build-upwhich can touch

hot exhaust /engine parts and bum. Do

not allowthe mower deck to plow leaves

or other debris whichcan cause build-up

to occur.Clean any oil or fuel

spillage before operatingor storing the

machine. Allow machine tocool before

storage. 3

II. SLOPE OPERATION

Slopes are amajor factor related to loss-

of-control and tipover accidents, which

can result in severe injuryor death. All

slopes require extra caution. Ifyou

cannot back up the slope or ifyou feel

uneasy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Ta/I grass can hide obstac/es.

•Use slow speed. Choose a low gear

so that you will not have to stopor shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability ofthe machine.

•Keep all movement on the slopes s/ow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades end proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unlass neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do notmow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the ed.geof a cliffor ditch, or if an edge

caves In.

•Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

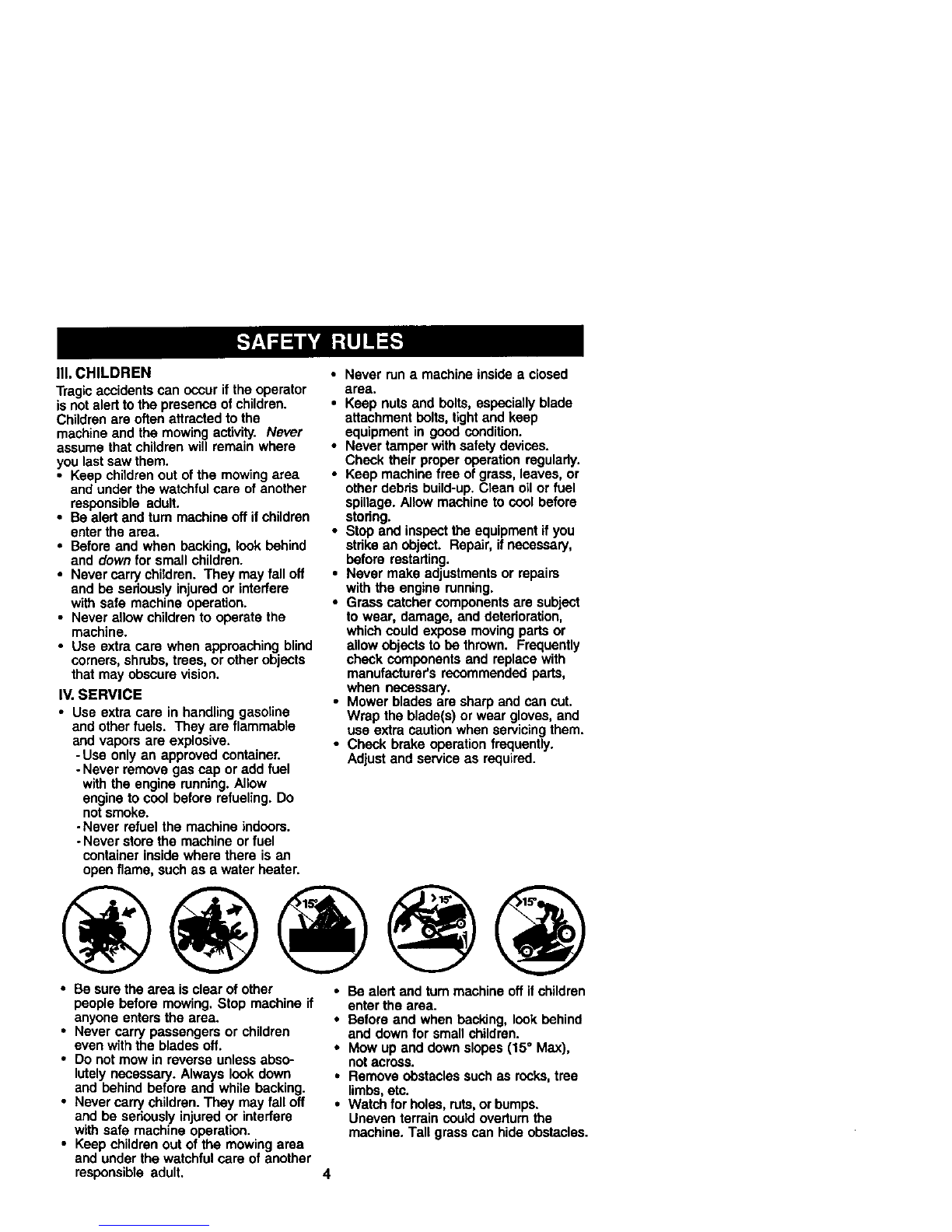

III,CHILDREN

Tragicaccidentscanoccuriftheoperator

isnotalerttothepresenceofchildren.

Childrenare often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

• Never carrychildren. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

notsmoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area,

•Keep nuts and belts, espociailyblade

attachment belts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

stodng.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose movingparts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and rum machine off if children

enter the area.

• Before and when backing, look behind

end down for small children.

•Mow up and down slopes (15°Max),

notacross.

•Remove obstacles such as rocks,tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turnon slopes unless neces-

sary, and then, turn slowly end gradu-

ally dOwnhill,if possible.

_-Look for this symbol to point out

importantsafety precautions. It means

CAUTIONIn BECOME ALERTlll YOUR

SAFETY IS INVOLVED.

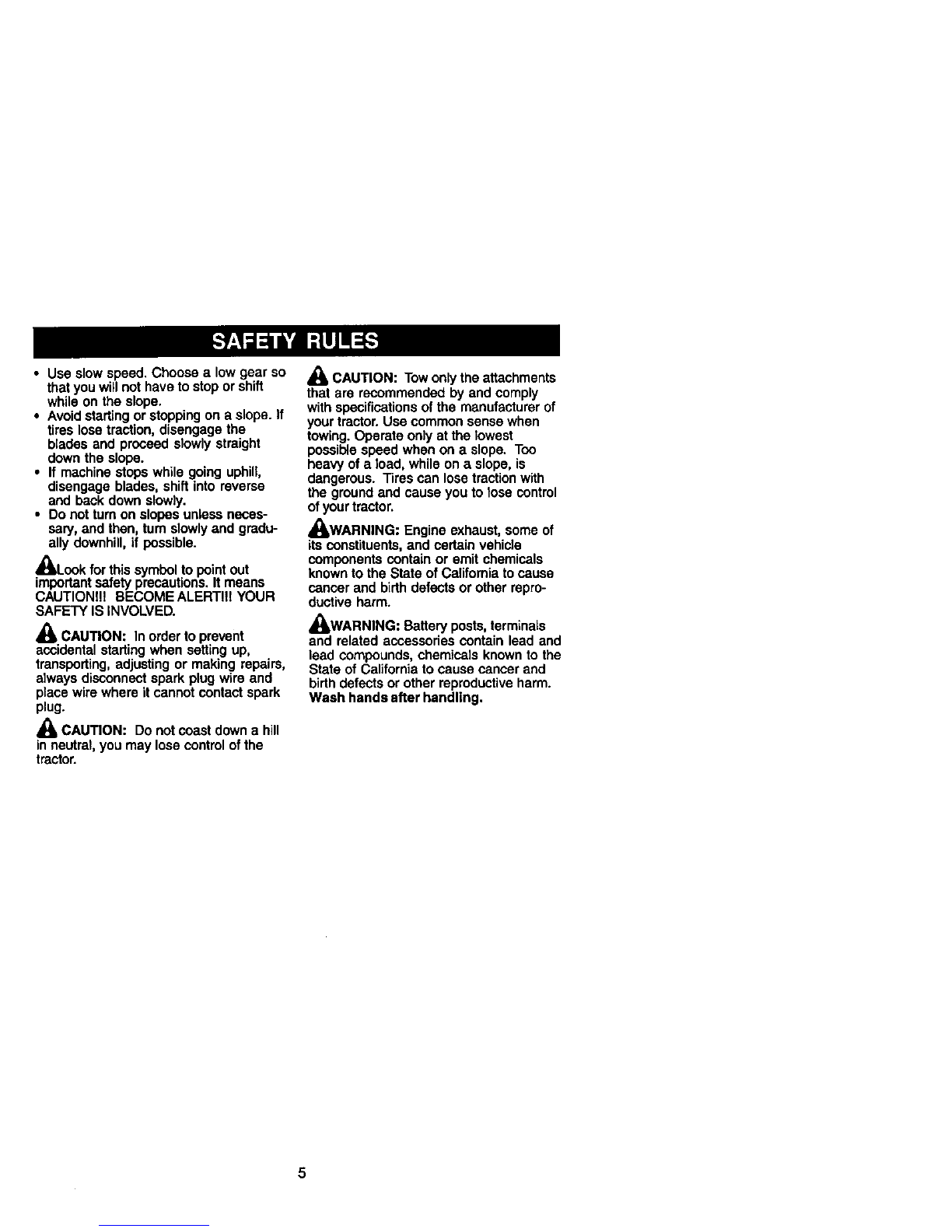

A(_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_, CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow onlythe attachments

that are recommended by and comply

with specifications o! the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possiblespeed when on a slope. Too

heavy of a load, while on aslope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

_.WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the Slate of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts,terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other mpreductive harm.

Wash hands after handling.

PRODUCTSPECIFICATIONS

GASOLINE 1.25GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE30(ABOVE32°F

API-SF-SJ): SAE5W-30

(BELOW32°F)

_)ILCAPACITY: W/FILTER: 3.5 PINTS

W/OFILTER: 3.0 PINTS

._PARKPLUG: CHAMPION RC12YC

IGAP:.030")

3ROUND SPEEDFORWARD:

'MPH): 1sT 1.2

2N° 1.5

3_° 2.4

4TM 3.5

5TM 4.8

6TM 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10PSI

CHARGING 3 AMPS BA']-rERY

SYSTEM: 5AMPS HEADLIGHTS

BATTERY: AMP,'HR: 25

MIN. CCA: 190

CASE SIZE: U1 R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

ofanewtractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experienca any problem you

cannot easily remedy, please contact a

Sears or other qualilied service center.

We have competent, well-trained techni-

cians and the proper toolsto service or

repair this tractor.

Please read and retainthis manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow aregular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instru_ons under "Mainte-

nance" and "Storage" sections of this

owner's manual.

/kWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable tocal

orstate laws (ifany). Ifaspark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Cede).

Other states may have similarlaws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering

WheelInsert

(1)HexBolt

3/8-16x I

Boot

SteerlngWheel

(1) Lockwasher 3/8

(1) Locknut

5/16-18

,_= Steering

Wheel Adapter

(1) Washer

17/32 x 1-3/16 x 12

Gauge

_(1) Knob

(1) Large Flat Washer

(1) Hex Bolt

5/16-18 x 1-1/4

Iteering

E_ension

Shaft

For Future Use

Slope Sheet

Keys

Video Cassette

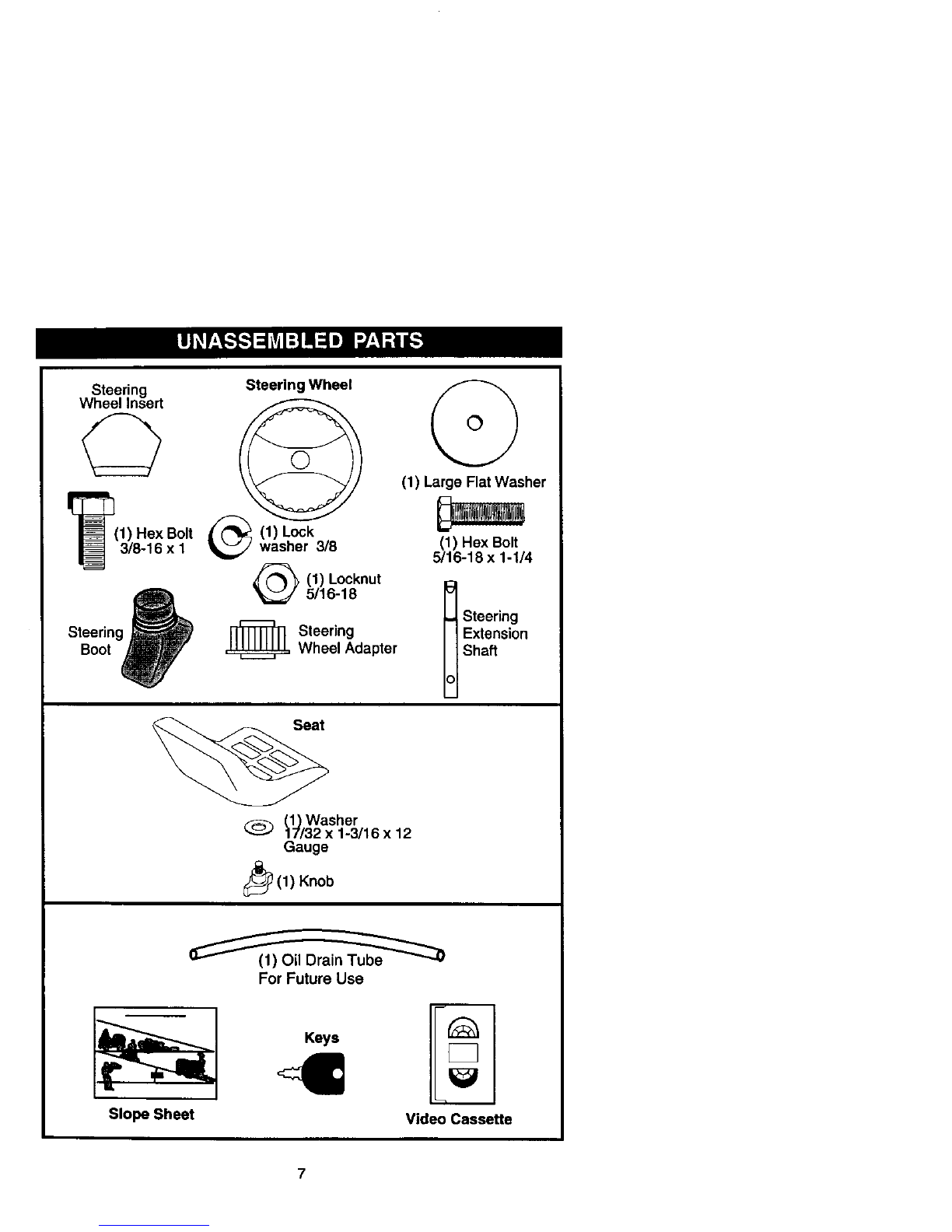

Your new tractor has been assembled at the factorywith exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware.you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

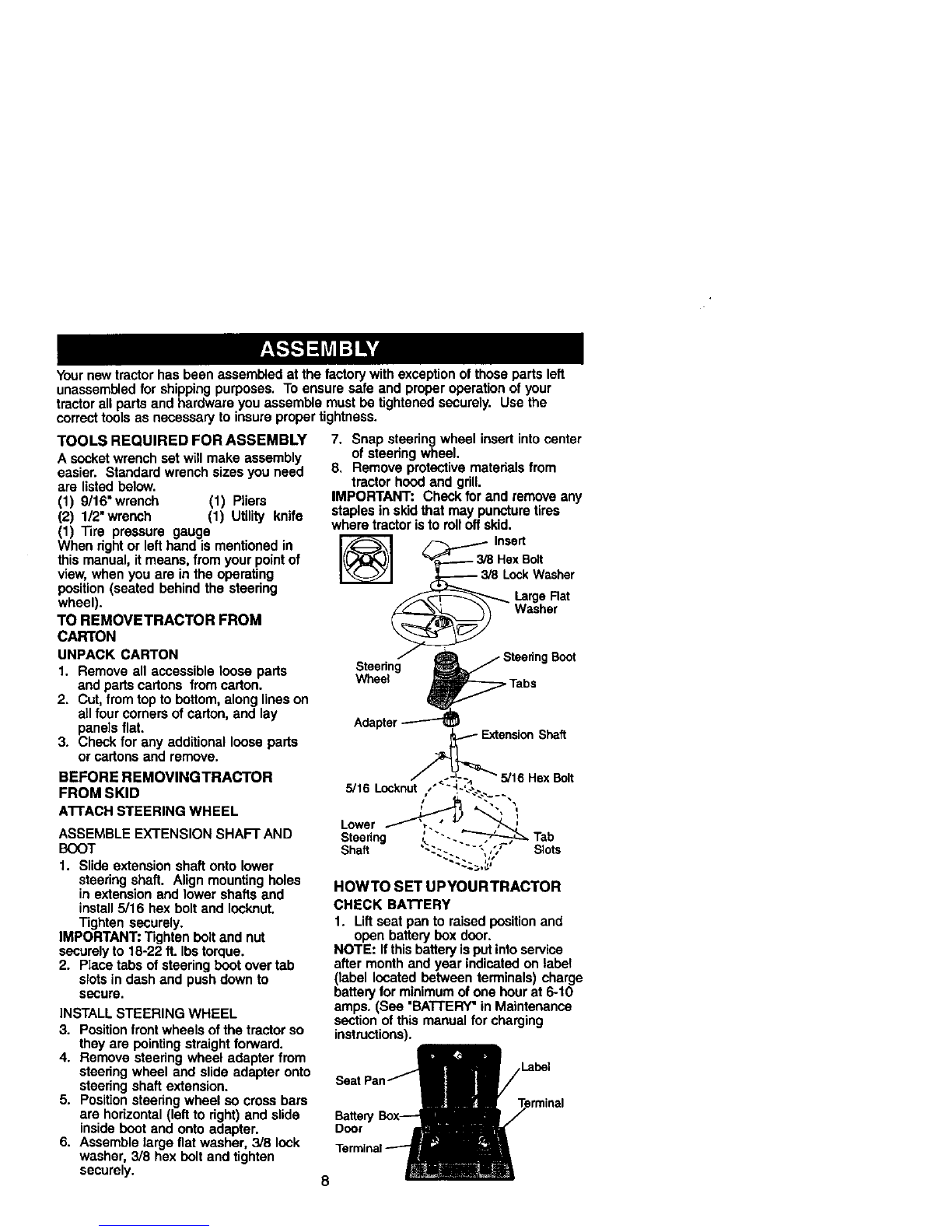

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16"wrench (1) Pliers

(2) 1/2"wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your pointof

view,when you are in the operating

position (seated behind the steering

wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from topto bottom, along lines on

all fourcorners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

7. Snap steering wheel insert intocenter

of steering wheel.

8, Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skidthat may puncture tires

where tractor is to roll oftskid.

3/8 HexBolt

_--_ Lock Washer

_'_-._ LargeRat

_Washer

BEFORE REMOVINGTRACTOR

FROM SKID

A'n'ACH STEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securelyto 18-22 ft. Ibstorque.

2. Piece tabs ofsteering boot over tab

slotsin dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position trontwheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adaptor from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

5/16 Locknut

Slots

HOWTO SET UPYOURTRACTOR

CHECK BATI'ERY

1. Lift seat pan to raisedposition and

open battery box door.

NOTE: It this batteryis put intoservice

after month and year indicated on label

(label located between terminals) charge

battery forminimum of one hour at 6-10

amps. (See "BA'I-rERY" in Maintenance

section of this manual for charging

instructions).

Label

Battery

Door

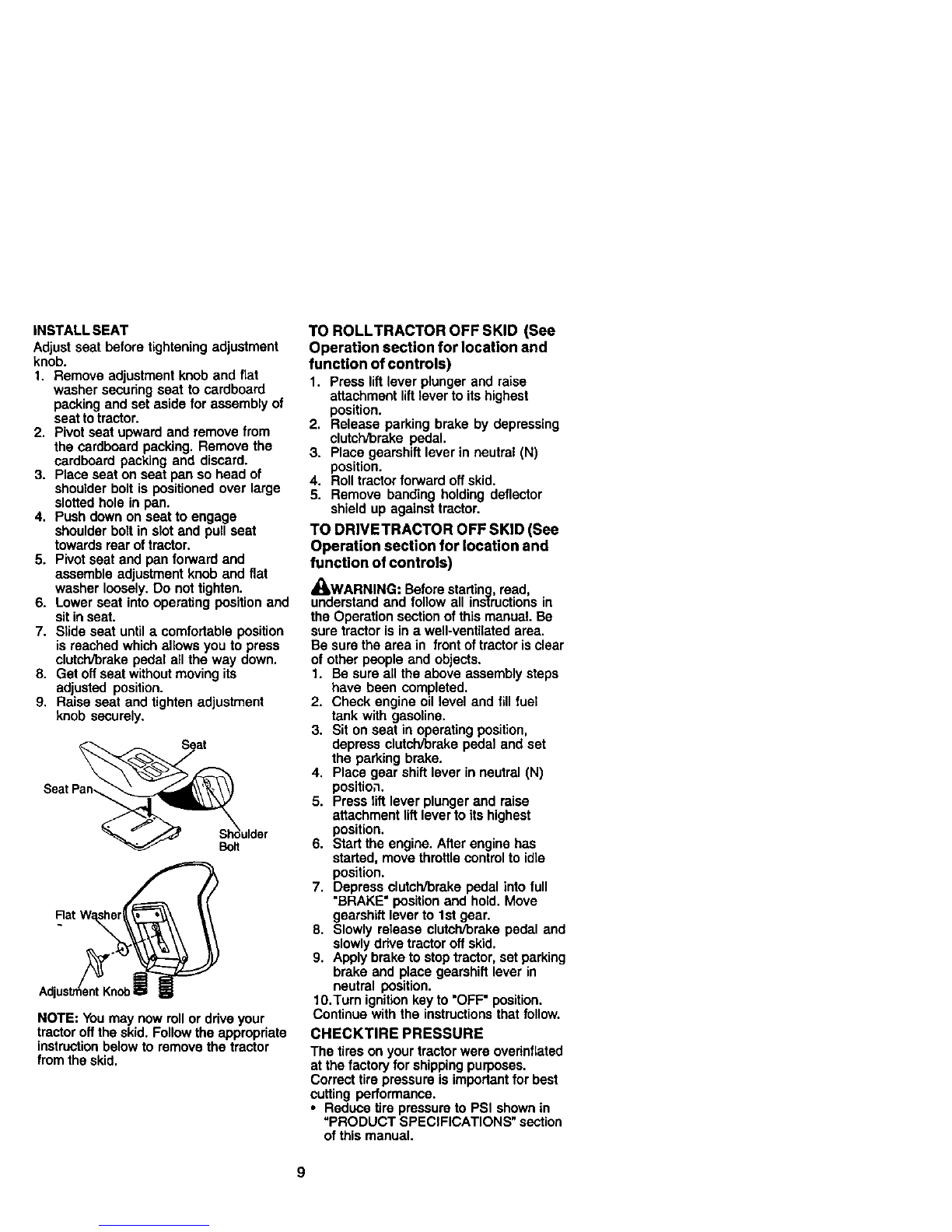

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer secunng seat to cardboard

packing and set aside for assembly of

seat totractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat intooperating position and

sit inseat.

7. Slide seat until acomfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9, Raise seat and tighten adjustment

knob securely.

SeatPan_ulder

°u.Z2s

NOTE: You may now roll or drive your

tractor offthe skid. Follow the appropriate

instructionbelow to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is clear

of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Depress clutch'brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor oft skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

CHECKTIRE PRESSURE

The tires on your tractor were ovednflated

at the factory for shipping purposes.

Correct tire pressure is importantfor best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

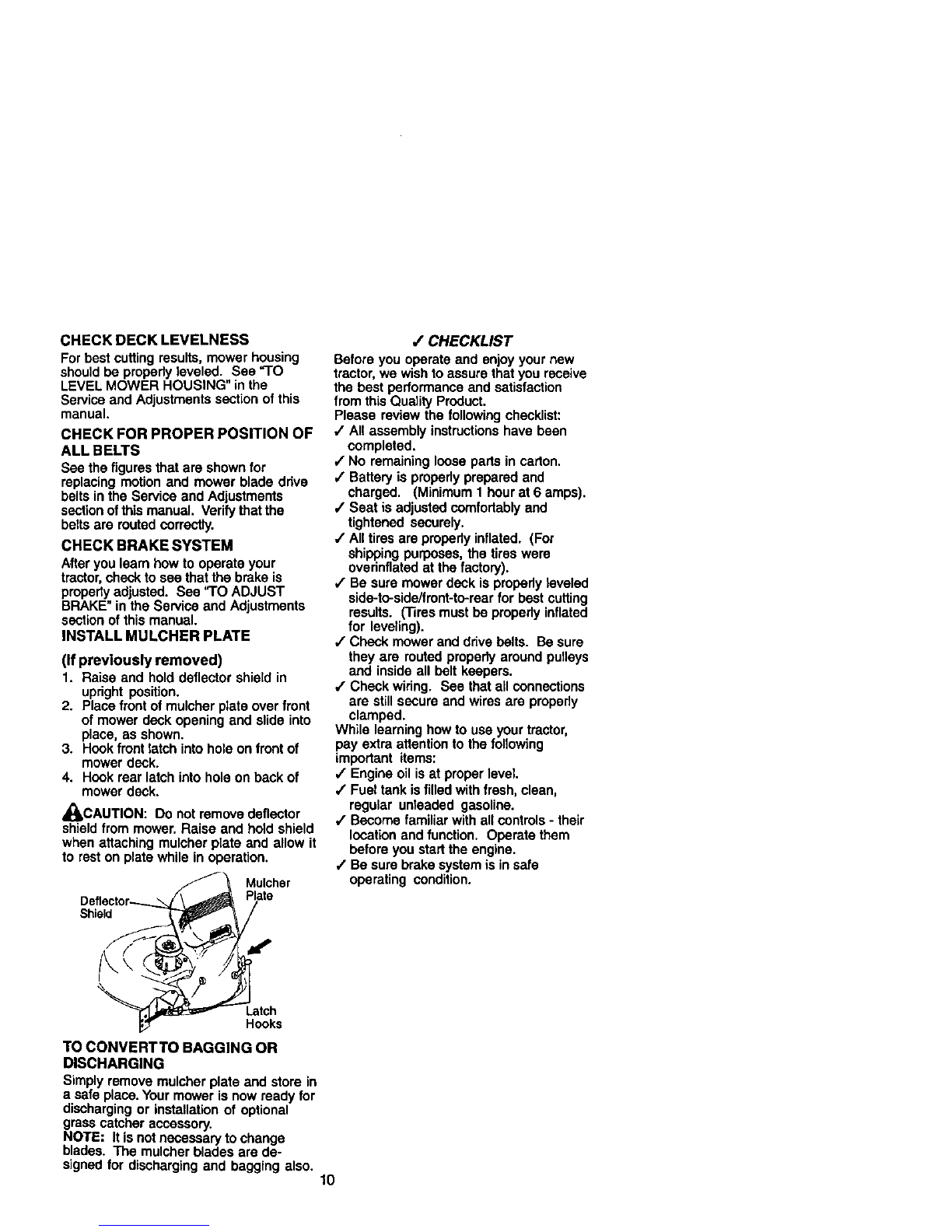

CHECKDECKLEVELNESS

Forbestcuttingresults,mowerhousing

shouldbepropedyleveled.See"TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

sectionof this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor,check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower dock opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower dock.

4. Hook roar latch into hole on back of

mower dock,

_.CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcber plate and allow it

to rest on plate while in operation.

Mulcher

Plate

Shield

/ CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure thatyou receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

/All assembly instructionshave been

completed.

/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

ovednflated at the factory).

/Be sure mower dock is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Chock mower and dnve belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Chock widng. See that all connections

are stillsecure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

#" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/Be sure brake system is in safe

operating condition.

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also. 10

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.388430 Manuel utilisateur

Craftsman

Craftsman 917.379200 Manuel utilisateur

Craftsman

Craftsman 917.288526 Manuel utilisateur

Craftsman

Craftsman 917.376551 Manuel utilisateur

Craftsman

Craftsman 917.276410 Manuel utilisateur

Craftsman

Craftsman 917.371860 Manuel utilisateur

Craftsman

Craftsman 917.388895 Manuel utilisateur

Craftsman

Craftsman 944.361361 Manuel utilisateur

Craftsman

Craftsman 28928 - YT 4000 24hp 46" Yard Tractor Manuel utilisateur

Craftsman

Craftsman 917.288622 Manuel utilisateur

Craftsman

Craftsman 917.378441 Manuel utilisateur

Craftsman

Craftsman 917.378290 Manuel utilisateur

Craftsman

Craftsman 247.38903 Manuel utilisateur

Craftsman

Craftsman 917.271142 Manuel utilisateur

Craftsman

Craftsman 917.270654 Manuel utilisateur

Craftsman

Craftsman 917.376062 Manuel utilisateur

Craftsman

Craftsman 917.370741 Manuel utilisateur

Craftsman

Craftsman 917.276021 Manuel utilisateur

Craftsman

Craftsman 917.376804 Manuel utilisateur

Craftsman

Craftsman 917.388461 Manuel utilisateur

Craftsman

Craftsman 917.272673 Manuel utilisateur

Craftsman

Craftsman 917.387480 Manuel utilisateur

Craftsman

Craftsman 38988 Manuel utilisateur

Craftsman

Craftsman 917.378893 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
