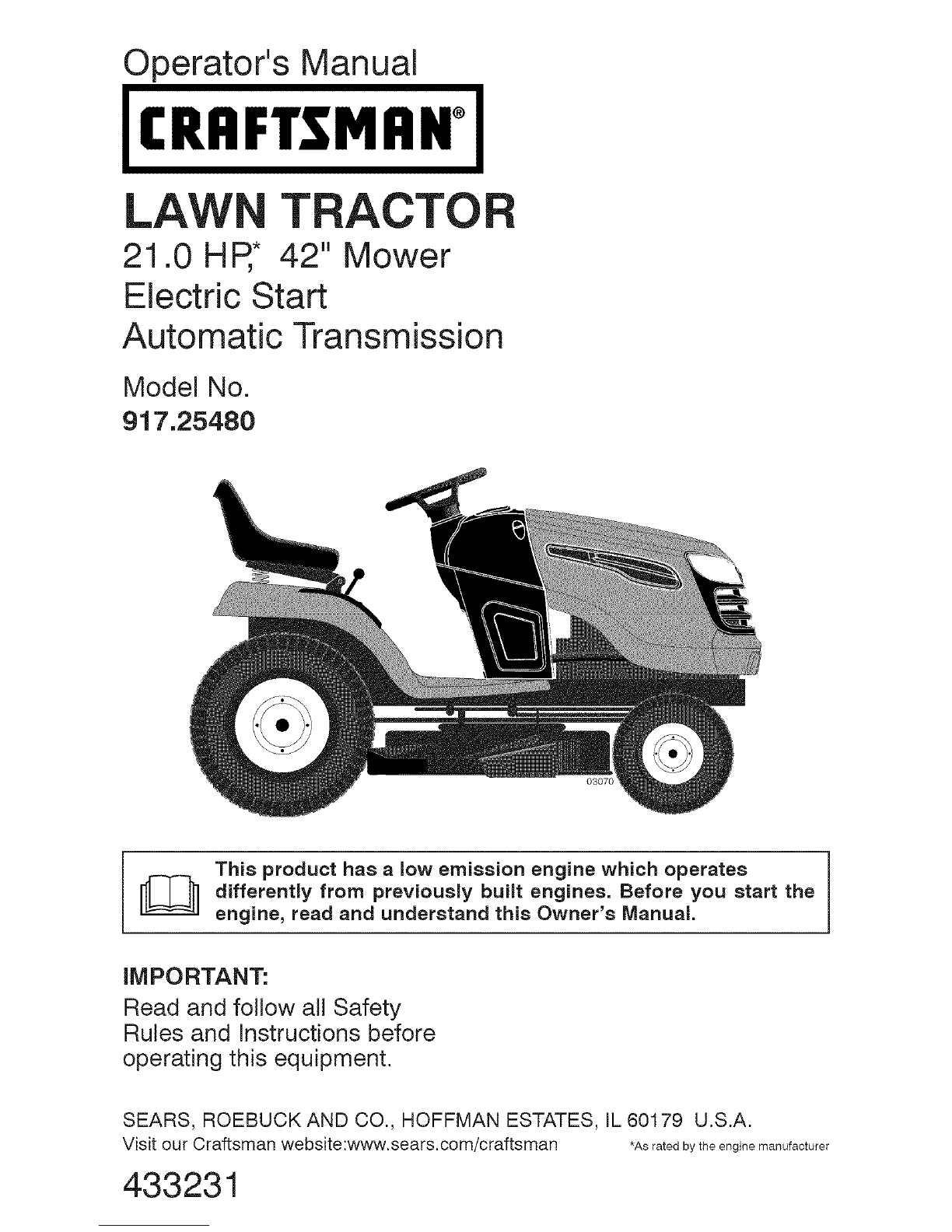

Operator's Manual

CRAFTSMAN°

LAW TRACTOR

21.0 HR* 42" Mower

Electric Start

Automatic Transmission

Model No.

917.25480

This product has a low emission engine which operates I

differently from previously built engines. Before you start the I

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

433231

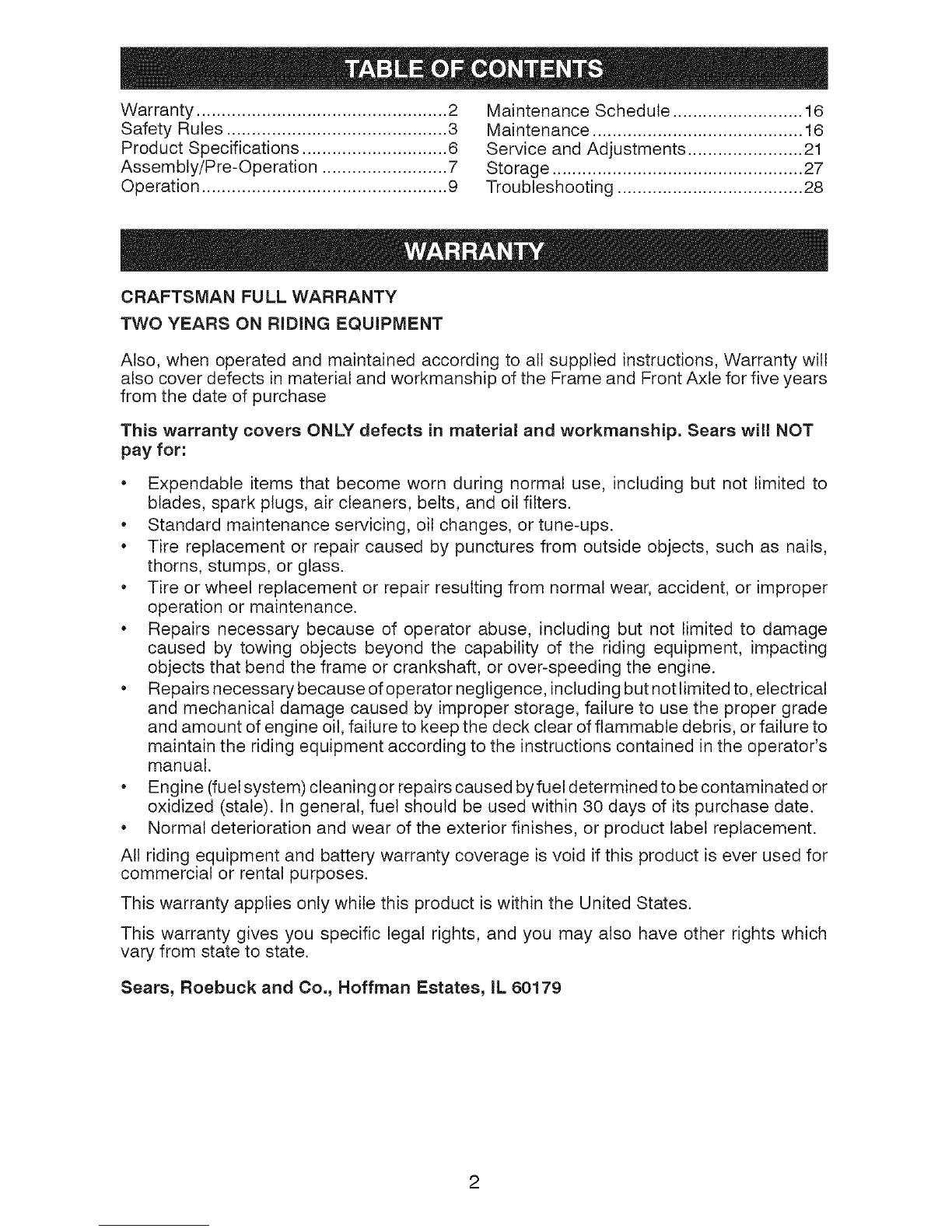

Warranty .................................................. 2

Safety Rules ............................................ 3

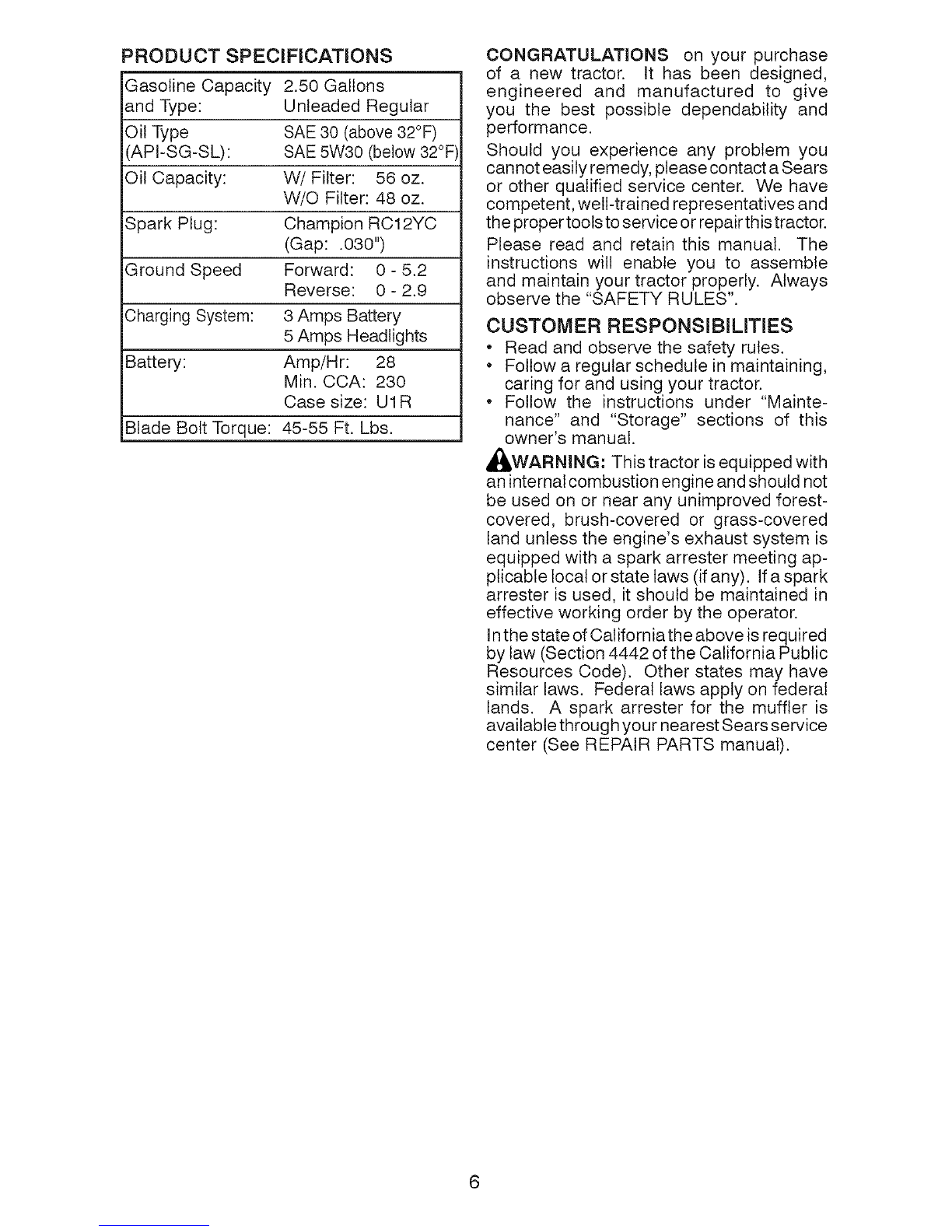

Product Specifications ............................. 6

Assembly/Pre-Operation ......................... 7

Operation ................................................. 9

Maintenance Schedule .......................... 16

Maintenance .......................................... 16

Service and Adjustments ....................... 21

Storage .................................................. 27

Troubleshooting ..................................... 28

CRAFTSMAN FULL WARRANTY

TWO YEARS ON RIDING EQUIPMENT

Also, when operated and maintained according to all supplied instructions, Warranty wilt

also cover defects in material and workmanship of the Frame and Front Axle for five years

from the date of purchase

This warranty covers ONLY defects in material and workmanship. Sears will NOT

pay for:

• Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard maintenance servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance.

• Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because ofoperator negligence, including but not timited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to

maintain the riding equipment according to the instructions contained in the operator's

manual.

• Engine (fuel system) cleaning or repairs caused byfuel determined to be contaminated or

oxidized (stale). In general, fuel should be used within 30 days of its purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

All riding equipment and battery warranty coverage is void if this product is ever used for

commercial or rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

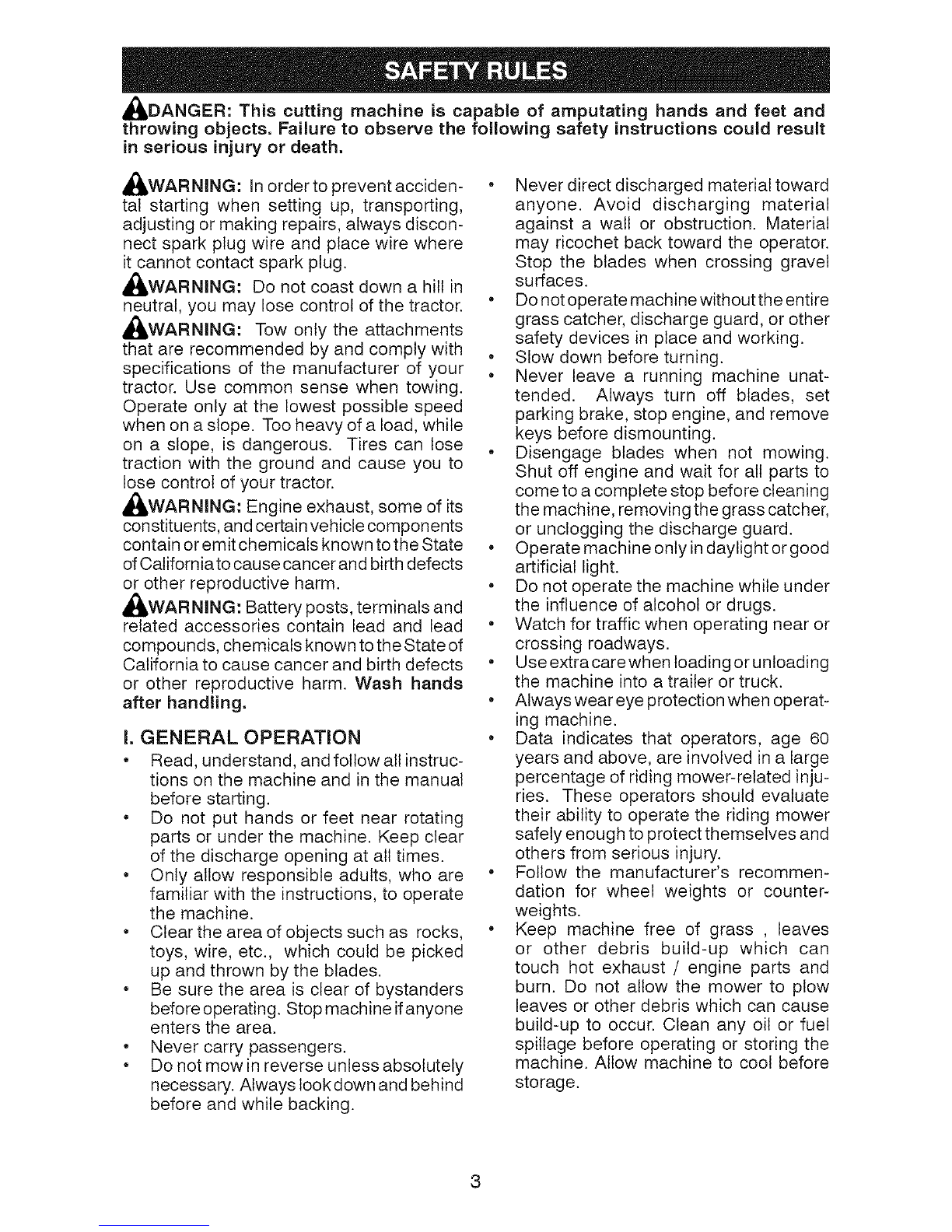

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_IWARNING: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

_IbWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_IWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_IWARNING: Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known to the State

ofCaliforniato cause cancer and birth defects

or other reproductive harm.

_,WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

* Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

* Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

* Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

* Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blades.

* Be sure the area is clear of bystanders

before operating. Stop machine ifanyone

enters the area.

* Never carry passengers.

* Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator.

Stop the blades when crossing gravel

surfaces.

Do not operate machine without the entire

grass catcher, discharge guard, or other

safety devices in place and working.

Stow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge guard.

Operate machine only in daylight or good

artificial light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unloading

the machine into a trailer or truck.

Always wear eye protection when operat-

ing machine.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

Keep machine free of grass , leaves

or other debris build-up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

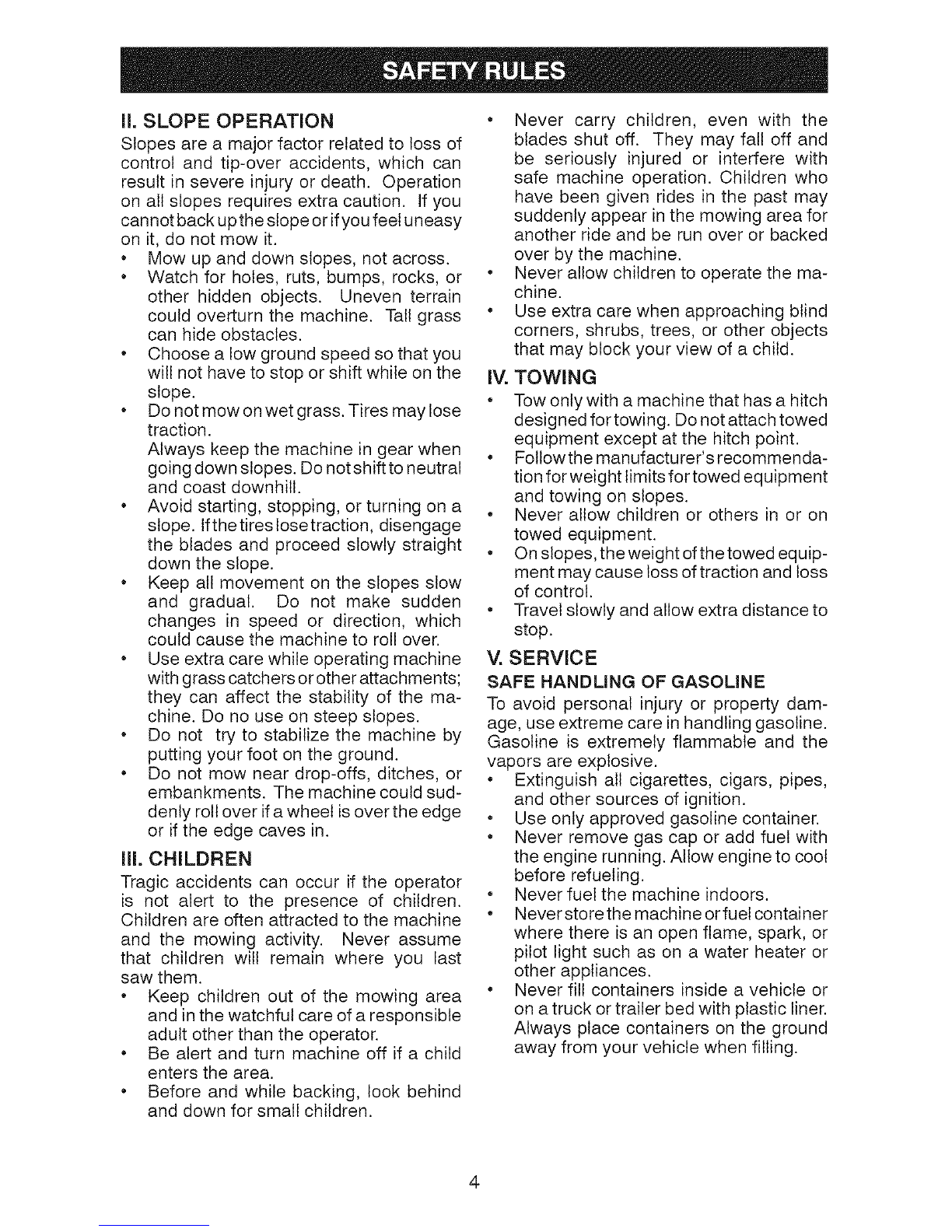

II.SLOPEOPERATION

Slopesareamajorfactorrelatedtotossof

controlandtip-overaccidents,whichcan

resultinsevereinjuryordeath.Operation

onallslopesrequiresextra caution. If you

cannot back upthe slope or ifyou feet uneasy

on it, do not mow it.

* Mow up and down slopes, not across.

* Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

* Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

* Do not mow on wet grass. Tires maylose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

* Avoid starting, stopping, or turning on a

slope. Ifthetireslosetraction, disengage

the blades and proceed slowly straight

down the slope.

* Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

* Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

* Do not try to stabilize the machine by

putting your foot on the ground.

* Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over ira wheel is over the edge

or if the edge caves in.

Ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

* Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

* Be alert and turn machine off if a child

enters the area.

* Before and while backing, look behind

and down for small children.

Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

Never allow children to operate the ma-

chine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

* Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

* Followthemanufacturer'srecommenda-

tion for weight limits for towed equipment

and towing on slopes.

* Never allow children or others in or on

towed equipment.

* On slopes,the weight ofthetowed equip-

ment may cause loss oftraction and toss

of control.

* Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

* Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

* Use only approved gasoline container.

* Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

* Never fuel the machine indoors.

* Neverstorethemachineorfuetcontainer

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

* Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

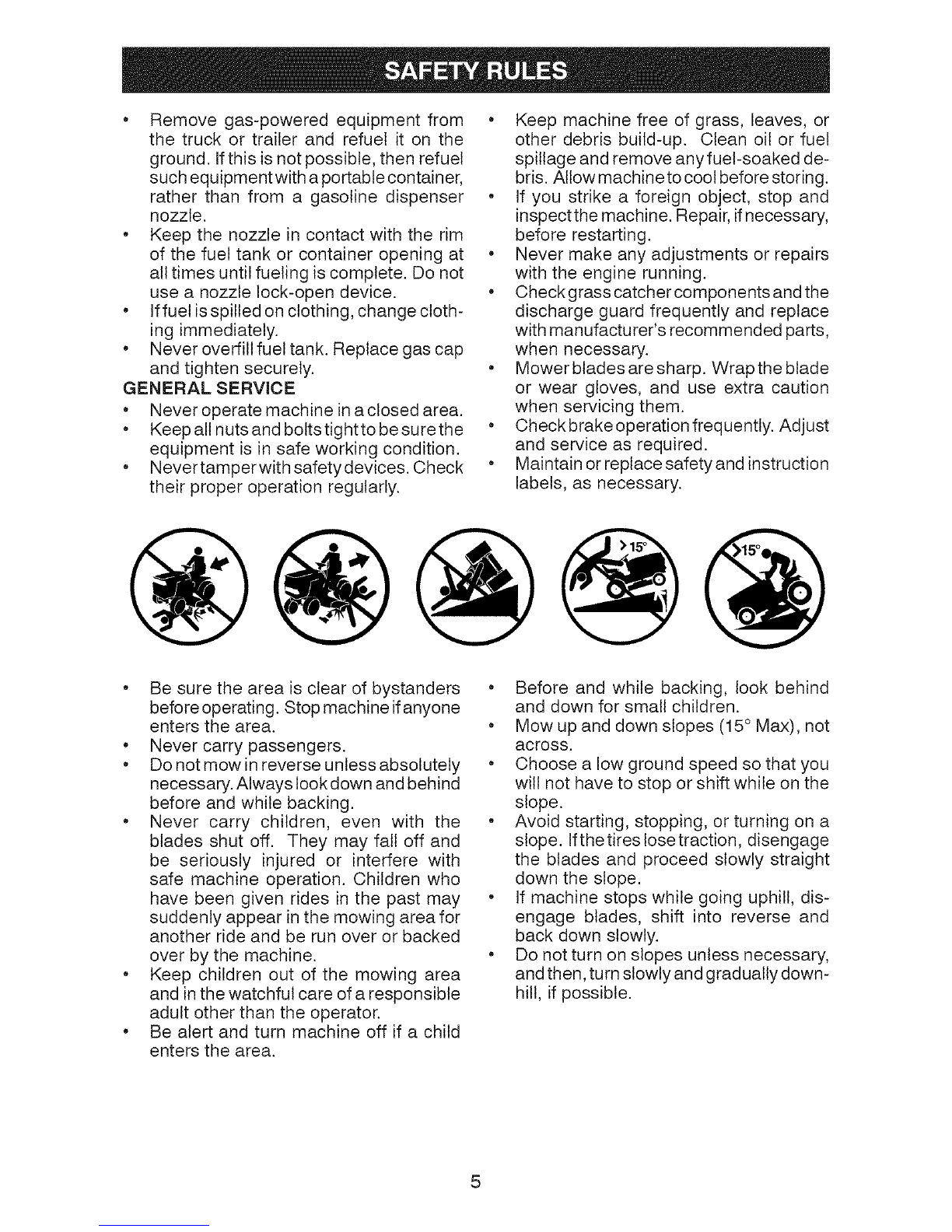

Removegas-poweredequipmentfrom

thetruckortrailerandrefuelitonthe

ground.Ifthisisnotpossible,thenrefuel

suchequipmentwithaportablecontainer,

ratherthanfromagasolinedispenser

nozzle.

Keepthenozzleincontactwiththerim

ofthefueltankorcontaineropeningat

alltimesuntilfuelingiscomplete.Donot

useanozzlelock-opendevice.

Iffuelisspilledonclothing,changecloth-

ingimmediately.

* Neveroverfillfueltank.Replacegascap

andtightensecurely.

GENERALSERVICE

.Never operate machine in aclosed area.

Keep all nuts and bolts tightto be sure the

equipment is in safe working condition.

Never tamper with safety devices. Check

their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked de-

bris. Allow machine to cool before storing.

If you strike a foreign object, stop and

inspectthe machine. Repair, ifnecessary,

before restarting.

Never make any adjustments or repairs

with the engine running.

Check grass catcher components and the

discharge guard frequently and replace

with manufacturer's recommended parts,

when necessary.

Mower blades are sharp. Wrapthe blade

or wear gloves, and use extra caution

when servicing them.

Check brake operation frequently. Adjust

and service as required.

Maintain or replace safety and instruction

labels, as necessary.

Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

Be alert and turn machine off if a child

enters the area.

Before and while backing, look behind

and down for small children.

Mow up and down slopes (15° Max), not

across.

Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

If machine stops while going uphill, dis-

engage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually down-

hill, if possible.

PRODUCTSPECIFiCATiONS

Gasoline Capacity 2.50 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE 5W30 (below32°F

Oil Capacity: W/Filter: 56 oz.

W/O Filter: 48 oz.

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0- 5.2

Reverse: 0- 2.9

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a Sears

or other qualified service center. We have

competent, well-trained representatives and

the proper tools to service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILiTiES

•Read and observe the safety rules.

•Follow a regular schedule in maintaining,

caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_IbWARN[NG: This tractor isequipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state taws (if any). [f aspark

arrester is used, it should be maintained in

effective working order by the operator.

Inthe state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

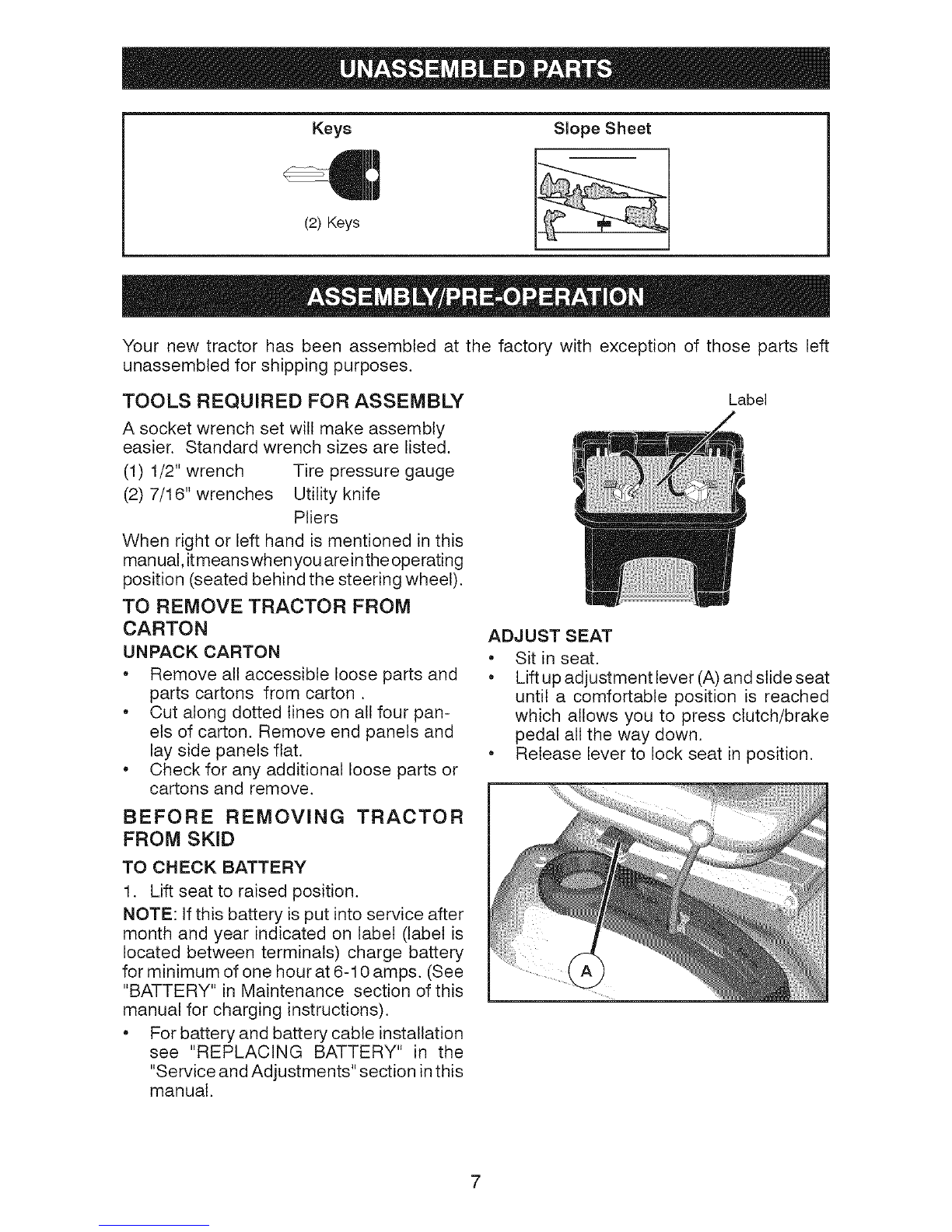

Keys Slope Sheet

(2) Keys

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(1) 1/2" wrench Tire pressure gauge

(2) 7/16" wrenches Utility knife

Pliers

When right or left hand is mentioned in this

manual, itmeanswhen youarein the operating

position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

* Remove all accessible loose parts and

parts cartons from carton.

* Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

TO CHECK BATTERY

1. Lift seat to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (label is

located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions).

* For batteryand battery cable installation

see "REPLACING BATTERY" in the

"Service and Adjustments" section in this

manual.

Label

ADJUST SEAT

* Sit in seat.

* Lift up adjustment lever (A)and slide seat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

* Release lever to lock seat in position.

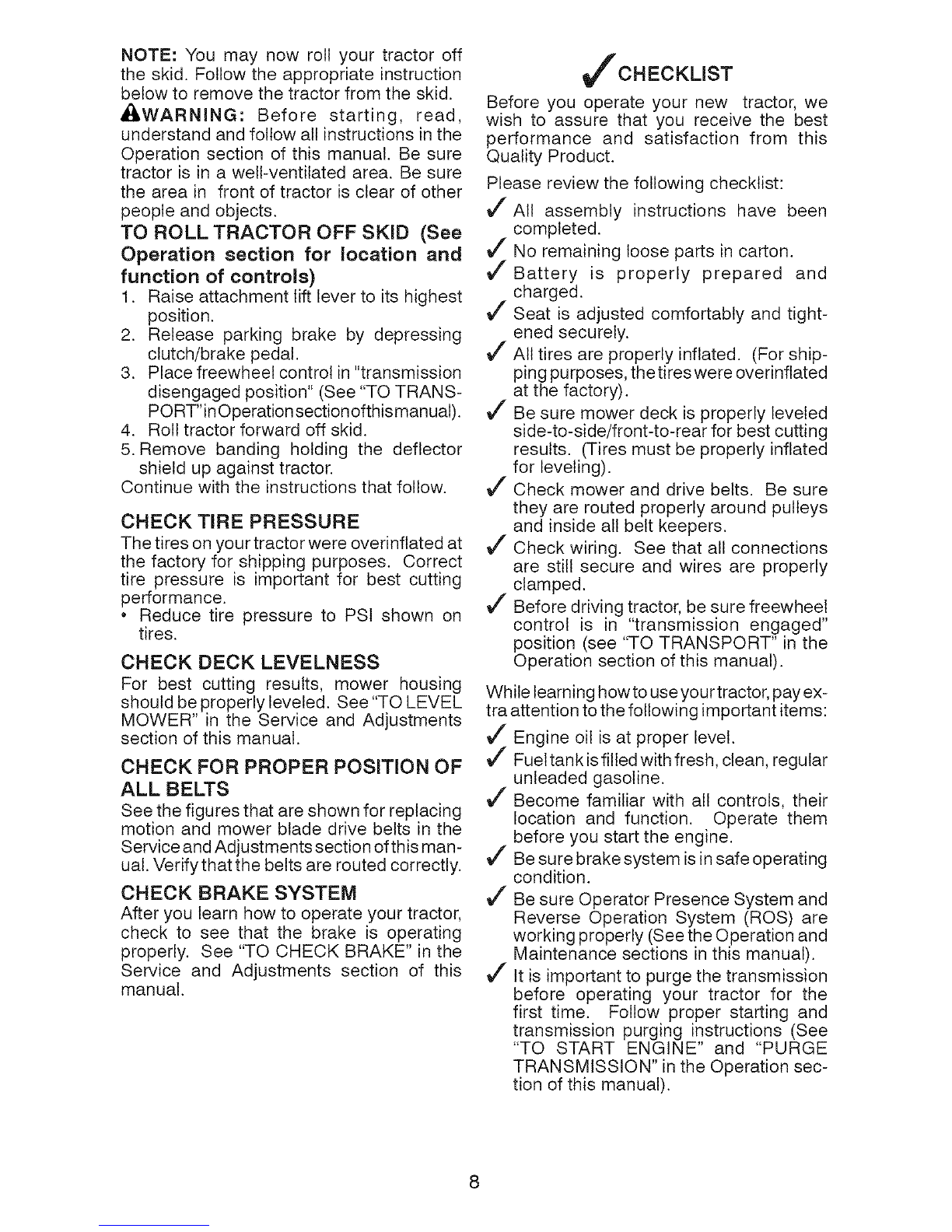

NOTE:Youmaynowrollyourtractoroff

theskid.Followtheappropriateinstruction

belowtoremovethetractorfromtheskid.

_WARNING:Beforestarting,read,

understandandfollowallinstructionsinthe

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "transmission

disengaged position" (See "TO TRANS-

PORT" inOperation section ofthis manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinftated at

the factory for shipping purposes. Correct

tire pressure is important for best cutting

performance.

• Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEL

MOWER" in the Service and Adjustments

section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section of this man-

ual. Verifythat the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating

properly. See "TO CHECK BRAKE" in the

Service and Adjustments section of this

manual.

_CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

_" All assembly instructions have been

completed.

_" No remaining loose parts in carton.

_'Battery is properly prepared and

charged.

_" Seat is adjusted comfortably and tight-

ened securely.

J" All tires are properly inflated. (For ship-

ping purposes, thetires were overinftated

at the factory).

_" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

_" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

J" Check wiring. See that all connections

are still secure and wires are properly

clamped.

J" Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay ex-

tra attention to the following important items:

J" Engine oil is at proper level.

J" Fuel tank isfilled with fresh, clean, regular

unleaded gasoline.

J" Become familiar with all controls, their

location and function. Operate them

before you start the engine.

J" Be sure brake system isin safe operating

condition.

J" Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

J" It is important to purge the transmission

before operating your tractor for the

first time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation sec-

tion of this manual).

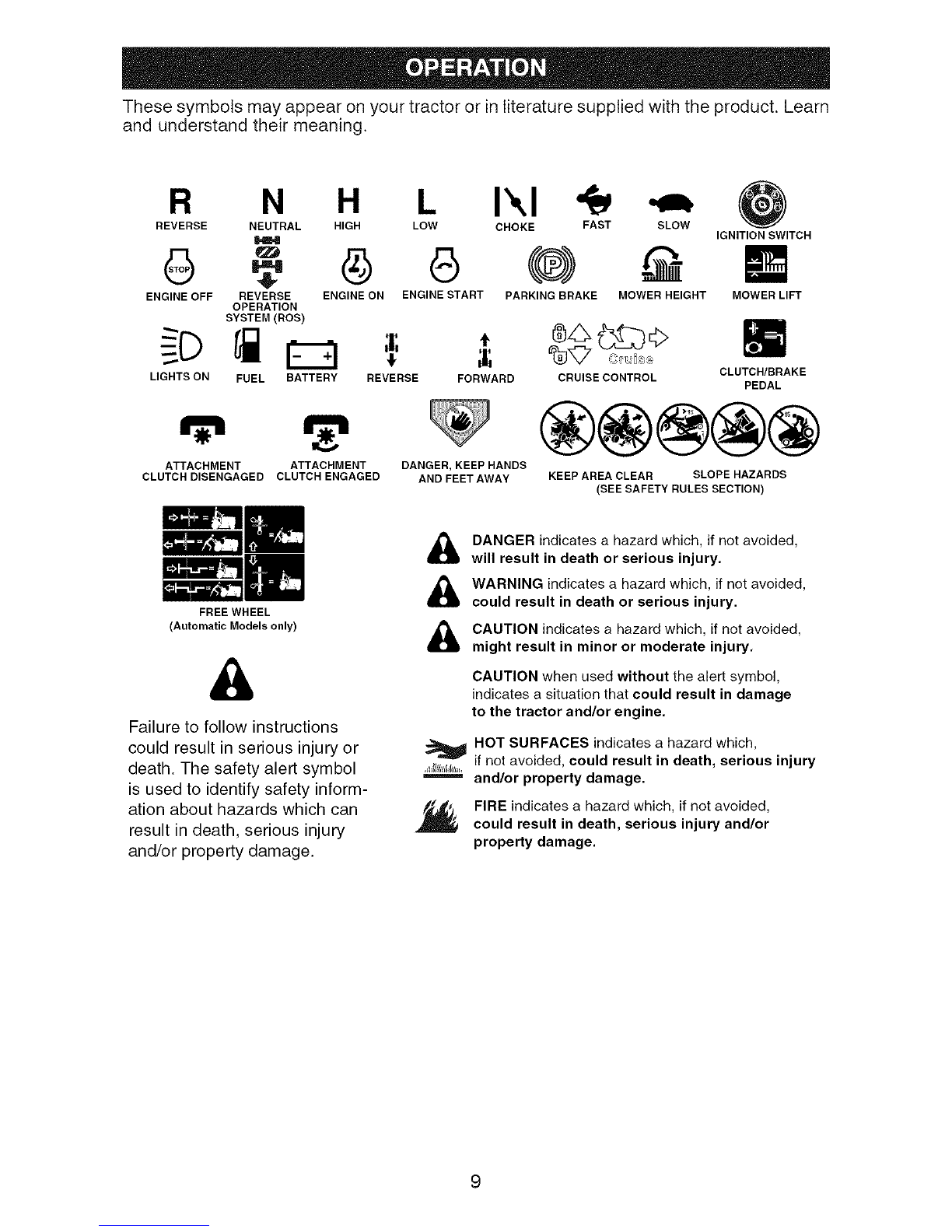

These symbols may appear on your tractor or in literature supplied with the product. Learn

and understand their meaning.

R N H I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM(ROS)

CRUISE CONTROL

IGNITION SWITCH

MOWER LIFT

CLUTCH/BRAKE

LIGHTS ON FUEL BATTERY REVERSE FORWARD PEDAL

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED DANGER, KEEP HANDS

AND FEET AWAY ®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

,Jl_llIll/l_lll,,

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

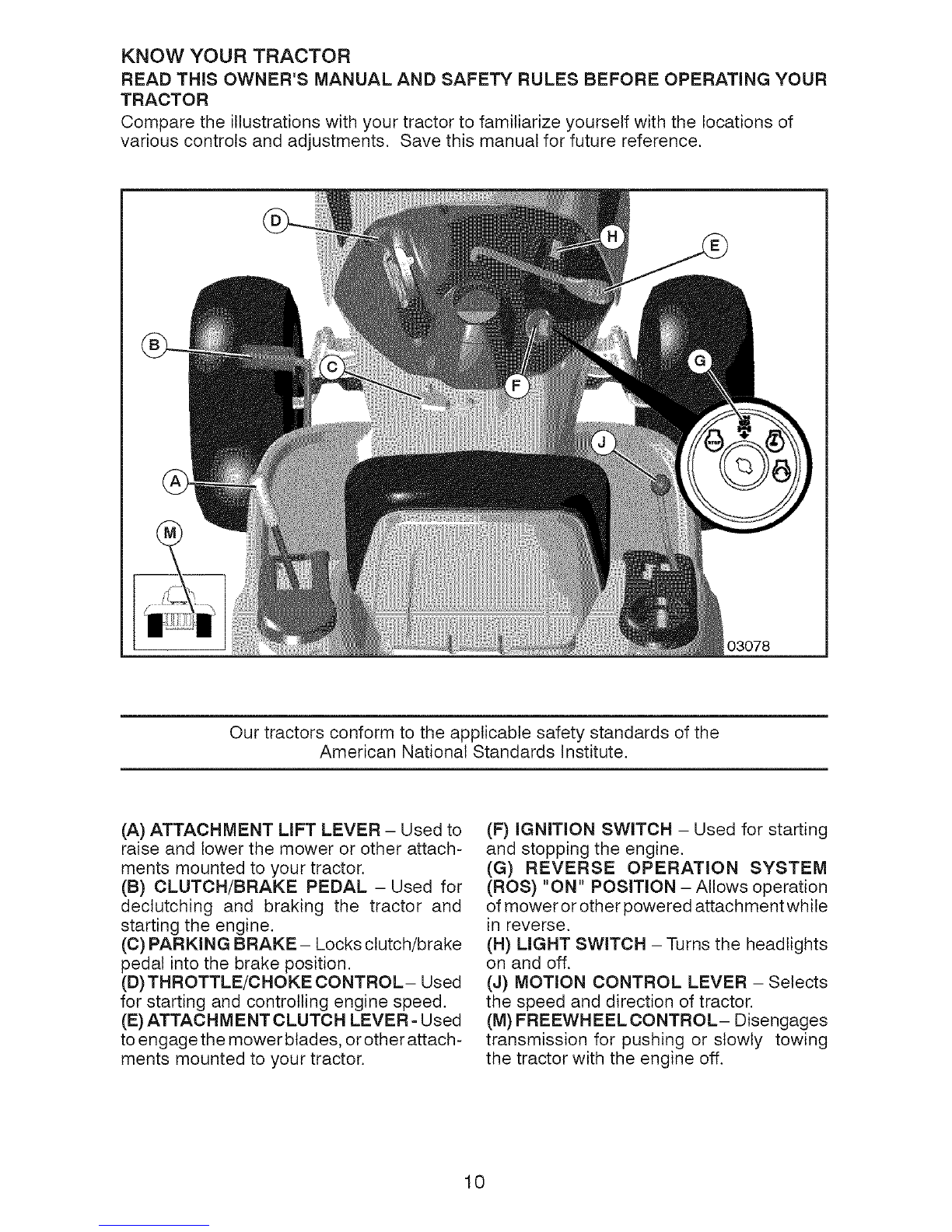

KNOW YOUR TRACTOR

READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

03078

Our tractors conform to the applicable safety standards of the

American National Standards institute.

(A) ATTACHMENT LIFT LEVER - Used to

raise and lower the mower or other attach-

ments mounted to your tractor.

(B) CLUTCH/BRAKE PEDAL- Used for

dectutching and braking the tractor and

starting the engine.

pedal into the brake position.

(B) THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

(E)ATTACH MENT CLUTC HLEVER - Used

to engage the mower btades, or other attach-

ments mounted to your tractor.

(F) IGNITION SWITCH - Used for starting

and stopping the engine.

(G) REVERSE OPERATION SYSTEM

(ROS) "ON" POSITION - Allows operation

ofmower or other powered attachment while

in reverse.

(H) LIGHT SWITCH - Turns the headlights

on and off.

(J) MOTION CONTROL LEVER - Selects

the speed and direction of tractor.

(M) FREEWHEELCONTROL- Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 944.609040 Manuel utilisateur

Craftsman

Craftsman 917.378800 Manuel utilisateur

Craftsman

Craftsman 247.374302 Manuel utilisateur

Craftsman

Craftsman 944.364153 Manuel utilisateur

Craftsman

Craftsman 247.379550 Manuel utilisateur

Craftsman

Craftsman 917.28858 Manuel utilisateur

Craftsman

Craftsman 917.378932 Manuel utilisateur

Craftsman

Craftsman 917.378760 Manuel utilisateur

Craftsman

Craftsman 917.375452 Manuel utilisateur

Craftsman

Craftsman 917.370441 Manuel utilisateur

Craftsman

Craftsman T1200 Manuel utilisateur

Craftsman

Craftsman 37624 - Front Propelled Rear Bag Lawn Mower Manuel utilisateur

Craftsman

Craftsman 25459 Manuel utilisateur

Craftsman

Craftsman 247.377300 Manuel utilisateur

Craftsman

Craftsman M220 Manuel utilisateur

Craftsman

Craftsman 917.377521 Manuel utilisateur

Craftsman

Craftsman 247.203690 Manuel utilisateur

Craftsman

Craftsman 917.388124 Manuel utilisateur

Craftsman

Craftsman 917.388860 Manuel utilisateur

Craftsman

Craftsman 917.28910 Manuel utilisateur

Craftsman

Craftsman 917.270530 Manuel utilisateur

Craftsman

Craftsman 917.376593 Manuel utilisateur

Craftsman

Craftsman 917.376660 Manuel utilisateur

Craftsman

Craftsman 917.2736401 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
