Smart Lawn Connect Kit

Installation Instructions

Installation Guide:

1Using screwdriver, remove (2) two-piece plastic retainer plugs on rearward end of Control Panel

(see illustration below).

A. Insert screwdriver into recess in retainer ring,

underneath plunger, and gently pry upward.

B. Insert screwdriver between metal console and

retainer ring and gently pry upward to remove.

These instructions apply to Craftsman Pro Series Zero Turn riding mowers (model #247.XXXXX)

Please read through entire instruction sequence before beginning installation.

Congratulations on purchasing a Craftsman Smart Lawn Connect Kit. The Craftsman Smart Lawn Connect Plug

will easily plug in to the back side of your Craftsman Rider’s Ignition Switch located on the dashboard.

October 26, 2016

Control Panel

WARNING Before performing any maintenance or repairs and to reduce the risk of injury,

disengage PTO, set parking brake, stop engine and remove key to prevent unintended starting.

Smart Lawn Connect Kit

Installation Instructions

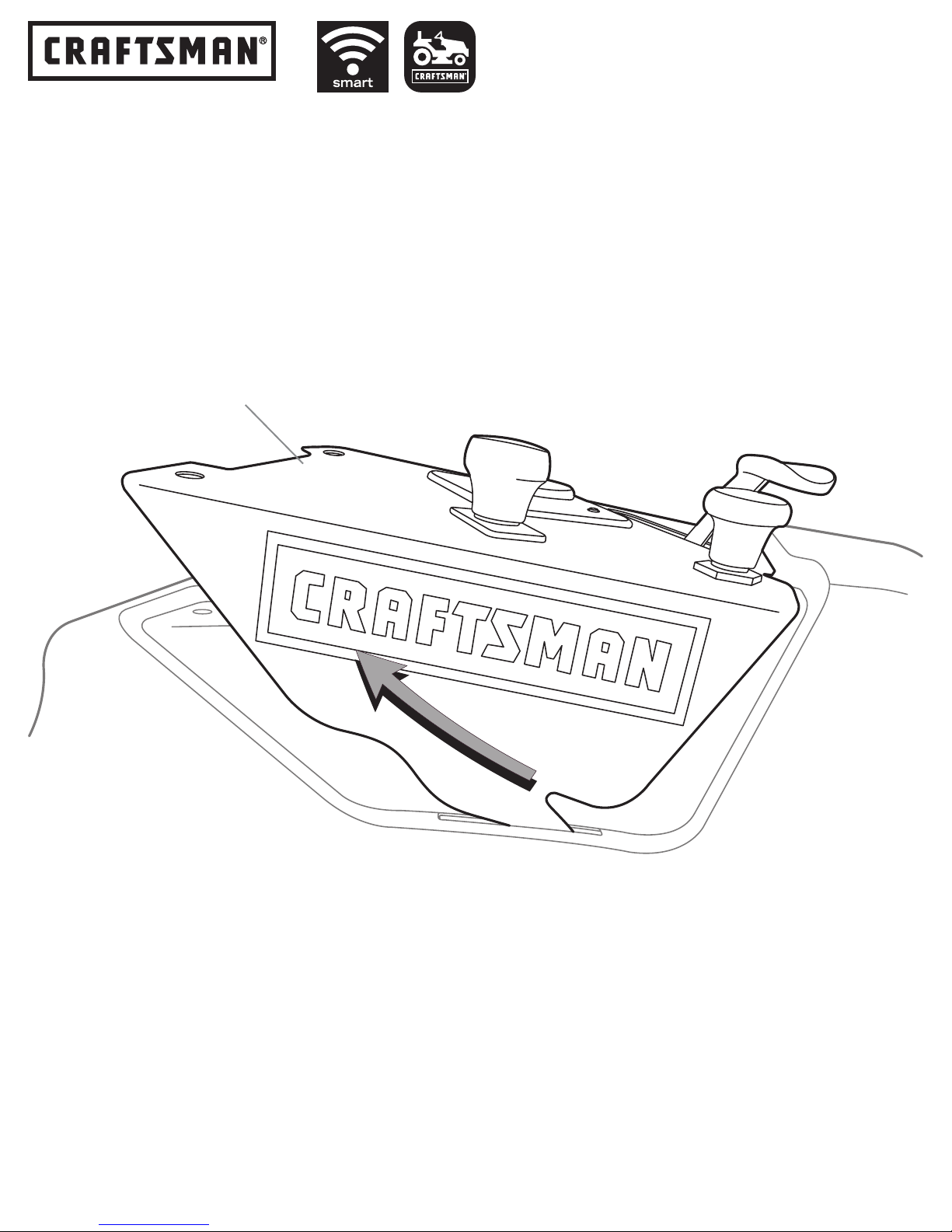

2Pull Control Panel toward rear of tractor and lift rearward edge (see illustration below).

Control Panel

Smart Lawn Connect Kit

Installation Instructions

Lift Control

Panel up

3The back side of the Ignition Switch and Wire Harness Connector are revealed when the Control Panel is

lifted. The Wire Harness Connector can now be unplugged.

4Note prong conguration and install the Craftsman Smart Lawn Connect Plug onto the Ignition Switch.

Then plug the Wire Harness Connector into the Craftsman Smart Lawn Connect Plug

(refer to illustration above).

Wire Harness

Connector

Ignition Switch

Craftsman Smart

Lawn Connect Plug

Smart Lawn Connect Kit

Installation Instructions

Wire Harness

Connector

Ignition Switch

Craftsman Smart

Lawn Connect Plug

Assembly is complete when the Craftsman

Smart Lawn Connect Plug is sandwiched

between the other two components.

Your part may vary slightly in appearance.

Before reassembling the Console, tug on the

ends of the plug assembly. When pushed

together correctly they should not pull apart.

Prongs will be visible here

Wire Harness

Connector

Ignition Switch

Craftsman Smart

Lawn Connect Plug

5When all three components are plugged together this is how the plug assembly looks (refer to illustration

below). NOTE: The base of the Ignition Switch prongs will be visible in the gap between the Ignition Switch

and the Craftsman Smart Lawn Connect Plug. This is intentional, and allows for proper plug functionality.

Smart Lawn Connect Kit

Installation Instructions

Note - hook feature

ts into slot in fender.

Control Panel

6Once the Plug assembly is secure, push Control Panel down and forward into Fender

(see illustration below).

Smart Lawn Connect Kit

Installation Instructions

Replace Plastic Retainer Plugs

7When the Control Panel is in place, secure it with the (2) two-piece plastic retainer plugs to complete

installation (refer to illustration below).

Control Panel

†

*The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [Sears Brands Management Corporation] is under license. Other trademarks and trade names are those of their respective owners.

†Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and Android are trademarks of Google Inc. Sears Brands Management Corporation, Hoffman Estates, IL 60179

For additional information please refer to: craftsman.com/connectkit

If you have further questions, call the Craftsman help line at 1-888-331-4569

Once assembly is complete please download the FREE Craftsman Smart Lawn App to begin using

all of the new connectivity features of your Craftsman rider!
