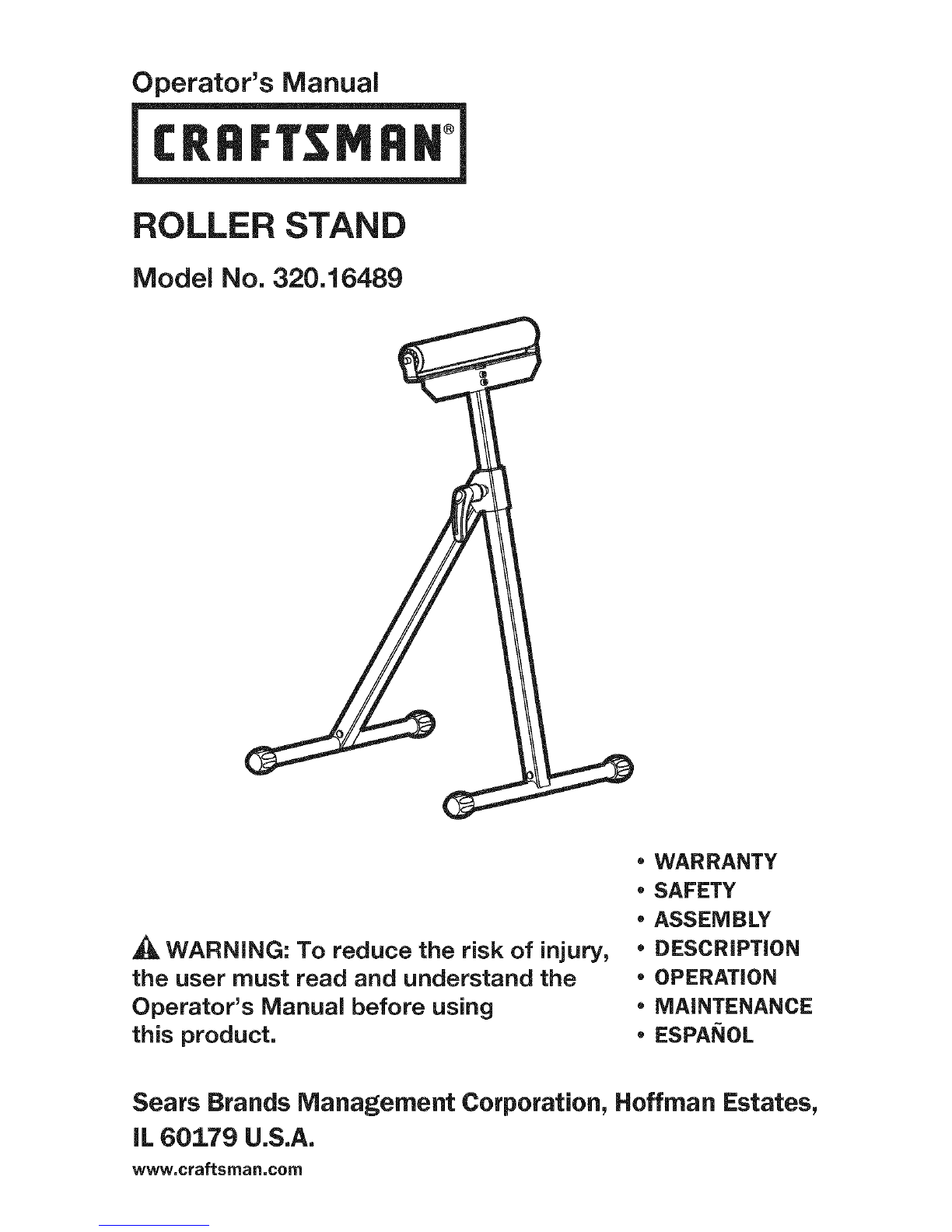

Craftsman 320.16489 Manuel utilisateur

Operator's Manual

ROLLER STAND

Model No. 320.16489

WARNING: To reduce the risk of injury,

the user must read and understand the

Operator's Manual before using

this product.

• WARRANTY

• SAFETY

• ASSEMBLY

• DESCRiPTiON

• OPERATION

• MAINTENANCE

• ESPANOL

Sears Brands Management Corporation, Hoffrnan Estates,

IL 60179 U.S.A.

www,cfaftsman,com

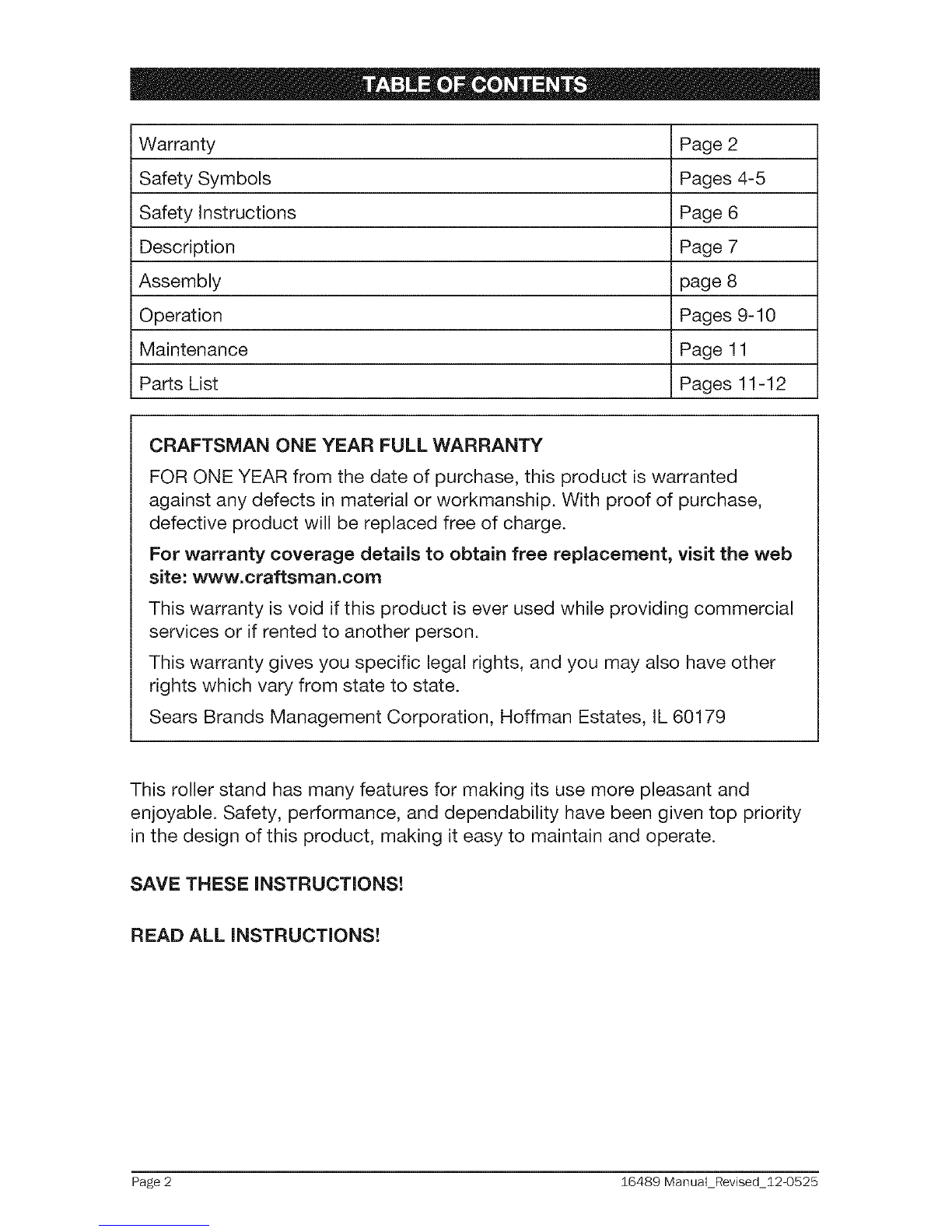

Warranty Page 2

Safety Symbols Pages 4-5

Safety Instructions Page 6

Description Page 7

Assembly page 8

Operation Pages 9-10

Maintenance Page 11

Parts List Pages 11-12

CRAFTSMAN ONE YEAR FULL WARRANTY

FOR ONE YEAR from the date of purchase, this product is warranted

against any defects in material or workmanship. With proof of purchase,

defective product will be replaced free of charge.

For warranty coverage details to obtain free replacement, visit the web

site: www.craftsman.com

This warranty is void if this product is ever used while providing commercial

services or if rented to another person.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

This roller stand has many features for making its use more pleasant and

enjoyable. Safety, performance, and dependability have been given top priority

in the design of this product, making it easy to maintain and operate.

SAVE THESE iNSTRUCTiONS!

READ ALL iNSTRUCTiONS!

Page 2 16489 ManuaLRevised_12 0525

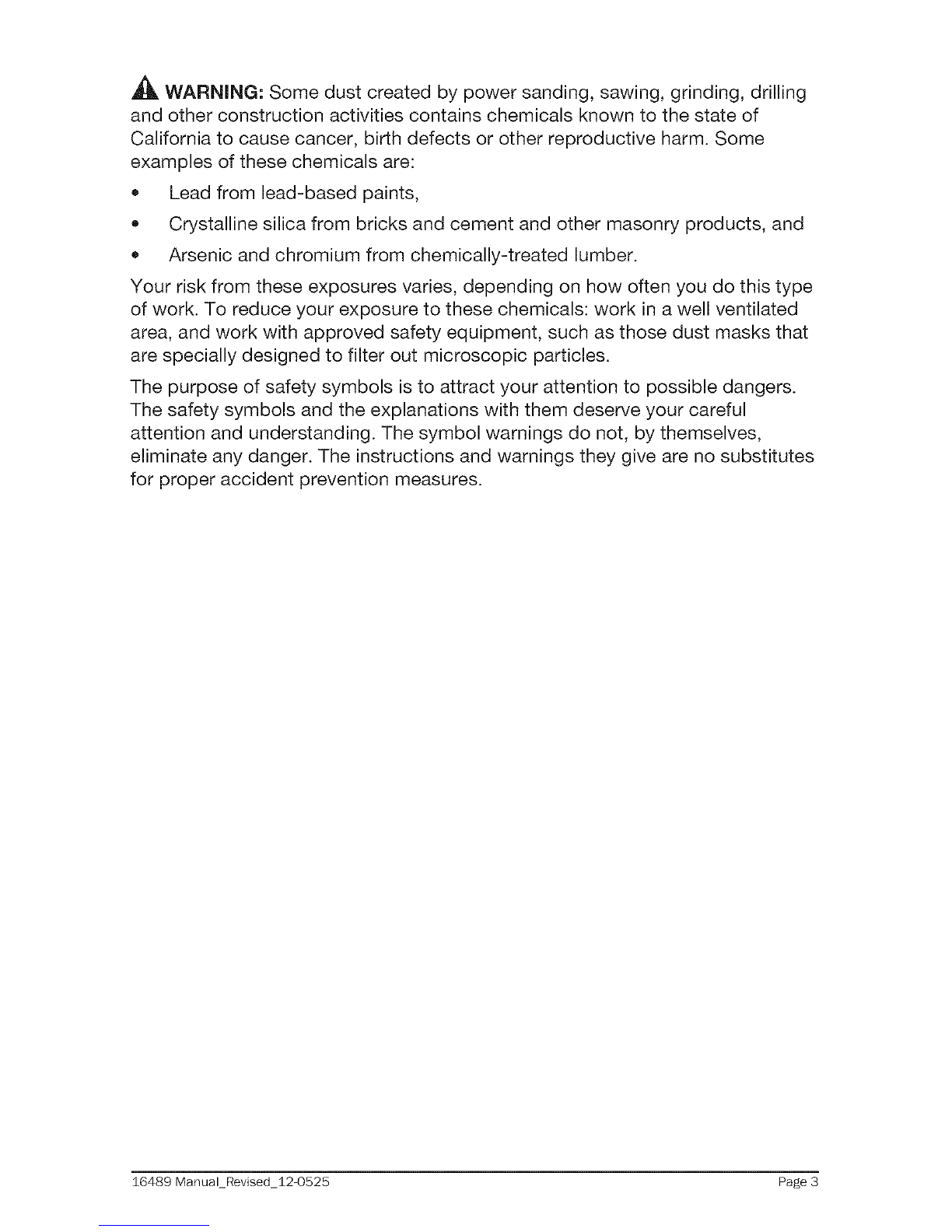

WARNING: Some dust created by power sanding, sawing, grinding, drilling

and other construction activities contains chemicals known to the state of

California to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

• Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type

of work. To reduce your exposure to these chemicals: work in a well ventilated

area, and work with approved safety equipment, such as those dust masks that

are specially designed to filter out microscopic particles.

The purpose of safety symbols is to attract your attention to possible dangers.

The safety symbols and the explanations with them deserve your careful

attention and understanding. The symbol warnings do not, by themselves,

eliminate any danger. The instructions and warnings they give are no substitutes

for proper accident prevention measures.

16489 Manual_Revised_12 0525 Page 3

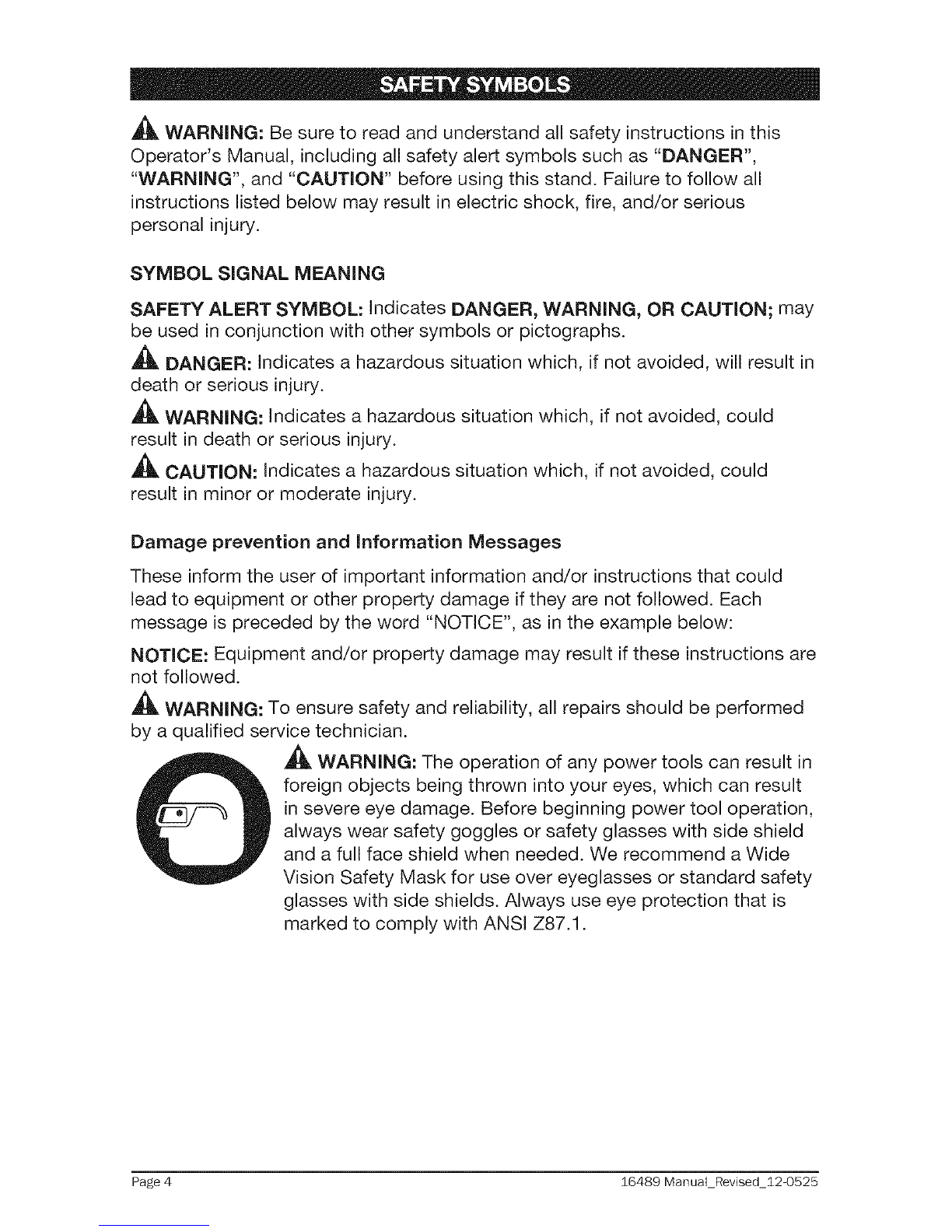

WARNING: Be sure to read and understand all safety instructions in this

Operator's Manual, including all safety alert symbols such as "DANGER",

"WARNING", and "CAUTION" before using this stand. Failure to follow all

instructions listed below may result in electric shock, fire, and/or serious

personal injury.

SYMBOL SIGNAL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION; may

be used in conjunction with other symbols or pictographs.

_IL DANGER: Indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING: Indicates a hazardous situation which, if not avoided, could

result in death or serious injury.

,_k CAUTION: Indicates a hazardous situation which, if not avoided, could

result in minor or moderate injury.

Damage prevention and Information Messages

These inform the user of important information and/or instructions that could

lead to equipment or other property damage if they are not followed. Each

message is preceded by the word "NOTICE", as in the example below:

NOTICE: Equipment and/or property damage may result if these instructions are

not followed.

,_ WARNING: To ensure safety and reliability, all repairs should be performed

by a qualified service technician.

,_ WARNING: The operation of any power tools can result in

foreign objects being thrown into your eyes, which can result

in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shield

and a full face shield when needed. We recommend a Wide

Vision Safety Mask for use over eyeglasses or standard safety

glasses with side shields. Always use eye protection that is

marked to comply with ANSI Z87.1.

Page 4 16489 ManuaLRevised_12 0525

SAVE THESE iNSTRUCTiONS

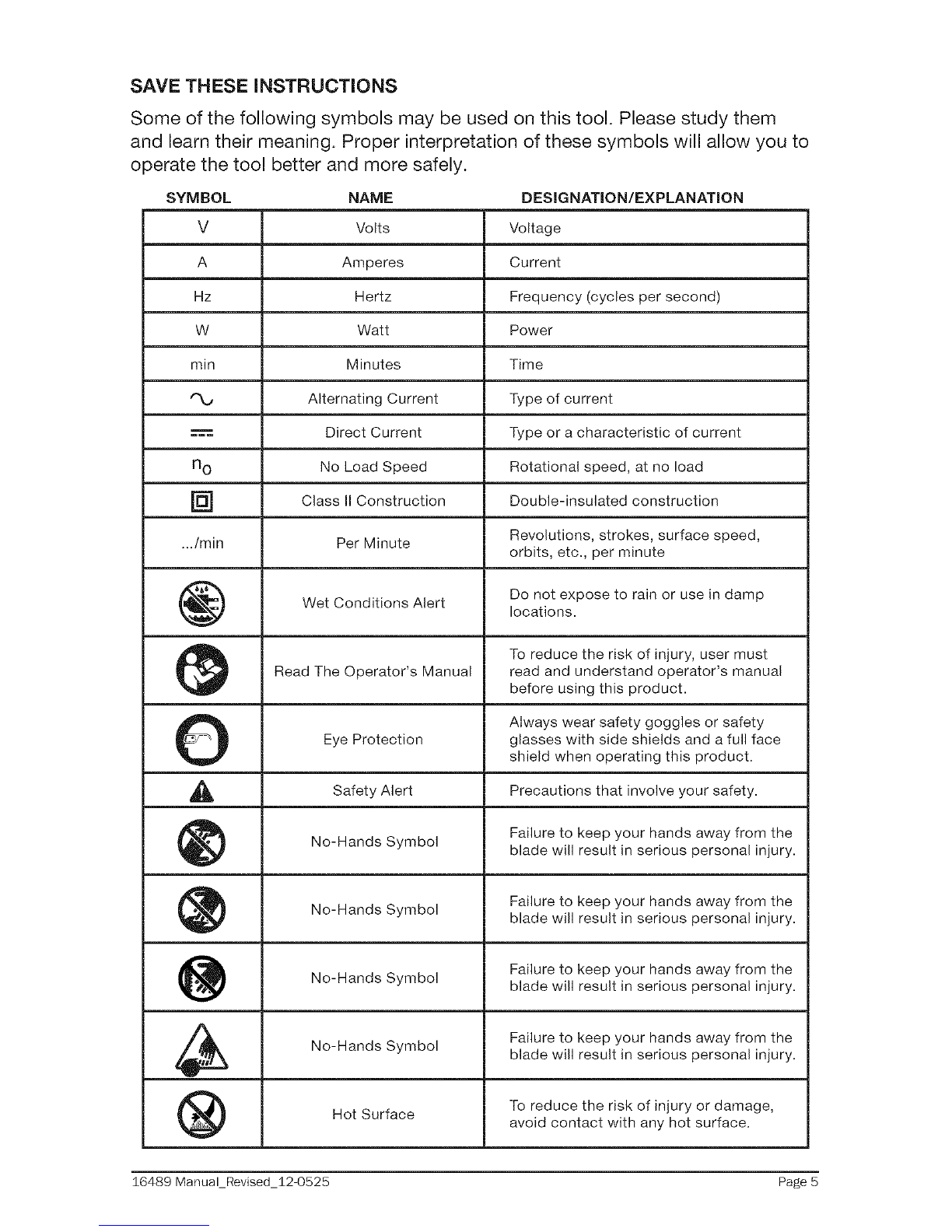

Some of the following symbols may be used on this tool. Please study them

and learn their meaning. Proper interpretation of these symbols will allow you to

operate the tool better and more safely.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watt Power

min Minutes Time

Alternating Current Type of current

Direct Current Type or a characteristic of current

n o No Load Speed Rotational speed, at no load

] Class II Construction Double-insulated construction

.../min Per Minute Revolutions, strokes, surface speed,

orbits, etc., per minute

Wet Conditions Alert Do not expose to rain or use in damp

locations.

To reduce the risk of injury, user must

Read The Operator's Manual read and understand operator's manual

before using this product.

Always wear safety goggles or safety

Eye Protection glasses with side shields and a full face

shield when operating this product.

Alert Precautions that involve

Safety your safety.

Failure to keep your hands away from the

No-Hands Symbol blade will result in serious personal injury.

No-Hands Failure to keep your hands away from the

Symbol blade will result in serious personal injury.

Failure to keep your hands away from the

No-Hands Symbol blade will result in serious personal injury.

No-Hands Symbol Failure to keep your hands away from the

blade will result in serious personal injury.

To reduce the risk of injury or damage,Hot Surface avoid contact with any hot surface.

16489 Manual_Revised_12 0525 Page 5

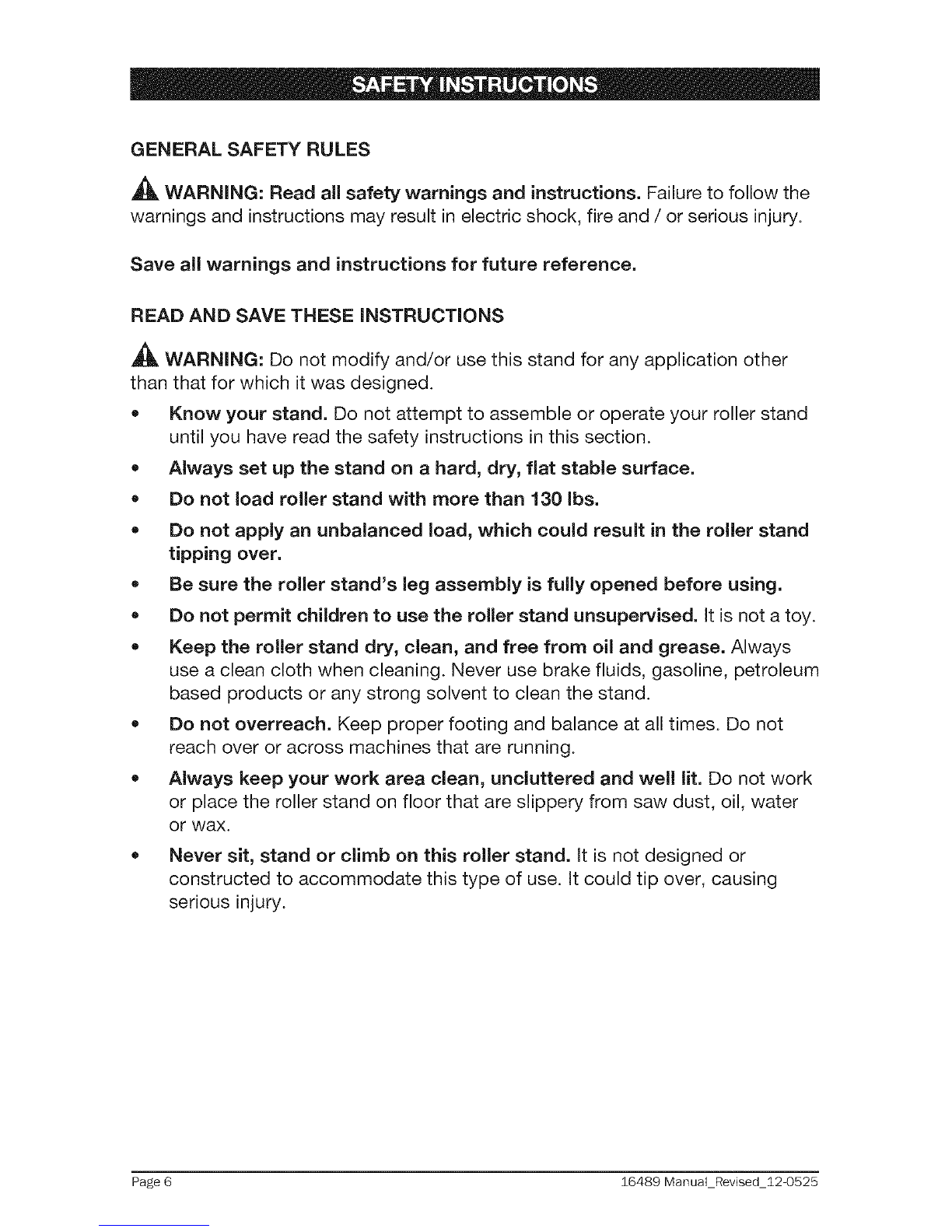

GENERAL SAFETY RULES

WARNING: Read all safety warnings and instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and /or serious injury.

Save all warnings and instructions for future reference.

READ AND SAVE THESE iNSTRUCTiONS

,'k WARNING: Do not modify and/or use this stand for any application other

than that for which it was designed.

• Know your stand. Do not attempt to assemble or operate your roller stand

until you have read the safety instructions in this section.

Always set up the stand on a hard, dry, flat stable surface.

= Do not load roller stand with more than 130 ibs.

=Do not apply an unbalanced load, which could result in the roller stand

tipping over.

= Be sure the roller stand's leg assembly is fully opened before using.

* Do not permit children to use the roller stand unsupervised, it is not a toy.

* Keep the roller stand dry, clean, and free from oil and grease. Always

use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum

based products or any strong solvent to clean the stand.

* Do not overreach. Keep proper footing and balance at all times. Do not

reach over or across machines that are running.

* Always keep your work area clean, uncluttered and well lit. Do not work

or place the roller stand on floor that are slippery from saw dust, oil, water

or wax.

= Never sit, stand or climb on this roller stand. It is not designed or

constructed to accommodate this type of use. It could tip over, causing

serious injury.

Page 6 16489 ManuaLRevised_12 0525

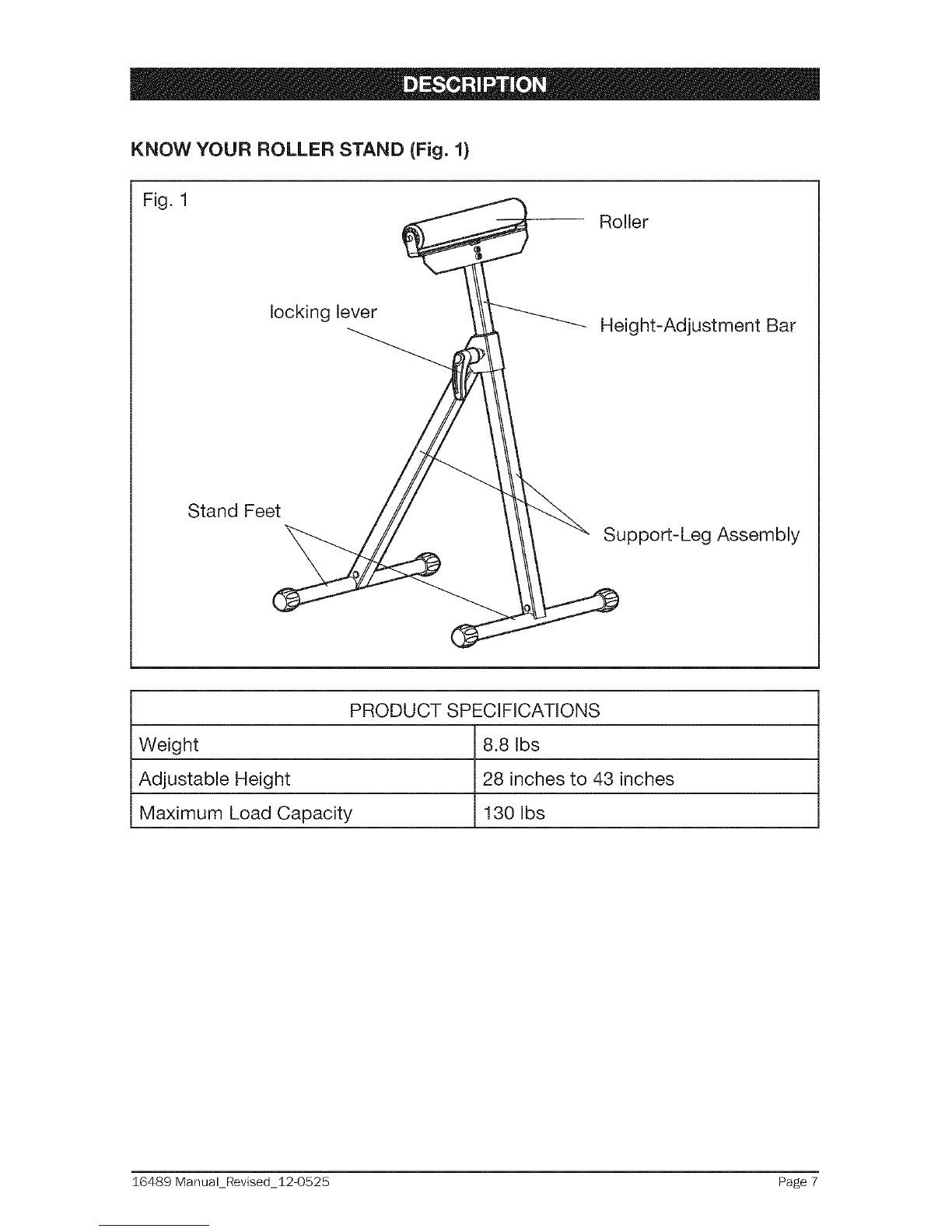

KNOW YOUR ROLLER STAND (Fig. 1)

Fig. 1 Roller

locking lever Height-Adjustment Bar

Stand Feet Support-Leg Assembly

PRODUCT SPECIFICATIONS

Weight 8.8 Ibs

Adjustable Height 28 inches to 43 inches

Maximum Load Capacity 130 Ibs

16489 Manual_Revised_12 0525 Page 7

,_ WARNING: If any parts are broken or missing, do not attempt to operate the

stand until the broken or missing part is replaced. Failure to do so could result in

possible serious injury.

,_ WARNING: Do not attempt to modify this stand or create accessories not

recommended for use with this stand. Any such alteration or modification is misuse

and could result in a hazardous condition leading to possible serious injury.

UNPACKING

This product has been shipped disassembled.

o Carefully remove all the parts and accessories from the carton. Make sure

that all items listed in the packing list are included.

o Inspect the stand carefully to make sure no breakage or damage occurred

during shipping.

e Do not discard the packing material until you have carefully inspected and

satisfactorily operated the stand.

• If any parts are damaged or missing, please return the stand to the place

of purchase.

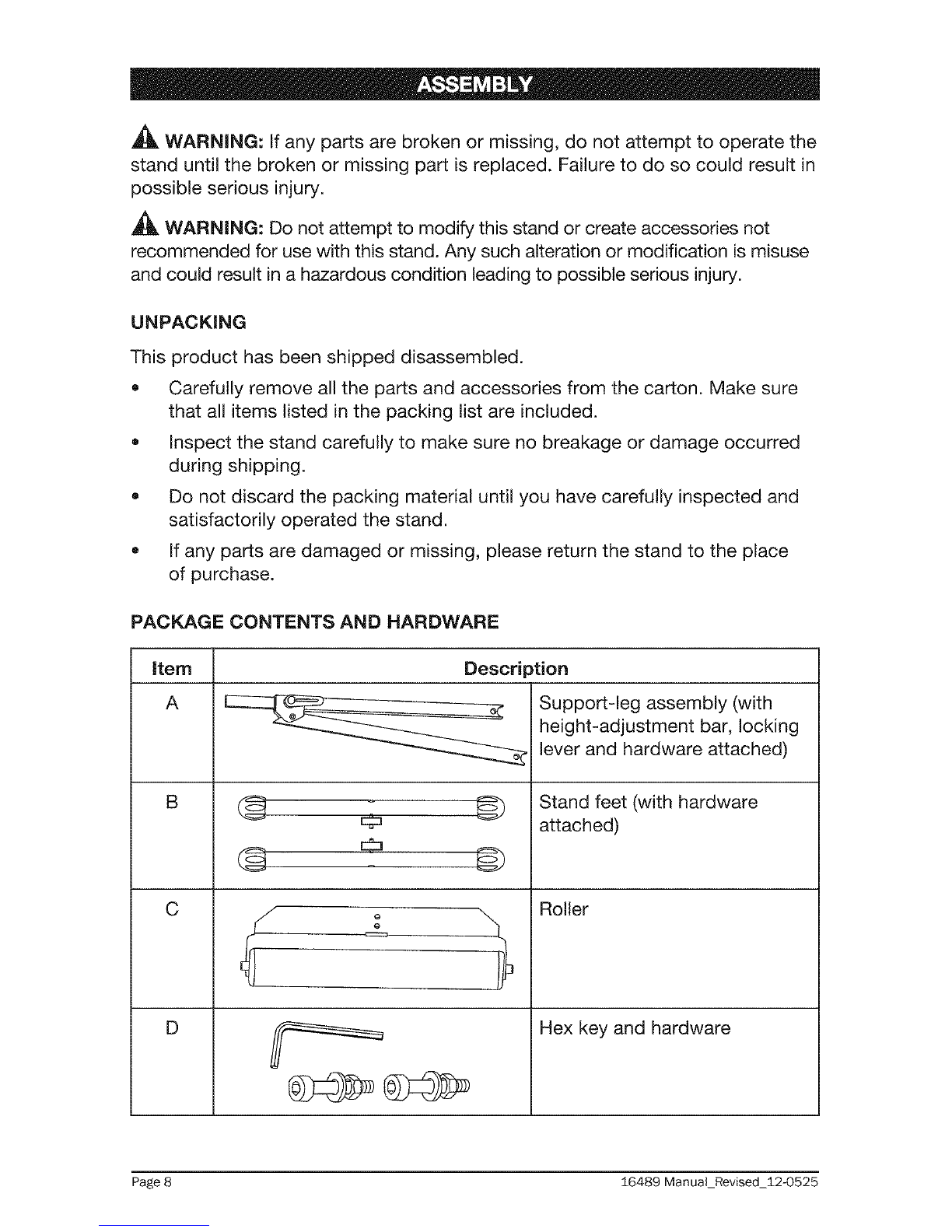

PACKAGE CONTENTS AND HARDWARE

Item

Description

Support-leg assembly (with

height-adjustment bar, locking

lever and hardware attached)

Stand feet (with hardware

attached)

Roller

Hex key and hardware

Page 8 ±6489 ManuaLRevised_12-0525

• IL WARNING: Do not use this tool for scaffolding or as a ladder. Make sure to

tighten the locking lever securely prior to use. Maximum capacity is 130 Ibs.

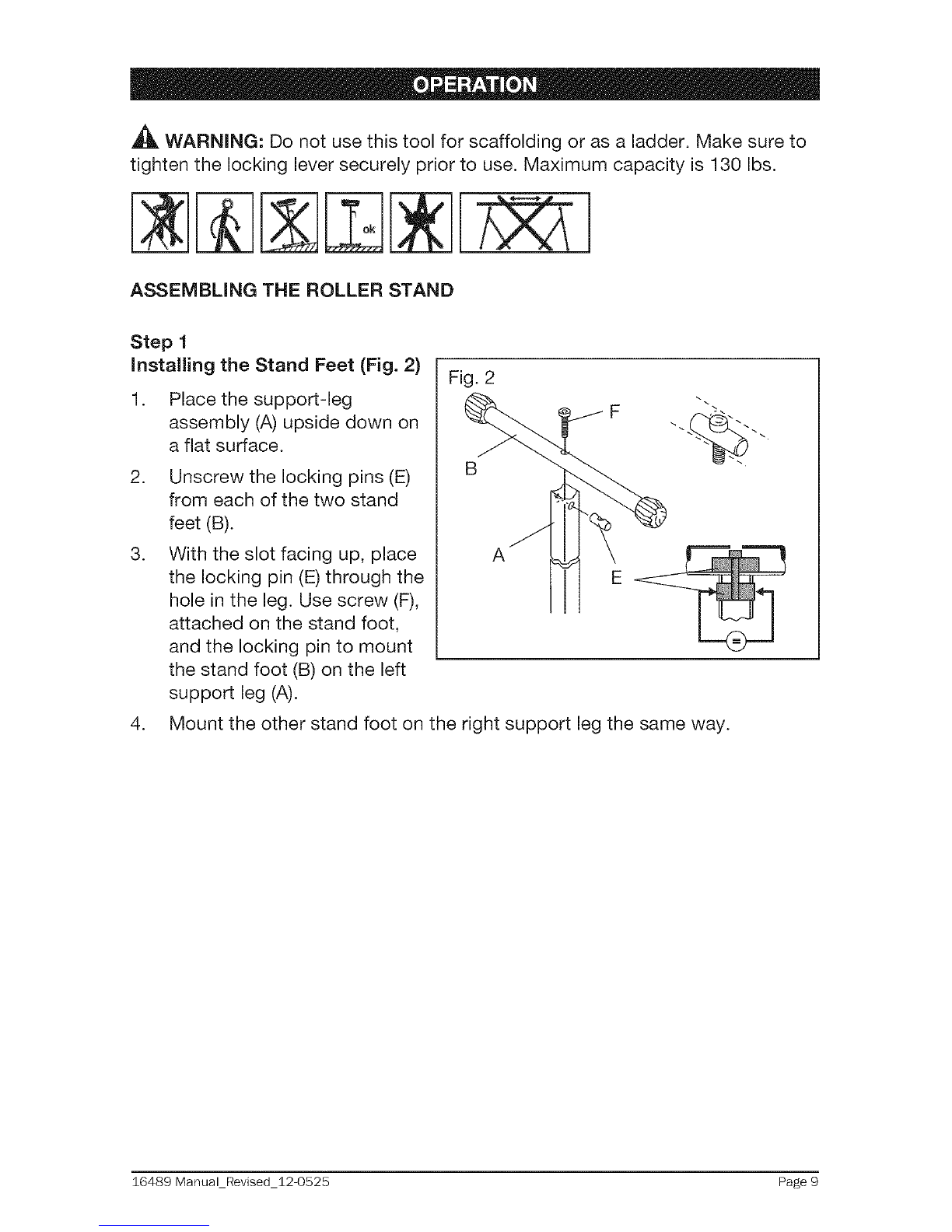

ASSEMBLING THE ROLLER STAND

Step 1

Installing the Stand Feet (Fig. 2)

1. Place the support-leg

assembly (A) upside down on

a flat surface.

Unscrew the locking pins (E)

from each of the two stand

feet (B).

With the slot facing up, place

the locking pin (E)through the

hole in the leg. Use screw (F),

attached on the stand foot,

and the locking pin to mount

the stand foot (B) on the left

support leg (A).

Fig. 2

4. Mount the other stand foot on the right support leg the same way.

16489 Manual_Revised_12 0525 Page 9

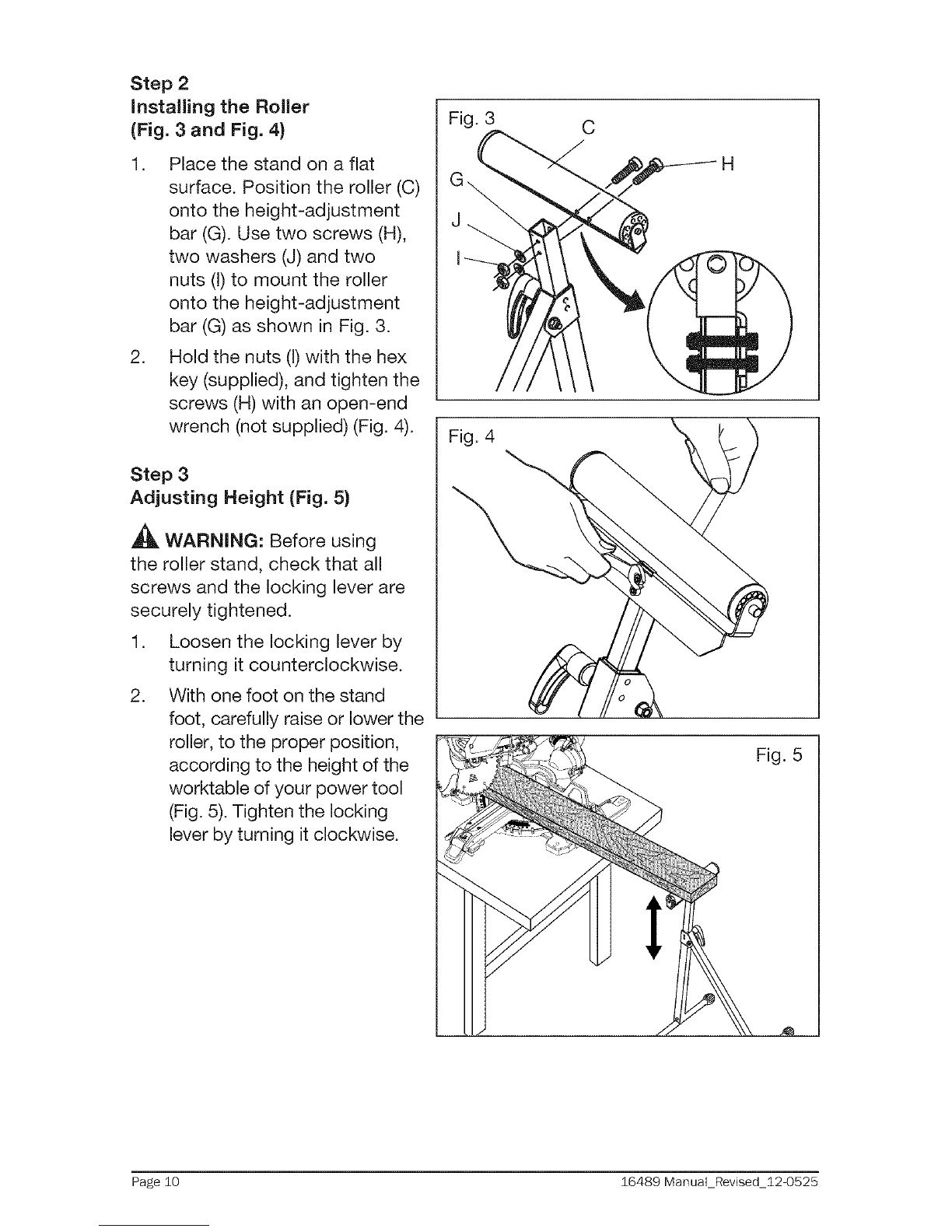

Step 2

Installing the Roller

(Fig. 3 and Fig. 4)

1. Place the stand on a flat

surface. Position the roller (C)

onto the height-adjustment

bar (G). Use two screws (H),

two washers (J) and two

nuts (I) to mount the roller

onto the height-adjustment

bar (G) as shown in Fig. 3.

2. Hold the nuts (I)with the hex

key (supplied), and tighten the

screws (H) with an open-end

wrench (not supplied) (Fig. 4).

Step 3

Adjusting Height (Fig. 5)

WARNING: Before using

the roller stand, check that all

screws and the locking lever are

securely tightened.

1. Loosen the locking lever by

turning it counterclockwise.

2. With one foot on the stand

foot, carefully raise or lower the

roller, to the proper position,

according to the height of the

worktable of your power tool

(Fig. 5). Tighten the locking

lever by turning it clockwise.

Fig. 3

Fig. 4

Page 10 16489 ManuaLRevised_12 0525

Table des matières

Langues :

Autres manuels Craftsman Accessoires

Craftsman

Craftsman 315.25790 Manuel utilisateur

Craftsman

Craftsman 183.287660 Guide de configuration rapide

Craftsman

Craftsman 509398 Manuel utilisateur

Craftsman

Craftsman 486.24635 Manuel utilisateur

Craftsman

Craftsman 875.204840 Manuel utilisateur

Craftsman

Craftsman CMXZDCG480 Manuel utilisateur

Craftsman

Craftsman 113.29931 Manuel utilisateur

Craftsman

Craftsman 572.530331 Manuel utilisateur

Craftsman

Craftsman 351.264271 Manuel utilisateur

Craftsman

Craftsman 509347 Manuel utilisateur

Craftsman

Craftsman 390.2519 Manuel utilisateur

Craftsman

Craftsman 944.511573 Manuel utilisateur

Craftsman

Craftsman 486.24275 Manuel utilisateur

Craftsman

Craftsman SP6721 Instructions d'utilisation

Craftsman

Craftsman ASF 486.246213 Manuel utilisateur

Craftsman

Craftsman 358.792450 Manuel utilisateur

Craftsman

Craftsman 320.64180 Manuel utilisateur

Craftsman

Craftsman 486.24275 Manuel utilisateur

Craftsman

Craftsman 240.74295 Manuel utilisateur

Craftsman

Craftsman 320.16495 Manuel utilisateur

Craftsman

Craftsman Trimmer Products Manuel utilisateur

Craftsman

Craftsman 486.24599 Manuel utilisateur

Craftsman

Craftsman 320.16494 Manuel utilisateur

Craftsman

Craftsman 358.792430 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
