CRAFTMASTER KM46MBS3 Manuel d'installation

SAFETY AND OPERATING MANUAL

46cm 3IN1 BRIGGS & STRATTON

ENGINE PETROL LAWN MOWER KM46MBS3

CAUTION: Carefully read this entire Instruction Manual before using this product

GENERAL POWER TOOL SAFETY

WARNINGS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings

and instructions may result in electric shock, re and/

or serious injury.

Save all warnings and instructions for future

reference.

SAFE OPERATION PRACTICES FOR

PEDESTRIAN-CONTROLLED ROTARY

LAWNMOWERS

1. TRAINING

a) Read the instructions carefully. Be familiar with

the controls and the proper use of the equipment;

b) Never allow children or people unfamiliar with

these instructions to use the lawnmower. Local

regulations can restrict the age of the operator;

c) Never mow while people, especially children, or

pets are nearby;

d) Keep in mind that the operator or user is

responsible for accidents or hazards occurring to

other people or their property.

2. PREPARATION

a) While mowing, always wear substantial footwear

and long trousers. Do not operate the equipment

when barefoot or wearing open sandals;

b) Thoroughly inspect the area where the equipment

is to be used and remove all objects which can be

thrown by the machine;

c) WARNING – Petrol is highly ammable

- Store fuel in containers specically designed for

this purpose;

- Refuel outdoors only and do not smoke while

refueling;

- Add fuel before starting the engine. Never remove

the cap of the fuel tank or add petrol while the

engine is running or when the engine is hot;

- If petrol is spilled, do not attempt to start the

engine but move the machine away from the

area of spillage and avoid creating any source of

ignition until petrol vapours have dissipated;

- Replace all fuel tank and container caps securely;

d) Replace faulty silencers;

e) Before using, always visually inspect to see that

the blade, blade bolts and cutter assembly are

not worn or damaged. Replace worn or damaged

blades and bolts in sets to preserve balance;

f) On multi-bladed machines, take care as rotating

one blade can cause other blades to rotate.

3. OPERATION

a) Do not operate the engine in a conned space

where dangerous carbon monoxide fumes can

collet;

b) Mow only in daylight or in good articial light;

c) Avoid operating the equipment in wet grass, where

feasible;

d) Always be sure of your footing on slopes;

e) Walk, never run;

f) For wheeled rotary machines, mow across the

face of slopes, never up and down;

g) Exercise extreme caution when changing direction

on slopes;

h) Do not mow excessively steep lopes;

i) Use extreme caution when reversing or pulling the

lawnmower towards you;

j) Stop the blade(s) if the lawnmower has to be tilted

for transportation when crossing surfaces other

than grass, and when transporting the lawnmower

to and from the area to be mowed;

k) Never operate the lawnmower with defective

guards, or without safety devices, for example

deectors and/or grass catchers, in place;

l) Do not change the engine governor settings or

overspeed the engine;

m) Disengage all blade and drive clutches before

starting the engine;

n) Start the engine or switch on the motor carefully

according to instructions and with feet well away

from the blade(s);

o) Do not tilt the lawnmower when starting the

engine or switching on the motor, except if the

lawnmower has to be tilted for starting. In this

case, do not tilt it more than absolutely necessary

and lift only the part which is away from the

operator;

p) Do not start the engine when standing in front of

the discharge chute;

q) Do not put hands or feet near or under rotating

parts. Keep clear of the discharge opening at all

times;

r) Never pick up or carry a lawnmower while the

engine is running;

s) Stop the engine and disconnect the spark plug

wire, make sure that all moving parts have come

to a complete stop and, where a key is tted

remove the key;

- Before clearing blockages or unclogging chute;

- Before checking, cleaning or working on the

lawnmower;

- After striking a foreign object. Inspect the

lawnmower for damage and make repairs before

restarting and operating the lawnmower;

- If lawnmower starts to vibrate abnormally (check

immediately);

t) Stop the engine and disconnect the spark plug

wire, make sure that all moving parts have come

to a complete stop and, where a key is tted

remove the key:

- Whenever you leave the lawnmower;

- Before refueling;

u) Reduce the throttle setting during engine shut

down and, if the engine is provided with a shut-

off valve, turn the fuel off at the conclusion of

mowing;

v) Go slow when using a trailing seat.

4. MAINTENANCE AND STORAGE

a) Keep all nuts, bolts and screws tight to be sure

the equipment is in safe working condition;

b) Never store the equipment with petrol in the tank

inside a building where fumes can reach an open

ame or spark;

c) Allow the engine to cool before storing in any

enclosure;

d) To reduce the re hazard, keep the engine,

silencer, battery compartment and petrol storage

area free of grass, leaves, or excessive grease;

e) Check the grass catcher frequently for wear or

deterioration;

f) Replace worn or damaged parts for safety;

g) If the fuel tank has to be drained, this should be

done outdoors.

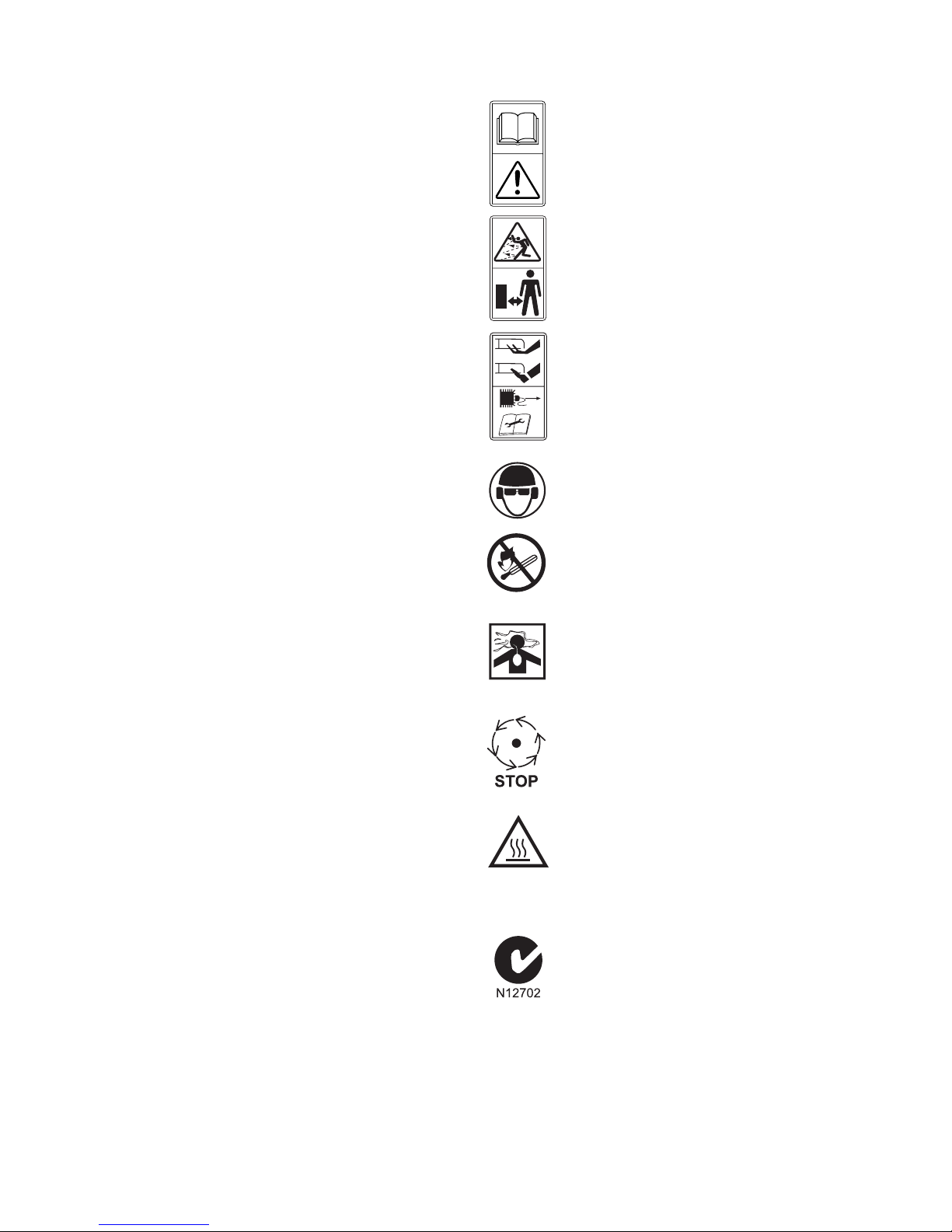

SYMBOLS

Read instruction handbook before

operation this machine.

Warning

Keep bystanders away.

Beware of sharp blades - remove spark plug

lead before maintenance.

Appropriate ear, eye, and head protection

must be worn.

Forbid smoking and ring

Warning! The lawnmower exhaust gas

contain poisonous substances. Do not run

the engine in closed or poorly ventilated

areas.

Blade continues to rotate after the machine

is switched off. Wait until all machine

components have completely stopped

before touching them.

Hot surfaces will burn ngers or palms

C-tick approval mark

18 15

1112

21 22 23 24

COMPONENT LIST

1. Foam Grip Handle

2. Throttle Lever

3. Upper Handle

4. Lock Cam Lever

5. Lower Handle

6. Cable Clip

7. 4-Stroke Engine (engine cover)

8. Air Filter Cover

9. Spark Plug Cap

10. Steel Deck

11. Mufer Cover

12. Oil Tank Cap

13. Pull Starter Handle

14. Cutting Height Adjustment Lever

15. Fuel Tank

16. Fastening Nut For Lower Handle

17. Fuel Tank Cap

18. Safety Flap

19. Grass Catcher

20. Pull Starter Hook

21. Socket Spanner For Spark Plug

22. Spanner

23. Side-discharge insert

24. Mulch insert

25. Primer (See Fig. I1)

Not all the accessories illustrated or described

are included in standard delivery.

ACCESSORIES

Plastic grass catcher 1

Side-discharge part 1

Mulching insert 1

Spanner 1

Socket spanner for spark plug 1

Cable clips 2

We recommend that you purchase your accessories

from the same store that sold you the tool. Use good

quality accessories marked with a well-known brand

name. Choose the type according to the work you intend

to undertake. Refer to the accessory packaging for

further details. Store personnel can assist you and offer

advice.

TECHNICAL SPECIFICATIONS

Engine displacement 125cc

Max cutting dia. Ø46cm

Cutting height range 19-70mm

Cutting height position 10

Fuel tank capacity 0.75L

Oil tank capacity 0.47L

Collection capacity 47L

Net weight 23kg

ASSEMBLY

WARNING! Lift your lawnmower from the carton

required two people. Make sure that you have

sufcient space to put the lawn mower down. Keep

your feet apart so that you have a stable position,

bend at the knees and keep your back straight.

1. ASSEMBLY OF THE HANDLE (See Fig. A1-B3)

1) Remove the four screws from the Lower Handle(5)

by the spanner (22) as shown in Fig.A1.

2) Fit the lower handle (5) to the steel deck as shown

in Fig. A2. Tighten it with the screws and nuts (16)

by the spanner (22). The nuts must be tted outside

of the deck. (See Fig. A3)

3) Remove the Lock Cam Lever (4) and the screw from

the Upper Handle (3). Fit the Upper Handle to the

Lower Handle (5) as shown in Fig.B1. Tighten the

screw with a spanner as shown in Fig. B2. Then

tighten the Lock Cam Lever (4) and lock it upwards

as shown in Fig.B3.

Fig.A1

Fig.A2

Fig.A3

Fig.B1

Fig.B2

Fig.B3

2. ASSEMBLY OF THE GRASS CATCHER OR THE SIDE-

DISCHARGE COVER (See Fig. C-G4)

There are two optional ways for grass discharging:

using the grass catcher or the side-discharge cover.

WARNING! Before you carry out any repairs

or servicing work on the mower, you must

ensure that the blade is not turning and that the

mower has been disconnected from the mains

supply.

The lawnmower shall not be operated without either

the entire grass collection catcher or the side-

discharge.

2.1 USING THE GRASS CATCHER

2.1.1 Removing the Mulch Insert (See Fig. C)

NOTE: Before using the grass catcher, you need to

remove the mulch insert rst.

1) STOP THE ENGINE, AND WAIT FOR BLADE TO COME TO

A COMPLETE STOP.

2) Raise the safety guard and hold it up.

3) Grasp the middle of the Mulch Insert, lift and pull

out the Mulch Insert completely.

4) The safety guard is spring loaded. When you release it,

the guard will return to the closed position.

Fig.C

2.1.2 Assembly of the Grass Catcher (See Fig. D1-D4)

1) Assemble the handle of the catcher according to

the process shown in Fig. D1,D2.

2) Assemble the two halves of grass catcher (19).

Snap together the top and bottom grass catcher

halves by pushing all the “snap ts” together

around the edges, start from the rear and work

towards the front as shown in Fig.D3,D4. Check

that all the “snap ts” engaged tightly.

Fig.D1

Fig.D2

Fig.D3

Fig.D4

2.1.3 Installing/Removing the Grass Catcher (See Fig.

E1, E2)

NOTE: Before using the grass catcher, make sure the

side-discharge is disassembled from the machine.

To disassemble the side-discharge, refer to ‘2.2.2

INSTALLING/REMOVING THE SIDE-DISCHARGE’.

1) Raise the safety ap (18) and hold it up.

2) Pick up the grass catcher (19) by the handle and

position grass catcher on the hooks on the mower

deck as shown in Fig. E1.

3) Release the safety ap. Ensure the grass catcher is

installed securely.

4) To removing the grass catcher, raise the safety ap

(18) and hold it up, lift the grass catcher to make

the hooks away from the mower deck.

Fig.E1

Fig.E2

2.2 USING THE SIDE-DISCHARGE

2.2.1 Installing the Mulch Insert (See Fig.F)

NOTE: Before using the side-discharge, you need to

install the mulch insert rst.

1) STOP THE ENGINE, AND WAIT FOR BLADE TO

COME TO A COMPLETE STOP.

2) Raise the safety guard and hold it up.

3) Remove the grass catcher (refer to ‘2.1.3

INSTALLING/REMOVING THE GRASS CATCHER’)

and slide the Mulch Insert (24) into the discharge

opening until it is rmly in contact with the deck.

4) Release safety guard and ensure it is properly

closed.

Fig.F

2.2.2 INSTALLING/REMOVING THE SIDE-DISCHARGE (See

Fig. G1-G4)

Using the Mulch Insert (24) and Side-Discharge

Chute(23), the grass can be discharged from the side-

discharge of the machine.

To assemble the side-discharge, remove the screws

from the side-discharge cover rst as shown in Fig.

G1. Then raise the side-discharge cover and hold it up

as shown in Fig.G2. Position the side-discharge onto

the hooks and aline the grooves as shown in Fig.G3,

then release the cover to lock the side-discharge into

position.

To disassemble the side-discharge, reverse above

steps.

Fig.G1

Fig.G2

Fig.G3

Fig.G4

OPERATION INSTRUCTION

1. BEFORE START THE ENGINE

CAUTION! The following procedures and

adjustments must be performed before the

engine is started. Do not attempt to make any of

these adjustments with the engine is running.

2. OIL TYPE

Always use high quality detergent oil classied SAE 30

oil. Never use additives with recommended oil.

To prolong the life of your engine it is important that

the oil is changed after the rst 5 hours of use - refer to

“Maintenance”.

3. FUEL TYPE

Always use clean, fresh unleaded petrol. Purchase fuel

in quantities that can be used within 30 days. Never

mix oil with petrol.

Fill to base of neck to allow for fuel expansion. Do not

overll the fuel tank.

4. FILLING WITH ENGINE OIL (See Fig. H1-H2)

CAUTION! To prevent engine damage the

engine is shipped without oil or petrol. The

engine must be lled with the correct grade of oil

and petrol before starting the engine.

Check the engine oil level with the engine stopped and

the mower on a level surface.

1) Remove the oil ller dipstick by hand or a

screwdriver and wipe oil from it with a clean cloth

or clean gloves (Fig. H1).

2) Insert the dipstick into the oil ller neck, but do not

screw it in.

3) Check the oil level. The oil level must between

the Min and Max marks on the dipstick (Fig. H2).

If near the lower level, ll to upper level with the

recommended oil (SAE30). Do not overll. Wipe

away any spilt oil.

NOTE: Running the engine with a low oil level will

cause engine damage. Recommend use high

detergent, premium quality 4-stroke engine oil. Use

non-detergent oil can shorten the engine’s service

life and using 2-stroke oil will damage the engine.

Fig.H1

Fig.H2

Max

Min

5. FILLING WITH FUEL

WARNING! Petrol is highly inammable and

extreme precaution must be taken when

handling or working with it. Keep out of reach of

children.

1) Clean the area around the petrol tank cap (17)

before removing the cap. Remove the warning

label, check the fuel level.

2) Rell the tank if the fuel level is low. Refuel

carefully to avoid overlling or spilling fuel. There

should be no fuel in the tank neck.

3) Clean up any overow or splash of petrol before

starting the engine.

4) Tighten the tank cap securely after lling.

Refuel in a well-ventilated area with the engine

stopped. Do not smoke or allow ames or sparks in

the area where the engine the engine is refueled or

where petrol is stored. Avoid repeated or prolonged

contact with skin or breathing of vapor.

NOTE: Petrol should be stores in an approved container.

Never buy or store more than 30 days supply of petrol.

Do not mix oil with petrol.

6. STARTING THE ENGINE (See Fig. I1-J3)

WARNING! Do not operate the machine in

a closed or poorly ventilated areas as the

exhaust gas contain poisonous substance. Keep

hands, feet, hair and clothing away from all the

moving parts of the machine. The exhaust and other

parts of the machine will become hot during use.

Make sure that the blade is securely fastened before

starting the engine.

NOTE: To start the engine, make sure that the spark

plug cap (9) is located on the spark plug and the

machine is lled with sufcient oil and petrol.

Step1: Throttle lever (2)-STARTING (Fig. I2)

For start a cold engine, press the Primer (25) 3 times.

For start a warm engine, move the throttle level to the

SLOW position.

Step2: Pull starter handle (13) (Fig. J1-J3)

With right hand, slowly but rmly pull the starter

handle and rope out until you felt resistance. Let the

rope recoil, then pull briskly. If the engine fails to start

after three pulls, repeat the start process. When the

engine starts, return the starter rope gently.

Pull the start handle to the hook and get the rope into

the hook.

Step3: Throttle lever (2)-RUNNING

Once the engine is running, move the throttle level to

the SLOW position (Fig. I2).

Clear a ooded engine

If the engine won’t start after you operated the starter

several times, the engine may be ooded with excess

fuel. Use following procedure to clear and start a

ooded engine.

1) Move the throttle level to STOP (Fig. I2).

2) Remove the spark plug, dry it, then reinstall it.

NOTE: Install the spark plug carefully by hand, to

avoid cross-threading. After the plug is seated,

tighten 1/8 to1/4 turn with socket spanner of spark

plug to compress the washer.

3) Press the Primer (25) 3 times.

4) Operate the starter as described above.

Fig.I1

Slow

Fast Stop

Fig.I2

Fig.J1

Fig.J2

Fig.J3

7. STOPPING THE ENGINE

Move the throttle lever to the STOP position (See Fig.

I2).

When the mower is not in use, turn the petrol tap to the

OFF position to prevent the possibility of carburetor

ooding, and to reduce the possibility of fuel leakage.

8. ADJUSTING THE CUTTING HEIGHT (See Fig.K)

WARNING! STOP THE ENGINE, AND WAIT FOR

BLADE TO COME TO A COMPLETE STOP. The

blades continue to rotate after the machine is switched

off, a rotating blade can cause injury.

CAUTION: Do not touch rotating blades.

For the rst cutting of the season, a high cutting

adjustment should be selected.

The lawnmower can be set to 10 cutting heights

between 19mm and 70mm. For this purpose, move the

Cutting Height Adjustment Lever (14) outwards then

adjust to the preferred position.

Fig.K

9. MOWING

Always observe the strictest safety

procedures when using the lawnmower.

Carefully read the safety instructions of this manual

before using the lawn mower.

Start the engine and allow it run. See “Starting the

engine”.

When wish to start mowing, move the throttle lever to

its

FAST

position (See Fig. I2).

To stop the engine, move the throttle lever to the

STOP

position (See Fig. I2).

Keep a rm grip on the upper handle and walk, never

run with the mower, be very careful when mowing

uneven or rough ground. Mow across slopes, never up

and down. Be careful when changing the direction of

the mower on a slope. Do not use the mower on a steep

slope of more than 20°.

The best result will be achieved if the grass is dry.

Wet grass will tend to clog the blade and the grass

collection system. Grass grows at different rates at

different time of the year.

Never use the lowest cutting height for the rst cut of

the season or in drought conditions. Only about one

thirds of the grass height should be cut.

If the lawnmower will not collect the cuttings efciently,

the grass discharge chute may be blocked. The grass

catcher may be full, or the underside of the mower deck

may be clogged.

10. EMPTY/ATTACH THE GRASS COLLECTION CATCHER

As soon as you see mown grass debris on the lawn, the

grass catcher needs to be emptied.

IMPORTANT! Before you remove the grass catcher,

move the throttle lever to the STOP position and wait

until the blade reaches a standstill.

1) To remove the grass catcher, raise the safety ap

with one hand and remove the grass catcher using

its handle with your other hand.

2) To maintain safety, the safety ap will close back to

cover the rear discharge opening, when you release

the ap.

3) Empty the grass debris in the glass collection

catcher, and ret glass catcher as above instruction.

4) If any grass residues are caught in the opening,

clean it using a pushing bar.

5) Do not remove grass debris in the mower casing or

on the blade by hand or with your feet. Instead use

suitable tools such as a brush or broom.

6) To ensure that the cutting grass can be blown into

glass catcher, the discharge opening and inside the

mower casing must be cleared of any blockage.

WARNING!

Before you carry out any repairs

or servicing work on the mower, you must

ensure that the blade is not turning and that the spark

plug cap has been disconnected from the spark plug.

The lawnmower shall not be operated without either

the entire grass collection box or the guard in place.

11. REPLACING THE BLADE (See Fig. L)

Maintain the sharpness of the blade when cutting grass

if the blade has worn excessively and becomes pitted or

blunt it should be replaced. The sharpness of the blade

will affect the performance of the lawn mower.

For safety reasons we recommend that the blade will

only be changed by persons qualied and authorized

to do so.

WARNING!

Before replacing the blade, ensure

that the engine is switched off and the spark

plug cap is disconnected and moved away from the

spark plug.

1) You will need garden gloves (not provided) and a

spanner wrench to remove the blade.

2) Hold the blade and unscrew the blade bolt

counterclockwise using a spanner (not provided).

Remove the washer and the blade.

3) Fit a new blade and bolt kit, locate the blade on the

two studs on the blade ange and then replace the

washer and bolts. Make sure the blade is correctly

located, then rmly tighten the bolt. Do not over

tighten.

The up turn of the blade must project into the motor

compartment.

Always handle the blade with care-sharp edges could

cause injury USE GLOVES

Renew your metal blade after 50Hrs mowing or 2yrs

which ever is sooner regardless of condition.

If the blade is cracked or damaged replace it with a

new one.

Table des matières

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
