Assembly manual for
Absolute Roller Blind 2.0
Absolute
Roller
Blind 2.0
2
ABSOLUTE ROLLER BLIND 2.0
2
ASSEMBLYMANUAL
RC2.0_R4_GB0
Version 2017-06-15: RC2.0_R4_GB0
Disclaimer
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form, by any means, electronic, mechanical, photocopying,
recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not
accept any responsibility for damage due to mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its
content at any time, without obligation to notify any person or entity of such revisions
or changes. The most recent version replaces older versions of this manual. The most
recent version is available at ww.coulisse.com or contact your Coulisse contact person.
We invite you to send remarks and comments about this manual to Coulisse at
3
ABSOLUTE ROLLER BLIND 2.0
3
ASSEMBLYMANUAL
RC2.0_R4_GB0
INDEX
Chain assembling 6
spring assist assembling 7
RC2004 assembling 11
Motor assembling 12
Spring assembling 13
RC-SA11 29
RC-SB11 30
RC-SC11 31
RC-SA20 32
RC-SB20 34
RC-SC20 36
RC-SA.. 38
RC-SA30 39
RC-SA31 40
RC-SA40 41
RC-SB.. 42
RC-SB30 43
RC-SB31 44
RC-SB40 45
RC-SC.. 46
RC-SC30 47
RC-SC31 48
RC-SC40 49
RC-MA11 50
RC-MB11 51
RC-MC11 52
RC-MA20 53
RC-MB20 55
RC-MC20 57
RC-MA.. 59
RC-MA30 60
RC-MA31 61
RC-MA40 62
RC-MB.. 63
RC-MB30 64
RC-MB31 65
RC-MB40 66
RC-MC.. 67
RC-MC30 68
RC-MC31 69
RC-MC40 70
RC-LA.. 71
RC-LA31 72
RC-LB.. 74
RC-LB31 75
Double roller side view 77
4
ABSOLUTE ROLLER BLIND 2.0
4
ASSEMBLYMANUAL
RC2.0_R4_GB0
Light gaps inch Cutting sizes inch ( system width - value )
Config Control-side Contra-side Tube Base-Profile Valance Mountingprofile
RC-XSA10 0,6 0,3 0,95
RC-XSA11 0,6 0,3 0,95 0,4
RC-XSA30 0,66 0,35 1,02 1,26
RC-XSA32 0,66 0,35 1,02 1,26
RC-XSC11 0,4 0,27 0,66 0,4
RC-XSC30 0,55 0,35 0,90 1,26
RC-XSC32 0,55 0,35 0,90 1,26
Light gaps inch Cutting sizes inch ( system width - value )
Config Control-side Contra-side Tube Base-Profile Valance Mountingprofile
RC-SA10 0,71 0,47* 1,18*
RC-SA11 0,71 0,47* 1,18* 0,59
RC-SA20 0,71 0,47* 1,18* 0,55
RC-SA30 0,71 0,75 1,46 0,55 0,95
RC-SA31 0,71 0,75 1,46 0,55 0,95
RC-SA40 0,71 0,75 1,46 0,55 0,55
RC-SB10 0,71 0,47* 1,18*
RC-SB11 0,71 0,47* 1,18* 0,59
RC-SB20 0,71 0,47* 1,18* 0,55
RC-SB30 0,71 0,75 1,46 0,55 0,55
RC-SB31 0,71 0,75 1,46 0,55 0,55
RC-SB40 0,71 0,75 1,46 0,55 0,55
RC-SC11 0,59 0,59 1,18
RC-SC20 0,59 0,59 1,18 0,55
RC-SC30 0,59 0,59 1,18 0,55 0,55
RC-SC31 0,59 0,59 1,18 0,55 0,55
RC-SC40 0,59 0,59 1,18 0,55 0,55
* add 0,27 inch to the value when using an adjustable bearing pin.
5
ABSOLUTE ROLLER BLIND 2.0
5
ASSEMBLYMANUAL
RC2.0_R4_GB0
Light gaps inch Cutting sizes inch ( system width - value )
Config Control-side Contra-side Tube Base-Profile Valance Mountingprofile
RC-MA10 0,79 0,47* 1,26*
RC-MA11 0,79 0,47* 1,26* 0,59
RC-MA20 0,79 0,47* 1,26* 0,55
RC-MA30 0,79 0,75 1,54 0,55 0,95
RC-MA30S 0,79 0,75 1,54 0,55 0,95
RC-MA31 0,79 0,75 1,54 0,55 0,95
RC-MA31S 0,79 0,75 1,54 0,55 0,95
RC-MA40 0,79 0,75 1,54 0,55 0,55
RC-MA50 0,79 0,75 1,54
RC-MA51 0,79 0,75 1,54
RC-MB10 0,95 0,47* 1,42*
RC-MB11 0,95 0,47* 1,42* 0,59
RC-MB20 0,95 0,47* 1,42* 0,55
RC-MB30 0,95 0,75 1,7 0,55 0,55
RC-MB30S 0,95 0,75 1,7 0,55 0,55
RC-MB31 0,95 0,75 1,7 0,55 0,55
RC-MB31S 0,95 0,75 1,7 0,55 0,55
RC-MB40 0,95 0,75 1,7 0,55 0,55
RC-MB50 0,95 0,75 1,7
RC-MB51 0,95 0,75 1,7
RC-MC10 0,59 0,59 1,18
RC-MC11 0,59 0,59 1,18
RC-MC20 0,59 0,59 1,18 0,55 0,55
RC-MC22 0,59 0,59 1,18 0,55 0,55
RC-MC30 0,59 0,59 1,18 0,55 0,55
RC-MC31 0,59 0,59 1,18 0,55 0,55
RC-MC40 0,59 0,59 1,18 0,55 0,55
RC-MC50 0,59 0,59 1,18
RC-MC51 0,59 0,59 1,18
Light gaps inch Cutting sizes inch ( system width - value )
Config Control-side Contra-side Tube Base-Profile Valance Mountingprofile
RC-LA10 0,79 0,47* 1,26*
RC-LA31 0,79 0,75 1,54 0,55 0,95
RC-LB10 0,95 0,47* 1,42*
RC-LB31 0,95 0,75 1,7 0,55 0,55
* add 0,27 inch to the value when using an adjustable bearing pin.
6
ABSOLUTE ROLLER BLIND 2.0
6
ASSEMBLYMANUAL
RC2.0_R4_GB0

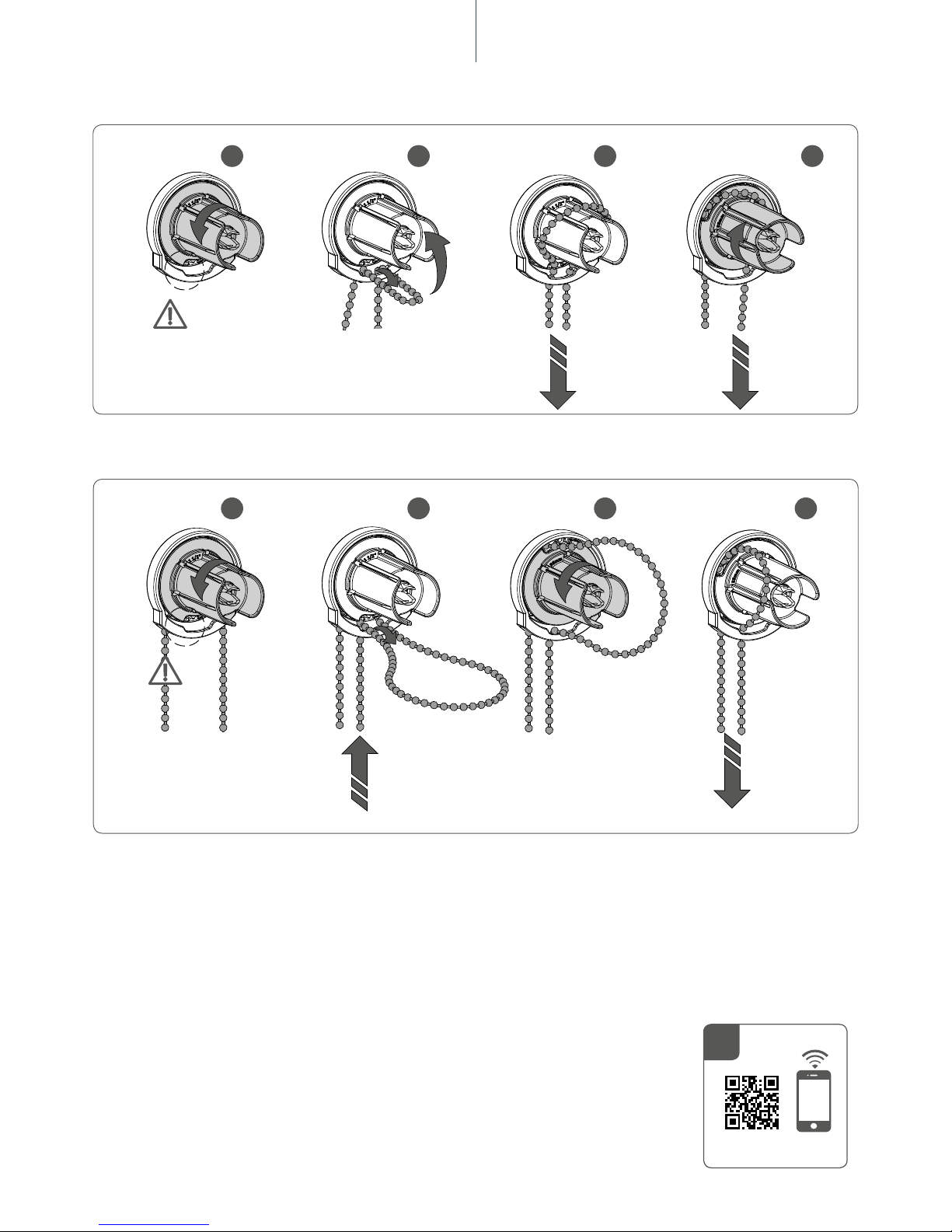

Chain assembling
1 2 3
1 2 3
Chain removal
4
4
QR
rtube.nl/red300
7
ABSOLUTE ROLLER BLIND 2.0
7
ASSEMBLYMANUAL
RC2.0_R4_GB0
Spring assist assembling
Height Width
60 in 71 in 79 in 91 in 99 in 111 in
40 in 2 3 3 5 6 6
60 in 1 2 2 4 5 7
79 in 0 2 3 5 6 8
99 in 0 1 3 4 6 9
119 in 0 1 2 5 7 8
Height Width
60 in 71 in 79 in 91 in 99 in 111 in
40 in 3 5 6 8 9 11
60 in 4 5 7 8 10 13
79 in 3 6 8 11 12 15
99 in 4 7 9 12 13 16
119 in 4 9 10 13 16 19
Thin transparant (± weight 4,5 oz/yd2², ± thickness 0,0118 inch)
Light bottom bar (± 6,0 oz/yd (RBRR, RCA-04, PTC25, PTB-X-300)
Light bottom bar (± 6,0 oz/yd (RBRR, RCA-04, PTC25, PTB-X-300)
Thick transparant (± weight 7,4 oz/yd2, ± thickness 0,0138 inch)
mentioned rotations are indicative: values +/- 2 rotation.
Pre-rotation chart
Low lifting weight, Spring type 650
Heavy lifting weight, Spring type 410
8
ABSOLUTE ROLLER BLIND 2.0
8
ASSEMBLYMANUAL
RC2.0_R4_GB0
Height Width
60 in 71 in 79 in 91 in 99 in 111 in
40 in 5 8 9 11 12 14
60 in 6 9 10 13 15 18
79 in 7 10 13 16 17 20
99 in 8 11 14 19 20 25
119 in 9 14 17 20 23 27
Height Width
60 in 71 in 79 in 91 in 99 in 111 in
40 in 5 6 8 9 11 12
60 in 4 7 9 10 12 15
79 in 5 8 10 13 14 17
99 in 5 8 11 14 15 20
119 in 6 9 12 15 18 21
Height Width
60 in 71 in 79 in 91 in 99 in 111 in
40 in 11 14 15 18 9 11
60 in 12 15 18 21 10 12
79 in 13 17 20 10 11 13
99 in 14 18 23 9 12 14
119 in 15 21 7 10 13 16
Thin screen (± weight 13.3 oz/yd2², ± thickness 0,0216 inch)
Thick screen (± weight 16.2 oz/yd2², ± thickness 0,0236 inch)
Black out (± weight 10.3 oz/yd2², ± thickness 0,0178 inch)
Heavy bottom bar (± 14,5 oz/yd (RC3032, RCU-26, PTB25-X-300-1)
Heavy bottom bar (± 14,5 oz/yd (RC3032, RCU-26, PTB25-X-300-1)
Heavy bottom bar (± 14.5 oz/yd (RC3032, RCU-26, PTB25-X-300-1)
Low lifting weight, Spring type 650
Heavy lifting weight, Spring type 410
Tip: load the spring a few rotations more than indicated in the
table. When inspecting the rollo after assembly, pull up the
bottomrail over the rollerblind tube to unload the spring one
turn. Operate the rollerblind to test if the pulling force up &
down are more or less equal. If not, repeat the action.
mentioned rotations are indicative: values +/- 2 rotations.
9
ABSOLUTE ROLLER BLIND 2.0
9
ASSEMBLYMANUAL
RC2.0_R4_GB0
RC3001
RC3002
RC3003
RC3011*
RC3015*
RC3016*
RCSA-650-L
RCSA-650-R
RCSA-410-L
RCSA-410-R
RC3026 RTU-42
RTU-50
1
2
10
ABSOLUTE ROLLER BLIND 2.0
10
ASSEMBLYMANUAL
RC2.0_R4_GB0
Pre-rotations
Right control
Left control
+
Add tension
+
Add tension
1
2
2
1
