Costway ES10144US-WH Manuel utilisateur
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
TOWER FAN
ES10144US-WH
USER’S MANUAL
Introduction
General description
Important : Please read this manual carefully before using the
appliance as dangers may occur under incorrect operation.
Danger
-This unit operates with the voltage of 120V, do not open it to avoid a
possible electric shock.
-Do not do any repairs yourself. Always consult to the qualified
professional.
120V,60HZ

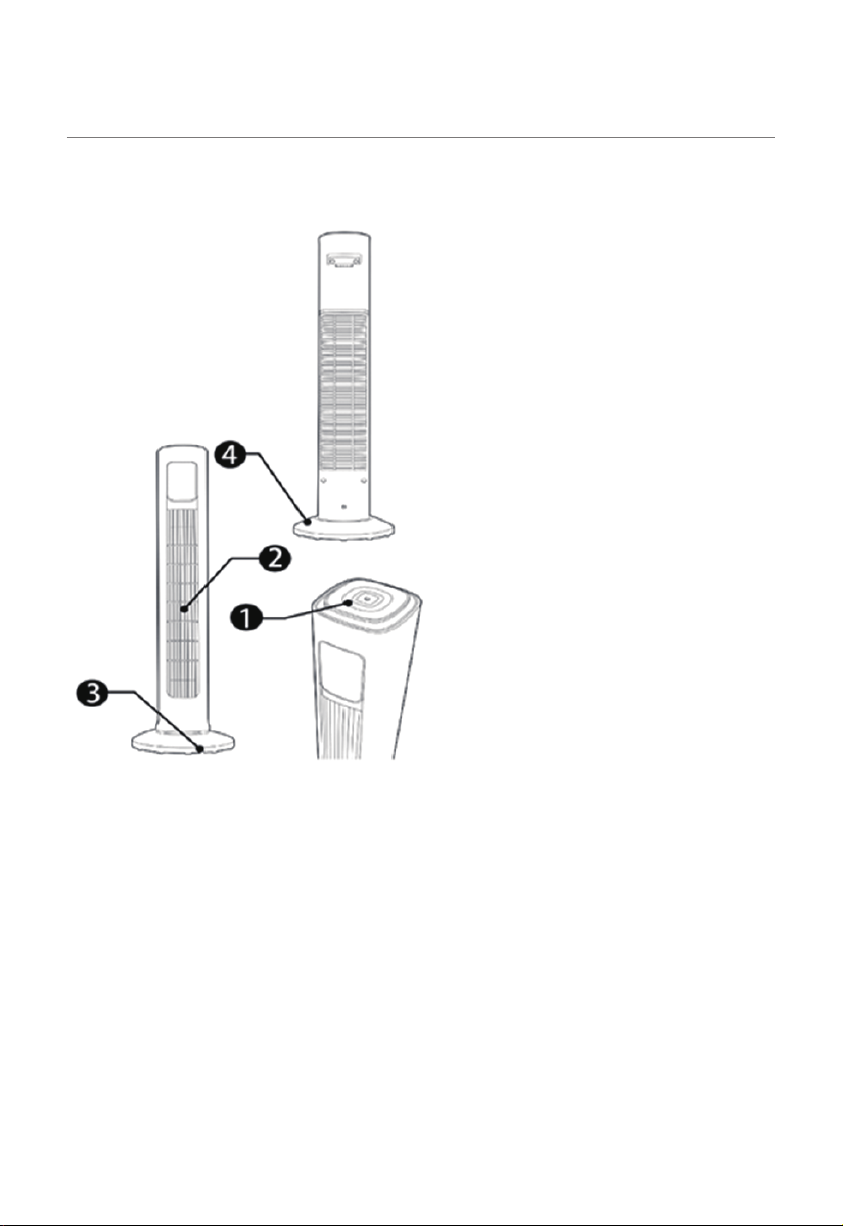

1. Control Panel
2. Air Outlet
3. Power Cord
4. Base
02
Warnings
1. This product is not suitable for use by children at age of 8 or
younger.
2. Before using the tower fan. Please make sure the voltage used fits
the rated power supply on the nameplate.
3. Do not use this product if the power cord plug or other components
are damaged.
4. When the power cord is damaged, do not replace it yourself in
order to avoid danger. It must be repaired by professionals.
5. Please use this fan on the level ground. Do not tilt or tip the fan.
6. Do not put your fingers or other objects into the air inlet net when
using the fan.
7. Do not immerse the wires or plugs in water or other liquids to
avoid the risk of electric shock.
8. Keep the machine and wires away from heat direct sun light,
moisture, sharp edges, and other environments.
9. When moving the product. Please turn off the power and unplug
the power supply. When the fan is stationary, move it gently to
prevent it from being strongly impacted.
10. Do not operate the machine by wet hands.
11. This product is only for household use, and the fan parts are
easily blocked by oil, so avoid using it in places like kitchen which is
filled with smoke and oil.
12. If it is not used for a long time, please unplug the power cord to
cut off the power of the product, and put it in the carton, then put the
box in a place where it is dry and airy.
13. When going out, be sure to cut off the power of the product or
unplug the power cord.
14. Do not immerse the motor body in water or rinse it under the
damp.
03
Assembly
1. Fasten the front and rear chassis to each other.
2. Unscrew the nut counterclockwise.
3. Thread the power cord through the center hole of the chassis.
4. Align the positioning holes.
5. Tighten the nut clockwise.
Using the Appliance
Three main functions are operated through the control panel on the
top of the Tower Fan
1. TIMER: Repeat this button, the time unit is 1 hour, and the timing
time is up to 15 hours.
2. Oscillation: Press this button to rotate the fan. If you want the
fan to blow the air at one direction, you can press this button again to
stop its oscillation.
3. Power: Repeatedly press the button to select the output strength.
Environmental Protection
Waste electrical products should not be disposed of with household
waste. Please recycle them where facilities exist.
Technical Parameters
Model
JTF-05-R
Voltage
120V
Power
60W
04
Care and Cleaning
1. Shut down and unplug the power cord.
2. Clean the shell, gently wipe unit with a cloth. Do not use alcohol,
gasoline, or other solvent cleaning.
3. Use a long dry soft brush to clean the dust on the grid and the
wind wheel.
4. Product storage, put unit in the carton, and place the box in the
shade.
05
EN
DE
FR
ES
IT
PL
With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN
SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu
bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une EXPÉRIENCE
D’ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti
ESPERIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO EFFICIENTE!
Dzięki twojej opinii COSTWAY będzie mógł oferować jeszcze WYGODNIEJSZE
ZAKUPY, LEPSZE PRODUKTY i SPRAWNIEJSZĄ OBSŁUGĘ KLIENTA.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville
PL office: Gdańsk
